Implements a HTTPS socket client based on the SSL client. More...

#include "httpsclient.h"

Inheritance diagram for dpp::https_client:

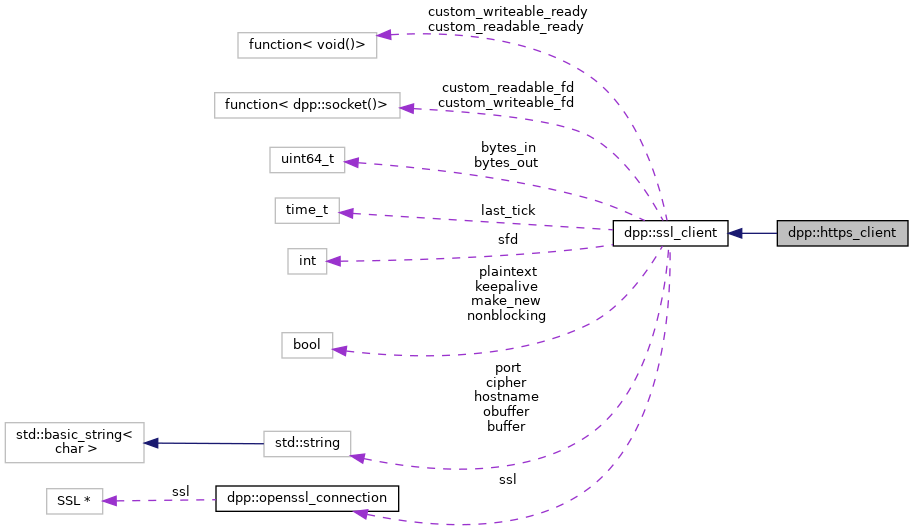

Collaboration diagram for dpp::https_client:

[legend]

Public Member Functions
	https_client (const std::string &hostname, uint16_t port=443, const std::string &urlpath="/", const std::string &verb="GET", const std::string &req_body="", const http_headers &extra_headers={}, bool plaintext_connection=false, uint16_t request_timeout=5, const std::string &protocol="1.1")
	Connect to a specific HTTP(S) server and complete a request. More...

virtual	~https_client ()=default
	Destroy the https client object. More...

virtual void	close ()
	Close HTTPS socket. More...

uint64_t	get_bytes_in ()
	Get total bytes received. More...

uint64_t	get_bytes_out ()
	Get the bytes out objectGet total bytes sent. More...

std::string	get_cipher ()
	Get SSL cipher name. More...

const std::string	get_content () const
	Get the response content. More...

const std::string	get_header (std::string header_name) const
	Get a HTTP response header. More...

size_t	get_header_count (std::string header_name) const
	Get the number of headers with the same header name. More...

const std::list< std::string >	get_header_list (std::string header_name) const
	Get a set of HTTP response headers with a common name. More...

const std::multimap< std::string, std::string >	get_headers () const
	Get all HTTP response headers. More...

uint16_t	get_status () const
	Get the response HTTP status, e.g. More...

virtual bool	handle_buffer (std::string &buffer)
	Processes incoming data from the SSL socket input buffer. More...

virtual void	log (dpp::loglevel severity, const std::string &msg) const
	Log a message. More...

virtual void	one_second_timer ()
	Fires every second from the underlying socket I/O loop, used for timeouts. More...

void	read_loop ()
	Nonblocking I/O loop. More...

virtual void	write (const std::string &data)
	Write to the output buffer. More...

Static Public Member Functions
static multipart_content	build_multipart (const std::string &json, const std::vector< std::string > &filenames={}, const std::vector< std::string > &contents={}, const std::vector< std::string > &mimetypes={})
	Build a multipart content from a set of files and some json. More...

static http_connect_info	get_host_info (std::string url)
	Break down a scheme, hostname and port into a http_connect_info. More...

Public Attributes
socket_callback_t	custom_readable_fd
	Attaching an additional file descriptor to this function will send notifications when there is data to read. More...

socket_notification_t	custom_readable_ready
	This event will be called when you can read from the custom fd. More...

socket_callback_t	custom_writeable_fd
	Attaching an additional file descriptor to this function will send notifications when you are able to write to the socket. More...

socket_notification_t	custom_writeable_ready
	This event will be called when you can write to a custom fd. More...

bool	keepalive
	True if we are keeping the connection alive after it has finished. More...

Protected Member Functions
virtual void	connect ()
	Start the connection. More...

http_state	get_state ()
	Get request state. More...

Protected Attributes
std::string	buffer
	Input buffer received from socket. More...

uint64_t	bytes_in
	Bytes in. More...

uint64_t	bytes_out
	Bytes out. More...

std::string	cipher
	SSL cipher in use. More...

std::string	hostname
	Hostname connected to. More...

time_t	last_tick
	For timers. More...

bool	make_new
	True if we are establishing a new connection, false if otherwise. More...

bool	nonblocking
	True if in nonblocking mode. More...

std::string	obuffer
	Output buffer for sending to socket. More...

bool	plaintext
	True for a plain text connection. More...

std::string	port
	Port connected to. More...

dpp::socket	sfd
	Raw file descriptor of connection. More...

openssl_connection *	ssl
	Openssl opaque contexts. More...

Detailed Description

Implements a HTTPS socket client based on the SSL client.

Note: plaintext HTTP without SSL is also supported via a "downgrade" setting

Constructor & Destructor Documentation

◆ https_client()

dpp::https_client::https_client	(	const std::string &	hostname,
		uint16_t	port = `443`,
		const std::string &	urlpath = `"/"`,
		const std::string &	verb = `"GET"`,
		const std::string &	req_body = `""`,
		const http_headers &	extra_headers = `{}`,
		bool	plaintext_connection = `false`,
		uint16_t	request_timeout = `5`,
		const std::string &	protocol = `"1.1"`
	)

Connect to a specific HTTP(S) server and complete a request.

The constructor will attempt the connection, and return the content. By the time the constructor completes, the HTTP request will be stored in the object.

Note: This is a blocking call. It starts a loop which runs non-blocking functions within it, but does not return until the request completes. See queues.cpp for how to make this asynchronous.

Parameters

hostname	Hostname to connect to
port	Port number to connect to, usually 443 for SSL and 80 for plaintext
urlpath	path part of URL, e.g. "/api"
verb	Request verb, e.g. GET or POST
req_body	Request body, use dpp::https_client::build_multipart() to build a multipart MIME body (e.g. for multiple file upload)
extra_headers	Additional request headers, e.g. user-agent, authorization, etc
plaintext_connection	Set to true to make the connection plaintext (turns off SSL)
request_timeout	How many seconds before the connection is considered failed if not finished
protocol	Request HTTP protocol (default: 1.1)

References dpp::unicode_emoji::v.

◆ ~https_client()

virtual dpp::https_client::~https_client ( )

virtualdefault

Destroy the https client object.

Member Function Documentation

◆ build_multipart()

multipart_content dpp::https_client::build_multipart	(	const std::string &	json,
		const std::vector< std::string > &	filenames = `{}`,
		const std::vector< std::string > &	contents = `{}`,
		const std::vector< std::string > &	mimetypes = `{}`
	)

static

Build a multipart content from a set of files and some json.

Parameters

json	The json content
filenames	File names of files to send
contents	Contents of each of the files to send
mimetypes	MIME types of each of the files to send

Returns: multipart mime content and headers

Referenced by main().

Here is the caller graph for this function:

◆ close()

void dpp::https_client::close ( )

virtual

Close HTTPS socket.

Reimplemented from dpp::ssl_client.

◆ connect()

void dpp::https_client::connect ( )

protectedvirtual

Start the connection.

Reimplemented from dpp::ssl_client.

◆ get_bytes_in()

uint64_t dpp::ssl_client::get_bytes_in ( )

inherited

Get total bytes received.

Returns: uint64_t bytes received

References dpp::ssl_client::bytes_in.

◆ get_bytes_out()

uint64_t dpp::ssl_client::get_bytes_out ( )

inherited

Get the bytes out objectGet total bytes sent.

Returns: uint64_t bytes sent

References dpp::ssl_client::bytes_out.

◆ get_cipher()

std::string dpp::ssl_client::get_cipher ( )

inherited

Get SSL cipher name.

Returns: std::string ssl cipher name

References dpp::ssl_client::cipher.

◆ get_content()

const std::string dpp::https_client::get_content ( ) const

Get the response content.

Returns: response content

Referenced by dpp::http_request::http_request().

Here is the caller graph for this function:

◆ get_header()

const std::string dpp::https_client::get_header ( std::string header_name ) const

Get a HTTP response header.

Parameters

header_name Header name to find, case insensitive

Returns: Header content or empty string if not found. If multiple values have the same header_name, this will return one of them.

See also: get_header_count to determine if multiple are present; get_header_list to retrieve all entries of the same header_name

Referenced by dpp::http_request::complete(), and main().

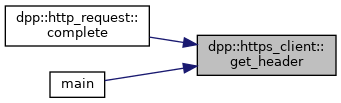

Here is the caller graph for this function:

◆ get_header_count()

size_t dpp::https_client::get_header_count ( std::string header_name ) const

Get the number of headers with the same header name.

Parameters

header_name

Returns: the number of headers with this count

◆ get_header_list()

const std::list< std::string > dpp::https_client::get_header_list ( std::string header_name ) const

Get a set of HTTP response headers with a common name.

Parameters

header_name

Returns: A list of headers with the same name, or an empty list if not found

References dpp::HTTPS_HEADERS.

◆ get_headers()

const std::multimap< std::string, std::string > dpp::https_client::get_headers ( ) const

Get all HTTP response headers.

Returns: headers as a map

Referenced by dpp::http_request::http_request().

Here is the caller graph for this function:

◆ get_host_info()

http_connect_info dpp::https_client::get_host_info ( std::string url )

static

Break down a scheme, hostname and port into a http_connect_info.

All but the hostname portion are optional. The path component should not be passed to this function.

Parameters

url	URL to break down

Returns: Split URL

Referenced by main().

Here is the caller graph for this function:

◆ get_state()

http_state dpp::https_client::get_state ( )

protected

Get request state.

Returns: request state

References dpp::http_connect_info::is_ssl, dpp::http_connect_info::port, and dpp::http_connect_info::scheme.

◆ get_status()

uint16_t dpp::https_client::get_status ( ) const

Get the response HTTP status, e.g.

200 for OK, 404 for not found, 429 for rate limited. A value of 0 indicates the request was not completed.

Returns: uint16_t HTTP status

References dpp::ssl_client::close(), and dpp::HTTPS_DONE.

Referenced by dpp::http_request::http_request().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handle_buffer()

bool dpp::https_client::handle_buffer ( std::string & buffer )

virtual

Processes incoming data from the SSL socket input buffer.

Parameters

buffer The buffer contents. Can modify this value removing the head elements when processed.

Reimplemented from dpp::ssl_client.

References dpp::HTTPS_CHUNK_LEN, dpp::HTTPS_CONTENT, dpp::unicode_emoji::key, and dpp::utility::tokenize().

Here is the call graph for this function:

◆ log()

void dpp::ssl_client::log	(	dpp::loglevel	severity,
		const std::string &	msg
	)		const

virtualinherited

Log a message.

Parameters

severity	severity of log message
msg	Log message to send

Reimplemented in dpp::discord_voice_client, and dpp::discord_client.

Referenced by dpp::ssl_client::read_loop().

Here is the caller graph for this function:

◆ one_second_timer()

void dpp::https_client::one_second_timer ( )

virtual

Fires every second from the underlying socket I/O loop, used for timeouts.

Reimplemented from dpp::ssl_client.

◆ read_loop()

void dpp::ssl_client::read_loop ( )

inherited

Nonblocking I/O loop.

Exceptions

std::exception Any std::exception (or derivative) thrown from read_loop() causes reconnection of the shard

References dpp::ssl_client::buffer, dpp::ssl_client::bytes_in, dpp::ssl_client::bytes_out, dpp::ssl_client::custom_readable_fd, dpp::ssl_client::custom_readable_ready, dpp::ssl_client::custom_writeable_fd, dpp::ssl_client::custom_writeable_ready, DPP_BUFSIZE, dpp::err_invalid_socket, dpp::err_nonblocking_failure, dpp::err_socket_error, dpp::ssl_client::handle_buffer(), INVALID_SOCKET, dpp::ssl_client::last_tick, dpp::ll_warning, dpp::ssl_client::log(), dpp::ssl_client::nonblocking, dpp::ssl_client::obuffer, dpp::ssl_client::one_second_timer(), dpp::ssl_client::plaintext, dpp::set_nonblocking(), dpp::ssl_client::sfd, dpp::openssl_connection::ssl, and dpp::ssl_client::ssl.

Here is the call graph for this function:

◆ write()

void dpp::ssl_client::write ( const std::string & data )

virtualinherited

Write to the output buffer.

Parameters

data	Data to be written to the buffer

Note: The data may not be written immediately and may be written at a later time to the socket.

Reimplemented in dpp::websocket_client.

References dpp::err_ssl_write, dpp::err_write, INVALID_SOCKET, dpp::ssl_client::nonblocking, dpp::ssl_client::obuffer, dpp::ssl_client::plaintext, dpp::ssl_client::sfd, dpp::openssl_connection::ssl, and dpp::ssl_client::ssl.

Member Data Documentation

◆ buffer

std::string dpp::ssl_client::buffer

protectedinherited

Input buffer received from socket.

Referenced by dpp::ssl_client::close(), dpp::discord_client::handle_frame(), and dpp::ssl_client::read_loop().

◆ bytes_in

uint64_t dpp::ssl_client::bytes_in

protectedinherited

Bytes in.

Referenced by dpp::ssl_client::get_bytes_in(), and dpp::ssl_client::read_loop().

◆ bytes_out

uint64_t dpp::ssl_client::bytes_out

protectedinherited

Bytes out.

Referenced by dpp::ssl_client::get_bytes_out(), and dpp::ssl_client::read_loop().

◆ cipher

std::string dpp::ssl_client::cipher

protectedinherited

SSL cipher in use.

Referenced by dpp::ssl_client::connect(), and dpp::ssl_client::get_cipher().

◆ custom_readable_fd

socket_callback_t dpp::ssl_client::custom_readable_fd

inherited

Attaching an additional file descriptor to this function will send notifications when there is data to read.

NOTE: Only hook this if you NEED it as it can increase CPU usage of the thread! Returning -1 means that you don't want to be notified.

Referenced by dpp::discord_voice_client::handle_frame(), and dpp::ssl_client::read_loop().

◆ custom_readable_ready

socket_notification_t dpp::ssl_client::custom_readable_ready

inherited

This event will be called when you can read from the custom fd.

Referenced by dpp::discord_voice_client::handle_frame(), and dpp::ssl_client::read_loop().

◆ custom_writeable_fd

socket_callback_t dpp::ssl_client::custom_writeable_fd

inherited

Attaching an additional file descriptor to this function will send notifications when you are able to write to the socket.

NOTE: Only hook this if you NEED it as it can increase CPU usage of the thread! You should toggle this to -1 when you do not have anything to write otherwise it'll keep triggering repeatedly (it is level triggered).

Referenced by dpp::discord_voice_client::handle_frame(), and dpp::ssl_client::read_loop().

◆ custom_writeable_ready

socket_notification_t dpp::ssl_client::custom_writeable_ready

inherited

This event will be called when you can write to a custom fd.

Referenced by dpp::discord_voice_client::handle_frame(), and dpp::ssl_client::read_loop().

◆ hostname

std::string dpp::ssl_client::hostname

protectedinherited

Hostname connected to.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::connect(), and dpp::ssl_client::ssl_client().

◆ keepalive

bool dpp::ssl_client::keepalive

inherited

True if we are keeping the connection alive after it has finished.

Referenced by dpp::ssl_client::close(), and dpp::ssl_client::ssl_client().

◆ last_tick

time_t dpp::ssl_client::last_tick

protectedinherited

For timers.

Referenced by dpp::ssl_client::read_loop().

◆ make_new

bool dpp::ssl_client::make_new

protectedinherited

True if we are establishing a new connection, false if otherwise.

Referenced by dpp::ssl_client::connect(), and dpp::ssl_client::ssl_client().

◆ nonblocking

bool dpp::ssl_client::nonblocking

protectedinherited

True if in nonblocking mode.

The socket switches to nonblocking mode once ReadLoop is called.

Referenced by dpp::ssl_client::connect(), dpp::ssl_client::read_loop(), and dpp::ssl_client::write().

◆ obuffer

std::string dpp::ssl_client::obuffer

protectedinherited

Output buffer for sending to socket.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::read_loop(), and dpp::ssl_client::write().

◆ plaintext

bool dpp::ssl_client::plaintext

protectedinherited

True for a plain text connection.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::connect(), dpp::ssl_client::read_loop(), dpp::ssl_client::ssl_client(), and dpp::ssl_client::write().

◆ port

std::string dpp::ssl_client::port

protectedinherited

Port connected to.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::connect(), and dpp::ssl_client::ssl_client().

◆ sfd

dpp::socket dpp::ssl_client::sfd

protectedinherited

Raw file descriptor of connection.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::connect(), dpp::discord_client::one_second_timer(), dpp::ssl_client::read_loop(), dpp::ssl_client::ssl_client(), and dpp::ssl_client::write().

◆ ssl

openssl_connection* dpp::ssl_client::ssl

protectedinherited

Openssl opaque contexts.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::connect(), dpp::ssl_client::read_loop(), dpp::ssl_client::ssl_client(), and dpp::ssl_client::write().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ https_client()

◆ ~https_client()

Member Function Documentation

◆ build_multipart()

◆ close()

◆ connect()

◆ get_bytes_in()

◆ get_bytes_out()

◆ get_cipher()

◆ get_content()

◆ get_header()

◆ get_header_count()

◆ get_header_list()

◆ get_headers()

◆ get_host_info()

◆ get_state()

◆ get_status()

◆ handle_buffer()

◆ log()

◆ one_second_timer()

◆ read_loop()

◆ write()

Member Data Documentation

◆ buffer

◆ bytes_in

◆ bytes_out

◆ cipher

◆ custom_readable_fd

◆ custom_readable_ready

◆ custom_writeable_fd

◆ custom_writeable_ready

◆ hostname

◆ keepalive

◆ last_tick

◆ make_new

◆ nonblocking

◆ obuffer

◆ plaintext

◆ port

◆ sfd

◆ ssl
