cv::StereoMatcher Class Reference

The base class for stereo correspondence algorithms. More...

#include <opencv2/calib3d.hpp>

Inheritance diagram for cv::StereoMatcher:

Collaboration diagram for cv::StereoMatcher:

Public Types
enum	{   DISP_SHIFT = 4,   DISP_SCALE = (1 << DISP_SHIFT) }

Public Member Functions
virtual void	clear ()
	Clears the algorithm state. More...
virtual void	compute (InputArray left, InputArray right, OutputArray disparity)=0
	Computes disparity map for the specified stereo pair. More...
virtual bool	empty () const
	Returns true if the Algorithm is empty (e.g. More...
virtual int	getBlockSize () const =0
virtual String	getDefaultName () const
	Returns the algorithm string identifier. More...
virtual int	getDisp12MaxDiff () const =0
virtual int	getMinDisparity () const =0
virtual int	getNumDisparities () const =0
virtual int	getSpeckleRange () const =0
virtual int	getSpeckleWindowSize () const =0
virtual void	read (const FileNode &fn)
	Reads algorithm parameters from a file storage. More...
virtual void	save (const String &filename) const
	Saves the algorithm to a file. More...
virtual void	setBlockSize (int blockSize)=0
virtual void	setDisp12MaxDiff (int disp12MaxDiff)=0
virtual void	setMinDisparity (int minDisparity)=0
virtual void	setNumDisparities (int numDisparities)=0
virtual void	setSpeckleRange (int speckleRange)=0
virtual void	setSpeckleWindowSize (int speckleWindowSize)=0
virtual void	write (FileStorage &fs) const
	Stores algorithm parameters in a file storage. More...
void	write (const Ptr< FileStorage > &fs, const String &name=String()) const
	simplified API for language bindings This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

Static Public Member Functions
template<typename _Tp >
static Ptr< _Tp >	load (const String &filename, const String &objname=String())
	Loads algorithm from the file. More...
template<typename _Tp >
static Ptr< _Tp >	loadFromString (const String &strModel, const String &objname=String())
	Loads algorithm from a String. More...
template<typename _Tp >
static Ptr< _Tp >	read (const FileNode &fn)
	Reads algorithm from the file node. More...

Protected Member Functions
void	writeFormat (FileStorage &fs) const

Detailed Description

The base class for stereo correspondence algorithms.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
DISP_SHIFT
DISP_SCALE

Member Function Documentation

clear()

virtual void cv::Algorithm::clear ( )

inlinevirtualinherited

Clears the algorithm state.

Reimplemented in cv::FlannBasedMatcher, and cv::DescriptorMatcher.

compute()

virtual void cv::StereoMatcher::compute ( InputArray  left, InputArray  right, OutputArray  disparity  )

pure virtual

Computes disparity map for the specified stereo pair.

Parameters

left	Left 8-bit single-channel image.
right	Right image of the same size and the same type as the left one.
disparity	Output disparity map. It has the same size as the input images. Some algorithms, like StereoBM or StereoSGBM compute 16-bit fixed-point disparity map (where each disparity value has 4 fractional bits), whereas other algorithms output 32-bit floating-point disparity map.

empty()

virtual bool cv::Algorithm::empty ( ) const

inlinevirtualinherited

Returns true if the Algorithm is empty (e.g.

in the very beginning or after unsuccessful read

Reimplemented in cv::DescriptorMatcher, cv::ml::StatModel, cv::Feature2D, and cv::BaseCascadeClassifier.

getBlockSize()

virtual int cv::StereoMatcher::getBlockSize ( ) const

pure virtual

getDefaultName()

virtual String cv::Algorithm::getDefaultName ( ) const

virtualinherited

Returns the algorithm string identifier.

This string is used as top level xml/yml node tag when the object is saved to a file or string.

Reimplemented in cv::AKAZE, cv::KAZE, cv::SimpleBlobDetector, cv::GFTTDetector, cv::AgastFeatureDetector, cv::FastFeatureDetector, cv::MSER, cv::ORB, cv::BRISK, and cv::Feature2D.

getDisp12MaxDiff()

virtual int cv::StereoMatcher::getDisp12MaxDiff ( ) const

pure virtual

getMinDisparity()

virtual int cv::StereoMatcher::getMinDisparity ( ) const

pure virtual

getNumDisparities()

virtual int cv::StereoMatcher::getNumDisparities ( ) const

pure virtual

getSpeckleRange()

virtual int cv::StereoMatcher::getSpeckleRange ( ) const

pure virtual

getSpeckleWindowSize()

virtual int cv::StereoMatcher::getSpeckleWindowSize ( ) const

pure virtual

load()

template<typename _Tp >

static Ptr<_Tp> cv::Algorithm::load ( const String &  filename, const String &  objname = String()  )

inlinestaticinherited

Loads algorithm from the file.

Parameters

filename	Name of the file to read.
objname	The optional name of the node to read (if empty, the first top-level node will be used)

This is static template method of Algorithm. It's usage is following (in the case of SVM):

Ptr<SVM> svm = Algorithm::load<SVM>("my_svm_model.xml");

In order to make this method work, the derived class must overwrite Algorithm::read(const FileNode& fn).

References CV_Assert, cv::FileNode::empty(), cv::FileStorage::getFirstTopLevelNode(), cv::FileStorage::isOpened(), and cv::FileStorage::READ.

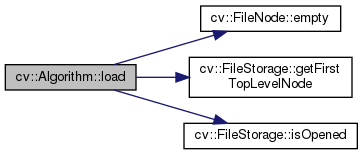

Here is the call graph for this function:

loadFromString()

template<typename _Tp >

static Ptr<_Tp> cv::Algorithm::loadFromString ( const String &  strModel, const String &  objname = String()  )

inlinestaticinherited

Loads algorithm from a String.

Parameters

strModel	The string variable containing the model you want to load.
objname	The optional name of the node to read (if empty, the first top-level node will be used)

This is static template method of Algorithm. It's usage is following (in the case of SVM):

Ptr<SVM> svm = Algorithm::loadFromString<SVM>(myStringModel);

References CV_WRAP, cv::FileNode::empty(), cv::FileStorage::getFirstTopLevelNode(), cv::FileStorage::MEMORY, and cv::FileStorage::READ.

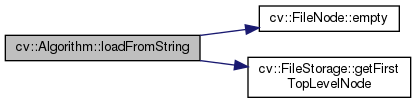

Here is the call graph for this function:

read() [1/2]

virtual void cv::Algorithm::read ( const FileNode &  fn )

inlinevirtualinherited

Reads algorithm parameters from a file storage.

Reimplemented in cv::FlannBasedMatcher, cv::DescriptorMatcher, and cv::Feature2D.

read() [2/2]

template<typename _Tp >

static Ptr<_Tp> cv::Algorithm::read ( const FileNode &  fn )

inlinestaticinherited

Reads algorithm from the file node.

This is static template method of Algorithm. It's usage is following (in the case of SVM):

cv::FileStorage fsRead("example.xml", FileStorage::READ);
Ptr<SVM> svm = Algorithm::read<SVM>(fsRead.root());

In order to make this method work, the derived class must overwrite Algorithm::read(const FileNode& fn) and also have static create() method without parameters (or with all the optional parameters)

save()

virtual void cv::Algorithm::save ( const String &  filename ) const

virtualinherited

Saves the algorithm to a file.

In order to make this method work, the derived class must implement Algorithm::write(FileStorage& fs).

setBlockSize()

virtual void cv::StereoMatcher::setBlockSize ( int  blockSize )

pure virtual

setDisp12MaxDiff()

virtual void cv::StereoMatcher::setDisp12MaxDiff ( int  disp12MaxDiff )

pure virtual

setMinDisparity()

virtual void cv::StereoMatcher::setMinDisparity ( int  minDisparity )

pure virtual

setNumDisparities()

virtual void cv::StereoMatcher::setNumDisparities ( int  numDisparities )

pure virtual

setSpeckleRange()

virtual void cv::StereoMatcher::setSpeckleRange ( int  speckleRange )

pure virtual

setSpeckleWindowSize()

virtual void cv::StereoMatcher::setSpeckleWindowSize ( int  speckleWindowSize )

pure virtual

write() [1/2]

virtual void cv::Algorithm::write ( FileStorage &  fs ) const

inlinevirtualinherited

Stores algorithm parameters in a file storage.

Reimplemented in cv::FlannBasedMatcher, cv::DescriptorMatcher, and cv::Feature2D.

References CV_WRAP.

Referenced by cv::Feature2D::write(), and cv::DescriptorMatcher::write().

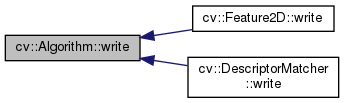

Here is the caller graph for this function:

write() [2/2]

void cv::Algorithm::write ( const Ptr< FileStorage > &  fs, const String &  name = String()  ) const

inherited

simplified API for language bindings This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

writeFormat()

void cv::Algorithm::writeFormat ( FileStorage &  fs ) const

protectedinherited

---

The documentation for this class was generated from the following file:

• opencv2/calib3d.hpp
