cv::detail::Blender Class Reference

Base class for all blenders. More...

#include <opencv2/stitching/detail/blenders.hpp>

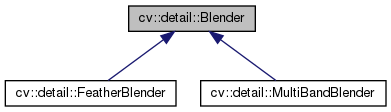

Inheritance diagram for cv::detail::Blender:

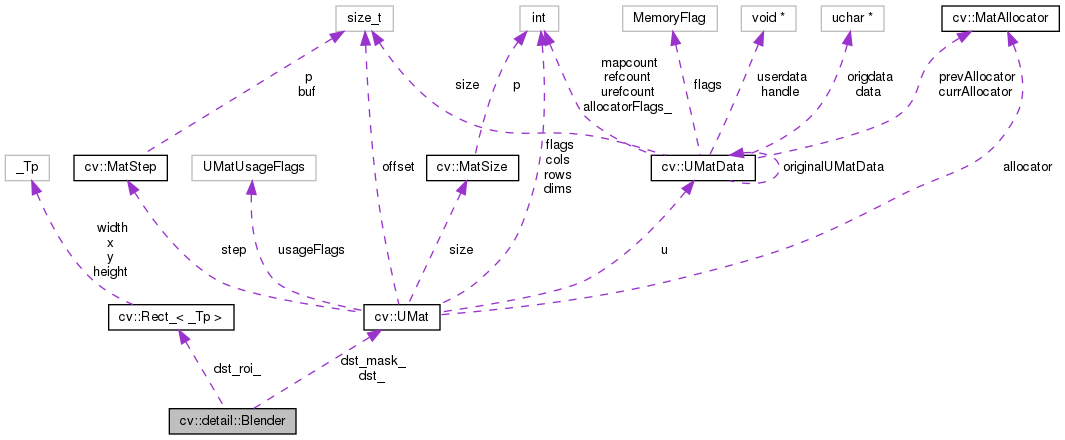

Collaboration diagram for cv::detail::Blender:

Public Types
enum	{   NO,   FEATHER,   MULTI_BAND }

Public Member Functions
virtual	~Blender ()
virtual void	blend (InputOutputArray dst, InputOutputArray dst_mask)
	Blends and returns the final pano. More...
virtual void	feed (InputArray img, InputArray mask, Point tl)
	Processes the image. More...
virtual void	prepare (const std::vector< Point > &corners, const std::vector< Size > &sizes)
	Prepares the blender for blending. More...
virtual void	prepare (Rect dst_roi)

Static Public Member Functions
static Ptr< Blender >	createDefault (int type, bool try_gpu=false)

Protected Attributes
UMat	dst_
UMat	dst_mask_
Rect	dst_roi_

Detailed Description

Base class for all blenders.

Simple blender which puts one image over another

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
NO
FEATHER
MULTI_BAND

Constructor & Destructor Documentation

~Blender()

virtual cv::detail::Blender::~Blender ( )

inlinevirtual

Member Function Documentation

blend()

virtual void cv::detail::Blender::blend ( InputOutputArray  dst, InputOutputArray  dst_mask  )

virtual

Blends and returns the final pano.

Parameters

dst	Final pano
dst_mask	Final pano mask

Reimplemented in cv::detail::MultiBandBlender, and cv::detail::FeatherBlender.

createDefault()

static Ptr<Blender> cv::detail::Blender::createDefault ( int  type, bool  try_gpu = false  )

static

feed()

virtual void cv::detail::Blender::feed ( InputArray  img, InputArray  mask, Point  tl  )

virtual

Processes the image.

Parameters

img	Source image
mask	Source image mask
tl	Source image top-left corners

Reimplemented in cv::detail::MultiBandBlender, and cv::detail::FeatherBlender.

prepare() [1/2]

virtual void cv::detail::Blender::prepare ( const std::vector< Point > &  corners, const std::vector< Size > &  sizes  )

virtual

Prepares the blender for blending.

Parameters

corners	Source images top-left corners
sizes	Source image sizes

prepare() [2/2]

virtual void cv::detail::Blender::prepare ( Rect  dst_roi )

virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Reimplemented in cv::detail::MultiBandBlender, and cv::detail::FeatherBlender.

Member Data Documentation

dst_

UMat cv::detail::Blender::dst_

protected

dst_mask_

UMat cv::detail::Blender::dst_mask_

protected

dst_roi_

Rect cv::detail::Blender::dst_roi_

protected

---

The documentation for this class was generated from the following file:

• opencv2/stitching/detail/blenders.hpp
