cv::detail::MultiBandBlender Class Reference

Blender which uses multi-band blending algorithm (see [16]). More...

#include <opencv2/stitching/detail/blenders.hpp>

Inheritance diagram for cv::detail::MultiBandBlender:

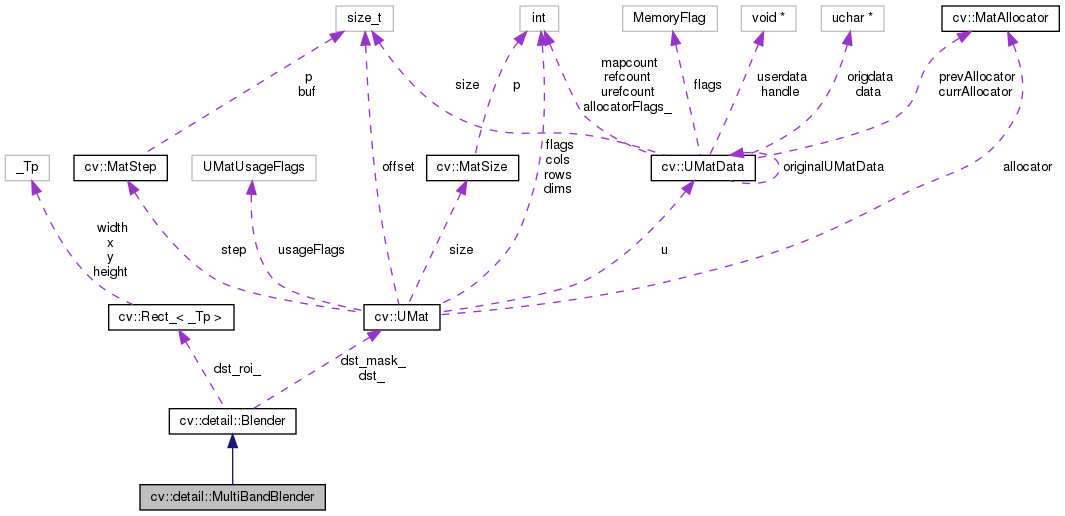

Collaboration diagram for cv::detail::MultiBandBlender:

Public Types

enum  {
  NO,
  FEATHER,
  MULTI_BAND
}


Public Member Functions

 MultiBandBlender (int try_gpu=false, int num_bands=5, int weight_type=CV_32F)

void blend (InputOutputArray dst, InputOutputArray dst_mask) CV_OVERRIDE
 Blends and returns the final pano. More...

void feed (InputArray img, InputArray mask, Point tl) CV_OVERRIDE
 Processes the image. More...

int numBands () const

virtual void prepare (const std::vector< Point > &corners, const std::vector< Size > &sizes)
 Prepares the blender for blending. More...

void prepare (Rect dst_roi) CV_OVERRIDE

void setNumBands (int val)


Static Public Member Functions

static Ptr< BlendercreateDefault (int type, bool try_gpu=false)


Protected Attributes

UMat dst_

UMat dst_mask_

Rect dst_roi_


Detailed Description

Blender which uses multi-band blending algorithm (see [16]).

Examples:
samples/cpp/stitching_detailed.cpp.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
inherited
Enumerator
NO
FEATHER
MULTI_BAND

Constructor & Destructor Documentation

◆ MultiBandBlender()

cv::detail::MultiBandBlender::MultiBandBlender ( int  try_gpu = false,
int  num_bands = 5,
int  weight_type = CV_32F
)

Member Function Documentation

◆ blend()

void cv::detail::MultiBandBlender::blend ( InputOutputArray  dst,
InputOutputArray  dst_mask
)
virtual

Blends and returns the final pano.

Parameters
dstFinal pano
dst_maskFinal pano mask

Reimplemented from cv::detail::Blender.

◆ createDefault()

static Ptr<Blender> cv::detail::Blender::createDefault ( int  type,
bool  try_gpu = false
)
staticinherited

◆ feed()

void cv::detail::MultiBandBlender::feed ( InputArray  img,
InputArray  mask,
Point  tl
)
virtual

Processes the image.

Parameters
imgSource image
maskSource image mask
tlSource image top-left corners

Reimplemented from cv::detail::Blender.

◆ numBands()

int cv::detail::MultiBandBlender::numBands ( ) const
inline

◆ prepare() [1/2]

virtual void cv::detail::Blender::prepare ( const std::vector< Point > &  corners,
const std::vector< Size > &  sizes
)
virtualinherited

Prepares the blender for blending.

Parameters
cornersSource images top-left corners
sizesSource image sizes

◆ prepare() [2/2]

void cv::detail::MultiBandBlender::prepare ( Rect  dst_roi)
virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Reimplemented from cv::detail::Blender.

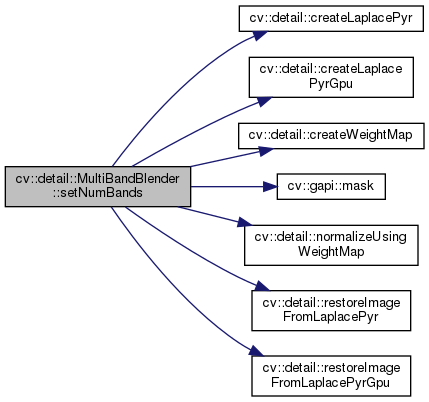

◆ setNumBands()

Member Data Documentation

◆ dst_

UMat cv::detail::Blender::dst_
protectedinherited

◆ dst_mask_

UMat cv::detail::Blender::dst_mask_
protectedinherited

◆ dst_roi_

Rect cv::detail::Blender::dst_roi_
protectedinherited

The documentation for this class was generated from the following file:
