Push button. More...

#include <sg_101020003_Button.hpp>

Inheritance diagram for SG::Button:

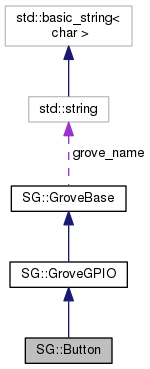

Collaboration diagram for SG::Button:

[legend]

Public Member Functions
virtual	~Button (void)
	Destructor. More...

	Button (const std::string &n="")
	Constructor. More...

virtual bool	is_down (void)
	Determine if the button is currently pushed down. More...

virtual bool	is_up (void)
	Determine if the button is currently up. More...

virtual bool	wait_for_button_down (const size_t timeout_in_milliseconds=0)
	Wait for the button to be pressed down. More...

virtual bool	wait_for_button_up (const size_t timeout_in_milliseconds=0)
	Wait for the button to be released. More...

virtual bool	wait_for_transition (const size_t timeout_in_milliseconds=0)
	Wait for the button to transition to `up` or `down`, depending on the current state. More...

virtual bool	wait_for_button (const size_t timeout_in_milliseconds=0)
	Wait for any sort of user interaction with the button, either to the `up` or `down` state. More...

virtual GroveGPIO &	send_2_bytes (uint16_t bits)
	Send 16 bits (2 bytes). More...

virtual GroveGPIO &	send_byte (uint8_t byte)
	Send a single byte. More...

virtual bool	is_grove_uart (void) const
	Determine if this is a Grove UART device. More...

virtual bool	is_grove_i2c (void) const
	Determine if this is a Grove I2C device. More...

virtual bool	is_grove_gpio (void) const
	Determine if this is a Grove GPIO device. More...

virtual uint32_t	get_sku (void) const
	Return a guess as to the Seeed SKU number based on the grove type. More...

virtual std::string	get_type_name (void) const
	Return a short text string representing the grove type. More...

virtual EGroveType	get_type (void) const
	Return the grove type. More...

virtual std::string	get_name (void) const
	Return the user-supplied name. More...

virtual std::string	get_description (void) const
	Return a multi-word 1-line description of this object. More...


bool	operator== (const GroveBase &rhs) const
	Test object equality. More...

bool	operator!= (const GroveBase &rhs) const
	Test object equality. More...

Public Attributes
EGroveType	grove_type
	Grove type. More...

std::string	grove_name
	User-supplied name. More...

Detailed Description

Push button.

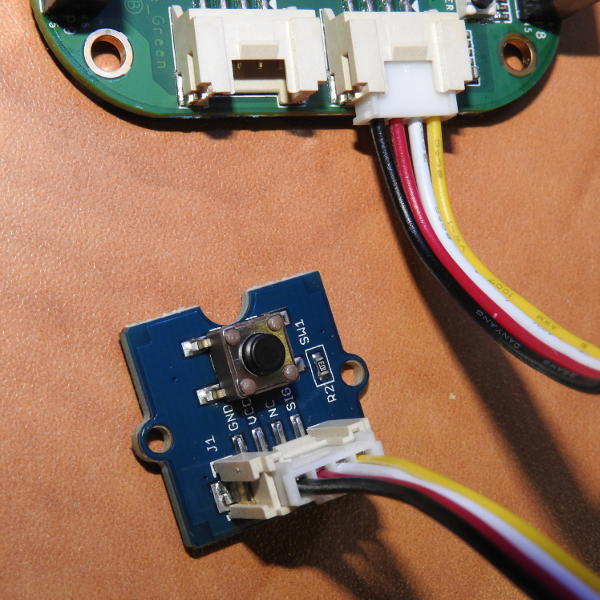

Description	Image
Button connected to the Grove UART interface.

Note: There is no difference between the SKU #101020003 button and the SKU #111020000 panel mount button.

Example code:

SG::Button button;
bool is_up = button.is_up();
std::cout << "button is " << (is_up ? "up" : "down") << std::endl;

See also: http://www.seeedstudio.com/wiki/Grove_-_Button; http://www.seeedstudio.com/depot/Grove-Button-p-766.html; http://www.seeedstudio.com/depot/Grove-ButtonP-p-1243.html

Constructor & Destructor Documentation

◆ ~Button()

SG::Button::~Button ( void )

virtual

Destructor.

References SG::SGpp::get(), SG::SGpp::gpio, and SG::GpioManagement::gpio_unexport().

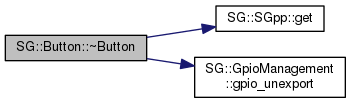

Here is the call graph for this function:

◆ Button()

SG::Button::Button ( const std::string & n = "" )

Constructor.

References SG::SGpp::get(), SG::SGpp::gpio, SG::GpioManagement::gpio_export(), and SG::GpioManagement::kInput.

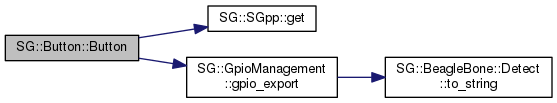

Here is the call graph for this function:

Member Function Documentation

◆ get_description()

std::string SG::GroveBase::get_description ( void ) const

virtualinherited

Return a multi-word 1-line description of this object.

References SG::demangle(), SG::GroveBase::get_name(), SG::GroveBase::get_sku(), SG::GroveBase::get_type_name(), SG::GroveBase::is_grove_gpio(), SG::GroveBase::is_grove_i2c(), SG::GroveBase::is_grove_uart(), and SG::BeagleBone::Detect::to_string().

Referenced by buzzer(), chainable_rgb_led(), common_oled(), SG::GroveBase::get_name(), SG::GroveI2CDigital::GroveI2CDigital(), SG::CommonOLED::set_display_bitmap(), SG::CommonOLED::set_orientation(), temperature(), variable_led(), and SG::GroveI2CDigital::write_block().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_name()

virtual std::string SG::GroveBase::get_name ( void ) const

inlinevirtualinherited

Return the user-supplied name.

References SG::GroveBase::get_description(), SG::GroveBase::grove_name, SG::GroveBase::is_grove_gpio(), SG::GroveBase::is_grove_i2c(), and SG::GroveBase::is_grove_uart().

Referenced by SG::GroveBase::get_description(), SG::GroveBase::operator=(), and SG::GroveBase::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_sku()

virtual uint32_t SG::GroveBase::get_sku ( void ) const

inlinevirtualinherited

Return a guess as to the Seeed SKU number based on the grove type.

References SG::get_sku_from_grove_type(), and SG::GroveBase::grove_type.

Referenced by SG::GroveBase::get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_type()

virtual EGroveType SG::GroveBase::get_type ( void ) const

inlinevirtualinherited

Return the grove type.

References SG::GroveBase::grove_type.

Referenced by SG::GroveI2CDigital::get_address_from_type(), SG::GroveBase::operator=(), and SG::GroveBase::operator==().

Here is the caller graph for this function:

◆ get_type_name()

virtual std::string SG::GroveBase::get_type_name ( void ) const

inlinevirtualinherited

Return a short text string representing the grove type.

References SG::GroveBase::grove_type, and SG::to_string().

Referenced by SG::GroveBase::get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ is_down()

bool SG::Button::is_down ( void )

virtual

Determine if the button is currently pushed down.

References SG::SGpp::get(), SG::GpioManagement::get_bool(), and SG::SGpp::gpio.

Referenced by is_up(), and wait_for_button_up().

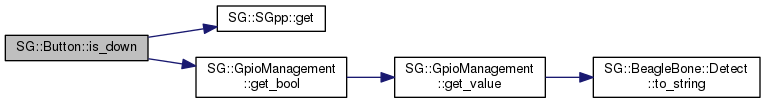

Here is the call graph for this function:

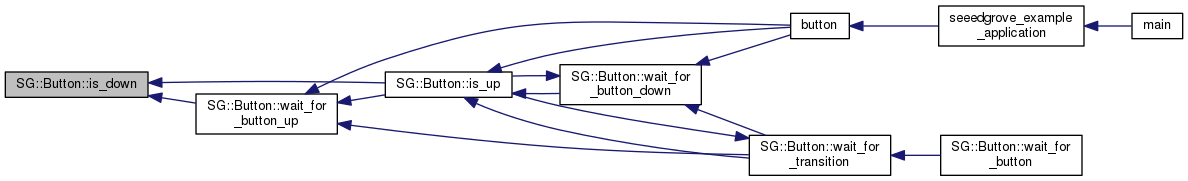

Here is the caller graph for this function:

◆ is_grove_gpio()

virtual bool SG::GroveGPIO::is_grove_gpio ( void ) const

inlinevirtualinherited

Determine if this is a Grove GPIO device.

See also: SG::GroveGPIO

Implements SG::GroveBase.

◆ is_grove_i2c()

virtual bool SG::GroveGPIO::is_grove_i2c ( void ) const

inlinevirtualinherited

Determine if this is a Grove I2C device.

See also: SG::GroveI2C

Implements SG::GroveBase.

◆ is_grove_uart()

virtual bool SG::GroveGPIO::is_grove_uart ( void ) const

inlinevirtualinherited

Determine if this is a Grove UART device.

See also: SG::GroveUART

Implements SG::GroveBase.

◆ is_up()

virtual bool SG::Button::is_up ( void )

inlinevirtual

Determine if the button is currently up.

References is_down(), wait_for_button_down(), wait_for_button_up(), and wait_for_transition().

Referenced by button(), wait_for_button_down(), and wait_for_transition().

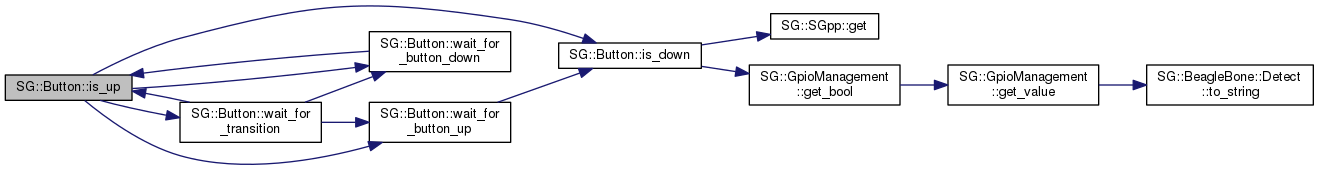

Here is the call graph for this function:

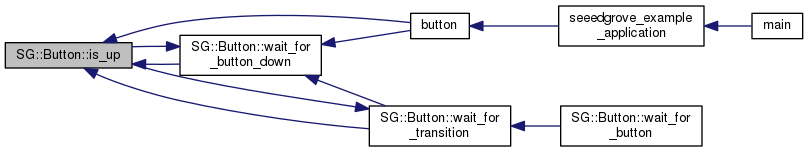

Here is the caller graph for this function:

◆ operator!=()

bool SG::GroveBase::operator!= ( const GroveBase & rhs ) const

inlineinherited

Test object equality.

References SG::GroveBase::operator==().

Here is the call graph for this function:

◆ operator==()

bool SG::GroveBase::operator== ( const GroveBase & rhs ) const

inherited

Test object equality.

References SG::GroveBase::get_name(), and SG::GroveBase::get_type().

Referenced by SG::GroveBase::operator!=(), SG::Buzzer::operator==(), SG::TemperatureAndHumiditySensor::operator==(), SG::TemperatureSensor::operator==(), and SG::I2CADC::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_2_bytes()

SG::GroveGPIO & SG::GroveGPIO::send_2_bytes ( uint16_t bits )

virtualinherited

Send 16 bits (2 bytes).

References SG::GroveGPIO::send_byte().

Here is the call graph for this function:

◆ send_byte()

SG::GroveGPIO & SG::GroveGPIO::send_byte ( uint8_t byte )

virtualinherited

Send a single byte.

References SG::SGpp::get(), SG::SGpp::gpio, SG::GpioManagement::set_high(), and SG::GpioManagement::set_low().

Referenced by SG::GroveGPIO::send_2_bytes(), and SG::ChainableRGBLED::turn_on().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ wait_for_button()

virtual bool SG::Button::wait_for_button ( const size_t timeout_in_milliseconds = 0 )

inlinevirtual

Wait for any sort of user interaction with the button, either to the up or down state.

This is an alias for the method wait_for_transition().

Parameters

[in] timeout_in_milliseconds Determines the length of time to wait for the button to change state. Will wait indefinitely if the timeout is set to zero.

Returns: Returns TRUE if a transition was detected, or FALSE if a timeout occurred.

Example code:

std::cout << "Press the button to continue." << std::endl;
SG::Button button;
button.wait_for_button();

See also: wait_for_button_up(); wait_for_button_down()

References wait_for_transition().

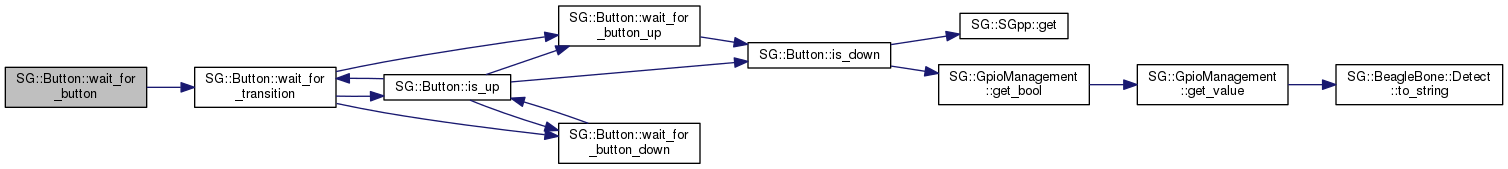

Here is the call graph for this function:

◆ wait_for_button_down()

bool SG::Button::wait_for_button_down ( const size_t timeout_in_milliseconds = 0 )

virtual

Wait for the button to be pressed down.

Returns immediately if the button is already down.

Parameters

[in] timeout_in_milliseconds Determines the length of time to wait for a button push. Will wait indefinitely if the timeout is set to zero.

Returns: Returns TRUE if the button is pushed down, or FALSE if a timeout occurred.

See also: wait_for_button_up(); wait_for_button()

References is_up().

Referenced by button(), is_up(), and wait_for_transition().

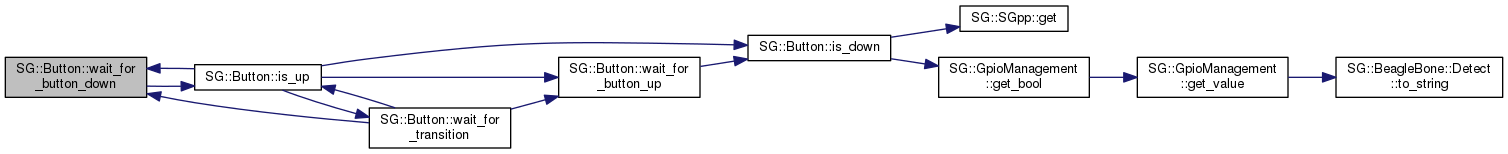

Here is the call graph for this function:

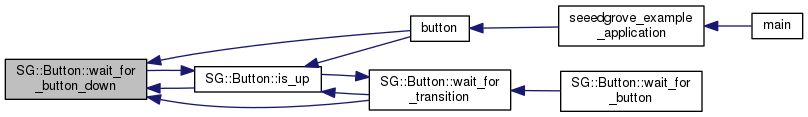

Here is the caller graph for this function:

◆ wait_for_button_up()

bool SG::Button::wait_for_button_up ( const size_t timeout_in_milliseconds = 0 )

virtual

Wait for the button to be released.

Returns immediately if the button is already up.

Parameters

[in] timeout_in_milliseconds Determines the length of time to wait for the button to be released. Will wait indefinitely if the timeout is set to zero.

Returns: Returns TRUE if the button is up, or FALSE if a timeout occurred.

See also: wait_for_button_down(); wait_for_button()

References is_down().

Referenced by button(), is_up(), and wait_for_transition().

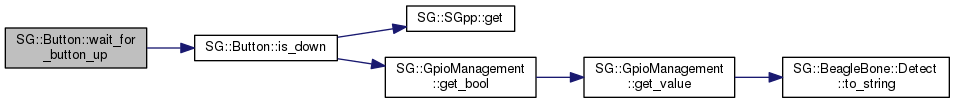

Here is the call graph for this function:

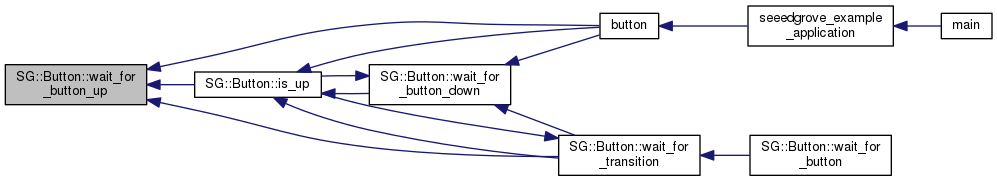

Here is the caller graph for this function:

◆ wait_for_transition()

bool SG::Button::wait_for_transition ( const size_t timeout_in_milliseconds = 0 )

virtual

Wait for the button to transition to up or down, depending on the current state.

Parameters

[in] timeout_in_milliseconds Determines the length of time to wait for the button to change state. Will wait indefinitely if the timeout is set to zero.

Returns: Returns TRUE if a transition was detected, or FALSE if a timeout occurred.

References is_up(), wait_for_button_down(), and wait_for_button_up().

Referenced by is_up(), and wait_for_button().

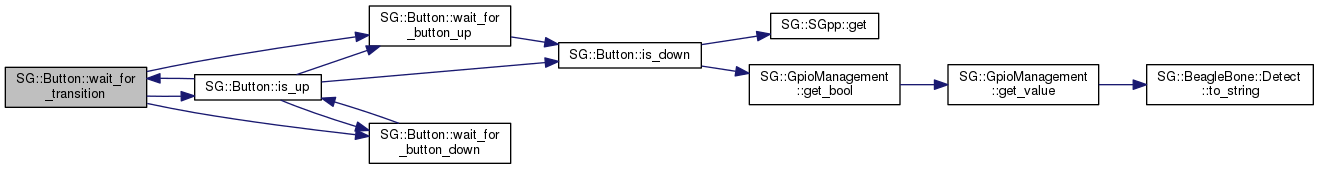

Here is the call graph for this function:

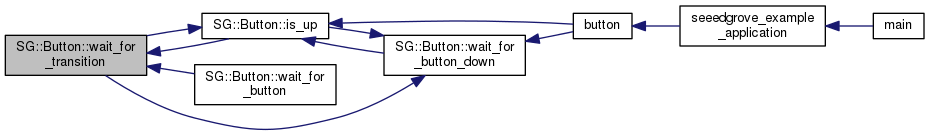

Here is the caller graph for this function:

Member Data Documentation

◆ grove_name

std::string SG::GroveBase::grove_name

inherited

User-supplied name.

Referenced by SG::GroveBase::get_name(), and SG::GroveBase::operator=().

◆ grove_type

EGroveType SG::GroveBase::grove_type

inherited

Grove type.

Referenced by SG::GroveBase::get_sku(), SG::GroveBase::get_type(), SG::GroveBase::get_type_name(), and SG::GroveBase::operator=().

The documentation for this class was generated from the following files:

src-groves/sg_101020003_Button.hpp
src-groves/sg_101020003_Button.cpp
