The CylinderKit class is a user space object. More...

#include <hps.h>

Inheritance diagram for HPS::CylinderKit:

Collaboration diagram for HPS::CylinderKit:

Public Member Functions
	CylinderKit ()
	The default constructor creates an empty CylinderKit object. More...

	CylinderKit (CylinderKit const &in_kit)
	The copy constructor creates a new CylinderKit object that contains the same settings as the source CylinderKit. More...

	CylinderKit (CylinderKit &&in_that)
	The move constructor creates a CylinderKit by transferring the underlying impl of the rvalue reference to this CylinderKit thereby avoiding a copy and allocation. More...

CylinderKit &	operator= (CylinderKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this CylinderKit thereby avoiding a copy. More...

virtual	~CylinderKit ()

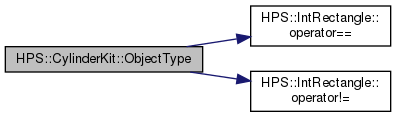

HPS::Type	ObjectType () const

void	Consume (CylinderKit &in_kit)
	Copies the source CylinderKit into this CylinderKit and resets the source kit. More...

void	Set (CylinderKit const &in_kit)
	Copies the source CylinderKit into this CylinderKit. More...

void	Show (CylinderKit &out_kit) const
	Copies this CylinderKit into the given CylinderKit. More...

CylinderKit &	operator= (CylinderKit const &in_kit)
	Copies the source CylinderKit into this CylinderKit. More...

bool	Empty () const
	Indicates whether this CylinderKit has any values set on it. More...

bool	Equals (CylinderKit const &in_kit) const
	Check if the source CylinderKit is equivalent to this CylinderKit. More...

bool	operator== (CylinderKit const &in_kit) const
	Check if the source CylinderKit is equivalent to this CylinderKit. More...

bool	operator!= (CylinderKit const &in_kit) const
	Check if the source CylinderKit is not equivalent to this CylinderKit. More...

size_t	GetPointCount () const
	Retrieves the number of points in this cylinder. More...

CylinderKit &	SetPriority (int in_priority)
	Assigns a specific drawing priority value to the CylinderKit. More...

CylinderKit &	UnsetPriority ()
	Removes a drawing priority setting. More...

bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...

CylinderKit &	SetPoints (PointArray const &in_points)
	Sets the points for this CylinderKit. More...

CylinderKit &	SetPoints (size_t in_count, Point const in_points [])
	Sets the points for this CylinderKit. More...

CylinderKit &	SetRadii (FloatArray const &in_radii)
	Sets the radii for this CylinderKit. More...

CylinderKit &	SetRadii (size_t in_count, float const in_radii [])
	Sets the radii for this CylinderKit. More...

CylinderKit &	SetCaps (Cylinder::Capping in_capping)
	Sets the capping for this CylinderKit. More...

CylinderKit &	UnsetPoints ()
	Removes the points for this CylinderKit. More...

CylinderKit &	UnsetRadii ()
	Removes the radii for this CylinderKit. More...

CylinderKit &	UnsetCaps ()
	Removes the capping for this CylinderKit. More...

CylinderKit &	UnsetEverything ()
	Removes all settings from the CylinderKit. More...

bool	ShowPoints (PointArray &out_points) const
	Show the points for this CylinderKit. More...

bool	ShowPointsByRange (size_t in_start_index, size_t in_count, PointArray &out_points) const
	Show a subset of the points for this CylinderKit by range. More...

bool	ShowPointsByList (SizeTArray const &in_indices, PointArray &out_points) const
	Show a subset of the points for this CylinderKit by list. More...

bool	ShowPointsByList (size_t in_count, size_t const in_indices[], PointArray &out_points) const
	Show a subset of the points for this CylinderKit by list. More...

bool	ShowRadii (FloatArray &out_radii) const
	Show the radii for this CylinderKit. More...

bool	ShowCaps (Cylinder::Capping &out_caps) const
	Show the capping for this CylinderKit. More...

CylinderKit &	SetVertexRGBColorsByRange (size_t in_start, size_t in_count, RGBColor const in_rgb_colors[], Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets vertex RGB colors on a range of vertices starting at the specified offset which apply to the specified cylinder component. More...

CylinderKit &	SetVertexRGBColorsByRange (size_t in_start, RGBColorArray const &in_rgb_colors, Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets vertex RGB colors on a range of vertices starting at the specified offset which apply to the specified cylinder component. More...

CylinderKit &	SetVertexRGBColorsByRange (size_t in_start, size_t in_count, RGBColor const &in_rgb_color, Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets a single RGB color on a range of vertices starting at the specified offset which apply to the specified cylinder component. More...

CylinderKit &	SetVertexRGBColorsByList (size_t in_count, size_t const in_vertices[], RGBColor const in_rgb_colors[], Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets vertex RGB colors on a selection of arbitrary vertices which apply to the specified cylinder component. More...

CylinderKit &	SetVertexRGBColorsByList (SizeTArray const &in_vertices, RGBColorArray const &in_rgb_colors, Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets vertex RGB colors on a selection of arbitrary vertices which apply to the specified cylinder component. More...

CylinderKit &	SetVertexRGBColorsByList (size_t in_count, size_t const in_vertices[], RGBColor const &in_rgb_color, Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets a single RGB color on a selection of arbitrary vertices which apply to the specified cylinder component. More...

CylinderKit &	SetVertexRGBColorsByList (SizeTArray const &in_vertices, RGBColor const &in_rgb_color, Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets a single RGB color on a selection of arbitrary vertices which apply to the specified cylinder component. More...

CylinderKit &	SetVertexIndexColorsByRange (size_t in_start, size_t in_count, float const in_indices[], Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets vertex material indices on a range of vertices starting at the specified offset which apply to the specified cylinder component. More...

CylinderKit &	SetVertexIndexColorsByRange (size_t in_start, FloatArray const &in_indices, Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets vertex material indices on a range of vertices starting at the specified offset which apply to the specified cylinder component. More...

CylinderKit &	SetVertexIndexColorsByRange (size_t in_start, size_t in_count, float in_index, Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets a single material index on a range of vertices starting at the specified offset which apply to the specified cylinder component. More...

CylinderKit &	SetVertexIndexColorsByList (size_t in_count, size_t const in_vertices[], float const in_indices[], Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets vertex material indices on a selection of arbitrary vertices which apply to the specified cylinder component. More...

CylinderKit &	SetVertexIndexColorsByList (SizeTArray const &in_vertices, FloatArray const &in_indices, Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets vertex material indices on a selection of arbitrary vertices which apply to the specified cylinder component. More...

CylinderKit &	SetVertexIndexColorsByList (size_t in_count, size_t const in_vertices[], float in_index, Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets a single material index on a selection of arbitrary vertices which apply to the specified cylinder component. More...

CylinderKit &	SetVertexIndexColorsByList (SizeTArray const &in_vertices, float in_index, Cylinder::Component in_apply_to=Cylinder::Component::Faces)
	Sets a single material index on a selection of arbitrary vertices which apply to the specified cylinder component. More...

CylinderKit &	UnsetVertexColors ()
	Removes all vertex colors (RGB colors or material indices) for all cylinder components. More...

CylinderKit &	UnsetVertexColorsByRange (size_t in_start, size_t in_count)
	Removes the specified range of vertex colors (RGB colors or material indices) for all cylinder components starting at the specified offset. More...

CylinderKit &	UnsetVertexColorsByList (SizeTArray const &in_vertices)
	Removes the vertex colors (RGB colors or material indices) for all cylinder components on a selection of arbitrary vertices. More...

CylinderKit &	UnsetVertexColors (Cylinder::Component in_apply_to)
	Removes all vertex colors (RGB colors or material indices) for the specified cylinder component. More...

CylinderKit &	UnsetVertexColorsByRange (size_t in_start, size_t in_count, Cylinder::Component in_apply_to)
	Removes the specified range of vertex colors (RGB colors or material indices) for the specified cylinder component starting at the specified offset. More...

CylinderKit &	UnsetVertexColorsByList (SizeTArray const &in_vertices, Cylinder::Component in_apply_to)
	Removes the vertex colors (RGB colors or material indices) for the specified cylinder component on a selection of arbitrary vertices. More...

CylinderKit &	UnsetVertexColorsByList (size_t in_count, size_t const in_vertices[])
	Removes the vertex visibilities on a selection of arbitrary vertices. More...

CylinderKit &	UnsetVertexColorsByList (size_t in_count, size_t const in_vertices[], Cylinder::Component in_apply_to)
	Removes the vertex visibilities on a selection of arbitrary vertices. More...

bool	ShowVertexColors (Cylinder::Component in_apply_to, MaterialTypeArray &out_types, RGBColorArray &out_rgb_colors, FloatArray &out_indices) const
	Shows all the vertex colors of the specified cylinder component. More...

bool	ShowVertexColorsByRange (size_t in_start, size_t in_count, Cylinder::Component in_apply_to, MaterialTypeArray &out_types, RGBColorArray &out_rgb_colors, FloatArray &out_indices) const
	Shows the vertex colors on a range of vertices starting at the specified offset which apply to the specified cylinder component. More...

bool	ShowVertexColorsByList (SizeTArray const &in_vertices, Cylinder::Component in_apply_to, MaterialTypeArray &out_types, RGBColorArray &out_rgb_colors, FloatArray &out_indices) const
	Shows the vertex colors on a selection of arbitrary vertices which apply to the specified cylinder component. More...

CylinderKit &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this kit. More...

CylinderKit &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this kit. More...

CylinderKit &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this kit. More...

CylinderKit &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this kit. More...

CylinderKit &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this kit. More...

CylinderKit &	UnsetUserData (IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this kit. More...

CylinderKit &	UnsetAllUserData ()
	Removes all user data from this kit. More...

size_t	ShowUserDataCount () const
	Get the number of user data indices set on this kit. More...

bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this kit. More...

bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this kit. More...

bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this kit. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::CylinderKit

Detailed Description

The CylinderKit class is a user space object.

It is a kit analog to a CylinderKey.

Constructor & Destructor Documentation

◆ CylinderKit() [1/3]

HPS::CylinderKit::CylinderKit ( )

The default constructor creates an empty CylinderKit object.

◆ CylinderKit() [2/3]

HPS::CylinderKit::CylinderKit ( CylinderKit const & in_kit )

The copy constructor creates a new CylinderKit object that contains the same settings as the source CylinderKit.

Parameters

in_kit The source CylinderKit to copy.

◆ CylinderKit() [3/3]

HPS::CylinderKit::CylinderKit ( CylinderKit && in_that )

The move constructor creates a CylinderKit by transferring the underlying impl of the rvalue reference to this CylinderKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a CylinderKit to take the impl from.

◆ ~CylinderKit()

virtual HPS::CylinderKit::~CylinderKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Consume()

void HPS::CylinderKit::Consume ( CylinderKit & in_kit )

Copies the source CylinderKit into this CylinderKit and resets the source kit.

Parameters

in_kit The source CylinderKit to consume.

◆ Empty()

bool HPS::CylinderKit::Empty ( ) const

virtual

Indicates whether this CylinderKit has any values set on it.

Returns: true if no values are set on this CylinderKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::CylinderKit::Equals ( CylinderKit const & in_kit ) const

Check if the source CylinderKit is equivalent to this CylinderKit.

Parameters

in_kit The source CylinderKit to compare to this CylinderKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ GetPointCount()

size_t HPS::CylinderKit::GetPointCount ( ) const

Retrieves the number of points in this cylinder.

Returns: The number of points in this cylinder.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::CylinderKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::CylinderKit::operator!= ( CylinderKit const & in_kit ) const

Check if the source CylinderKit is not equivalent to this CylinderKit.

Parameters

in_kit The source CylinderKit to compare to this CylinderKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

CylinderKit& HPS::CylinderKit::operator= ( CylinderKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this CylinderKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a CylinderKit to take the impl from.

Returns: A reference to this CylinderKit.

◆ operator=() [2/2]

CylinderKit& HPS::CylinderKit::operator= ( CylinderKit const & in_kit )

Copies the source CylinderKit into this CylinderKit.

Parameters

in_kit The source CylinderKit to copy.

Returns: A reference to this CylinderKit.

◆ operator==()

bool HPS::CylinderKit::operator== ( CylinderKit const & in_kit ) const

Check if the source CylinderKit is equivalent to this CylinderKit.

Parameters

in_kit The source CylinderKit to compare to this CylinderKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::CylinderKit::Set ( CylinderKit const & in_kit )

Copies the source CylinderKit into this CylinderKit.

Parameters

in_kit The source CylinderKit to copy.

◆ SetCaps()

CylinderKit& HPS::CylinderKit::SetCaps ( Cylinder::Capping in_capping )

Sets the capping for this CylinderKit.

Parameters

in_capping The capping for this CylinderKit.

Returns: A reference to this CylinderKit.

◆ SetPoints() [1/2]

CylinderKit& HPS::CylinderKit::SetPoints ( PointArray const & in_points )

Sets the points for this CylinderKit.

Parameters

in_points The points for this CylinderKit.

Returns: A reference to this CylinderKit.

◆ SetPoints() [2/2]

CylinderKit& HPS::CylinderKit::SetPoints	(	size_t	in_count,
		Point const	in_points[]
	)

Sets the points for this CylinderKit.

Parameters

in_count	Size of the following array.
in_points	The points for this CylinderKit.

Returns: A reference to this CylinderKit.

◆ SetPriority()

CylinderKit& HPS::CylinderKit::SetPriority ( int in_priority )

Assigns a specific drawing priority value to the CylinderKit.

It affects the order in which the contents of this segment are drawn if and only if the rendering algorithm is set to Priority.

Parameters

in_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: A reference to this object.

See also: SubwindowKit::SetPriority(); SubwindowKit::SetRenderingAlgorithm()

◆ SetRadii() [1/2]

CylinderKit& HPS::CylinderKit::SetRadii ( FloatArray const & in_radii )

Sets the radii for this CylinderKit.

If the size of the radii array is smaller than the point array, the radii array will be walked repeatedly to determine the radius for all points.

Parameters

in_radii The radii for this CylinderKit.

Returns: A reference to this CylinderKit.

◆ SetRadii() [2/2]

CylinderKit& HPS::CylinderKit::SetRadii	(	size_t	in_count,
		float const	in_radii[]
	)

Sets the radii for this CylinderKit.

If the size of the radii array is smaller than the point array, the radii array will be walked repeatedly to determine the radius for all points.

Parameters

in_count	Size of the following array.
in_radii	The radii for this CylinderKit.

Returns: A reference to this CylinderKit.

◆ SetUserData() [1/3]

CylinderKit& HPS::CylinderKit::SetUserData	(	intptr_t	in_index,
		size_t	in_bytes,
		byte const	in_data[]
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [2/3]

CylinderKit& HPS::CylinderKit::SetUserData	(	intptr_t	in_index,
		ByteArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [3/3]

CylinderKit& HPS::CylinderKit::SetUserData	(	IntPtrTArray const &	in_indices,
		ByteArrayArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns: A reference to this kit.

◆ SetVertexIndexColorsByList() [1/4]

CylinderKit& HPS::CylinderKit::SetVertexIndexColorsByList	(	size_t	in_count,
		size_t const	in_vertices[],
		float const	in_indices[],
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets vertex material indices on a selection of arbitrary vertices which apply to the specified cylinder component.

Parameters

in_count	Size of the following arrays.
in_vertices	The indices of the vertices on which to set the colors.
in_indices	The material indices to set on the vertices.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexIndexColorsByList() [2/4]

CylinderKit& HPS::CylinderKit::SetVertexIndexColorsByList	(	SizeTArray const &	in_vertices,
		FloatArray const &	in_indices,
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets vertex material indices on a selection of arbitrary vertices which apply to the specified cylinder component.

If the sizes of the vertex index and material index arrays are different, the smaller size will be used.

Parameters

in_vertices	The indices of the vertices on which to set the colors.
in_indices	The material indices to set on the vertices.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexIndexColorsByList() [3/4]

CylinderKit& HPS::CylinderKit::SetVertexIndexColorsByList	(	size_t	in_count,
		size_t const	in_vertices[],
		float	in_index,
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets a single material index on a selection of arbitrary vertices which apply to the specified cylinder component.

Parameters

in_count	Size of the following array.
in_vertices	The indices of the vertices on which to set the color.
in_index	The material index to set on the vertices.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexIndexColorsByList() [4/4]

CylinderKit& HPS::CylinderKit::SetVertexIndexColorsByList	(	SizeTArray const &	in_vertices,
		float	in_index,
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets a single material index on a selection of arbitrary vertices which apply to the specified cylinder component.

Parameters

in_vertices	The indices of the vertices on which to set the color.
in_index	The material index to set on the vertices.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexIndexColorsByRange() [1/3]

CylinderKit& HPS::CylinderKit::SetVertexIndexColorsByRange	(	size_t	in_start,
		size_t	in_count,
		float const	in_indices[],
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets vertex material indices on a range of vertices starting at the specified offset which apply to the specified cylinder component.

Parameters

in_start	The offset into the vertices for this CylinderKit at which to start setting colors.
in_count	Size of the following array.
in_indices	The material indices to set on the vertices for this CylinderKit.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexIndexColorsByRange() [2/3]

CylinderKit& HPS::CylinderKit::SetVertexIndexColorsByRange	(	size_t	in_start,
		FloatArray const &	in_indices,
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets vertex material indices on a range of vertices starting at the specified offset which apply to the specified cylinder component.

Parameters

in_start	The offset into the vertices for this CylinderKit at which to start setting colors.
in_indices	The material indices to set on the vertices for this CylinderKit.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexIndexColorsByRange() [3/3]

CylinderKit& HPS::CylinderKit::SetVertexIndexColorsByRange	(	size_t	in_start,
		size_t	in_count,
		float	in_index,
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets a single material index on a range of vertices starting at the specified offset which apply to the specified cylinder component.

Parameters

in_start	The offset into the vertices for this CylinderKit at which to start setting the color.
in_count	The number of vertices on which to set the color.
in_index	The material index to set on the vertices for this CylinderKit.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexRGBColorsByList() [1/4]

CylinderKit& HPS::CylinderKit::SetVertexRGBColorsByList	(	size_t	in_count,
		size_t const	in_vertices[],
		RGBColor const	in_rgb_colors[],
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets vertex RGB colors on a selection of arbitrary vertices which apply to the specified cylinder component.

Parameters

in_count	Size of the following arrays.
in_vertices	The indices of the vertices on which to set the colors.
in_rgb_colors	The RGB colors to set on the vertices.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexRGBColorsByList() [2/4]

CylinderKit& HPS::CylinderKit::SetVertexRGBColorsByList	(	SizeTArray const &	in_vertices,
		RGBColorArray const &	in_rgb_colors,
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets vertex RGB colors on a selection of arbitrary vertices which apply to the specified cylinder component.

If the sizes of the vertex index array and the color array different, the smaller size will be used.

Parameters

in_vertices	The indices of the vertices on which to set the colors.
in_rgb_colors	The RGB colors to set on the vertices.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexRGBColorsByList() [3/4]

CylinderKit& HPS::CylinderKit::SetVertexRGBColorsByList	(	size_t	in_count,
		size_t const	in_vertices[],
		RGBColor const &	in_rgb_color,
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets a single RGB color on a selection of arbitrary vertices which apply to the specified cylinder component.

Parameters

in_count	Size of the following array.
in_vertices	The indices of the vertices on which to set the color.
in_rgb_color	The RGB color to set on the vertices.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexRGBColorsByList() [4/4]

CylinderKit& HPS::CylinderKit::SetVertexRGBColorsByList	(	SizeTArray const &	in_vertices,
		RGBColor const &	in_rgb_color,
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets a single RGB color on a selection of arbitrary vertices which apply to the specified cylinder component.

Parameters

in_vertices	The indices of the vertices on which to set the color.
in_rgb_color	The RGB color to set on the vertices.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexRGBColorsByRange() [1/3]

CylinderKit& HPS::CylinderKit::SetVertexRGBColorsByRange	(	size_t	in_start,
		size_t	in_count,
		RGBColor const	in_rgb_colors[],
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets vertex RGB colors on a range of vertices starting at the specified offset which apply to the specified cylinder component.

Parameters

in_start	The offset into the vertices for this CylinderKit at which to start setting colors.
in_count	Size of the following array.
in_rgb_colors	The RGB colors to set on the vertices for this CylinderKit.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexRGBColorsByRange() [2/3]

CylinderKit& HPS::CylinderKit::SetVertexRGBColorsByRange	(	size_t	in_start,
		RGBColorArray const &	in_rgb_colors,
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets vertex RGB colors on a range of vertices starting at the specified offset which apply to the specified cylinder component.

Parameters

in_start	The offset into the vertices for this CylinderKit at which to start setting colors.
in_rgb_colors	The RGB colors to set on the vertices for this CylinderKit.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ SetVertexRGBColorsByRange() [3/3]

CylinderKit& HPS::CylinderKit::SetVertexRGBColorsByRange	(	size_t	in_start,
		size_t	in_count,
		RGBColor const &	in_rgb_color,
		Cylinder::Component	in_apply_to = `Cylinder::Component::Faces`
	)

Sets a single RGB color on a range of vertices starting at the specified offset which apply to the specified cylinder component.

Parameters

in_start	The offset into the vertices for this CylinderKit at which to start setting the color.
in_count	The number of vertices on which to set the color.
in_rgb_color	The RGB color to set on the vertices for this CylinderKit.
in_apply_to	The cylinder component the colors should apply to. Defaults to Cylinder::Component::Faces.

Returns: A reference to this CylinderKit.

◆ Show()

void HPS::CylinderKit::Show ( CylinderKit & out_kit ) const

Copies this CylinderKit into the given CylinderKit.

Parameters

out_kit The CylinderKit to populate with the contents of this CylinderKit.

◆ ShowCaps()

bool HPS::CylinderKit::ShowCaps ( Cylinder::Capping & out_caps ) const

Show the capping for this CylinderKit.

Parameters

out_caps The capping for this CylinderKit.

Returns: true if a capping was set, false otherwise.

◆ ShowPoints()

bool HPS::CylinderKit::ShowPoints ( PointArray & out_points ) const

Show the points for this CylinderKit.

Parameters

out_points The points for this CylinderKit.

Returns: true if points were set, false otherwise.

◆ ShowPointsByList() [1/2]

bool HPS::CylinderKit::ShowPointsByList	(	SizeTArray const &	in_indices,
		PointArray &	out_points
	)		const

Show a subset of the points for this CylinderKit by list.

Parameters

in_indices	The list of point indices to show.
out_points	The requested points for this CylinderKit.

Returns: true if all requested points were set, false otherwise.

◆ ShowPointsByList() [2/2]

bool HPS::CylinderKit::ShowPointsByList	(	size_t	in_count,
		size_t const	in_indices[],
		PointArray &	out_points
	)		const

Show a subset of the points for this CylinderKit by list.

Parameters

in_count	The number of points to show.
in_indices	The list of point indices to show.
out_points	The requested points for this CylinderKit.

Returns: true if all requested points were set, false otherwise.

◆ ShowPointsByRange()

bool HPS::CylinderKit::ShowPointsByRange	(	size_t	in_start_index,
		size_t	in_count,
		PointArray &	out_points
	)		const

Show a subset of the points for this CylinderKit by range.

Parameters

in_start_index	The first point to show.
in_count	The number of points to show.
out_points	The requested points for this CylinderKit.

Returns: true if all requested points were set, false otherwise.

◆ ShowPriority()

bool HPS::CylinderKit::ShowPriority ( int & out_priority ) const

Shows the drawing priority.

Parameters

out_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: true if the setting is valid, false otherwise.

◆ ShowRadii()

bool HPS::CylinderKit::ShowRadii ( FloatArray & out_radii ) const

Show the radii for this CylinderKit.

Parameters

out_radii The radii for this CylinderKit.

Returns: true if radii were set, false otherwise.

◆ ShowUserData() [1/2]

bool HPS::CylinderKit::ShowUserData	(	intptr_t	in_index,
		ByteArray &	out_data
	)		const

Shows the user data at a given index for this kit.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns: true if there is user data at the given index, false otherwise.

◆ ShowUserData() [2/2]

bool HPS::CylinderKit::ShowUserData	(	IntPtrTArray &	out_indices,
		ByteArrayArray &	out_data
	)		const

Shows all user data for this kit.

Parameters

out_indices	An array of all user data indices set on this kit.
out_data	An array of all user data set on this kit.

Returns: true if there is user data on this kit, false otherwise.

◆ ShowUserDataCount()

size_t HPS::CylinderKit::ShowUserDataCount ( ) const

Get the number of user data indices set on this kit.

◆ ShowUserDataIndices()

bool HPS::CylinderKit::ShowUserDataIndices ( IntPtrTArray & out_indices ) const

Shows the indices of all user data set on this kit.

Parameters

out_indices The user data indices set on this kit.

Returns: The number of user data indices set on this kit.

◆ ShowVertexColors()

bool HPS::CylinderKit::ShowVertexColors	(	Cylinder::Component	in_apply_to,
		MaterialTypeArray &	out_types,
		RGBColorArray &	out_rgb_colors,
		FloatArray &	out_indices
	)		const

Shows all the vertex colors of the specified cylinder component.

Parameters

in_apply_to	The cylinder component the colors should apply to.
out_types	The types of vertex colors for each vertex. If a vertex does not have a vertex color set for the specified cylinder component, the entry in this array will be Material::Type::None.
out_rgb_colors	The RGB colors for each vertex. out_rgb_colors[i] is only valid if out_types[i] is Material::Type::RGBColor.
out_indices	The material indices for each vertex. The out_indices[i] is only valid if out_types[i] is Material::Type::MaterialIndex.

Returns: true if any vertex colors were shown, false otherwise.

◆ ShowVertexColorsByList()

bool HPS::CylinderKit::ShowVertexColorsByList	(	SizeTArray const &	in_vertices,
		Cylinder::Component	in_apply_to,
		MaterialTypeArray &	out_types,
		RGBColorArray &	out_rgb_colors,
		FloatArray &	out_indices
	)		const

Shows the vertex colors on a selection of arbitrary vertices which apply to the specified cylinder component.

The order of the values in the ouput arrays is the same as the input vertex index array, i.e., the values of out_types[i], out_rgb_colors[i], out_rgba_colors[i], and out_indices[i], correspond to the vertex at index in_vertices[i].

Parameters

in_vertices	The indices of the vertices on which to show the colors.
in_apply_to	The cylinder component the colors should apply to.
out_types	The types of vertex colors for each vertex at the specified index. If a vertex at a specified index does not have a vertex color set for the specified component, the entry in this array will be Material::Type::None.
out_rgb_colors	The RGB colors for each vertex at the specified index. out_rgb_colors[i] is only valid if out_types[i] is Material::Type::RGBColor.
out_indices	The material indices for each vertex at the specified index. The out_indices[i] is only valid if out_types[i] is Material::Type::MaterialIndex.

Returns: true if any specified vertex had a vertex color on the specified component set, false otherwise.

◆ ShowVertexColorsByRange()

bool HPS::CylinderKit::ShowVertexColorsByRange	(	size_t	in_start,
		size_t	in_count,
		Cylinder::Component	in_apply_to,
		MaterialTypeArray &	out_types,
		RGBColorArray &	out_rgb_colors,
		FloatArray &	out_indices
	)		const

Shows the vertex colors on a range of vertices starting at the specified offset which apply to the specified cylinder component.

Parameters

in_start	The offset into the vertices for this CylinderKit at which to start showing colors.
in_count	The number of colors to show.
in_apply_to	The cylinder component the colors should apply to.
out_types	The types of vertex colors for each vertex in the specified range. If a vertex in the specified range does not have a vertex color set for the specified cylinder component, the entry in this array will be Material::Type::None.
out_rgb_colors	The RGB colors for each vertex in the specified range. out_rgb_colors[i] is only valid if out_types[i] is Material::Type::RGBColor.
out_indices	The material indices for each vertex in the specified range. The out_indices[i] is only valid if out_types[i] is Material::Type::MaterialIndex.

Returns: true if any vertex in the specified range had a vertex color on the specified component set, false otherwise.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetAllUserData()

CylinderKit& HPS::CylinderKit::UnsetAllUserData ( )

Removes all user data from this kit.

Returns: A reference to this kit.

◆ UnsetCaps()

CylinderKit& HPS::CylinderKit::UnsetCaps ( )

Removes the capping for this CylinderKit.

Returns: A reference to this CylinderKit.

◆ UnsetEverything()

CylinderKit& HPS::CylinderKit::UnsetEverything ( )

Removes all settings from the CylinderKit.

Returns: A reference to this CylinderKit.

◆ UnsetPoints()

CylinderKit& HPS::CylinderKit::UnsetPoints ( )

Removes the points for this CylinderKit.

Returns: A reference to this CylinderKit.

◆ UnsetPriority()

CylinderKit& HPS::CylinderKit::UnsetPriority ( )

Removes a drawing priority setting.

Returns: A reference to this object.

◆ UnsetRadii()

CylinderKit& HPS::CylinderKit::UnsetRadii ( )

Removes the radii for this CylinderKit.

Returns: A reference to this CylinderKit.

◆ UnsetUserData() [1/3]

CylinderKit& HPS::CylinderKit::UnsetUserData ( intptr_t in_index )

Removes the user data at the given index from this kit.

Parameters

in_index The index of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [2/3]

CylinderKit& HPS::CylinderKit::UnsetUserData	(	size_t	in_count,
		intptr_t const	in_indices[]
	)

Removes the user data at the given indices from this kit.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [3/3]

CylinderKit& HPS::CylinderKit::UnsetUserData ( IntPtrTArray const & in_indices )

Removes the user data at the given indices from this kit.

Parameters

in_indices The indices of the user data to remove.

Returns: A reference to this kit.

◆ UnsetVertexColors() [1/2]

CylinderKit& HPS::CylinderKit::UnsetVertexColors ( )

Removes all vertex colors (RGB colors or material indices) for all cylinder components.

Returns: A reference to this CylinderKit.

◆ UnsetVertexColors() [2/2]

CylinderKit& HPS::CylinderKit::UnsetVertexColors ( Cylinder::Component in_apply_to )

Removes all vertex colors (RGB colors or material indices) for the specified cylinder component.

Parameters

in_apply_to The cylinder component for which to remove the colors.

Returns: A reference to this CylinderKit.

◆ UnsetVertexColorsByList() [1/4]

CylinderKit& HPS::CylinderKit::UnsetVertexColorsByList ( SizeTArray const & in_vertices )

Removes the vertex colors (RGB colors or material indices) for all cylinder components on a selection of arbitrary vertices.

Parameters

in_vertices The indices of the vertices on which to remove the colors.

Returns: A reference to this CylinderKit.

◆ UnsetVertexColorsByList() [2/4]

CylinderKit& HPS::CylinderKit::UnsetVertexColorsByList	(	SizeTArray const &	in_vertices,
		Cylinder::Component	in_apply_to
	)

Removes the vertex colors (RGB colors or material indices) for the specified cylinder component on a selection of arbitrary vertices.

Parameters

in_vertices	The indices of the vertices on which to remove the colors.
in_apply_to	The cylinder component for which to remove the colors.

Returns: A reference to this CylinderKit.

◆ UnsetVertexColorsByList() [3/4]

CylinderKit& HPS::CylinderKit::UnsetVertexColorsByList	(	size_t	in_count,
		size_t const	in_vertices[]
	)

Removes the vertex visibilities on a selection of arbitrary vertices.

Parameters

in_count	The number of vertex visibilities to remove for this CylinderKit.
in_vertices	The indices of the vertices on which to remove the visibilities.

Returns: A reference to this CylinderKit.

◆ UnsetVertexColorsByList() [4/4]

CylinderKit& HPS::CylinderKit::UnsetVertexColorsByList	(	size_t	in_count,
		size_t const	in_vertices[],
		Cylinder::Component	in_apply_to
	)

Removes the vertex visibilities on a selection of arbitrary vertices.

Parameters

in_count	The number of vertex visibilities to remove for this CylinderKit.
in_vertices	The indices of the vertices on which to remove the visibilities.
in_apply_to	The cylinder component that should be unset.

Returns: A reference to this CylinderKit.

◆ UnsetVertexColorsByRange() [1/2]

CylinderKit& HPS::CylinderKit::UnsetVertexColorsByRange	(	size_t	in_start,
		size_t	in_count
	)

Removes the specified range of vertex colors (RGB colors or material indices) for all cylinder components starting at the specified offset.

Parameters

in_start	The offset into the vertices for this CylinderKit at which to start removing colors.
in_count	The number of vertex colors to remove for this CylinderKit.

Returns: A reference to this CylinderKit.

◆ UnsetVertexColorsByRange() [2/2]

CylinderKit& HPS::CylinderKit::UnsetVertexColorsByRange	(	size_t	in_start,
		size_t	in_count,
		Cylinder::Component	in_apply_to
	)

Removes the specified range of vertex colors (RGB colors or material indices) for the specified cylinder component starting at the specified offset.

Parameters

in_start	The offset into the vertices for this CylinderKit at which to start removing colors.
in_count	The number of vertex colors to remove for this CylinderKit.
in_apply_to	The cylinder component for which to remove the colors.

Returns: A reference to this CylinderKit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::CylinderKit::staticType = HPS::Type::CylinderKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ CylinderKit() [1/3]

◆ CylinderKit() [2/3]

◆ CylinderKit() [3/3]

◆ ~CylinderKit()

Member Function Documentation

◆ ClassID()

◆ Consume()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetInstanceID()

◆ GetPointCount()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetCaps()

◆ SetPoints() [1/2]

◆ SetPoints() [2/2]

◆ SetPriority()

◆ SetRadii() [1/2]

◆ SetRadii() [2/2]

◆ SetUserData() [1/3]

◆ SetUserData() [2/3]

◆ SetUserData() [3/3]

◆ SetVertexIndexColorsByList() [1/4]

◆ SetVertexIndexColorsByList() [2/4]

◆ SetVertexIndexColorsByList() [3/4]

◆ SetVertexIndexColorsByList() [4/4]

◆ SetVertexIndexColorsByRange() [1/3]

◆ SetVertexIndexColorsByRange() [2/3]

◆ SetVertexIndexColorsByRange() [3/3]

◆ SetVertexRGBColorsByList() [1/4]

◆ SetVertexRGBColorsByList() [2/4]

◆ SetVertexRGBColorsByList() [3/4]

◆ SetVertexRGBColorsByList() [4/4]

◆ SetVertexRGBColorsByRange() [1/3]

◆ SetVertexRGBColorsByRange() [2/3]

◆ SetVertexRGBColorsByRange() [3/3]

◆ Show()

◆ ShowCaps()

◆ ShowPoints()

◆ ShowPointsByList() [1/2]

◆ ShowPointsByList() [2/2]

◆ ShowPointsByRange()

◆ ShowPriority()

◆ ShowRadii()

◆ ShowUserData() [1/2]

◆ ShowUserData() [2/2]

◆ ShowUserDataCount()

◆ ShowUserDataIndices()

◆ ShowVertexColors()

◆ ShowVertexColorsByList()

◆ ShowVertexColorsByRange()

◆ Type()

◆ UnsetAllUserData()

◆ UnsetCaps()

◆ UnsetEverything()

◆ UnsetPoints()

◆ UnsetPriority()

◆ UnsetRadii()

◆ UnsetUserData() [1/3]

◆ UnsetUserData() [2/3]

◆ UnsetUserData() [3/3]

◆ UnsetVertexColors() [1/2]

◆ UnsetVertexColors() [2/2]

◆ UnsetVertexColorsByList() [1/4]

◆ UnsetVertexColorsByList() [2/4]

◆ UnsetVertexColorsByList() [3/4]

◆ UnsetVertexColorsByList() [4/4]

◆ UnsetVertexColorsByRange() [1/2]
