HPS::Object Class Reference

The Object class is the common base class of most Visualize classes. More...

#include <hps.h>

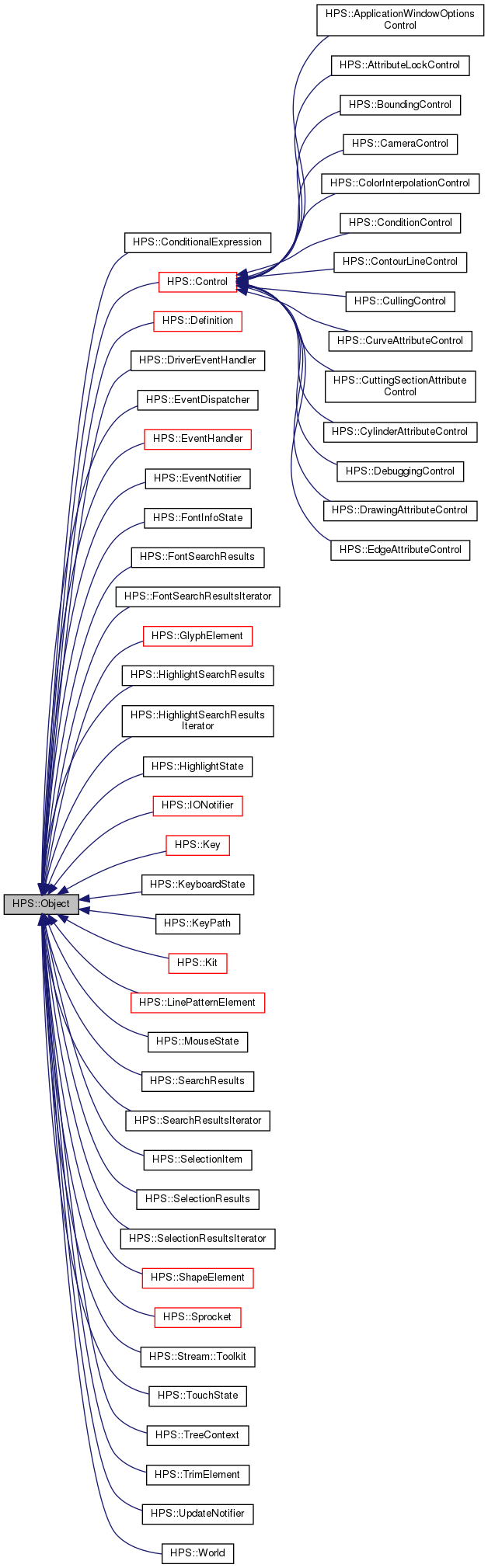

Inheritance diagram for HPS::Object:

Collaboration diagram for HPS::Object:

Public Member Functions
	Object ()
	Object (Object const &that)
virtual	~Object ()
Object &	operator= (Object const &other_object)
	Object (Object &&in_that)
	The move constructor creates an Object by transferring the underlying impl of the rvalue reference to this Object thereby avoiding a copy and allocation. More...
Object &	operator= (Object &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this Object thereby avoiding a copy. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual HPS::Type	ObjectType () const
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::None
	This function returns the type the object, as declared. More...

Private Attributes
HPSI::Impl *	impl_

Friends
class	HPSI::Impl
class	HPSI::KeyImpl
class	HPSI::TicketImpl

Detailed Description

The Object class is the common base class of most Visualize classes.

Constructor & Destructor Documentation

Object() [1/3]

HPS::Object::Object

(

)

Object() [2/3]

HPS::Object::Object

(

Object const &

that

)

~Object()

virtual HPS::Object::~Object ( )

virtual

Object() [3/3]

HPS::Object::Object

(

Object &&

in_that

)

The move constructor creates an Object by transferring the underlying impl of the rvalue reference to this Object thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to an Object to take the impl from.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestatic

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtual

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID

(

)

const

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID

(

)

const

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType

(

HPS::Type

in_mask

)

const

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

virtual HPS::Type HPS::Object::ObjectType ( ) const

inlinevirtual

Reimplemented in HPS::STL::ImportNotifier, HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ExportNotifier, HPS::OBJ::ImportNotifier, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportNotifier, HPS::Stream::ImportNotifier, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::Stream::Toolkit, HPS::PointCloud::ImportNotifier, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::IONotifier, HPS::KeyboardState, HPS::TouchState, HPS::MouseState, HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::UpdateOptionsControl, HPS::UpdateOptionsKit, HPS::HighlightControl, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::HighlightState, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionControl, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::SelectionItem, HPS::SelectionOptionsControl, HPS::SelectionOptionsKit, HPS::TreeContext, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeDefinition, HPS::ShapeKit, HPS::ShaderDefinition, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::LinePatternDefinition, HPS::MaterialPaletteDefinition, HPS::NamedStyleDefinition, HPS::CubeMapDefinition, HPS::ImageDefinition, HPS::OffScreenWindowKey, HPS::OffScreenWindowOptionsControl, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::TextureDefinition, HPS::GlyphDefinition, HPS::PortfolioKey, HPS::Definition, HPS::LineShapeElement, HPS::AnchorShapeElement, HPS::LeaderLineClippingElement, HPS::CircularArcShapeElement, HPS::EllipticalArcShapeElement, HPS::CircleShapeElement, HPS::EllipseShapeElement, HPS::PolygonShapeElement, HPS::ShapeElement, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::GlyphLinePatternElement, HPS::BlankLinePatternElement, HPS::SolidLinePatternElement, HPS::LinePatternElement, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::InfiniteLineGlyphElement, HPS::CircularArcGlyphElement, HPS::SphereGlyphElement, HPS::EllipseGlyphElement, HPS::DotGlyphElement, HPS::LineGlyphElement, HPS::GlyphElement, HPS::ApplicationWindowKey, HPS::StandAloneWindowKey, HPS::ApplicationWindowOptionsControl, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsControl, HPS::StandAloneWindowOptionsKit, HPS::ReferenceKey, HPS::StyleKey, HPS::IncludeKey, HPS::GridKey, HPS::GridKit, HPS::PolygonKey, HPS::PolygonKit, HPS::MeshKey, HPS::MeshKit, HPS::ShellKey, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKey, HPS::TextKit, HPS::EllipticalArcKey, HPS::EllipticalArcKit, HPS::EllipseKey, HPS::EllipseKit, HPS::TrimKit, HPS::TrimElement, HPS::NURBSSurfaceKey, HPS::NURBSSurfaceKit, HPS::NURBSCurveKey, HPS::NURBSCurveKit, HPS::SpotlightKey, HPS::SpotlightKit, HPS::InfiniteLineKey, HPS::InfiniteLineKit, HPS::CuttingSectionKey, HPS::CuttingSectionKit, HPS::CircularWedgeKey, HPS::CircularWedgeKit, HPS::CircularArcKey, HPS::CircularArcKit, HPS::CircleKey, HPS::CircleKit, HPS::SphereKey, HPS::SphereKit, HPS::CylinderKey, HPS::CylinderKit, HPS::DistantLightKey, HPS::DistantLightKit, HPS::MarkerKey, HPS::MarkerKit, HPS::LineKey, HPS::LineKit, HPS::GeometryKey, HPS::AttributeLockControl, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoControl, HPS::WindowInfoKit, HPS::DebuggingControl, HPS::DebuggingKit, HPS::SubwindowControl, HPS::SubwindowKit, HPS::ContourLineControl, HPS::ContourLineKit, HPS::VisualEffectsControl, HPS::VisualEffectsKit, HPS::TransformMaskControl, HPS::TransformMaskKit, HPS::PostProcessEffectsControl, HPS::PostProcessEffectsKit, HPS::DrawingAttributeControl, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeControl, HPS::HiddenLineAttributeKit, HPS::PerformanceControl, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeControl, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::MaterialMappingKit, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::MatrixKit, HPS::CurveAttributeControl, HPS::CurveAttributeKit, HPS::EdgeAttributeControl, HPS::EdgeAttributeKit, HPS::LineAttributeControl, HPS::LineAttributeKit, HPS::TextAttributeControl, HPS::TextAttributeKit, HPS::CuttingSectionAttributeControl, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeControl, HPS::CylinderAttributeKit, HPS::LightingAttributeControl, HPS::LightingAttributeKit, HPS::SphereAttributeControl, HPS::SphereAttributeKit, HPS::MarkerAttributeControl, HPS::MarkerAttributeKit, HPS::CullingControl, HPS::CullingKit, HPS::ColorInterpolationControl, HPS::ColorInterpolationKit, HPS::TransparencyControl, HPS::TransparencyKit, HPS::SelectabilityControl, HPS::SelectabilityKit, HPS::CameraControl, HPS::CameraKit, HPS::VisibilityControl, HPS::VisibilityKit, HPS::BoundingControl, HPS::BoundingKit, HPS::KeyPath, HPS::WindowKey, HPS::DriverEventHandler, HPS::UpdateNotifier, HPS::SegmentOptimizationOptionsKit, HPS::SegmentKey, HPS::Key, HPS::ConditionalExpression, HPS::FontSearchResults, HPS::Publish::ExportOptionsKit, HPS::FontSearchResultsIterator, HPS::SearchResults, HPS::SearchResultsIterator, HPS::Publish::PageControl, HPS::EventNotifier, HPS::Publish::DocumentKey, HPS::Kit, HPS::Control, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::ComponentTreeItem, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::ComponentTree, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::SceneTreeItem, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::SceneTree, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::BooleanMetadata, HPS::TimeMetadata, HPS::Exchange::TranslationOptionsKit, HPS::StringMetadata, HPS::DoubleMetadata, HPS::UnsignedIntegerMetadata, HPS::Publish::ArtworkKit, HPS::IntegerMetadata, HPS::Metadata, HPS::CADModel, HPS::Capture, HPS::Filter, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Component, HPS::Exchange::ImportOptionsKit, HPS::AxisTriadControl, HPS::Parasolid::ExportOptionsKit, HPS::NavigationCubeControl, HPS::Exchange::NURBSConversionOptionsKit, HPS::OperatorControl, HPS::Parasolid::LineTessellationKit, HPS::Operator, HPS::Exchange::Configuration, HPS::SprocketPath, HPS::Publish::PageKit, HPS::Exchange::ReloadNotifier, HPS::Parasolid::FacetTessellationKit, HPS::Exchange::ExportNotifier, HPS::Exchange::TranslationNotifier, HPS::Publish::DocumentKit, HPS::Exchange::ImportNotifier, HPS::Layout, HPS::Parasolid::ImportOptionsKit, HPS::Model, HPS::Exchange::Filter, HPS::Parasolid::ImportNotifier, HPS::Exchange::Capture, HPS::DWG::ImportOptionsKit, HPS::Parasolid::CADModel, HPS::Exchange::CADModel, HPS::DWG::ImportNotifier, HPS::Parasolid::Component, HPS::View, HPS::Exchange::Sheet, HPS::OOC::ImportOptionsKit, HPS::DWG::Layout, HPS::SprocketKit, HPS::OOC::ImportNotifier, HPS::SprocketControl, HPS::Exchange::ProductOccurrence, HPS::Sketchup::ImportOptionsKit, HPS::DWG::CADModel, HPS::Sketchup::ImportNotifier, HPS::Exchange::Component, HPS::DWG::Layer, HPS::Canvas, HPS::DWG::Component, HPS::ExchangeParasolid::ImportNotifier, and HPS::Sketchup::ImportResultsKit.

operator=() [1/2]

Object& HPS::Object::operator=

(

Object const &

other_object

)

Here is the caller graph for this function:

operator=() [2/2]

Object& HPS::Object::operator=

(

Object &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this Object thereby avoiding a copy.

Parameters

in_that

An rvalue reference to an Object to take the impl from.

Returns

A reference to this Object.

Reset()

virtual void HPS::Object::Reset ( )

virtual

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

Friends And Related Function Documentation

HPSI::Impl

friend class HPSI::Impl

friend

HPSI::KeyImpl

friend class HPSI::KeyImpl

friend

HPSI::TicketImpl

friend class HPSI::TicketImpl

friend

Member Data Documentation

impl_

HPSI::Impl* HPS::Object::impl_

private

staticType

const HPS::Type HPS::Object::staticType = HPS::Type::None

static

This function returns the type the object, as declared.

This does not necessarily give the true type of the underlying object.

Returns

The declared type of the object in question, which may differ from the true, underlying type.

---

The documentation for this class was generated from the following file:

• hps.h
