HPS::SelectionControl Class Reference

The SelectionControl class is a smart pointer that is tied to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::SelectionControl:

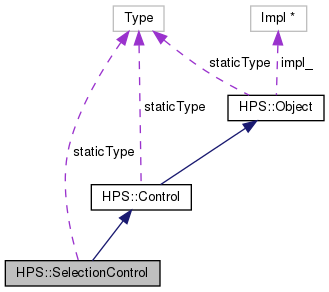

Collaboration diagram for HPS::SelectionControl:

Public Member Functions
	SelectionControl (WindowKey const &in_window)
	This constructor creates a SelectionControl object which is tied to the specified window. More...
	SelectionControl (SelectionControl const &in_that)
	The copy constructor creates a SelectionControl object that shares the underlying smart-pointer of the source SelectionControl. More...
	SelectionControl (SelectionControl &&in_that)
	The move constructor creates a SelectionControl by transferring the underlying impl of the rvalue reference to this SelectionControl thereby avoiding a copy and allocation. More...
SelectionControl &	operator= (SelectionControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this SelectionControl thereby avoiding a copy. More...
	~SelectionControl ()
HPS::Type	ObjectType () const
SelectionControl &	operator= (SelectionControl const &in_that)
	Share the underlying smart-pointer of the SelectionControl source. More...
size_t	SelectByPoint (Point const &in_location, SelectionOptionsKit const &in_options, SelectionResults &out_results) const
	Perform a window space point selection starting at the specified segment using the specified selection options. More...
size_t	SelectByPoint (Point const &in_location, SelectionResults &out_results) const
	Perform a window space point selection starting at the specified segment using selection options set in segment tree. More...
size_t	SelectByArea (Rectangle const &in_area, SelectionOptionsKit const &in_options, SelectionResults &out_results) const
	Perform a window space area selection starting at the specified segment using the specified selection options. More...
size_t	SelectByArea (Rectangle const &in_area, SelectionResults &out_results) const
	Perform a window space area selection starting at the specified segment using selection options set in the segment tree. More...
size_t	SelectByPolygon (PointArray const &in_points, SelectionOptionsKit const &in_options, SelectionResults &out_results) const
	Perform a window space polygon selection starting at the specified segment using the specified selection options. More...
size_t	SelectByPolygon (PointArray const &in_points, SelectionResults &out_results) const
	Perform a window space polygon selection starting at the specified segment using selection options set in the segment tree. More...
size_t	SelectByPolygon (size_t in_point_count, Point const in_points [], SelectionOptionsKit const &in_options, SelectionResults &out_results) const
	Perform a window space polygon selection starting at the specified segment using the specified selection options. More...
size_t	SelectByPolygon (size_t in_point_count, Point const in_points [], SelectionResults &out_results) const
	Perform a window space polygon selection starting at the specified segment using selection options set in the segment tree. More...
size_t	SelectByLine (PointArray const &in_points, SelectionOptionsKit const &in_options, SelectionResults &out_results) const
	Perform a window space line selection starting at the specified segment using the specified selection options. More...
size_t	SelectByLine (PointArray const &in_points, SelectionResults &out_results) const
	Perform a window space line selection starting at the specified segment using the selection options set in the segment tree. More...
size_t	SelectByLine (size_t in_point_count, Point const in_points [], SelectionOptionsKit const &in_options, SelectionResults &out_results) const
	Perform a window space line selection starting at the specified segment using the specified selection options. More...
size_t	SelectByLine (size_t in_point_count, Point const in_points [], SelectionResults &out_results) const
	Perform a window space line selection with the specified line and start segment using the selection options set in the segment tree. More...
size_t	SelectByShell (ShellKit const &in_shell, SelectionOptionsKit const &in_options, SelectionResults &out_results)
	Performs an object space selection by shell starting at the specified segment using the specified selection options. More...
size_t	SelectByShell (ShellKit const &in_shell, SelectionResults &out_results)
	Performs an object space selection by shell starting at the specified segment using the selection options set in the segment tree. More...
size_t	SelectByShell (ShellKey const &in_shell, SelectionOptionsKit const &in_options, SelectionResults &out_results)
	Performs an object space selection by shell starting at the specified segment using the specified selection options. More...
size_t	SelectByShell (ShellKey const &in_shell, SelectionResults &out_results)
	Performs an object space selection by shell starting at the specified segment using the selection options set in the segment tree. More...
size_t	SelectByVolume (SimpleCuboid const &in_volume, SelectionOptionsKit const &in_options, SelectionResults &out_results)
	Performs an object space selection by volume starting at the specified segment using the specified selection options. More...
size_t	SelectByVolume (SimpleCuboid const &in_volume, SelectionResults &out_results)
	Performs an object space selection by volume starting at the specified segment using the selection options set in the segment tree. More...
size_t	SelectByRay (Point const &in_start_point, Vector const &in_direction, SelectionOptionsKit const &in_options, SelectionResults &out_results)
	Performs an object space selection by ray starting at the specified segment using the specified selection options. More...
size_t	SelectByRay (Point const &in_start_point, Vector const &in_direction, SelectionResults &out_results)
	Performs an object space selection by ray starting at the specified segment using the selection options set in the segment tree. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::SelectionControl

Private Member Functions
	SelectionControl ()
	Private default constructor to prevent instantiation without a window. More...

Detailed Description

The SelectionControl class is a smart pointer that is tied to a database object.

It is used to perform both window space selections (by point, by area, by polygon, by line) and object space selections (by shell, by volume, by ray).

Constructor & Destructor Documentation

SelectionControl() [1/4]

HPS::SelectionControl::SelectionControl ( WindowKey const &  in_window )

explicit

This constructor creates a SelectionControl object which is tied to the specified window.

Parameters

in_window

The window which this SelectionControl should operate on.

SelectionControl() [2/4]

HPS::SelectionControl::SelectionControl

(

SelectionControl const &

in_that

)

The copy constructor creates a SelectionControl object that shares the underlying smart-pointer of the source SelectionControl.

Parameters

in_that

The source SelectionControl to copy.

SelectionControl() [3/4]

HPS::SelectionControl::SelectionControl

(

SelectionControl &&

in_that

)

The move constructor creates a SelectionControl by transferring the underlying impl of the rvalue reference to this SelectionControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a SelectionControl to take the impl from.

~SelectionControl()

HPS::SelectionControl::~SelectionControl

(

)

SelectionControl() [4/4]

HPS::SelectionControl::SelectionControl ( )

private

Private default constructor to prevent instantiation without a window.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::SelectionControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

operator=() [1/2]

SelectionControl& HPS::SelectionControl::operator=

(

SelectionControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this SelectionControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a SelectionControl to take the impl from.

Returns

A reference to this SelectionControl.

operator=() [2/2]

SelectionControl& HPS::SelectionControl::operator=

(

SelectionControl const &

in_that

)

Share the underlying smart-pointer of the SelectionControl source.

Parameters

in_that

The SelectionControl source of the assignment.

Returns

A reference to this SelectionControl.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SelectByArea() [1/2]

size_t HPS::SelectionControl::SelectByArea	(	Rectangle const &	in_area,
		SelectionOptionsKit const &	in_options,
		SelectionResults &	out_results
	)		const

Perform a window space area selection starting at the specified segment using the specified selection options.

Parameters

in_area	Rectangle in window space at which to perform the selection.
in_options	Selection options to use when performing the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByArea() [2/2]

size_t HPS::SelectionControl::SelectByArea	(	Rectangle const &	in_area,
		SelectionResults &	out_results
	)		const

Perform a window space area selection starting at the specified segment using selection options set in the segment tree.

Parameters

in_area	Rectangle in window space at which to perform the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByLine() [1/4]

size_t HPS::SelectionControl::SelectByLine	(	PointArray const &	in_points,
		SelectionOptionsKit const &	in_options,
		SelectionResults &	out_results
	)		const

Perform a window space line selection starting at the specified segment using the specified selection options.

Parameters

in_points	Line in window space at which to perform the selection.
in_options	Selection options to use when performing the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByLine() [2/4]

size_t HPS::SelectionControl::SelectByLine	(	PointArray const &	in_points,
		SelectionResults &	out_results
	)		const

Perform a window space line selection starting at the specified segment using the selection options set in the segment tree.

Parameters

in_points	Line in window space at which to perform the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByLine() [3/4]

size_t HPS::SelectionControl::SelectByLine	(	size_t	in_point_count,
		Point const	in_points[],
		SelectionOptionsKit const &	in_options,
		SelectionResults &	out_results
	)		const

Perform a window space line selection starting at the specified segment using the specified selection options.

Parameters

in_point_count	Size of the following array.
in_points	Line in window space at which to perform the selection.
in_options	Selection options to use when performing the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByLine() [4/4]

size_t HPS::SelectionControl::SelectByLine	(	size_t	in_point_count,
		Point const	in_points[],
		SelectionResults &	out_results
	)		const

Perform a window space line selection with the specified line and start segment using the selection options set in the segment tree.

Parameters

in_point_count	Size of the following array.
in_points	Line in window space at which to perform the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByPoint() [1/2]

size_t HPS::SelectionControl::SelectByPoint	(	Point const &	in_location,
		SelectionOptionsKit const &	in_options,
		SelectionResults &	out_results
	)		const

Perform a window space point selection starting at the specified segment using the specified selection options.

Parameters

in_location	Point in window space at which to perform the selection.
in_options	Selection options to use when performing the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByPoint() [2/2]

size_t HPS::SelectionControl::SelectByPoint	(	Point const &	in_location,
		SelectionResults &	out_results
	)		const

Perform a window space point selection starting at the specified segment using selection options set in segment tree.

Parameters

in_location	Point in window space at which to perform the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByPolygon() [1/4]

size_t HPS::SelectionControl::SelectByPolygon	(	PointArray const &	in_points,
		SelectionOptionsKit const &	in_options,
		SelectionResults &	out_results
	)		const

Perform a window space polygon selection starting at the specified segment using the specified selection options.

Parameters

in_points	Polygon in window space at which to perform the selection.
in_options	Selection options to use when performing the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByPolygon() [2/4]

size_t HPS::SelectionControl::SelectByPolygon	(	PointArray const &	in_points,
		SelectionResults &	out_results
	)		const

Perform a window space polygon selection starting at the specified segment using selection options set in the segment tree.

Parameters

in_points	Polygon in window space at which to perform the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByPolygon() [3/4]

size_t HPS::SelectionControl::SelectByPolygon	(	size_t	in_point_count,
		Point const	in_points[],
		SelectionOptionsKit const &	in_options,
		SelectionResults &	out_results
	)		const

Perform a window space polygon selection starting at the specified segment using the specified selection options.

Parameters

in_point_count	Size of the following array.
in_points	Polygon in window space for the polygon at which to perform the selection.
in_options	Selection options to use when performing the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByPolygon() [4/4]

size_t HPS::SelectionControl::SelectByPolygon	(	size_t	in_point_count,
		Point const	in_points[],
		SelectionResults &	out_results
	)		const

Perform a window space polygon selection starting at the specified segment using selection options set in the segment tree.

Parameters

in_point_count	Size of the following array.
in_points	Polygon in window space at which to perform the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByRay() [1/2]

size_t HPS::SelectionControl::SelectByRay	(	Point const &	in_start_point,
		Vector const &	in_direction,
		SelectionOptionsKit const &	in_options,
		SelectionResults &	out_results
	)

Performs an object space selection by ray starting at the specified segment using the specified selection options.

This method can only select faceted geometry.

Parameters

in_start_point	Start point of ray.
in_direction	Direction vector for ray.
in_options	Selection options to use when performing the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByRay() [2/2]

size_t HPS::SelectionControl::SelectByRay	(	Point const &	in_start_point,
		Vector const &	in_direction,
		SelectionResults &	out_results
	)

Performs an object space selection by ray starting at the specified segment using the selection options set in the segment tree.

This method can only select faceted geometry.

Parameters

in_start_point	Start point of ray.
in_direction	Direction vector for ray.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByShell() [1/4]

size_t HPS::SelectionControl::SelectByShell	(	ShellKit const &	in_shell,
		SelectionOptionsKit const &	in_options,
		SelectionResults &	out_results
	)

Performs an object space selection by shell starting at the specified segment using the specified selection options.

This method can only select faceted geometry.

Parameters

in_shell	Shell to use to perform the selection.
in_options	Selection options to use when performing the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByShell() [2/4]

size_t HPS::SelectionControl::SelectByShell	(	ShellKit const &	in_shell,
		SelectionResults &	out_results
	)

Performs an object space selection by shell starting at the specified segment using the selection options set in the segment tree.

This method can only select faceted geometry.

Parameters

in_shell	Shell to use to perform the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByShell() [3/4]

size_t HPS::SelectionControl::SelectByShell	(	ShellKey const &	in_shell,
		SelectionOptionsKit const &	in_options,
		SelectionResults &	out_results
	)

Performs an object space selection by shell starting at the specified segment using the specified selection options.

This method can only select faceted geometry.

Parameters

in_shell	Shell in the database to use to perform the selection.
in_options	Selection options to use when performing the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByShell() [4/4]

size_t HPS::SelectionControl::SelectByShell	(	ShellKey const &	in_shell,
		SelectionResults &	out_results
	)

Performs an object space selection by shell starting at the specified segment using the selection options set in the segment tree.

This method can only select faceted geometry.

Parameters

in_shell	Shell in the database to use to perform the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByVolume() [1/2]

size_t HPS::SelectionControl::SelectByVolume	(	SimpleCuboid const &	in_volume,
		SelectionOptionsKit const &	in_options,
		SelectionResults &	out_results
	)

Performs an object space selection by volume starting at the specified segment using the specified selection options.

If the volume is invalid, i.e., min > max for any component, an exception will be thrown.

Parameters

in_volume	Volume to use when performing the selection.
in_options	Selection options to use when performing the selection.
out_results	Results of the selection.

Returns

Number of selected items.

SelectByVolume() [2/2]

size_t HPS::SelectionControl::SelectByVolume	(	SimpleCuboid const &	in_volume,
		SelectionResults &	out_results
	)

Performs an object space selection by volume starting at the specified segment using the selection options set in the segment tree.

If the volume is invalid, i.e., min > max for any component, an exception will be thrown.

Parameters

in_volume	Volume to use when performing the selection.
out_results	Results of the selection.

Returns

Number of selected items.

Type()

virtual HPS::Type HPS::Control::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Object.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, and HPS::BoundingControl.

Member Data Documentation

staticType

const HPS::Type HPS::SelectionControl::staticType = HPS::Type::SelectionControl

static

---

The documentation for this class was generated from the following file:

• hps.h
