The HPS::DrawingAttributeKit class is a user space object, useful for carrying a group attribute settings. More...

#include <hps.h>

Inheritance diagram for HPS::DrawingAttributeKit:

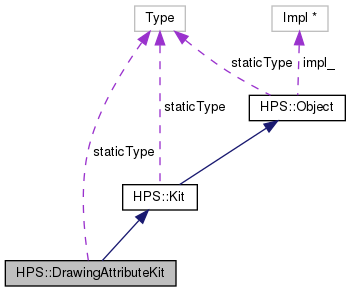

Collaboration diagram for HPS::DrawingAttributeKit:

Public Member Functions
	DrawingAttributeKit ()
	Initializes an empty kit. More...

	DrawingAttributeKit (DrawingAttributeKit const &in_kit)
	The copy constructor creates a new DrawingAttributeKit object that contains the same settings as the source object. More...

	DrawingAttributeKit (DrawingAttributeKit &&in_that)
	The move constructor creates a DrawingAttributeKit by transferring the underlying impl of the rvalue reference to this DrawingAttributeKit thereby avoiding a copy and allocation. More...

DrawingAttributeKit &	operator= (DrawingAttributeKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this DrawingAttributeKit thereby avoiding a copy. More...

virtual	~DrawingAttributeKit ()
	Destroy this kit. More...

HPS::Type	ObjectType () const

void	Set (DrawingAttributeKit const &in_kit)
	Copies the source DrawingAttributeKit into this object. More...

void	Show (DrawingAttributeKit &out_kit) const
	Copies this object into the given DrawingAttributeKit. More...

DrawingAttributeKit &	operator= (DrawingAttributeKit const &in_kit)
	Copies the source DrawingAttributeKit into this object. More...

bool	Empty () const
	Indicates whether this object has any values set on it. More...

bool	Equals (DrawingAttributeKit const &in_kit) const
	Check if the source DrawingAttributeKit is equivalent to this object. More...

bool	operator== (DrawingAttributeKit const &in_kit) const
	Check if the source DrawingAttributeKit is equivalent to this object. More...

bool	operator!= (DrawingAttributeKit const &in_kit) const
	Check if the source DrawingAttributeKit is not equivalent to this object. More...

DrawingAttributeKit &	SetPolygonHandedness (Drawing::Handedness in_handedness)
	In order to perform back face culling, there must be some definition of a polygon's "front" and "back" faces. More...

DrawingAttributeKit &	SetWorldHandedness (Drawing::Handedness in_handedness)
	The world handedness determines the orientation of the Z-axis in the Cartesian coordinate system. More...

DrawingAttributeKit &	SetDepthRange (float in_near, float in_far)
	Compresses effective Z values into a subset of what they would otherwise have been. More...

DrawingAttributeKit &	SetFaceDisplacement (bool in_state, int in_buckets=0)
	Specifies a number of Z-buffer units that rendered faces should be pushed away from the camera. More...

DrawingAttributeKit &	SetFaceDisplacement (int in_buckets)
	Specifies a number of Z-buffer units that rendered faces should be pushed away from the camera. More...

DrawingAttributeKit &	SetGeneralDisplacement (bool in_state, int in_buckets=0)
	Specifies a number of Z-buffer units that all geometry should be pushed away from the camera. More...

DrawingAttributeKit &	SetGeneralDisplacement (int in_buckets)
	Specifies a number of Z-buffer units that all geometry should be pushed away from the camera. More...

DrawingAttributeKit &	SetVertexDisplacement (bool in_state, int in_buckets=0)
	Specifies a number of Z-buffer units that vertices should be pushed away from the camera. More...

DrawingAttributeKit &	SetVertexDisplacement (int in_buckets)
	Specifies a number of Z-buffer units that vertices should be pushed away from the camera. More...

DrawingAttributeKit &	SetVertexDecimation (float in_zero_to_one)
	Specifies an amount of vertices to draw 1 draws them all. More...

DrawingAttributeKit &	SetVertexRandomization (bool in_state)
	Specifies vertices should be drawn in a random order. More...

DrawingAttributeKit &	SetOverlay (Drawing::Overlay in_overlay)
	Allows moving, editing, or deleting to take place in a segment without triggering a full-screen redraw. More...

DrawingAttributeKit &	SetDeferral (int in_deferral)
	Specifies a drawing order for a segment during timed updates. More...

DrawingAttributeKit &	SetClipRegion (PointArray const &in_points, Drawing::ClipSpace in_space=Drawing::ClipSpace::World, Drawing::ClipOperation in_operation=Drawing::ClipOperation::Keep)
	Sets a polygonal clip region. More...

DrawingAttributeKit &	SetClipRegion (size_t in_point_count, Point const in_points [], Drawing::ClipSpace in_space=Drawing::ClipSpace::World, Drawing::ClipOperation in_operation=Drawing::ClipOperation::Keep)
	Sets a polygonal clip region. More...

DrawingAttributeKit &	SetClipRegion (PointArrayArray const &in_loops, Drawing::ClipSpace in_space=Drawing::ClipSpace::World, Drawing::ClipOperation in_operation=Drawing::ClipOperation::Keep)
	Sets a complex polygonal clip region defined by the XOR of a series of loops. More...

DrawingAttributeKit &	UnsetPolygonHandedness ()
	Removes a polygon handedness setting. More...

DrawingAttributeKit &	UnsetWorldHandedness ()
	Removes a world handedness setting. More...

DrawingAttributeKit &	UnsetDepthRange ()
	Removes a depth range setting. More...

DrawingAttributeKit &	UnsetFaceDisplacement ()
	Removes a face displacement setting. More...

DrawingAttributeKit &	UnsetGeneralDisplacement ()
	Removes a general displacement setting. More...

DrawingAttributeKit &	UnsetVertexDisplacement ()
	Removes a vertex displacement setting. More...

DrawingAttributeKit &	UnsetVertexDecimation ()
	Removes a vertex decimation setting. More...

DrawingAttributeKit &	UnsetVertexRandomization ()
	Removes a vertex randomization setting. More...

DrawingAttributeKit &	UnsetOverlay ()
	Removes an overlay setting. More...

DrawingAttributeKit &	UnsetDeferral ()
	Removes a deferral setting. More...

DrawingAttributeKit &	UnsetClipRegion ()
	Removes a clip region. More...

DrawingAttributeKit &	UnsetEverything ()
	Removes all settings from this object. More...

bool	ShowPolygonHandedness (Drawing::Handedness &out_handedness) const
	Shows the polygon handedness. More...

bool	ShowWorldHandedness (Drawing::Handedness &out_handedness) const
	Shows the world handedness. More...

bool	ShowDepthRange (float &out_near, float &out_far) const
	Shows the depth range setting. More...

bool	ShowFaceDisplacement (bool &out_state, int &out_buckets) const
	Shows the face displacement setting. More...

bool	ShowGeneralDisplacement (bool &out_state, int &out_buckets) const
	Shows the general displacement setting. More...

bool	ShowVertexDisplacement (bool &out_state, int &out_buckets) const
	Shows the vertex displacement setting. More...

bool	ShowVertexDecimation (float &out_zero_to_one) const
	Shows the vertex decimation setting. More...

bool	ShowVertexRandomization (bool &out_state) const
	Shows the vertex randomization setting. More...

bool	ShowOverlay (Drawing::Overlay &out_overlay) const
	Shows the overlay setting. More...

bool	ShowDeferral (int &out_defer_batch) const
	Shows the deferral setting. More...

bool	ShowClipRegion (PointArrayArray &out_loops, Drawing::ClipSpace &out_space, Drawing::ClipOperation &out_operation) const
	Shows the clip region settings. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static DrawingAttributeKit	GetDefault ()
	Creates a DrawingAttributeKit which contains the default settings. More...

template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::DrawingAttributeKit

Detailed Description

The HPS::DrawingAttributeKit class is a user space object, useful for carrying a group attribute settings.

Calling HPS::DrawingAttributeKit::GetDefault() will return a kit with values found in this table.

Constructor & Destructor Documentation

◆ DrawingAttributeKit() [1/3]

HPS::DrawingAttributeKit::DrawingAttributeKit ( )

Initializes an empty kit.

◆ DrawingAttributeKit() [2/3]

HPS::DrawingAttributeKit::DrawingAttributeKit ( DrawingAttributeKit const & in_kit )

The copy constructor creates a new DrawingAttributeKit object that contains the same settings as the source object.

Parameters

in_kit The source object to copy.

◆ DrawingAttributeKit() [3/3]

HPS::DrawingAttributeKit::DrawingAttributeKit ( DrawingAttributeKit && in_that )

The move constructor creates a DrawingAttributeKit by transferring the underlying impl of the rvalue reference to this DrawingAttributeKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a DrawingAttributeKit to take the impl from.

◆ ~DrawingAttributeKit()

virtual HPS::DrawingAttributeKit::~DrawingAttributeKit ( )

virtual

Destroy this kit.

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Empty()

bool HPS::DrawingAttributeKit::Empty ( ) const

virtual

Indicates whether this object has any values set on it.

Returns: true if no values are set on this object, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::DrawingAttributeKit::Equals ( DrawingAttributeKit const & in_kit ) const

Check if the source DrawingAttributeKit is equivalent to this object.

Parameters

in_kit The source DrawingAttributeKit to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetDefault()

static DrawingAttributeKit HPS::DrawingAttributeKit::GetDefault ( )

static

Creates a DrawingAttributeKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default.

Returns: A DrawingAttributeKit with the default settings.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::DrawingAttributeKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::DrawingAttributeKit::operator!= ( DrawingAttributeKit const & in_kit ) const

Check if the source DrawingAttributeKit is not equivalent to this object.

Parameters

in_kit The source DrawingAttributeKit to compare to this object.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

DrawingAttributeKit& HPS::DrawingAttributeKit::operator= ( DrawingAttributeKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this DrawingAttributeKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a DrawingAttributeKit to take the impl from.

Returns: A reference to this DrawingAttributeKit.

◆ operator=() [2/2]

DrawingAttributeKit& HPS::DrawingAttributeKit::operator= ( DrawingAttributeKit const & in_kit )

Copies the source DrawingAttributeKit into this object.

Parameters

in_kit The source DrawingAttributeKit to copy.

Returns: A reference to this object.

◆ operator==()

bool HPS::DrawingAttributeKit::operator== ( DrawingAttributeKit const & in_kit ) const

Check if the source DrawingAttributeKit is equivalent to this object.

Parameters

in_kit The source DrawingAttributeKit to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::DrawingAttributeKit::Set ( DrawingAttributeKit const & in_kit )

Copies the source DrawingAttributeKit into this object.

Parameters

in_kit The source object to copy.

◆ SetClipRegion() [1/3]

DrawingAttributeKit& HPS::DrawingAttributeKit::SetClipRegion	(	PointArray const &	in_points,
		Drawing::ClipSpace	in_space = `Drawing::ClipSpace::World`,
		Drawing::ClipOperation	in_operation = `Drawing::ClipOperation::Keep`
	)

Sets a polygonal clip region.

Parameters

in_points	An array of points describing the clip region.
in_space	The coordinate space in which in_points are specified.
in_operation	The operation performed by the clip region.

Returns: A reference to this object.

◆ SetClipRegion() [2/3]

DrawingAttributeKit& HPS::DrawingAttributeKit::SetClipRegion	(	size_t	in_point_count,
		Point const	in_points[],
		Drawing::ClipSpace	in_space = `Drawing::ClipSpace::World`,
		Drawing::ClipOperation	in_operation = `Drawing::ClipOperation::Keep`
	)

Sets a polygonal clip region.

Parameters

in_point_count	The number of points in in_points.
in_points	An array of points describing the clip region.
in_space	The coordinate space in which in_points are specified.
in_operation	The operation performed by the clip region.

Returns: A reference to this object.

◆ SetClipRegion() [3/3]

DrawingAttributeKit& HPS::DrawingAttributeKit::SetClipRegion	(	PointArrayArray const &	in_loops,
		Drawing::ClipSpace	in_space = `Drawing::ClipSpace::World`,
		Drawing::ClipOperation	in_operation = `Drawing::ClipOperation::Keep`
	)

Sets a complex polygonal clip region defined by the XOR of a series of loops.

Parameters

in_loops	An array of loops describing clip regions.
in_space	The coordinate space in which in_loops are specified.
in_operation	The operation performed by the clip region.

Returns: A reference to this object.

◆ SetDeferral()

DrawingAttributeKit& HPS::DrawingAttributeKit::SetDeferral ( int in_deferral )

Specifies a drawing order for a segment during timed updates.

Segments with a lower deferral value will be drawn before segments with a higher value. This attribute does not inherit like most attributes and segments have a default value of 0.

Parameters

in_deferral A drawing priority, with larger values drawing later than usual. Should be non-negative.

Returns: A reference to this object.

◆ SetDepthRange()

DrawingAttributeKit& HPS::DrawingAttributeKit::SetDepthRange	(	float	in_near,
		float	in_far
	)

Compresses effective Z values into a subset of what they would otherwise have been.

This allows certain pieces of the scene to be drawn on top at all times without additional sub-windows. Values of (0,0) will force all geometry into the frontmost bucket, but will have the drawback that it will cause z-fighting amongst the geometry that shares that setting. To get such pieces of geometry to resolve reasonably well against each other, a range of (0,0.1) should perform reasonably well.

Depth range settings are not cumulative, and have no effect when the rendering algorithm is Priority, or is not set.

The default is (0,1)

Parameters

in_near	The portion of the depth range closest to the camera. Valid range is [0,1] with in_near <= in_far.
in_far	The portion of the depth range furthest to the camera. Valid range is [0,1] with in_near <= in_far.

Returns: A reference to this object.

◆ SetFaceDisplacement() [1/2]

DrawingAttributeKit& HPS::DrawingAttributeKit::SetFaceDisplacement	(	bool	in_state,
		int	in_buckets = `0`
	)

Specifies a number of Z-buffer units that rendered faces should be pushed away from the camera.

This can be used to reduce edge stitching by ensuring that coincident edges lay on top of the faces. Negative face displacements will push faces toward the camera.

Parameters

in_state	Whether face displacement should be used.
in_buckets	The number of units to move faces in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move faces toward the camera, positive values away from the camera.

Returns: A reference to this object.

◆ SetFaceDisplacement() [2/2]

DrawingAttributeKit& HPS::DrawingAttributeKit::SetFaceDisplacement ( int in_buckets )

Specifies a number of Z-buffer units that rendered faces should be pushed away from the camera.

The state is implicitly on.

Parameters

in_buckets The number of units to move faces in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move faces toward the camera, positive values away from the camera.

Returns: A reference to this object.

See also: SetFaceDisplacement(bool in_state, int in_buckets)

◆ SetGeneralDisplacement() [1/2]

DrawingAttributeKit& HPS::DrawingAttributeKit::SetGeneralDisplacement	(	bool	in_state,
		int	in_buckets = `0`
	)

Specifies a number of Z-buffer units that all geometry should be pushed away from the camera.

This can be used to ensure that certain geometry is drawn on top of or behind the rest of the scene. Negative general displacements will push geometry toward the camera.

Parameters

in_state	Whether general displacement should be used.
in_buckets	The number of units to move rendered geometry in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move geometry toward the camera, positive values away from the camera.

Returns: A reference to this object.

◆ SetGeneralDisplacement() [2/2]

DrawingAttributeKit& HPS::DrawingAttributeKit::SetGeneralDisplacement ( int in_buckets )

Specifies a number of Z-buffer units that all geometry should be pushed away from the camera.

The state is implicitly on.

Parameters

in_buckets The number of units to move rendered geometry in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move geometry toward the camera, positive values away from the camera.

Returns: A reference to this object.

See also: SetGeneralDisplacement(bool in_state, int in_buckets)

◆ SetOverlay()

DrawingAttributeKit& HPS::DrawingAttributeKit::SetOverlay ( Drawing::Overlay in_overlay )

Allows moving, editing, or deleting to take place in a segment without triggering a full-screen redraw.

Parameters

in_overlay The type of overlay, if any, to be used.

Returns: A reference to this object.

◆ SetPolygonHandedness()

DrawingAttributeKit& HPS::DrawingAttributeKit::SetPolygonHandedness ( Drawing::Handedness in_handedness )

In order to perform back face culling, there must be some definition of a polygon's "front" and "back" faces.

This orientation is determined by the order in which the polygon's vertices were originally defined and the polygon handedness setting (not the world handedness).

If you wrap the fingers of the chosen hand along the vertices of the polygon, with your wrist at the first vertex and your fingertips at the last, then extend your thumb perpendicular to your fingers, your thumb is extending out of the front face of the polygon.

Parameters

in_handedness The handedness to be used for geometry.

Returns: A reference to this object.

See also: SetWorldHandedness(); CullingKit::SetBackFace()

◆ SetVertexDecimation()

DrawingAttributeKit& HPS::DrawingAttributeKit::SetVertexDecimation ( float in_zero_to_one )

Specifies an amount of vertices to draw 1 draws them all.

Parameters

in_zero_to_one An amount, between [0,1], of vertices to draw.

Returns: A reference to this object.

◆ SetVertexDisplacement() [1/2]

DrawingAttributeKit& HPS::DrawingAttributeKit::SetVertexDisplacement	(	bool	in_state,
		int	in_buckets = `0`
	)

Specifies a number of Z-buffer units that vertices should be pushed away from the camera.

This can be used to ensure that vertices are drawn on top of or behind other geometry. Negative general displacements will push vertices toward the camera.

Parameters

in_state	Whether vertex displacement should be used.
in_buckets	The number of units to move vertices in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move vertices toward the camera, positive values away from the camera.

Returns: A reference to this object.

◆ SetVertexDisplacement() [2/2]

DrawingAttributeKit& HPS::DrawingAttributeKit::SetVertexDisplacement ( int in_buckets )

Specifies a number of Z-buffer units that vertices should be pushed away from the camera.

The state is implicitly on.

Parameters

in_buckets The number of units to move vertices in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move vertices toward the camera, positive values away from the camera.

Returns: A reference to this object.

◆ SetVertexRandomization()

DrawingAttributeKit& HPS::DrawingAttributeKit::SetVertexRandomization ( bool in_state )

Specifies vertices should be drawn in a random order.

Parameters

in_state If true the vertices for a point cloud will be randomized.

Returns: A reference to this object.

◆ SetWorldHandedness()

DrawingAttributeKit& HPS::DrawingAttributeKit::SetWorldHandedness ( Drawing::Handedness in_handedness )

The world handedness determines the orientation of the Z-axis in the Cartesian coordinate system.

If you curl the fingers of your appropriate hand from the X-axis towards the Y-axis, your thumb will point in the direction of the Z-axis.

Parameters

in_handedness The handedness of the underlying coordinate system.

Returns: A reference to this object.

See also: SetPolygonHandedness()

◆ Show()

void HPS::DrawingAttributeKit::Show ( DrawingAttributeKit & out_kit ) const

Copies this object into the given DrawingAttributeKit.

Parameters

out_kit The DrawingAttributeKit to populate with the contents of this object.

◆ ShowClipRegion()

bool HPS::DrawingAttributeKit::ShowClipRegion	(	PointArrayArray &	out_loops,
		Drawing::ClipSpace &	out_space,
		Drawing::ClipOperation &	out_operation
	)		const

Shows the clip region settings.

Parameters

out_loops	An array of loops describing the clip region.
out_space	The coordinate space in which out_loops are described.
out_operation	The operation performed by the clip region

Returns: true if the setting is valid, false otherwise.

◆ ShowDeferral()

bool HPS::DrawingAttributeKit::ShowDeferral ( int & out_defer_batch ) const

Shows the deferral setting.

Parameters

out_defer_batch A drawing priority, with negative values drawing earlier than usual and positive values drawing later than usual.

Returns: true if the setting is valid, false otherwise.

◆ ShowDepthRange()

bool HPS::DrawingAttributeKit::ShowDepthRange	(	float &	out_near,
		float &	out_far
	)		const

Shows the depth range setting.

Parameters

out_near	The portion of the depth range closest to the camera. Valid range is [0,1] with out_near <= out_far.
out_far	The portion of the depth range furthest to the camera. Valid range is [0,1] with out_near <= out_far.

Returns: true if the setting is valid, false otherwise.

◆ ShowFaceDisplacement()

bool HPS::DrawingAttributeKit::ShowFaceDisplacement	(	bool &	out_state,
		int &	out_buckets
	)		const

Shows the face displacement setting.

Parameters

out_state	Whether face displacement will be used.
out_buckets	The distance to move rendered faces away from the camera.

Returns: true if the setting is valid, false otherwise.

◆ ShowGeneralDisplacement()

bool HPS::DrawingAttributeKit::ShowGeneralDisplacement	(	bool &	out_state,
		int &	out_buckets
	)		const

Shows the general displacement setting.

Parameters

out_state	Whether general displacement will be used.
out_buckets	The distance to move rendered geometry away from the camera.

Returns: true if the setting is valid, false otherwise.

◆ ShowOverlay()

bool HPS::DrawingAttributeKit::ShowOverlay ( Drawing::Overlay & out_overlay ) const

Shows the overlay setting.

Parameters

out_overlay The type of overlay, if any, used.

Returns: true if the setting is valid, false otherwise.

◆ ShowPolygonHandedness()

bool HPS::DrawingAttributeKit::ShowPolygonHandedness ( Drawing::Handedness & out_handedness ) const

Shows the polygon handedness.

Parameters

out_handedness The handedness used for geometry.

Returns: true if the setting is valid, false otherwise.

◆ ShowVertexDecimation()

bool HPS::DrawingAttributeKit::ShowVertexDecimation ( float & out_zero_to_one ) const

Shows the vertex decimation setting.

Parameters

out_zero_to_one The value set for vertex decimation.

Returns: true if the setting is valid, false otherwise.

◆ ShowVertexDisplacement()

bool HPS::DrawingAttributeKit::ShowVertexDisplacement	(	bool &	out_state,
		int &	out_buckets
	)		const

Shows the vertex displacement setting.

Parameters

out_state	Whether vertex displacement will be used.
out_buckets	The distance to move vertices away from the camera.

Returns: true if the setting is valid, false otherwise.

◆ ShowVertexRandomization()

bool HPS::DrawingAttributeKit::ShowVertexRandomization ( bool & out_state ) const

Shows the vertex randomization setting.

Parameters

out_state Whether vertex randomization will be used.

Returns: true if the setting is valid, false otherwise.

◆ ShowWorldHandedness()

bool HPS::DrawingAttributeKit::ShowWorldHandedness ( Drawing::Handedness & out_handedness ) const

Shows the world handedness.

Parameters

out_handedness The handedness of the underlying coordinate system.

Returns: true if the setting is valid, false otherwise.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetClipRegion()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetClipRegion ( )

Removes a clip region.

Returns: A reference to this object.

◆ UnsetDeferral()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetDeferral ( )

Removes a deferral setting.

Returns: A reference to this object.

◆ UnsetDepthRange()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetDepthRange ( )

Removes a depth range setting.

Returns: A reference to this object.

◆ UnsetEverything()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetEverything ( )

Removes all settings from this object.

Returns: A reference to this object.

◆ UnsetFaceDisplacement()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetFaceDisplacement ( )

Removes a face displacement setting.

Returns: A reference to this object.

◆ UnsetGeneralDisplacement()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetGeneralDisplacement ( )

Removes a general displacement setting.

Returns: A reference to this object.

◆ UnsetOverlay()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetOverlay ( )

Removes an overlay setting.

Returns: A reference to this object.

◆ UnsetPolygonHandedness()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetPolygonHandedness ( )

Removes a polygon handedness setting.

Returns: A reference to this object.

◆ UnsetVertexDecimation()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetVertexDecimation ( )

Removes a vertex decimation setting.

Returns: A reference to this object.

◆ UnsetVertexDisplacement()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetVertexDisplacement ( )

Removes a vertex displacement setting.

Returns: A reference to this object.

◆ UnsetVertexRandomization()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetVertexRandomization ( )

Removes a vertex randomization setting.

Returns: A reference to this object.

◆ UnsetWorldHandedness()

DrawingAttributeKit& HPS::DrawingAttributeKit::UnsetWorldHandedness ( )

Removes a world handedness setting.

Returns: A reference to this object.

Member Data Documentation

◆ staticType

const HPS::Type HPS::DrawingAttributeKit::staticType = HPS::Type::DrawingAttributeKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DrawingAttributeKit() [1/3]

◆ DrawingAttributeKit() [2/3]

◆ DrawingAttributeKit() [3/3]

◆ ~DrawingAttributeKit()

Member Function Documentation

◆ ClassID()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetDefault()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetClipRegion() [1/3]

◆ SetClipRegion() [2/3]

◆ SetClipRegion() [3/3]

◆ SetDeferral()

◆ SetDepthRange()

◆ SetFaceDisplacement() [1/2]

◆ SetFaceDisplacement() [2/2]

◆ SetGeneralDisplacement() [1/2]

◆ SetGeneralDisplacement() [2/2]

◆ SetOverlay()

◆ SetPolygonHandedness()

◆ SetVertexDecimation()

◆ SetVertexDisplacement() [1/2]

◆ SetVertexDisplacement() [2/2]

◆ SetVertexRandomization()

◆ SetWorldHandedness()

◆ Show()

◆ ShowClipRegion()

◆ ShowDeferral()

◆ ShowDepthRange()

◆ ShowFaceDisplacement()

◆ ShowGeneralDisplacement()

◆ ShowOverlay()

◆ ShowPolygonHandedness()

◆ ShowVertexDecimation()

◆ ShowVertexDisplacement()

◆ ShowVertexRandomization()

◆ ShowWorldHandedness()

◆ Type()

◆ UnsetClipRegion()

◆ UnsetDeferral()

◆ UnsetDepthRange()

◆ UnsetEverything()

◆ UnsetFaceDisplacement()

◆ UnsetGeneralDisplacement()

◆ UnsetOverlay()

◆ UnsetPolygonHandedness()

◆ UnsetVertexDecimation()

◆ UnsetVertexDisplacement()

◆ UnsetVertexRandomization()

◆ UnsetWorldHandedness()

Member Data Documentation

◆ staticType
