HPS::Exchange::TessellationOptionsKit Class Reference

The TessellationOptionsKit class is a user space object. More...

#include <sprk_exchange.h>

Inheritance diagram for HPS::Exchange::TessellationOptionsKit:

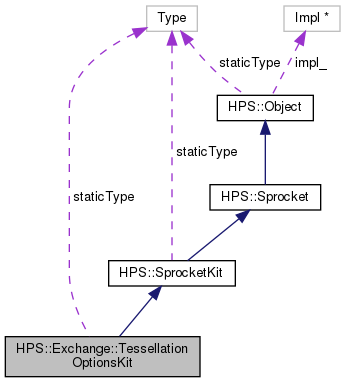

Collaboration diagram for HPS::Exchange::TessellationOptionsKit:

Public Member Functions
	TessellationOptionsKit ()
	The default constructor creates an empty TessellationOptionsKit object. More...
	TessellationOptionsKit (TessellationOptionsKit const &in_kit)
	The copy constructor creates a new TessellationOptionsKit object that contains the same settings as the source TessellationOptionsKit. More...
	TessellationOptionsKit (TessellationOptionsKit &&in_that)
	The move constructor creates an TessellationOptionsKit by transferring the underlying object of the rvalue reference to this TessellationOptionsKit. More...
virtual	~TessellationOptionsKit ()
HPS::Type	ObjectType () const
void	Set (TessellationOptionsKit const &in_kit)
	Copies the source TessellationOptionsKit into this TessellationOptionsKit. More...
void	Show (TessellationOptionsKit &out_kit) const
	Copies this TessellationOptionsKit into the given TessellationOptionsKit. More...
TessellationOptionsKit &	operator= (TessellationOptionsKit const &in_kit)
	Copies the source TessellationOptionsKit into this TessellationOptionsKit. More...
TessellationOptionsKit &	operator= (TessellationOptionsKit &&in_that)
	The move assignment operator transfers the underlying object of the rvalue reference to this TessellationOptionsKit. More...
bool	Empty () const
	Indicates whether this TessellationOptionsKit has any values set on it. More...
bool	Equals (TessellationOptionsKit const &in_kit) const
	Check if the source TessellationOptionsKit is equivalent to this TessellationOptionsKit. More...
bool	operator== (TessellationOptionsKit const &in_kit) const
	Check if the source TessellationOptionsKit is equivalent to this TessellationOptionsKit. More...
bool	operator!= (TessellationOptionsKit const &in_kit) const
	Check if the source TessellationOptionsKit is not equivalent to this TessellationOptionsKit. More...
TessellationOptionsKit &	SetLevel (Tessellation::Level in_level)
	Sets the predefined quality of the tessellation that will be generated for BRep data. More...
TessellationOptionsKit &	SetLevel (Tessellation::Chord::Limit in_limit_type, double in_limit, double in_angle_tolerance)
	Sets the user defined quality of the tessellation that will be generated for BRep data. More...
TessellationOptionsKit &	SetAccuracy (Tessellation::Accuracy in_type, bool in_accurate_normals=true)
	Sets the accuracy of the tessellation that will be generated for BRep data. More...
TessellationOptionsKit &	SetUVPointPreservation (bool in_state)
	Sets whether to keep parametric points as texture coordinates when generating the tessellation for BRep data. More...
TessellationOptionsKit &	SetMaximumEdgeLength (double in_length)
	Sets the maximum length of triangle edges in the tessellation generated for BRep data. More...
TessellationOptionsKit &	UnsetLevel ()
	Removes the level setting. More...
TessellationOptionsKit &	UnsetAccuracy ()
	Removes the accuracy setting. More...
TessellationOptionsKit &	UnsetUVPointPreservation ()
	Removes the UV preservation setting. More...
TessellationOptionsKit &	UnsetMaximumEdgeLength ()
	Removes the maximum edge length setting. More...
TessellationOptionsKit &	UnsetEverything ()
	Removes all settings from this TessellationOptionsKit. More...
bool	ShowLevel (Tessellation::Type &out_type, Tessellation::Level &out_level, Tessellation::Chord::Limit &out_limit_type, double &out_limit, double &out_angle_tolerance) const
	Shows the level setting. More...
bool	ShowAccuracy (Tessellation::Accuracy &out_type, bool &out_accurate_normals) const
	Shows the accuracy setting. More...
bool	ShowUVPointPreservation (bool &out_state) const
	Shows the UV preservation setting. More...
bool	ShowMaximumEdgeLength (double &out_length) const
	Shows the maximum edge length setting. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static TessellationOptionsKit	GetDefault ()
	Creates an TessellationOptionsKit which contains the default settings. More...
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ExchangeTessellationOptionsKit

Detailed Description

The TessellationOptionsKit class is a user space object.

It contains settings controlling how STL data is exported via Exchange.

Constructor & Destructor Documentation

TessellationOptionsKit() [1/3]

HPS::Exchange::TessellationOptionsKit::TessellationOptionsKit

(

)

The default constructor creates an empty TessellationOptionsKit object.

TessellationOptionsKit() [2/3]

HPS::Exchange::TessellationOptionsKit::TessellationOptionsKit

(

TessellationOptionsKit const &

in_kit

)

The copy constructor creates a new TessellationOptionsKit object that contains the same settings as the source TessellationOptionsKit.

Parameters

in_kit

The source TessellationOptionsKit to copy.

TessellationOptionsKit() [3/3]

HPS::Exchange::TessellationOptionsKit::TessellationOptionsKit

(

TessellationOptionsKit &&

in_that

)

The move constructor creates an TessellationOptionsKit by transferring the underlying object of the rvalue reference to this TessellationOptionsKit.

Parameters

in_that

An rvalue reference to an TessellationOptionsKit to take the underlying object from.

~TessellationOptionsKit()

virtual HPS::Exchange::TessellationOptionsKit::~TessellationOptionsKit ( )

virtual

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

bool HPS::Exchange::TessellationOptionsKit::Empty ( ) const

virtual

Indicates whether this TessellationOptionsKit has any values set on it.

Returns

true if no values are set on this TessellationOptionsKit, false otherwise.

Reimplemented from HPS::Object.

Equals()

bool HPS::Exchange::TessellationOptionsKit::Equals

(

TessellationOptionsKit const &

in_kit

)

const

Check if the source TessellationOptionsKit is equivalent to this TessellationOptionsKit.

Parameters

in_kit

The source TessellationOptionsKit to compare to this TessellationOptionsKit.

Returns

true if the objects are equivalent, false otherwise.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetDefault()

static TessellationOptionsKit HPS::Exchange::TessellationOptionsKit::GetDefault ( )

static

Creates an TessellationOptionsKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default. These values will be used for import unless an option is overridden by the options passed to File::Tessellation.

Returns

An TessellationOptionsKit with the default settings.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::Exchange::TessellationOptionsKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::SprocketKit.

Here is the call graph for this function:

operator!=()

bool HPS::Exchange::TessellationOptionsKit::operator!=

(

TessellationOptionsKit const &

in_kit

)

const

Check if the source TessellationOptionsKit is not equivalent to this TessellationOptionsKit.

Parameters

in_kit

The source TessellationOptionsKit to compare to this TessellationOptionsKit.

Returns

true if the objects are not equivalent, false otherwise.

operator=() [1/2]

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::operator=

(

TessellationOptionsKit const &

in_kit

)

Copies the source TessellationOptionsKit into this TessellationOptionsKit.

Parameters

in_kit

The source TessellationOptionsKit to copy.

Returns

A reference to this TessellationOptionsKit.

operator=() [2/2]

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::operator=

(

TessellationOptionsKit &&

in_that

)

The move assignment operator transfers the underlying object of the rvalue reference to this TessellationOptionsKit.

Parameters

in_that

An rvalue reference to an TessellationOptionsKit to take the underlying object from.

Returns

A reference to this TessellationOptionsKit.

operator==()

bool HPS::Exchange::TessellationOptionsKit::operator==

(

TessellationOptionsKit const &

in_kit

)

const

Check if the source TessellationOptionsKit is equivalent to this TessellationOptionsKit.

Parameters

in_kit

The source TessellationOptionsKit to compare to this TessellationOptionsKit.

Returns

true if the objects are equivalent, false otherwise.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::Exchange::TessellationOptionsKit::Set

(

TessellationOptionsKit const &

in_kit

)

Copies the source TessellationOptionsKit into this TessellationOptionsKit.

Parameters

in_kit

The source TessellationOptionsKit to copy.

SetAccuracy()

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::SetAccuracy	(	Tessellation::Accuracy	in_type,
		bool	in_accurate_normals = true
	)

Sets the accuracy of the tessellation that will be generated for BRep data.

Parameters

in_type	The accuracy to use for tessellation generation.
in_accurate_normals	Whether to compute surface normals when performing accurate tessellation. This only applies if in_type is set to Tessellation::Accuracy::Accurate. This correspond to the (negated) value that will be passed to A3DRWParamsTessellationData::m_bDoNotComputeNormalsInAccurateTessellation.

Returns

A reference to this TessellationOptionsKit.

SetLevel() [1/2]

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::SetLevel

(

Tessellation::Level

in_level

)

Sets the predefined quality of the tessellation that will be generated for BRep data.

This corresponds to the value that will be passed to A3DRWParamsTessellationData::m_eTessellationLevelOfDetail.

Parameters

in_level

The predefined quality of the tessellation that will be generated for BRep data.

Returns

A reference to this TessellationOptionsKit.

SetLevel() [2/2]

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::SetLevel	(	Tessellation::Chord::Limit	in_limit_type,
		double	in_limit,
		double	in_angle_tolerance
	)

Sets the user defined quality of the tessellation that will be generated for BRep data.

This implicitly sets A3DRWParamsTessellationData::m_eTessellationLevel to kA3DTessLODUserDefined.

Parameters

in_limit_type	The type of the chord limit to be specified.
in_limit	Either the ratio of the tessellation chord height to the bounding box height which should be in the range [50, 10000], or the maximum distance between the surface definition and the tessellation approximation, depending on the preceding argument.
in_angle_tolerance	The maximum angle in degrees between two consecutive wire elements in the generated tessellation which should be in the range [10, 40]. This corresponds to the value that will be passed to A3DRWParamsTessellationData::m_dAngleToleranceDeg.

Returns

A reference to this TessellationOptionsKit.

SetMaximumEdgeLength()

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::SetMaximumEdgeLength

(

double

in_length

)

Sets the maximum length of triangle edges in the tessellation generated for BRep data.

This corresponds to the value that will be passed to A3DRWParamsTessellationData::m_dMaximalTriangleEdgeLength.

Parameters

in_length

The maximum length of triangle edges in the tessellation generated for BRep data. The value must be non-negative, and if set to 0.0, the length will not be used when generating the tessellation.

Returns

A reference to this TessellationOptionsKit.

SetUVPointPreservation()

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::SetUVPointPreservation

(

bool

in_state

)

Sets whether to keep parametric points as texture coordinates when generating the tessellation for BRep data.

This corresponds to the value that will be passed to A3DRWParamsTessellationData::m_bKeepUVPoints.

Parameters

in_state

Whether to keep parametric points as texture coordinates when generating the tessellation for BRep data.

Returns

A reference to this TessellationOptionsKit.

Show()

void HPS::Exchange::TessellationOptionsKit::Show

(

TessellationOptionsKit &

out_kit

)

const

Copies this TessellationOptionsKit into the given TessellationOptionsKit.

Parameters

out_kit

The TessellationOptionsKit to populate with the contents of this TessellationOptionsKit.

ShowAccuracy()

bool HPS::Exchange::TessellationOptionsKit::ShowAccuracy	(	Tessellation::Accuracy &	out_type,
		bool &	out_accurate_normals
	)		const

Shows the accuracy setting.

Parameters

out_type	The type of the accuracy which was specified.
out_accurate_normals	Whether to compute surface normals when performing accurate tessellation. This only applies if out_type is Tessellation::Accuracy::Accurate.

Returns

true if an accuracy setting was specified, false otherwise.

ShowLevel()

bool HPS::Exchange::TessellationOptionsKit::ShowLevel	(	Tessellation::Type &	out_type,
		Tessellation::Level &	out_level,
		Tessellation::Chord::Limit &	out_limit_type,
		double &	out_limit,
		double &	out_angle_tolerance
	)		const

Shows the level setting.

Parameters

out_type	The type of the level setting which was specified.
out_level	The predefined quality of the tessellation that will be generated for BRep data. This is only valid if out_type is Tessellation::Type::Standard.
out_limit_type	The type of chord limit which was specified. This is only valid if out_type is Tessellation::Type::Custom.
out_limit	The chord limit to use to generate tessellation for BRep data. Its interpretation depends on the preceding argument. This is only valid if out_type is Tessellation::Type::Custom.
out_angle_tolerance	The maximum angle in degrees between two consecutive wire elements in the generated tessellation. This is only valid if out_type is Tessellation::Type::Custom.

Returns

true if a level setting was specified, false otherwise.

ShowMaximumEdgeLength()

bool HPS::Exchange::TessellationOptionsKit::ShowMaximumEdgeLength

(

double &

out_length

)

const

Shows the maximum edge length setting.

Parameters

out_length

The maximum edge length setting.

Returns

true if a maximum edge length setting was specified, false otherwise.

ShowUVPointPreservation()

bool HPS::Exchange::TessellationOptionsKit::ShowUVPointPreservation

(

bool &

out_state

)

const

Shows the UV preservation setting.

Parameters

out_state

Whether to keep parametric points as texture coordinates when generating the tessellation for BRep data.

Returns

true if a UV preservation setting was specified, false otherwise.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetAccuracy()

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::UnsetAccuracy

(

)

Removes the accuracy setting.

Returns

A reference to this TessellationOptionsKit.

UnsetEverything()

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::UnsetEverything

(

)

Removes all settings from this TessellationOptionsKit.

Returns

A reference to this TessellationOptionsKit.

UnsetLevel()

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::UnsetLevel

(

)

Removes the level setting.

Returns

A reference to this TessellationOptionsKit.

UnsetMaximumEdgeLength()

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::UnsetMaximumEdgeLength

(

)

Removes the maximum edge length setting.

Returns

A reference to this TessellationOptionsKit.

UnsetUVPointPreservation()

TessellationOptionsKit& HPS::Exchange::TessellationOptionsKit::UnsetUVPointPreservation

(

)

Removes the UV preservation setting.

Returns

A reference to this TessellationOptionsKit.

Member Data Documentation

staticType

const HPS::Type HPS::Exchange::TessellationOptionsKit::staticType = HPS::Type::ExchangeTessellationOptionsKit

static

---

The documentation for this class was generated from the following file:

• sprk_exchange.h
