HPS::TextAttributeControl Class Reference

#include <hps.h>

Inheritance diagram for HPS::TextAttributeControl:

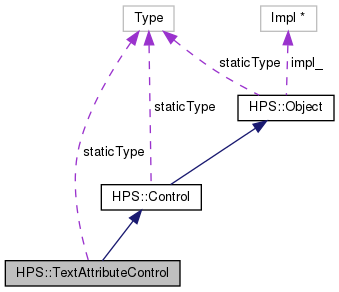

Collaboration diagram for HPS::TextAttributeControl:

Public Member Functions
	TextAttributeControl (SegmentKey &in_seg)
	Initializes a control tied to the segment in_seg. More...
	TextAttributeControl (TextAttributeControl const &in_that)
	Initializes a control tied to the same object as in_that. More...
	TextAttributeControl (TextAttributeControl &&in_that)
	The move constructor creates a TextAttributeControl by transferring the underlying impl of the rvalue reference to this TextAttributeControl thereby avoiding a copy and allocation. More...
TextAttributeControl &	operator= (TextAttributeControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this TextAttributeControl thereby avoiding a copy. More...
	~TextAttributeControl ()
	Releases a reference to the database object this control is tied to. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
HPS::Type	ObjectType () const
TextAttributeControl &	operator= (TextAttributeControl const &in_that)
	Share the underlying smart-pointer of the TextAttributeControl source. More...
TextAttributeControl &	SetAlignment (Text::Alignment in_align, Text::ReferenceFrame in_ref=Text::ReferenceFrame::WorldAligned, Text::Justification in_justify=Text::Justification::Left)
	Sets the alignment for text. More...
TextAttributeControl &	SetBold (bool in_state)
	Sets whether text should be bold. More...
TextAttributeControl &	SetItalic (bool in_state)
	Sets whether text should be italic. More...
TextAttributeControl &	SetOverline (bool in_state)
	Sets whether an overline should be drawn over text. More...
TextAttributeControl &	SetStrikethrough (bool in_state)
	Sets whether a strikethrough should be drawn through text. More...
TextAttributeControl &	SetUnderline (bool in_state)
	Sets whether an underline should be drawn under text. More...
TextAttributeControl &	SetSlant (float in_angle)
	Sets the slant angle for text. More...
TextAttributeControl &	SetLineSpacing (float in_multiplier)
	Sets the line spacing multiplier for text. More...
TextAttributeControl &	SetRotation (Text::Rotation in_state, float in_angle=0.0f)
	Sets the angle characters should be rotated within text strings. More...
TextAttributeControl &	SetRotation (float in_angle)
	Sets the angle characters should be rotated within text strings. More...
TextAttributeControl &	SetExtraSpace (bool in_state, float in_size=0.0f, Text::SizeUnits in_units=Text::SizeUnits::ObjectSpace)
	Sets the amount of additional space to add between characters in a text string. More...
TextAttributeControl &	SetExtraSpace (float in_size, Text::SizeUnits in_units)
	Sets the amount of additional space to add between characters in a text string. More...
TextAttributeControl &	SetGreeking (bool in_state, float in_size=0.0f, Text::GreekingUnits in_units=Text::GreekingUnits::ObjectSpace, Text::GreekingMode in_mode=Text::GreekingMode::Lines)
	Sets the greeking settings to use for text. More...
TextAttributeControl &	SetGreeking (float in_size, Text::GreekingUnits in_units=Text::GreekingUnits::ObjectSpace, Text::GreekingMode in_mode=Text::GreekingMode::Lines)
	Sets the greeking settings to use for text. More...
TextAttributeControl &	SetSizeTolerance (bool in_state, float in_size=50.0f, Text::SizeToleranceUnits in_units=Text::SizeToleranceUnits::Percent)
	Sets the size tolerance settings to use for text. More...
TextAttributeControl &	SetSizeTolerance (float in_size, Text::SizeToleranceUnits in_units)
	Sets the size tolerance settings to use for text. More...
TextAttributeControl &	SetSize (float in_size, Text::SizeUnits in_units)
	Sets the font size to use for text. More...
TextAttributeControl &	SetFont (char const *in_name)
	Sets the font to use for text. More...
TextAttributeControl &	SetTransform (Text::Transform in_trans)
	Sets the transform behavior for text. More...
TextAttributeControl &	SetRenderer (Text::Renderer in_rend)
	Sets the renderer for text. More...
TextAttributeControl &	SetPreference (Text::Preference in_pref)
	Sets the font type preference for text. More...
TextAttributeControl &	SetPreference (float in_cutoff, Text::SizeUnits in_units, Text::Preference in_smaller, Text::Preference in_larger)
	Sets the preference for text. More...
TextAttributeControl &	SetPath (Vector const &in_path)
	Sets the path for text. More...
TextAttributeControl &	SetSpacing (float in_multiplier)
	Sets the spacing multiplier for text. More...
TextAttributeControl &	SetBackground (bool in_state, char const *in_name)
	Sets the background to be used with text. More...
TextAttributeControl &	SetBackground (char const *in_name)
	Sets the background to be used with text. More...
TextAttributeControl &	SetBackground (bool in_state)
	Sets the background to be used with text. More...
TextAttributeControl &	SetBackgroundMargins (float in_size, Text::MarginUnits in_units=Text::MarginUnits::Percent)
	Sets the amount of additional padding around text strings when backgrounds are used. More...
TextAttributeControl &	SetBackgroundMargins (FloatArray const &in_size, TextMarginUnitsArray const &in_units)
	Sets the amount of additional padding around text strings when backgrounds are used. More...
TextAttributeControl &	SetBackgroundMargins (size_t in_count, float const in_sizes [], HPS::Text::MarginUnits const in_units [])
	Sets the amount of additional padding around text strings when backgrounds are used. More...
TextAttributeControl &	SetBackgroundStyle (char const *in_name)
	Allows specifying a named style to be used in the drawing of text backgrounds. More...
TextAttributeControl &	UnsetAlignment ()
	Removes the alignment setting. More...
TextAttributeControl &	UnsetBold ()
	Removes the bold setting. More...
TextAttributeControl &	UnsetItalic ()
	Removes the italic setting. More...
TextAttributeControl &	UnsetOverline ()
	Removes the overline setting. More...
TextAttributeControl &	UnsetStrikethrough ()
	Removes the strikethrough setting. More...
TextAttributeControl &	UnsetUnderline ()
	Removes the underline setting. More...
TextAttributeControl &	UnsetSlant ()
	Removes the slant setting. More...
TextAttributeControl &	UnsetLineSpacing ()
	Removes the line spacing setting. More...
TextAttributeControl &	UnsetRotation ()
	Removes the rotation setting. More...
TextAttributeControl &	UnsetExtraSpace ()
	Removes the extra space setting. More...
TextAttributeControl &	UnsetGreeking ()
	Removes the greeking setting. More...
TextAttributeControl &	UnsetSizeTolerance ()
	Removes the size tolerance setting. More...
TextAttributeControl &	UnsetSize ()
	Removes the size setting. More...
TextAttributeControl &	UnsetFont ()
	Removes the font setting. More...
TextAttributeControl &	UnsetTransform ()
	Removes the transform setting. More...
TextAttributeControl &	UnsetRenderer ()
	Removes the renderer setting. More...
TextAttributeControl &	UnsetPreference ()
	Removes the preference setting. More...
TextAttributeControl &	UnsetPath ()
	Removes the path setting. More...
TextAttributeControl &	UnsetSpacing ()
	Removes the spacing setting. More...
TextAttributeControl &	UnsetBackground ()
	Removes the background setting. More...
TextAttributeControl &	UnsetBackgroundMargins ()
	Removes the background margin setting. More...
TextAttributeControl &	UnsetBackgroundStyle ()
	Removes the background style setting. More...
TextAttributeControl &	UnsetEverything ()
	Removes all settings from this object. More...
bool	ShowAlignment (Text::Alignment &out_align, Text::ReferenceFrame &out_ref, Text::Justification &out_justify) const
	Shows the alignment for text. More...
bool	ShowBold (bool &out_state) const
	Shows whether text should be bold. More...
bool	ShowItalic (bool &out_state) const
	Shows whether text should be italic. More...
bool	ShowOverline (bool &out_state) const
	Shows whether an overline should be drawn over text. More...
bool	ShowStrikethrough (bool &out_state) const
	Shows whether a strikethrough should be drawn through text. More...
bool	ShowUnderline (bool &out_state) const
	Shows whether an underline should be drawn under text. More...
bool	ShowSlant (float &out_angle) const
	Shows the slant angle for text. More...
bool	ShowLineSpacing (float &out_multiplier) const
	Shows the line spacing multiplier for text. More...
bool	ShowRotation (Text::Rotation &out_rot, float &out_angle) const
	Shows the angle characters should be rotated within text strings. More...
bool	ShowExtraSpace (bool &out_state, float &out_size, Text::SizeUnits &out_units) const
	Shows the amount of additional space to add between characters in a text string. More...
bool	ShowGreeking (bool &out_state, float &out_size, Text::GreekingUnits &out_units, Text::GreekingMode &out_mode) const
	Shows the greeking settings to use for text. More...
bool	ShowSizeTolerance (bool &out_state, float &out_size, Text::SizeToleranceUnits &out_units) const
	Shows the size tolerance settings to use for text. More...
bool	ShowSize (float &out_size, Text::SizeUnits &out_units) const
	Shows the font size to use for text. More...
bool	ShowFont (UTF8 &out_name) const
	Shows the font to use for text. More...
bool	ShowTransform (Text::Transform &out_trans) const
	Shows the transform state for text. More...
bool	ShowRenderer (Text::Renderer &out_rend) const
	Shows the renderer for text. More...
bool	ShowPreference (float &out_cutoff, Text::SizeUnits &out_units, Text::Preference &out_smaller, Text::Preference &out_larger) const
	Shows the preference for text. More...
bool	ShowPath (Vector &out_path) const
	Shows the path for text. More...
bool	ShowSpacing (float &out_multiplier) const
	Shows the spacing multiplier for text. More...
bool	ShowBackground (bool &out_state, UTF8 &out_name) const
	Shows the background to be used with text. More...
bool	ShowBackgroundMargins (FloatArray &out_size, TextMarginUnitsArray &out_units) const
	Shows the amount of additional padding around text strings when backgrounds are used. More...
bool	ShowBackgroundStyle (UTF8 &out_name) const
	Shows the named style to be used in the drawing of text backgrounds. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::TextAttributeControl

Private Member Functions
	TextAttributeControl ()
	Private default constructor to prevent instantiation without a segment. More...

Detailed Description

The HPS::TextAttributeControl class is a smart pointer that is tied to a database object. This object gives you access to all the attributes associated with text, such as font, size, and rotation. Text characteristics such as bold, italic, and underline are also accessed through the HPS::TextAttributeControl.

Default values for the various fields of HPS::TextAttributeControl can be found here.

Constructor & Destructor Documentation

TextAttributeControl() [1/4]

HPS::TextAttributeControl::TextAttributeControl ( SegmentKey &  in_seg )

explicit

Initializes a control tied to the segment in_seg.

TextAttributeControl() [2/4]

HPS::TextAttributeControl::TextAttributeControl

(

TextAttributeControl const &

in_that

)

Initializes a control tied to the same object as in_that.

TextAttributeControl() [3/4]

HPS::TextAttributeControl::TextAttributeControl

(

TextAttributeControl &&

in_that

)

The move constructor creates a TextAttributeControl by transferring the underlying impl of the rvalue reference to this TextAttributeControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a TextAttributeControl to take the impl from.

~TextAttributeControl()

HPS::TextAttributeControl::~TextAttributeControl

(

)

Releases a reference to the database object this control is tied to.

TextAttributeControl() [4/4]

HPS::TextAttributeControl::TextAttributeControl ( )

private

Private default constructor to prevent instantiation without a segment.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::TextAttributeControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

operator=() [1/2]

TextAttributeControl& HPS::TextAttributeControl::operator=

(

TextAttributeControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this TextAttributeControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a TextAttributeControl to take the impl from.

Returns

A reference to this TextAttributeControl.

operator=() [2/2]

TextAttributeControl& HPS::TextAttributeControl::operator=

(

TextAttributeControl const &

in_that

)

Share the underlying smart-pointer of the TextAttributeControl source.

Parameters

in_that

The TextAttributeControl source of the assignment.

Returns

A reference to this TextAttributeControl.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetAlignment()

TextAttributeControl& HPS::TextAttributeControl::SetAlignment	(	Text::Alignment	in_align,
		Text::ReferenceFrame	in_ref = Text::ReferenceFrame::WorldAligned,
		Text::Justification	in_justify = Text::Justification::Left
	)

Sets the alignment for text.

Parameters

in_alignment	The alignment for text.
in_reference_frame	The reference frame for text.
in_justification	The justification for text.

Returns

A reference to this object.

SetBackground() [1/3]

TextAttributeControl& HPS::TextAttributeControl::SetBackground	(	bool	in_state,
		char const *	in_name
	)

Sets the background to be used with text.

Parameters

in_state	Whether a background is drawn for text.
in_name	The name of a shape definition.

Returns

A reference to this object.

SetBackground() [2/3]

TextAttributeControl& HPS::TextAttributeControl::SetBackground

(

char const *

in_name

)

Sets the background to be used with text.

The state is implicitly on.

Parameters

in_name

The name of a shape definition.

Returns

A reference to this object.

SetBackground() [3/3]

TextAttributeControl& HPS::TextAttributeControl::SetBackground

(

bool

in_state

)

Sets the background to be used with text.

Parameters

in_state

Whether a background is drawn for text.

Returns

A reference to this object.

SetBackgroundMargins() [1/3]

TextAttributeControl& HPS::TextAttributeControl::SetBackgroundMargins	(	float	in_size,
		Text::MarginUnits	in_units = Text::MarginUnits::Percent
	)

Sets the amount of additional padding around text strings when backgrounds are used.

Parameters

in_size	The size of the margins.
in_units	The units of the size.

Returns

A reference to this object.

SetBackgroundMargins() [2/3]

TextAttributeControl& HPS::TextAttributeControl::SetBackgroundMargins	(	FloatArray const &	in_size,
		TextMarginUnitsArray const &	in_units
	)

Sets the amount of additional padding around text strings when backgrounds are used.

Additional margin values can also be referenced within definitions of background shapes and leader lines.

Parameters

in_size	The size of the margins.
in_units	The units of the size.

Returns

A reference to this object.

SetBackgroundMargins() [3/3]

TextAttributeControl& HPS::TextAttributeControl::SetBackgroundMargins	(	size_t	in_count,
		float const	in_sizes[],
		HPS::Text::MarginUnits const	in_units[]
	)

Sets the amount of additional padding around text strings when backgrounds are used.

Additional margin values can also be referenced within definitions of background shapes and leader lines.

Parameters

in_count	The number of elements in each array.
in_sizes	The size of the margins.
in_units	The units of the size.

Returns

A reference to this object.

SetBackgroundStyle()

TextAttributeControl& HPS::TextAttributeControl::SetBackgroundStyle

(

char const *

in_name

)

Allows specifying a named style to be used in the drawing of text backgrounds.

If no style is specified, backgrounds inherit the face and edge attributes from the containing segment.

Parameters

in_name

The name of a style, defined in a portfolio that is accessible.

Returns

A reference to this object.

SetBold()

TextAttributeControl& HPS::TextAttributeControl::SetBold

(

bool

in_state

)

Sets whether text should be bold.

For fonts which do not have a bold variant, this setting will be ignored.

Parameters

in_state

Whether text should be bold.

Returns

A reference to this object.

SetExtraSpace() [1/2]

TextAttributeControl& HPS::TextAttributeControl::SetExtraSpace	(	bool	in_state,
		float	in_size = 0.0f,
		Text::SizeUnits	in_units = Text::SizeUnits::ObjectSpace
	)

Sets the amount of additional space to add between characters in a text string.

Parameters

in_state	Whether to add additional space between characters in a text string.
in_size	The size of the additional space to add between characters.
in_units	The units of the size of the additional space to add between characters.

Returns

A reference to this object.

SetExtraSpace() [2/2]

TextAttributeControl& HPS::TextAttributeControl::SetExtraSpace	(	float	in_size,
		Text::SizeUnits	in_units
	)

Sets the amount of additional space to add between characters in a text string.

This function implicitly enables the addition of extra space.

Parameters

in_size	The size of the additional space to add between characters.
in_units	The units of the size of the additional space to add between characters.

Returns

A reference to this object.

SetFont()

TextAttributeControl& HPS::TextAttributeControl::SetFont

(

char const *

in_name

)

Sets the font to use for text.

This must either be a builtin font or a font Visualize can locate in the directories specified by World::SetFontDirectories. If the requested font cannot be found, the stroked font will be used.

Parameters

in_name

UTF8-encoded font name to use for text.

Returns

A reference to this TextKey.

See also

World::SetFontDirectories

SetGreeking() [1/2]

TextAttributeControl& HPS::TextAttributeControl::SetGreeking	(	bool	in_state,
		float	in_size = 0.0f,
		Text::GreekingUnits	in_units = Text::GreekingUnits::ObjectSpace,
		Text::GreekingMode	in_mode = Text::GreekingMode::Lines
	)

Sets the greeking settings to use for text.

Parameters

in_state	Whether greeking is enabled for text.
in_size	The size below which to draw a simple symbol in place of a character.
in_units	The units of the size below which to draw a simple glyph in place of a character.
in_mode	The type of symbol to draw for characters which are smaller than the greeking size.

Returns

A reference to this object.

SetGreeking() [2/2]

TextAttributeControl& HPS::TextAttributeControl::SetGreeking	(	float	in_size,
		Text::GreekingUnits	in_units = Text::GreekingUnits::ObjectSpace,
		Text::GreekingMode	in_mode = Text::GreekingMode::Lines
	)

Sets the greeking settings to use for text.

This function implicitly enables text greeking.

Parameters

in_size	The size below which to draw a simple symbol in place of a character.
in_units	The units of the size below which to draw a simple glyph in place of a character.
in_mode	The type of symbol to draw for characters which are smaller than the greeking size.

Returns

A reference to this object.

SetItalic()

TextAttributeControl& HPS::TextAttributeControl::SetItalic

(

bool

in_state

)

Sets whether text should be italic.

For fonts which do not have an italic variant, this setting will be ignored.

Parameters

in_state

Whether text should be italic.

Returns

A reference to this object.

SetLineSpacing()

TextAttributeControl& HPS::TextAttributeControl::SetLineSpacing

(

float

in_multiplier

)

Sets the line spacing multiplier for text.

This is a multiple of the font size that will be used to determine spacing between lines in multi-line text string.

Parameters

in_multiplier

The line spacing multiplier for text.

Returns

A reference to this object.

SetOverline()

TextAttributeControl& HPS::TextAttributeControl::SetOverline

(

bool

in_state

)

Sets whether an overline should be drawn over text.

Parameters

in_state

Whether an overline should be drawn over text.

Returns

A reference to this object.

SetPath()

TextAttributeControl& HPS::TextAttributeControl::SetPath

(

Vector const &

in_path

)

Sets the path for text.

This setting controls the vector along which text strings will be displayed.

Parameters

in_path

The path for text.

Returns

A reference to this object.

SetPreference() [1/2]

TextAttributeControl& HPS::TextAttributeControl::SetPreference

(

Text::Preference

in_pref

)

Sets the font type preference for text.

This function implicitly sets the same font type for all text sizes.

Parameters

in_preference

The font type preference for text.

Returns

A reference to this object.

SetPreference() [2/2]

TextAttributeControl& HPS::TextAttributeControl::SetPreference	(	float	in_cutoff,
		Text::SizeUnits	in_units,
		Text::Preference	in_smaller,
		Text::Preference	in_larger
	)

Sets the preference for text.

This setting controls which font type is used for text for "large" and "small" sizes and the cutoff at which this distinction is made.

Parameters

in_cutoff	The font size below which the smaller preference is used and above which the larger preference is used.
in_units	The units for the font size below which the smaller preference is used and above which the larger preference is used.
in_smaller	The font type preference for strings below the cutoff size.
in_larger	The font type preference for strings above the cutoff size.

Returns

A reference to this object.

SetRenderer()

TextAttributeControl& HPS::TextAttributeControl::SetRenderer

(

Text::Renderer

in_rend

)

Sets the renderer for text.

Parameters

in_renderer

The renderer for text.

Returns

A reference to this object.

SetRotation() [1/2]

TextAttributeControl& HPS::TextAttributeControl::SetRotation	(	Text::Rotation	in_state,
		float	in_angle = 0.0f
	)

Sets the angle characters should be rotated within text strings.

Parameters

in_state	Whether and how to rotate the characters within text string.
in_angle	The angle in degrees to rotate each character within text strings. This is only relevant if in_state is Text::Rotation::Rotate.

Returns

A reference to this object.

SetRotation() [2/2]

TextAttributeControl& HPS::TextAttributeControl::SetRotation

(

float

in_angle

)

Sets the angle characters should be rotated within text strings.

This function implicitly sets a rotation state of Text::Rotation::Rotate.

Parameters

in_angle

The angle in degrees to rotate each character within text strings.

Returns

A reference to this object.

SetSize()

TextAttributeControl& HPS::TextAttributeControl::SetSize	(	float	in_size,
		Text::SizeUnits	in_units
	)

Sets the font size to use for text.

Parameters

in_size	The size for text.
in_units	The units of the size for text.

Returns

A reference to this object.

SetSizeTolerance() [1/2]

TextAttributeControl& HPS::TextAttributeControl::SetSizeTolerance	(	bool	in_state,
		float	in_size = 50.0f,
		Text::SizeToleranceUnits	in_units = Text::SizeToleranceUnits::Percent
	)

Sets the size tolerance settings to use for text.

These settings control how to render text strings which request a size not available for a bitmap font. If a size tolerance is specified and enabled, Visualize will use the nearest smaller size for the bitmap font within the tolerance in place of the requested size. If a size tolerance is not enabled, Visualize will attempt to scale up the nearest bitmap font size to the requested size. This setting has no effect for True Type or Open Type fonts.

Parameters

in_state	Whether a size tolerance is enabled for text.
in_size	The size for the tolerance.
in_units	The units of the size for the tolerance.

Returns

A reference to this object.

SetSizeTolerance() [2/2]

TextAttributeControl& HPS::TextAttributeControl::SetSizeTolerance	(	float	in_size,
		Text::SizeToleranceUnits	in_units
	)

Sets the size tolerance settings to use for text.

These settings control how to render text strings which request a size not available for a bitmap font. If a size tolerance is specified and enabled, Visualize will use the nearest smaller size for the bitmap font within the tolerance in place of the requested size. If a size tolerance is not enabled, Visualize will attempt to scale up the nearest bitmap font size to the requested size. This setting has no effect for True Type or Open Type fonts. This function implicitly enables a size tolerance.

Parameters

in_size	The size for the tolerance.
in_units	The units of the size for the tolerance.

Returns

A reference to this object.

SetSlant()

TextAttributeControl& HPS::TextAttributeControl::SetSlant

(

float

in_angle

)

Sets the slant angle for text.

This determines how far the characters in the string are sheared to the left (negative angle) or right (positive angle) relative to the perpendicular.

Parameters

in_angle

The angle in degrees to slant text. This value must be in the range [-75.0f,+75.0f].

Returns

A reference to this object.

SetSpacing()

TextAttributeControl& HPS::TextAttributeControl::SetSpacing

(

float

in_multiplier

)

Sets the spacing multiplier for text.

This setting controls the spacing between adjacent characters within a string. A value of 0.0f would result in all characters being drawn on top of each other, a value of 1.0f would be the standard spacing between characters, a value of 2.0f would insert twice as much space as would normally be between two characters, and so on.

Parameters

in_multiplier

The spacing multiplier for text.

Returns

A reference to this object.

SetStrikethrough()

TextAttributeControl& HPS::TextAttributeControl::SetStrikethrough

(

bool

in_state

)

Sets whether a strikethrough should be drawn through text.

Parameters

in_state

Whether a strikethrough should be drawn through text.

Returns

A reference to this object.

SetTransform()

TextAttributeControl& HPS::TextAttributeControl::SetTransform

(

Text::Transform

in_trans

)

Sets the transform behavior for text.

Parameters

in_transform

The transform behavior for text.

Returns

A reference to this object.

SetUnderline()

TextAttributeControl& HPS::TextAttributeControl::SetUnderline

(

bool

in_state

)

Sets whether an underline should be drawn under text.

Parameters

in_state

Whether an underline should be drawn under text.

Returns

A reference to this object.

ShowAlignment()

bool HPS::TextAttributeControl::ShowAlignment	(	Text::Alignment &	out_align,
		Text::ReferenceFrame &	out_ref,
		Text::Justification &	out_justify
	)		const

Shows the alignment for text.

Parameters

out_alignment	The alignment for text.
out_reference_frame	The reference frame for text.
out_justification	The justification for text.

Returns

true if an alignment was set, false otherwise.

ShowBackground()

bool HPS::TextAttributeControl::ShowBackground	(	bool &	out_state,
		UTF8 &	out_name
	)		const

Shows the background to be used with text.

Parameters

out_state	Whether a background is drawn for text.
out_name	The name of a shape definition.

Returns

true if a spacing multiplier was set, false otherwise.

ShowBackgroundMargins()

bool HPS::TextAttributeControl::ShowBackgroundMargins	(	FloatArray &	out_size,
		TextMarginUnitsArray &	out_units
	)		const

Shows the amount of additional padding around text strings when backgrounds are used.

Parameters

out_size	The size of the margins.
out_units	The units of the sizes.

Returns

true if a spacing multiplier was set, false otherwise.

ShowBackgroundStyle()

bool HPS::TextAttributeControl::ShowBackgroundStyle

(

UTF8 &

out_name

)

const

Shows the named style to be used in the drawing of text backgrounds.

Parameters

out_name

The name of a style, defined in a portfolio that is accessible.

Returns

true if a spacing multiplier was set, false otherwise.

ShowBold()

bool HPS::TextAttributeControl::ShowBold

(

bool &

out_state

)

const

Shows whether text should be bold.

Parameters

out_state

Whether text should be bold.

Returns

true if a bold setting was set, false otherwise.

ShowExtraSpace()

bool HPS::TextAttributeControl::ShowExtraSpace	(	bool &	out_state,
		float &	out_size,
		Text::SizeUnits &	out_units
	)		const

Shows the amount of additional space to add between characters in a text string.

Parameters

out_state	Whether to add additional space between characters in a text string.
out_size	The size of the additional space to add between characters.
out_units	The units of the size of the additional space to add between characters.

Returns

true if an extra space setting was set, false otherwise.

ShowFont()

bool HPS::TextAttributeControl::ShowFont

(

UTF8 &

out_name

)

const

Shows the font to use for text.

Parameters

out_name

UTF8-encoded font name to use for text.

Returns

true if a font was set, false otherwise.

ShowGreeking()

bool HPS::TextAttributeControl::ShowGreeking	(	bool &	out_state,
		float &	out_size,
		Text::GreekingUnits &	out_units,
		Text::GreekingMode &	out_mode
	)		const

Shows the greeking settings to use for text.

Parameters

out_state	Whether greeking is enabled for text.
out_size	The size below which to draw a simple symbol in place of a character.
out_units	The units of the size below which to draw a simple glyph in place of a character.
out_mode	The type of symbol to draw for characters which are smaller than the greeking size.

Returns

true if greeking settings were set, false otherwise.

ShowItalic()

bool HPS::TextAttributeControl::ShowItalic

(

bool &

out_state

)

const

Shows whether text should be italic.

Parameters

out_state

Whether text should be italic.

Returns

true if an italic setting was set, false otherwise.

ShowLineSpacing()

bool HPS::TextAttributeControl::ShowLineSpacing

(

float &

out_multiplier

)

const

Shows the line spacing multiplier for text.

Parameters

out_multiplier

The line spacing multiplier for text.

Returns

true if a line space multiplier was set, false otherwise.

ShowOverline()

bool HPS::TextAttributeControl::ShowOverline

(

bool &

out_state

)

const

Shows whether an overline should be drawn over text.

Parameters

out_state

Whether an overline should be drawn over text.

Returns

true if an overline setting was set, false otherwise.

ShowPath()

bool HPS::TextAttributeControl::ShowPath

(

Vector &

out_path

)

const

Shows the path for text.

Parameters

out_path

The path for text.

Returns

true if a path was set, false otherwise.

ShowPreference()

bool HPS::TextAttributeControl::ShowPreference	(	float &	out_cutoff,
		Text::SizeUnits &	out_units,
		Text::Preference &	out_smaller,
		Text::Preference &	out_larger
	)		const

Shows the preference for text.

Parameters

out_cutoff	The font size below which the smaller preference is used and above which the larger preference is used.
out_units	The units for the font size below which the smaller preference is used and above which the larger preference is used.
out_smaller	The font type preference for strings below the cutoff size.
out_larger	The font type preference for strings above the cutoff size.

Returns

true if a preference was set, false otherwise.

ShowRenderer()

bool HPS::TextAttributeControl::ShowRenderer

(

Text::Renderer &

out_rend

)

const

Shows the renderer for text.

Parameters

in_renderer

The renderer for text.

Returns

true if a renderer was set, false otherwise.

ShowRotation()

bool HPS::TextAttributeControl::ShowRotation	(	Text::Rotation &	out_rot,
		float &	out_angle
	)		const

Shows the angle characters should be rotated within text strings.

Parameters

out_rot	Whether to rotate the characters within text strings, and if so, what the angle should be measured with repect to.
out_angle	The angle in degrees to rotate each character within text strings.

Returns

true if a rotation setting was set, false otherwise.

ShowSize()

bool HPS::TextAttributeControl::ShowSize	(	float &	out_size,
		Text::SizeUnits &	out_units
	)		const

Shows the font size to use for text.

Parameters

out_size	The size for text.
out_units	The units of the size for text.

Returns

true if a size was set, false otherwise.

ShowSizeTolerance()

bool HPS::TextAttributeControl::ShowSizeTolerance	(	bool &	out_state,
		float &	out_size,
		Text::SizeToleranceUnits &	out_units
	)		const

Shows the size tolerance settings to use for text.

Parameters

out_state	Whether a size tolerance is enabled for text.
out_size	The size for the tolerance.
out_units	The units of the size for the tolerance.

Returns

true if a size tolerance was set, false otherwise.

ShowSlant()

bool HPS::TextAttributeControl::ShowSlant

(

float &

out_angle

)

const

Shows the slant angle for text.

Parameters

out_angle

The angle in degrees to slant text.

Returns

true if a slang angle was set, false otherwise.

ShowSpacing()

bool HPS::TextAttributeControl::ShowSpacing

(

float &

out_multiplier

)

const

Shows the spacing multiplier for text.

Parameters

out_multiplier

The spacing multiplier for text.

Returns

true if a spacing multiplier was set, false otherwise.

ShowStrikethrough()

bool HPS::TextAttributeControl::ShowStrikethrough

(

bool &

out_state

)

const

Shows whether a strikethrough should be drawn through text.

Parameters

out_state

Whether a strikethrough should be drawn through text.

Returns

true if a strikethrough setting was set, false otherwise.

ShowTransform()

bool HPS::TextAttributeControl::ShowTransform

(

Text::Transform &

out_trans

)

const

Shows the transform state for text.

Parameters

out_transform

The transform state for text.

Returns

true if a transform state was set, false otherwise.

ShowUnderline()

bool HPS::TextAttributeControl::ShowUnderline

(

bool &

out_state

)

const

Shows whether an underline should be drawn under text.

Parameters

out_state

Whether an underline should be drawn under text.

Returns

true if an underline setting was set, false otherwise.

Type()

virtual HPS::Type HPS::TextAttributeControl::Type ( ) const

inlinevirtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Control.

UnsetAlignment()

TextAttributeControl& HPS::TextAttributeControl::UnsetAlignment

(

)

Removes the alignment setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetBackground()

TextAttributeControl& HPS::TextAttributeControl::UnsetBackground

(

)

Removes the background setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetBackgroundMargins()

TextAttributeControl& HPS::TextAttributeControl::UnsetBackgroundMargins

(

)

Removes the background margin setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetBackgroundStyle()

TextAttributeControl& HPS::TextAttributeControl::UnsetBackgroundStyle

(

)

Removes the background style setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetBold()

TextAttributeControl& HPS::TextAttributeControl::UnsetBold

(

)

Removes the bold setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetEverything()

TextAttributeControl& HPS::TextAttributeControl::UnsetEverything

(

)

Removes all settings from this object.

If the control is attached to a WindowKey this function restores the default settings of this control as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetExtraSpace()

TextAttributeControl& HPS::TextAttributeControl::UnsetExtraSpace

(

)

Removes the extra space setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetFont()

TextAttributeControl& HPS::TextAttributeControl::UnsetFont

(

)

Removes the font setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetGreeking()

TextAttributeControl& HPS::TextAttributeControl::UnsetGreeking

(

)

Removes the greeking setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetItalic()

TextAttributeControl& HPS::TextAttributeControl::UnsetItalic

(

)

Removes the italic setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetLineSpacing()

TextAttributeControl& HPS::TextAttributeControl::UnsetLineSpacing

(

)

Removes the line spacing setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetOverline()

TextAttributeControl& HPS::TextAttributeControl::UnsetOverline

(

)

Removes the overline setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetPath()

TextAttributeControl& HPS::TextAttributeControl::UnsetPath

(

)

Removes the path setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetPreference()

TextAttributeControl& HPS::TextAttributeControl::UnsetPreference

(

)

Removes the preference setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetRenderer()

TextAttributeControl& HPS::TextAttributeControl::UnsetRenderer

(

)

Removes the renderer setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetRotation()

TextAttributeControl& HPS::TextAttributeControl::UnsetRotation

(

)

Removes the rotation setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetSize()

TextAttributeControl& HPS::TextAttributeControl::UnsetSize

(

)

Removes the size setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetSizeTolerance()

TextAttributeControl& HPS::TextAttributeControl::UnsetSizeTolerance

(

)

Removes the size tolerance setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetSlant()

TextAttributeControl& HPS::TextAttributeControl::UnsetSlant

(

)

Removes the slant setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetSpacing()

TextAttributeControl& HPS::TextAttributeControl::UnsetSpacing

(

)

Removes the spacing setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetStrikethrough()

TextAttributeControl& HPS::TextAttributeControl::UnsetStrikethrough

(

)

Removes the strikethrough setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetTransform()

TextAttributeControl& HPS::TextAttributeControl::UnsetTransform

(

)

Removes the transform setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetUnderline()

TextAttributeControl& HPS::TextAttributeControl::UnsetUnderline

(

)

Removes the underline setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TextAttributeKit::GetDefault().

Returns

A reference to this object.

Member Data Documentation

staticType

const HPS::Type HPS::TextAttributeControl::staticType = HPS::Type::TextAttributeControl

static

---

The documentation for this class was generated from the following file:

• hps.h
