HPS::Publish::TextKit Class Reference

The TextKit class is a user space object. More...

#include <sprk_publish.h>

Inheritance diagram for HPS::Publish::TextKit:

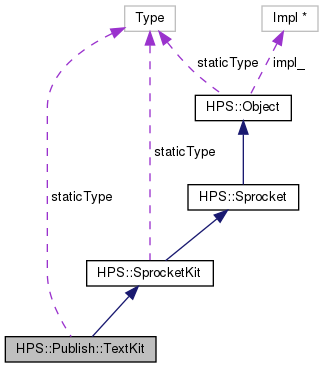

Collaboration diagram for HPS::Publish::TextKit:

Public Member Functions
	TextKit ()
	The default constructor creates an empty TextKit object. More...
	TextKit (TextKit const &in_kit)
	The copy constructor creates a new TextKit object that contains the same settings as the source TextKit. More...
	TextKit (TextKit &&in_kit)
	The move constructor creates a TextKit by transferring the underlying object of the rvalue reference to this TextKit. More...
virtual	~TextKit ()
HPS::Type	ObjectType () const
void	Set (TextKit const &in_kit)
	Copies the source TextKit into this TextKit. More...
void	Show (TextKit &out_kit) const
	Copies this TextKit into the given TextKit. More...
TextKit &	operator= (TextKit const &in_kit)
	Copies the source TextKit into this TextKit. More...
TextKit &	operator= (TextKit &&in_kit)
	The move assignment operator transfers the underlying object of the rvalue reference to this TextKit. More...
bool	Empty () const
	Indicates whether this TextKit has any values set on it. More...
bool	Equals (TextKit const &in_kit) const
	Check if the source TextKit is equivalent to this TextKit. More...
bool	operator== (TextKit const &in_kit) const
	Check if the source TextKit is equivalent to this TextKit. More...
bool	operator!= (TextKit const &in_kit) const
	Check if the source TextKit is not equivalent to this TextKit. More...
TextKit &	SetText (char const *in_text)
	Sets the text string for the text. More...
TextKit &	SetFont (Text::Font::Name in_font)
	Sets a built-in font for the text. More...
TextKit &	SetFont (char const *in_font_name, Text::Language in_language, bool in_embed_font)
	Sets an explicit font for the text. More...
TextKit &	SetSize (int in_size)
	Sets the size in points for the text. More...
TextKit &	SetColor (RGBColor const &in_color)
	Sets the color for the text. More...
TextKit &	UnsetText ()
	Removes the text string setting. More...
TextKit &	UnsetFont ()
	Removes the font setting. More...
TextKit &	UnsetSize ()
	Removes the size setting. More...
TextKit &	UnsetColor ()
	Removes the color setting. More...
TextKit &	UnsetEverything ()
	Removes all data from the text. More...
bool	ShowText (UTF8 &out_text) const
	Shows the text string setting. More...
bool	ShowFont (Text::Font::Type &out_type, Text::Font::Name &out_font, UTF8 &out_font_name, Text::Language &out_language, bool &out_embed_font) const
	Shows the font setting. More...
bool	ShowSize (int &out_size) const
	Shows the size setting. More...
bool	ShowColor (RGBColor &out_color) const
	Shows the color setting. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static TextKit	GetDefault ()
	Creates a TextKit which contains the default settings. More...
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::PublishTextKit

Detailed Description

The TextKit class is a user space object.

It acts as the container for all data that can be used to specify a text string for a Publish PDF.

Constructor & Destructor Documentation

TextKit() [1/3]

HPS::Publish::TextKit::TextKit

(

)

The default constructor creates an empty TextKit object.

TextKit() [2/3]

HPS::Publish::TextKit::TextKit

(

TextKit const &

in_kit

)

The copy constructor creates a new TextKit object that contains the same settings as the source TextKit.

Parameters

in_kit

The source TextKit to copy.

TextKit() [3/3]

HPS::Publish::TextKit::TextKit

(

TextKit &&

in_kit

)

The move constructor creates a TextKit by transferring the underlying object of the rvalue reference to this TextKit.

Parameters

in_kit

An rvalue reference to a TextKit to take the underlying object from.

~TextKit()

virtual HPS::Publish::TextKit::~TextKit ( )

virtual

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

bool HPS::Publish::TextKit::Empty ( ) const

virtual

Indicates whether this TextKit has any values set on it.

Returns

true if no values are set on this TextKit, false otherwise.

Reimplemented from HPS::Object.

Equals()

bool HPS::Publish::TextKit::Equals

(

TextKit const &

in_kit

)

const

Check if the source TextKit is equivalent to this TextKit.

Parameters

in_kit

The source TextKit to compare to this TextKit.

Returns

true if the objects are equivalent, false otherwise.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetDefault()

static TextKit HPS::Publish::TextKit::GetDefault ( )

static

Creates a TextKit which contains the default settings.

The returned object will not necessarily have values for every setting, but it will have them where it is reasonable to have a default. These values will be used for export unless a setting is overridden by the TextKit passed to File::Export.

Returns

A TextKit with the default settings.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::Publish::TextKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::SprocketKit.

Here is the call graph for this function:

operator!=()

bool HPS::Publish::TextKit::operator!=

(

TextKit const &

in_kit

)

const

Check if the source TextKit is not equivalent to this TextKit.

Parameters

in_kit

The source TextKit to compare to this TextKit.

Returns

true if the objects are not equivalent, false otherwise.

operator=() [1/2]

TextKit& HPS::Publish::TextKit::operator=

(

TextKit const &

in_kit

)

Copies the source TextKit into this TextKit.

Parameters

in_kit

The source TextKit to copy.

Returns

A reference to this TextKit.

operator=() [2/2]

TextKit& HPS::Publish::TextKit::operator=

(

TextKit &&

in_kit

)

The move assignment operator transfers the underlying object of the rvalue reference to this TextKit.

Parameters

in_kit

An rvalue reference to a TextKit to take the underlying object from.

Returns

A reference to this TextKit.

operator==()

bool HPS::Publish::TextKit::operator==

(

TextKit const &

in_kit

)

const

Check if the source TextKit is equivalent to this TextKit.

Parameters

in_kit

The source TextKit to compare to this TextKit.

Returns

true if the objects are equivalent, false otherwise.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::Publish::TextKit::Set

(

TextKit const &

in_kit

)

Copies the source TextKit into this TextKit.

Parameters

in_kit

The source TextKit to copy.

SetColor()

TextKit& HPS::Publish::TextKit::SetColor

(

RGBColor const &

in_color

)

Sets the color for the text.

This corresponds to the value that will be passed to A3DPDFTextData::m_sColor or A3DPDFTextDataEx::m_sColor.

Parameters

in_color

Color for the text.

Returns

A reference to this TextKit.

SetFont() [1/2]

TextKit& HPS::Publish::TextKit::SetFont

(

Text::Font::Name

in_font

)

Sets a built-in font for the text.

This corresponds to the value that will be passed to A3DPDFTextData::m_eFontName.

Parameters

in_font

The built-in font for the text.

Returns

A reference to this TextKit.

SetFont() [2/2]

TextKit& HPS::Publish::TextKit::SetFont	(	char const *	in_font_name,
		Text::Language	in_language,
		bool	in_embed_font
	)

Sets an explicit font for the text.

As of Publish 5.11, this is only known to create a valid text string in the PDF if the font name is "MS Gothic" and the language is Japanese, otherwise the creation will fail.

Parameters

in_font_name	UTF8-encoded font name for the text. This corresponds to the value that will be passed to A3DPDFTextDataEx::m_pcFontName.
in_language	The language for the font. This corresponds to the value that will be passed to A3DPDFTextDataEx::m_eLanguage.
in_embed_font	Whether to embed the font in the PDF. This corresponds to the value that will be passed to A3DPDFTextDataEx::m_bEmbedFontInPDF.

Returns

A reference to this TextKit.

SetSize()

TextKit& HPS::Publish::TextKit::SetSize

(

int

in_size

)

Sets the size in points for the text.

This corresponds to the value that will be passed to A3DPDFTextData::m_iFontSize or A3DPDFTextDataEx::m_iFontSize.

Parameters

in_size

The size in points for the text.

Returns

A reference to this TextKit.

SetText()

TextKit& HPS::Publish::TextKit::SetText

(

char const *

in_text

)

Sets the text string for the text.

This corresponds to the value that will be passed to A3DPDFTextData::m_pcTextString or A3DPDFTextDataEx::m_pcTextString.

Parameters

in_text

UTF8-encoded text string for the text.

Returns

A reference to this TextKit.

Show()

void HPS::Publish::TextKit::Show

(

TextKit &

out_kit

)

const

Copies this TextKit into the given TextKit.

Parameters

out_kit

The TextKit to populate with the contents of this TextKit.

ShowColor()

bool HPS::Publish::TextKit::ShowColor

(

RGBColor &

out_color

)

const

Shows the color setting.

Parameters

out_color

The color for the text.

Returns

true if a color was specified, false otherwise.

ShowFont()

bool HPS::Publish::TextKit::ShowFont	(	Text::Font::Type &	out_type,
		Text::Font::Name &	out_font,
		UTF8 &	out_font_name,
		Text::Language &	out_language,
		bool &	out_embed_font
	)		const

Shows the font setting.

Parameters

out_type	The type of font for the text.
out_font	The built-in font for the text. This is only valid if out_type is Text::Font::Type::BuiltIn.
out_font_name	The explicit font name for the text. This is only valid if out_type is Text::Font::Type::Explicit.
out_language	The language for the font. This is only valid if out_type is Text::Font::Type::Explicit.
out_embed_font	Whether to embed the font in the PDF. This is only valid if out_type is Text::Font::Type::Explicit.

Returns

true if a font was specified, false otherwise.

ShowSize()

bool HPS::Publish::TextKit::ShowSize

(

int &

out_size

)

const

Shows the size setting.

Parameters

out_size

The size for the text.

Returns

true if a size was specified, false otherwise.

ShowText()

bool HPS::Publish::TextKit::ShowText

(

UTF8 &

out_text

)

const

Shows the text string setting.

Parameters

out_text

The text string for the text.

Returns

true if a text string was specified, false otherwise.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetColor()

TextKit& HPS::Publish::TextKit::UnsetColor

(

)

Removes the color setting.

Returns

A reference to this TextKit.

UnsetEverything()

TextKit& HPS::Publish::TextKit::UnsetEverything

(

)

Removes all data from the text.

Returns

A reference to this TextKit.

UnsetFont()

TextKit& HPS::Publish::TextKit::UnsetFont

(

)

Removes the font setting.

Returns

A reference to this TextKit.

UnsetSize()

TextKit& HPS::Publish::TextKit::UnsetSize

(

)

Removes the size setting.

Returns

A reference to this TextKit.

UnsetText()

TextKit& HPS::Publish::TextKit::UnsetText

(

)

Removes the text string setting.

Returns

A reference to this TextKit.

Member Data Documentation

staticType

const HPS::Type HPS::Publish::TextKit::staticType = HPS::Type::PublishTextKit

static

---

The documentation for this class was generated from the following file:

• sprk_publish.h
