HPS::SphereAttributeControl Class Reference

The HPS::SphereAttributeControl class is a smart pointer that is tied to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::SphereAttributeControl:

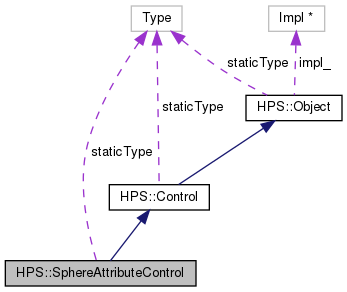

Collaboration diagram for HPS::SphereAttributeControl:

Public Member Functions
	SphereAttributeControl (SegmentKey const &in_seg)
	Initializes a control tied to the segment in_seg. More...
	SphereAttributeControl (SphereAttributeControl const &in_that)
	Initializes a control tied to the same object as in_that. More...
	SphereAttributeControl (SphereAttributeControl &&in_that)
	The move constructor creates a SphereAttributeControl by transferring the underlying impl of the rvalue reference to this SphereAttributeControl thereby avoiding a copy and allocation. More...
SphereAttributeControl &	operator= (SphereAttributeControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this SphereAttributeControl thereby avoiding a copy. More...
	~SphereAttributeControl ()
	Releases a reference to the database object this control is tied to. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
HPS::Type	ObjectType () const
SphereAttributeControl &	operator= (SphereAttributeControl const &in_that)
	Share the underlying smart-pointer of the SphereAttributeControl source. More...
SphereAttributeControl &	SetTessellation (size_t in_facets)
	Sets the number of faces that should be generated around the equator of spheres. More...
SphereAttributeControl &	UnsetTessellation ()
	Removes the sphere tessellation setting. More...
SphereAttributeControl &	UnsetEverything ()
	Removes all settings from this object. More...
bool	ShowTessellation (size_t &out_facets) const
	Shows the number of faces that should be generated around the equator of spheres. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::SphereAttributeControl

Private Member Functions
	SphereAttributeControl ()
	Private default constructor to prevent instantiation without a segment. More...

Detailed Description

The HPS::SphereAttributeControl class is a smart pointer that is tied to a database object.

This control gives you access to the tessellation value for spheres. This table lists default values for the various segment attributes accessible from HPS::SphereAttributeControl.

Constructor & Destructor Documentation

SphereAttributeControl() [1/4]

HPS::SphereAttributeControl::SphereAttributeControl ( SegmentKey const &  in_seg )

explicit

Initializes a control tied to the segment in_seg.

SphereAttributeControl() [2/4]

HPS::SphereAttributeControl::SphereAttributeControl

(

SphereAttributeControl const &

in_that

)

Initializes a control tied to the same object as in_that.

SphereAttributeControl() [3/4]

HPS::SphereAttributeControl::SphereAttributeControl

(

SphereAttributeControl &&

in_that

)

The move constructor creates a SphereAttributeControl by transferring the underlying impl of the rvalue reference to this SphereAttributeControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a SphereAttributeControl to take the impl from.

~SphereAttributeControl()

HPS::SphereAttributeControl::~SphereAttributeControl

(

)

Releases a reference to the database object this control is tied to.

SphereAttributeControl() [4/4]

HPS::SphereAttributeControl::SphereAttributeControl ( )

private

Private default constructor to prevent instantiation without a segment.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::SphereAttributeControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

operator=() [1/2]

SphereAttributeControl& HPS::SphereAttributeControl::operator=

(

SphereAttributeControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this SphereAttributeControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a SphereAttributeControl to take the impl from.

Returns

A reference to this SphereAttributeControl.

operator=() [2/2]

SphereAttributeControl& HPS::SphereAttributeControl::operator=

(

SphereAttributeControl const &

in_that

)

Share the underlying smart-pointer of the SphereAttributeControl source.

Parameters

in_that

The SphereAttributeControl source of the assignment.

Returns

A reference to this SphereAttributeControl.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetTessellation()

SphereAttributeControl& HPS::SphereAttributeControl::SetTessellation

(

size_t

in_facets

)

Sets the number of faces that should be generated around the equator of spheres.

Parameters

in_facets

the number of faces that should be generated around the equator of spheres.

Returns

A reference to this object.

See also

Sphere tessellation default value

ShowTessellation()

bool HPS::SphereAttributeControl::ShowTessellation

(

size_t &

out_facets

)

const

Shows the number of faces that should be generated around the equator of spheres.

Parameters

out_facets

The number of faces that should be generated around the equator of spheres.

Returns

true if the setting is valid, false otherwise.

Type()

virtual HPS::Type HPS::SphereAttributeControl::Type ( ) const

inlinevirtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Control.

UnsetEverything()

SphereAttributeControl& HPS::SphereAttributeControl::UnsetEverything

(

)

Removes all settings from this object.

If the control is attached to a WindowKey this function restores the default settings of this control as specified by SphereAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetTessellation()

SphereAttributeControl& HPS::SphereAttributeControl::UnsetTessellation

(

)

Removes the sphere tessellation setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by SphereAttributeKit::GetDefault().

Returns

A reference to this object.

Member Data Documentation

staticType

const HPS::Type HPS::SphereAttributeControl::staticType = HPS::Type::SphereAttributeControl

static

---

The documentation for this class was generated from the following file:

• hps.h
