The TextKit class is a user space object. More...

#include <hps.h>

Inheritance diagram for HPS::TextKit:

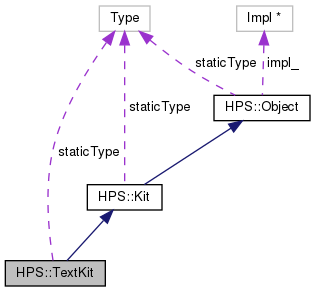

Collaboration diagram for HPS::TextKit:

Public Member Functions
	TextKit ()
	The default constructor creates an empty TextKit object. More...

	TextKit (TextKit const &in_kit)
	The copy constructor creates a new TextKit object that contains the same settings as the source TextKit. More...

	TextKit (TextKit &&in_that)
	The move constructor creates a TextKit by transferring the underlying impl of the rvalue reference to this TextKit thereby avoiding a copy and allocation. More...

TextKit &	operator= (TextKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this TextKit thereby avoiding a copy. More...

virtual	~TextKit ()

HPS::Type	ObjectType () const

void	Consume (TextKit &in_kit)
	Copies the source TextKit into this TextKit and resets the source kit. More...

void	Set (TextKit const &in_kit)
	Copies the source TextKit into this TextKit. More...

void	Show (TextKit &out_kit) const
	Copies this TextKit into the given TextKit. More...

TextKit &	operator= (TextKit const &in_kit)
	Copies the source TextKit into this TextKit. More...

bool	Empty () const
	Indicates whether this TextKit has any values set on it. More...

bool	Equals (TextKit const &in_kit) const
	Check if the source TextKit is equivalent to this TextKit. More...

bool	operator== (TextKit const &in_kit) const
	Check if the source TextKit is equivalent to this TextKit. More...

bool	operator!= (TextKit const &in_kit) const
	Check if the source TextKit is not equivalent to this TextKit. More...

TextKit &	SetPriority (int in_priority)
	Assigns a specific drawing priority value to the TextKit. More...

TextKit &	UnsetPriority ()
	Removes a drawing priority setting. More...

bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...

TextKit &	SetPosition (Point const &in_position)
	Sets the position of the text in object space. More...

TextKit &	SetText (char const *in_string)
	Sets the contents of the string for the text. More...

TextKit &	SetColor (RGBAColor const &in_rgba_color)
	Sets the RGBA color of the text. More...

TextKit &	SetColorByIndex (float in_index)
	Sets the material index color for the text. More...

TextKit &	SetModellingMatrix (MatrixKit const &in_matrix)
	Sets the modelling matrix for the text. More...

TextKit &	SetAlignment (Text::Alignment in_alignment, Text::ReferenceFrame in_reference_frame=Text::ReferenceFrame::WorldAligned, Text::Justification in_justification=Text::Justification::Left)
	Sets the alignment for the text. More...

TextKit &	SetBold (bool in_state)
	Sets whether the text should be bold. More...

TextKit &	SetItalic (bool in_state)
	Sets whether the text should be italic. More...

TextKit &	SetOverline (bool in_state)
	Sets whether an overline should be drawn over the text. More...

TextKit &	SetStrikethrough (bool in_state)
	Sets whether a strikethrough should be drawn through the text. More...

TextKit &	SetUnderline (bool in_state)
	Sets whether an underline should be drawn under the text. More...

TextKit &	SetSlant (float in_angle)
	Sets the slant angle for the text. More...

TextKit &	SetLineSpacing (float in_multiplier)
	Sets the line spacing multiplier for the text. More...

TextKit &	SetRotation (Text::Rotation in_state, float in_angle=0.0f)
	Sets the angle characters should be rotated within the text string. More...

TextKit &	SetRotation (float in_angle)
	Sets the angle characters should be rotated within the text string. More...

TextKit &	SetExtraSpace (bool in_state, float in_size=0.0f, Text::SizeUnits in_units=Text::SizeUnits::ObjectSpace)
	Sets the amount of additional space to add between characters in a text string. More...

TextKit &	SetExtraSpace (float in_size, Text::SizeUnits in_units)
	Sets the amount of additional space to add between characters in a text string. More...

TextKit &	SetGreeking (bool in_state, float in_size=0.0f, Text::GreekingUnits in_units=Text::GreekingUnits::ObjectSpace, Text::GreekingMode in_mode=Text::GreekingMode::Lines)
	Sets the greeking settings to use for the text. More...

TextKit &	SetGreeking (float in_size, Text::GreekingUnits in_units, Text::GreekingMode in_mode=Text::GreekingMode::Lines)
	Sets the greeking settings to use for the text. More...

TextKit &	SetSizeTolerance (bool in_state, float in_size=50.0f, Text::SizeToleranceUnits in_units=Text::SizeToleranceUnits::Percent)
	Sets the size tolerance settings to use for the text. More...

TextKit &	SetSizeTolerance (float in_size, Text::SizeToleranceUnits in_units)
	Sets the size tolerance settings to use for the text. More...

TextKit &	SetSize (float in_size, Text::SizeUnits in_units)
	Sets the font size to use for the text. More...

TextKit &	SetFont (char const *in_name)
	Sets the font to use for the text. More...

TextKit &	SetTransform (Text::Transform in_trans)
	Sets the transform behavior for the text. More...

TextKit &	SetRenderer (Text::Renderer in_rend)
	Sets the renderer for the text. More...

TextKit &	SetPreference (Text::Preference in_pref)
	Sets the font type preference for the text. More...

TextKit &	SetPreference (float in_cutoff, Text::SizeUnits in_units, Text::Preference in_smaller, Text::Preference in_larger)
	Sets the preference for the text. More...

TextKit &	SetPath (Vector const &in_path)
	Sets the path for the text. More...

TextKit &	SetSpacing (float in_multiplier)
	Sets the spacing multiplier for the text. More...

TextKit &	SetBackground (bool in_state, char const *in_name)
	Sets the background to be used with text. More...

TextKit &	SetBackground (char const *in_name)
	Sets the background to be used with text. More...

TextKit &	SetBackground (bool in_state)
	Sets the background to be used with text. More...

TextKit &	SetBackgroundMargins (float in_size, Text::MarginUnits in_units=Text::MarginUnits::Percent)
	Sets the amount of additional padding around text strings when backgrounds are used. More...

TextKit &	SetBackgroundMargins (FloatArray const &in_sizes, TextMarginUnitsArray const &in_units)
	Sets the amount of additional padding around text strings when backgrounds are used. More...

TextKit &	SetBackgroundMargins (size_t in_count, float const in_sizes [], HPS::Text::MarginUnits const in_units [])
	Sets the amount of additional padding around text strings when backgrounds are used. More...

TextKit &	SetBackgroundStyle (char const *in_name)
	Allows specifying a named style to be used in the drawing of text backgrounds. More...

TextKit &	SetLeaderLine (Point const &in_position, Text::LeaderLineSpace in_space=Text::LeaderLineSpace::Object)
	Inserts a leader line for this text, with one end specified by in_position and the other end calculated automatically. More...

TextKit &	SetLeaderLines (PointArray const &in_positions, Text::LeaderLineSpace in_space=Text::LeaderLineSpace::Object)
	Inserts leader lines for this text. More...

TextKit &	SetLeaderLines (size_t in_count, Point const in_positions [], Text::LeaderLineSpace in_space=Text::LeaderLineSpace::Object)
	Inserts leader lines for this text. More...

TextKit &	UnsetPosition ()
	Removes the text position. More...

TextKit &	UnsetText ()
	Removes the text string. More...

TextKit &	UnsetColor ()
	Removes the color (RGBA or material index) from the text. More...

TextKit &	UnsetModellingMatrix ()
	Removes the modelling matrix from the text. More...

TextKit &	UnsetAlignment ()
	Removes the alignment setting from the text. More...

TextKit &	UnsetBold ()
	Removes the bold setting from the text. More...

TextKit &	UnsetItalic ()
	Removes the italic setting from the text. More...

TextKit &	UnsetOverline ()
	Removes the overline setting from the text. More...

TextKit &	UnsetStrikethrough ()
	Removes the strikethrough setting from the text. More...

TextKit &	UnsetUnderline ()
	Removes the underline setting from the text. More...

TextKit &	UnsetSlant ()
	Removes the slant setting from the text. More...

TextKit &	UnsetLineSpacing ()
	Removes the line spacing setting from the text. More...

TextKit &	UnsetRotation ()
	Removes the rotation setting from the text. More...

TextKit &	UnsetExtraSpace ()
	Removes the extra space setting from the text. More...

TextKit &	UnsetGreeking ()
	Removes the greeking settings from the text. More...

TextKit &	UnsetSizeTolerance ()
	Removes the size tolerance setting from the text. More...

TextKit &	UnsetSize ()
	Removes the size setting from the text. More...

TextKit &	UnsetFont ()
	Removes the font setting from the text. More...

TextKit &	UnsetTransform ()
	Removes the transform setting from the text. More...

TextKit &	UnsetRenderer ()
	Removes the renderer setting from the text. More...

TextKit &	UnsetPreference ()
	Removes the font type preference from the text. More...

TextKit &	UnsetPath ()
	Removes the path from the text. More...

TextKit &	UnsetSpacing ()
	Removes the spacing setting from the text. More...

TextKit &	UnsetBackground ()
	Removes the background setting. More...

TextKit &	UnsetBackgroundMargins ()
	Removes the background margin setting. More...

TextKit &	UnsetBackgroundStyle ()
	Removes the background style setting. More...

TextKit &	UnsetLeaderLines ()
	Removes the leader line setting. More...

TextKit &	UnsetEverything ()
	Removes all settings from this TextKit. More...

bool	ShowPosition (Point &out_position) const
	Shows the position for the text. More...

bool	ShowText (UTF8 &out_string) const
	Shows the string for the text. More...

bool	ShowColor (Material::Type &out_type, RGBAColor &out_rgba_color, float &out_index) const
	Shows the color for the text. More...

bool	ShowModellingMatrix (MatrixKit &out_matrix) const
	Shows the modelling matrix for the text. More...

bool	ShowAlignment (Text::Alignment &out_alignment, Text::ReferenceFrame &out_reference_frame, Text::Justification &out_justification) const
	Shows the aligment for the text. More...

bool	ShowBold (bool &out_state) const
	Shows whether the text should be bold. More...

bool	ShowItalic (bool &out_state) const
	Shows whether the text should be italic. More...

bool	ShowOverline (bool &out_state) const
	Shows whether an overline should be drawn over the text. More...

bool	ShowStrikethrough (bool &out_state) const
	Shows whether a strikethrough should be drawn through the text. More...

bool	ShowUnderline (bool &out_state) const
	Shows whether an underline should be drawn under the text. More...

bool	ShowSlant (float &out_angle) const
	Shows the slant angle for the text. More...

bool	ShowLineSpacing (float &out_multiplier) const
	Shows the line spacing multiplier for the text. More...

bool	ShowRotation (Text::Rotation &out_rot, float &out_angle) const
	Shows the angle characters should be rotated within the text string. More...

bool	ShowExtraSpace (bool &out_state, float &out_size, Text::SizeUnits &out_units) const
	Shows the amount of additional space to add between characters in a text string. More...

bool	ShowGreeking (bool &out_state, float &out_size, Text::GreekingUnits &out_units, Text::GreekingMode &out_mode) const
	Shows the greeking settings to use for the text. More...

bool	ShowSizeTolerance (bool &out_state, float &out_size, Text::SizeToleranceUnits &out_units) const
	Shows the size tolerance settings to use for the text. More...

bool	ShowSize (float &out_size, Text::SizeUnits &out_units) const
	Shows the font size to use for the text. More...

bool	ShowFont (UTF8 &out_name) const
	Shows the font to use for the text. More...

bool	ShowTransform (Text::Transform &out_trans) const
	Shows the transform state for the text. More...

bool	ShowRenderer (Text::Renderer &out_renderer) const
	Shows the renderer for the text. More...

bool	ShowPreference (float &out_cutoff, Text::SizeUnits &out_units, Text::Preference &out_smaller, Text::Preference &out_larger) const
	Shows the preference for the text. More...

bool	ShowPath (Vector &out_path) const
	Shows the path for the text. More...

bool	ShowSpacing (float &out_multiplier) const
	Shows the spacing multiplier for the text. More...

bool	ShowBackground (bool &out_state, UTF8 &out_name) const
	Shows the background to be used with text. More...

bool	ShowBackgroundMargins (FloatArray &out_size, TextMarginUnitsArray &out_units) const
	Shows the amount of additional padding around text strings when backgrounds are used. More...

bool	ShowBackgroundStyle (UTF8 &out_name) const
	Shows the named style to be used in the drawing of text backgrounds. More...

bool	ShowLeaderLines (PointArray &out_positions, Text::LeaderLineSpace &out_space) const
	Shows the leader lines to be used with text. More...

TextKit &	EditTextByInsertion (size_t in_row, size_t in_column, size_t in_count, char const *in_text)
	Adds characters to the text at the specified offset. More...

TextKit &	EditTextByDeletion (size_t in_row, size_t in_column, size_t in_count)
	Removes characters from the text at the specified offset. More...

TextKit &	EditTextByReplacement (size_t in_row, size_t in_column, size_t in_count, char const *in_text)
	Replaces characters from the text at the specified offset. More...

bool	ShowRegion (PointArray &out_region, Text::RegionAlignment &out_region_alignment, Text::RegionFitting &out_region_fitting, bool &out_region_adjust_direction, bool &out_region_relative_coordinates, bool &out_region_window_space) const
	Shows the region for the text. More...

TextKit &	SetRegion (PointArray const &in_region, Text::RegionAlignment in_region_alignment, Text::RegionFitting in_region_fitting, bool in_region_adjust_direction, bool in_region_relative_coordinates, bool in_region_window_space)
	Sets the region for the text. More...

TextKit &	SetRegion (size_t in_region_count, Point const in_region [], Text::RegionAlignment in_region_alignment, Text::RegionFitting in_region_fitting, bool in_region_adjust_direction, bool in_region_relative_coordinates, bool in_region_window_space)
	Sets the region for the text. More...

TextKit &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this kit. More...

TextKit &	UnsetRegion ()
	Removes the region setting from the text. More...

TextKit &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this kit. More...

TextKit &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this kit. More...

TextKit &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this kit. More...

TextKit &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this kit. More...

TextKit &	UnsetUserData (IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this kit. More...

TextKit &	UnsetAllUserData ()
	Removes all user data from this kit. More...

size_t	ShowUserDataCount () const
	Get the number of user data indices set on this kit. More...

bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this kit. More...

bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this kit. More...

bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this kit. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::TextKit

Detailed Description

The TextKit class is a user space object.

It is the kit analog to a TextKey.

Constructor & Destructor Documentation

◆ TextKit() [1/3]

HPS::TextKit::TextKit ( )

The default constructor creates an empty TextKit object.

◆ TextKit() [2/3]

HPS::TextKit::TextKit ( TextKit const & in_kit )

The copy constructor creates a new TextKit object that contains the same settings as the source TextKit.

Parameters

in_kit The source TextKit to copy.

◆ TextKit() [3/3]

HPS::TextKit::TextKit ( TextKit && in_that )

The move constructor creates a TextKit by transferring the underlying impl of the rvalue reference to this TextKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a TextKit to take the impl from.

◆ ~TextKit()

virtual HPS::TextKit::~TextKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Consume()

void HPS::TextKit::Consume ( TextKit & in_kit )

Copies the source TextKit into this TextKit and resets the source kit.

Parameters

in_kit The source TextKit to consume.

◆ EditTextByDeletion()

TextKit& HPS::TextKit::EditTextByDeletion	(	size_t	in_row,
		size_t	in_column,
		size_t	in_count
	)

Removes characters from the text at the specified offset.

Parameters

in_row	The row offset into a multiline text string. This value must be less than the number of lines in the text string.
in_column	The column offset in Unicode code points into the specified row in a multiline text string. This value must be less than the number of Unicode code points within the specified row.
in_count	The number of Unicode code points within the given text string to remove.

Returns: A reference to this TextKit.

◆ EditTextByInsertion()

TextKit& HPS::TextKit::EditTextByInsertion	(	size_t	in_row,
		size_t	in_column,
		size_t	in_count,
		char const *	in_text
	)

Adds characters to the text at the specified offset.

Parameters

in_row	The row offset into a multiline text string. This value must be less than the number of lines in the text string.
in_column	The column offset in Unicode code points into the specified row in a multiline text string. This value must be less than the number of Unicode code points within the specified row.
in_count	The number of Unicode code points within the given text string to insert into the text.
in_text	UTF8-encoded text to insert into the text. This must contain at least in_count Unicode code points.

Returns: A reference to this TextKit.

◆ EditTextByReplacement()

TextKit& HPS::TextKit::EditTextByReplacement	(	size_t	in_row,
		size_t	in_column,
		size_t	in_count,
		char const *	in_text
	)

Replaces characters from the text at the specified offset.

Parameters

in_row	The row offset into a multiline text string. This value must be less than the number of lines in the text string.
in_column	The column offset in Unicode code points into the specified row in a multiline text string. This value must be less than the number of Unicode code points within the specified row.
in_count	The number of Unicode code points within the given text string to remove.
in_text	UTF8-encoded text to perform replacement with. This must contain at least in_count Unicode code points.

Returns: A reference to this TextKit.

◆ Empty()

bool HPS::TextKit::Empty ( ) const

virtual

Indicates whether this TextKit has any values set on it.

Returns: true if no values are set on this TextKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::TextKit::Equals ( TextKit const & in_kit ) const

Check if the source TextKit is equivalent to this TextKit.

Parameters

in_kit The source TextKit to compare to this TextKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::TextKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::TextKit::operator!= ( TextKit const & in_kit ) const

Check if the source TextKit is not equivalent to this TextKit.

Parameters

in_kit The source TextKit to compare to this TextKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

TextKit& HPS::TextKit::operator= ( TextKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this TextKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a TextKit to take the impl from.

Returns: A reference to this TextKit.

◆ operator=() [2/2]

TextKit& HPS::TextKit::operator= ( TextKit const & in_kit )

Copies the source TextKit into this TextKit.

Parameters

in_kit The source TextKit to copy.

Returns: A reference to this TextKit.

◆ operator==()

bool HPS::TextKit::operator== ( TextKit const & in_kit ) const

Check if the source TextKit is equivalent to this TextKit.

Parameters

in_kit The source TextKit to compare to this TextKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::TextKit::Set ( TextKit const & in_kit )

Copies the source TextKit into this TextKit.

Parameters

in_kit The source TextKit to copy.

◆ SetAlignment()

TextKit& HPS::TextKit::SetAlignment	(	Text::Alignment	in_alignment,
		Text::ReferenceFrame	in_reference_frame = `Text::ReferenceFrame::WorldAligned`,
		Text::Justification	in_justification = `Text::Justification::Left`
	)

Sets the alignment for the text.

Parameters

in_alignment	The alignment for the text.
in_reference_frame	The reference frame for the text. Defaults to Text::ReferenceFrame::WorldAligned.
in_justification	The justification for the text. Defaults to Text::Justification::Left.

Returns: A reference to this TextKit.

◆ SetBackground() [1/3]

TextKit& HPS::TextKit::SetBackground	(	bool	in_state,
		char const *	in_name
	)

Sets the background to be used with text.

Parameters

in_state	Whether a background is drawn for text.
in_name	The name of a shape definition.

Returns: A reference to this object.

◆ SetBackground() [2/3]

TextKit& HPS::TextKit::SetBackground ( char const * in_name )

Sets the background to be used with text.

The state is implicitly on.

Parameters

in_name The name of a shape definition.

Returns: A reference to this object.

◆ SetBackground() [3/3]

TextKit& HPS::TextKit::SetBackground ( bool in_state )

Sets the background to be used with text.

Parameters

in_state Whether a background is drawn for text.

Returns: A reference to this object.

◆ SetBackgroundMargins() [1/3]

TextKit& HPS::TextKit::SetBackgroundMargins	(	float	in_size,
		Text::MarginUnits	in_units = `Text::MarginUnits::Percent`
	)

Sets the amount of additional padding around text strings when backgrounds are used.

Parameters

in_size	The size of the margins.
in_units	The units of the size.

Returns: A reference to this object.

◆ SetBackgroundMargins() [2/3]

TextKit& HPS::TextKit::SetBackgroundMargins	(	FloatArray const &	in_sizes,
		TextMarginUnitsArray const &	in_units
	)

Sets the amount of additional padding around text strings when backgrounds are used.

Additional margin values can also be referenced within definitions of background shapes and leader lines.

Parameters

in_sizes	The size of the margins.
in_units	The units of the size.

Returns: A reference to this object.

◆ SetBackgroundMargins() [3/3]

TextKit& HPS::TextKit::SetBackgroundMargins	(	size_t	in_count,
		float const	in_sizes[],
		HPS::Text::MarginUnits const	in_units[]
	)

Sets the amount of additional padding around text strings when backgrounds are used.

Additional margin values can also be referenced within definitions of background shapes and leader lines.

Parameters

in_count	The number of elements in each array.
in_sizes	The size of the margins.
in_units	The units of the size.

Returns: A reference to this object.

◆ SetBackgroundStyle()

TextKit& HPS::TextKit::SetBackgroundStyle ( char const * in_name )

Allows specifying a named style to be used in the drawing of text backgrounds.

If no style is specified, backgrounds inherit the face and edge attributes from the containing segment.

Parameters

in_name The name of a style, defined in a portfolio that is accessible.

Returns: A reference to this object.

◆ SetBold()

TextKit& HPS::TextKit::SetBold ( bool in_state )

Sets whether the text should be bold.

For fonts which do not have a bold variant, this setting will be ignored.

Parameters

in_state Whether the text should be bold.

Returns: A reference to this TextKit.

◆ SetColor()

TextKit& HPS::TextKit::SetColor ( RGBAColor const & in_rgba_color )

Sets the RGBA color of the text.

Parameters

in_rgba_color The RGBA color of the text.

Returns: A reference to this TextKit.

◆ SetColorByIndex()

TextKit& HPS::TextKit::SetColorByIndex ( float in_index )

Sets the material index color for the text.

Parameters

in_index The material index color for the text.

Returns: A reference to this TextKit.

◆ SetExtraSpace() [1/2]

TextKit& HPS::TextKit::SetExtraSpace	(	bool	in_state,
		float	in_size = `0.0f`,
		Text::SizeUnits	in_units = `Text::SizeUnits::ObjectSpace`
	)

Sets the amount of additional space to add between characters in a text string.

Parameters

in_state	Whether to add addtional space between characters in a text string.
in_size	The size of the addtional space to add between characters. Defaults to 0.0f.
in_units	The units of the size of the additional space to add between characters. Defaults to Text::SizeUnits::ObjectSpace.

Returns: A reference to this TextKit.

◆ SetExtraSpace() [2/2]

TextKit& HPS::TextKit::SetExtraSpace	(	float	in_size,
		Text::SizeUnits	in_units
	)

Sets the amount of additional space to add between characters in a text string.

This function implicitly enables the addition of extra space.

Parameters

in_size	The size of the addtional space to add between characters.
in_units	The units of the size of the additional space to add between characters.

Returns: A reference to this TextKit.

◆ SetFont()

TextKit& HPS::TextKit::SetFont ( char const * in_name )

Sets the font to use for the text.

This must either be a builtin font or a font Visualize can locate in the directories specified by World::SetFontDirectories. If the requested font cannot be found, the stroked font will be used.

Parameters

in_name UTF8-encoded font name to use for the text.

Returns: A reference to this TextKit.

See also: World::SetFontDirectories

◆ SetGreeking() [1/2]

TextKit& HPS::TextKit::SetGreeking	(	bool	in_state,
		float	in_size = `0.0f`,
		Text::GreekingUnits	in_units = `Text::GreekingUnits::ObjectSpace`,
		Text::GreekingMode	in_mode = `Text::GreekingMode::Lines`
	)

Sets the greeking settings to use for the text.

Parameters

in_state	Whether greeking is enabled for this text.
in_size	The size below which to draw a simple symbol in place of a character. Defaults to 0.0f.
in_units	The units of the size below which to draw a simple glyph in place of a character. Defaults to Text::GreekingUnits::ObjectSpace.
in_mode	The type of symbol to draw for characters which are smaller than the greeking size. Defaults to Text::GreekingMode::Lines.

Returns: A reference to this TextKit.

◆ SetGreeking() [2/2]

TextKit& HPS::TextKit::SetGreeking	(	float	in_size,
		Text::GreekingUnits	in_units,
		Text::GreekingMode	in_mode = `Text::GreekingMode::Lines`
	)

Sets the greeking settings to use for the text.

This function implicitly enables text greeking.

Parameters

in_size	The size below which to draw a simple symbol in place of a character.
in_units	The units of the size below which to draw a simple glyph in place of a character.
in_mode	The type of symbol to draw for characters which are smaller than the greeking size. Defaults to Text::Gree::Lines.

Returns: A reference to this TextKit.

◆ SetItalic()

TextKit& HPS::TextKit::SetItalic ( bool in_state )

Sets whether the text should be italic.

For fonts which do not have an italic variant, this setting will be ignored.

Parameters

in_state Whether the text should be italic.

Returns: A reference to this TextKit.

◆ SetLeaderLine()

TextKit& HPS::TextKit::SetLeaderLine	(	Point const &	in_position,
		Text::LeaderLineSpace	in_space = `Text::LeaderLineSpace::Object`
	)

Inserts a leader line for this text, with one end specified by in_position and the other end calculated automatically.

Parameters

in_position	the target position of the leader line.
in_space	the coordinate space in which in_position is specified.

Returns: A reference to this object.

◆ SetLeaderLines() [1/2]

TextKit& HPS::TextKit::SetLeaderLines	(	PointArray const &	in_positions,
		Text::LeaderLineSpace	in_space = `Text::LeaderLineSpace::Object`
	)

Inserts leader lines for this text.

Parameters

in_positions	the target positions of the leader lines.
in_space	the coordinate space in which in_positions is specified.

Returns: A reference to this object.

◆ SetLeaderLines() [2/2]

TextKit& HPS::TextKit::SetLeaderLines	(	size_t	in_count,
		Point const	in_positions[],
		Text::LeaderLineSpace	in_space = `Text::LeaderLineSpace::Object`
	)

Inserts leader lines for this text.

Parameters

in_count	the size of in_positions.
in_positions	the target positions of the leader lines.
in_space	the coordinate space in which in_positions is specified.

Returns: A reference to this object.

◆ SetLineSpacing()

TextKit& HPS::TextKit::SetLineSpacing ( float in_multiplier )

Sets the line spacing multiplier for the text.

This is a multiple of the font size that will be used to determine spacing between lines in multi-line text string.

Parameters

in_multiplier The line spacing multiplier for the text.

Returns: A reference to this TextKit.

◆ SetModellingMatrix()

TextKit& HPS::TextKit::SetModellingMatrix ( MatrixKit const & in_matrix )

Sets the modelling matrix for the text.

Parameters

in_matrix The modelling matrix for the text.

Returns: A reference to this TextKit.

◆ SetOverline()

TextKit& HPS::TextKit::SetOverline ( bool in_state )

Sets whether an overline should be drawn over the text.

Parameters

in_state Whether an overline should be drawn over the text.

Returns: A reference to this TextKit.

◆ SetPath()

TextKit& HPS::TextKit::SetPath ( Vector const & in_path )

Sets the path for the text.

This setting controls the vector along which a text string will be displayed.

Parameters

in_path The path for the text.

Returns: A reference to this TextKit.

◆ SetPosition()

TextKit& HPS::TextKit::SetPosition ( Point const & in_position )

Sets the position of the text in object space.

The object-space position for the text.

Returns: A reference to this TextKit.

◆ SetPreference() [1/2]

TextKit& HPS::TextKit::SetPreference ( Text::Preference in_pref )

Sets the font type preference for the text.

This function implicitly sets the same font type for all text sizes.

Parameters

in_preference The font type preference for the text.

Returns: A reference to this TextKit.

◆ SetPreference() [2/2]

TextKit& HPS::TextKit::SetPreference	(	float	in_cutoff,
		Text::SizeUnits	in_units,
		Text::Preference	in_smaller,
		Text::Preference	in_larger
	)

Sets the preference for the text.

This setting controls which font type is used for the text for "large" and "small" sizes and the cutoff at which this distinction is made.

Parameters

in_cutoff	The font size below which the smaller preference is used and above which the larger preference is used.
in_units	The units for the font size below which the smaller preference is used and above which the larger preference is used.
in_smaller	The font type preference for strings below the cutoff size.
in_larger	The font type preference for strings above the cutoff size.

Returns: A reference to this TextKit.

◆ SetPriority()

TextKit& HPS::TextKit::SetPriority ( int in_priority )

Assigns a specific drawing priority value to the TextKit.

It affects the order in which the contents of this segment are drawn if and only if the rendering algorithm is set to Priority.

Parameters

in_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: A reference to this object.

See also: SubwindowKit::SetPriority(); SubwindowKit::SetRenderingAlgorithm()

◆ SetRegion() [1/2]

TextKit& HPS::TextKit::SetRegion	(	PointArray const &	in_region,
		Text::RegionAlignment	in_region_alignment,
		Text::RegionFitting	in_region_fitting,
		bool	in_region_adjust_direction,
		bool	in_region_relative_coordinates,
		bool	in_region_window_space
	)

Sets the region for the text.

This setting forces the text to be rendererd along the vector defined by two object space points. A region additionally allows control over if text should be evenly spaced between those points, or allowed to grow or shrink to avoid stretching or overlapping characters. No region is set on the text by default.

Parameters

in_region	The points defining the region for the text. This array must be of size 2 or 3. A two point region defines an implicit up vector which is rotated 90 degrees counter-clockwise from the region line. A three point region uses the first two points as the region line and the third point defines the plane in which a vector perpendicular to the region line will be computed for use as the up vector.
in_region_alignment	How the text will be positioned relative to the region line.
in_region_fitting	How the text is organized within the region.
in_region_adjust_direction	Whether to draw text such that it is readable regardless of camera location.
in_region_relative_coordinates	Whether the points defining the region are relative to the insertion point for the text.
in_region_window_space	Whether the points defining the region are in window space coordinates.

Returns: A reference to this TextKit.

See also: SetPath

◆ SetRegion() [2/2]

TextKit& HPS::TextKit::SetRegion	(	size_t	in_region_count,
		Point const	in_region[],
		Text::RegionAlignment	in_region_alignment,
		Text::RegionFitting	in_region_fitting,
		bool	in_region_adjust_direction,
		bool	in_region_relative_coordinates,
		bool	in_region_window_space
	)

Sets the region for the text.

This setting forces the text to be rendererd along the vector defined by two object space points. A region additionally allows control over if text should be evenly spaced between those points, or allowed to grow or shrink to avoid stretching or overlapping characters. No region is set on the text by default.

Parameters

in_region_count	Size of the following array. This value must be 2 or 3. A two point region defines an implicit up vector which is rotated 90 degrees counter-clockwise from the region line. A three point region uses the first two points as the region line and the third point defines the plane in which a vector perpendicular to the region line will be computed for use as the up vector.
in_region	The points defining the region for the text.
in_region_alignment	How the text will be positioned relative to the region line.
in_region_fitting	How the text is organized within the region.
in_region_adjust_direction	Whether to draw text such that it is readable regardless of camera location.
in_region_relative_coordinates	Whether the points defining the region are relative to the insertion point for the text.
in_region_window_space	Whether the points defining the region are in window space coordinates.

Returns: A reference to this TextKit.

See also: SetPath

◆ SetRenderer()

TextKit& HPS::TextKit::SetRenderer ( Text::Renderer in_rend )

Sets the renderer for the text.

Parameters

in_renderer The renderer for the text.

Returns: A reference to this TextKit.

◆ SetRotation() [1/2]

TextKit& HPS::TextKit::SetRotation	(	Text::Rotation	in_state,
		float	in_angle = `0.0f`
	)

Sets the angle characters should be rotated within the text string.

Parameters

in_state	Whether and how to rotate the characters within the text string.
in_angle	The angle in degrees to rotate each character within the text string. This is only relevant if in_state is Text::Rotation::Rotate. Defaults to 0.0f.

Returns: A reference to this TextKit.

◆ SetRotation() [2/2]

TextKit& HPS::TextKit::SetRotation ( float in_angle )

Sets the angle characters should be rotated within the text string.

This function implicitly sets a rotation state of Text::Rotation::Rotate.

Parameters

in_angle The angle in degrees to rotate each character within the text string.

Returns: A reference to this TextKit.

◆ SetSize()

TextKit& HPS::TextKit::SetSize	(	float	in_size,
		Text::SizeUnits	in_units
	)

Sets the font size to use for the text.

Parameters

in_size	The size for the text.
in_units	The units of the size for the text.

Returns: A reference to this TextKit.

◆ SetSizeTolerance() [1/2]

TextKit& HPS::TextKit::SetSizeTolerance	(	bool	in_state,
		float	in_size = `50.0f`,
		Text::SizeToleranceUnits	in_units = `Text::SizeToleranceUnits::Percent`
	)

Sets the size tolerance settings to use for the text.

These settings control how to render text strings which request a size not available for a bitmap font. If a size tolerance is specified and enabled, Visualize will use the nearest smaller size for the bitmap font within the tolerance in place of the requested size. If a size tolerance is not enabled, Visualize will attempt to scale up the nearest bitmap font size to the requested size. This setting has no effect for True Type or Open Type fonts.

Parameters

in_state	Whether a size tolerance is enabled for this text.
in_size	The size for the tolerance. Defaults to 50.0f.
in_units	The units of the size for the tolerance. Defaults to Text::SizeToleranceUnits::Percent.

Returns: A reference to this TextKit.

◆ SetSizeTolerance() [2/2]

TextKit& HPS::TextKit::SetSizeTolerance	(	float	in_size,
		Text::SizeToleranceUnits	in_units
	)

Sets the size tolerance settings to use for the text.

These settings control how to render text strings which request a size not available for a bitmap font. If a size tolerance is specified and enabled, Visualize will use the nearest smaller size for the bitmap font within the tolerance in place of the requested size. If a size tolerance is not enabled, Visualize will attempt to scale up the nearest bitmap font size to the requested size. This setting has no effect for True Type or Open Type fonts. This function implicitly enables a size tolerance.

Parameters

in_size	The size for the tolerance.
in_units	The units of the size for the tolerance.

Returns: A reference to this TextKit.

◆ SetSlant()

TextKit& HPS::TextKit::SetSlant ( float in_angle )

Sets the slant angle for the text.

This determines how far the characters in the string are sheared to the left (negative angle) or right (positive angle) relative to the perpendicular.

Parameters

in_angle The angle in degrees to slant the text. This value must be in the range [-75.0f,+75.0f].

Returns: A reference to this TextKit.

◆ SetSpacing()

TextKit& HPS::TextKit::SetSpacing ( float in_multiplier )

Sets the spacing multiplier for the text.

This setting controls the spacing between adjacent characters within a string. A value of 0.0f would result in all characters being drawn on top of each other, a value of 1.0f would be the standard spacing between characters, a value of 2.0f would insert twice as much space as would normally be between two characters, and so on.

Parameters

in_multiplier The spacing multiplier for the text.

Returns: A reference to this TextKit.

◆ SetStrikethrough()

TextKit& HPS::TextKit::SetStrikethrough ( bool in_state )

Sets whether a strikethrough should be drawn through the text.

Parameters

in_state Whether a strikethrough should be drawn through the text.

Returns: A reference to this TextKit.

◆ SetText()

TextKit& HPS::TextKit::SetText ( char const * in_string )

Sets the contents of the string for the text.

Parameters

in_string UTF8-encoded string for the text.

Returns: A reference to this TextKit.

◆ SetTransform()

TextKit& HPS::TextKit::SetTransform ( Text::Transform in_trans )

Sets the transform behavior for the text.

Parameters

in_transform The transform behavior for the text.

Returns: A reference to this TextKit.

◆ SetUnderline()

TextKit& HPS::TextKit::SetUnderline ( bool in_state )

Sets whether an underline should be drawn under the text.

Parameters

in_state Whether an underline should be drawn under the text.

Returns: A reference to this TextKit.

◆ SetUserData() [1/3]

TextKit& HPS::TextKit::SetUserData	(	intptr_t	in_index,
		size_t	in_bytes,
		byte const	in_data[]
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [2/3]

TextKit& HPS::TextKit::SetUserData	(	intptr_t	in_index,
		ByteArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [3/3]

TextKit& HPS::TextKit::SetUserData	(	IntPtrTArray const &	in_indices,
		ByteArrayArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns: A reference to this kit.

◆ Show()

void HPS::TextKit::Show ( TextKit & out_kit ) const

Copies this TextKit into the given TextKit.

Parameters

out_kit The TextKit to populate with the contents of this TextKit.

◆ ShowAlignment()

bool HPS::TextKit::ShowAlignment	(	Text::Alignment &	out_alignment,
		Text::ReferenceFrame &	out_reference_frame,
		Text::Justification &	out_justification
	)		const

Shows the aligment for the text.

Parameters

out_alignment	The alignment for the text.
out_reference_frame	The reference frame for the text.
out_justification	The justification for the text.

Returns: true if an alignment was set, false otherwise.

◆ ShowBackground()

bool HPS::TextKit::ShowBackground	(	bool &	out_state,
		UTF8 &	out_name
	)		const

Shows the background to be used with text.

Parameters

out_state	Whether a background is drawn for text.
out_name	The name of a shape definition.

Returns: true if a spacing multiplier was set, false otherwise.

◆ ShowBackgroundMargins()

bool HPS::TextKit::ShowBackgroundMargins	(	FloatArray &	out_size,
		TextMarginUnitsArray &	out_units
	)		const

Shows the amount of additional padding around text strings when backgrounds are used.

Parameters

out_size	The size of the margins.
out_units	The units of the sizes.

Returns: true if a spacing multiplier was set, false otherwise.

◆ ShowBackgroundStyle()

bool HPS::TextKit::ShowBackgroundStyle ( UTF8 & out_name ) const

Shows the named style to be used in the drawing of text backgrounds.

Parameters

out_name The name of a style, defined in a portfolio that is accessible.

Returns: true if a spacing multiplier was set, false otherwise.

◆ ShowBold()

bool HPS::TextKit::ShowBold ( bool & out_state ) const

Shows whether the text should be bold.

Parameters

out_state Whether the text should be bold.

Returns: true if a bold setting was set, false otherwise.

◆ ShowColor()

bool HPS::TextKit::ShowColor	(	Material::Type &	out_type,
		RGBAColor &	out_rgba_color,
		float &	out_index
	)		const

Shows the color for the text.

Parameters

out_type	The type of color for the text.
out_rgba_color	The RGBA color for the text. This is only valid if out_type is Material::Type::RGBAColor.
out_index	The material index for the text. This is only valid if out_type is Material::Type::MaterialIndex.

Returns: true if a color was set, false otherwise.

◆ ShowExtraSpace()

bool HPS::TextKit::ShowExtraSpace	(	bool &	out_state,
		float &	out_size,
		Text::SizeUnits &	out_units
	)		const

Shows the amount of additional space to add between characters in a text string.

Parameters

out_state	Whether to add addtional space between characters in a text string.
out_size	The size of the addtional space to add between characters.
out_units	The units of the size of the additional space to add between characters.

Returns: true if an extra space setting was set, false otherwise.

◆ ShowFont()

bool HPS::TextKit::ShowFont ( UTF8 & out_name ) const

Shows the font to use for the text.

Parameters

out_name UTF8-encoded font name to use for the text.

Returns: true if a font was set, false otherwise.

◆ ShowGreeking()

bool HPS::TextKit::ShowGreeking	(	bool &	out_state,
		float &	out_size,
		Text::GreekingUnits &	out_units,
		Text::GreekingMode &	out_mode
	)		const

Shows the greeking settings to use for the text.

Parameters

out_state	Whether greeking is enabled for this text.
out_size	The size below which to draw a simple symbol in place of a character.
out_units	The units of the size below which to draw a simple glyph in place of a character.
out_mode	The type of symbol to draw for characters which are smaller than the greeking size.

Returns: true if greeking settings were set, false otherwise.

◆ ShowItalic()

bool HPS::TextKit::ShowItalic ( bool & out_state ) const

Shows whether the text should be italic.

Parameters

out_state Whether the text should be italic.

Returns: true if an italic setting was set, false otherwise.

◆ ShowLeaderLines()

bool HPS::TextKit::ShowLeaderLines	(	PointArray &	out_positions,
		Text::LeaderLineSpace &	out_space
	)		const

Shows the leader lines to be used with text.

Parameters

out_positions	the target positions of the leader lines.
out_space	the coordinate space in which the points in out_positions are specified

Returns: true if leader lines were set, false otherwise.

◆ ShowLineSpacing()

bool HPS::TextKit::ShowLineSpacing ( float & out_multiplier ) const

Shows the line spacing multiplier for the text.

Parameters

out_multiplier The line spacing multiplier for the text.

Returns: true if a line space multiplier was set, false otherwise.

◆ ShowModellingMatrix()

bool HPS::TextKit::ShowModellingMatrix ( MatrixKit & out_matrix ) const

Shows the modelling matrix for the text.

Parameters

out_matrix The modelling matrix for the text.

Returns: true if a modelling matrix was set, false otherwise.

◆ ShowOverline()

bool HPS::TextKit::ShowOverline ( bool & out_state ) const

Shows whether an overline should be drawn over the text.

Parameters

out_state Whether an overline should be drawn over the text.

Returns: true if an overline setting was set, false otherwise.

◆ ShowPath()

bool HPS::TextKit::ShowPath ( Vector & out_path ) const

Shows the path for the text.

Parameters

out_path The path for the text.

Returns: true if a path was set, false otherwise.

◆ ShowPosition()

bool HPS::TextKit::ShowPosition ( Point & out_position ) const

Shows the position for the text.

Parameters

out_position The object-space position for the text.

Returns: true if a position was set, false otherwise.

◆ ShowPreference()

bool HPS::TextKit::ShowPreference	(	float &	out_cutoff,
		Text::SizeUnits &	out_units,
		Text::Preference &	out_smaller,
		Text::Preference &	out_larger
	)		const

Shows the preference for the text.

Parameters

out_cutoff	The font size below which the smaller preference is used and above which the larger preference is used.
out_units	The units for the font size below which the smaller preference is used and above which the larger preference is used.
out_smaller	The font type preference for strings below the cutoff size.
out_larger	The font type preference for strings above the cutoff size.

Returns: true if a preference was set, false otherwise.

◆ ShowPriority()

bool HPS::TextKit::ShowPriority ( int & out_priority ) const

Shows the drawing priority.

Parameters

out_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: true if the setting is valid, false otherwise.

◆ ShowRegion()

bool HPS::TextKit::ShowRegion	(	PointArray &	out_region,
		Text::RegionAlignment &	out_region_alignment,
		Text::RegionFitting &	out_region_fitting,
		bool &	out_region_adjust_direction,
		bool &	out_region_relative_coordinates,
		bool &	out_region_window_space
	)		const

Shows the region for the text.

Parameters

out_region	The points defining the region for the text.
out_region_alignment	How the text will be positioned relative to the region line.
out_region_fitting	How the text will be organized within the region.
out_region_adjust_direction	Whether to draw text such that it is readable regardless of camera location.
out_region_relative_coordinates	Whether the points defining the region are relative to the insertion point for the text.
out_region_window_space	Whether the points defining the region are in window space coordinates.

Returns: true if a region was set, false otherwise.

◆ ShowRenderer()

bool HPS::TextKit::ShowRenderer ( Text::Renderer & out_renderer ) const

Shows the renderer for the text.

Parameters

in_renderer The renderer for the text.

Returns: true if a renderer was set, false otherwise.

◆ ShowRotation()

bool HPS::TextKit::ShowRotation	(	Text::Rotation &	out_rot,
		float &	out_angle
	)		const

Shows the angle characters should be rotated within the text string.

Parameters

out_rot	Whether to rotate the characters within the text string, and if so, what the angle should be measured with repect to.
out_angle	The angle in degrees to rotate each character within the text string.

Returns: true if a rotation setting was set, false otherwise.

◆ ShowSize()

bool HPS::TextKit::ShowSize	(	float &	out_size,
		Text::SizeUnits &	out_units
	)		const

Shows the font size to use for the text.

Parameters

out_size	The size for the text.
out_units	The units of the size for the text.

Returns: true if a size was set, false otherwise.

◆ ShowSizeTolerance()

bool HPS::TextKit::ShowSizeTolerance	(	bool &	out_state,
		float &	out_size,
		Text::SizeToleranceUnits &	out_units
	)		const

Shows the size tolerance settings to use for the text.

Parameters

out_state	Whether a size tolerance is enabled for this text.
out_size	The size for the tolerance.
out_units	The units of the size for the tolerance.

Returns: true if a size tolerance was set, false otherwise.

◆ ShowSlant()

bool HPS::TextKit::ShowSlant ( float & out_angle ) const

Shows the slant angle for the text.

Parameters

out_angle The angle in degrees to slant the text.

Returns: true if a slang angle was set, false otherwise.

◆ ShowSpacing()

bool HPS::TextKit::ShowSpacing ( float & out_multiplier ) const

Shows the spacing multiplier for the text.

Parameters

out_multiplier The spacing multiplier for the text.

Returns: true if a spacing multiplier was set, false otherwise.

◆ ShowStrikethrough()

bool HPS::TextKit::ShowStrikethrough ( bool & out_state ) const

Shows whether a strikethrough should be drawn through the text.

Parameters

out_state Whether a strikethrough should be drawn through the text.

Returns: true if a strikethrough setting was set, false otherwise.

◆ ShowText()

bool HPS::TextKit::ShowText ( UTF8 & out_string ) const

Shows the string for the text.

Parameters

out_string UTF8-encoded string for the text.

Returns: true if a text string was set, false otherwise.

◆ ShowTransform()

bool HPS::TextKit::ShowTransform ( Text::Transform & out_trans ) const

Shows the transform state for the text.

Parameters

out_transform The transform state for the text.

Returns: true if a transform state was set, false otherwise.

◆ ShowUnderline()

bool HPS::TextKit::ShowUnderline ( bool & out_state ) const

Shows whether an underline should be drawn under the text.

Parameters

out_state Whether an underline should be drawn under the text.

Returns: true if an underline setting was set, false otherwise.

◆ ShowUserData() [1/2]

bool HPS::TextKit::ShowUserData	(	intptr_t	in_index,
		ByteArray &	out_data
	)		const

Shows the user data at a given index for this kit.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns: true if there is user data at the given index, false otherwise.

◆ ShowUserData() [2/2]

bool HPS::TextKit::ShowUserData	(	IntPtrTArray &	out_indices,
		ByteArrayArray &	out_data
	)		const

Shows all user data for this kit.

Parameters

out_indices	An array of all user data indices set on this kit.
out_data	An array of all user data set on this kit.

Returns: true if there is user data on this kit, false otherwise.

◆ ShowUserDataCount()

size_t HPS::TextKit::ShowUserDataCount ( ) const

Get the number of user data indices set on this kit.

◆ ShowUserDataIndices()

bool HPS::TextKit::ShowUserDataIndices ( IntPtrTArray & out_indices ) const

Shows the indices of all user data set on this kit.

Parameters

out_indices The user data indices set on this kit.

Returns: The number of user data indices set on this kit.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetAlignment()

TextKit& HPS::TextKit::UnsetAlignment ( )

Removes the alignment setting from the text.

Returns: A reference to this TextKit.

◆ UnsetAllUserData()

TextKit& HPS::TextKit::UnsetAllUserData ( )

Removes all user data from this kit.

Returns: A reference to this kit.

◆ UnsetBackground()

TextKit& HPS::TextKit::UnsetBackground ( )

Removes the background setting.

Returns: A reference to this object.

◆ UnsetBackgroundMargins()

TextKit& HPS::TextKit::UnsetBackgroundMargins ( )

Removes the background margin setting.

Returns: A reference to this object.

◆ UnsetBackgroundStyle()

TextKit& HPS::TextKit::UnsetBackgroundStyle ( )

Removes the background style setting.

Returns: A reference to this object.

◆ UnsetBold()

TextKit& HPS::TextKit::UnsetBold ( )

Removes the bold setting from the text.

Returns: A reference to this TextKit.

◆ UnsetColor()

TextKit& HPS::TextKit::UnsetColor ( )

Removes the color (RGBA or material index) from the text.

Returns: A reference to this TextKit.

◆ UnsetEverything()

TextKit& HPS::TextKit::UnsetEverything ( )

Removes all settings from this TextKit.

Returns: A reference to this TextKit.

◆ UnsetExtraSpace()

TextKit& HPS::TextKit::UnsetExtraSpace ( )

Removes the extra space setting from the text.

Returns: A reference to this TextKit.

◆ UnsetFont()

TextKit& HPS::TextKit::UnsetFont ( )

Removes the font setting from the text.

Returns: A reference to this TextKit.

◆ UnsetGreeking()

TextKit& HPS::TextKit::UnsetGreeking ( )

Removes the greeking settings from the text.

Returns: A reference to this TextKit.

◆ UnsetItalic()

TextKit& HPS::TextKit::UnsetItalic ( )

Removes the italic setting from the text.

Returns: A reference to this TextKit.

◆ UnsetLeaderLines()

TextKit& HPS::TextKit::UnsetLeaderLines ( )

Removes the leader line setting.

Returns: A reference to this object.

◆ UnsetLineSpacing()

TextKit& HPS::TextKit::UnsetLineSpacing ( )

Removes the line spacing setting from the text.

Returns: A reference to this TextKit.

◆ UnsetModellingMatrix()

TextKit& HPS::TextKit::UnsetModellingMatrix ( )

Removes the modelling matrix from the text.

Returns: A reference to this TextKit.

◆ UnsetOverline()

TextKit& HPS::TextKit::UnsetOverline ( )

Removes the overline setting from the text.

Returns: A reference to this TextKit.

◆ UnsetPath()

TextKit& HPS::TextKit::UnsetPath ( )

Removes the path from the text.

Returns: A reference to this TextKit.

◆ UnsetPosition()

TextKit& HPS::TextKit::UnsetPosition ( )

Removes the text position.

Returns: A reference to this TextKit.

◆ UnsetPreference()

TextKit& HPS::TextKit::UnsetPreference ( )

Removes the font type preference from the text.

Returns: A reference to this TextKit.

◆ UnsetPriority()

TextKit& HPS::TextKit::UnsetPriority ( )

Removes a drawing priority setting.

Returns: A reference to this object.

◆ UnsetRegion()

TextKit& HPS::TextKit::UnsetRegion ( )

Removes the region setting from the text.

Returns: A reference to this TextKit.

◆ UnsetRenderer()

TextKit& HPS::TextKit::UnsetRenderer ( )

Removes the renderer setting from the text.

Returns: A reference to this TextKit.

◆ UnsetRotation()

TextKit& HPS::TextKit::UnsetRotation ( )

Removes the rotation setting from the text.

Returns: A reference to this TextKit.

◆ UnsetSize()

TextKit& HPS::TextKit::UnsetSize ( )

Removes the size setting from the text.

Returns: A reference to this TextKit.

◆ UnsetSizeTolerance()

TextKit& HPS::TextKit::UnsetSizeTolerance ( )

Removes the size tolerance setting from the text.

Returns: A reference to this TextKit.

◆ UnsetSlant()

TextKit& HPS::TextKit::UnsetSlant ( )

Removes the slant setting from the text.

Returns: A reference to this TextKit.

◆ UnsetSpacing()

TextKit& HPS::TextKit::UnsetSpacing ( )

Removes the spacing setting from the text.

Returns: A reference to this TextKit.

◆ UnsetStrikethrough()

TextKit& HPS::TextKit::UnsetStrikethrough ( )

Removes the strikethrough setting from the text.

Returns: A reference to this TextKit.

◆ UnsetText()

TextKit& HPS::TextKit::UnsetText ( )

Removes the text string.

Returns: A reference to this TextKit.

◆ UnsetTransform()

TextKit& HPS::TextKit::UnsetTransform ( )

Removes the transform setting from the text.

Returns: A reference to this TextKit.

◆ UnsetUnderline()

TextKit& HPS::TextKit::UnsetUnderline ( )

Removes the underline setting from the text.

Returns: A reference to this TextKit.

◆ UnsetUserData() [1/3]

TextKit& HPS::TextKit::UnsetUserData ( intptr_t in_index )

Removes the user data at the given index from this kit.

Parameters

in_index The index of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [2/3]

TextKit& HPS::TextKit::UnsetUserData	(	size_t	in_count,
		intptr_t const	in_indices[]
	)

Removes the user data at the given indices from this kit.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [3/3]

TextKit& HPS::TextKit::UnsetUserData ( IntPtrTArray const & in_indices )

Removes the user data at the given indices from this kit.

Parameters

in_indices The indices of the user data to remove.

Returns: A reference to this kit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::TextKit::staticType = HPS::Type::TextKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TextKit() [1/3]

◆ TextKit() [2/3]

◆ TextKit() [3/3]

◆ ~TextKit()

Member Function Documentation

◆ ClassID()

◆ Consume()

◆ EditTextByDeletion()

◆ EditTextByInsertion()

◆ EditTextByReplacement()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetAlignment()

◆ SetBackground() [1/3]

◆ SetBackground() [2/3]

◆ SetBackground() [3/3]

◆ SetBackgroundMargins() [1/3]

◆ SetBackgroundMargins() [2/3]

◆ SetBackgroundMargins() [3/3]

◆ SetBackgroundStyle()

◆ SetBold()

◆ SetColor()

◆ SetColorByIndex()

◆ SetExtraSpace() [1/2]

◆ SetExtraSpace() [2/2]

◆ SetFont()

◆ SetGreeking() [1/2]

◆ SetGreeking() [2/2]

◆ SetItalic()

◆ SetLeaderLine()

◆ SetLeaderLines() [1/2]

◆ SetLeaderLines() [2/2]

◆ SetLineSpacing()

◆ SetModellingMatrix()

◆ SetOverline()

◆ SetPath()

◆ SetPosition()

◆ SetPreference() [1/2]

◆ SetPreference() [2/2]

◆ SetPriority()

◆ SetRegion() [1/2]

◆ SetRegion() [2/2]

◆ SetRenderer()

◆ SetRotation() [1/2]

◆ SetRotation() [2/2]

◆ SetSize()

◆ SetSizeTolerance() [1/2]

◆ SetSizeTolerance() [2/2]

◆ SetSlant()

◆ SetSpacing()

◆ SetStrikethrough()

◆ SetText()

◆ SetTransform()

◆ SetUnderline()

◆ SetUserData() [1/3]

◆ SetUserData() [2/3]

◆ SetUserData() [3/3]

◆ Show()

◆ ShowAlignment()

◆ ShowBackground()

◆ ShowBackgroundMargins()

◆ ShowBackgroundStyle()

◆ ShowBold()

◆ ShowColor()

◆ ShowExtraSpace()
