The MatrixKit class is a user space object, useful for carrying a group attribute settings. More...

#include <hps.h>

Inheritance diagram for HPS::MatrixKit:

Collaboration diagram for HPS::MatrixKit:

Public Member Functions
	MatrixKit ()
	Initializes an identity matrix. More...

	MatrixKit (MatrixKit const &in_kit)
	The copy constructor creates a new MatrixKit object that contains the same settings as the source object. More...

	MatrixKit (MatrixKit &&in_that)
	The move constructor creates a MatrixKit by transferring the underlying impl of the rvalue reference to this MatrixKit thereby avoiding a copy and allocation. More...

MatrixKit &	operator= (MatrixKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this MatrixKit thereby avoiding a copy. More...

	MatrixKit (FloatArray const &in_matrix_source)
	This constructor allows implicit construction from an array of floats. More...

	MatrixKit (float const in_matrix_source [])
	This constructor allows implicit construction from an array of floats. More...

	MatrixKit (Quaternion const &in_quaternion)
	This constructor allows implicit construction from a quaternion. More...

virtual	~MatrixKit ()
	Destroy this kit. More...

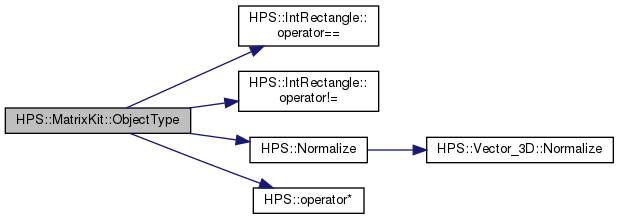

HPS::Type	ObjectType () const

void	Set (MatrixKit const &in_kit)
	Copies all settings from the source MatrixKit into this object. More...

void	Show (MatrixKit &out_kit) const
	Copies all settings from this MatrixKit into the given MatrixKit. More...

MatrixKit &	operator= (MatrixKit const &in_kit)
	Copies the source MatrixKit into this object. More...

bool	Empty () const
	Indicates whether this object has any values set on it. More...

bool	Equals (MatrixKit const &in_kit) const
	Check if the source MatrixKit is equivalent to this object. More...

bool	operator== (MatrixKit const &in_kit) const
	Check if the source MatrixKit is equivalent to this object. More...

bool	operator!= (MatrixKit const &in_kit) const
	Check if the source MatrixKit is not equivalent to this object. More...

MatrixKit &	SetElement (size_t in_row, size_t in_column, float in_value)
	Sets a single matrix element. More...

MatrixKit &	SetElement (size_t in_ordinal_zero_to_fifteen, float in_value)
	Sets a single matrix element, indexed as a linear array in row-major order. More...

MatrixKit &	SetElements (FloatArray const &in_values)
	Sets some or all elements in the matrix from an array, starting with the first element. More...

MatrixKit &	SetElements (size_t in_value_count, float const in_values [])
	Sets some or all elements in the matrix from an array, starting with the first element. More...

MatrixKit &	UnsetEverything ()
	Sets this kit to an identity matrix. More...

bool	ShowElement (size_t in_row, size_t in_column, float &out_value) const
	Shows a single matrix element. More...

bool	ShowElement (size_t in_ordinal_zero_to_fifteen, float &out_value) const
	Shows a single matrix element, indexed as a linear array in row-major order. More...

bool	ShowElements (FloatArray &out_matrix) const
	Shows all elements of this matrix as an array. More...

bool	ShowElements (float out_matrix[]) const
	Shows all elements of this matrix as an array. More...

bool	ShowDeterminant (float &out_determinant) const
	Computes the matrix determinant of this matrix. More...

bool	ShowInverse (MatrixKit &out_matrix) const
	Computes the matrix inverse of this matrix. More...

bool	ShowAdjoint (MatrixKit &out_matrix) const
	Computes the matrix adjoint of this matrix. More...

MatrixKit &	Rotate (float in_x, float in_y, float in_z)
	Concatenates a rotation matrix to this matrix with rotation around the primary axes. More...

MatrixKit &	RotateOffAxis (Vector const &in_vector, float in_theta)
	Concatenates a rotation matrix to this matrix with rotation around an arbitrary vector. More...

MatrixKit &	Translate (float in_x, float in_y, float in_z)
	Concatenates a translation matrix to this matrix that moves geometry. More...

MatrixKit &	Translate (Vector const &in_translation)
	Concatenates a translation matrix to this matrix that moves geometry. More...

MatrixKit &	Scale (float in_x, float in_y, float in_z)
	Concatenates a scale matrix to this matrix that represents a uniform scaling of the scene. More...

MatrixKit &	Concatenate (MatrixKit const &in_kit)
	Replaces this matrix with the matrix product of itself multiplied by another matrix. More...

MatrixKit &	Normalize ()
	Divides this matrix by its determinant. More...

MatrixKit &	Invert ()
	Replaces this matrix with it's matrix inverse. More...

MatrixKit &	Adjoint ()
	Replaces this matrix with it's matrix adjoint. More...

MatrixKit	Multiply (MatrixKit const &in_right) const
	Performs a matrix multiplication with this object as the left operand. More...

MatrixKit const &	MultiplyAndAssign (MatrixKit const &in_right)
	Performs a matrix multiplication with this object as the left operand and then assigns it to this object. More...

MatrixKit	Multiply (float in_scalar) const
	Performs a scalar multiplication of this matrix. More...

MatrixKit const &	MultiplyAndAssign (float in_scalar)
	Performs a scalar multiplication of this matrix and then assigns it to this object. More...

MatrixKit	operator* (MatrixKit const &in_right) const
	Performs a matrix multiplication with this object as the left operand. More...

MatrixKit const &	operator*= (MatrixKit const &in_right)
	Performs a matrix multiplication with this object as the left operand and then assigns it to this object. More...

MatrixKit	operator* (float in_scalar) const
	Performs a scalar multiplication of this matrix. More...

MatrixKit const &	operator*= (float in_scalar)
	Performs a scalar multiplication of this matrix and then assigns it to this object. More...

Point	Transform (Point const &in_source) const
	Transform a point through this matrix. More...

PointArray	Transform (PointArray const &in_source) const
	Transform an array of points through this matrix. More...

PointArray	Transform (size_t in_count, Point const in_source []) const
	Transform an array of points through this matrix. More...

Vector	Transform (Vector const &in_source) const
	Transform a vector through this matrix. More...

VectorArray	Transform (VectorArray const &in_source) const
	Transform an array of vectors through this matrix. More...

VectorArray	Transform (size_t in_count, Vector const in_source []) const
	Transform an array of vectors through this matrix. More...

Plane	Transform (Plane const &in_source) const
	Transform a plane through this matrix. More...

PlaneArray	Transform (PlaneArray const &in_source) const
	Transform an array of planes through this matrix. More...

PlaneArray	Transform (size_t in_count, Plane const in_source []) const
	Transform an array of planes through this matrix. More...

SimpleCuboid	Transform (SimpleCuboid const &in_source) const
	Transform a SimpleCuboid through this matrix. More...

SimpleSphere	Transform (SimpleSphere const &in_source) const
	Transform a SimpleSphere through this matrix. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static MatrixKit	GetDefault ()
	Creates a MatrixKit representing the identity matrix. More...

template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::MatrixKit

Detailed Description

The MatrixKit class is a user space object, useful for carrying a group attribute settings.

Constructor & Destructor Documentation

◆ MatrixKit() [1/6]

HPS::MatrixKit::MatrixKit ( )

Initializes an identity matrix.

◆ MatrixKit() [2/6]

HPS::MatrixKit::MatrixKit ( MatrixKit const & in_kit )

The copy constructor creates a new MatrixKit object that contains the same settings as the source object.

Parameters

in_kit The source object to copy.

◆ MatrixKit() [3/6]

HPS::MatrixKit::MatrixKit ( MatrixKit && in_that )

The move constructor creates a MatrixKit by transferring the underlying impl of the rvalue reference to this MatrixKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a MatrixKit to take the impl from.

◆ MatrixKit() [4/6]

HPS::MatrixKit::MatrixKit ( FloatArray const & in_matrix_source )

This constructor allows implicit construction from an array of floats.

Parameters

in_matrix_source An array of floats that will be used to construct a new matrix. If this array is not at least 16 elements in length, only the valid members will be used, leaving the remainder initialized as the identity matrix.

◆ MatrixKit() [5/6]

HPS::MatrixKit::MatrixKit ( float const in_matrix_source[] )

This constructor allows implicit construction from an array of floats.

Parameters

in_matrix_source An array of floats that will be used to construct a new matrix. This array is assumed to be at least 16 elements in length. If it is not, the behavior is undefined.

◆ MatrixKit() [6/6]

HPS::MatrixKit::MatrixKit ( Quaternion const & in_quaternion )

This constructor allows implicit construction from a quaternion.

Parameters

in_quaternion A quaternion used to construct a new matrix.

◆ ~MatrixKit()

virtual HPS::MatrixKit::~MatrixKit ( )

virtual

Destroy this kit.

Member Function Documentation

◆ Adjoint()

MatrixKit& HPS::MatrixKit::Adjoint ( )

Replaces this matrix with it's matrix adjoint.

The adjoint is similar to the inverse but is always guaranteed to exist, even for singular matrices.

Returns: A reference to this object.

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Concatenate()

MatrixKit& HPS::MatrixKit::Concatenate ( MatrixKit const & in_kit )

Replaces this matrix with the matrix product of itself multiplied by another matrix.

Parameters

in_kit the right side operand of the matrix multiplication.

Returns: A reference to this object.

◆ Empty()

bool HPS::MatrixKit::Empty ( ) const

virtual

Indicates whether this object has any values set on it.

Returns: true if no values are set on this object, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::MatrixKit::Equals ( MatrixKit const & in_kit ) const

Check if the source MatrixKit is equivalent to this object.

Parameters

in_kit The source MatrixKit to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetDefault()

static MatrixKit HPS::MatrixKit::GetDefault ( )

static

Creates a MatrixKit representing the identity matrix.

Returns: An identity MatrixKit.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ Invert()

MatrixKit& HPS::MatrixKit::Invert ( )

Replaces this matrix with it's matrix inverse.

If this matrix is singular (determinant = 0), it will be unchanged.

Returns: A reference to this object.

◆ Multiply() [1/2]

MatrixKit HPS::MatrixKit::Multiply ( MatrixKit const & in_right ) const

Performs a matrix multiplication with this object as the left operand.

Parameters

in_right A matrix used as the right operand of a matrix multiplication.

Returns: A new MatrixKit representing the product.

◆ Multiply() [2/2]

MatrixKit HPS::MatrixKit::Multiply ( float in_scalar ) const

Performs a scalar multiplication of this matrix.

Parameters

in_scalar A scalar to multiply this object by.

Returns: A new MatrixKit representing the product.

◆ MultiplyAndAssign() [1/2]

MatrixKit const& HPS::MatrixKit::MultiplyAndAssign ( MatrixKit const & in_right )

Performs a matrix multiplication with this object as the left operand and then assigns it to this object.

Parameters

in_right A matrix used as the right operand of a matrix multiplication.

Returns: A reference to this object after the multiplication.

◆ MultiplyAndAssign() [2/2]

MatrixKit const& HPS::MatrixKit::MultiplyAndAssign ( float in_scalar )

Performs a scalar multiplication of this matrix and then assigns it to this object.

Parameters

in_scalar A scalar to multiply this object by.

Returns: A reference to this object after the multiplication.

◆ Normalize()

MatrixKit& HPS::MatrixKit::Normalize ( )

Divides this matrix by its determinant.

If this matrix is singular (determinant = 0), it will be unchanged.

Returns: A reference to this object.

◆ ObjectType()

HPS::Type HPS::MatrixKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::MatrixKit::operator!= ( MatrixKit const & in_kit ) const

Check if the source MatrixKit is not equivalent to this object.

Parameters

in_kit The source MatrixKit to compare to this object.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator*() [1/2]

MatrixKit HPS::MatrixKit::operator* ( MatrixKit const & in_right ) const

Performs a matrix multiplication with this object as the left operand.

Parameters

in_right A matrix used as the right operand of a matrix multiplication.

Returns: A new MatrixKit representing the product.

◆ operator*() [2/2]

MatrixKit HPS::MatrixKit::operator* ( float in_scalar ) const

Performs a scalar multiplication of this matrix.

Parameters

in_scalar A scalar to multiply this object by.

Returns: A new MatrixKit representing the product.

◆ operator*=() [1/2]

MatrixKit const& HPS::MatrixKit::operator*= ( MatrixKit const & in_right )

Performs a matrix multiplication with this object as the left operand and then assigns it to this object.

Parameters

in_right A matrix used as the right operand of a matrix multiplication.

Returns: A reference to this object after the multiplication.

◆ operator*=() [2/2]

MatrixKit const& HPS::MatrixKit::operator*= ( float in_scalar )

Performs a scalar multiplication of this matrix and then assigns it to this object.

Parameters

in_scalar A scalar to multiply this object by.

Returns: A reference to this object after the multiplication.

◆ operator=() [1/2]

MatrixKit& HPS::MatrixKit::operator= ( MatrixKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this MatrixKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a MatrixKit to take the impl from.

Returns: A reference to this MatrixKit.

◆ operator=() [2/2]

MatrixKit& HPS::MatrixKit::operator= ( MatrixKit const & in_kit )

Copies the source MatrixKit into this object.

Parameters

in_kit The source MatrixKit to copy.

Returns: A reference to this object.

◆ operator==()

bool HPS::MatrixKit::operator== ( MatrixKit const & in_kit ) const

Check if the source MatrixKit is equivalent to this object.

Parameters

in_kit The source MatrixKit to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Rotate()

MatrixKit& HPS::MatrixKit::Rotate	(	float	in_x,
		float	in_y,
		float	in_z
	)

Concatenates a rotation matrix to this matrix with rotation around the primary axes.

Parameters

in_x	The number of degrees to rotate around the x-axis.
in_y	The number of degrees to rotate around the y-axis.
in_z	The number of degrees to rotate around the z-axis.

Returns: A reference to this object.

◆ RotateOffAxis()

MatrixKit& HPS::MatrixKit::RotateOffAxis	(	Vector const &	in_vector,
		float	in_theta
	)

Concatenates a rotation matrix to this matrix with rotation around an arbitrary vector.

Parameters

in_vector	The vector to rotate around.
in_theta	the number of degrees to rotate around the specified vector

Returns: A reference to this object.

◆ Scale()

MatrixKit& HPS::MatrixKit::Scale	(	float	in_x,
		float	in_y,
		float	in_z
	)

Concatenates a scale matrix to this matrix that represents a uniform scaling of the scene.

Parameters

in_x	The scale multiplier along the x-axis.
in_y	The scale multiplier along the y-axis.
in_z	The scale multiplier along the z-axis.

Returns: A reference to this object.

◆ Set()

void HPS::MatrixKit::Set ( MatrixKit const & in_kit )

Copies all settings from the source MatrixKit into this object.

Parameters

in_kit The source MatrixKit to copy.

◆ SetElement() [1/2]

MatrixKit& HPS::MatrixKit::SetElement	(	size_t	in_row,
		size_t	in_column,
		float	in_value
	)

Sets a single matrix element.

Parameters

in_row	The row index. Valid range is [0, 3].
in_column	The column index. Valid range is [0, 3].
in_value	The matrix element.

Returns: A reference to this object.

◆ SetElement() [2/2]

MatrixKit& HPS::MatrixKit::SetElement	(	size_t	in_ordinal_zero_to_fifteen,
		float	in_value
	)

Sets a single matrix element, indexed as a linear array in row-major order.

Parameters

in_ordinal_zero_to_fifteen	The offset into the matrix. Valid range is [0, 15].
in_value	The matrix element.

Returns: A reference to this object.

◆ SetElements() [1/2]

MatrixKit& HPS::MatrixKit::SetElements ( FloatArray const & in_values )

Sets some or all elements in the matrix from an array, starting with the first element.

Parameters

in_values An array of float values in row-major order that should replace the values in the matrix.

Returns: A reference to this object.

◆ SetElements() [2/2]

MatrixKit& HPS::MatrixKit::SetElements	(	size_t	in_value_count,
		float const	in_values[]
	)

Sets some or all elements in the matrix from an array, starting with the first element.

Parameters

in_value_count	the number of elements in the input array. Valid range is [0, 16].
in_values	An array of float values in row-major order that should replace the values in the matrix.

Returns: A reference to this object.

◆ Show()

void HPS::MatrixKit::Show ( MatrixKit & out_kit ) const

Copies all settings from this MatrixKit into the given MatrixKit.

Parameters

out_kit The MatrixKit to populate with the contents of this object.

◆ ShowAdjoint()

bool HPS::MatrixKit::ShowAdjoint ( MatrixKit & out_matrix ) const

Computes the matrix adjoint of this matrix.

The adjoint is similar to the inverse but is always guaranteed to exist, even for singular matrices.

Parameters

out_matrix The matrix adjoint of this matrix.

Returns: true if the setting is valid, false otherwise.

◆ ShowDeterminant()

bool HPS::MatrixKit::ShowDeterminant ( float & out_determinant ) const

Computes the matrix determinant of this matrix.

Parameters

out_determinant The matrix determinant.

Returns: true if the setting is valid, false otherwise.

◆ ShowElement() [1/2]

bool HPS::MatrixKit::ShowElement	(	size_t	in_row,
		size_t	in_column,
		float &	out_value
	)		const

Shows a single matrix element.

Parameters

in_row	The row index. Valid range is [0, 3].
in_column	The column index. Valid range is [0, 3].
out_value	The matrix element.

Returns: true if the setting is valid, false otherwise.

◆ ShowElement() [2/2]

bool HPS::MatrixKit::ShowElement	(	size_t	in_ordinal_zero_to_fifteen,
		float &	out_value
	)		const

Shows a single matrix element, indexed as a linear array in row-major order.

Parameters

in_ordinal_zero_to_fifteen	The offset into the matrix. Valid range is [0, 15].
out_value	The matrix element.

Returns: true if the setting is valid, false otherwise.

◆ ShowElements() [1/2]

bool HPS::MatrixKit::ShowElements ( FloatArray & out_matrix ) const

Shows all elements of this matrix as an array.

Parameters

out_matrix The contents of the matrix arranged as a linear array in row-major order.

Returns: true if the setting is valid, false otherwise.

◆ ShowElements() [2/2]

bool HPS::MatrixKit::ShowElements ( float out_matrix[] ) const

Shows all elements of this matrix as an array.

Parameters

out_matrix The contents of the matrix arranged as a linear array in row-major order.

Returns: true if the setting is valid, false otherwise.

◆ ShowInverse()

bool HPS::MatrixKit::ShowInverse ( MatrixKit & out_matrix ) const

Computes the matrix inverse of this matrix.

Fails if this matrix is singular (determinant = 0).

Parameters

out_matrix The matrix inverse of this matrix.

Returns: true if the setting is valid, false otherwise.

◆ Transform() [1/11]

Point HPS::MatrixKit::Transform ( Point const & in_source ) const

Transform a point through this matrix.

Parameters

in_source The point to apply a transformation to.

Returns: A new point representing the transformed point.

◆ Transform() [2/11]

PointArray HPS::MatrixKit::Transform ( PointArray const & in_source ) const

Transform an array of points through this matrix.

Parameters

in_source An array of points to apply a transformation to.

Returns: A new point array representing the transformed points.

◆ Transform() [3/11]

PointArray HPS::MatrixKit::Transform	(	size_t	in_count,
		Point const	in_source[]
	)		const

Transform an array of points through this matrix.

Parameters

in_count	The number of elements in the source array.
in_source	An array of points to apply a transformation to.

Returns: A new point array representing the transformed points.

◆ Transform() [4/11]

Vector HPS::MatrixKit::Transform ( Vector const & in_source ) const

Transform a vector through this matrix.

Parameters

in_source The vector to apply a transformation to.

Returns: A new vector representing the transformed vector.

◆ Transform() [5/11]

VectorArray HPS::MatrixKit::Transform ( VectorArray const & in_source ) const

Transform an array of vectors through this matrix.

Parameters

in_source An array of vectors to apply a transformation to.

Returns: A new vector array representing the transformed vectors.

◆ Transform() [6/11]

VectorArray HPS::MatrixKit::Transform	(	size_t	in_count,
		Vector const	in_source[]
	)		const

Transform an array of vectors through this matrix.

Parameters

in_count	The number of elements in the source array.
in_source	An array of vectors to apply a transformation to.

Returns: A new vector array representing the transformed vectors.

◆ Transform() [7/11]

Plane HPS::MatrixKit::Transform ( Plane const & in_source ) const

Transform a plane through this matrix.

Parameters

in_source The plane to apply a transformation to.

Returns: A new plane representing the transformed plane.

◆ Transform() [8/11]

PlaneArray HPS::MatrixKit::Transform ( PlaneArray const & in_source ) const

Transform an array of planes through this matrix.

Parameters

in_source An array of planes to apply a transformation to.

Returns: A new plane array representing the transformed planes.

◆ Transform() [9/11]

PlaneArray HPS::MatrixKit::Transform	(	size_t	in_count,
		Plane const	in_source[]
	)		const

Transform an array of planes through this matrix.

Parameters

in_count	The number of elements in the source array.
in_source	An array of planes to apply a transformation to.

Returns: A new plane array representing the transformed planes.

◆ Transform() [10/11]

SimpleCuboid HPS::MatrixKit::Transform ( SimpleCuboid const & in_source ) const

Transform a SimpleCuboid through this matrix.

Parameters

in_source The cuboid to apply a transformation to.

Returns: A new SimpleCuboid representing the transformed cuboid.

◆ Transform() [11/11]

SimpleSphere HPS::MatrixKit::Transform ( SimpleSphere const & in_source ) const

Transform a SimpleSphere through this matrix.

Parameters

in_source The sphere to apply a transformation to.

Returns: A new SimpleSphere representing the transformed sphere.

◆ Translate() [1/2]

MatrixKit& HPS::MatrixKit::Translate	(	float	in_x,
		float	in_y,
		float	in_z
	)

Concatenates a translation matrix to this matrix that moves geometry.

Parameters

in_x	The number of units to translate along the x-axis.
in_y	The number of units to translate along the y-axis.
in_z	The number of units to translate along the z-axis.

Returns: A reference to this object.

◆ Translate() [2/2]

MatrixKit& HPS::MatrixKit::Translate ( Vector const & in_translation )

Concatenates a translation matrix to this matrix that moves geometry.

Parameters

in_translation A vector distance to translate by.

Returns: A reference to this object.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetEverything()

MatrixKit& HPS::MatrixKit::UnsetEverything ( )

Sets this kit to an identity matrix.

Returns: A reference to this kit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::MatrixKit::staticType = HPS::Type::MatrixKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MatrixKit() [1/6]

◆ MatrixKit() [2/6]

◆ MatrixKit() [3/6]

◆ MatrixKit() [4/6]

◆ MatrixKit() [5/6]

◆ MatrixKit() [6/6]

◆ ~MatrixKit()

Member Function Documentation

◆ Adjoint()

◆ ClassID()

◆ Concatenate()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetDefault()

◆ GetInstanceID()

◆ HasType()

◆ Invert()

◆ Multiply() [1/2]

◆ Multiply() [2/2]

◆ MultiplyAndAssign() [1/2]

◆ MultiplyAndAssign() [2/2]

◆ Normalize()

◆ ObjectType()

◆ operator!=()

◆ operator*() [1/2]

◆ operator*() [2/2]

◆ operator*=() [1/2]

◆ operator*=() [2/2]

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Rotate()

◆ RotateOffAxis()

◆ Scale()

◆ Set()

◆ SetElement() [1/2]

◆ SetElement() [2/2]

◆ SetElements() [1/2]

◆ SetElements() [2/2]

◆ Show()

◆ ShowAdjoint()

◆ ShowDeterminant()

◆ ShowElement() [1/2]

◆ ShowElement() [2/2]

◆ ShowElements() [1/2]

◆ ShowElements() [2/2]

◆ ShowInverse()

◆ Transform() [1/11]

◆ Transform() [2/11]

◆ Transform() [3/11]

◆ Transform() [4/11]

◆ Transform() [5/11]

◆ Transform() [6/11]

◆ Transform() [7/11]

◆ Transform() [8/11]

◆ Transform() [9/11]

◆ Transform() [10/11]

◆ Transform() [11/11]

◆ Translate() [1/2]

◆ Translate() [2/2]

◆ Type()

◆ UnsetEverything()

Member Data Documentation

◆ staticType
