HPS::SegmentKey Class Reference

The SegmentKey class is a smart pointer to a database object. More...

#include <hps.h>

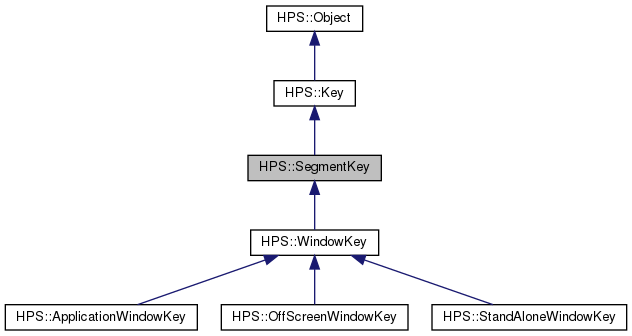

Inheritance diagram for HPS::SegmentKey:

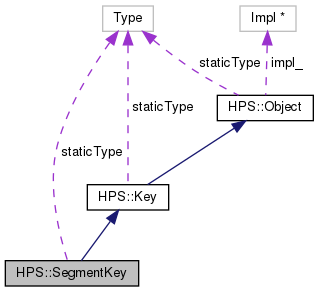

Collaboration diagram for HPS::SegmentKey:

Public Member Functions
	SegmentKey ()
	An uninitialized key refers to no database object and Type() will return Type::None. More...
	SegmentKey (SegmentKey const &in_that)
	Shares a reference to a database object referred to by in_that. More...
SegmentKey &	operator= (SegmentKey const &other)
	Copy assignment operator for SegmentKey. More...
	SegmentKey (SegmentKey &&in_that)
	The move constructor creates a SegmentKey by transferring the underlying impl of the rvalue reference to this SegmentKey thereby avoiding a copy and allocation. More...
SegmentKey &	operator= (SegmentKey &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this SegmentKey thereby avoiding a copy. More...
	SegmentKey (Key const &in_that)
	Shares a reference to a database object referred to by in_that. More...
	~SegmentKey ()
	Releases a reference to a database object but does not destroy the database object. More...
HPS::Type	ObjectType () const
UTF8	Name () const
	Returns the name given to this segment when it was created. More...
SegmentKey &	SetName (char const *in_name)
	Sets the new name of this segment. More...
SegmentKey	Down (char const *in_segment_name, bool in_create_if_not_present=false) const
	Returns the segment contained by this key with name of in_segment_name. More...
SegmentKey	Subsegment (char const *in_segment_name="", bool in_create_if_not_present=true) const
	Returns the segment contained by this key with name of in_segment_name. More...
void	Flush (Search::Type in_type_to_remove=Search::Type::Everything, Search::Space in_search_space=Search::Space::SegmentOnly)
	Searches in_search_space for in_type_to_remove and deletes all instances from the segment(s). More...
void	Flush (SearchTypeArray const &in_types_to_remove, Search::Space in_search_space=Search::Space::SegmentOnly)
	Searches in_search_space for in_types_to_remove and deletes all instances from the segment(s). More...
void	Flush (size_t in_types_count, Search::Type const in_types_to_remove [], Search::Space in_search_space=Search::Space::SegmentOnly)
	Searches in_search_space for in_types_to_remove and deletes all instances from the segment(s). More...
size_t	Find (Search::Type in_request, Search::Space in_search_space, SearchResults &out_results) const
	Searches in_search_space for in_request and returns a handle to the results. More...
size_t	Find (SearchTypeArray const &in_requests, Search::Space in_search_space, SearchResults &out_results) const
	Searches in_search_space for in_request and returns a handle to the results. More...
size_t	Find (size_t in_types_count, Search::Type const in_requests [], Search::Space in_search_space, SearchResults &out_results) const
	Searches in_search_space for in_request and returns a handle to the results. More...
size_t	Find (SearchOptionsKit const &in_options, SearchResults &out_results) const
	Searches starting at this segment using in_options and writes found objects into out_results, returns count. More...
size_t	Find (SearchOptionsKit const &in_options) const
	Searches starting at this segment using in_options, returns count. More...
IncludeKey	IncludeSegment (SegmentKey const &in_seg)
	Creates a link between this segment and in_seg, returns a handle to the include itself. More...
IncludeKey	IncludeSegment (SegmentKey const &in_seg, ConditionalExpression const &in_conditional)
	Creates a link between this segment and in_seg, returns a handle to the include itself. More...
ReferenceKey	ReferenceGeometry (Key const &in_key)
	References either a geometry key or a segment key in this segment. More...
ReferenceKey	ReferenceGeometry (Key const &in_key, ConditionalExpression const &in_conditional)
	Conditionally references either a geometry key or a segment key in this segment. More...
size_t	ShowSubsegments () const
size_t	ShowSubsegments (SegmentKeyArray &out_children) const
size_t	ShowReferrers (SegmentKeyArray &out_segments) const
	Shows the all the segments which contain references to this key. More...
size_t	ShowReferrers (ReferenceKeyArray &out_references) const
	Shows the all the references to this key. More...
size_t	ShowStylers (SegmentKeyArray &out_segments) const
	Shows the all the segments which are styled by this key. More...
size_t	ShowStylers (StyleKeyArray &out_styles) const
	Shows the all the styles which refer to this key. More...
size_t	ShowIncluders (SegmentKeyArray &out_segments) const
	Shows the all the segments which contain includes of this key. More...
size_t	ShowIncluders (IncludeKeyArray &out_includes) const
	Shows the all the includes of this key. More...
StyleControl	GetStyleControl ()
StyleControl const	GetStyleControl () const
PortfolioControl	GetPortfolioControl ()
PortfolioControl const	GetPortfolioControl () const
SegmentKey &	SetCondition (char const *in_condition)
	Sets in_condition as the only condition on this segment, replacing any existing conditions. More...
SegmentKey &	SetConditions (UTF8Array const &in_conditions)
	Sets in_conditions as the only conditions on this segment, replacing any existing conditions. More...
SegmentKey &	SetConditions (size_t in_count, UTF8 const in_conditions [])
	Sets in_conditions as the only conditions on this segment, replacing any existing conditions. More...
SegmentKey &	UnsetConditions ()
	Unsets all conditions on this segment. More...
bool	ShowConditions (UTF8Array &out_conditions) const
	Shows all conditions on this segment. More...
ConditionControl	GetConditionControl ()
ConditionControl const	GetConditionControl () const
SegmentKey &	SetMaterialPalette (char const *in_name)
	Applies the material palette associated with in_name to this segment, replacing any existing material palette. More...
SegmentKey &	UnsetMaterialPalette ()
	Removes the existing material palette, if any, that is active on this segment. More...
bool	ShowMaterialPalette (UTF8 &out_name) const
	Shows the existing material palette, if any, that is active on this segment. More...
SegmentKey &	SetPriority (int in_priority)
	Assigns a specific drawing priority value to this segment. More...
SegmentKey &	UnsetPriority ()
	Removes the drawing priority setting. More...
bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...
SegmentKey &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this key. More...
SegmentKey &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this key. More...
SegmentKey &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this key. More...
SegmentKey &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this key. More...
SegmentKey &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this key. More...
SegmentKey &	UnsetUserData (HPS::IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this key. More...
SegmentKey &	UnsetAllUserData ()
	Removes all user data from this key. More...
size_t	ShowUserDataCount () const
	Get the number of user data indices set on this key. More...
bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this key. More...
bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this key. More...
bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this key. More...
LineKey	InsertLine (LineKit const &in_kit)
	Creates a new line geometry in this segment and returns a key to it. More...
LineKey	InsertLine (size_t in_count, Point const in_pts[])
	Creates a new line geometry in this segment and returns a key to it. More...
LineKey	InsertLine (PointArray const &in_pts)
	Creates a new line geometry in this segment and returns a key to it. More...
LineKey	InsertLine (Point const &pt1, Point const &pt2)
	Creates a new line geometry in this segment and returns a key to it. More...
CylinderKey	InsertCylinder (CylinderKit const &in_kit)
	Creates a new cylinder geometry in this segment and returns a key to it. More...
CylinderKey	InsertCylinder (size_t in_pcount, Point const in_points[], size_t in_rcount, float const in_radii [], Cylinder::Capping in_caps=Cylinder::Capping::Both)
	Creates a new cylinder geometry in this segment and returns a key to it. More...
CylinderKey	InsertCylinder (PointArray const &in_points, FloatArray const &in_radii, Cylinder::Capping in_caps=Cylinder::Capping::Both)
	Creates a new cylinder geometry in this segment and returns a key to it. More...
CylinderKey	InsertCylinder (Point const &in_point1, Point const &in_point2, float in_radius, Cylinder::Capping in_caps=Cylinder::Capping::Both)
	Creates a new cylinder geometry in this segment and returns a key to it. More...
SphereKey	InsertSphere (SphereKit const &in_kit)
	Creates a new sphere geometry in this segment and returns a key to it. More...
SphereKey	InsertSphere (Point const &in_center, float in_radius, Vector const &in_axis=Vector(0, 1, 0), Vector const &in_prime_meridian=Vector(1, 0, 0))
	Creates a new sphere geometry in this segment and returns a key to it. More...
CircleKey	InsertCircle (CircleKit const &in_kit)
	Creates a new circle geometry in this segment and returns a key to it. More...
CircleKey	InsertCircle (Point const &in_start, Point const &in_middle, Point const &in_end)
	Creates a new circle geometry in this segment and returns a key to it. More...
CircleKey	InsertCircle (Point const &in_center, float in_radius, Vector const &in_normal)
	Creates a new circle geometry in this segment and returns a key to it. More...
CircularArcKey	InsertCircularArc (CircularArcKit const &in_kit)
	Creates a new circular arc geometry in this segment and returns a key to it. More...
CircularArcKey	InsertCircularArc (Point const &in_start, Point const &in_middle, Point const &in_end)
	Creates a new circular arc geometry in this segment and returns a key to it. More...
CircularWedgeKey	InsertCircularWedge (CircularWedgeKit const &in_kit)
	Creates a new circular wedge geometry in this segment and returns a key to it. More...
CircularWedgeKey	InsertCircularWedge (Point const &in_start, Point const &in_middle, Point const &in_end)
	Creates a new circular wedge geometry in this segment and returns a key to it. More...
EllipseKey	InsertEllipse (EllipseKit const &in_kit)
	Creates a new ellipse geometry in this segment and returns a key to it. More...
EllipseKey	InsertEllipse (Point const &in_center, Point const &in_major, Point const &in_minor)
	Creates a new ellipse geometry in this segment and returns a key to it. More...
EllipticalArcKey	InsertEllipticalArc (EllipticalArcKit const &in_kit)
	Creates a new elliptical arc geometry in this segment and returns a key to it. More...
EllipticalArcKey	InsertEllipticalArc (Point const &in_center, Point const &in_major, Point const &in_minor, float in_start, float in_end)
	Creates a new elliptical arc geometry in this segment and returns a key to it. More...
PolygonKey	InsertPolygon (PolygonKit const &in_kit)
	Creates a new polygon geometry in this segment and returns a key to it. More...
PolygonKey	InsertPolygon (PointArray const &in_points)
	Creates a new polygon geometry in this segment and returns a key to it. More...
PolygonKey	InsertPolygon (size_t in_count, Point const in_points [])
	Creates a new polygon geometry in this segment and returns a key to it. More...
ShellKey	InsertShell (ShellKit const &in_kit)
	Creates a new shell geometry in this segment and returns a key to it. More...
ShellKey	InsertShell (PointArray const &in_points, IntArray const &in_facelist)
	Creates a new shell geometry in this segment and returns a key to it. More...
ShellKey	InsertShell (size_t in_point_count, Point const in_points [], size_t in_facelist_count, int const in_facelist [])
	Creates a new shell geometry in this segment and returns a key to it. More...
ShellKey	InsertShellByTristrips (PointArray const &in_points, IntArray const &in_tristrips)
	Creates a new shell geometry in this segment and then returns a key to it. More...
ShellKey	InsertShellByTristrips (size_t in_point_count, Point const in_points [], size_t in_tristrips_count, int const in_tristrips [])
	Creates a new shell geometry in this segment and returns a key to it. More...
MeshKey	InsertMesh (MeshKit const &in_kit)
	Creates a new mesh geometry in this segment and returns a key to it. More...
MeshKey	InsertMesh (size_t in_rows, size_t in_columns, PointArray const &in_points)
	Creates a new mesh geometry in this segment and returns a key to it. More...
MeshKey	InsertMesh (size_t in_rows, size_t in_columns, size_t in_point_count, Point const in_points [])
	Creates a new mesh geometry in this segment and returns a key to it. More...
MarkerKey	InsertMarker (Point const &in_position)
	Creates a new marker geometry in this segment and returns a key to it. More...
MarkerKey	InsertMarker (MarkerKit const &in_kit)
	Creates a new marker geometry in this segment and returns a key to it. More...
DistantLightKey	InsertDistantLight (Vector const &in_direction)
	Creates a new distant light geometry in this segment and returns a key to it. More...
DistantLightKey	InsertDistantLight (DistantLightKit const &in_kit)
	Creates a new distant light geometry in this segment and returns a key to it. More...
CuttingSectionKey	InsertCuttingSection (Plane const &in_plane)
	Creates a new cutting section in this segment and returns a key to it. More...
CuttingSectionKey	InsertCuttingSection (CuttingSectionKit const &in_kit)
	Creates a new cutting section in this segment and returns a key to it. More...
CuttingSectionKey	InsertCuttingSection (PlaneArray const &in_planes)
	Creates a new cutting section in this segment and returns a key to it. More...
CuttingSectionKey	InsertCuttingSection (size_t in_planes_count, Plane const in_planes [])
	Creates a new cutting section in this segment and returns a key to it. More...
InfiniteLineKey	InsertInfiniteLine (InfiniteLineKit const &in_kit)
	Creates a new infinite line geometry in this segment and returns a key to it. More...
InfiniteLineKey	InsertInfiniteLine (Point const &in_first, Point const &in_second, InfiniteLine::Type in_type)
	Creates a new infinite line geometry in this segment and returns a key to it. More...
SpotlightKey	InsertSpotlight (Point const &in_position, Point const &in_target)
	Creates a new spot light geometry in this segment and returns a key to it. More...
SpotlightKey	InsertSpotlight (SpotlightKit const &in_kit)
	Creates a new spot light geometry in this segment and returns a key to it. More...
NURBSCurveKey	InsertNURBSCurve (NURBSCurveKit const &in_kit)
	Creates a new NURBS curve geometry in this segment and returns a key to it. More...
NURBSCurveKey	InsertNURBSCurve (size_t in_degree, PointArray const &in_points, FloatArray const &in_weights, FloatArray const &in_knots, float in_start_u, float in_end_u)
	Creates a new NURBS curve geometry in this segment and returns a key to it. More...
NURBSCurveKey	InsertNURBSCurve (size_t in_degree, size_t in_pcount, Point const in_points [], float const in_weights[], size_t in_knot_count, float const in_knots[], float in_start_u, float in_end_u)
	Creates a new NURBS curve geometry in this segment and returns a key to it. More...
NURBSSurfaceKey	InsertNURBSSurface (NURBSSurfaceKit const &in_kit)
	Creates a new NURBS surface geometry in this segment and returns a key to it. More...
NURBSSurfaceKey	InsertNURBSSurface (size_t in_udegree, size_t in_vdegree, size_t in_ucount, size_t in_vcount, PointArray const &in_points, FloatArray const &in_weights, FloatArray const &in_uknots, FloatArray const &in_vknots)
	Creates a new NURBS surface geometry in this segment and returns a key to it. More...
NURBSSurfaceKey	InsertNURBSSurface (size_t in_udegree, size_t in_vdegree, size_t in_ucount, size_t in_vcount, size_t in_point_count, Point const in_points[], float const in_weights[], size_t in_uknot_count, float const in_uknots[], size_t in_vknot_count, float const in_vknots[])
	Creates a new NURBS surface geometry in this segment and returns a key to it. More...
NURBSSurfaceKey	InsertNURBSSurface (size_t in_udegree, size_t in_vdegree, size_t in_ucount, size_t in_vcount, PointArray const &in_points, FloatArray const &in_weights, FloatArray const &in_uknots, FloatArray const &in_vknots, TrimKitArray const &in_trims)
	Creates a new NURBS surface geometry in this segment and returns a key to it. More...
NURBSSurfaceKey	InsertNURBSSurface (size_t in_udegree, size_t in_vdegree, size_t in_ucount, size_t in_vcount, size_t in_point_count, Point const in_points[], float const in_weights[], size_t in_uknot_count, float const in_uknots[], size_t in_vknot_count, float const in_vknots[], size_t in_trim_count, TrimKit const in_trims[])
	Creates a new NURBS surface geometry in this segment and returns a key to it. More...
TextKey	InsertText (TextKit const &in_kit)
	Creates a new text geometry in this segment and returns a key to it. More...
TextKey	InsertText (Point const &in_position, char const *in_text)
	Creates a new text geometry in this segment and returns a key to it. More...
GridKey	InsertGrid (GridKit const &in_kit)
	Creates a new grid in this segment and returns a key to it. More...
GridKey	InsertGrid (Point const &in_origin, Point const &in_first_point=Point(1, 0, 0), Point const &in_second_point=Point(0, 1, 0), int in_first_count=0, int in_second_count=0, Grid::Type in_type=Grid::Type::Quadrilateral)
	Creates a new grid in this segment and returns a key to it. More...
LineKey	InsertLineFromGeometry (CircleKey const &in_circle, float in_deviation=-1.0f)
	Creates a new line geometry in this segment which approximates the given circle and returns a key to it. More...
LineKey	InsertLineFromGeometry (CircularArcKey const &in_circular_arc, float in_deviation=-1.0f)
	Creates a new line geometry in this segment which approximates the given circular arc and returns a key to it. More...
LineKey	InsertLineFromGeometry (CircularWedgeKey const &in_circular_wedge, float in_deviation=-1.0f)
	Creates a new line geometry in this segment which approximates the given circular wedge and returns a key to it. More...
LineKey	InsertLineFromGeometry (EllipseKey const &in_ellipse, float in_deviation=-1.0f)
	Creates a new line geometry in this segment which approximates the given ellipse and returns a key to it. More...
LineKey	InsertLineFromGeometry (EllipticalArcKey const &in_elliptical_arc, float in_deviation=-1.0f)
	Creates a new line geometry in this segment which approximates the given elliptical arc and returns a key to it. More...
LineKey	InsertLineFromGeometry (NURBSCurveKey const &in_nurbs_curve, float in_deviation=-1.0f)
	Creates a new line geometry in this segment which approximates the given NURBS curve and returns a key to it. More...
ShellKey	InsertShellFromGeometry (SphereKey const &in_sphere)
	Creates a new shell geometry in this segment which approximates the given sphere and returns a key to it. More...
ShellKey	InsertShellFromGeometry (CylinderKey const &in_cylinder)
	Creates a new shell geometry in this segment which approximates the given cylinder and returns a key to it. More...
ShellKey	InsertShellFromGeometry (NURBSSurfaceKey const &in_nurbs_surface)
	Creates a new shell geometry in this segment which approximates the given NURBS surface and returns a key to it. More...
ShellKey	InsertShellFromGeometry (MeshKey const &in_mesh)
	Creates a new shell geometry in this segment which approximates the given mesh and returns a key to it. More...
ShellKey	InsertShellFromGeometry (PolygonKey const &in_polygon)
	Creates a new shell geometry in this segment which approximates the given polygon and returns a key to it. More...
ShellKey	InsertShellFromGeometry (EllipseKey const &in_ellipse)
	Creates a new shell geometry in this segment which approximates the given ellipse and returns a key to it. More...
ShellKey	InsertShellFromGeometry (CircleKey const &in_circle)
	Creates a new shell geometry in this segment which approximates the given circle and returns a key to it. More...
ShellKey	InsertShellFromGeometry (CircularWedgeKey const &in_circular_wedge)
	Creates a new shell geometry in this segment which approximates the given circular wedge and returns a key to it. More...
ShellKey	InsertShellFromGeometry (TextKey const &in_text)
	Creates a new shell geometry in this segment which approximates the given text and returns a key to it. More...
SegmentKey &	SetAttributeLock (AttributeLockKit const &in_kit)
	Sets the attribute locks designated by in_kit on this segment. More...
SegmentKey &	UnsetAttributeLock ()
	Removes all attribute locks settings from this segment. More...
bool	ShowAttributeLock (AttributeLockKit &out_kit) const
	Shows the attribute locks settings on this segment. More...
AttributeLockControl	GetAttributeLockControl ()
	Returns a control that allows the user to manipulate and query details of the attribute locks on this segment. More...
AttributeLockControl const	GetAttributeLockControl () const
	Returns a control that allows the user to manipulate and query details of the attribute locks on this segment. More...
SegmentKey &	SetBounding (BoundingKit const &in_kit)
	Sets the bounding designated by in_kit on this segment. More...
SegmentKey &	UnsetBounding ()
	Removes all bounding settings from this segment. More...
bool	ShowBounding (BoundingKit &out_kit) const
	Shows the bounding or bounding settings on this segment. More...
BoundingControl	GetBoundingControl ()
	Returns a control that allows the user to manipulate and query details of the bounding control on this segment. More...
BoundingControl const	GetBoundingControl () const
	Returns a control that allows the user to manipulate and query details of the bounding control on this segment. More...
SegmentKey &	SetCamera (CameraKit const &in_kit)
	Sets the camera attribute designated by in_kit on this segment. More...
SegmentKey &	UnsetCamera ()
	Removes any camera set on this segment. More...
bool	ShowCamera (CameraKit &out_kit) const
	Shows the camera attribute settings on this segment. More...
CameraControl	GetCameraControl ()
CameraControl const	GetCameraControl () const
SegmentKey &	SetColorInterpolation (ColorInterpolationKit const &in_kit)
	Sets the color interpolation attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetColorInterpolation ()
	Removes any color interpolation attributes set on this segment. More...
bool	ShowColorInterpolation (ColorInterpolationKit &out_kit) const
	Shows the color interpolation attribute settings on this segment. More...
ColorInterpolationControl	GetColorInterpolationControl ()
ColorInterpolationControl const	GetColorInterpolationControl () const
SegmentKey &	SetContourLine (ContourLineKit const &in_kit)
	Sets the contour line attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetContourLine ()
	Removes any contour line attributes set on this segment. More...
bool	ShowContourLine (ContourLineKit &out_kit) const
	Shows the contour line attribute settings on this segment. More...
ContourLineControl	GetContourLineControl ()
ContourLineControl const	GetContourLineControl () const
SegmentKey &	SetCulling (CullingKit const &in_kit)
	Sets the culling attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetCulling ()
	Removes all culling attribute settings from this segment. More...
bool	ShowCulling (CullingKit &out_kit) const
	Shows the culling attribute settings on this segment. More...
CullingControl	GetCullingControl ()
	Returns a control that allows the user to manipulate and query details of the culling attribute on this segment. More...
CullingControl const	GetCullingControl () const
	Returns a control that allows the user to manipulate and query details of the culling attribute on this segment. More...
SegmentKey &	SetCurveAttribute (CurveAttributeKit const &in_kit)
	Sets the curve attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetCurveAttribute ()
	Removes all curve attribute settings from this segment. More...
bool	ShowCurveAttribute (CurveAttributeKit &out_kit) const
	Shows the curve attribute settings on this segment. More...
CurveAttributeControl	GetCurveAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the curve attribute on this segment. More...
CurveAttributeControl const	GetCurveAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the curve attribute on this segment. More...
SegmentKey &	SetCuttingSectionAttribute (CuttingSectionAttributeKit const &in_kit)
	Sets the cutting section attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetCuttingSectionAttribute ()
	Removes all cutting section attribute settings from this segment. More...
bool	ShowCuttingSectionAttribute (CuttingSectionAttributeKit &out_kit) const
	Shows the cutting section attribute settings on this segment. More...
CuttingSectionAttributeControl	GetCuttingSectionAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the cutting section attributes on this segment. More...
CuttingSectionAttributeControl const	GetCuttingSectionAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the cutting section attributes on this segment. More...
SegmentKey &	SetCylinderAttribute (CylinderAttributeKit const &in_kit)
	Sets the cylinder attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetCylinderAttribute ()
	Removes all cylinder attribute settings from this segment. More...
bool	ShowCylinderAttribute (CylinderAttributeKit &out_kit) const
	Shows the cylinder attribute settings on this segment. More...
CylinderAttributeControl	GetCylinderAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the cylinder attribute on this segment. More...
CylinderAttributeControl const	GetCylinderAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the cylinder attribute on this segment. More...
SegmentKey &	SetDrawingAttribute (DrawingAttributeKit const &in_kit)
	Sets the drawing attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetDrawingAttribute ()
	Removes all drawing settings from this segment. More...
bool	ShowDrawingAttribute (DrawingAttributeKit &out_kit) const
	Shows the drawing attribute settings on this segment. More...
DrawingAttributeControl	GetDrawingAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the drawing attribute on this segment. More...
DrawingAttributeControl const	GetDrawingAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the drawing attribute on this segment. More...
SegmentKey &	SetEdgeAttribute (EdgeAttributeKit const &in_kit)
	Sets the edge attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetEdgeAttribute ()
	Removes all edge attribute settings from this segment. More...
bool	ShowEdgeAttribute (EdgeAttributeKit &out_kit) const
	Shows the edge attribute settings on this segment. More...
EdgeAttributeControl	GetEdgeAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the edge attribute on this segment. More...
EdgeAttributeControl const	GetEdgeAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the edge attribute on this segment. More...
SegmentKey &	SetHiddenLineAttribute (HiddenLineAttributeKit const &in_kit)
	Sets the hidden line attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetHiddenLineAttribute ()
	Removes all hidden line settings from this segment. More...
bool	ShowHiddenLineAttribute (HiddenLineAttributeKit &out_kit) const
	Shows the hidden line attribute settings on this segment. More...
HiddenLineAttributeControl	GetHiddenLineAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the hidden line attribute on this segment. More...
HiddenLineAttributeControl const	GetHiddenLineAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the hidden line attribute on this segment. More...
SegmentKey &	SetLightingAttribute (LightingAttributeKit const &in_kit)
	Sets the lighting attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetLightingAttribute ()
	Removes all lighting attribute settings from this segment. More...
bool	ShowLightingAttribute (LightingAttributeKit &out_kit) const
	Shows the lighting attribute settings on this segment. More...
LightingAttributeControl	GetLightingAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the lighting attribute on this segment. More...
LightingAttributeControl const	GetLightingAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the lighting attribute on this segment. More...
SegmentKey &	SetLineAttribute (LineAttributeKit const &in_kit)
	Sets the line attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetLineAttribute ()
	Removes all line attribute settings from this segment. More...
bool	ShowLineAttribute (LineAttributeKit &out_kit) const
	Shows the line attribute settings on this segment. More...
LineAttributeControl	GetLineAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the line attribute on this segment. More...
LineAttributeControl const	GetLineAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the line attribute on this segment. More...
SegmentKey &	SetMaterialMapping (MaterialMappingKit const &in_kit)
	Sets the material mappings designated by in_kit on this segment. More...
SegmentKey &	UnsetMaterialMapping ()
	Removes all material mapping settings from this segment. More...
bool	ShowMaterialMapping (MaterialMappingKit &out_kit) const
	Shows the material mapping settings on this segment. More...
MaterialMappingControl	GetMaterialMappingControl ()
	Returns a control that allows the user to manipulate and query details of the material mapping on this segment. More...
MaterialMappingControl const	GetMaterialMappingControl () const
	Returns a control that allows the user to manipulate and query details of the material mapping on this segment. More...
SegmentKey &	SetMarkerAttribute (MarkerAttributeKit const &in_kit)
	Sets the marker attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetMarkerAttribute ()
	Removes all marker attribute settings from this segment. More...
bool	ShowMarkerAttribute (MarkerAttributeKit &out_kit) const
	Shows the marker attribute settings on this segment. More...
MarkerAttributeControl	GetMarkerAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the marker attribute on this segment. More...
MarkerAttributeControl const	GetMarkerAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the marker attribute on this segment. More...
SegmentKey &	SetModellingMatrix (MatrixKit const &in_kit)
	Sets the modelling matrix attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetModellingMatrix ()
	Removes any modelling matrix settings from this segment. More...
bool	ShowModellingMatrix (MatrixKit &out_kit) const
	Shows the modelling matrix setting on this segment. More...
ModellingMatrixControl	GetModellingMatrixControl ()
	Returns a control that allows the user to manipulate and query details of the modelling matrix on this segment. More...
ModellingMatrixControl const	GetModellingMatrixControl () const
	Returns a control that allows the user to manipulate and query details of the modelling matrix on this segment. More...
SegmentKey &	SetNURBSSurfaceAttribute (NURBSSurfaceAttributeKit const &in_kit)
	Sets the NURBS surface attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetNURBSSurfaceAttribute ()
	Removes all NURBS surface attribute settings from this segment. More...
bool	ShowNURBSSurfaceAttribute (NURBSSurfaceAttributeKit &out_kit) const
	Shows the NURBS surface attribute settings on this segment. More...
NURBSSurfaceAttributeControl	GetNURBSSurfaceAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the NURBS surface attribute on this segment. More...
NURBSSurfaceAttributeControl const	GetNURBSSurfaceAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the NURBS surface attribute on this segment. More...
SegmentKey &	SetPerformance (PerformanceKit const &in_kit)
	Sets the performance attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetPerformance ()
	Removes all performance settings from this segment. More...
bool	ShowPerformance (PerformanceKit &out_kit) const
	Shows the performance attribute settings on this segment. More...
PerformanceControl	GetPerformanceControl ()
	Returns a control that allows the user to manipulate and query details of the performance attribute on this segment. More...
PerformanceControl const	GetPerformanceControl () const
	Returns a control that allows the user to manipulate and query details of the performance attribute on this segment. More...
SegmentKey &	SetSelectability (SelectabilityKit const &in_kit)
	Sets the selectability attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetSelectability ()
	Removes all selectability settings from this segment. More...
bool	ShowSelectability (SelectabilityKit &out_kit) const
	Shows the selectability attribute settings on this segment. More...
SelectabilityControl	GetSelectabilityControl ()
	Returns a control that allows the user to manipulate and query details of the selectability attribute on this segment. More...
SelectabilityControl const	GetSelectabilityControl () const
	Returns a control that allows the user to manipulate and query details of the selectability attribute on this segment. More...
SegmentKey &	SetSphereAttribute (SphereAttributeKit const &in_kit)
	Sets the sphere attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetSphereAttribute ()
	Removes all sphere attribute settings from this segment. More...
bool	ShowSphereAttribute (SphereAttributeKit &out_kit) const
	Shows the sphere attribute settings on this segment. More...
SphereAttributeControl	GetSphereAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the sphere attribute on this segment. More...
SphereAttributeControl const	GetSphereAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the sphere attribute on this segment. More...
SegmentKey &	SetSubwindow (SubwindowKit const &in_kit)
	Sets the subwindow attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetSubwindow ()
	Removes all subwindow attribute settings from this segment. More...
bool	ShowSubwindow (SubwindowKit &out_kit) const
	Shows the subwindow attribute settings on this segment. More...
SubwindowControl	GetSubwindowControl ()
	Returns a control that allows the user to manipulate and query details of the subwindow attribute on this segment. More...
SubwindowControl const	GetSubwindowControl () const
	Returns a control that allows the user to manipulate and query details of the subwindow attribute on this segment. More...
SegmentKey &	SetTextAttribute (TextAttributeKit const &in_kit)
	Sets the text attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetTextAttribute ()
	Removes all text attribute settings from this segment. More...
bool	ShowTextAttribute (TextAttributeKit &out_kit) const
	Shows the text attribute settings on this segment. More...
TextAttributeControl	GetTextAttributeControl ()
	Returns a control that allows the user to manipulate and query details of the text attribute on this segment. More...
TextAttributeControl const	GetTextAttributeControl () const
	Returns a control that allows the user to manipulate and query details of the text attribute on this segment. More...
SegmentKey &	SetTextureMatrix (MatrixKit const &in_kit)
	Sets the texture matrix attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetTextureMatrix ()
	Removes any texture matrix settings from this segment. More...
bool	ShowTextureMatrix (MatrixKit &out_kit) const
	Shows the texture matrix setting on this segment. More...
TextureMatrixControl	GetTextureMatrixControl ()
	Returns a control that allows the user to manipulate and query details of the texture matrix on this segment. More...
TextureMatrixControl const	GetTextureMatrixControl () const
	Returns a control that allows the user to manipulate and query details of the texture matrix on this segment. More...
SegmentKey &	SetTransformMask (TransformMaskKit const &in_kit)
	Sets the transform mask designated by in_kit on this segment. More...
SegmentKey &	UnsetTransformMask ()
	Removes all transform mask settings from this segment. More...
bool	ShowTransformMask (TransformMaskKit &out_kit) const
	Shows the transform mask settings on this segment. More...
TransformMaskControl	GetTransformMaskControl ()
	Returns a control that allows the user to manipulate and query details of the transform mask on this segment. More...
TransformMaskControl const	GetTransformMaskControl () const
	Returns a control that allows the user to manipulate and query details of the transform mask on this segment. More...
SegmentKey &	SetTransparency (TransparencyKit const &in_kit)
	Sets the transparency attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetTransparency ()
	Removes all transparency attribute settings from this segment. More...
bool	ShowTransparency (TransparencyKit &out_kit) const
	Shows the transparency attribute settings on this segment. More...
TransparencyControl	GetTransparencyControl ()
	Returns a control that allows the user to manipulate and query details of the transparency attribute on this segment. More...
TransparencyControl const	GetTransparencyControl () const
	Returns a control that allows the user to manipulate and query details of the transparency attribute on this segment. More...
SegmentKey &	SetVisibility (VisibilityKit const &in_kit)
	Sets the visibility attribute designated by in_kit on this segment. More...
SegmentKey &	UnsetVisibility ()
	Removes all visibility settings from this segment. More...
bool	ShowVisibility (VisibilityKit &out_kit) const
	Shows the visibility attribute settings on this segment. More...
VisibilityControl	GetVisibilityControl ()
	Returns a control that allows the user to manipulate and query details of the visibility attribute on this segment. More...
VisibilityControl const	GetVisibilityControl () const
	Returns a control that allows the user to manipulate and query details of the visibility attribute on this segment. More...
SegmentKey &	SetVisualEffects (VisualEffectsKit const &in_kit)
	Sets the visual effects attributes designated by in_kit on this segment. More...
SegmentKey &	UnsetVisualEffects ()
	Removes all visual effects attribute settings from this segment. More...
bool	ShowVisualEffects (VisualEffectsKit &out_kit) const
	Shows the visual effects attribute settings on this segment. More...
VisualEffectsControl	GetVisualEffectsControl ()
	Returns a control that allows the user to manipulate and query details of the visual effects attribute on this segment. More...
VisualEffectsControl const	GetVisualEffectsControl () const
	Returns a control that allows the user to manipulate and query details of the visual effects attribute on this segment. More...
void	Optimize (SegmentOptimizationOptionsKit const &in_kit)
	Optimizes this Segment according to the options specified in the SegmentOptimizationOptionsKit. More...
bool	HasOwner () const
SegmentKey	Up () const
SegmentKey	Owner () const
void	Delete ()
	Removes the database object referred to by this key. More...
void	MoveTo (SegmentKey const &in_new_owner)
	Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner. More...
Key	CopyTo (SegmentKey const &in_destination) const
	Copies the database object referred to by this key into a segment pointed to by in_destination. More...
virtual void	Assign (Key const &in_that)
	Share the underlying smart-pointer of the Key source. More...
bool	Equals (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator!= (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator== (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
size_t	GetHash () const
	Returns a hash code for the key. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::SegmentKey

Detailed Description

The SegmentKey class is a smart pointer to a database object.

Segments are the nodes in the scene graph. They can contain attributes, geometry, or other segments, among other things.

Constructor & Destructor Documentation

SegmentKey() [1/4]

HPS::SegmentKey::SegmentKey

(

)

An uninitialized key refers to no database object and Type() will return Type::None.

SegmentKey() [2/4]

HPS::SegmentKey::SegmentKey

(

SegmentKey const &

in_that

)

Shares a reference to a database object referred to by in_that.

SegmentKey() [3/4]

HPS::SegmentKey::SegmentKey

(

SegmentKey &&

in_that

)

The move constructor creates a SegmentKey by transferring the underlying impl of the rvalue reference to this SegmentKey thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a SegmentKey to take the impl from.

SegmentKey() [4/4]

HPS::SegmentKey::SegmentKey ( Key const &  in_that )

explicit

Shares a reference to a database object referred to by in_that.

If the key assignment is invalid, this key will revert to an uninitialized state.

~SegmentKey()

HPS::SegmentKey::~SegmentKey

(

)

Releases a reference to a database object but does not destroy the database object.

Member Function Documentation

Assign()

virtual void HPS::Key::Assign ( Key const &  in_that )

virtualinherited

Share the underlying smart-pointer of the Key source.

Parameters

in_that

The Key source of the assignment.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

CopyTo()

Key HPS::Key::CopyTo ( SegmentKey const &  in_destination ) const

inherited

Copies the database object referred to by this key into a segment pointed to by in_destination.

Returns

The key of the new copy.

Delete()

void HPS::Key::Delete ( )

inherited

Removes the database object referred to by this key.

Down()

SegmentKey HPS::SegmentKey::Down	(	char const *	in_segment_name,
		bool	in_create_if_not_present = false
	)		const

Returns the segment contained by this key with name of in_segment_name.

If the segment does not exist and the flag in_create_if_not_present is not set, the key returned will be uninitialized.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

bool HPS::Key::Equals ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Empty keys (when key.Empty() returns true) are never equal to any key, even when the key is compared against itself (they act analogously to NaN comparisons in this case.)

Find() [1/5]

size_t HPS::SegmentKey::Find	(	Search::Type	in_request,
		Search::Space	in_search_space,
		SearchResults &	out_results
	)		const

Searches in_search_space for in_request and returns a handle to the results.

Find() [2/5]

size_t HPS::SegmentKey::Find	(	SearchTypeArray const &	in_requests,
		Search::Space	in_search_space,
		SearchResults &	out_results
	)		const

Searches in_search_space for in_request and returns a handle to the results.

Find() [3/5]

size_t HPS::SegmentKey::Find	(	size_t	in_types_count,
		Search::Type const	in_requests[],
		Search::Space	in_search_space,
		SearchResults &	out_results
	)		const

Searches in_search_space for in_request and returns a handle to the results.

Find() [4/5]

size_t HPS::SegmentKey::Find	(	SearchOptionsKit const &	in_options,
		SearchResults &	out_results
	)		const

Searches starting at this segment using in_options and writes found objects into out_results, returns count.

Find() [5/5]

size_t HPS::SegmentKey::Find

(

SearchOptionsKit const &

in_options

)

const

Searches starting at this segment using in_options, returns count.

Flush() [1/3]

void HPS::SegmentKey::Flush	(	Search::Type	in_type_to_remove = Search::Type::Everything,
		Search::Space	in_search_space = Search::Space::SegmentOnly
	)

Searches in_search_space for in_type_to_remove and deletes all instances from the segment(s).

Flush() [2/3]

void HPS::SegmentKey::Flush	(	SearchTypeArray const &	in_types_to_remove,
		Search::Space	in_search_space = Search::Space::SegmentOnly
	)

Searches in_search_space for in_types_to_remove and deletes all instances from the segment(s).

Flush() [3/3]

void HPS::SegmentKey::Flush	(	size_t	in_types_count,
		Search::Type const	in_types_to_remove[],
		Search::Space	in_search_space = Search::Space::SegmentOnly
	)

Searches in_search_space for in_types_to_remove and deletes all instances from the segment(s).

GetAttributeLockControl() [1/2]

AttributeLockControl HPS::SegmentKey::GetAttributeLockControl

(

)

Returns a control that allows the user to manipulate and query details of the attribute locks on this segment.

GetAttributeLockControl() [2/2]

AttributeLockControl const HPS::SegmentKey::GetAttributeLockControl

(

)

const

Returns a control that allows the user to manipulate and query details of the attribute locks on this segment.

GetBoundingControl() [1/2]

BoundingControl HPS::SegmentKey::GetBoundingControl

(

)

Returns a control that allows the user to manipulate and query details of the bounding control on this segment.

GetBoundingControl() [2/2]

BoundingControl const HPS::SegmentKey::GetBoundingControl

(

)

const

Returns a control that allows the user to manipulate and query details of the bounding control on this segment.

GetCameraControl() [1/2]

CameraControl HPS::SegmentKey::GetCameraControl

(

)

Returns

A control that allows the user to manipulate and query details of the camera attribute on this segment.

GetCameraControl() [2/2]

CameraControl const HPS::SegmentKey::GetCameraControl

(

)

const

Returns

A control that allows the user to manipulate and query details of the camera attribute on this segment.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetColorInterpolationControl() [1/2]

ColorInterpolationControl HPS::SegmentKey::GetColorInterpolationControl

(

)

Returns

A control that allows the user to manipulate and query details of the color interpolation attributes on this segment.

GetColorInterpolationControl() [2/2]

ColorInterpolationControl const HPS::SegmentKey::GetColorInterpolationControl

(

)

const

Returns

A control that allows the user to manipulate and query details of the color interpolation attributes on this segment.

GetConditionControl() [1/2]

ConditionControl HPS::SegmentKey::GetConditionControl

(

)

Returns

A control that allows the user to manipulate and query details of conditions on this segment.

GetConditionControl() [2/2]

ConditionControl const HPS::SegmentKey::GetConditionControl

(

)

const

Returns

A control that allows the user to manipulate and query details of conditions on this segment.

GetContourLineControl() [1/2]

ContourLineControl HPS::SegmentKey::GetContourLineControl

(

)

Returns

A control that allows the user to manipulate and query details of the contour line attributes on this segment.

GetContourLineControl() [2/2]

ContourLineControl const HPS::SegmentKey::GetContourLineControl

(

)

const

Returns

A control that allows the user to manipulate and query details of the contour line attributes on this segment.

GetCullingControl() [1/2]

CullingControl HPS::SegmentKey::GetCullingControl

(

)

Returns a control that allows the user to manipulate and query details of the culling attribute on this segment.

GetCullingControl() [2/2]

CullingControl const HPS::SegmentKey::GetCullingControl

(

)

const

Returns a control that allows the user to manipulate and query details of the culling attribute on this segment.

GetCurveAttributeControl() [1/2]

CurveAttributeControl HPS::SegmentKey::GetCurveAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the curve attribute on this segment.

GetCurveAttributeControl() [2/2]

CurveAttributeControl const HPS::SegmentKey::GetCurveAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the curve attribute on this segment.

GetCuttingSectionAttributeControl() [1/2]

CuttingSectionAttributeControl HPS::SegmentKey::GetCuttingSectionAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the cutting section attributes on this segment.

GetCuttingSectionAttributeControl() [2/2]

CuttingSectionAttributeControl const HPS::SegmentKey::GetCuttingSectionAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the cutting section attributes on this segment.

GetCylinderAttributeControl() [1/2]

CylinderAttributeControl HPS::SegmentKey::GetCylinderAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the cylinder attribute on this segment.

GetCylinderAttributeControl() [2/2]

CylinderAttributeControl const HPS::SegmentKey::GetCylinderAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the cylinder attribute on this segment.

GetDrawingAttributeControl() [1/2]

DrawingAttributeControl HPS::SegmentKey::GetDrawingAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the drawing attribute on this segment.

GetDrawingAttributeControl() [2/2]

DrawingAttributeControl const HPS::SegmentKey::GetDrawingAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the drawing attribute on this segment.

GetEdgeAttributeControl() [1/2]

EdgeAttributeControl HPS::SegmentKey::GetEdgeAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the edge attribute on this segment.

GetEdgeAttributeControl() [2/2]

EdgeAttributeControl const HPS::SegmentKey::GetEdgeAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the edge attribute on this segment.

GetHash()

size_t HPS::Key::GetHash ( ) const

inherited

Returns a hash code for the key.

Returns

The size_t hash code.

Here is the caller graph for this function:

GetHiddenLineAttributeControl() [1/2]

HiddenLineAttributeControl HPS::SegmentKey::GetHiddenLineAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the hidden line attribute on this segment.

GetHiddenLineAttributeControl() [2/2]

HiddenLineAttributeControl const HPS::SegmentKey::GetHiddenLineAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the hidden line attribute on this segment.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

GetLightingAttributeControl() [1/2]

LightingAttributeControl HPS::SegmentKey::GetLightingAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the lighting attribute on this segment.

GetLightingAttributeControl() [2/2]

LightingAttributeControl const HPS::SegmentKey::GetLightingAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the lighting attribute on this segment.

GetLineAttributeControl() [1/2]

LineAttributeControl HPS::SegmentKey::GetLineAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the line attribute on this segment.

GetLineAttributeControl() [2/2]

LineAttributeControl const HPS::SegmentKey::GetLineAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the line attribute on this segment.

GetMarkerAttributeControl() [1/2]

MarkerAttributeControl HPS::SegmentKey::GetMarkerAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the marker attribute on this segment.

GetMarkerAttributeControl() [2/2]

MarkerAttributeControl const HPS::SegmentKey::GetMarkerAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the marker attribute on this segment.

GetMaterialMappingControl() [1/2]

MaterialMappingControl HPS::SegmentKey::GetMaterialMappingControl

(

)

Returns a control that allows the user to manipulate and query details of the material mapping on this segment.

GetMaterialMappingControl() [2/2]

MaterialMappingControl const HPS::SegmentKey::GetMaterialMappingControl

(

)

const

Returns a control that allows the user to manipulate and query details of the material mapping on this segment.

GetModellingMatrixControl() [1/2]

ModellingMatrixControl HPS::SegmentKey::GetModellingMatrixControl

(

)

Returns a control that allows the user to manipulate and query details of the modelling matrix on this segment.

GetModellingMatrixControl() [2/2]

ModellingMatrixControl const HPS::SegmentKey::GetModellingMatrixControl

(

)

const

Returns a control that allows the user to manipulate and query details of the modelling matrix on this segment.

GetNURBSSurfaceAttributeControl() [1/2]

NURBSSurfaceAttributeControl HPS::SegmentKey::GetNURBSSurfaceAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the NURBS surface attribute on this segment.

GetNURBSSurfaceAttributeControl() [2/2]

NURBSSurfaceAttributeControl const HPS::SegmentKey::GetNURBSSurfaceAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the NURBS surface attribute on this segment.

GetPerformanceControl() [1/2]

PerformanceControl HPS::SegmentKey::GetPerformanceControl

(

)

Returns a control that allows the user to manipulate and query details of the performance attribute on this segment.

GetPerformanceControl() [2/2]

PerformanceControl const HPS::SegmentKey::GetPerformanceControl

(

)

const

Returns a control that allows the user to manipulate and query details of the performance attribute on this segment.

GetPortfolioControl() [1/2]

PortfolioControl HPS::SegmentKey::GetPortfolioControl

(

)

Returns

A control that allows the user to manipulate and query portfolios in use on this segment.

GetPortfolioControl() [2/2]

PortfolioControl const HPS::SegmentKey::GetPortfolioControl

(

)

const

Returns

A control that allows the user to manipulate and query portfolios in use on this segment.

GetSelectabilityControl() [1/2]

SelectabilityControl HPS::SegmentKey::GetSelectabilityControl

(

)

Returns a control that allows the user to manipulate and query details of the selectability attribute on this segment.

GetSelectabilityControl() [2/2]

SelectabilityControl const HPS::SegmentKey::GetSelectabilityControl

(

)

const

Returns a control that allows the user to manipulate and query details of the selectability attribute on this segment.

GetSphereAttributeControl() [1/2]

SphereAttributeControl HPS::SegmentKey::GetSphereAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the sphere attribute on this segment.

GetSphereAttributeControl() [2/2]

SphereAttributeControl const HPS::SegmentKey::GetSphereAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the sphere attribute on this segment.

GetStyleControl() [1/2]

StyleControl HPS::SegmentKey::GetStyleControl

(

)

Returns

A control that allows the user to manipulate and query details of styles on this segment.

GetStyleControl() [2/2]

StyleControl const HPS::SegmentKey::GetStyleControl

(

)

const

Returns

A control that allows the user to manipulate and query details of styles on this segment.

GetSubwindowControl() [1/2]

SubwindowControl HPS::SegmentKey::GetSubwindowControl

(

)

Returns a control that allows the user to manipulate and query details of the subwindow attribute on this segment.

GetSubwindowControl() [2/2]

SubwindowControl const HPS::SegmentKey::GetSubwindowControl

(

)

const

Returns a control that allows the user to manipulate and query details of the subwindow attribute on this segment.

GetTextAttributeControl() [1/2]

TextAttributeControl HPS::SegmentKey::GetTextAttributeControl

(

)

Returns a control that allows the user to manipulate and query details of the text attribute on this segment.

GetTextAttributeControl() [2/2]

TextAttributeControl const HPS::SegmentKey::GetTextAttributeControl

(

)

const

Returns a control that allows the user to manipulate and query details of the text attribute on this segment.

GetTextureMatrixControl() [1/2]

TextureMatrixControl HPS::SegmentKey::GetTextureMatrixControl

(

)

Returns a control that allows the user to manipulate and query details of the texture matrix on this segment.

GetTextureMatrixControl() [2/2]

TextureMatrixControl const HPS::SegmentKey::GetTextureMatrixControl

(

)

const

Returns a control that allows the user to manipulate and query details of the texture matrix on this segment.

GetTransformMaskControl() [1/2]

TransformMaskControl HPS::SegmentKey::GetTransformMaskControl

(

)

Returns a control that allows the user to manipulate and query details of the transform mask on this segment.

GetTransformMaskControl() [2/2]

TransformMaskControl const HPS::SegmentKey::GetTransformMaskControl

(

)

const

Returns a control that allows the user to manipulate and query details of the transform mask on this segment.

GetTransparencyControl() [1/2]

TransparencyControl HPS::SegmentKey::GetTransparencyControl

(

)

Returns a control that allows the user to manipulate and query details of the transparency attribute on this segment.

GetTransparencyControl() [2/2]

TransparencyControl const HPS::SegmentKey::GetTransparencyControl

(

)

const

Returns a control that allows the user to manipulate and query details of the transparency attribute on this segment.

GetVisibilityControl() [1/2]

VisibilityControl HPS::SegmentKey::GetVisibilityControl

(

)

Returns a control that allows the user to manipulate and query details of the visibility attribute on this segment.

GetVisibilityControl() [2/2]

VisibilityControl const HPS::SegmentKey::GetVisibilityControl

(

)

const

Returns a control that allows the user to manipulate and query details of the visibility attribute on this segment.

GetVisualEffectsControl() [1/2]

VisualEffectsControl HPS::SegmentKey::GetVisualEffectsControl

(

)

Returns a control that allows the user to manipulate and query details of the visual effects attribute on this segment.

GetVisualEffectsControl() [2/2]

VisualEffectsControl const HPS::SegmentKey::GetVisualEffectsControl

(

)

const

Returns a control that allows the user to manipulate and query details of the visual effects attribute on this segment.

HasOwner()

bool HPS::Key::HasOwner ( ) const

inherited

Returns

Indicates whether this key has an owner or not.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

IncludeSegment() [1/2]

IncludeKey HPS::SegmentKey::IncludeSegment

(

SegmentKey const &

in_seg

)

Creates a link between this segment and in_seg, returns a handle to the include itself.

Included segments are treated like child segments for most operations including drawing.

IncludeSegment() [2/2]

IncludeKey HPS::SegmentKey::IncludeSegment	(	SegmentKey const &	in_seg,
		ConditionalExpression const &	in_conditional
	)

Creates a link between this segment and in_seg, returns a handle to the include itself.

The link will only be applied if the condition is set in the draw path. Included segments are treated like child segments for most operations including drawing.

InsertCircle() [1/3]

CircleKey HPS::SegmentKey::InsertCircle

(

CircleKit const &

in_kit

)

Creates a new circle geometry in this segment and returns a key to it.

InsertCircle() [2/3]

CircleKey HPS::SegmentKey::InsertCircle	(	Point const &	in_start,
		Point const &	in_middle,
		Point const &	in_end
	)

Creates a new circle geometry in this segment and returns a key to it.

InsertCircle() [3/3]

CircleKey HPS::SegmentKey::InsertCircle	(	Point const &	in_center,
		float	in_radius,
		Vector const &	in_normal
	)

Creates a new circle geometry in this segment and returns a key to it.

InsertCircularArc() [1/2]

CircularArcKey HPS::SegmentKey::InsertCircularArc

(

CircularArcKit const &

in_kit

)

Creates a new circular arc geometry in this segment and returns a key to it.

InsertCircularArc() [2/2]

CircularArcKey HPS::SegmentKey::InsertCircularArc	(	Point const &	in_start,
		Point const &	in_middle,
		Point const &	in_end
	)

Creates a new circular arc geometry in this segment and returns a key to it.

InsertCircularWedge() [1/2]

CircularWedgeKey HPS::SegmentKey::InsertCircularWedge

(

CircularWedgeKit const &

in_kit

)

Creates a new circular wedge geometry in this segment and returns a key to it.

InsertCircularWedge() [2/2]

CircularWedgeKey HPS::SegmentKey::InsertCircularWedge	(	Point const &	in_start,
		Point const &	in_middle,
		Point const &	in_end
	)

Creates a new circular wedge geometry in this segment and returns a key to it.

InsertCuttingSection() [1/4]

CuttingSectionKey HPS::SegmentKey::InsertCuttingSection

(

Plane const &

in_plane

)

Creates a new cutting section in this segment and returns a key to it.

InsertCuttingSection() [2/4]

CuttingSectionKey HPS::SegmentKey::InsertCuttingSection

(

CuttingSectionKit const &

in_kit

)

Creates a new cutting section in this segment and returns a key to it.

InsertCuttingSection() [3/4]

CuttingSectionKey HPS::SegmentKey::InsertCuttingSection

(

PlaneArray const &

in_planes

)

Creates a new cutting section in this segment and returns a key to it.

InsertCuttingSection() [4/4]

CuttingSectionKey HPS::SegmentKey::InsertCuttingSection	(	size_t	in_planes_count,
		Plane const	in_planes[]
	)

Creates a new cutting section in this segment and returns a key to it.

InsertCylinder() [1/4]

CylinderKey HPS::SegmentKey::InsertCylinder

(

CylinderKit const &

in_kit

)

Creates a new cylinder geometry in this segment and returns a key to it.

InsertCylinder() [2/4]

CylinderKey HPS::SegmentKey::InsertCylinder	(	size_t	in_pcount,
		Point const	in_points[],
		size_t	in_rcount,
		float const	in_radii[],
		Cylinder::Capping	in_caps = Cylinder::Capping::Both
	)

Creates a new cylinder geometry in this segment and returns a key to it.

InsertCylinder() [3/4]

CylinderKey HPS::SegmentKey::InsertCylinder	(	PointArray const &	in_points,
		FloatArray const &	in_radii,
		Cylinder::Capping	in_caps = Cylinder::Capping::Both
	)

Creates a new cylinder geometry in this segment and returns a key to it.

InsertCylinder() [4/4]

CylinderKey HPS::SegmentKey::InsertCylinder	(	Point const &	in_point1,
		Point const &	in_point2,
		float	in_radius,
		Cylinder::Capping	in_caps = Cylinder::Capping::Both
	)

Creates a new cylinder geometry in this segment and returns a key to it.

InsertDistantLight() [1/2]

DistantLightKey HPS::SegmentKey::InsertDistantLight

(

Vector const &

in_direction

)

Creates a new distant light geometry in this segment and returns a key to it.

InsertDistantLight() [2/2]

DistantLightKey HPS::SegmentKey::InsertDistantLight

(

DistantLightKit const &

in_kit

)

Creates a new distant light geometry in this segment and returns a key to it.

InsertEllipse() [1/2]

EllipseKey HPS::SegmentKey::InsertEllipse

(

EllipseKit const &

in_kit

)

Creates a new ellipse geometry in this segment and returns a key to it.

InsertEllipse() [2/2]

EllipseKey HPS::SegmentKey::InsertEllipse	(	Point const &	in_center,
		Point const &	in_major,
		Point const &	in_minor
	)

Creates a new ellipse geometry in this segment and returns a key to it.

InsertEllipticalArc() [1/2]

EllipticalArcKey HPS::SegmentKey::InsertEllipticalArc

(

EllipticalArcKit const &

in_kit

)

Creates a new elliptical arc geometry in this segment and returns a key to it.

InsertEllipticalArc() [2/2]

EllipticalArcKey HPS::SegmentKey::InsertEllipticalArc	(	Point const &	in_center,
		Point const &	in_major,
		Point const &	in_minor,
		float	in_start,
		float	in_end
	)

Creates a new elliptical arc geometry in this segment and returns a key to it.

InsertGrid() [1/2]

GridKey HPS::SegmentKey::InsertGrid

(

GridKit const &

in_kit

)

Creates a new grid in this segment and returns a key to it.

InsertGrid() [2/2]

GridKey HPS::SegmentKey::InsertGrid	(	Point const &	in_origin,
		Point const &	in_first_point = Point(1, 0, 0),
		Point const &	in_second_point = Point(0, 1, 0),
		int	in_first_count = 0,
		int	in_second_count = 0,
		Grid::Type	in_type = Grid::Type::Quadrilateral
	)

Creates a new grid in this segment and returns a key to it.

InsertInfiniteLine() [1/2]

InfiniteLineKey HPS::SegmentKey::InsertInfiniteLine

(

InfiniteLineKit const &

in_kit

)

Creates a new infinite line geometry in this segment and returns a key to it.

InsertInfiniteLine() [2/2]

InfiniteLineKey HPS::SegmentKey::InsertInfiniteLine	(	Point const &	in_first,
		Point const &	in_second,
		InfiniteLine::Type	in_type
	)

Creates a new infinite line geometry in this segment and returns a key to it.

InsertLine() [1/4]

LineKey HPS::SegmentKey::InsertLine

(

LineKit const &

in_kit

)

Creates a new line geometry in this segment and returns a key to it.

InsertLine() [2/4]

LineKey HPS::SegmentKey::InsertLine	(	size_t	in_count,
		Point const	in_pts[]
	)

Creates a new line geometry in this segment and returns a key to it.

InsertLine() [3/4]

LineKey HPS::SegmentKey::InsertLine

(

PointArray const &

in_pts

)

Creates a new line geometry in this segment and returns a key to it.

InsertLine() [4/4]

LineKey HPS::SegmentKey::InsertLine	(	Point const &	pt1,
		Point const &	pt2
	)

Creates a new line geometry in this segment and returns a key to it.

InsertLineFromGeometry() [1/6]

LineKey HPS::SegmentKey::InsertLineFromGeometry	(	CircleKey const &	in_circle,
		float	in_deviation = -1.0f
	)

Creates a new line geometry in this segment which approximates the given circle and returns a key to it.

Parameters

in_circle	The CircleKey that will be used to compute the line approximation.
in_deviation	The distance in object space from the line approximation to the circle. Default value is -1.0f, which tells Visualize to compute a deviation based on the bounding volume of the circle.

Returns

The reference to the newly created line. Will have a type of Type::None if line insertion failed.

InsertLineFromGeometry() [2/6]

LineKey HPS::SegmentKey::InsertLineFromGeometry	(	CircularArcKey const &	in_circular_arc,
		float	in_deviation = -1.0f
	)

Creates a new line geometry in this segment which approximates the given circular arc and returns a key to it.

Parameters

in_circular_arc	The CircularArcKey that will be used to compute the line approximation.
in_deviation	The distance in object space from the line approximation to the circular arc. Default value is -1.0f, which tells Visualize to compute a deviation based on the bounding volume of the circular arc.

Returns

The reference to the newly created line. Will have a type of Type::None if line insertion failed.

InsertLineFromGeometry() [3/6]

LineKey HPS::SegmentKey::InsertLineFromGeometry	(	CircularWedgeKey const &	in_circular_wedge,
		float	in_deviation = -1.0f
	)

Creates a new line geometry in this segment which approximates the given circular wedge and returns a key to it.

Parameters

in_circular_wedge	The CircularWedgeKey that will be used to compute the line approximation.
in_deviation	The distance in object space from the line approximation to the circular wedge. Default value is -1.0f, which tells Visualize to compute a deviation based on the bounding volume of the circular wedge.

Returns

The reference to the newly created line. Will have a type of Type::None if line insertion failed.

InsertLineFromGeometry() [4/6]

LineKey HPS::SegmentKey::InsertLineFromGeometry	(	EllipseKey const &	in_ellipse,
		float	in_deviation = -1.0f
	)

Creates a new line geometry in this segment which approximates the given ellipse and returns a key to it.

Parameters

in_ellipse	The EllipseKey that will be used to compute the line approximation.
in_deviation	The distance in object space from the line approximation to the ellipse. Default value is -1.0f, which tells Visualize to compute a deviation based on the bounding volume of the ellipse.

Returns

The reference to the newly created line. Will have a type of Type::None if line insertion failed.

InsertLineFromGeometry() [5/6]

LineKey HPS::SegmentKey::InsertLineFromGeometry	(	EllipticalArcKey const &	in_elliptical_arc,
		float	in_deviation = -1.0f
	)

Creates a new line geometry in this segment which approximates the given elliptical arc and returns a key to it.

Parameters

in_elliptical_arc	The EllipticalArcKey that will be used to compute the line approximation.
in_deviation	The distance in object space from the line approximation to the elliptical arc. Default value is -1.0f, which tells Visualize to compute a deviation based on the bounding volume of the elliptical arc.

Returns

The reference to the newly created line. Will have a type of Type::None if line insertion failed.

InsertLineFromGeometry() [6/6]

LineKey HPS::SegmentKey::InsertLineFromGeometry	(	NURBSCurveKey const &	in_nurbs_curve,
		float	in_deviation = -1.0f
	)

Creates a new line geometry in this segment which approximates the given NURBS curve and returns a key to it.

Parameters

in_nurbs_curve	The NURBSCurveKey that will be used to compute the line approximation.
in_deviation	The distance in object space from the line approximation to the NURBS curve. Default value is -1.0f, which tells Visualize to compute a deviation based on the bounding volume of the NURBS curve.

Returns

The reference to the newly created line. Will have a type of Type::None if line insertion failed.

InsertMarker() [1/2]

MarkerKey HPS::SegmentKey::InsertMarker

(

Point const &

in_position

)

Creates a new marker geometry in this segment and returns a key to it.

InsertMarker() [2/2]

MarkerKey HPS::SegmentKey::InsertMarker

(

MarkerKit const &

in_kit

)

Creates a new marker geometry in this segment and returns a key to it.

InsertMesh() [1/3]

MeshKey HPS::SegmentKey::InsertMesh

(

MeshKit const &

in_kit

)

Creates a new mesh geometry in this segment and returns a key to it.

InsertMesh() [2/3]

MeshKey HPS::SegmentKey::InsertMesh	(	size_t	in_rows,
		size_t	in_columns,
		PointArray const &	in_points
	)

Creates a new mesh geometry in this segment and returns a key to it.

InsertMesh() [3/3]

MeshKey HPS::SegmentKey::InsertMesh	(	size_t	in_rows,
		size_t	in_columns,
		size_t	in_point_count,
		Point const	in_points[]
	)

Creates a new mesh geometry in this segment and returns a key to it.

InsertNURBSCurve() [1/3]

NURBSCurveKey HPS::SegmentKey::InsertNURBSCurve

(

NURBSCurveKit const &

in_kit

)

Creates a new NURBS curve geometry in this segment and returns a key to it.

InsertNURBSCurve() [2/3]

NURBSCurveKey HPS::SegmentKey::InsertNURBSCurve	(	size_t	in_degree,
		PointArray const &	in_points,
		FloatArray const &	in_weights,
		FloatArray const &	in_knots,
		float	in_start_u,
		float	in_end_u
	)

Creates a new NURBS curve geometry in this segment and returns a key to it.

InsertNURBSCurve() [3/3]

NURBSCurveKey HPS::SegmentKey::InsertNURBSCurve	(	size_t	in_degree,
		size_t	in_pcount,
		Point const	in_points[],
		float const	in_weights[],
		size_t	in_knot_count,
		float const	in_knots[],
		float	in_start_u,
		float	in_end_u
	)

Creates a new NURBS curve geometry in this segment and returns a key to it.

InsertNURBSSurface() [1/5]

NURBSSurfaceKey HPS::SegmentKey::InsertNURBSSurface

(

NURBSSurfaceKit const &

in_kit

)

Creates a new NURBS surface geometry in this segment and returns a key to it.

InsertNURBSSurface() [2/5]

NURBSSurfaceKey HPS::SegmentKey::InsertNURBSSurface	(	size_t	in_udegree,
		size_t	in_vdegree,
		size_t	in_ucount,
		size_t	in_vcount,
		PointArray const &	in_points,
		FloatArray const &	in_weights,
		FloatArray const &	in_uknots,
		FloatArray const &	in_vknots
	)

Creates a new NURBS surface geometry in this segment and returns a key to it.

InsertNURBSSurface() [3/5]

NURBSSurfaceKey HPS::SegmentKey::InsertNURBSSurface	(	size_t	in_udegree,
		size_t	in_vdegree,
		size_t	in_ucount,
		size_t	in_vcount,
		size_t	in_point_count,
		Point const	in_points[],
		float const	in_weights[],
		size_t	in_uknot_count,
		float const	in_uknots[],
		size_t	in_vknot_count,
		float const	in_vknots[]
	)

Creates a new NURBS surface geometry in this segment and returns a key to it.

InsertNURBSSurface() [4/5]

NURBSSurfaceKey HPS::SegmentKey::InsertNURBSSurface	(	size_t	in_udegree,
		size_t	in_vdegree,
		size_t	in_ucount,
		size_t	in_vcount,
		PointArray const &	in_points,
		FloatArray const &	in_weights,
		FloatArray const &	in_uknots,
		FloatArray const &	in_vknots,
		TrimKitArray const &	in_trims
	)

Creates a new NURBS surface geometry in this segment and returns a key to it.

InsertNURBSSurface() [5/5]

NURBSSurfaceKey HPS::SegmentKey::InsertNURBSSurface	(	size_t	in_udegree,
		size_t	in_vdegree,
		size_t	in_ucount,
		size_t	in_vcount,
		size_t	in_point_count,
		Point const	in_points[],
		float const	in_weights[],
		size_t	in_uknot_count,
		float const	in_uknots[],
		size_t	in_vknot_count,
		float const	in_vknots[],
		size_t	in_trim_count,
		TrimKit const	in_trims[]
	)

Creates a new NURBS surface geometry in this segment and returns a key to it.

InsertPolygon() [1/3]

PolygonKey HPS::SegmentKey::InsertPolygon

(

PolygonKit const &

in_kit

)

Creates a new polygon geometry in this segment and returns a key to it.

InsertPolygon() [2/3]

PolygonKey HPS::SegmentKey::InsertPolygon

(

PointArray const &

in_points

)

Creates a new polygon geometry in this segment and returns a key to it.

InsertPolygon() [3/3]

PolygonKey HPS::SegmentKey::InsertPolygon	(	size_t	in_count,
		Point const	in_points[]
	)

Creates a new polygon geometry in this segment and returns a key to it.

InsertShell() [1/3]

ShellKey HPS::SegmentKey::InsertShell

(

ShellKit const &

in_kit

)

Creates a new shell geometry in this segment and returns a key to it.

InsertShell() [2/3]

ShellKey HPS::SegmentKey::InsertShell	(	PointArray const &	in_points,
		IntArray const &	in_facelist
	)

Creates a new shell geometry in this segment and returns a key to it.

InsertShell() [3/3]

ShellKey HPS::SegmentKey::InsertShell	(	size_t	in_point_count,
		Point const	in_points[],
		size_t	in_facelist_count,
		int const	in_facelist[]
	)

Creates a new shell geometry in this segment and returns a key to it.

InsertShellByTristrips() [1/2]

ShellKey HPS::SegmentKey::InsertShellByTristrips	(	PointArray const &	in_points,
		IntArray const &	in_tristrips
	)

Creates a new shell geometry in this segment and then returns a key to it.

Parameters

in_points	An array of HPS::Point that will serve as vertices in the tri-strip.
in_tristrips	An array of integers that designates the order of the vertices. The first number indicates the number of vertices in a tri-strip. For example, the following declaration specifies two tri-strips, the first with three vertices and the second with five: IntArray triStripIndex = { 3, 0, 1, 2, 5, 3, 4, 5, 6, 7 };

InsertShellByTristrips() [2/2]

ShellKey HPS::SegmentKey::InsertShellByTristrips	(	size_t	in_point_count,
		Point const	in_points[],
		size_t	in_tristrips_count,
		int const	in_tristrips[]
	)

Creates a new shell geometry in this segment and returns a key to it.

InsertShellFromGeometry() [1/9]

ShellKey HPS::SegmentKey::InsertShellFromGeometry

(

SphereKey const &

in_sphere

)

Creates a new shell geometry in this segment which approximates the given sphere and returns a key to it.

Parameters

in_sphere

The SphereKey that will be used to compute the shell approximation.

Returns

The reference to the newly created shell. Will have a type of Type::None if shell insertion failed.

InsertShellFromGeometry() [2/9]

ShellKey HPS::SegmentKey::InsertShellFromGeometry

(

CylinderKey const &

in_cylinder

)

Creates a new shell geometry in this segment which approximates the given cylinder and returns a key to it.

Parameters

in_cylinder

The CylinderKey that will be used to compute the shell approximation.

Returns

The reference to the newly created shell. Will have a type of Type::None if shell insertion failed.

InsertShellFromGeometry() [3/9]

ShellKey HPS::SegmentKey::InsertShellFromGeometry

(

NURBSSurfaceKey const &

in_nurbs_surface

)

Creates a new shell geometry in this segment which approximates the given NURBS surface and returns a key to it.

Parameters

in_nurbs_surface

The NURBSSurfaceKey that will be used to compute the shell approximation.

Returns

The reference to the newly created shell. Will have a type of Type::None if shell insertion failed.

InsertShellFromGeometry() [4/9]

ShellKey HPS::SegmentKey::InsertShellFromGeometry

(

MeshKey const &

in_mesh

)

Creates a new shell geometry in this segment which approximates the given mesh and returns a key to it.

Parameters

in_mesh

The MeshKey that will be used to compute the shell approximation.

Returns

The reference to the newly created shell. Will have a type of Type::None if shell insertion failed.

InsertShellFromGeometry() [5/9]

ShellKey HPS::SegmentKey::InsertShellFromGeometry

(

PolygonKey const &

in_polygon

)

Creates a new shell geometry in this segment which approximates the given polygon and returns a key to it.

Parameters

in_polygon

The PolygonKey that will be used to compute the shell approximation.

Returns

The reference to the newly created shell. Will have a type of Type::None if shell insertion failed.

InsertShellFromGeometry() [6/9]

ShellKey HPS::SegmentKey::InsertShellFromGeometry

(

EllipseKey const &

in_ellipse

)

Creates a new shell geometry in this segment which approximates the given ellipse and returns a key to it.

Parameters

in_ellipse

The EllipseKey that will be used to compute the shell approximation.

Returns

The reference to the newly created shell. Will have a type of Type::None if shell insertion failed.

InsertShellFromGeometry() [7/9]

ShellKey HPS::SegmentKey::InsertShellFromGeometry

(

CircleKey const &

in_circle

)

Creates a new shell geometry in this segment which approximates the given circle and returns a key to it.

Parameters

in_circle

The CircleKey that will be used to compute the shell approximation.

Returns

The reference to the newly created shell. Will have a type of Type::None if shell insertion failed.

InsertShellFromGeometry() [8/9]

ShellKey HPS::SegmentKey::InsertShellFromGeometry

(

CircularWedgeKey const &

in_circular_wedge

)

Creates a new shell geometry in this segment which approximates the given circular wedge and returns a key to it.

Parameters

in_circular_wedge

The CircularWedgeKey that will be used to compute the shell approximation.

Returns

The reference to the newly created shell. Will have a type of Type::None if shell insertion failed.

InsertShellFromGeometry() [9/9]

ShellKey HPS::SegmentKey::InsertShellFromGeometry

(

TextKey const &

in_text

)

Creates a new shell geometry in this segment which approximates the given text and returns a key to it.

The text must be inserted into the window segment in order for this call to succeed.

Parameters

in_text

The TextKey that will be used to compute the shell approximation.

Returns

The reference to the newly created shell. Will have a type of Type::None if shell insertion failed.

InsertSphere() [1/2]

SphereKey HPS::SegmentKey::InsertSphere

(

SphereKit const &

in_kit

)

Creates a new sphere geometry in this segment and returns a key to it.

Parameters

in_kit

The SphereKit that will define the sphere

Returns

The reference to the newly created sphere. Will have a type of Type::None if sphere insertion failed

InsertSphere() [2/2]

SphereKey HPS::SegmentKey::InsertSphere	(	Point const &	in_center,
		float	in_radius,
		Vector const &	in_axis = Vector(0, 1, 0),
		Vector const &	in_prime_meridian = Vector(1, 0, 0)
	)

Creates a new sphere geometry in this segment and returns a key to it.

Parameters

in_center	The Point that will define the center of the sphere
in_radius	The radius of the sphere
in_axis	The Vector that will define the axis of the sphere
in_prime_meridian	The Vector that will define the orientation of the sphere (as rotated on its axis)

Returns

The reference to the newly created sphere. Will have a type of Type::None if sphere insertion failed

InsertSpotlight() [1/2]

SpotlightKey HPS::SegmentKey::InsertSpotlight	(	Point const &	in_position,
		Point const &	in_target
	)

Creates a new spot light geometry in this segment and returns a key to it.

InsertSpotlight() [2/2]

SpotlightKey HPS::SegmentKey::InsertSpotlight

(

SpotlightKit const &

in_kit

)

Creates a new spot light geometry in this segment and returns a key to it.

InsertText() [1/2]

TextKey HPS::SegmentKey::InsertText

(

TextKit const &

in_kit

)

Creates a new text geometry in this segment and returns a key to it.

InsertText() [2/2]

TextKey HPS::SegmentKey::InsertText	(	Point const &	in_position,
		char const *	in_text
	)

Creates a new text geometry in this segment and returns a key to it.

Parameters

in_position	The position, in world coordinates, where the text will be inserted.
in_text	The text UTF-8 encoded string to insert.

Returns

A reference to the newly created TextKey object. Will have a type of Type::None if line insertion failed.

MoveTo()

void HPS::Key::MoveTo ( SegmentKey const &  in_new_owner )

inherited

Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner.

Name()

UTF8 HPS::SegmentKey::Name

(

)

const

Returns the name given to this segment when it was created.

ObjectType()

HPS::Type HPS::SegmentKey::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Key.

Reimplemented in HPS::OffScreenWindowKey, HPS::ApplicationWindowKey, HPS::StandAloneWindowKey, and HPS::WindowKey.

operator!=()

bool HPS::Key::operator!= ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

operator=() [1/2]

SegmentKey& HPS::SegmentKey::operator=

(

SegmentKey const &

other

)

Copy assignment operator for SegmentKey.

operator=() [2/2]

SegmentKey& HPS::SegmentKey::operator=

(

SegmentKey &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this SegmentKey thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a SegmentKey to take the impl from.

Returns

A reference to this SegmentKey.

operator==()

bool HPS::Key::operator== ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Optimize()

void HPS::SegmentKey::Optimize

(

SegmentOptimizationOptionsKit const &

in_kit

)

Optimizes this Segment according to the options specified in the SegmentOptimizationOptionsKit.

Parameters

in_kit

A SegmentOptimizationOptionsKit that specifies how the Segment should be optimized.

Owner()

SegmentKey HPS::Key::Owner ( ) const

inherited

Returns

The segment containing this key.

ReferenceGeometry() [1/2]

ReferenceKey HPS::SegmentKey::ReferenceGeometry

(

Key const &

in_key

)

References either a geometry key or a segment key in this segment.

If the provided key is a geometry key, that geometry will be drawn as though it was in this segment. If the provided key is a segment key, all geometry in that segment will be drawn as though they were in this segment, however no attributes, subsegments or geometry in subsegments will be brought along (though attributes set directly on geometry within the segment will be preserved).

Parameters

in_key

A key to either a piece of geometry or a segment.

Returns

A reference to the newly created geometry reference. This will have a type of Type::None if geometry reference creation failed.

ReferenceGeometry() [2/2]

ReferenceKey HPS::SegmentKey::ReferenceGeometry	(	Key const &	in_key,
		ConditionalExpression const &	in_conditional
	)

Conditionally references either a geometry key or a segment key in this segment.

If the provided key is a geometry key, that geometry will be drawn as though it was in this segment. If the provided key is a segment key, all geometry in that segment will be drawn as though they were in this segment, however no attributes, subsegments or geometry in subsegments will be brought along (though attributes set directly on geometry within the segment will be preserved). The referenced geometry will only get drawn in this segment if a condition is set above the geometry reference satisfying the provided condition.

Parameters

in_key	A key to either a piece of geometry or a segment.
in_conditional	A conditional expression which will determine whether the referenced geometry gets drawn for this segment.

Returns

A reference to the newly created geometry reference. This will have a type of Type::None if geometry reference creation failed.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetAttributeLock()

SegmentKey& HPS::SegmentKey::SetAttributeLock

(

AttributeLockKit const &

in_kit

)

Sets the attribute locks designated by in_kit on this segment.

SetBounding()

SegmentKey& HPS::SegmentKey::SetBounding

(

BoundingKit const &

in_kit

)

Sets the bounding designated by in_kit on this segment.

SetCamera()

SegmentKey& HPS::SegmentKey::SetCamera

(

CameraKit const &

in_kit

)

Sets the camera attribute designated by in_kit on this segment.

SetColorInterpolation()

SegmentKey& HPS::SegmentKey::SetColorInterpolation

(

ColorInterpolationKit const &

in_kit

)

Sets the color interpolation attributes designated by in_kit on this segment.

SetCondition()

SegmentKey& HPS::SegmentKey::SetCondition

(

char const *

in_condition

)

Sets in_condition as the only condition on this segment, replacing any existing conditions.

SetConditions() [1/2]

SegmentKey& HPS::SegmentKey::SetConditions

(

UTF8Array const &

in_conditions

)

Sets in_conditions as the only conditions on this segment, replacing any existing conditions.

SetConditions() [2/2]

SegmentKey& HPS::SegmentKey::SetConditions	(	size_t	in_count,
		UTF8 const	in_conditions[]
	)

Sets in_conditions as the only conditions on this segment, replacing any existing conditions.

SetContourLine()

SegmentKey& HPS::SegmentKey::SetContourLine

(

ContourLineKit const &

in_kit

)

Sets the contour line attributes designated by in_kit on this segment.

SetCulling()

SegmentKey& HPS::SegmentKey::SetCulling

(

CullingKit const &

in_kit

)

Sets the culling attributes designated by in_kit on this segment.

SetCurveAttribute()

SegmentKey& HPS::SegmentKey::SetCurveAttribute

(

CurveAttributeKit const &

in_kit

)

Sets the curve attributes designated by in_kit on this segment.

SetCuttingSectionAttribute()

SegmentKey& HPS::SegmentKey::SetCuttingSectionAttribute

(

CuttingSectionAttributeKit const &

in_kit

)

Sets the cutting section attributes designated by in_kit on this segment.

SetCylinderAttribute()

SegmentKey& HPS::SegmentKey::SetCylinderAttribute

(

CylinderAttributeKit const &

in_kit

)

Sets the cylinder attributes designated by in_kit on this segment.

SetDrawingAttribute()

SegmentKey& HPS::SegmentKey::SetDrawingAttribute

(

DrawingAttributeKit const &

in_kit

)

Sets the drawing attributes designated by in_kit on this segment.

SetEdgeAttribute()

SegmentKey& HPS::SegmentKey::SetEdgeAttribute

(

EdgeAttributeKit const &

in_kit

)

Sets the edge attributes designated by in_kit on this segment.

SetHiddenLineAttribute()

SegmentKey& HPS::SegmentKey::SetHiddenLineAttribute

(

HiddenLineAttributeKit const &

in_kit

)

Sets the hidden line attributes designated by in_kit on this segment.

SetLightingAttribute()

SegmentKey& HPS::SegmentKey::SetLightingAttribute

(

LightingAttributeKit const &

in_kit

)

Sets the lighting attributes designated by in_kit on this segment.

SetLineAttribute()

SegmentKey& HPS::SegmentKey::SetLineAttribute

(

LineAttributeKit const &

in_kit

)

Sets the line attributes designated by in_kit on this segment.

SetMarkerAttribute()

SegmentKey& HPS::SegmentKey::SetMarkerAttribute

(

MarkerAttributeKit const &

in_kit

)

Sets the marker attributes designated by in_kit on this segment.

SetMaterialMapping()

SegmentKey& HPS::SegmentKey::SetMaterialMapping

(

MaterialMappingKit const &

in_kit

)

Sets the material mappings designated by in_kit on this segment.

SetMaterialPalette()

SegmentKey& HPS::SegmentKey::SetMaterialPalette

(

char const *

in_name

)

Applies the material palette associated with in_name to this segment, replacing any existing material palette.

SetModellingMatrix()

SegmentKey& HPS::SegmentKey::SetModellingMatrix

(

MatrixKit const &

in_kit

)

Sets the modelling matrix attributes designated by in_kit on this segment.

SetName()

SegmentKey& HPS::SegmentKey::SetName

(

char const *

in_name

)

Sets the new name of this segment.

Returns

A reference to this key

SetNURBSSurfaceAttribute()

SegmentKey& HPS::SegmentKey::SetNURBSSurfaceAttribute

(

NURBSSurfaceAttributeKit const &

in_kit

)

Sets the NURBS surface attributes designated by in_kit on this segment.

SetPerformance()

SegmentKey& HPS::SegmentKey::SetPerformance

(

PerformanceKit const &

in_kit

)

Sets the performance attributes designated by in_kit on this segment.

SetPriority()

SegmentKey& HPS::SegmentKey::SetPriority

(

int

in_priority

)

Assigns a specific drawing priority value to this segment.

It affects the order in which the segment is visited if and only if the rendering algorithm is set to Priority. Segments have a default drawing priority assigned, based on the order that they were created.

Parameters

in_priority

The drawing priority, higher priority items are drawn on top of lower priority items.

Returns

A reference to this object.

See also

SubwindowKit::SetRenderingAlgorithm()

SetSelectability()

SegmentKey& HPS::SegmentKey::SetSelectability

(

SelectabilityKit const &

in_kit

)

Sets the selectability attributes designated by in_kit on this segment.

SetSphereAttribute()

SegmentKey& HPS::SegmentKey::SetSphereAttribute

(

SphereAttributeKit const &

in_kit

)

Sets the sphere attributes designated by in_kit on this segment.

SetSubwindow()

SegmentKey& HPS::SegmentKey::SetSubwindow

(

SubwindowKit const &

in_kit

)

Sets the subwindow attributes designated by in_kit on this segment.

SetTextAttribute()

SegmentKey& HPS::SegmentKey::SetTextAttribute

(

TextAttributeKit const &

in_kit

)

Sets the text attributes designated by in_kit on this segment.

SetTextureMatrix()

SegmentKey& HPS::SegmentKey::SetTextureMatrix

(

MatrixKit const &

in_kit

)

Sets the texture matrix attributes designated by in_kit on this segment.

SetTransformMask()

SegmentKey& HPS::SegmentKey::SetTransformMask

(

TransformMaskKit const &

in_kit

)

Sets the transform mask designated by in_kit on this segment.

SetTransparency()

SegmentKey& HPS::SegmentKey::SetTransparency

(

TransparencyKit const &

in_kit

)

Sets the transparency attributes designated by in_kit on this segment.

SetUserData() [1/3]

SegmentKey& HPS::SegmentKey::SetUserData	(	IntPtrTArray const &	in_indices,
		ByteArrayArray const &	in_data
	)

Sets user data on this key.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns

A reference to this key.

SetUserData() [2/3]

SegmentKey& HPS::SegmentKey::SetUserData	(	intptr_t	in_index,
		size_t	in_bytes,
		byte const	in_data[]
	)

Sets user data on this key.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns

A reference to this key.

SetUserData() [3/3]

SegmentKey& HPS::SegmentKey::SetUserData	(	intptr_t	in_index,
		ByteArray const &	in_data
	)

Sets user data on this key.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns

A reference to this key.

SetVisibility()

SegmentKey& HPS::SegmentKey::SetVisibility

(

VisibilityKit const &

in_kit

)

Sets the visibility attribute designated by in_kit on this segment.

SetVisualEffects()

SegmentKey& HPS::SegmentKey::SetVisualEffects

(

VisualEffectsKit const &

in_kit

)

Sets the visual effects attributes designated by in_kit on this segment.

ShowAttributeLock()

bool HPS::SegmentKey::ShowAttributeLock

(

AttributeLockKit &

out_kit

)

const

Shows the attribute locks settings on this segment.

Returns

False if no attribute locks settings exist on this segment.

ShowBounding()

bool HPS::SegmentKey::ShowBounding

(

BoundingKit &

out_kit

)

const

Shows the bounding or bounding settings on this segment.

Returns

False if no bounding or bounding settings on this segment.

ShowCamera()

bool HPS::SegmentKey::ShowCamera

(

CameraKit &

out_kit

)

const

Shows the camera attribute settings on this segment.

Returns false if no camera is set on this segment.

ShowColorInterpolation()

bool HPS::SegmentKey::ShowColorInterpolation

(

ColorInterpolationKit &

out_kit

)

const

Shows the color interpolation attribute settings on this segment.

Returns false if no color interpolation attribute settings exist on this segment.

ShowConditions()

bool HPS::SegmentKey::ShowConditions

(

UTF8Array &

out_conditions

)

const

Shows all conditions on this segment.

ShowContourLine()

bool HPS::SegmentKey::ShowContourLine

(

ContourLineKit &

out_kit

)

const

Shows the contour line attribute settings on this segment.

Returns false if no contour line attribute settings exist on this segment.

ShowCulling()

bool HPS::SegmentKey::ShowCulling

(

CullingKit &

out_kit

)

const

Shows the culling attribute settings on this segment.

Returns

False if no culling attribute settings exist on this segment.

ShowCurveAttribute()

bool HPS::SegmentKey::ShowCurveAttribute

(

CurveAttributeKit &

out_kit

)

const

Shows the curve attribute settings on this segment.

Returns false if no curve attribute settings exist on this segment.

ShowCuttingSectionAttribute()

bool HPS::SegmentKey::ShowCuttingSectionAttribute

(

CuttingSectionAttributeKit &

out_kit

)

const

Shows the cutting section attribute settings on this segment.

Returns false if no cutting section attribute settings exist on this segment.

ShowCylinderAttribute()

bool HPS::SegmentKey::ShowCylinderAttribute

(

CylinderAttributeKit &

out_kit

)

const

Shows the cylinder attribute settings on this segment.

Returns false if no cylinder attribute settings exist on this segment.

ShowDrawingAttribute()

bool HPS::SegmentKey::ShowDrawingAttribute

(

DrawingAttributeKit &

out_kit

)

const

Shows the drawing attribute settings on this segment.

Returns false if no drawing settings exist on this segment.

ShowEdgeAttribute()

bool HPS::SegmentKey::ShowEdgeAttribute

(

EdgeAttributeKit &

out_kit

)

const

Shows the edge attribute settings on this segment.

Returns false if no edge attribute settings exist on this segment.

ShowHiddenLineAttribute()

bool HPS::SegmentKey::ShowHiddenLineAttribute

(

HiddenLineAttributeKit &

out_kit

)

const

Shows the hidden line attribute settings on this segment.

Returns false if no hidden line settings exist on this segment.

ShowIncluders() [1/2]

size_t HPS::SegmentKey::ShowIncluders

(

SegmentKeyArray &

out_segments

)

const

Shows the all the segments which contain includes of this key.

Parameters

out_segments

The list of segments which contains includes of this key.

Returns

The number of segments which contain includes of this key.

ShowIncluders() [2/2]

size_t HPS::SegmentKey::ShowIncluders

(

IncludeKeyArray &

out_includes

)

const

Shows the all the includes of this key.

Parameters

out_includes

The list of all includes of this key.

Returns

The number of includes of this key.

ShowLightingAttribute()

bool HPS::SegmentKey::ShowLightingAttribute

(

LightingAttributeKit &

out_kit

)

const

Shows the lighting attribute settings on this segment.

Returns false if no lighting attribute settings exist on this segment.

ShowLineAttribute()

bool HPS::SegmentKey::ShowLineAttribute

(

LineAttributeKit &

out_kit

)

const

Shows the line attribute settings on this segment.

Returns false if no line attribute settings exist on this segment.

ShowMarkerAttribute()

bool HPS::SegmentKey::ShowMarkerAttribute

(

MarkerAttributeKit &

out_kit

)

const

Shows the marker attribute settings on this segment.

Returns false if no marker attribute settings exist on this segment.

ShowMaterialMapping()

bool HPS::SegmentKey::ShowMaterialMapping

(

MaterialMappingKit &

out_kit

)

const

Shows the material mapping settings on this segment.

Returns false if no material mapping settings exist on this segment.

ShowMaterialPalette()

bool HPS::SegmentKey::ShowMaterialPalette

(

UTF8 &

out_name

)

const

Shows the existing material palette, if any, that is active on this segment.

ShowModellingMatrix()

bool HPS::SegmentKey::ShowModellingMatrix

(

MatrixKit &

out_kit

)

const

Shows the modelling matrix setting on this segment.

Returns false if no modelling matrix setting exists on this segment.

ShowNURBSSurfaceAttribute()

bool HPS::SegmentKey::ShowNURBSSurfaceAttribute

(

NURBSSurfaceAttributeKit &

out_kit

)

const

Shows the NURBS surface attribute settings on this segment.

Returns false if no NURBS surface attribute settings exist on this segment.

ShowPerformance()

bool HPS::SegmentKey::ShowPerformance

(

PerformanceKit &

out_kit

)

const

Shows the performance attribute settings on this segment.

Returns false if no performance settings exist on this segment.

ShowPriority()

bool HPS::SegmentKey::ShowPriority

(

int &

out_priority

)

const

Shows the drawing priority.

Parameters

out_priority

The drawing priority, higher priority items are drawn on top of lower priority items.

Returns

true if a priority was specified, false otherwise.

ShowReferrers() [1/2]

size_t HPS::SegmentKey::ShowReferrers

(

SegmentKeyArray &

out_segments

)

const

Shows the all the segments which contain references to this key.

Note that while a segment may only appear once in the returned array, that segment could have multiple references to this key.

Parameters

out_segments

The list of segments which contains references to this key.

Returns

The number of segments which contain references to this key.

ShowReferrers() [2/2]

size_t HPS::SegmentKey::ShowReferrers

(

ReferenceKeyArray &

out_references

)

const

Shows the all the references to this key.

Parameters

out_references

The list of all references to this key.

Returns

The number of references to this key.

ShowSelectability()

bool HPS::SegmentKey::ShowSelectability

(

SelectabilityKit &

out_kit

)

const

Shows the selectability attribute settings on this segment.

Returns

False if no selectability settings exist on this segment.

ShowSphereAttribute()

bool HPS::SegmentKey::ShowSphereAttribute

(

SphereAttributeKit &

out_kit

)

const

Shows the sphere attribute settings on this segment.

Returns

False if no sphere attribute settings exist on this segment.

ShowStylers() [1/2]

size_t HPS::SegmentKey::ShowStylers

(

SegmentKeyArray &

out_segments

)

const

Shows the all the segments which are styled by this key.

Note that while a segment may only appear once in the returned array, that segment could have multiple styles which refer to this key.

Parameters

out_segments

The list of segments which are styled by this key.

Returns

The number of segments which are styled by this key.

ShowStylers() [2/2]

size_t HPS::SegmentKey::ShowStylers

(

StyleKeyArray &

out_styles

)

const

Shows the all the styles which refer to this key.

Parameters

out_styles

The list of all styles which refer to this key.

Returns

The number of styles which refer to this key.

ShowSubsegments() [1/2]

size_t HPS::SegmentKey::ShowSubsegments

(

)

const

Returns

A count of all child segments of this segment

ShowSubsegments() [2/2]

size_t HPS::SegmentKey::ShowSubsegments

(

SegmentKeyArray &

out_children

)

const

Returns

A count of all child segments of this segment and populates out_children with keys to them.

ShowSubwindow()

bool HPS::SegmentKey::ShowSubwindow

(

SubwindowKit &

out_kit

)

const

Shows the subwindow attribute settings on this segment.

Returns

False if no subwindow attribute settings exist on this segment.

ShowTextAttribute()

bool HPS::SegmentKey::ShowTextAttribute

(

TextAttributeKit &

out_kit

)

const

Shows the text attribute settings on this segment.

Returns false if no text attribute settings exist on this segment.

ShowTextureMatrix()

bool HPS::SegmentKey::ShowTextureMatrix

(

MatrixKit &

out_kit

)

const

Shows the texture matrix setting on this segment.

Returns

False if no texture matrix setting exists on this segment.

ShowTransformMask()

bool HPS::SegmentKey::ShowTransformMask

(

TransformMaskKit &

out_kit

)

const

Shows the transform mask settings on this segment.

Returns

False if no bounding settings exist on this segment.

ShowTransparency()

bool HPS::SegmentKey::ShowTransparency

(

TransparencyKit &

out_kit

)

const

Shows the transparency attribute settings on this segment.

Returns

False if no transparency attribute settings exist on this segment.

ShowUserData() [1/2]

bool HPS::SegmentKey::ShowUserData	(	IntPtrTArray &	out_indices,
		ByteArrayArray &	out_data
	)		const

Shows all user data for this key.

Parameters

out_indices	An array of all user data indices set on this key.
out_data	An array of all user data set on this key.

Returns

true if there is user data on this key, false otherwise.

ShowUserData() [2/2]

bool HPS::SegmentKey::ShowUserData	(	intptr_t	in_index,
		ByteArray &	out_data
	)		const

Shows the user data at a given index for this key.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns

true if there is user data at the given index, false otherwise.

ShowUserDataCount()

size_t HPS::SegmentKey::ShowUserDataCount

(

)

const

Get the number of user data indices set on this key.

ShowUserDataIndices()

bool HPS::SegmentKey::ShowUserDataIndices

(

IntPtrTArray &

out_indices

)

const

Shows the indices of all user data set on this key.

Parameters

out_indices

The user data indices set on this key.

Returns

The number of user data indices set on this key.

ShowVisibility()

bool HPS::SegmentKey::ShowVisibility

(

VisibilityKit &

out_kit

)

const

Shows the visibility attribute settings on this segment.

Returns

False if no visibility is set on this segment.

ShowVisualEffects()

bool HPS::SegmentKey::ShowVisualEffects

(

VisualEffectsKit &

out_kit

)

const

Shows the visual effects attribute settings on this segment.

Returns

False if no visual effects attribute settings exist on this segment.

Subsegment()

SegmentKey HPS::SegmentKey::Subsegment	(	char const *	in_segment_name = "",
		bool	in_create_if_not_present = true
	)		const

Returns the segment contained by this key with name of in_segment_name.

The segment will be created automatically if it does not exist. To prevent automatic segment creation, pass a value of false for in_create_not_present.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetAllUserData()

SegmentKey& HPS::SegmentKey::UnsetAllUserData

(

)

Removes all user data from this key.

Returns

A reference to this key.

UnsetAttributeLock()

SegmentKey& HPS::SegmentKey::UnsetAttributeLock

(

)

Removes all attribute locks settings from this segment.

UnsetBounding()

SegmentKey& HPS::SegmentKey::UnsetBounding

(

)

Removes all bounding settings from this segment.

UnsetCamera()

SegmentKey& HPS::SegmentKey::UnsetCamera

(

)

Removes any camera set on this segment.

UnsetColorInterpolation()

SegmentKey& HPS::SegmentKey::UnsetColorInterpolation

(

)

Removes any color interpolation attributes set on this segment.

UnsetConditions()

SegmentKey& HPS::SegmentKey::UnsetConditions

(

)

Unsets all conditions on this segment.

UnsetContourLine()

SegmentKey& HPS::SegmentKey::UnsetContourLine

(

)

Removes any contour line attributes set on this segment.

UnsetCulling()

SegmentKey& HPS::SegmentKey::UnsetCulling

(

)

Removes all culling attribute settings from this segment.

UnsetCurveAttribute()

SegmentKey& HPS::SegmentKey::UnsetCurveAttribute

(

)

Removes all curve attribute settings from this segment.

UnsetCuttingSectionAttribute()

SegmentKey& HPS::SegmentKey::UnsetCuttingSectionAttribute

(

)

Removes all cutting section attribute settings from this segment.

UnsetCylinderAttribute()

SegmentKey& HPS::SegmentKey::UnsetCylinderAttribute

(

)

Removes all cylinder attribute settings from this segment.

UnsetDrawingAttribute()

SegmentKey& HPS::SegmentKey::UnsetDrawingAttribute

(

)

Removes all drawing settings from this segment.

UnsetEdgeAttribute()

SegmentKey& HPS::SegmentKey::UnsetEdgeAttribute

(

)

Removes all edge attribute settings from this segment.

UnsetHiddenLineAttribute()

SegmentKey& HPS::SegmentKey::UnsetHiddenLineAttribute

(

)

Removes all hidden line settings from this segment.

UnsetLightingAttribute()

SegmentKey& HPS::SegmentKey::UnsetLightingAttribute

(

)

Removes all lighting attribute settings from this segment.

UnsetLineAttribute()

SegmentKey& HPS::SegmentKey::UnsetLineAttribute

(

)

Removes all line attribute settings from this segment.

UnsetMarkerAttribute()

SegmentKey& HPS::SegmentKey::UnsetMarkerAttribute

(

)

Removes all marker attribute settings from this segment.

UnsetMaterialMapping()

SegmentKey& HPS::SegmentKey::UnsetMaterialMapping

(

)

Removes all material mapping settings from this segment.

UnsetMaterialPalette()

SegmentKey& HPS::SegmentKey::UnsetMaterialPalette

(

)

Removes the existing material palette, if any, that is active on this segment.

UnsetModellingMatrix()

SegmentKey& HPS::SegmentKey::UnsetModellingMatrix

(

)

Removes any modelling matrix settings from this segment.

UnsetNURBSSurfaceAttribute()

SegmentKey& HPS::SegmentKey::UnsetNURBSSurfaceAttribute

(

)

Removes all NURBS surface attribute settings from this segment.

UnsetPerformance()

SegmentKey& HPS::SegmentKey::UnsetPerformance

(

)

Removes all performance settings from this segment.

UnsetPriority()

SegmentKey& HPS::SegmentKey::UnsetPriority

(

)

Removes the drawing priority setting.

Returns

A reference to this object.

UnsetSelectability()

SegmentKey& HPS::SegmentKey::UnsetSelectability

(

)

Removes all selectability settings from this segment.

UnsetSphereAttribute()

SegmentKey& HPS::SegmentKey::UnsetSphereAttribute

(

)

Removes all sphere attribute settings from this segment.

UnsetSubwindow()

SegmentKey& HPS::SegmentKey::UnsetSubwindow

(

)

Removes all subwindow attribute settings from this segment.

UnsetTextAttribute()

SegmentKey& HPS::SegmentKey::UnsetTextAttribute

(

)

Removes all text attribute settings from this segment.

UnsetTextureMatrix()

SegmentKey& HPS::SegmentKey::UnsetTextureMatrix

(

)

Removes any texture matrix settings from this segment.

UnsetTransformMask()

SegmentKey& HPS::SegmentKey::UnsetTransformMask

(

)

Removes all transform mask settings from this segment.

UnsetTransparency()

SegmentKey& HPS::SegmentKey::UnsetTransparency

(

)

Removes all transparency attribute settings from this segment.

UnsetUserData() [1/3]

SegmentKey& HPS::SegmentKey::UnsetUserData

(

intptr_t

in_index

)

Removes the user data at the given index from this key.

Parameters

in_index

The index of the user data to remove.

Returns

A reference to this key.

UnsetUserData() [2/3]

SegmentKey& HPS::SegmentKey::UnsetUserData	(	size_t	in_count,
		intptr_t const	in_indices[]
	)

Removes the user data at the given indices from this key.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns

A reference to this key.

UnsetUserData() [3/3]

SegmentKey& HPS::SegmentKey::UnsetUserData

(

HPS::IntPtrTArray const &

in_indices

)

Removes the user data at the given indices from this key.

Parameters

in_indices

The indices of the user data to remove.

Returns

A reference to this key.

UnsetVisibility()

SegmentKey& HPS::SegmentKey::UnsetVisibility

(

)

Removes all visibility settings from this segment.

UnsetVisualEffects()

SegmentKey& HPS::SegmentKey::UnsetVisualEffects

(

)

Removes all visual effects attribute settings from this segment.

Up()

SegmentKey HPS::Key::Up ( ) const

inherited

Returns

The segment containing this key.

Member Data Documentation

staticType

const HPS::Type HPS::SegmentKey::staticType = HPS::Type::SegmentKey

static

---

The documentation for this class was generated from the following file:

• hps.h
