HPS::Key Class Reference

The Key class is the common base class of all Visualize keys. More...

#include <hps.h>

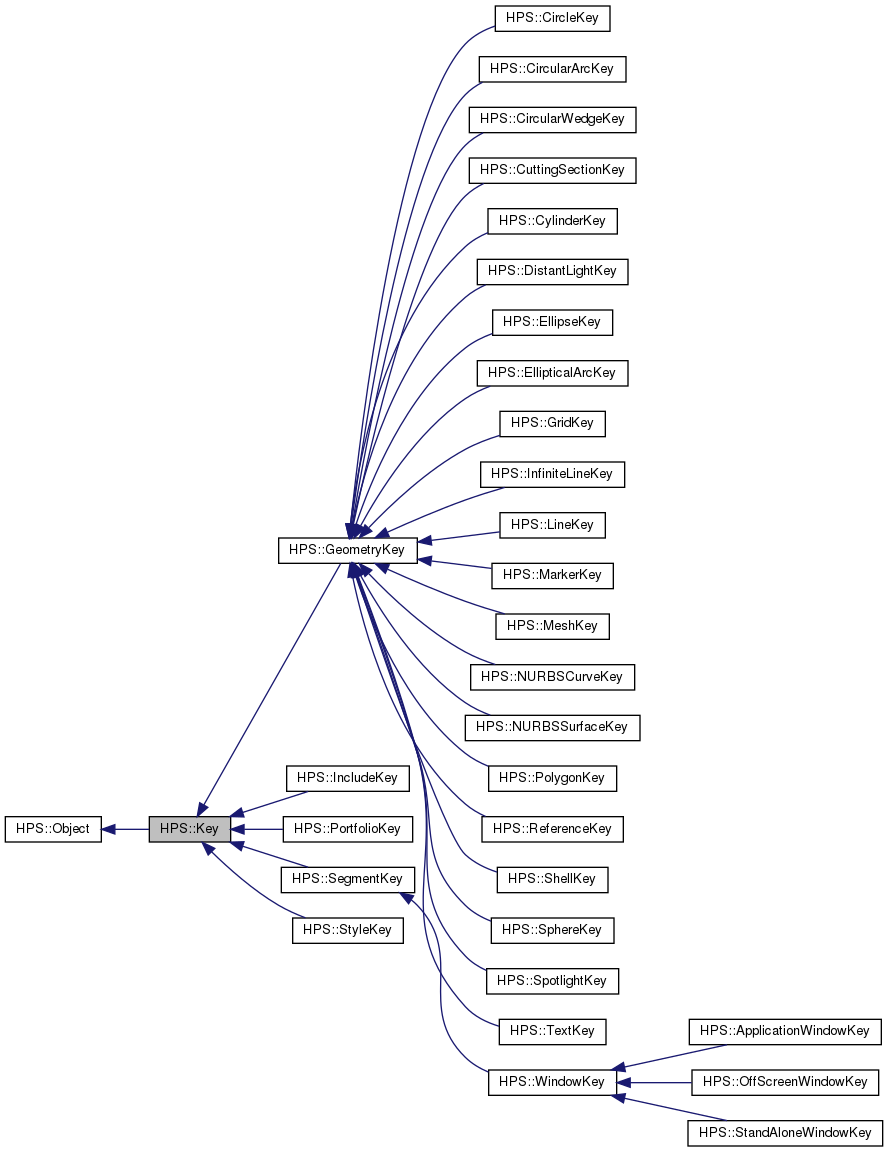

Inheritance diagram for HPS::Key:

Collaboration diagram for HPS::Key:

Public Member Functions
	Key ()
	An uninitialized key refers to no database object and Type() will return Type::None. More...
	Key (Key const &in_that)
	Shares a reference to a database object referred to by in_that. More...
	Key (Control const &in_control)
	Initializes a key associated to the Control in_control. More...
	Key (Key &&in_that)
	The move constructor creates a Key by transferring the underlying impl of the rvalue reference to this Key thereby avoiding a copy and allocation. More...
Key &	operator= (Key &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this Key thereby avoiding a copy. More...
virtual	~Key ()
	Releases a reference to this key, but it does not remove the key from the database. More...
HPS::Type	ObjectType () const
bool	HasOwner () const
SegmentKey	Up () const
SegmentKey	Owner () const
void	Delete ()
	Removes the database object referred to by this key. More...
void	MoveTo (SegmentKey const &in_new_owner)
	Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner. More...
Key	CopyTo (SegmentKey const &in_destination) const
	Copies the database object referred to by this key into a segment pointed to by in_destination. More...
Key &	operator= (Key const &in_that)
	Share the underlying smart-pointer of the Key source. More...
virtual void	Assign (Key const &in_that)
	Share the underlying smart-pointer of the Key source. More...
bool	Equals (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator!= (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator== (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
size_t	GetHash () const
	Returns a hash code for the key. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::Key

Detailed Description

The Key class is the common base class of all Visualize keys.

Keys are handles to database objects and are the primary way of interacting with them (you would never modify a database object directly). The underlying mechanism is a smart pointer (assignment operator works like regular pointers). Attempting to use a deleted or otherwise invalid key will result in an InvalidObjectException.

Constructor & Destructor Documentation

Key() [1/4]

HPS::Key::Key

(

)

An uninitialized key refers to no database object and Type() will return Type::None.

Key() [2/4]

HPS::Key::Key

(

Key const &

in_that

)

Shares a reference to a database object referred to by in_that.

Key() [3/4]

HPS::Key::Key ( Control const &  in_control )

explicit

Initializes a key associated to the Control in_control.

Key() [4/4]

HPS::Key::Key

(

Key &&

in_that

)

The move constructor creates a Key by transferring the underlying impl of the rvalue reference to this Key thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a Key to take the impl from.

~Key()

virtual HPS::Key::~Key ( )

virtual

Releases a reference to this key, but it does not remove the key from the database.

Member Function Documentation

Assign()

virtual void HPS::Key::Assign ( Key const &  in_that )

virtual

Share the underlying smart-pointer of the Key source.

Parameters

in_that

The Key source of the assignment.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

CopyTo()

Key HPS::Key::CopyTo

(

SegmentKey const &

in_destination

)

const

Copies the database object referred to by this key into a segment pointed to by in_destination.

Returns

The key of the new copy.

Delete()

void HPS::Key::Delete

(

)

Removes the database object referred to by this key.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

bool HPS::Key::Equals

(

Key const &

in_that

)

const

Determines whether the database objects pointed to by this key and in_that are the same.

Empty keys (when key.Empty() returns true) are never equal to any key, even when the key is compared against itself (they act analogously to NaN comparisons in this case.)

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetHash()

size_t HPS::Key::GetHash

(

)

const

Returns a hash code for the key.

Returns

The size_t hash code.

Here is the caller graph for this function:

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasOwner()

bool HPS::Key::HasOwner

(

)

const

Returns

Indicates whether this key has an owner or not.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

MoveTo()

void HPS::Key::MoveTo

(

SegmentKey const &

in_new_owner

)

Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner.

ObjectType()

HPS::Type HPS::Key::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Object.

Reimplemented in HPS::OffScreenWindowKey, HPS::PortfolioKey, HPS::ApplicationWindowKey, HPS::StandAloneWindowKey, HPS::ReferenceKey, HPS::StyleKey, HPS::IncludeKey, HPS::GridKey, HPS::PolygonKey, HPS::MeshKey, HPS::ShellKey, HPS::TextKey, HPS::EllipticalArcKey, HPS::EllipseKey, HPS::NURBSSurfaceKey, HPS::NURBSCurveKey, HPS::SpotlightKey, HPS::InfiniteLineKey, HPS::CuttingSectionKey, HPS::CircularWedgeKey, HPS::CircularArcKey, HPS::CircleKey, HPS::SphereKey, HPS::CylinderKey, HPS::DistantLightKey, HPS::MarkerKey, HPS::LineKey, HPS::GeometryKey, HPS::WindowKey, and HPS::SegmentKey.

Here is the call graph for this function:

operator!=()

bool HPS::Key::operator!=

(

Key const &

in_that

)

const

Determines whether the database objects pointed to by this key and in_that are the same.

operator=() [1/2]

Key& HPS::Key::operator=

(

Key &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this Key thereby avoiding a copy.

Parameters

in_that

An rvalue reference to an Key to take the impl from.

Returns

A reference to this Key.

operator=() [2/2]

Key& HPS::Key::operator=

(

Key const &

in_that

)

Share the underlying smart-pointer of the Key source.

Parameters

in_that

The Key source of the assignment.

Returns

A reference to this Key.

operator==()

bool HPS::Key::operator==

(

Key const &

in_that

)

const

Determines whether the database objects pointed to by this key and in_that are the same.

Owner()

SegmentKey HPS::Key::Owner

(

)

const

Returns

The segment containing this key.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

Up()

SegmentKey HPS::Key::Up

(

)

const

Returns

The segment containing this key.

Member Data Documentation

staticType

const HPS::Type HPS::Key::staticType = HPS::Type::Key

static

---

The documentation for this class was generated from the following file:

• hps.h
