HPS::SelectionOptionsControl Class Reference

#include <hps.h>

Inheritance diagram for HPS::SelectionOptionsControl:

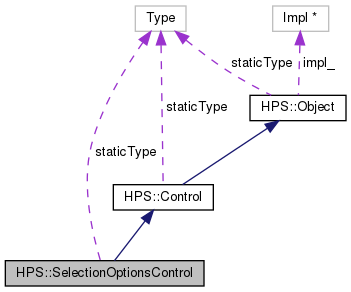

Collaboration diagram for HPS::SelectionOptionsControl:

Public Member Functions
	SelectionOptionsControl (WindowKey const &in_window)
	This constructor creates a SelectionOptionsControl object which is tied to the specified window. More...
	SelectionOptionsControl (SelectionOptionsControl const &in_that)
	The copy constructor creates a SelectionOptionsControl object that shares the underlying smart-pointer of the source SelectionOptionsControl. More...
	SelectionOptionsControl (SelectionOptionsControl &&in_that)
	The move constructor creates a SelectionOptionsControl by transferring the underlying impl of the rvalue reference to this SelectionOptionsControl thereby avoiding a copy and allocation. More...
SelectionOptionsControl &	operator= (SelectionOptionsControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this SelectionOptionsControl thereby avoiding a copy. More...
	~SelectionOptionsControl ()
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
HPS::Type	ObjectType () const
SelectionOptionsControl &	operator= (SelectionOptionsControl const &in_that)
	Share the underlying smart-pointer of the SelectionOptionsControl source. More...
SelectionOptionsControl &	SetProximity (float in_proximity)
	Sets the selection proximity in centimeters or object-relative-units (ORU), depending on the selection-routine being utilized. More...
SelectionOptionsControl &	SetLevel (Selection::Level in_level)
	Sets the level at which selection will occur. More...
SelectionOptionsControl &	SetInternalLimit (size_t in_limit)
	Sets the internal selection limit. More...
SelectionOptionsControl &	SetRelatedLimit (size_t in_limit)
	Sets the related selection limit. More...
SelectionOptionsControl &	SetSorting (bool in_sorting)
	Sets whether to sort selection results. More...
SelectionOptionsControl &	SetSorting (Selection::Sorting in_sorting)
	Sets how selection results will be sorted. More...
SelectionOptionsControl &	SetAlgorithm (Selection::Algorithm in_algorithm)
	Sets the type of selection algorithm to use. More...
SelectionOptionsControl &	SetGranularity (Selection::Granularity in_granularity)
	Sets the selection granularity to use. More...
SelectionOptionsControl &	SetExtentCullingRespected (bool in_state)
	Sets whether to respect the extent culling option during selection. More...
SelectionOptionsControl &	SetDeferralExtentCullingRespected (bool in_state)
	Sets whether to respect the deferral extent culling option during selection. More...
SelectionOptionsControl &	SetFrustumCullingRespected (bool in_state)
	Sets whether to respect the frustum culling option during selection. More...
SelectionOptionsControl &	SetVectorCullingRespected (bool in_state)
	Sets whether to respect the vector culling option during selection. More...
SelectionOptionsControl &	UnsetProximity ()
	Removes the Proximity setting from this control. More...
SelectionOptionsControl &	UnsetLevel ()
	Removes the Selection Level setting from this control. More...
SelectionOptionsControl &	UnsetInternalLimit ()
	Removes the Internal Limit setting from this control. More...
SelectionOptionsControl &	UnsetRelatedLimit ()
	Removes the Related Limit setting from this control. More...
SelectionOptionsControl &	UnsetSorting ()
	Removes the Sorting setting from this control. More...
SelectionOptionsControl &	UnsetAlgorithm ()
	Removes the Algorithm setting from this control. More...
SelectionOptionsControl &	UnsetGranularity ()
	Removes the Granularity setting from this control. More...
SelectionOptionsControl &	UnsetExtentCullingRespected ()
	Removes the Extent Culling setting from this control. More...
SelectionOptionsControl &	UnsetDeferralExtentCullingRespected ()
	Removes the Deferral Culling setting from this control. More...
SelectionOptionsControl &	UnsetFrustumCullingRespected ()
	Removes the Frustum Culling setting from this control. More...
SelectionOptionsControl &	UnsetVectorCullingRespected ()
	Removes the Vector Culling setting from this control. More...
SelectionOptionsControl &	UnsetEverything ()
	Removes all settings from this control. More...
bool	ShowProximity (float &out_proximity) const
	Shows the selection proximity for the associated window. More...
bool	ShowLevel (Selection::Level &out_level) const
	Shows the selection level for the associated window. More...
bool	ShowInternalLimit (size_t &out_limit) const
	Shows the internal selection limit for the associated window. More...
bool	ShowRelatedLimit (size_t &out_limit) const
	Shows the related selection limit for the associated window. More...
bool	ShowSorting (Selection::Sorting &out_sorting) const
	Shows the type of selection sorting for the associated window. More...
bool	ShowAlgorithm (Selection::Algorithm &out_algorithm) const
	Shows the selection algorithm for the associated window. More...
bool	ShowGranularity (Selection::Granularity &out_granularity) const
	Shows the selection granularity for the associated window. More...
bool	ShowExtentCullingRespected (bool &out_state) const
	Shows the extent culling respected state for the associated window. More...
bool	ShowDeferralExtentCullingRespected (bool &out_state) const
	Shows the deferral extent culling respected state for the associated window. More...
bool	ShowFrustumCullingRespected (bool &out_state) const
	Shows the frustum culling respected state for the associated window. More...
bool	ShowVectorCullingRespected (bool &out_state) const
	Shows the vector culling respected state for the associated window. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::SelectionOptionsControl

Private Member Functions
	SelectionOptionsControl ()
	Private default constructor to prevent instantiation without a window. More...

Detailed Description

The HPS::SelectionOptionsControl class is a smart pointer that is tied to a database object. It is used to set selection related options on a HPS::WindowKey. Options include the selection algorithm, granularity, internal limit, related limit, level, proximity, and sorting. Default values for the various fields of HPS::SelectionOptionsControl can be found here.

Constructor & Destructor Documentation

SelectionOptionsControl() [1/4]

HPS::SelectionOptionsControl::SelectionOptionsControl ( WindowKey const &  in_window )

explicit

This constructor creates a SelectionOptionsControl object which is tied to the specified window.

Parameters

in_window

The window which this SelectionOptionsControl should operate on.

SelectionOptionsControl() [2/4]

HPS::SelectionOptionsControl::SelectionOptionsControl

(

SelectionOptionsControl const &

in_that

)

The copy constructor creates a SelectionOptionsControl object that shares the underlying smart-pointer of the source SelectionOptionsControl.

Parameters

in_that

The source SelectionOptionsControl to copy.

SelectionOptionsControl() [3/4]

HPS::SelectionOptionsControl::SelectionOptionsControl

(

SelectionOptionsControl &&

in_that

)

The move constructor creates a SelectionOptionsControl by transferring the underlying impl of the rvalue reference to this SelectionOptionsControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a SelectionOptionsControl to take the impl from.

~SelectionOptionsControl()

HPS::SelectionOptionsControl::~SelectionOptionsControl

(

)

SelectionOptionsControl() [4/4]

HPS::SelectionOptionsControl::SelectionOptionsControl ( )

private

Private default constructor to prevent instantiation without a window.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::SelectionOptionsControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

operator=() [1/2]

SelectionOptionsControl& HPS::SelectionOptionsControl::operator=

(

SelectionOptionsControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this SelectionOptionsControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a SelectionOptionsControl to take the impl from.

Returns

A reference to this SelectionOptionsControl.

operator=() [2/2]

SelectionOptionsControl& HPS::SelectionOptionsControl::operator=

(

SelectionOptionsControl const &

in_that

)

Share the underlying smart-pointer of the SelectionOptionsControl source.

Parameters

in_that

The SelectionOptionsControl source of the assignment.

Returns

A reference to this SelectionOptionsControl.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetAlgorithm()

SelectionOptionsControl& HPS::SelectionOptionsControl::SetAlgorithm

(

Selection::Algorithm

in_algorithm

)

Sets the type of selection algorithm to use.

This setting has no effect on object space selections (i.e., select by shell, volume and ray).

Parameters

in_algorithm

The type of selection algorithm to use.

Returns

A reference to this SelectionOptionsControl.

See also

Default value

SetDeferralExtentCullingRespected()

SelectionOptionsControl& HPS::SelectionOptionsControl::SetDeferralExtentCullingRespected

(

bool

in_state

)

Sets whether to respect the deferral extent culling option during selection.

If this value is set to false, the deferral extent culling option (see HPS::CullingControl) will be ignored.

Parameters

in_state

Whether to respect the deferral extent culling option during selection.

Returns

A reference to this SelectionOptionsControl.

See also

Default value

SetExtentCullingRespected()

SelectionOptionsControl& HPS::SelectionOptionsControl::SetExtentCullingRespected

(

bool

in_state

)

Sets whether to respect the extent culling option during selection.

If this value is set to false, the extent culling option (see HPS::CullingControl) will be ignored.

Parameters

in_state

Whether to respect the extent culling option during selection.

Returns

A reference to this SelectionOptionsControl.

See also

Default value

SetFrustumCullingRespected()

SelectionOptionsControl& HPS::SelectionOptionsControl::SetFrustumCullingRespected

(

bool

in_state

)

Sets whether to respect the frustum culling option during selection.

If this value is set to false, the frustum culling option (see HPS::CullingControl) will be ignored.

Parameters

in_state

Whether to respect the frustum culling option during selection.

Returns

A reference to this SelectionOptionsControl.

See also

Default value

SetGranularity()

SelectionOptionsControl& HPS::SelectionOptionsControl::SetGranularity

(

Selection::Granularity

in_granularity

)

Sets the selection granularity to use.

Parameters

in_granularity

The selection granularity to use.

Returns

A reference to this SelectionOptionsControl.

See also

Default value

SetInternalLimit()

SelectionOptionsControl& HPS::SelectionOptionsControl::SetInternalLimit

(

size_t

in_limit

)

Sets the internal selection limit.

The internal selection limit is the maximum number of subentities for shells and meshes that will be returned if performing subentity selection.

Parameters

in_limit

The internal selection limit.

Returns

A reference to this SelectionOptionsControl.

See also

Default value

SetLevel()

SelectionOptionsControl& HPS::SelectionOptionsControl::SetLevel

(

Selection::Level

in_level

)

Sets the level at which selection will occur.

Parameters

in_level

The level at which selection will occur.

Returns

A reference to this SelectionOptionsControl.

See also

Default value

SetProximity()

SelectionOptionsControl& HPS::SelectionOptionsControl::SetProximity

(

float

in_proximity

)

Sets the selection proximity in centimeters or object-relative-units (ORU), depending on the selection-routine being utilized.

The selection proximity augments point-based or shell-based selections by also factoring in the area surrounding the selection-point or selection-shell.

For HPS::SelectionControl::SelectByPoint, this specifies the radius in centimeters around the selection within which objects will be returned as selected. The value must be positive.

For HPS::SelectionControl::SelectByShell, this specifies a distance in object-relative-units that determines whether a selection is performed. A positive proximity value will cause the selection algorithm to perform a selection when the distance between the two bodies is <= proximity, which means the bodies do not have to be touching in order for Visualize to perform a selection. If the proximity == 0, the bodies must be coincident or penetrating for a selection to occur. If proximity < 0, the shells must penetrate each other by at least that amount before a selection is performed.

Selection proximity is not relevant for other selection types.

When using HPS::SelectionControl::SelectByShell, false positives or negatives for selection may occur if the proximity and/or selection shells meet any of the following criteria:

• The absolute value of a negative proximity is much larger than the actual intersection of the shells. An example would be a shell that represents a thin plate or a thinly-walled tube, and the specified proximity is larger than the thickness of the plate or tube.
• Selection shells ("probes") have vertices with complex intersections
• Selection shells ("probes") have concavities, especially multiple adjacent concavities.

Parameters

in_proximity

The radius around the selection within which objects will be returned as selected.

Returns

A reference to this SelectionOptionsKit.

See also

Default value

Collision detection proximity

SetRelatedLimit()

SelectionOptionsControl& HPS::SelectionOptionsControl::SetRelatedLimit

(

size_t

in_limit

)

Sets the related selection limit.

The related selection limit is the maximum number of items that will be returned as selected when performing a selection. A related selection limit of 0 would result in only the first item getting returned. If the value is greater than 0, this indicates the number of additional items beyond the first to return. The order of these additional items will depend on whether sorting is enabled (see SetSorting()).

Parameters

in_limit

Limit on the number of items that will be returned as selected when performing a selection.

Returns

A reference to this SelectionOptionsControl.

See also

Default value

SetSorting(Selection::Sorting)

SetSorting() [1/2]

SelectionOptionsControl& HPS::SelectionOptionsControl::SetSorting

(

bool

in_sorting

)

Sets whether to sort selection results.

This is only relevant if the related selection limit is greater than 0 (see SetRelatedLimit). Sorting works on an entity level. Subentity components like edges, vertices and faces are not sorted.

Parameters

in_sorting

Whether to sort selection results. A value of true is equivalent to passing Selection::Sorting::Default to SetSorting(Selection::Sorting), and a value of false is equivalent to passing Selection::Sorting::Off to SetSorting(Selection::Sorting).

Returns

A reference to this SelectionOptionsControl.

See also

Default value

Deprecated:

This function exists for compatibility and SetSorting(Selection::Sorting) should be preferred in general usage.

SetSorting() [2/2]

SelectionOptionsControl& HPS::SelectionOptionsControl::SetSorting

(

Selection::Sorting

in_sorting

)

Sets how selection results will be sorted.

This is only relevant if the related selection limit is greater than 0 (see SetRelatedLimit()). Sorting works on an entity level. Subentity components like edges, vertices, and faces are not sorted.

This option has no effect on SelectByShell.

For SelectByPoint, all values of the Selection::Sorting enum apply. Selection::Sorting::Default is an alias for Selection::Sorting::Proximity.

For all other selection types, Selection::Sorting::Proximity does not apply. Selection::Sorting::Default is an alias for Selection::Sorting::ZSorting.

Parameters

in_sorting

The type of selection sorting to use.

Returns

A reference to this SelectionOptionsControl.

See also

Default value

Related limit in Programming Guide

SetRelatedLimit()

SetVectorCullingRespected()

SelectionOptionsControl& HPS::SelectionOptionsControl::SetVectorCullingRespected

(

bool

in_state

)

Sets whether to respect the vector culling option during selection.

If this value is set to false, the vector culling option (see HPS::CullingControl) will be ignored.

Parameters

in_state

Whether to respect the vector culling option during selection.

Returns

A reference to this SelectionOptionsControl.

See also

Default value

ShowAlgorithm()

bool HPS::SelectionOptionsControl::ShowAlgorithm

(

Selection::Algorithm &

out_algorithm

)

const

Shows the selection algorithm for the associated window.

Parameters

out_algorithm

The selection algorithm for the associated window.

Returns

true if the selection algorithm is valid, false otherwise.

ShowDeferralExtentCullingRespected()

bool HPS::SelectionOptionsControl::ShowDeferralExtentCullingRespected

(

bool &

out_state

)

const

Shows the deferral extent culling respected state for the associated window.

Parameters

out_state

The deferral extent culling respected state.

Returns

true if the deferral extent culling respected state is valid, false otherwise.

ShowExtentCullingRespected()

bool HPS::SelectionOptionsControl::ShowExtentCullingRespected

(

bool &

out_state

)

const

Shows the extent culling respected state for the associated window.

Parameters

out_state

The extent culling respected state.

Returns

true if the extent culling respected state is valid, false otherwise.

ShowFrustumCullingRespected()

bool HPS::SelectionOptionsControl::ShowFrustumCullingRespected

(

bool &

out_state

)

const

Shows the frustum culling respected state for the associated window.

Parameters

out_state

The frustum culling respected state.

Returns

true if the frustum culling respected state is valid, false otherwise.

ShowGranularity()

bool HPS::SelectionOptionsControl::ShowGranularity

(

Selection::Granularity &

out_granularity

)

const

Shows the selection granularity for the associated window.

Parameters

out_granularity

The selection granularity for the associated window.

Returns

true if the selection granularity is valid, false otherwise.

ShowInternalLimit()

bool HPS::SelectionOptionsControl::ShowInternalLimit

(

size_t &

out_limit

)

const

Shows the internal selection limit for the associated window.

Parameters

out_limit

The internal selection limit for the associated window.

Returns

true if the internal selection limit is valid, false otherwise.

ShowLevel()

bool HPS::SelectionOptionsControl::ShowLevel

(

Selection::Level &

out_level

)

const

Shows the selection level for the associated window.

Parameters

out_level

The selection level for the associated window.

Returns

true if the level is valid, false otherwise.

ShowProximity()

bool HPS::SelectionOptionsControl::ShowProximity

(

float &

out_proximity

)

const

Shows the selection proximity for the associated window.

Parameters

out_proximity

The selection proximity for the associated window.

Returns

true if the proximity is valid, false otherwise.

ShowRelatedLimit()

bool HPS::SelectionOptionsControl::ShowRelatedLimit

(

size_t &

out_limit

)

const

Shows the related selection limit for the associated window.

Parameters

out_limit

The related selection limit for the associated window.

Returns

true if the related selection limit is valid, false otherwise.

ShowSorting()

bool HPS::SelectionOptionsControl::ShowSorting

(

Selection::Sorting &

out_sorting

)

const

Shows the type of selection sorting for the associated window.

Parameters

out_sorting

The type of selection sorting to use for the associated window.

Returns

true if the selection sorting type is valid, false otherwise.

ShowVectorCullingRespected()

bool HPS::SelectionOptionsControl::ShowVectorCullingRespected

(

bool &

out_state

)

const

Shows the vector culling respected state for the associated window.

Parameters

out_state

The vector culling respected state.

Returns

true if the vector culling respected state is valid, false otherwise.

Type()

virtual HPS::Type HPS::SelectionOptionsControl::Type ( ) const

inlinevirtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Control.

UnsetAlgorithm()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetAlgorithm

(

)

Removes the Algorithm setting from this control.

If the control is attached to a WindowKey this function restores the default setting as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

UnsetDeferralExtentCullingRespected()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetDeferralExtentCullingRespected

(

)

Removes the Deferral Culling setting from this control.

If the control is attached to a WindowKey this function restores the default setting as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

UnsetEverything()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetEverything

(

)

Removes all settings from this control.

If the control is attached to a WindowKey this function restores the default settings of this control as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

UnsetExtentCullingRespected()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetExtentCullingRespected

(

)

Removes the Extent Culling setting from this control.

If the control is attached to a WindowKey this function restores the default setting as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

UnsetFrustumCullingRespected()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetFrustumCullingRespected

(

)

Removes the Frustum Culling setting from this control.

If the control is attached to a WindowKey this function restores the default setting as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

UnsetGranularity()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetGranularity

(

)

Removes the Granularity setting from this control.

If the control is attached to a WindowKey this function restores the default setting as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

UnsetInternalLimit()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetInternalLimit

(

)

Removes the Internal Limit setting from this control.

If the control is attached to a WindowKey this function restores the default setting as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

UnsetLevel()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetLevel

(

)

Removes the Selection Level setting from this control.

If the control is attached to a WindowKey this function restores the default setting as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

UnsetProximity()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetProximity

(

)

Removes the Proximity setting from this control.

If the control is attached to a WindowKey this function restores the default setting as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

UnsetRelatedLimit()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetRelatedLimit

(

)

Removes the Related Limit setting from this control.

If the control is attached to a WindowKey this function restores the default setting as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

UnsetSorting()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetSorting

(

)

Removes the Sorting setting from this control.

If the control is attached to a WindowKey this function restores the default setting as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

UnsetVectorCullingRespected()

SelectionOptionsControl& HPS::SelectionOptionsControl::UnsetVectorCullingRespected

(

)

Removes the Vector Culling setting from this control.

If the control is attached to a WindowKey this function restores the default setting as specified by SelectionOptionsKit::GetDefault().

Returns

A reference to this object.

Member Data Documentation

staticType

const HPS::Type HPS::SelectionOptionsControl::staticType = HPS::Type::SelectionOptionsControl

static

---

The documentation for this class was generated from the following file:

• hps.h
