The CircularArcKit class is a user space object. More...

#include <hps.h>

Inheritance diagram for HPS::CircularArcKit:

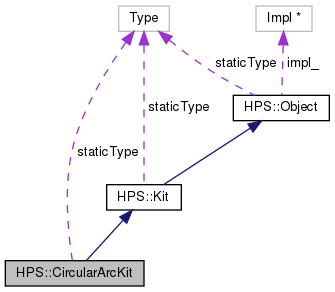

Collaboration diagram for HPS::CircularArcKit:

Public Member Functions
	CircularArcKit ()
	The default constructor creates an empty CircularArcKit object. More...

	CircularArcKit (CircularArcKit const &in_kit)
	The copy constructor creates a new CircularArcKit object that contains the same settings as the source CircularArcKit. More...

	CircularArcKit (CircularArcKit &&in_that)
	The move constructor creates a CircularArcKit by transferring the underlying impl of the rvalue reference to this CircularArcKit thereby avoiding a copy and allocation. More...

CircularArcKit &	operator= (CircularArcKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this CircularArcKit thereby avoiding a copy. More...

virtual	~CircularArcKit ()

HPS::Type	ObjectType () const

void	Consume (CircularArcKit &in_kit)
	Copies the source CircularArcKit into this CircularArcKit and resets the source kit. More...

void	Set (CircularArcKit const &in_kit)
	Copies the source CircularArcKit into this CircularArcKit. More...

void	Show (CircularArcKit &out_kit) const
	Copies this CircularArcKit into the given CircularArcKit. More...

CircularArcKit &	operator= (CircularArcKit const &in_kit)
	Copies the source CircularArcKit into this CircularArcKit. More...

bool	Empty () const
	Indicates whether this CircularArcKit has any values set on it. More...

bool	Equals (CircularArcKit const &in_kit) const
	Check if the source CircularArcKit is equivalent to this CircularArcKit. More...

bool	operator== (CircularArcKit const &in_kit) const
	Check if the source CircularArcKit is equivalent to this CircularArcKit. More...

bool	operator!= (CircularArcKit const &in_kit) const
	Check if the source CircularArcKit is not equivalent to this CircularArcKit. More...

CircularArcKit &	SetPriority (int in_priority)
	Assigns a specific drawing priority value to the CircularArcKit. More...

CircularArcKit &	UnsetPriority ()
	Removes a drawing priority setting. More...

bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...

CircularArcKit &	SetStart (Point const &in_start)
	Sets the start point for this CircularArcKit. More...

CircularArcKit &	SetMiddle (Point const &in_middle)
	Sets the middle point for this CircularArcKit. More...

CircularArcKit &	SetEnd (Point const &in_end)
	Sets the end point for this CircularArcKit. More...

CircularArcKit &	UnsetStart ()
	Removes the start point for this CircularArcKit. More...

CircularArcKit &	UnsetMiddle ()
	Removes the middle point for this CircularArcKit. More...

CircularArcKit &	UnsetEnd ()
	Removes the end point for this CircularArcKit. More...

CircularArcKit &	UnsetEverything ()
	Removes all settings from the CircularArcKit. More...

bool	ShowStart (Point &out_start) const
	Shows the start point for this CircularArcKit. More...

bool	ShowMiddle (Point &out_middle) const
	Shows the middle point for this CircularArcKit. More...

bool	ShowEnd (Point &out_end) const
	Shows the end point for this CircularArcKit. More...

CircularArcKit &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this kit. More...

CircularArcKit &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this kit. More...

CircularArcKit &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this kit. More...

CircularArcKit &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this kit. More...

CircularArcKit &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this kit. More...

CircularArcKit &	UnsetUserData (IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this kit. More...

CircularArcKit &	UnsetAllUserData ()
	Removes all user data from this kit. More...

size_t	ShowUserDataCount () const
	Get the number of user data indices set on this kit. More...

bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this kit. More...

bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this kit. More...

bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this kit. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::CircularArcKit

Detailed Description

The CircularArcKit class is a user space object.

It is a kit analog to a CircularArcKey.

Constructor & Destructor Documentation

◆ CircularArcKit() [1/3]

HPS::CircularArcKit::CircularArcKit ( )

The default constructor creates an empty CircularArcKit object.

◆ CircularArcKit() [2/3]

HPS::CircularArcKit::CircularArcKit ( CircularArcKit const & in_kit )

The copy constructor creates a new CircularArcKit object that contains the same settings as the source CircularArcKit.

Parameters

in_kit The source CircularArcKit to copy.

◆ CircularArcKit() [3/3]

HPS::CircularArcKit::CircularArcKit ( CircularArcKit && in_that )

The move constructor creates a CircularArcKit by transferring the underlying impl of the rvalue reference to this CircularArcKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a CircularArcKit to take the impl from.

◆ ~CircularArcKit()

virtual HPS::CircularArcKit::~CircularArcKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Consume()

void HPS::CircularArcKit::Consume ( CircularArcKit & in_kit )

Copies the source CircularArcKit into this CircularArcKit and resets the source kit.

Parameters

in_kit The source LineKit to consume.

◆ Empty()

bool HPS::CircularArcKit::Empty ( ) const

virtual

Indicates whether this CircularArcKit has any values set on it.

Returns: true if no values are set on this CircularArcKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::CircularArcKit::Equals ( CircularArcKit const & in_kit ) const

Check if the source CircularArcKit is equivalent to this CircularArcKit.

Parameters

in_kit The source CircularArcKit to compare to this CircularArcKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::CircularArcKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

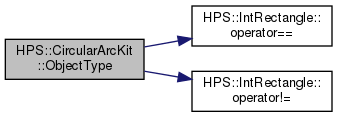

Here is the call graph for this function:

◆ operator!=()

bool HPS::CircularArcKit::operator!= ( CircularArcKit const & in_kit ) const

Check if the source CircularArcKit is not equivalent to this CircularArcKit.

Parameters

in_kit The source CircularArcKit to compare to this CircularArcKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

CircularArcKit& HPS::CircularArcKit::operator= ( CircularArcKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this CircularArcKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a CircularArcKit to take the impl from.

Returns: A reference to this CircularArcKit.

◆ operator=() [2/2]

CircularArcKit& HPS::CircularArcKit::operator= ( CircularArcKit const & in_kit )

Copies the source CircularArcKit into this CircularArcKit.

Parameters

in_kit The source CircularArcKit to copy.

Returns: A reference to this CircularArcKit.

◆ operator==()

bool HPS::CircularArcKit::operator== ( CircularArcKit const & in_kit ) const

Check if the source CircularArcKit is equivalent to this CircularArcKit.

Parameters

in_kit The source CircularArcKit to compare to this CircularArcKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::CircularArcKit::Set ( CircularArcKit const & in_kit )

Copies the source CircularArcKit into this CircularArcKit.

Parameters

in_kit The source CircularArcKit to copy.

◆ SetEnd()

CircularArcKit& HPS::CircularArcKit::SetEnd ( Point const & in_end )

Sets the end point for this CircularArcKit.

This is the point on the circumference of the circle at which the circular arc ends.

Parameters

in_end The end point for this CircularArcKit.

Returns: A reference to this CircularArcKit.

◆ SetMiddle()

CircularArcKit& HPS::CircularArcKit::SetMiddle ( Point const & in_middle )

Sets the middle point for this CircularArcKit.

This is a point on the circumference of the circle between the start and end points for the circular arc.

Parameters

in_middle The middle point for this CircularArcKit.

Returns: A reference to this CircularArcKit.

◆ SetPriority()

CircularArcKit& HPS::CircularArcKit::SetPriority ( int in_priority )

Assigns a specific drawing priority value to the CircularArcKit.

It affects the order in which the contents of this segment are drawn if and only if the rendering algorithm is set to Priority.

Parameters

in_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: A reference to this object.

See also: SubwindowKit::SetPriority(); SubwindowKit::SetRenderingAlgorithm()

◆ SetStart()

CircularArcKit& HPS::CircularArcKit::SetStart ( Point const & in_start )

Sets the start point for this CircularArcKit.

This is the point on the circumference of the circle at which the circular arc starts.

Parameters

in_start The start point for this CircularArcKit.

Returns: A reference to this CircularArcKit.

◆ SetUserData() [1/3]

CircularArcKit& HPS::CircularArcKit::SetUserData	(	intptr_t	in_index,
		size_t	in_bytes,
		byte const	in_data[]
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [2/3]

CircularArcKit& HPS::CircularArcKit::SetUserData	(	intptr_t	in_index,
		ByteArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [3/3]

CircularArcKit& HPS::CircularArcKit::SetUserData	(	IntPtrTArray const &	in_indices,
		ByteArrayArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns: A reference to this kit.

◆ Show()

void HPS::CircularArcKit::Show ( CircularArcKit & out_kit ) const

Copies this CircularArcKit into the given CircularArcKit.

Parameters

out_kit The CircularArcKit to populate with the contents of this CircularArcKit.

◆ ShowEnd()

bool HPS::CircularArcKit::ShowEnd ( Point & out_end ) const

Shows the end point for this CircularArcKit.

Parameters

out_end The end point for this CircularArcKit.

Returns: true if an end point was set, false otherwise.

◆ ShowMiddle()

bool HPS::CircularArcKit::ShowMiddle ( Point & out_middle ) const

Shows the middle point for this CircularArcKit.

Parameters

out_middle The middle point for this CircularArcKit.

Returns: true if a middle point was set, false otherwise.

◆ ShowPriority()

bool HPS::CircularArcKit::ShowPriority ( int & out_priority ) const

Shows the drawing priority.

Parameters

out_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: true if the setting is valid, false otherwise.

◆ ShowStart()

bool HPS::CircularArcKit::ShowStart ( Point & out_start ) const

Shows the start point for this CircularArcKit.

Parameters

out_start The start point for this CircularArcKit.

Returns: true if a start point was set, false otherwise.

◆ ShowUserData() [1/2]

bool HPS::CircularArcKit::ShowUserData	(	intptr_t	in_index,
		ByteArray &	out_data
	)		const

Shows the user data at a given index for this kit.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns: true if there is user data at the given index, false otherwise.

◆ ShowUserData() [2/2]

bool HPS::CircularArcKit::ShowUserData	(	IntPtrTArray &	out_indices,
		ByteArrayArray &	out_data
	)		const

Shows all user data for this kit.

Parameters

out_indices	An array of all user data indices set on this kit.
out_data	An array of all user data set on this kit.

Returns: true if there is user data on this kit, false otherwise.

◆ ShowUserDataCount()

size_t HPS::CircularArcKit::ShowUserDataCount ( ) const

Get the number of user data indices set on this kit.

◆ ShowUserDataIndices()

bool HPS::CircularArcKit::ShowUserDataIndices ( IntPtrTArray & out_indices ) const

Shows the indices of all user data set on this kit.

Parameters

out_indices The user data indices set on this kit.

Returns: The number of user data indices set on this kit.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetAllUserData()

CircularArcKit& HPS::CircularArcKit::UnsetAllUserData ( )

Removes all user data from this kit.

Returns: A reference to this kit.

◆ UnsetEnd()

CircularArcKit& HPS::CircularArcKit::UnsetEnd ( )

Removes the end point for this CircularArcKit.

Returns: A reference to this CircularArcKit.

◆ UnsetEverything()

CircularArcKit& HPS::CircularArcKit::UnsetEverything ( )

Removes all settings from the CircularArcKit.

Returns: A reference to this CircularArcKit.

◆ UnsetMiddle()

CircularArcKit& HPS::CircularArcKit::UnsetMiddle ( )

Removes the middle point for this CircularArcKit.

Returns: A reference to this CircularArcKit.

◆ UnsetPriority()

CircularArcKit& HPS::CircularArcKit::UnsetPriority ( )

Removes a drawing priority setting.

Returns: A reference to this object.

◆ UnsetStart()

CircularArcKit& HPS::CircularArcKit::UnsetStart ( )

Removes the start point for this CircularArcKit.

Returns: A reference to this CircularArcKit.

◆ UnsetUserData() [1/3]

CircularArcKit& HPS::CircularArcKit::UnsetUserData ( intptr_t in_index )

Removes the user data at the given index from this kit.

Parameters

in_index The index of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [2/3]

CircularArcKit& HPS::CircularArcKit::UnsetUserData	(	size_t	in_count,
		intptr_t const	in_indices[]
	)

Removes the user data at the given indices from this kit.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [3/3]

CircularArcKit& HPS::CircularArcKit::UnsetUserData ( IntPtrTArray const & in_indices )

Removes the user data at the given indices from this kit.

Parameters

in_indices The indices of the user data to remove.

Returns: A reference to this kit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::CircularArcKit::staticType = HPS::Type::CircularArcKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ CircularArcKit() [1/3]

◆ CircularArcKit() [2/3]

◆ CircularArcKit() [3/3]

◆ ~CircularArcKit()

Member Function Documentation

◆ ClassID()

◆ Consume()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetEnd()

◆ SetMiddle()

◆ SetPriority()

◆ SetStart()

◆ SetUserData() [1/3]

◆ SetUserData() [2/3]

◆ SetUserData() [3/3]

◆ Show()

◆ ShowEnd()

◆ ShowMiddle()

◆ ShowPriority()

◆ ShowStart()

◆ ShowUserData() [1/2]

◆ ShowUserData() [2/2]

◆ ShowUserDataCount()

◆ ShowUserDataIndices()

◆ Type()

◆ UnsetAllUserData()

◆ UnsetEnd()

◆ UnsetEverything()

◆ UnsetMiddle()

◆ UnsetPriority()

◆ UnsetStart()

◆ UnsetUserData() [1/3]

◆ UnsetUserData() [2/3]

◆ UnsetUserData() [3/3]

Member Data Documentation

◆ staticType
