HPS::CircularArcKey Class Reference

The CircularArcKey class is a smart pointer to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::CircularArcKey:

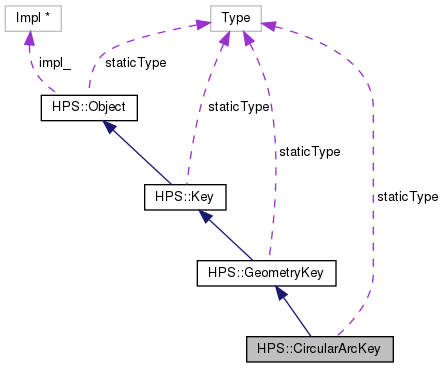

Collaboration diagram for HPS::CircularArcKey:

Public Member Functions
	CircularArcKey ()
	The default constructor creates an uninitialized CircularArcKey object. More...
	CircularArcKey (Key const &in_that)
	This constructor creates a CircularArcKey object that shares the underlying smart-pointer of the source Key. More...
	CircularArcKey (CircularArcKey const &in_that)
	The copy constructor creates a CircularArcKey object that shares the underlying smart-pointer of the source CircularArcKey. More...
CircularArcKey &	operator= (CircularArcKey const &in_that)
	Associate this CircularArcKey with the same underlying impl as the source CircularArcKey. More...
	CircularArcKey (CircularArcKey &&in_that)
	The move constructor creates a CircularArcKey by transferring the underlying impl of the rvalue reference to this CircularArcKey thereby avoiding a copy and allocation. More...
CircularArcKey &	operator= (CircularArcKey &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this CircularArcKey thereby avoiding a copy. More...
	~CircularArcKey ()
HPS::Type	ObjectType () const
void	Consume (CircularArcKit &in_kit)
	Completely replaces all settings on this CircularArcKey with those set on the specified kit and resets the kit. More...
void	Set (CircularArcKit const &in_kit)
	Replace those settings on this CircularArcKey with those set on the specified kit. More...
void	Show (CircularArcKit &out_kit) const
	Copy the contents of this CircularArcKey into the specified kit. More...
CircularArcKey &	SetStart (Point const &in_start)
	Sets the start point for this CircularArcKey. More...
CircularArcKey &	SetMiddle (Point const &in_middle)
	Sets the middle point for this CircularArcKey. More...
CircularArcKey &	SetEnd (Point const &in_end)
	Sets the end point for this CircularArcKey. More...
bool	ShowStart (Point &out_start) const
	Shows the start point for this CircularArcKey. More...
bool	ShowMiddle (Point &out_middle) const
	Shows the middle point for this CircularArcKey. More...
bool	ShowEnd (Point &out_end) const
	Shows the end point for this CircularArcKey. More...
size_t	ShowReferrers (SegmentKeyArray &out_segments) const
	Shows the all the segments which contain references to this key. More...
size_t	ShowReferrers (ReferenceKeyArray &out_references) const
	Shows the all the references to this key. More...
GeometryKey &	SetPriority (int in_priority)
	Assigns a drawing priority value to the geometry. More...
GeometryKey &	UnsetPriority ()
	Removes the drawing priority setting. More...
bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...
GeometryKey &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this key. More...
GeometryKey &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this key. More...
GeometryKey &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this key. More...
GeometryKey &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this key. More...
GeometryKey &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this key. More...
GeometryKey &	UnsetUserData (IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this key. More...
GeometryKey &	UnsetAllUserData ()
	Removes all user data from this key. More...
size_t	ShowUserDataCount () const
	Get the number of user data indices set on this key. More...
bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this key. More...
bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this key. More...
bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this key. More...
bool	ShowBounding (BoundingKit &out_kit) const
	Shows the bounding of this geometry. More...
bool	HasOwner () const
SegmentKey	Up () const
SegmentKey	Owner () const
void	Delete ()
	Removes the database object referred to by this key. More...
void	MoveTo (SegmentKey const &in_new_owner)
	Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner. More...
Key	CopyTo (SegmentKey const &in_destination) const
	Copies the database object referred to by this key into a segment pointed to by in_destination. More...
virtual void	Assign (Key const &in_that)
	Share the underlying smart-pointer of the Key source. More...
bool	Equals (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator!= (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator== (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
size_t	GetHash () const
	Returns a hash code for the key. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::CircularArcKey

Detailed Description

The CircularArcKey class is a smart pointer to a database object.

It is handle to a circular arc inserted via SegmentKey::InsertCircularArc. A circular arc is the line geometry, as such its visualization will be determined by attributes affecting lines.

Constructor & Destructor Documentation

CircularArcKey() [1/4]

HPS::CircularArcKey::CircularArcKey

(

)

The default constructor creates an uninitialized CircularArcKey object.

The Type() function will return Type::None.

CircularArcKey() [2/4]

HPS::CircularArcKey::CircularArcKey ( Key const &  in_that )

explicit

This constructor creates a CircularArcKey object that shares the underlying smart-pointer of the source Key.

The copy will only be successful if the source key is really an upcast of a CircularArc key. Otherwise the copy will fail and the resulting CircularArcKey will be invalid.

Parameters

in_key

The source Key to copy.

CircularArcKey() [3/4]

HPS::CircularArcKey::CircularArcKey

(

CircularArcKey const &

in_that

)

The copy constructor creates a CircularArcKey object that shares the underlying smart-pointer of the source CircularArcKey.

Parameters

in_that

The source CircularArcKey to copy.

CircularArcKey() [4/4]

HPS::CircularArcKey::CircularArcKey

(

CircularArcKey &&

in_that

)

The move constructor creates a CircularArcKey by transferring the underlying impl of the rvalue reference to this CircularArcKey thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a CircularArcKey to take the impl from.

~CircularArcKey()

HPS::CircularArcKey::~CircularArcKey

(

)

Member Function Documentation

Assign()

virtual void HPS::Key::Assign ( Key const &  in_that )

virtualinherited

Share the underlying smart-pointer of the Key source.

Parameters

in_that

The Key source of the assignment.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Consume()

void HPS::CircularArcKey::Consume

(

CircularArcKit &

in_kit

)

Completely replaces all settings on this CircularArcKey with those set on the specified kit and resets the kit.

Parameters

in_kit

The kit from which to get the settings to replace on this CircularArcKey.

CopyTo()

Key HPS::Key::CopyTo ( SegmentKey const &  in_destination ) const

inherited

Copies the database object referred to by this key into a segment pointed to by in_destination.

Returns

The key of the new copy.

Delete()

void HPS::Key::Delete ( )

inherited

Removes the database object referred to by this key.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

bool HPS::Key::Equals ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Empty keys (when key.Empty() returns true) are never equal to any key, even when the key is compared against itself (they act analogously to NaN comparisons in this case.)

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetHash()

size_t HPS::Key::GetHash ( ) const

inherited

Returns a hash code for the key.

Returns

The size_t hash code.

Here is the caller graph for this function:

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasOwner()

bool HPS::Key::HasOwner ( ) const

inherited

Returns

Indicates whether this key has an owner or not.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

MoveTo()

void HPS::Key::MoveTo ( SegmentKey const &  in_new_owner )

inherited

Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner.

ObjectType()

HPS::Type HPS::CircularArcKey::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::GeometryKey.

operator!=()

bool HPS::Key::operator!= ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

operator=() [1/2]

CircularArcKey& HPS::CircularArcKey::operator=

(

CircularArcKey const &

in_that

)

Associate this CircularArcKey with the same underlying impl as the source CircularArcKey.

Parameters

in_that

The source CircularArcKey for the assignment.

Returns

A reference to this CircularArcKey.

operator=() [2/2]

CircularArcKey& HPS::CircularArcKey::operator=

(

CircularArcKey &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this CircularArcKey thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a CircularArcKey to take the impl from.

Returns

A reference to this CircularArcKey.

operator==()

bool HPS::Key::operator== ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Owner()

SegmentKey HPS::Key::Owner ( ) const

inherited

Returns

The segment containing this key.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::CircularArcKey::Set

(

CircularArcKit const &

in_kit

)

Replace those settings on this CircularArcKey with those set on the specified kit.

Parameters

in_kit

The kit from which to get the settings to replace on this CircularArcKey.

SetEnd()

CircularArcKey& HPS::CircularArcKey::SetEnd

(

Point const &

in_end

)

Sets the end point for this CircularArcKey.

This is the point on the circumference of the circle at which the circular arc ends.

Parameters

in_end

The end point for this CircularArcKey.

Returns

A reference to this CircularArcKey.

SetMiddle()

CircularArcKey& HPS::CircularArcKey::SetMiddle

(

Point const &

in_middle

)

Sets the middle point for this CircularArcKey.

This is a point on the circumference of the circle between the start and end points for the circular arc.

Parameters

in_middle

The middle point for this CircularArcKey.

Returns

A reference to this CircularArcKey.

SetPriority()

GeometryKey& HPS::GeometryKey::SetPriority ( int  in_priority )

inherited

Assigns a drawing priority value to the geometry.

It affects the order in which the geometry is visited if and only if the rendering algorithm is set to Priority. The geometry has a default drawing priority assigned, based on the order of insertion.

Parameters

in_priority

The drawing priority; higher priority items are drawn on top of lower priority items.

Returns

A reference to this object.

See also

SubwindowKit::SetRenderingAlgorithm()

SetStart()

CircularArcKey& HPS::CircularArcKey::SetStart

(

Point const &

in_start

)

Sets the start point for this CircularArcKey.

This is the point on the circumference of the circle at which the circular arc starts.

Parameters

in_start

The start point for this CircularArcKey.

Returns

A reference to this CircularArcKey.

SetUserData() [1/3]

GeometryKey& HPS::GeometryKey::SetUserData ( intptr_t  in_index, size_t  in_bytes, byte const  in_data[]  )

inherited

Sets user data on this key.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns

A reference to this key.

SetUserData() [2/3]

GeometryKey& HPS::GeometryKey::SetUserData ( intptr_t  in_index, ByteArray const &  in_data  )

inherited

Sets user data on this key.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns

A reference to this key.

SetUserData() [3/3]

GeometryKey& HPS::GeometryKey::SetUserData ( IntPtrTArray const &  in_indices, ByteArrayArray const &  in_data  )

inherited

Sets user data on this key.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns

A reference to this key.

Show()

void HPS::CircularArcKey::Show

(

CircularArcKit &

out_kit

)

const

Copy the contents of this CircularArcKey into the specified kit.

Parameters

out_kit

The kit to populate with the contents of this CircularArcKey.

ShowBounding()

bool HPS::GeometryKey::ShowBounding ( BoundingKit &  out_kit ) const

inherited

Shows the bounding of this geometry.

Parameters

out_kit

The BoundingKit that is set on this GeometryKey

Returns

False if no bounding exists.

ShowEnd()

bool HPS::CircularArcKey::ShowEnd

(

Point &

out_end

)

const

Shows the end point for this CircularArcKey.

Parameters

out_end

The end point for this CircularArcKey.

Returns

true if an end point was set, false otherwise.

ShowMiddle()

bool HPS::CircularArcKey::ShowMiddle

(

Point &

out_middle

)

const

Shows the middle point for this CircularArcKey.

Parameters

out_middle

The middle point for this CircularArcKey.

Returns

true if a middle point was set, false otherwise.

ShowPriority()

bool HPS::GeometryKey::ShowPriority ( int &  out_priority ) const

inherited

Shows the drawing priority.

Parameters

out_priority

The drawing priority; higher priority items are drawn on top of lower priority items.

Returns

true if a priority was specified, false otherwise.

ShowReferrers() [1/2]

size_t HPS::GeometryKey::ShowReferrers ( SegmentKeyArray &  out_segments ) const

inherited

Shows the all the segments which contain references to this key.

Note that while a segment may only appear once in the returned array, that segment could have multiple references to this key.

Parameters

out_segments

The list of segments which contains references to this key.

Returns

The number of segments which contain references to this key.

ShowReferrers() [2/2]

size_t HPS::GeometryKey::ShowReferrers ( ReferenceKeyArray &  out_references ) const

inherited

Shows the all the references to this key.

Parameters

out_references

The list of all references to this key.

Returns

The number of references to this key.

ShowStart()

bool HPS::CircularArcKey::ShowStart

(

Point &

out_start

)

const

Shows the start point for this CircularArcKey.

Parameters

out_start

The start point for this CircularArcKey.

Returns

true if a start point was set, false otherwise.

ShowUserData() [1/2]

bool HPS::GeometryKey::ShowUserData ( intptr_t  in_index, ByteArray &  out_data  ) const

inherited

Shows the user data at a given index for this key.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns

true if there is user data at the given index, false otherwise.

ShowUserData() [2/2]

bool HPS::GeometryKey::ShowUserData ( IntPtrTArray &  out_indices, ByteArrayArray &  out_data  ) const

inherited

Shows all user data for this key.

Parameters

out_indices	An array of all user data indices set on this key.
out_data	An array of all user data set on this key.

Returns

true if there is user data on this key, false otherwise.

ShowUserDataCount()

size_t HPS::GeometryKey::ShowUserDataCount ( ) const

inherited

Get the number of user data indices set on this key.

ShowUserDataIndices()

bool HPS::GeometryKey::ShowUserDataIndices ( IntPtrTArray &  out_indices ) const

inherited

Shows the indices of all user data set on this key.

Parameters

out_indices

The user data indices set on this key.

Returns

The number of user data indices set on this key.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetAllUserData()

GeometryKey& HPS::GeometryKey::UnsetAllUserData ( )

inherited

Removes all user data from this key.

Returns

A reference to this key.

UnsetPriority()

GeometryKey& HPS::GeometryKey::UnsetPriority ( )

inherited

Removes the drawing priority setting.

Returns

A reference to this object.

UnsetUserData() [1/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( intptr_t  in_index )

inherited

Removes the user data at the given index from this key.

Parameters

in_index

The index of the user data to remove.

Returns

A reference to this key.

UnsetUserData() [2/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( size_t  in_count, intptr_t const  in_indices[]  )

inherited

Removes the user data at the given indices from this key.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns

A reference to this key.

UnsetUserData() [3/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( IntPtrTArray const &  in_indices )

inherited

Removes the user data at the given indices from this key.

Parameters

in_indices

The indices of the user data to remove.

Returns

A reference to this key.

Up()

SegmentKey HPS::Key::Up ( ) const

inherited

Returns

The segment containing this key.

Member Data Documentation

staticType

const HPS::Type HPS::CircularArcKey::staticType = HPS::Type::CircularArcKey

static

---

The documentation for this class was generated from the following file:

• hps.h
