The NURBSSurfaceKit class is a user space object. More...

#include <hps.h>

Inheritance diagram for HPS::NURBSSurfaceKit:

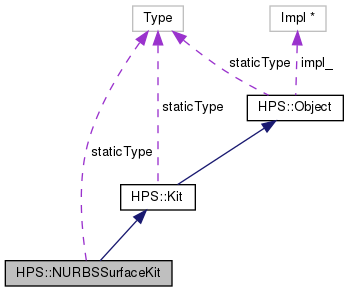

Collaboration diagram for HPS::NURBSSurfaceKit:

Public Member Functions
	NURBSSurfaceKit ()
	The default constructor creates an empty NURBSSurfaceKit object. More...

	NURBSSurfaceKit (NURBSSurfaceKit const &in_kit)
	The copy constructor creates a new NURBSSurfaceKit object that contains the same settings as the source NURBSSurfaceKit. More...

	NURBSSurfaceKit (NURBSSurfaceKit &&in_that)
	The move constructor creates a NURBSSurfaceKit by transferring the underlying impl of the rvalue reference to this NURBSSurfaceKit thereby avoiding a copy and allocation. More...

NURBSSurfaceKit &	operator= (NURBSSurfaceKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this NURBSSurfaceKit thereby avoiding a copy. More...

virtual	~NURBSSurfaceKit ()

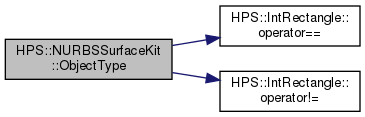

HPS::Type	ObjectType () const

void	Consume (NURBSSurfaceKit &in_kit)
	Copies the source NURBSSurfaceKit into this NURBSSurfaceKit and resets the source kit. More...

void	Set (NURBSSurfaceKit const &in_kit)
	Copies the source NURBSSurfaceKit into this NURBSSurfaceKit. More...

void	Show (NURBSSurfaceKit &out_kit) const
	Copies this NURBSSurfaceKit into the given NURBSSurfaceKit. More...

NURBSSurfaceKit &	operator= (NURBSSurfaceKit const &in_kit)
	Copies the source NURBSSurfaceKit into this NURBSSurfaceKit. More...

bool	Empty () const
	Indicates whether this NURBSSurfaceKit has any values set on it. More...

bool	Equals (NURBSSurfaceKit const &in_kit) const
	Check if the source NURBSSurfaceKit is equivalent to this NURBSSurfaceKit. More...

bool	operator== (NURBSSurfaceKit const &in_kit) const
	Check if the source NURBSSurfaceKit is equivalent to this NURBSSurfaceKit. More...

bool	operator!= (NURBSSurfaceKit const &in_kit) const
	Check if the source NURBSSurfaceKit is not equivalent to this NURBSSurfaceKit. More...

size_t	GetPointCount () const
	Retrieves the number of points in this NURBS surface. More...

NURBSSurfaceKit &	SetPriority (int in_priority)
	Assigns a specific drawing priority value to the NURBSSurfaceKit. More...

NURBSSurfaceKit &	UnsetPriority ()
	Removes a drawing priority setting. More...

bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...

NURBSSurfaceKit &	SetUDegree (size_t in_degree)
	Sets degree of the NURBSSurfaceKit in the U direction. More...

NURBSSurfaceKit &	SetVDegree (size_t in_degree)
	Sets degree of the NURBSSurfaceKit in the V direction. More...

NURBSSurfaceKit &	SetUCount (size_t in_count)
	Sets the number of control points in the U direction for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetVCount (size_t in_count)
	Sets the number of control points in the V direction for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetPoints (PointArray const &in_points)
	Sets the control points for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetPoints (size_t in_count, Point const in_points [])
	Sets the control points for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetWeights (FloatArray const &in_weights)
	Sets the control point weights for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetWeights (size_t in_count, float const in_weights [])
	Sets the control point weights for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetUKnots (FloatArray const &in_knots)
	Sets the knots in the U direction for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetUKnots (size_t in_count, float const in_knots [])
	Sets the knots in the U direction for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetVKnots (FloatArray const &in_knots)
	Sets the knots in the V direction for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetVKnots (size_t in_count, float const in_knots [])
	Sets the knots in the V direction for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetTrims (TrimKitArray const &in_trims)
	Sets the trims for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetTrims (size_t in_count, TrimKit const in_trims [])
	Sets the trims for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetTrim (TrimKit const &in_trim)
	Sets the trim for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	UnsetUDegree ()
	Removes the setting for the degree of the NURBSSurfaceKit in the U direction. More...

NURBSSurfaceKit &	UnsetVDegree ()
	Removes the setting for the degree of the NURBSSurfaceKit in the V direction. More...

NURBSSurfaceKit &	UnsetUCount ()
	Removes the setting for the number of points in the U direction for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	UnsetVCount ()
	Removes the setting for the number of points in the V direction for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	UnsetPoints ()
	Removes the control points for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	UnsetWeights ()
	Removes the control point weights for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	UnsetUKnots ()
	Removes the knots in the U direction for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	UnsetVKnots ()
	Removes the knots in the V direction for the NURBSSurfaceKit. More...

NURBSSurfaceKit &	UnsetTrims ()
	Removes the trims from the NURBSSurfaceKit. More...

NURBSSurfaceKit &	UnsetEverything ()
	Removes all settings from the NURBSSurfaceKit. More...

bool	ShowUDegree (size_t &out_degree) const
	Shows the degree of this NURBSSurfaceKit in the U direction. More...

bool	ShowVDegree (size_t &out_degree) const
	Shows the degree of this NURBSSurfaceKit in the V direction. More...

bool	ShowUCount (size_t &out_count) const
	Shows the number of control points in the U direction for this NURBSSurfaceKit. More...

bool	ShowVCount (size_t &out_count) const
	Shows the number of control points in the V direction for this NURBSSurfaceKit. More...

bool	ShowPoints (PointArray &out_points) const
	Shows the control points for this NURBSSurfaceKit. More...

bool	ShowPointsByRange (size_t in_start_index, size_t in_count, PointArray &out_points) const
	Show a subset of the points for this NURBSSurfaceKit by range. More...

bool	ShowPointsByList (SizeTArray const &in_indices, PointArray &out_points) const
	Show a subset of the points for this NURBSSurfaceKit by list. More...

bool	ShowPointsByList (size_t in_count, size_t const in_indices[], PointArray &out_points) const
	Show a subset of the points for this NURBSSurfaceKit by list. More...

bool	ShowWeights (FloatArray &out_weights) const
	Shows the control point weights for this NURBSSurfaceKit. More...

bool	ShowUKnots (FloatArray &out_knots) const
	Shows the knots in the U direction for this NURBSSurfaceKit. More...

bool	ShowVKnots (FloatArray &out_knots) const
	Shows the knots in the V direction for this NURBSSurfaceKit. More...

bool	ShowTrims (TrimKitArray &out_trims) const
	Shows the trims for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditPointsByInsertion (size_t in_offset, size_t in_count, Point const in_points[])
	Adds points to the control point list for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditPointsByInsertion (size_t in_offset, PointArray const &in_points)
	Adds points to the control point list for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditPointsByDeletion (size_t in_offset, size_t in_count)
	Removes points from the control point list for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditPointsByReplacement (size_t in_offset, size_t in_count, Point const in_points[])
	Replaces control points for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditPointsByReplacement (size_t in_offset, PointArray const &in_points)
	Replaces control points for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditWeightsByInsertion (size_t in_offset, size_t in_count, float const in_weights[])
	Adds weights to the control point weight list for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditWeightsByInsertion (size_t in_offset, FloatArray const &in_weights)
	Adds weights to the control point weight list for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditWeightsByDeletion (size_t in_offset, size_t in_count)
	Removes weights from the control point weight list for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditWeightsByReplacement (size_t in_offset, size_t in_count, float const in_weights[])
	Replaces control point weights for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditWeightsByReplacement (size_t in_offset, FloatArray const &in_weights)
	Replaces control point weights for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditUKnotsByInsertion (size_t in_offset, size_t in_count, float const in_knots[])
	Adds knots in the U direction for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditUKnotsByInsertion (size_t in_offset, FloatArray const &in_knots)
	Adds knots in the U direction for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditUKnotsByDeletion (size_t in_offset, size_t in_count)
	Removes knots in the U direction for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditUKnotsByReplacement (size_t in_offset, size_t in_count, float const in_knots[])
	Replaces knots in the U direction for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditUKnotsByReplacement (size_t in_offset, FloatArray const &in_knots)
	Replaces knots in the U direction for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditVKnotsByInsertion (size_t in_offset, size_t in_count, float const in_knots[])
	Adds knots in the V direction for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditVKnotsByInsertion (size_t in_offset, FloatArray const &in_knots)
	Adds knots in the V direction for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditVKnotsByDeletion (size_t in_offset, size_t in_count)
	Removes knots in the V direction for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditVKnotsByReplacement (size_t in_offset, size_t in_count, float const in_knots[])
	Replaces knots in the V direction for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	EditVKnotsByReplacement (size_t in_offset, FloatArray const &in_knots)
	Replaces knots in the V direction for this NURBSSurfaceKit. More...

NURBSSurfaceKit &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this kit. More...

NURBSSurfaceKit &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this kit. More...

NURBSSurfaceKit &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this kit. More...

NURBSSurfaceKit &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this kit. More...

NURBSSurfaceKit &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this kit. More...

NURBSSurfaceKit &	UnsetUserData (IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this kit. More...

NURBSSurfaceKit &	UnsetAllUserData ()
	Removes all user data from this kit. More...

size_t	ShowUserDataCount () const
	Get the number of user data indices set on this kit. More...

bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this kit. More...

bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this kit. More...

bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this kit. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::NURBSSurfaceKit

Detailed Description

The NURBSSurfaceKit class is a user space object.

It is a kit analog to a NURBSSurfaceKey.

Constructor & Destructor Documentation

◆ NURBSSurfaceKit() [1/3]

HPS::NURBSSurfaceKit::NURBSSurfaceKit ( )

The default constructor creates an empty NURBSSurfaceKit object.

◆ NURBSSurfaceKit() [2/3]

HPS::NURBSSurfaceKit::NURBSSurfaceKit ( NURBSSurfaceKit const & in_kit )

The copy constructor creates a new NURBSSurfaceKit object that contains the same settings as the source NURBSSurfaceKit.

Parameters

in_kit The source NURBSSurfaceKit to copy.

◆ NURBSSurfaceKit() [3/3]

HPS::NURBSSurfaceKit::NURBSSurfaceKit ( NURBSSurfaceKit && in_that )

The move constructor creates a NURBSSurfaceKit by transferring the underlying impl of the rvalue reference to this NURBSSurfaceKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a NURBSSurfaceKit to take the impl from.

◆ ~NURBSSurfaceKit()

virtual HPS::NURBSSurfaceKit::~NURBSSurfaceKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Consume()

void HPS::NURBSSurfaceKit::Consume ( NURBSSurfaceKit & in_kit )

Copies the source NURBSSurfaceKit into this NURBSSurfaceKit and resets the source kit.

Parameters

in_kit The source NURBSSurfaceKit to consume.

◆ EditPointsByDeletion()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditPointsByDeletion	(	size_t	in_offset,
		size_t	in_count
	)

Removes points from the control point list for this NURBSSurfaceKit.

Parameters

in_offset	The offset into the control point list for the NURBSSurfaceKit at which to start removing points. This value must be such that in_offset<control_point_count for deletion to succeed.
in_count	The number of points to delete from the control point list for the NURBSSurfaceKit. This value must be such that in_offset+in_count<=control_point_count for the deletion to succeed.

Returns: A reference to this NURBSSurfaceKit.

◆ EditPointsByInsertion() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditPointsByInsertion	(	size_t	in_offset,
		size_t	in_count,
		Point const	in_points[]
	)

Adds points to the control point list for this NURBSSurfaceKit.

Parameters

in_offset	The offset into the control point list for the NURBSSurfaceKit at which to insert points. This value must be such that in_offset<control_point_count for insertion to succeed.
in_count	Size of the following array.
in_points	The points to insert into the control point list at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditPointsByInsertion() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditPointsByInsertion	(	size_t	in_offset,
		PointArray const &	in_points
	)

Adds points to the control point list for this NURBSSurfaceKit.

Parameters

in_offset	The offset into the control point list for the NURBSSurfaceKit at which to insert points. This value must be such that in_offset<control_point_count for insertion to succeed.
in_points	The points to insert into the control point list at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditPointsByReplacement() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditPointsByReplacement	(	size_t	in_offset,
		size_t	in_count,
		Point const	in_points[]
	)

Replaces control points for this NURBSSurfaceKit.

Parameters

in_offset	The offset into the control point list for the NURBSSurfaceKit at which to replace points. This value must be such that in_offset<control_point_count for insertion to succeed.
in_count	Size of the following array. This value must be such that in_offset+in_count<=control_point_count for the replacement to succeed.
in_points	The points to use to replace those in the control point list at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditPointsByReplacement() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditPointsByReplacement	(	size_t	in_offset,
		PointArray const &	in_points
	)

Replaces control points for this NURBSSurfaceKit.

Parameters

in_offset	The offset into the control point list for the NURBSSurfaceKit at which to replace points. This value must be such that in_offset<control_point_count for insertion to succeed.
in_points	The points to use to replace those in the control point list at the specified offset. This size of the array must be such that in_offset+in_points.size()<=control_point_count for the replacement to succeed.

Returns: A reference to this NURBSSurfaceKit.

◆ EditUKnotsByDeletion()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditUKnotsByDeletion	(	size_t	in_offset,
		size_t	in_count
	)

Removes knots in the U direction for this NURBSSurfaceKit.

This will allow modification of the default knots in the U direction if no such explicit knots are set if possible.

Parameters

in_offset	The offset into the knots in the U direction for the NURBSSurfaceKit at which to start removing knots. This value must be such that in_offset<u_count+u_degree+1 for deletion to succeed.
in_count	The number of knots in the U direction to delete for the NURBSSurfaceKit. This value must be such that in_offset+in_count<=u_count+u_degree+1 for the deletion to succeed.

Returns: A reference to this NURBSSurfaceKit.

◆ EditUKnotsByInsertion() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditUKnotsByInsertion	(	size_t	in_offset,
		size_t	in_count,
		float const	in_knots[]
	)

Adds knots in the U direction for this NURBSSurfaceKit.

This will allow modification of the default knots in the U direction if no such explicit knots are set if possible.

Parameters

in_offset	The offset into the knots in the U direction for the NURBSSurfaceKit at which to insert knots. This value must be such that in_offset<u_count+u_degree+1 for insertion to succeed.
in_count	Size of the following array.
in_knots	The knots to insert in the U direction at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditUKnotsByInsertion() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditUKnotsByInsertion	(	size_t	in_offset,
		FloatArray const &	in_knots
	)

Adds knots in the U direction for this NURBSSurfaceKit.

This will allow modification of the default knots in the U direction if no such explicit knots are set if possible.

Parameters

in_offset	The offset into the knots in the U direction for the NURBSSurfaceKit at which to insert knots. This value must be such that in_offset<u_count+u_degree+1 for insertion to succeed.
in_knots	The knots to insert in the U direction at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditUKnotsByReplacement() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditUKnotsByReplacement	(	size_t	in_offset,
		size_t	in_count,
		float const	in_knots[]
	)

Replaces knots in the U direction for this NURBSSurfaceKit.

This will allow modification of the default knots in the U direction if no such explicit knots are set if possible.

Parameters

in_offset	The offset into the knots in the U direction for the NURBSSurfaceKit at which to replace knots. This value must be such that in_offset<u_count+u_degree+1 for the replacement to succeed.
in_count	Size of the following array. This value must be such that in_offset+in_count<=u_count+u_degree+1 for the replacement to succeed.
in_knots	The knots to use to replace those in the U direction at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditUKnotsByReplacement() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditUKnotsByReplacement	(	size_t	in_offset,
		FloatArray const &	in_knots
	)

Replaces knots in the U direction for this NURBSSurfaceKit.

This will allow modification of the default knots in the U direction if no such explicit knots are set if possible.

Parameters

in_offset	The offset into the knots in the U direction for the NURBSSurfaceKit at which to replace knots. This value must be such that in_offset<u_count+u_degree+1 for the replacement to succeed.
in_knots	The knots to use to replace those in the U direction at the specified offset. The size of the array must be such that in_offset+in_knots.size()<=u_count+u_degree+1 for the replacement to succeed.

Returns: A reference to this NURBSSurfaceKit.

◆ EditVKnotsByDeletion()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditVKnotsByDeletion	(	size_t	in_offset,
		size_t	in_count
	)

Removes knots in the V direction for this NURBSSurfaceKit.

This will allow modification of the default knots in the V direction if no such explicit knots are set if possible.

Parameters

in_offset	The offset into the knots in the V direction for the NURBSSurfaceKit at which to start removing knots. This value must be such that in_offset<v_count+v_degree+1 for deletion to succeed.
in_count	The number of knots in the V direction to delete for the NURBSSurfaceKit. This value must be such that in_offset+in_count<=v_count+v_degree+1 for the deletion to succeed.

Returns: A reference to this NURBSSurfaceKit.

◆ EditVKnotsByInsertion() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditVKnotsByInsertion	(	size_t	in_offset,
		size_t	in_count,
		float const	in_knots[]
	)

Adds knots in the V direction for this NURBSSurfaceKit.

This will allow modification of the default knots in the V direction if no such explicit knots are set if possible.

Parameters

in_offset	The offset into the knots in the V direction for the NURBSSurfaceKit at which to insert knots. This value must be such that in_offset<v_count+v_degree+1 for insertion to succeed.
in_count	Size of the following array.
in_knots	The knots to insert in the V direction at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditVKnotsByInsertion() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditVKnotsByInsertion	(	size_t	in_offset,
		FloatArray const &	in_knots
	)

Adds knots in the V direction for this NURBSSurfaceKit.

This will allow modification of the default knots in the V direction if no such explicit knots are set if possible.

Parameters

in_offset	The offset into the knots in the V direction for the NURBSSurfaceKit at which to insert knots. This value must be such that in_offset<v_count+v_degree+1 for insertion to succeed.
in_knots	The knots to insert in the V direction at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditVKnotsByReplacement() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditVKnotsByReplacement	(	size_t	in_offset,
		size_t	in_count,
		float const	in_knots[]
	)

Replaces knots in the V direction for this NURBSSurfaceKit.

This will allow modification of the default knots in the V direction if no such explicit knots are set if possible.

Parameters

in_offset	The offset into the knots in the V direction for the NURBSSurfaceKit at which to replace knots. This value must be such that in_offset<v_count+v_degree+1 for the replacement to succeed.
in_count	Size of the following array. This value must be such that in_offset+in_count<=v_count+v_degree+1 for the replacement to succeed.
in_knots	The knots to use to replace those in the V direction at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditVKnotsByReplacement() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditVKnotsByReplacement	(	size_t	in_offset,
		FloatArray const &	in_knots
	)

Replaces knots in the V direction for this NURBSSurfaceKit.

This will allow modification of the default knots in the V direction if no such explicit knots are set if possible.

Parameters

in_offset	The offset into the knots in the V direction for the NURBSSurfaceKit at which to replace knots. This value must be such that in_offset<v_count+v_degree+1 for the replacement to succeed.
in_knots	The knots to use to replace those in the V direction at the specified offset. The size of the array must be such that in_offset+in_knots.size()<=v_count+v_degree+1 for the replacement to succeed.

Returns: A reference to this NURBSSurfaceKit.

◆ EditWeightsByDeletion()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditWeightsByDeletion	(	size_t	in_offset,
		size_t	in_count
	)

Removes weights from the control point weight list for this NURBSSurfaceKit.

This will allow modification of the default control point weights if no explicit weights are set if possible.

Parameters

in_offset	The offset into the control point weight list for the NURBSSurfaceKit at which to start removing weights. This value must be such that in_offset<control_point_count for deletion to succeed.
in_count	The number of weights to delete from the control point weight list for the NURBSSurfaceKit. This value must be such that in_offset+in_count<=control_point_count for the deletion to succeed.

Returns: A reference to this NURBSSurfaceKit.

◆ EditWeightsByInsertion() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditWeightsByInsertion	(	size_t	in_offset,
		size_t	in_count,
		float const	in_weights[]
	)

Adds weights to the control point weight list for this NURBSSurfaceKit.

This will allow modification of the default control point weights if no explicit weights are set if possible.

Parameters

in_offset	The offset into the control point weight list for the NURBSSurfaceKit at which to insert weights. This value must be such that in_offset<control_point_count for insertion to succeed.
in_count	Size of the following array.
in_weights	The weights to insert into the control point weight list at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditWeightsByInsertion() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditWeightsByInsertion	(	size_t	in_offset,
		FloatArray const &	in_weights
	)

Adds weights to the control point weight list for this NURBSSurfaceKit.

This will allow modification of the default control point weights if no explicit weights are set if possible.

Parameters

in_offset	The offset into the control point weight list for the NURBSSurfaceKit at which to insert weights. This value must be such that in_offset<control_point_count for insertion to succeed.
in_weights	The weights to insert into the control point weight list at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditWeightsByReplacement() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditWeightsByReplacement	(	size_t	in_offset,
		size_t	in_count,
		float const	in_weights[]
	)

Replaces control point weights for this NURBSSurfaceKit.

This will allow modification of the default control point weights if no explicit weights are set if possible.

Parameters

in_offset	The offset into the control point weight list for the NURBSSurfaceKit at which to replace weights. This value must be such that in_offset<control_point_count for insertion to succeed.
in_count	Size of the following array. This value must be such that in_offset+in_count<=control_point_count for the replacement to succeed.
in_weights	The weights to use to replace those in the control point weight list at the specified offset.

Returns: A reference to this NURBSSurfaceKit.

◆ EditWeightsByReplacement() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::EditWeightsByReplacement	(	size_t	in_offset,
		FloatArray const &	in_weights
	)

Replaces control point weights for this NURBSSurfaceKit.

This will allow modification of the default control point weights if no explicit weights are set if possible.

Parameters

in_offset	The offset into the control point weight list for the NURBSSurfaceKit at which to replace weights. This value must be such that in_offset<control_point_count for insertion to succeed.
in_weights	The weights to use to replace those in the control point weight list at the specified offset. This size of the array must be such that in_offset+in_weights.size()<=control_point_count for the replacement to succeed.

Returns: A reference to this NURBSSurfaceKit.

◆ Empty()

bool HPS::NURBSSurfaceKit::Empty ( ) const

virtual

Indicates whether this NURBSSurfaceKit has any values set on it.

Returns: true if no values are set on this NURBSSurfaceKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::NURBSSurfaceKit::Equals ( NURBSSurfaceKit const & in_kit ) const

Check if the source NURBSSurfaceKit is equivalent to this NURBSSurfaceKit.

Parameters

in_kit The source NURBSSurfaceKit to compare to this NURBSSurfaceKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ GetPointCount()

size_t HPS::NURBSSurfaceKit::GetPointCount ( ) const

Retrieves the number of points in this NURBS surface.

Returns: The number of points in this NURBS surface.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::NURBSSurfaceKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::NURBSSurfaceKit::operator!= ( NURBSSurfaceKit const & in_kit ) const

Check if the source NURBSSurfaceKit is not equivalent to this NURBSSurfaceKit.

Parameters

in_kit The source NURBSSurfaceKit to compare to this NURBSSurfaceKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::operator= ( NURBSSurfaceKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this NURBSSurfaceKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a NURBSSurfaceKit to take the impl from.

Returns: A reference to this NURBSSurfaceKit.

◆ operator=() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::operator= ( NURBSSurfaceKit const & in_kit )

Copies the source NURBSSurfaceKit into this NURBSSurfaceKit.

Parameters

in_kit The source NURBSSurfaceKit to copy.

Returns: A reference to this NURBSSurfaceKit.

◆ operator==()

bool HPS::NURBSSurfaceKit::operator== ( NURBSSurfaceKit const & in_kit ) const

Check if the source NURBSSurfaceKit is equivalent to this NURBSSurfaceKit.

Parameters

in_kit The source NURBSSurfaceKit to compare to this NURBSSurfaceKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::NURBSSurfaceKit::Set ( NURBSSurfaceKit const & in_kit )

Copies the source NURBSSurfaceKit into this NURBSSurfaceKit.

Parameters

in_kit The source NURBSSurfaceKit to copy.

◆ SetPoints() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetPoints ( PointArray const & in_points )

Sets the control points for the NURBSSurfaceKit.

Parameters

in_points The control points for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetPoints() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetPoints	(	size_t	in_count,
		Point const	in_points[]
	)

Sets the control points for the NURBSSurfaceKit.

Parameters

in_count	Size of the following array.
in_points	The control points for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetPriority()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetPriority ( int in_priority )

Assigns a specific drawing priority value to the NURBSSurfaceKit.

It affects the order in which the contents of this segment are drawn if and only if the rendering algorithm is set to Priority.

Parameters

in_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: A reference to this object.

See also: SubwindowKit::SetPriority(); SubwindowKit::SetRenderingAlgorithm()

◆ SetTrim()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetTrim ( TrimKit const & in_trim )

Sets the trim for the NURBSSurfaceKit.

Parameters

in_trim The trim for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetTrims() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetTrims ( TrimKitArray const & in_trims )

Sets the trims for the NURBSSurfaceKit.

Parameters

in_trims The trims for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetTrims() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetTrims	(	size_t	in_count,
		TrimKit const	in_trims[]
	)

Sets the trims for the NURBSSurfaceKit.

Parameters

in_count	Size of the following array.
in_trims	The trims for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetUCount()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetUCount ( size_t in_count )

Sets the number of control points in the U direction for the NURBSSurfaceKit.

Parameters

in_count The number of control points in the U direction for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetUDegree()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetUDegree ( size_t in_degree )

Sets degree of the NURBSSurfaceKit in the U direction.

Parameters

in_degree The degree of the NURBSSurfaceKit in the U direction.

Returns: A reference to this NURBSSurfaceKit.

◆ SetUKnots() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetUKnots ( FloatArray const & in_knots )

Sets the knots in the U direction for the NURBSSurfaceKit.

If no knots are set when this kit is used to insert a NURBS surface, default knots of increasing value in the range [0,u_count+u_degree+1) will be used.

Parameters

in_knots The knots in the U direction for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetUKnots() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetUKnots	(	size_t	in_count,
		float const	in_knots[]
	)

Sets the knots in the U direction for the NURBSSurfaceKit.

If no knots are set when this kit is used to insert a NURBS surface, default knots of increasing value in the range [0,u_count+u_degree+1) will be used.

Parameters

in_count	Size of the following array.
in_knots	The knots in the U direction for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetUserData() [1/3]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetUserData	(	intptr_t	in_index,
		size_t	in_bytes,
		byte const	in_data[]
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [2/3]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetUserData	(	intptr_t	in_index,
		ByteArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [3/3]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetUserData	(	IntPtrTArray const &	in_indices,
		ByteArrayArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns: A reference to this kit.

◆ SetVCount()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetVCount ( size_t in_count )

Sets the number of control points in the V direction for the NURBSSurfaceKit.

Parameters

in_count The number of control points in the V direction for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetVDegree()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetVDegree ( size_t in_degree )

Sets degree of the NURBSSurfaceKit in the V direction.

Parameters

in_degree The degree of the NURBSSurfaceKit in the V direction.

Returns: A reference to this NURBSSurfaceKit.

◆ SetVKnots() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetVKnots ( FloatArray const & in_knots )

Sets the knots in the V direction for the NURBSSurfaceKit.

If no knots are set when this kit is used to insert a NURBS surface, default knots of increasing value in the range [0,v_count+v_degree+1) will be used.

Parameters

in_knots The knots in the V direction for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetVKnots() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetVKnots	(	size_t	in_count,
		float const	in_knots[]
	)

Sets the knots in the V direction for the NURBSSurfaceKit.

If no knots are set when this kit is used to insert a NURBS surface, default knots of increasing value in the range [0,v_count+v_degree+1) will be used.

Parameters

in_count	Size of the following array.
in_knots	The knots in the V direction for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetWeights() [1/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetWeights ( FloatArray const & in_weights )

Sets the control point weights for the NURBSSurfaceKit.

If no weights are set when this kit is used to insert a NURBS surface, default weights of 1.0f per control point will be used.

Parameters

in_weights The control point weights for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ SetWeights() [2/2]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::SetWeights	(	size_t	in_count,
		float const	in_weights[]
	)

Sets the control point weights for the NURBSSurfaceKit.

If no weights are set when this kit is used to insert a NURBS surface, default weights of 1.0f per control point will be used.

Parameters

in_count	Size of the following array.
in_weights	The control point weights for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ Show()

void HPS::NURBSSurfaceKit::Show ( NURBSSurfaceKit & out_kit ) const

Copies this NURBSSurfaceKit into the given NURBSSurfaceKit.

Parameters

out_kit The NURBSSurfaceKit to populate with the contents of this NURBSSurfaceKit.

◆ ShowPoints()

bool HPS::NURBSSurfaceKit::ShowPoints ( PointArray & out_points ) const

Shows the control points for this NURBSSurfaceKit.

Parameters

out_points The control points for this NURBSSurfaceKit.

Returns: true if control points were set, false otherwise.

◆ ShowPointsByList() [1/2]

bool HPS::NURBSSurfaceKit::ShowPointsByList	(	SizeTArray const &	in_indices,
		PointArray &	out_points
	)		const

Show a subset of the points for this NURBSSurfaceKit by list.

Parameters

in_indices	The list of point indices to show.
out_points	The requested points for this NURBSSurfaceKit.

Returns: true if all requested points were set, false otherwise.

◆ ShowPointsByList() [2/2]

bool HPS::NURBSSurfaceKit::ShowPointsByList	(	size_t	in_count,
		size_t const	in_indices[],
		PointArray &	out_points
	)		const

Show a subset of the points for this NURBSSurfaceKit by list.

Parameters

in_count	The number of points to show.
in_indices	The list of point indices to show.
out_points	The requested points for this NURBSSurfaceKit.

Returns: true if all requested points were set, false otherwise.

◆ ShowPointsByRange()

bool HPS::NURBSSurfaceKit::ShowPointsByRange	(	size_t	in_start_index,
		size_t	in_count,
		PointArray &	out_points
	)		const

Show a subset of the points for this NURBSSurfaceKit by range.

Parameters

in_start_index	The first point to show.
in_count	The number of points to show.
out_points	The requested points for this NURBSSurfaceKit.

Returns: true if all requested points were set, false otherwise.

◆ ShowPriority()

bool HPS::NURBSSurfaceKit::ShowPriority ( int & out_priority ) const

Shows the drawing priority.

Parameters

out_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: true if the setting is valid, false otherwise.

◆ ShowTrims()

bool HPS::NURBSSurfaceKit::ShowTrims ( TrimKitArray & out_trims ) const

Shows the trims for this NURBSSurfaceKit.

Parameters

out_trims The trims for this NURBSSurfaceKit.

Returns: true if trims were set, false otherwise.

◆ ShowUCount()

bool HPS::NURBSSurfaceKit::ShowUCount ( size_t & out_count ) const

Shows the number of control points in the U direction for this NURBSSurfaceKit.

Parameters

out_count The number of control points in the U direction for this NURBSSurfaceKit.

Returns: true if such a count was set, false otherwise.

◆ ShowUDegree()

bool HPS::NURBSSurfaceKit::ShowUDegree ( size_t & out_degree ) const

Shows the degree of this NURBSSurfaceKit in the U direction.

Parameters

out_degree The degree of this NURBSSurfaceKit in the U direction.

Returns: true if such a degree was set, false otherwise.

◆ ShowUKnots()

bool HPS::NURBSSurfaceKit::ShowUKnots ( FloatArray & out_knots ) const

Shows the knots in the U direction for this NURBSSurfaceKit.

Parameters

out_knots The knots in the U direction for this NURBSSurfaceKit.

Returns: true if these knots were set, false otherwise.

◆ ShowUserData() [1/2]

bool HPS::NURBSSurfaceKit::ShowUserData	(	intptr_t	in_index,
		ByteArray &	out_data
	)		const

Shows the user data at a given index for this kit.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns: true if there is user data at the given index, false otherwise.

◆ ShowUserData() [2/2]

bool HPS::NURBSSurfaceKit::ShowUserData	(	IntPtrTArray &	out_indices,
		ByteArrayArray &	out_data
	)		const

Shows all user data for this kit.

Parameters

out_indices	An array of all user data indices set on this kit.
out_data	An array of all user data set on this kit.

Returns: true if there is user data on this kit, false otherwise.

◆ ShowUserDataCount()

size_t HPS::NURBSSurfaceKit::ShowUserDataCount ( ) const

Get the number of user data indices set on this kit.

◆ ShowUserDataIndices()

bool HPS::NURBSSurfaceKit::ShowUserDataIndices ( IntPtrTArray & out_indices ) const

Shows the indices of all user data set on this kit.

Parameters

out_indices The user data indices set on this kit.

Returns: The number of user data indices set on this kit.

◆ ShowVCount()

bool HPS::NURBSSurfaceKit::ShowVCount ( size_t & out_count ) const

Shows the number of control points in the V direction for this NURBSSurfaceKit.

Parameters

out_count The number of control points in the V direction for this NURBSSurfaceKit.

Returns: true if such a count was set, false otherwise.

◆ ShowVDegree()

bool HPS::NURBSSurfaceKit::ShowVDegree ( size_t & out_degree ) const

Shows the degree of this NURBSSurfaceKit in the V direction.

Parameters

out_degree The degree of this NURBSSurfaceKit in the V direction.

Returns: true if such a degree was set, false otherwise.

◆ ShowVKnots()

bool HPS::NURBSSurfaceKit::ShowVKnots ( FloatArray & out_knots ) const

Shows the knots in the V direction for this NURBSSurfaceKit.

Parameters

out_knots The knots in the V direction for this NURBSSurfaceKit.

Returns: true if these knots were set, false otherwise.

◆ ShowWeights()

bool HPS::NURBSSurfaceKit::ShowWeights ( FloatArray & out_weights ) const

Shows the control point weights for this NURBSSurfaceKit.

Parameters

out_weights The control point weights for this NURBSSurfaceKit.

Returns: true if control point weights were set, false otherwise.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetAllUserData()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetAllUserData ( )

Removes all user data from this kit.

Returns: A reference to this kit.

◆ UnsetEverything()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetEverything ( )

Removes all settings from the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ UnsetPoints()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetPoints ( )

Removes the control points for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ UnsetPriority()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetPriority ( )

Removes a drawing priority setting.

Returns: A reference to this object.

◆ UnsetTrims()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetTrims ( )

Removes the trims from the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ UnsetUCount()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetUCount ( )

Removes the setting for the number of points in the U direction for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ UnsetUDegree()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetUDegree ( )

Removes the setting for the degree of the NURBSSurfaceKit in the U direction.

Returns: A reference to this NURBSSurfaceKit.

◆ UnsetUKnots()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetUKnots ( )

Removes the knots in the U direction for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ UnsetUserData() [1/3]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetUserData ( intptr_t in_index )

Removes the user data at the given index from this kit.

Parameters

in_index The index of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [2/3]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetUserData	(	size_t	in_count,
		intptr_t const	in_indices[]
	)

Removes the user data at the given indices from this kit.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [3/3]

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetUserData ( IntPtrTArray const & in_indices )

Removes the user data at the given indices from this kit.

Parameters

in_indices The indices of the user data to remove.

Returns: A reference to this kit.

◆ UnsetVCount()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetVCount ( )

Removes the setting for the number of points in the V direction for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ UnsetVDegree()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetVDegree ( )

Removes the setting for the degree of the NURBSSurfaceKit in the V direction.

Returns: A reference to this NURBSSurfaceKit.

◆ UnsetVKnots()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetVKnots ( )

Removes the knots in the V direction for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

◆ UnsetWeights()

NURBSSurfaceKit& HPS::NURBSSurfaceKit::UnsetWeights ( )

Removes the control point weights for the NURBSSurfaceKit.

Returns: A reference to this NURBSSurfaceKit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::NURBSSurfaceKit::staticType = HPS::Type::NURBSSurfaceKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ NURBSSurfaceKit() [1/3]

◆ NURBSSurfaceKit() [2/3]

◆ NURBSSurfaceKit() [3/3]

◆ ~NURBSSurfaceKit()

Member Function Documentation

◆ ClassID()

◆ Consume()

◆ EditPointsByDeletion()

◆ EditPointsByInsertion() [1/2]

◆ EditPointsByInsertion() [2/2]

◆ EditPointsByReplacement() [1/2]

◆ EditPointsByReplacement() [2/2]

◆ EditUKnotsByDeletion()

◆ EditUKnotsByInsertion() [1/2]

◆ EditUKnotsByInsertion() [2/2]

◆ EditUKnotsByReplacement() [1/2]

◆ EditUKnotsByReplacement() [2/2]

◆ EditVKnotsByDeletion()

◆ EditVKnotsByInsertion() [1/2]

◆ EditVKnotsByInsertion() [2/2]

◆ EditVKnotsByReplacement() [1/2]

◆ EditVKnotsByReplacement() [2/2]

◆ EditWeightsByDeletion()

◆ EditWeightsByInsertion() [1/2]

◆ EditWeightsByInsertion() [2/2]

◆ EditWeightsByReplacement() [1/2]

◆ EditWeightsByReplacement() [2/2]

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetInstanceID()

◆ GetPointCount()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetPoints() [1/2]

◆ SetPoints() [2/2]

◆ SetPriority()

◆ SetTrim()

◆ SetTrims() [1/2]

◆ SetTrims() [2/2]

◆ SetUCount()

◆ SetUDegree()

◆ SetUKnots() [1/2]

◆ SetUKnots() [2/2]

◆ SetUserData() [1/3]

◆ SetUserData() [2/3]

◆ SetUserData() [3/3]

◆ SetVCount()

◆ SetVDegree()

◆ SetVKnots() [1/2]

◆ SetVKnots() [2/2]

◆ SetWeights() [1/2]

◆ SetWeights() [2/2]

◆ Show()

◆ ShowPoints()

◆ ShowPointsByList() [1/2]

◆ ShowPointsByList() [2/2]

◆ ShowPointsByRange()

◆ ShowPriority()

◆ ShowTrims()

◆ ShowUCount()

◆ ShowUDegree()

◆ ShowUKnots()

◆ ShowUserData() [1/2]

◆ ShowUserData() [2/2]

◆ ShowUserDataCount()

◆ ShowUserDataIndices()

◆ ShowVCount()

◆ ShowVDegree()
