HPS::Exchange::NURBSConversionOptionsKit Class Reference

The HPS::Exchange::NURBSConversionOptionsKit class is a user space object. More...

#include <sprk_exchange.h>

Inheritance diagram for HPS::Exchange::NURBSConversionOptionsKit:

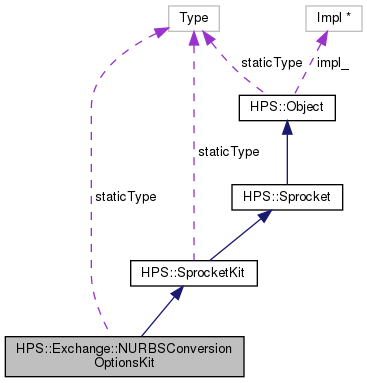

Collaboration diagram for HPS::Exchange::NURBSConversionOptionsKit:

Public Member Functions
	NURBSConversionOptionsKit ()
	The default constructor creates an empty NURBSConversionOptionsKit object. More...
	NURBSConversionOptionsKit (NURBSConversionOptionsKit const &in_kit)
	The copy constructor creates a new NURBSConversionOptionsKit object that contains the same settings as the source NURBSConversionOptionsKit. More...
	NURBSConversionOptionsKit (NURBSConversionOptionsKit &&in_that)
	The move constructor creates an NURBSConversionOptionsKit by transferring the underlying impl of the rvalue reference to this NURBSConversionOptionsKit thereby avoiding a copy and allocation. More...
NURBSConversionOptionsKit &	operator= (NURBSConversionOptionsKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this NURBSConversionOptionsKit thereby avoiding a copy. More...
virtual	~NURBSConversionOptionsKit ()
HPS::Type	ObjectType () const
void	Set (NURBSConversionOptionsKit const &in_kit)
	Copies the source NURBSConversionOptionsKit into this NURBSConversionOptionsKit. More...
void	Show (NURBSConversionOptionsKit &out_kit) const
	Copies this NURBSConversionOptionsKit into the given NURBSConversionOptionsKit. More...
NURBSConversionOptionsKit &	operator= (NURBSConversionOptionsKit const &in_kit)
	Copies the source NURBSConversionOptionsKit into this NURBSConversionOptionsKit. More...
bool	Empty () const
	Indicates whether this NURBSConversionOptionsKit has any values set on it. More...
bool	Equals (NURBSConversionOptionsKit const &in_kit) const
	Check if the source NURBSConversionOptionsKit is equivalent to this NURBSConversionOptionsKit. More...
bool	operator== (NURBSConversionOptionsKit const &in_kit) const
	Check if the source NURBSConversionOptionsKit is equivalent to this NURBSConversionOptionsKit. More...
bool	operator!= (NURBSConversionOptionsKit const &in_kit) const
	Check if the source NURBSConversionOptionsKit is not equivalent to this NURBSConversionOptionsKit. More...
NURBSConversionOptionsKit &	SetCrossSeamCurveReplacement (bool in_state)
	Sets whether to replace UV curves which cross seams of periodic surfaces with 3D curves. More...
NURBSConversionOptionsKit &	Set3DCurvesComputation (bool in_state)
	Sets whether to compute 3D curves from BRep data. More...
NURBSConversionOptionsKit &	SetUVCurvesComputation (bool in_state, bool in_allow_cross_seam_curves)
	Sets whether to compute UV curves from BRep data. More...
NURBSConversionOptionsKit &	SetClosedFaceSplitting (bool in_state)
	Sets whether to split closed faces. More...
NURBSConversionOptionsKit &	SetPeriodicFaceSplitting (bool in_state)
	Sets whether to split periodic faces. More...
NURBSConversionOptionsKit &	SetParameterization (bool in_state)
	Sets whether to keep or recompute the parametrization of surfaces This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_bUseSameParam. More...
NURBSConversionOptionsKit &	SetTolerance (double in_tolerance)
	Sets the tolerance for the conversion. More...
NURBSConversionOptionsKit &	SetAllowedSurfaces (SurfaceTypeArray const &in_allowed_surfaces)
	Sets a list of surface types which are allowed in the resulting conversion This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_puiAcceptableSurfaces. More...
NURBSConversionOptionsKit &	SetAllowedSurfaces (size_t in_count, SurfaceType const in_allowed_surfaces [])
	Sets a list of surface types which are allowed in the resulting conversion This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_puiAcceptableSurfaces. More...
NURBSConversionOptionsKit &	SetAllowedCurves (CurveTypeArray const &in_allowed_curves)
	Sets a list of curves types which are allowed in the resulting conversion This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_puiAcceptableCurves. More...
NURBSConversionOptionsKit &	SetAllowedCurves (size_t in_count, CurveType const in_allowed_curves [])
	Sets a list of curves types which are allowed in the resulting conversion This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_puiAcceptableCurves. More...
NURBSConversionOptionsKit &	UnsetCrossSeamCurveReplacement ()
	Removes the cross seam replacement conversion state. More...
NURBSConversionOptionsKit &	Unset3DCurvesComputation ()
	Removes the 3D curves computation conversion state. More...
NURBSConversionOptionsKit &	UnsetUVCurvesComputation ()
	Removes the UV curves computation conversion state. More...
NURBSConversionOptionsKit &	UnsetClosedFaceSplitting ()
	Removes the closed face splitting conversion state. More...
NURBSConversionOptionsKit &	UnsetPeriodicFaceSplitting ()
	Removes the periodic face splitting conversion state. More...
NURBSConversionOptionsKit &	UnsetParameterization ()
	Removes the parameterization conversion state. More...
NURBSConversionOptionsKit &	UnsetTolerance ()
	Removes the tolerance conversion state. More...
NURBSConversionOptionsKit &	UnsetAllowedSurfaces ()
	Removes the allowed surfaces conversion state. More...
NURBSConversionOptionsKit &	UnsetAllowedCurves ()
	Removes the allowed curves conversion state. More...
NURBSConversionOptionsKit &	UnsetEverything ()
	Removes all settings. More...
bool	ShowCrossSeamCurveReplacement (bool &out_state) const
	Shows the cross seam curve replacement conversion setting. More...
bool	Show3DCurvesComputation (bool &out_state) const
	Shows the 3D curve computation conversion setting. More...
bool	ShowUVCurvesComputation (bool &out_state, bool &out_allow_cross_seam_curves) const
	Shows the UV curve computation conversion setting. More...
bool	ShowClosedFaceSplitting (bool &out_state) const
	Shows the face splitting conversion setting. More...
bool	ShowPeriodicFaceSplitting (bool &out_state) const
	Shows the periodic face splitting conversion setting. More...
bool	ShowParameterization (bool &out_state) const
	Shows the parameterization conversion setting. More...
bool	ShowTolerance (double &out_tolerance) const
	Shows the tolerance conversion setting. More...
bool	ShowAllowedSurfaces (SurfaceTypeArray &out_allowed_surfaces) const
	Shows the allowed surfaces conversion setting. More...
bool	ShowAllowedCurves (CurveTypeArray &out_allowed_curves) const
	Shows the allowed curves conversion setting. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static NURBSConversionOptionsKit	GetDefault ()
	Creates a NURBSConversionOptionsKit which contains the default settings. More...
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ExchangeNURBSConversionOptionsKit

Detailed Description

The HPS::Exchange::NURBSConversionOptionsKit class is a user space object.

It contains settings controlling how data is converted to NURBS curves and surfaces during import.

Constructor & Destructor Documentation

NURBSConversionOptionsKit() [1/3]

HPS::Exchange::NURBSConversionOptionsKit::NURBSConversionOptionsKit

(

)

The default constructor creates an empty NURBSConversionOptionsKit object.

NURBSConversionOptionsKit() [2/3]

HPS::Exchange::NURBSConversionOptionsKit::NURBSConversionOptionsKit

(

NURBSConversionOptionsKit const &

in_kit

)

The copy constructor creates a new NURBSConversionOptionsKit object that contains the same settings as the source NURBSConversionOptionsKit.

Parameters

in_kit

The source NURBSConversionOptionsKit to copy.

NURBSConversionOptionsKit() [3/3]

HPS::Exchange::NURBSConversionOptionsKit::NURBSConversionOptionsKit

(

NURBSConversionOptionsKit &&

in_that

)

The move constructor creates an NURBSConversionOptionsKit by transferring the underlying impl of the rvalue reference to this NURBSConversionOptionsKit thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to an NURBSConversionOptionsKit to take the impl from.

~NURBSConversionOptionsKit()

virtual HPS::Exchange::NURBSConversionOptionsKit::~NURBSConversionOptionsKit ( )

virtual

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

bool HPS::Exchange::NURBSConversionOptionsKit::Empty ( ) const

virtual

Indicates whether this NURBSConversionOptionsKit has any values set on it.

Returns

true if no values are set on this NURBSConversionOptionsKit, false otherwise.

Reimplemented from HPS::Object.

Equals()

bool HPS::Exchange::NURBSConversionOptionsKit::Equals

(

NURBSConversionOptionsKit const &

in_kit

)

const

Check if the source NURBSConversionOptionsKit is equivalent to this NURBSConversionOptionsKit.

Parameters

in_kit

The source NURBSConversionOptionsKit to compare to this NURBSConversionOptionsKit.

Returns

true if the objects are equivalent, false otherwise.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetDefault()

static NURBSConversionOptionsKit HPS::Exchange::NURBSConversionOptionsKit::GetDefault ( )

static

Creates a NURBSConversionOptionsKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default.

Returns

A NURBSConversionOptionsKit with the default settings.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::Exchange::NURBSConversionOptionsKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::SprocketKit.

Here is the call graph for this function:

operator!=()

bool HPS::Exchange::NURBSConversionOptionsKit::operator!=

(

NURBSConversionOptionsKit const &

in_kit

)

const

Check if the source NURBSConversionOptionsKit is not equivalent to this NURBSConversionOptionsKit.

Parameters

in_kit

The source NURBSConversionOptionsKit to compare to this NURBSConversionOptionsKit.

Returns

true if the objects are not equivalent, false otherwise.

operator=() [1/2]

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::operator=

(

NURBSConversionOptionsKit &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this NURBSConversionOptionsKit thereby avoiding a copy.

Parameters

in_that

An rvalue reference to an NURBSConversionOptionsKit to take the impl from.

Returns

A reference to this NURBSConversionOptionsKit.

operator=() [2/2]

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::operator=

(

NURBSConversionOptionsKit const &

in_kit

)

Copies the source NURBSConversionOptionsKit into this NURBSConversionOptionsKit.

Parameters

in_kit

The source NURBSConversionOptionsKit to copy.

Returns

A reference to this NURBSConversionOptionsKit.

operator==()

bool HPS::Exchange::NURBSConversionOptionsKit::operator==

(

NURBSConversionOptionsKit const &

in_kit

)

const

Check if the source NURBSConversionOptionsKit is equivalent to this NURBSConversionOptionsKit.

Parameters

in_kit

The source NURBSConversionOptionsKit to compare to this NURBSConversionOptionsKit.

Returns

true if the objects are equivalent, false otherwise.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::Exchange::NURBSConversionOptionsKit::Set

(

NURBSConversionOptionsKit const &

in_kit

)

Copies the source NURBSConversionOptionsKit into this NURBSConversionOptionsKit.

Parameters

in_kit

The source NURBSConversionOptionsKit to copy.

Set3DCurvesComputation()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::Set3DCurvesComputation

(

bool

in_state

)

Sets whether to compute 3D curves from BRep data.

This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_bForceCompute3D.

Parameters

in_state

Whether to compute 3D curves from BRep data.

Returns

A reference to this NURBSConversionOptionsKit.

SetAllowedCurves() [1/2]

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::SetAllowedCurves

(

CurveTypeArray const &

in_allowed_curves

)

Sets a list of curves types which are allowed in the resulting conversion This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_puiAcceptableCurves.

The array passed to this function will be sorted.

Parameters

in_allowed_curves

An array of curves which the conversion can produce.

Returns

A reference to this NURBSConversionOptionsKit.

SetAllowedCurves() [2/2]

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::SetAllowedCurves	(	size_t	in_count,
		CurveType const	in_allowed_curves[]
	)

Sets a list of curves types which are allowed in the resulting conversion This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_puiAcceptableCurves.

The array passed to this function will be sorted.

Parameters

in_count	The size of in_allowed_curves.
in_allowed_curves	An array of curves which the conversion can produce.

Returns

A reference to this NURBSConversionOptionsKit.

SetAllowedSurfaces() [1/2]

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::SetAllowedSurfaces

(

SurfaceTypeArray const &

in_allowed_surfaces

)

Sets a list of surface types which are allowed in the resulting conversion This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_puiAcceptableSurfaces.

The array passed to this function will be sorted.

Parameters

in_allowed_surfaces

An array of surfaces which the conversion can produce.

Returns

A reference to this NURBSConversionOptionsKit.

SetAllowedSurfaces() [2/2]

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::SetAllowedSurfaces	(	size_t	in_count,
		SurfaceType const	in_allowed_surfaces[]
	)

Sets a list of surface types which are allowed in the resulting conversion This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_puiAcceptableSurfaces.

The array passed to this function will be sorted.

Parameters

in_count	The size of in_allowed_surfaces.
in_allowed_surfaces	An array of surfaces which the conversion can produce.

Returns

A reference to this NURBSConversionOptionsKit.

SetClosedFaceSplitting()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::SetClosedFaceSplitting

(

bool

in_state

)

Sets whether to split closed faces.

This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_bSplitClosedFaces.

Parameters

in_state

Whether to split closed faces at the parametric seam and mid-parameter.

Returns

A reference to this NURBSConversionOptionsKit.

SetCrossSeamCurveReplacement()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::SetCrossSeamCurveReplacement

(

bool

in_state

)

Sets whether to replace UV curves which cross seams of periodic surfaces with 3D curves.

This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_bDeleteCrossingUV.

Parameters

in_state

Whether to replace UV curves which cross seams of periodic surfaces.

Returns

A reference to this NURBSConversionOptionsKit.

SetParameterization()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::SetParameterization

(

bool

in_state

)

Sets whether to keep or recompute the parametrization of surfaces This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_bUseSameParam.

Parameters

in_state

If true, the parametrization information for surfaces will be retained, otherwise it will be recalculated.

Returns

A reference to this NURBSConversionOptionsKit.

SetPeriodicFaceSplitting()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::SetPeriodicFaceSplitting

(

bool

in_state

)

Sets whether to split periodic faces.

This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_bSplitFaces.

Parameters

in_state

Whether to split periodic faces on parametric seams.

Returns

A reference to this NURBSConversionOptionsKit.

SetTolerance()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::SetTolerance

(

double

in_tolerance

)

Sets the tolerance for the conversion.

This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_dTol.

Parameters

in_tolerance

The tolerance of the resulting BRep data. The value is relative to the scale of the model.

Returns

A reference to this NURBSConversionOptionsKit.

SetUVCurvesComputation()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::SetUVCurvesComputation	(	bool	in_state,
		bool	in_allow_cross_seam_curves
	)

Sets whether to compute UV curves from BRep data.

Parameters

in_state	Whether to compute UV curves from BRep data. This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_bForceComputeUV.
in_allow_cross_seam_curves	Whether to allow UV curves to cross seams. This corresponds to the value that will be passed to A3DCopyAndAdaptBrepModelData::m_bAllowUVCrossingSeams.

Returns

A reference to this NURBSConversionOptionsKit.

Show()

void HPS::Exchange::NURBSConversionOptionsKit::Show

(

NURBSConversionOptionsKit &

out_kit

)

const

Copies this NURBSConversionOptionsKit into the given NURBSConversionOptionsKit.

Parameters

out_kit

The NURBSConversionOptionsKit to populate with the contents of this NURBSConversionOptionsKit.

Show3DCurvesComputation()

bool HPS::Exchange::NURBSConversionOptionsKit::Show3DCurvesComputation

(

bool &

out_state

)

const

Shows the 3D curve computation conversion setting.

Parameters

out_state

Whether 3D curves will be computed by the conversion

Returns

true if a 3D curve computation conversion setting was specified, false otherwise.

ShowAllowedCurves()

bool HPS::Exchange::NURBSConversionOptionsKit::ShowAllowedCurves

(

CurveTypeArray &

out_allowed_curves

)

const

Shows the allowed curves conversion setting.

Parameters

out_allowed_curves

The types of curves the conversion is allowed to produce.

Returns

true if an allowed curves conversion setting was specified, false otherwise.

ShowAllowedSurfaces()

bool HPS::Exchange::NURBSConversionOptionsKit::ShowAllowedSurfaces

(

SurfaceTypeArray &

out_allowed_surfaces

)

const

Shows the allowed surfaces conversion setting.

Parameters

out_allowed_surfaces

The types of surfaces the conversion is allowed to produce.

Returns

true if an allowed surfaces conversion setting was specified, false otherwise.

ShowClosedFaceSplitting()

bool HPS::Exchange::NURBSConversionOptionsKit::ShowClosedFaceSplitting

(

bool &

out_state

)

const

Shows the face splitting conversion setting.

Parameters

out_state

Whether faces will be split by the conversion

Returns

true if a closed face splitting conversion setting was specified, false otherwise.

ShowCrossSeamCurveReplacement()

bool HPS::Exchange::NURBSConversionOptionsKit::ShowCrossSeamCurveReplacement

(

bool &

out_state

)

const

Shows the cross seam curve replacement conversion setting.

Parameters

out_state

Whether cross seam curves are going to be replaced by the conversion

Returns

true if a cross seam replacement conversion setting was specified, false otherwise.

ShowParameterization()

bool HPS::Exchange::NURBSConversionOptionsKit::ShowParameterization

(

bool &

out_state

)

const

Shows the parameterization conversion setting.

Parameters

out_state

Whether existing parameterization will be maintained by the conversion

Returns

true if a parameterization conversion setting was specified, false otherwise.

ShowPeriodicFaceSplitting()

bool HPS::Exchange::NURBSConversionOptionsKit::ShowPeriodicFaceSplitting

(

bool &

out_state

)

const

Shows the periodic face splitting conversion setting.

Parameters

out_state

Whether periodic faces will be split by the conversion

Returns

true if a periodic face splitting conversion setting was specified, false otherwise.

ShowTolerance()

bool HPS::Exchange::NURBSConversionOptionsKit::ShowTolerance

(

double &

out_tolerance

)

const

Shows the tolerance conversion setting.

Parameters

out_tolerance

The tolerance that will be used for the conversion

Returns

true if a tolerance conversion setting was specified, false otherwise.

ShowUVCurvesComputation()

bool HPS::Exchange::NURBSConversionOptionsKit::ShowUVCurvesComputation	(	bool &	out_state,
		bool &	out_allow_cross_seam_curves
	)		const

Shows the UV curve computation conversion setting.

Parameters

out_state	Whether UV curves will be computed by the conversion
out_allow_cross_seam_curves	Whether UV curves will be allowed to cross seams

Returns

true if a UV curve computation conversion setting was specified, false otherwise.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

Unset3DCurvesComputation()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::Unset3DCurvesComputation

(

)

Removes the 3D curves computation conversion state.

Returns

A reference to this NURBSConversionOptionsKit.

UnsetAllowedCurves()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::UnsetAllowedCurves

(

)

Removes the allowed curves conversion state.

Returns

A reference to this NURBSConversionOptionsKit.

UnsetAllowedSurfaces()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::UnsetAllowedSurfaces

(

)

Removes the allowed surfaces conversion state.

Returns

A reference to this NURBSConversionOptionsKit.

UnsetClosedFaceSplitting()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::UnsetClosedFaceSplitting

(

)

Removes the closed face splitting conversion state.

Returns

A reference to this NURBSConversionOptionsKit.

UnsetCrossSeamCurveReplacement()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::UnsetCrossSeamCurveReplacement

(

)

Removes the cross seam replacement conversion state.

Returns

A reference to this NURBSConversionOptionsKit.

UnsetEverything()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::UnsetEverything

(

)

Removes all settings.

Returns

A reference to this NURBSConversionOptionsKit.

UnsetParameterization()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::UnsetParameterization

(

)

Removes the parameterization conversion state.

Returns

A reference to this NURBSConversionOptionsKit.

UnsetPeriodicFaceSplitting()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::UnsetPeriodicFaceSplitting

(

)

Removes the periodic face splitting conversion state.

Returns

A reference to this NURBSConversionOptionsKit.

UnsetTolerance()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::UnsetTolerance

(

)

Removes the tolerance conversion state.

Returns

A reference to this NURBSConversionOptionsKit.

UnsetUVCurvesComputation()

NURBSConversionOptionsKit& HPS::Exchange::NURBSConversionOptionsKit::UnsetUVCurvesComputation

(

)

Removes the UV curves computation conversion state.

Returns

A reference to this NURBSConversionOptionsKit.

Member Data Documentation

staticType

const HPS::Type HPS::Exchange::NURBSConversionOptionsKit::staticType = HPS::Type::ExchangeNURBSConversionOptionsKit

static

---

The documentation for this class was generated from the following file:

• sprk_exchange.h
