HPS::PerformanceControl Class Reference

#include <hps.h>

Inheritance diagram for HPS::PerformanceControl:

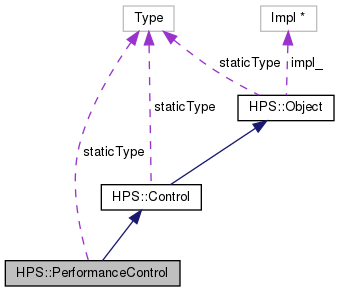

Collaboration diagram for HPS::PerformanceControl:

Public Member Functions
	PerformanceControl (SegmentKey &in_seg)
	Initializes a control tied to the segment in_seg. More...
	PerformanceControl (PerformanceControl const &in_that)
	Initializes a control tied to the same object as in_that. More...
	PerformanceControl (PerformanceControl &&in_that)
	The move constructor creates a PerformanceControl by transferring the underlying impl of the rvalue reference to this PerformanceControl thereby avoiding a copy and allocation. More...
PerformanceControl &	operator= (PerformanceControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this PerformanceControl thereby avoiding a copy. More...
	~PerformanceControl ()
	Releases a reference to the database object this control is tied to. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
HPS::Type	ObjectType () const
PerformanceControl &	operator= (PerformanceControl const &in_that)
	Share the underlying smart-pointer of the PerformanceControl source. More...
PerformanceControl &	SetDisplayLists (Performance::DisplayLists in_display_list=Performance::DisplayLists::Segment)
	Sets the display list state. More...
PerformanceControl &	SetStaticModel (Performance::StaticModel in_model_type)
	Sets the static tree state. More...
PerformanceControl &	UnsetDisplayLists ()
	Removes the display list setting. More...
PerformanceControl &	UnsetStaticModel ()
	Removes the static model state, releasing the compiled draw tree. More...
PerformanceControl &	UnsetEverything ()
	Removes all settings from this object. More...
bool	ShowDisplayLists (Performance::DisplayLists &out_display_list) const
	Shows the display list state. More...
bool	ShowStaticModel (Performance::StaticModel &out_model_type) const
	Shows the static model state. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::PerformanceControl

Private Member Functions
	PerformanceControl ()
	Private default constructor to prevent instantiation without a segment. More...

Detailed Description

The HPS::PerformanceControl class is a smart pointer that is tied to a database object. This object is used to enable and disable performance-related attributes, such as display lists and static model.

This table lists default values for the various segment attributes accessible from HPS::PerformanceControl.

Constructor & Destructor Documentation

PerformanceControl() [1/4]

HPS::PerformanceControl::PerformanceControl ( SegmentKey &  in_seg )

explicit

Initializes a control tied to the segment in_seg.

PerformanceControl() [2/4]

HPS::PerformanceControl::PerformanceControl

(

PerformanceControl const &

in_that

)

Initializes a control tied to the same object as in_that.

PerformanceControl() [3/4]

HPS::PerformanceControl::PerformanceControl

(

PerformanceControl &&

in_that

)

The move constructor creates a PerformanceControl by transferring the underlying impl of the rvalue reference to this PerformanceControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a PerformanceControl to take the impl from.

~PerformanceControl()

HPS::PerformanceControl::~PerformanceControl

(

)

Releases a reference to the database object this control is tied to.

PerformanceControl() [4/4]

HPS::PerformanceControl::PerformanceControl ( )

private

Private default constructor to prevent instantiation without a segment.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::PerformanceControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

operator=() [1/2]

PerformanceControl& HPS::PerformanceControl::operator=

(

PerformanceControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this PerformanceControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a PerformanceControl to take the impl from.

Returns

A reference to this PerformanceControl.

operator=() [2/2]

PerformanceControl& HPS::PerformanceControl::operator=

(

PerformanceControl const &

in_that

)

Share the underlying smart-pointer of the PerformanceControl source.

Parameters

in_that

The PerformanceControl source of the assignment.

Returns

A reference to this PerformanceControl.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetDisplayLists()

PerformanceControl& HPS::PerformanceControl::SetDisplayLists

(

Performance::DisplayLists

in_display_list = Performance::DisplayLists::Segment

)

Sets the display list state.

Display lists enables the drivers to cache data in video card memory for improved rendering performance.

Parameters

in_display_list

The type of display lists, if any, that should be used.

Returns

A reference to this object.

SetStaticModel()

PerformanceControl& HPS::PerformanceControl::SetStaticModel

(

Performance::StaticModel

in_model_type

)

Sets the static tree state.

This will create a compiled draw tree for the scene which should result in better rendering performance. It is important to note that the compiled tree will need to be regenerated if a change occurs within the segment tree.

Parameters

in_model_type

The type of static tree, if any, that should be used.

Returns

A reference to this object.

ShowDisplayLists()

bool HPS::PerformanceControl::ShowDisplayLists

(

Performance::DisplayLists &

out_display_list

)

const

Shows the display list state.

Parameters

out_display_list

The type of display lists, if any.

Returns

true if the setting is valid, false otherwise.

ShowStaticModel()

bool HPS::PerformanceControl::ShowStaticModel

(

Performance::StaticModel &

out_model_type

)

const

Shows the static model state.

Parameters

out_model_type

The type of static tree, if any

Returns

true if the setting is valid, false otherwise.

Type()

virtual HPS::Type HPS::PerformanceControl::Type ( ) const

inlinevirtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Control.

UnsetDisplayLists()

PerformanceControl& HPS::PerformanceControl::UnsetDisplayLists

(

)

Removes the display list setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by PerformanceKit::GetDefault().

Returns

A reference to this object.

UnsetEverything()

PerformanceControl& HPS::PerformanceControl::UnsetEverything

(

)

Removes all settings from this object.

If the control is attached to a WindowKey this function restores the default settings of this control as specified by PerformanceKit::GetDefault().

Returns

A reference to this object.

UnsetStaticModel()

PerformanceControl& HPS::PerformanceControl::UnsetStaticModel

(

)

Removes the static model state, releasing the compiled draw tree.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by PerformanceKit::GetDefault().

Returns

A reference to this object.

Member Data Documentation

staticType

const HPS::Type HPS::PerformanceControl::staticType = HPS::Type::PerformanceControl

static

---

The documentation for this class was generated from the following file:

• hps.h
