Internal use only - customers should not use. More...

#include <hps.h>

Inheritance diagram for HPS::ShaderKit:

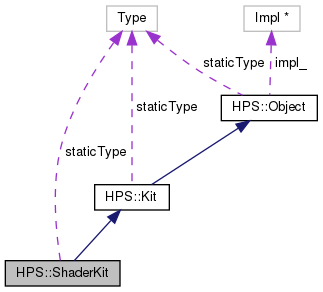

Collaboration diagram for HPS::ShaderKit:

Public Member Functions
	ShaderKit ()
	The default constructor creates an empty ShaderKit object. More...

	ShaderKit (ShaderKit const &in_kit)
	The copy constructor creates a new ShaderKit object that contains the same settings as the source ShaderKit. More...

	ShaderKit (ShaderKit &&in_that)
	The move constructor creates a ShaderKit by transferring the underlying impl of the rvalue reference to this ShaderKit thereby avoiding a copy and allocation. More...

ShaderKit &	operator= (ShaderKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this ShaderKit thereby avoiding a copy. More...

virtual	~ShaderKit ()

HPS::Type	ObjectType () const

void	Set (ShaderKit const &in_kit)
	Copies the source ShaderKit into this ShaderKit. More...

void	Show (ShaderKit &out_kit) const
	Copies this ShaderKit into the given ShaderKit. More...

ShaderKit &	operator= (ShaderKit const &in_kit)
	Copies the source ShaderKit into this ShaderKit. More...

bool	Empty () const
	Indicates whether this ShaderKit has any values set on it. More...

bool	Equals (ShaderKit const &in_kit) const
	Check if the source ShaderKit is equivalent to this ShaderKit. More...

bool	operator== (ShaderKit const &in_kit) const
	Check if the source ShaderKit is equivalent to this ShaderKit. More...

bool	operator!= (ShaderKit const &in_kit) const
	Check if the source ShaderKit is not equivalent to this ShaderKit. More...

ShaderKit &	SetSource (char const *in_source)
	Sets the source code for the shader. More...

ShaderKit &	SetMultitexture (bool in_state)
	Sets whether to apply diffuse textures from layers greater than <span class='code>0 on top of the shader when it is applied to geometry. More...

ShaderKit &	SetParameterizationSource (Shader::Parameterization in_source)
	Sets the parameterization source for the shader. More...

ShaderKit &	SetTransformMatrix (MatrixKit const &in_transform)
	Sets the transform matrix for the shader. More...

ShaderKit &	UnsetSource ()
	Removes the source code for the shader. More...

ShaderKit &	UnsetMultitexture ()
	Removes whether to apply diffuse textures from layers greater than 0 on top of the shader when it is applied to geometry. More...

ShaderKit &	UnsetParameterizationSource ()
	Removes the parameterization source for the shader. More...

ShaderKit &	UnsetTransformMatrix ()
	Removes the transform matrix for the shader. More...

ShaderKit &	UnsetEverything ()
	Removes all settings from this ShaderKit. More...

bool	ShowSource (UTF8 &out_source) const
	Shows the source code for the shader. More...

bool	ShowMultitexture (bool &out_state) const
	Shows whether to apply diffuse textures from layers greater than 0 on top of the shader when it is applied to geometry. More...

bool	ShowParameterizationSource (Shader::Parameterization &out_source) const
	Shows the parameterization source for the shader. More...

bool	ShowTransformMatrix (MatrixKit &out_transform) const
	Shows the transform matrix for the shader. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ShaderKit

Detailed Description

Internal use only - customers should not use.

The ShaderKit class is a user space object. It is used for specifying all settings related to a ShaderDefinition.

Constructor & Destructor Documentation

◆ ShaderKit() [1/3]

HPS::ShaderKit::ShaderKit ( )

The default constructor creates an empty ShaderKit object.

◆ ShaderKit() [2/3]

HPS::ShaderKit::ShaderKit ( ShaderKit const & in_kit )

The copy constructor creates a new ShaderKit object that contains the same settings as the source ShaderKit.

Parameters

in_kit The source ShaderKit to copy.

◆ ShaderKit() [3/3]

HPS::ShaderKit::ShaderKit ( ShaderKit && in_that )

The move constructor creates a ShaderKit by transferring the underlying impl of the rvalue reference to this ShaderKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a ShaderKit to take the impl from.

◆ ~ShaderKit()

virtual HPS::ShaderKit::~ShaderKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Empty()

bool HPS::ShaderKit::Empty ( ) const

virtual

Indicates whether this ShaderKit has any values set on it.

Returns: true if no values are set on this ShaderKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::ShaderKit::Equals ( ShaderKit const & in_kit ) const

Check if the source ShaderKit is equivalent to this ShaderKit.

Parameters

in_kit The source ShaderKit to compare to this ShaderKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::ShaderKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::ShaderKit::operator!= ( ShaderKit const & in_kit ) const

Check if the source ShaderKit is not equivalent to this ShaderKit.

Parameters

in_kit The source ShaderKit to compare to this ShaderKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

ShaderKit& HPS::ShaderKit::operator= ( ShaderKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this ShaderKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a ShaderKit to take the impl from.

Returns: A reference to this ShaderKit.

◆ operator=() [2/2]

ShaderKit& HPS::ShaderKit::operator= ( ShaderKit const & in_kit )

Copies the source ShaderKit into this ShaderKit.

Parameters

in_kit The source ShaderKit to copy.

Returns: A reference to this ShaderKit.

◆ operator==()

bool HPS::ShaderKit::operator== ( ShaderKit const & in_kit ) const

Check if the source ShaderKit is equivalent to this ShaderKit.

Parameters

in_kit The source ShaderKit to compare to this ShaderKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::ShaderKit::Set ( ShaderKit const & in_kit )

Copies the source ShaderKit into this ShaderKit.

Parameters

in_kit The source ShaderKit to copy.

◆ SetMultitexture()

ShaderKit& HPS::ShaderKit::SetMultitexture ( bool in_state )

Sets whether to apply diffuse textures from layers greater than <span class='code>0 on top of the shader when it is applied to geometry.

Parameters

in_state Whether to apply diffuse textures from layers greater than 0 on top of the shader when it is applied to geometry. If true, the additional textures will be applied; if false, the addtional textures will not be applied.

Returns: A reference to this ShaderKit.

◆ SetParameterizationSource()

ShaderKit& HPS::ShaderKit::SetParameterizationSource ( Shader::Parameterization in_source )

Sets the parameterization source for the shader.

Parameters

in_source The parameterization source for the shader.

Returns: A reference to this ShaderKit.

◆ SetSource()

ShaderKit& HPS::ShaderKit::SetSource ( char const * in_source )

Sets the source code for the shader.

Parameters

in_source The source code for the shader.

Returns: A reference to this ShaderKit.

◆ SetTransformMatrix()

ShaderKit& HPS::ShaderKit::SetTransformMatrix ( MatrixKit const & in_transform )

Sets the transform matrix for the shader.

Parameters

in_transform The transform matrix for the shader.

Returns: A reference to this ShaderKit.

◆ Show()

void HPS::ShaderKit::Show ( ShaderKit & out_kit ) const

Copies this ShaderKit into the given ShaderKit.

Parameters

out_kit The ShaderKit to populate with the contents of this ShaderKit.

◆ ShowMultitexture()

bool HPS::ShaderKit::ShowMultitexture ( bool & out_state ) const

Shows whether to apply diffuse textures from layers greater than 0 on top of the shader when it is applied to geometry.

Parameters

out_state whether to apply diffuse textures from layers greater than 0 on top of the shader when it is applied to geometry.

Returns: true if the flag is valid, false otherwise.

◆ ShowParameterizationSource()

bool HPS::ShaderKit::ShowParameterizationSource ( Shader::Parameterization & out_source ) const

Shows the parameterization source for the shader.

Parameters

out_source The parameterization source for the shader.

Returns: true if the parameterization source is valid, false otherwise.

◆ ShowSource()

bool HPS::ShaderKit::ShowSource ( UTF8 & out_source ) const

Shows the source code for the shader.

Parameters

out_source The source code for the shader.

Returns: true if the source code is valid, false otherwise.

◆ ShowTransformMatrix()

bool HPS::ShaderKit::ShowTransformMatrix ( MatrixKit & out_transform ) const

Shows the transform matrix for the shader.

Parameters

out_transform The transform matrix for the shader.

Returns: true if the transform is valid, false otherwise.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetEverything()

ShaderKit& HPS::ShaderKit::UnsetEverything ( )

Removes all settings from this ShaderKit.

Returns: A reference to this ShaderKit.

◆ UnsetMultitexture()

ShaderKit& HPS::ShaderKit::UnsetMultitexture ( )

Removes whether to apply diffuse textures from layers greater than 0 on top of the shader when it is applied to geometry.

Returns: A reference to this ShaderKit.

◆ UnsetParameterizationSource()

ShaderKit& HPS::ShaderKit::UnsetParameterizationSource ( )

Removes the parameterization source for the shader.

Returns: A reference to this ShaderKit.

◆ UnsetSource()

ShaderKit& HPS::ShaderKit::UnsetSource ( )

Removes the source code for the shader.

Returns: A reference to this ShaderKit.

◆ UnsetTransformMatrix()

ShaderKit& HPS::ShaderKit::UnsetTransformMatrix ( )

Removes the transform matrix for the shader.

Returns: A reference to this ShaderKit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::ShaderKit::staticType = HPS::Type::ShaderKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ShaderKit() [1/3]

◆ ShaderKit() [2/3]

◆ ShaderKit() [3/3]

◆ ~ShaderKit()

Member Function Documentation

◆ ClassID()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetMultitexture()

◆ SetParameterizationSource()

◆ SetSource()

◆ SetTransformMatrix()

◆ Show()

◆ ShowMultitexture()

◆ ShowParameterizationSource()

◆ ShowSource()

◆ ShowTransformMatrix()

◆ Type()

◆ UnsetEverything()

◆ UnsetMultitexture()

◆ UnsetParameterizationSource()

◆ UnsetSource()

◆ UnsetTransformMatrix()

Member Data Documentation

◆ staticType
