#include <hps.h>

Inheritance diagram for HPS::SpotlightKit:

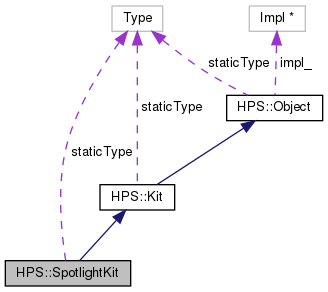

Collaboration diagram for HPS::SpotlightKit:

Public Member Functions
	SpotlightKit ()
	The default constructor creates an empty SpotlightKit object. More...

	SpotlightKit (SpotlightKit const &in_kit)
	The copy constructor creates a new SpotlightKit object that contains the same settings as the source SpotlightKit. More...

	SpotlightKit (SpotlightKit &&in_that)
	The move constructor creates a SpotlightKit by transferring the underlying impl of the rvalue reference to this SpotlightKit thereby avoiding a copy and allocation. More...

SpotlightKit &	operator= (SpotlightKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this SpotlightKit thereby avoiding a copy. More...

virtual	~SpotlightKit ()

HPS::Type	ObjectType () const

void	Consume (SpotlightKit &in_kit)
	Copies the source SpotlightKit into this SpotlightKit and resets the source kit. More...

void	Set (SpotlightKit const &in_kit)
	Copies the source SpotlightKit into this SpotlightKit. More...

void	Show (SpotlightKit &out_kit) const
	Copies this SpotlightKit into the given SpotlightKit. More...

SpotlightKit &	operator= (SpotlightKit const &in_kit)
	Copies the source SpotlightKit into this SpotlightKit. More...

bool	Empty () const
	Indicates whether this SpotlightKit has any values set on it. More...

bool	Equals (SpotlightKit const &in_kit) const
	Check if the source SpotlightKit is equivalent to this SpotlightKit. More...

bool	operator== (SpotlightKit const &in_kit) const
	Check if the source SpotlightKit is equivalent to this SpotlightKit. More...

bool	operator!= (SpotlightKit const &in_kit) const
	Check if the source SpotlightKit is not equivalent to this SpotlightKit. More...

SpotlightKit &	SetPriority (int in_priority)
	Assigns a specific drawing priority value to the SpotlightKit. More...

SpotlightKit &	SetPosition (HPS::Point const &in_position)
	Sets the position of the light source for this SpotlightKit. More...

SpotlightKit &	SetTarget (HPS::Point const &in_target)
	Sets the target coordinate towards which the light source points for this SpotlightKit. More...

SpotlightKit &	SetColor (RGBAColor const &in_rgba_color)
	Sets the RGBA color to use for this SpotlightKit. More...

SpotlightKit &	SetColorByIndex (float in_index)
	Sets the color index to use for this SpotlightKit. More...

SpotlightKit &	SetOuterCone (float in_size, HPS::Spotlight::OuterConeUnits in_units=HPS::Spotlight::OuterConeUnits::Degrees)
	Sets the size of the outer cone for this SpotlightKit. More...

SpotlightKit &	SetInnerCone (float in_size, HPS::Spotlight::InnerConeUnits in_units=HPS::Spotlight::InnerConeUnits::Percent)
	Sets the size of the inner cone for this SpotlightKit. More...

SpotlightKit &	SetConcentration (float in_concentration)
	Sets the concentration for this SpotlightKit. More...

SpotlightKit &	SetCameraRelative (bool in_state)
	Sets the camera-relative setting for this SpotlightKit. More...

SpotlightKit &	UnsetPriority ()
	Removes the drawing priority setting. More...

SpotlightKit &	UnsetPosition ()
	Removes the light source position for this SpotlightKit. More...

SpotlightKit &	UnsetTarget ()
	Removes the target coordinate towards which the light source points for this SpotlightKit. More...

SpotlightKit &	UnsetColor ()
	Removes the color (RGBA or material index) for this SpotlightKit. More...

SpotlightKit &	UnsetOuterCone ()
	Removes the outer-cone size specification for this SpotlightKit. More...

SpotlightKit &	UnsetInnerCone ()
	Removes the inner-cone size specification for this SpotlightKit. More...

SpotlightKit &	UnsetConcentration ()
	Removes the concentration for this SpotlightKit. More...

SpotlightKit &	UnsetCameraRelative ()
	Removes the camera-relative setting for this SpotlightKit. More...

SpotlightKit &	UnsetEverything ()
	Removes all settings from the SpotlightKit. More...

bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...

bool	ShowPosition (HPS::Point &out_position) const
	Shows the position of the light source for this SpotlightKit. More...

bool	ShowTarget (HPS::Point &out_target) const
	Shows the target coordinate towards which the light source points for this SpotlightKit. More...

bool	ShowColor (Material::Type &out_type, RGBAColor &out_rgba_color, float &out_index) const
	Shows the color for this SpotlightKit. More...

bool	ShowOuterCone (float &out_size, HPS::Spotlight::OuterConeUnits &out_units) const
	Shows the outer cone for this SpotlightKit. More...

bool	ShowInnerCone (float &out_size, HPS::Spotlight::InnerConeUnits &out_units) const
	Shows the inner cone for this SpotlightKit. More...

bool	ShowConcentration (float &out_concentration) const
	Shows the concentration for this SpotlightKit. More...

bool	ShowCameraRelative (bool &out_state) const
	Shows the camera-relative setting for this SpotlightKit. More...

SpotlightKit &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this kit. More...

SpotlightKit &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this kit. More...

SpotlightKit &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this kit. More...

SpotlightKit &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this kit. More...

SpotlightKit &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this kit. More...

SpotlightKit &	UnsetUserData (IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this kit. More...

SpotlightKit &	UnsetAllUserData ()
	Removes all user data from this kit. More...

size_t	ShowUserDataCount () const
	Get the number of user data indices set on this kit. More...

bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this kit. More...

bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this kit. More...

bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this kit. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static SpotlightKit	GetDefault ()
	Creates a SpotlightKit which contains the default settings. More...

template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::SpotlightKit

Detailed Description

The HPS::SpotlightKit class is a user space object. It is the kit counterpart to a HPS::SpotlightKey. Calling HPS::SpotlightKit::GetDefault() will return a kit with values found in this table.

Constructor & Destructor Documentation

◆ SpotlightKit() [1/3]

HPS::SpotlightKit::SpotlightKit ( )

The default constructor creates an empty SpotlightKit object.

◆ SpotlightKit() [2/3]

HPS::SpotlightKit::SpotlightKit ( SpotlightKit const & in_kit )

The copy constructor creates a new SpotlightKit object that contains the same settings as the source SpotlightKit.

Parameters

in_kit The source SpotlightKit to copy.

◆ SpotlightKit() [3/3]

HPS::SpotlightKit::SpotlightKit ( SpotlightKit && in_that )

The move constructor creates a SpotlightKit by transferring the underlying impl of the rvalue reference to this SpotlightKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a SpotlightKit to take the impl from.

◆ ~SpotlightKit()

virtual HPS::SpotlightKit::~SpotlightKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Consume()

void HPS::SpotlightKit::Consume ( SpotlightKit & in_kit )

Copies the source SpotlightKit into this SpotlightKit and resets the source kit.

Parameters

in_kit The source SpotlightKit to consume.

◆ Empty()

bool HPS::SpotlightKit::Empty ( ) const

virtual

Indicates whether this SpotlightKit has any values set on it.

Returns: true if no values are set on this SpotlightKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::SpotlightKit::Equals ( SpotlightKit const & in_kit ) const

Check if the source SpotlightKit is equivalent to this SpotlightKit.

Parameters

in_kit The source SpotlightKit to compare to this SpotlightKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetDefault()

static SpotlightKit HPS::SpotlightKit::GetDefault ( )

static

Creates a SpotlightKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default.

Returns: A SpotlightKit with the default settings.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::SpotlightKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::SpotlightKit::operator!= ( SpotlightKit const & in_kit ) const

Check if the source SpotlightKit is not equivalent to this SpotlightKit.

Parameters

in_kit The source SpotlightKit to compare to this SpotlightKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

SpotlightKit& HPS::SpotlightKit::operator= ( SpotlightKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this SpotlightKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a SpotlightKit to take the impl from.

Returns: A reference to this SpotlightKit.

◆ operator=() [2/2]

SpotlightKit& HPS::SpotlightKit::operator= ( SpotlightKit const & in_kit )

Copies the source SpotlightKit into this SpotlightKit.

Parameters

in_kit The source SpotlightKit to copy.

Returns: A reference to this SpotlightKit.

◆ operator==()

bool HPS::SpotlightKit::operator== ( SpotlightKit const & in_kit ) const

Check if the source SpotlightKit is equivalent to this SpotlightKit.

Parameters

in_kit The source SpotlightKit to compare to this SpotlightKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::SpotlightKit::Set ( SpotlightKit const & in_kit )

Copies the source SpotlightKit into this SpotlightKit.

Parameters

in_kit The source SpotlightKit to copy.

◆ SetCameraRelative()

SpotlightKit& HPS::SpotlightKit::SetCameraRelative ( bool in_state )

Sets the camera-relative setting for this SpotlightKit.

This defines what the implied units of the target and position will be.

Parameters

in_state Whether the coordinates of the position and target for this SpotlightKit are treated as being in object space or camera-relative space.

Returns: A reference to this SpotlightKit.

See also: SetPosition; SetTarget

◆ SetColor()

SpotlightKit& HPS::SpotlightKit::SetColor ( RGBAColor const & in_rgba_color )

Sets the RGBA color to use for this SpotlightKit.

Parameters

in_rgba_color The RGBA color to use for this SpotlightKit.

Returns: A reference to this SpotlightKit.

◆ SetColorByIndex()

SpotlightKit& HPS::SpotlightKit::SetColorByIndex ( float in_index )

Sets the color index to use for this SpotlightKit.

Parameters

in_index The color index to use for this SpotlightKit.

Returns: A reference to this SpotlightKit.

◆ SetConcentration()

SpotlightKit& HPS::SpotlightKit::SetConcentration ( float in_concentration )

Sets the concentration for this SpotlightKit.

The concentration defines the rate at which light intensity decreases with increasing angular distance from the light direction vector. This effect works in addition to the decrease that occurs between the inner and outer cones.

Parameters

in_concentration The concentration for the SpotlightKit. This value must be non-negative. A value of 0.0f defines no intensity decrease (besides that between the inner and outer cone), and larger values will concentrate intensity closer to the light direction vector.

Returns: A reference to this SpotlightKit.

◆ SetInnerCone()

SpotlightKit& HPS::SpotlightKit::SetInnerCone	(	float	in_size,
		HPS::Spotlight::InnerConeUnits	in_units = `HPS::Spotlight::InnerConeUnits::Percent`
	)

Sets the size of the inner cone for this SpotlightKit.

The inner cone defines the conic region inside the conic region defined by the outer cone at which the spotlight intensity will decrease linearly to zero at the outer cone's edge. As such, the size of the inner cone should be no larger than the outer cone.

Parameters

in_size	The size of the inner cone for this SpotlightKit. The interpretation of the value and its valid range depends on the units argument.
in_units	The units for the size of the inner cone for this SpotlightKit. Defaults to Spotlight::InnerConeUnits::Percent.

Returns: A reference to this SpotlightKit.

◆ SetOuterCone()

SpotlightKit& HPS::SpotlightKit::SetOuterCone	(	float	in_size,
		HPS::Spotlight::OuterConeUnits	in_units = `HPS::Spotlight::OuterConeUnits::Degrees`
	)

Sets the size of the outer cone for this SpotlightKit.

The outer cone defines the conic region inside of which surfaces will be illuminated by this spotlight. Any surface outside this conic region will not be illuminated by this spotlight.

Parameters

in_size	The size of the outer cone for this SpotlightKit. The interpretation of the value and its valid range depends on the units argument.
in_units	The units for the size of the outer cone for this SpotlightKit. Defaults to Spotlight::OuterConeUnits::Degrees.

Returns: A reference to this SpotlightKit.

◆ SetPosition()

SpotlightKit& HPS::SpotlightKit::SetPosition ( HPS::Point const & in_position )

Sets the position of the light source for this SpotlightKit.

Parameters

in_position The position of the light source for this SpotlightKit. The point will either be treated as being in object space or in camera-relative units depending on the setting passed to SetCameraRelative.

Returns: A reference to this SpotlightKit.

See also: SetCameraRelative

◆ SetPriority()

SpotlightKit& HPS::SpotlightKit::SetPriority ( int in_priority )

Assigns a specific drawing priority value to the SpotlightKit.

It affects the order in which the contents of this segment are drawn if and only if the rendering algorithm is set to Priority.

Parameters

in_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: A reference to this object.

See also: SubwindowKit::SetPriority(); SubwindowKit::SetRenderingAlgorithm()

◆ SetTarget()

SpotlightKit& HPS::SpotlightKit::SetTarget ( HPS::Point const & in_target )

Sets the target coordinate towards which the light source points for this SpotlightKit.

Parameters

in_target The target coordinate towards which the light source points for this SpotlightKit. The point will either be treated as being in object space or in camera-relative units depending on the setting passed to SetCameraRelative.

Returns: A reference to this SpotlightKit.

See also: SetCameraRelative

◆ SetUserData() [1/3]

SpotlightKit& HPS::SpotlightKit::SetUserData	(	intptr_t	in_index,
		size_t	in_bytes,
		byte const	in_data[]
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [2/3]

SpotlightKit& HPS::SpotlightKit::SetUserData	(	intptr_t	in_index,
		ByteArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [3/3]

SpotlightKit& HPS::SpotlightKit::SetUserData	(	IntPtrTArray const &	in_indices,
		ByteArrayArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns: A reference to this kit.

◆ Show()

void HPS::SpotlightKit::Show ( SpotlightKit & out_kit ) const

Copies this SpotlightKit into the given SpotlightKit.

Parameters

out_kit The SpotlightKit to populate with the contents of this SpotlightKit.

◆ ShowCameraRelative()

bool HPS::SpotlightKit::ShowCameraRelative ( bool & out_state ) const

Shows the camera-relative setting for this SpotlightKit.

Parameters

out_state Whether the coordinates of the position and target for this SpotlightKit are treated as being in object space or camera-relative space.

Returns: true if a camera-relative setting was set, false otherwise.

◆ ShowColor()

bool HPS::SpotlightKit::ShowColor	(	Material::Type &	out_type,
		RGBAColor &	out_rgba_color,
		float &	out_index
	)		const

Shows the color for this SpotlightKit.

Parameters

out_type	The type of color for the spotlight.
out_rgba_color	The RGBA color for the spotlight. This is only valid if out_type is Material::Type::RGBAColor.
out_index	The material index for the spotlight. This is only valid if out_type is Material::Type::MaterialIndex.

Returns: true if a color was set, false otherwise.

◆ ShowConcentration()

bool HPS::SpotlightKit::ShowConcentration ( float & out_concentration ) const

Shows the concentration for this SpotlightKit.

Parameters

out_concentration The concentration for this SpotlightKit.

Returns: true if a concentration was set, false otherwise.

◆ ShowInnerCone()

bool HPS::SpotlightKit::ShowInnerCone	(	float &	out_size,
		HPS::Spotlight::InnerConeUnits &	out_units
	)		const

Shows the inner cone for this SpotlightKit.

Parameters

out_size	The size of the inner cone for this SpotlightKit.
out_units	The units for the size of the inner cone for this SpotlightKit.

Returns: true if an inner cone was set, false otherwise.

◆ ShowOuterCone()

bool HPS::SpotlightKit::ShowOuterCone	(	float &	out_size,
		HPS::Spotlight::OuterConeUnits &	out_units
	)		const

Shows the outer cone for this SpotlightKit.

Parameters

out_size	The size of the outer cone for this SpotlightKit.
out_units	The units for the size of the outer cone for this SpotlightKit.

Returns: true if an outer cone was set, false otherwise.

◆ ShowPosition()

bool HPS::SpotlightKit::ShowPosition ( HPS::Point & out_position ) const

Shows the position of the light source for this SpotlightKit.

Parameters

out_position The position of the light source for this SpotlightKit.

Returns: true if a light source position was set, false otherwise.

◆ ShowPriority()

bool HPS::SpotlightKit::ShowPriority ( int & out_priority ) const

Shows the drawing priority.

Parameters

out_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: true if a drawing priority was specified, false otherwise.

◆ ShowTarget()

bool HPS::SpotlightKit::ShowTarget ( HPS::Point & out_target ) const

Shows the target coordinate towards which the light source points for this SpotlightKit.

Parameters

out_target The target coordinate towards which the light source points for this SpotlightKit.

Returns: true if a target was set, false otherwise.

◆ ShowUserData() [1/2]

bool HPS::SpotlightKit::ShowUserData	(	intptr_t	in_index,
		ByteArray &	out_data
	)		const

Shows the user data at a given index for this kit.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns: true if there is user data at the given index, false otherwise.

◆ ShowUserData() [2/2]

bool HPS::SpotlightKit::ShowUserData	(	IntPtrTArray &	out_indices,
		ByteArrayArray &	out_data
	)		const

Shows all user data for this kit.

Parameters

out_indices	An array of all user data indices set on this kit.
out_data	An array of all user data set on this kit.

Returns: true if there is user data on this kit, false otherwise.

◆ ShowUserDataCount()

size_t HPS::SpotlightKit::ShowUserDataCount ( ) const

Get the number of user data indices set on this kit.

◆ ShowUserDataIndices()

bool HPS::SpotlightKit::ShowUserDataIndices ( IntPtrTArray & out_indices ) const

Shows the indices of all user data set on this kit.

Parameters

out_indices The user data indices set on this kit.

Returns: The number of user data indices set on this kit.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetAllUserData()

SpotlightKit& HPS::SpotlightKit::UnsetAllUserData ( )

Removes all user data from this kit.

Returns: A reference to this kit.

◆ UnsetCameraRelative()

SpotlightKit& HPS::SpotlightKit::UnsetCameraRelative ( )

Removes the camera-relative setting for this SpotlightKit.

Returns: A reference to this SpotlightKit.

◆ UnsetColor()

SpotlightKit& HPS::SpotlightKit::UnsetColor ( )

Removes the color (RGBA or material index) for this SpotlightKit.

Returns: A reference to this SpotlightKit.

◆ UnsetConcentration()

SpotlightKit& HPS::SpotlightKit::UnsetConcentration ( )

Removes the concentration for this SpotlightKit.

Returns: A reference to this SpotlightKit.

◆ UnsetEverything()

SpotlightKit& HPS::SpotlightKit::UnsetEverything ( )

Removes all settings from the SpotlightKit.

Returns: A reference to this SpotlightKit.

◆ UnsetInnerCone()

SpotlightKit& HPS::SpotlightKit::UnsetInnerCone ( )

Removes the inner-cone size specification for this SpotlightKit.

Returns: A reference to this SpotlightKit.

◆ UnsetOuterCone()

SpotlightKit& HPS::SpotlightKit::UnsetOuterCone ( )

Removes the outer-cone size specification for this SpotlightKit.

Returns: A reference to this SpotlightKit.

◆ UnsetPosition()

SpotlightKit& HPS::SpotlightKit::UnsetPosition ( )

Removes the light source position for this SpotlightKit.

Returns: A reference to this SpotlightKit.

◆ UnsetPriority()

SpotlightKit& HPS::SpotlightKit::UnsetPriority ( )

Removes the drawing priority setting.

Returns: A reference to this SpotlightKit.

◆ UnsetTarget()

SpotlightKit& HPS::SpotlightKit::UnsetTarget ( )

Removes the target coordinate towards which the light source points for this SpotlightKit.

Returns: A reference to this SpotlightKit.

◆ UnsetUserData() [1/3]

SpotlightKit& HPS::SpotlightKit::UnsetUserData ( intptr_t in_index )

Removes the user data at the given index from this kit.

Parameters

in_index The index of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [2/3]

SpotlightKit& HPS::SpotlightKit::UnsetUserData	(	size_t	in_count,
		intptr_t const	in_indices[]
	)

Removes the user data at the given indices from this kit.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [3/3]

SpotlightKit& HPS::SpotlightKit::UnsetUserData ( IntPtrTArray const & in_indices )

Removes the user data at the given indices from this kit.

Parameters

in_indices The indices of the user data to remove.

Returns: A reference to this kit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::SpotlightKit::staticType = HPS::Type::SpotlightKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SpotlightKit() [1/3]

◆ SpotlightKit() [2/3]

◆ SpotlightKit() [3/3]

◆ ~SpotlightKit()

Member Function Documentation

◆ ClassID()

◆ Consume()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetDefault()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetCameraRelative()

◆ SetColor()

◆ SetColorByIndex()

◆ SetConcentration()

◆ SetInnerCone()

◆ SetOuterCone()

◆ SetPosition()

◆ SetPriority()

◆ SetTarget()

◆ SetUserData() [1/3]

◆ SetUserData() [2/3]

◆ SetUserData() [3/3]

◆ Show()

◆ ShowCameraRelative()

◆ ShowColor()

◆ ShowConcentration()

◆ ShowInnerCone()

◆ ShowOuterCone()

◆ ShowPosition()

◆ ShowPriority()

◆ ShowTarget()

◆ ShowUserData() [1/2]

◆ ShowUserData() [2/2]

◆ ShowUserDataCount()

◆ ShowUserDataIndices()

◆ Type()

◆ UnsetAllUserData()

◆ UnsetCameraRelative()

◆ UnsetColor()

◆ UnsetConcentration()

◆ UnsetEverything()

◆ UnsetInnerCone()

◆ UnsetOuterCone()

◆ UnsetPosition()

◆ UnsetPriority()

◆ UnsetTarget()

◆ UnsetUserData() [1/3]

◆ UnsetUserData() [2/3]

◆ UnsetUserData() [3/3]

Member Data Documentation

◆ staticType
