HPS::SpotlightKey Class Reference

The SpotlightKey class is a smart pointer to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::SpotlightKey:

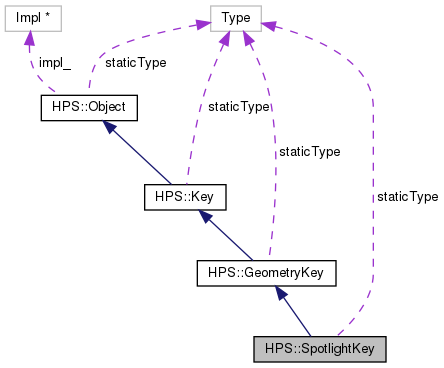

Collaboration diagram for HPS::SpotlightKey:

Public Member Functions
	SpotlightKey ()
	The default constructor creates an uninitialized SpotlightKey object. More...
	SpotlightKey (Key const &in_that)
	This constructor creates a SpotlightKey object that shares the underlying smart-pointer of the source Key. More...
	SpotlightKey (SpotlightKey const &in_that)
	The copy constructor creates a SpotlightKey object that shares the underlying smart-pointer of the source SpotlightKey. More...
SpotlightKey &	operator= (SpotlightKey const &in_that)
	Associate this SpotlightKey with the same underlying impl as the source SpotlightKey. More...
	SpotlightKey (SpotlightKey &&in_that)
	The move constructor creates a SpotlightKey by transferring the underlying impl of the rvalue reference to this SpotlightKey thereby avoiding a copy and allocation. More...
SpotlightKey &	operator= (SpotlightKey &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this SpotlightKey thereby avoiding a copy. More...
	~SpotlightKey ()
HPS::Type	ObjectType () const
void	Consume (SpotlightKit &in_kit)
	Completely replaces all settings on this SpotlightKey with those set on the specified kit and resets the kit.InfiniteLineKey. More...
void	Set (SpotlightKit const &in_kit)
	Replace those settings on this SpotlightKey with those set on the specified kit. More...
void	Show (SpotlightKit &out_kit) const
	Copy the contents of this SpotlightKey into the specified kit. More...
SpotlightKey &	SetPosition (HPS::Point const &in_position)
	Sets the position of the light source for this SpotlightKey. More...
SpotlightKey &	SetTarget (HPS::Point const &in_target)
	Sets the target coordinate towards which the light source points for this SpotlightKey. More...
SpotlightKey &	SetColor (RGBAColor const &in_rgba_color)
	Sets the RGBA color to use for this SpotlightKey. More...
SpotlightKey &	SetColorByIndex (float in_index)
	Sets the color index to use for this SpotlightKey. More...
SpotlightKey &	SetOuterCone (float in_size, HPS::Spotlight::OuterConeUnits in_units=HPS::Spotlight::OuterConeUnits::Degrees)
	Sets the size of the outer cone for this SpotlightKey. More...
SpotlightKey &	SetInnerCone (float in_size, HPS::Spotlight::InnerConeUnits in_units=HPS::Spotlight::InnerConeUnits::Percent)
	Sets the size of the inner cone for this SpotlightKey. More...
SpotlightKey &	SetConcentration (float in_concentration)
	Sets the concentration for this SpotlightKey. More...
SpotlightKey &	SetCameraRelative (bool in_state)
	Sets whether the coordinates of the position and target for this SpotlightKey are treated as being in object space or camera-relative space. More...
SpotlightKey &	UnsetColor ()
	Removes the color (RGBA or material index) set on this SpotlightKey. More...
bool	ShowPosition (HPS::Point &out_position) const
	Shows the position of the light source for this SpotlightKey. More...
bool	ShowTarget (HPS::Point &out_target) const
	Shows the target coordinate towards which the light source points for this SpotlightKey. More...
bool	ShowColor (Material::Type &out_type, RGBAColor &out_rgba_color, float &out_index) const
	Shows the color for this SpotlightKey. More...
bool	ShowOuterCone (float &out_size, HPS::Spotlight::OuterConeUnits &out_units) const
	Shows the outer cone for this SpotlightKey. More...
bool	ShowInnerCone (float &out_size, HPS::Spotlight::InnerConeUnits &out_units) const
	Shows the inner cone for this SpotlightKey. More...
bool	ShowConcentration (float &out_concentration) const
	Shows the concentration for this SpotlightKey. More...
bool	ShowCameraRelative (bool &out_state) const
	Shows whether the coordinates of the position and target for this SpotlightKey are treated as being in object space or camera-relative space. More...
size_t	ShowReferrers (SegmentKeyArray &out_segments) const
	Shows the all the segments which contain references to this key. More...
size_t	ShowReferrers (ReferenceKeyArray &out_references) const
	Shows the all the references to this key. More...
GeometryKey &	SetPriority (int in_priority)
	Assigns a drawing priority value to the geometry. More...
GeometryKey &	UnsetPriority ()
	Removes the drawing priority setting. More...
bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...
GeometryKey &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this key. More...
GeometryKey &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this key. More...
GeometryKey &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this key. More...
GeometryKey &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this key. More...
GeometryKey &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this key. More...
GeometryKey &	UnsetUserData (IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this key. More...
GeometryKey &	UnsetAllUserData ()
	Removes all user data from this key. More...
size_t	ShowUserDataCount () const
	Get the number of user data indices set on this key. More...
bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this key. More...
bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this key. More...
bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this key. More...
bool	ShowBounding (BoundingKit &out_kit) const
	Shows the bounding of this geometry. More...
bool	HasOwner () const
SegmentKey	Up () const
SegmentKey	Owner () const
void	Delete ()
	Removes the database object referred to by this key. More...
void	MoveTo (SegmentKey const &in_new_owner)
	Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner. More...
Key	CopyTo (SegmentKey const &in_destination) const
	Copies the database object referred to by this key into a segment pointed to by in_destination. More...
virtual void	Assign (Key const &in_that)
	Share the underlying smart-pointer of the Key source. More...
bool	Equals (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator!= (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator== (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
size_t	GetHash () const
	Returns a hash code for the key. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::SpotlightKey

Detailed Description

The SpotlightKey class is a smart pointer to a database object.

It is a handle to a spotlight inserted via SegmentKey::InsertSpotlight.

Constructor & Destructor Documentation

SpotlightKey() [1/4]

HPS::SpotlightKey::SpotlightKey

(

)

The default constructor creates an uninitialized SpotlightKey object.

The Type() function will return Type::None.

SpotlightKey() [2/4]

HPS::SpotlightKey::SpotlightKey ( Key const &  in_that )

explicit

This constructor creates a SpotlightKey object that shares the underlying smart-pointer of the source Key.

The copy will only be successful if the source key is really an upcast of a Spotlight key. Otherwise the copy will fail and the resulting SpotlightKey will be invalid.

Parameters

in_key

The source Key to copy.

SpotlightKey() [3/4]

HPS::SpotlightKey::SpotlightKey

(

SpotlightKey const &

in_that

)

The copy constructor creates a SpotlightKey object that shares the underlying smart-pointer of the source SpotlightKey.

Parameters

in_that

The source SpotlightKey to copy.

SpotlightKey() [4/4]

HPS::SpotlightKey::SpotlightKey

(

SpotlightKey &&

in_that

)

The move constructor creates a SpotlightKey by transferring the underlying impl of the rvalue reference to this SpotlightKey thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a SpotlightKey to take the impl from.

~SpotlightKey()

HPS::SpotlightKey::~SpotlightKey

(

)

Member Function Documentation

Assign()

virtual void HPS::Key::Assign ( Key const &  in_that )

virtualinherited

Share the underlying smart-pointer of the Key source.

Parameters

in_that

The Key source of the assignment.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Consume()

void HPS::SpotlightKey::Consume

(

SpotlightKit &

in_kit

)

Completely replaces all settings on this SpotlightKey with those set on the specified kit and resets the kit.InfiniteLineKey.

Parameters

in_kit

The kit from which to get the settings to replace on this SpotlightKey.

CopyTo()

Key HPS::Key::CopyTo ( SegmentKey const &  in_destination ) const

inherited

Copies the database object referred to by this key into a segment pointed to by in_destination.

Returns

The key of the new copy.

Delete()

void HPS::Key::Delete ( )

inherited

Removes the database object referred to by this key.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

bool HPS::Key::Equals ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Empty keys (when key.Empty() returns true) are never equal to any key, even when the key is compared against itself (they act analogously to NaN comparisons in this case.)

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetHash()

size_t HPS::Key::GetHash ( ) const

inherited

Returns a hash code for the key.

Returns

The size_t hash code.

Here is the caller graph for this function:

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasOwner()

bool HPS::Key::HasOwner ( ) const

inherited

Returns

Indicates whether this key has an owner or not.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

MoveTo()

void HPS::Key::MoveTo ( SegmentKey const &  in_new_owner )

inherited

Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner.

ObjectType()

HPS::Type HPS::SpotlightKey::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::GeometryKey.

operator!=()

bool HPS::Key::operator!= ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

operator=() [1/2]

SpotlightKey& HPS::SpotlightKey::operator=

(

SpotlightKey const &

in_that

)

Associate this SpotlightKey with the same underlying impl as the source SpotlightKey.

Parameters

in_that

The source SpotlightKey for the assignment.

Returns

A reference to this SpotlightKey.

operator=() [2/2]

SpotlightKey& HPS::SpotlightKey::operator=

(

SpotlightKey &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this SpotlightKey thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a SpotlightKey to take the impl from.

Returns

A reference to this SpotlightKey.

operator==()

bool HPS::Key::operator== ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Owner()

SegmentKey HPS::Key::Owner ( ) const

inherited

Returns

The segment containing this key.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::SpotlightKey::Set

(

SpotlightKit const &

in_kit

)

Replace those settings on this SpotlightKey with those set on the specified kit.

Parameters

in_kit

The kit from which to get the settings to replace on this SpotlightKey.

SetCameraRelative()

SpotlightKey& HPS::SpotlightKey::SetCameraRelative

(

bool

in_state

)

Sets whether the coordinates of the position and target for this SpotlightKey are treated as being in object space or camera-relative space.

Parameters

in_state

Whether the coordinates of the position and target for this SpotlightKey are treated as being in object space or camera-relative space.

Returns

A reference to this SpotlightKey.

See also

SetPosition

SetTarget

SetColor()

SpotlightKey& HPS::SpotlightKey::SetColor

(

RGBAColor const &

in_rgba_color

)

Sets the RGBA color to use for this SpotlightKey.

Parameters

in_rgba_color

The RGBA color to use for this SpotlightKey.

Returns

A reference to this SpotlightKey.

SetColorByIndex()

SpotlightKey& HPS::SpotlightKey::SetColorByIndex

(

float

in_index

)

Sets the color index to use for this SpotlightKey.

Parameters

in_index

The color index to use for this SpotlightKey.

Returns

A reference to this SpotlightKey.

SetConcentration()

SpotlightKey& HPS::SpotlightKey::SetConcentration

(

float

in_concentration

)

Sets the concentration for this SpotlightKey.

The concentration defines the rate at which light intensity decreases with increasing angular distance from the light direction vector. This effect works in addition to the decrease that occurs between the inner and outer cones.

Parameters

in_concentration

The concentration for the SpotlightKey. This value must be non-negative. A value of 0.0f defines no intensity decrease (besides that between the inner and outer cone), and larger values will concentrate intensity closer to the light direction vector.

Returns

A reference to this SpotlightKey.

SetInnerCone()

SpotlightKey& HPS::SpotlightKey::SetInnerCone	(	float	in_size,
		HPS::Spotlight::InnerConeUnits	in_units = HPS::Spotlight::InnerConeUnits::Percent
	)

Sets the size of the inner cone for this SpotlightKey.

The inner cone defines the conic region inside the conic region defined by the outer cone at which the spotlight intensity will decrease linearly to zero at the outer cone's edge. As such, the size of the inner cone should be no larger than the outer cone.

Parameters

in_size	The size of the inner cone for this SpotlightKey. The interpretation of the value and its valid range depends on the units argument.
in_units	The units for the size of the inner cone for this SpotlightKey. Defaults to Spotlight::InnerConeUnits::Degrees.

Returns

A reference to this SpotlightKey.

SetOuterCone()

SpotlightKey& HPS::SpotlightKey::SetOuterCone	(	float	in_size,
		HPS::Spotlight::OuterConeUnits	in_units = HPS::Spotlight::OuterConeUnits::Degrees
	)

Sets the size of the outer cone for this SpotlightKey.

The outer cone defines the conic region inside of which surfaces will be illuminated by this spotlight. Any surface outside this conic region will not be illuminated by this spotlight.

Parameters

in_size	The size of the outer cone for this SpotlightKey. The interpretation of the value and its valid range depends on the units argument.
in_units	The units for the size of the outer cone for this SpotlightKey. Defaults to Spotlight::OuterConeUnits::Degrees.

Returns

A reference to this SpotlightKey.

SetPosition()

SpotlightKey& HPS::SpotlightKey::SetPosition

(

HPS::Point const &

in_position

)

Sets the position of the light source for this SpotlightKey.

Parameters

in_position

The position of the light source for this SpotlightKey. The point will either be treated as being in object space or in camera-relative units depending on the setting passed to SetCameraRelative.

Returns

A reference to this SpotlightKey.

See also

SetCameraRelative

SetPriority()

GeometryKey& HPS::GeometryKey::SetPriority ( int  in_priority )

inherited

Assigns a drawing priority value to the geometry.

It affects the order in which the geometry is visited if and only if the rendering algorithm is set to Priority. The geometry has a default drawing priority assigned, based on the order of insertion.

Parameters

in_priority

The drawing priority; higher priority items are drawn on top of lower priority items.

Returns

A reference to this object.

See also

SubwindowKit::SetRenderingAlgorithm()

SetTarget()

SpotlightKey& HPS::SpotlightKey::SetTarget

(

HPS::Point const &

in_target

)

Sets the target coordinate towards which the light source points for this SpotlightKey.

Parameters

in_target

The target coordinate towards which the light source points for this SpotlightKey. The point will either be treated as being in object space or in camera-relative units depending on the setting passed to SetCameraRelative.

Returns

A reference to this SpotlightKey.

See also

SetCameraRelative

SetUserData() [1/3]

GeometryKey& HPS::GeometryKey::SetUserData ( intptr_t  in_index, size_t  in_bytes, byte const  in_data[]  )

inherited

Sets user data on this key.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns

A reference to this key.

SetUserData() [2/3]

GeometryKey& HPS::GeometryKey::SetUserData ( intptr_t  in_index, ByteArray const &  in_data  )

inherited

Sets user data on this key.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns

A reference to this key.

SetUserData() [3/3]

GeometryKey& HPS::GeometryKey::SetUserData ( IntPtrTArray const &  in_indices, ByteArrayArray const &  in_data  )

inherited

Sets user data on this key.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns

A reference to this key.

Show()

void HPS::SpotlightKey::Show

(

SpotlightKit &

out_kit

)

const

Copy the contents of this SpotlightKey into the specified kit.

Parameters

out_kit

The kit to populate with the contents of this SpotlightKey.

ShowBounding()

bool HPS::GeometryKey::ShowBounding ( BoundingKit &  out_kit ) const

inherited

Shows the bounding of this geometry.

Parameters

out_kit

The BoundingKit that is set on this GeometryKey

Returns

False if no bounding exists.

ShowCameraRelative()

bool HPS::SpotlightKey::ShowCameraRelative

(

bool &

out_state

)

const

Shows whether the coordinates of the position and target for this SpotlightKey are treated as being in object space or camera-relative space.

Parameters

out_state

Whether the coordinates of the position and target for this SpotlightKey are treated as being in object space or camera-relative space.

Returns

true if a camera-relative setting was set, false otherwise.

ShowColor()

bool HPS::SpotlightKey::ShowColor	(	Material::Type &	out_type,
		RGBAColor &	out_rgba_color,
		float &	out_index
	)		const

Shows the color for this SpotlightKey.

Parameters

out_type	The type of color for the spotlight.
out_rgba_color	The RGBA color for the spotlight. This is only valid if out_type is Material::Type::RGBAColor.
out_index	The material index for the spotlight. This is only valid if out_type is Material::Type::MaterialIndex.

Returns

true if a color was set, false otherwise.

ShowConcentration()

bool HPS::SpotlightKey::ShowConcentration

(

float &

out_concentration

)

const

Shows the concentration for this SpotlightKey.

Parameters

out_concentration

The concentration for this SpotlightKey.

Returns

true if a concentration was set, false otherwise.

ShowInnerCone()

bool HPS::SpotlightKey::ShowInnerCone	(	float &	out_size,
		HPS::Spotlight::InnerConeUnits &	out_units
	)		const

Shows the inner cone for this SpotlightKey.

Parameters

out_size	The size of the inner cone for this SpotlightKey.
out_units	The units for the size of the inner cone for this SpotlightKey.

Returns

true if an inner cone was set, false otherwise.

ShowOuterCone()

bool HPS::SpotlightKey::ShowOuterCone	(	float &	out_size,
		HPS::Spotlight::OuterConeUnits &	out_units
	)		const

Shows the outer cone for this SpotlightKey.

Parameters

out_size	The size of the outer cone for this SpotlightKey.
out_units	The units for the size of the outer cone for this SpotlightKey.

Returns

true if an outer cone was set, false otherwise.

ShowPosition()

bool HPS::SpotlightKey::ShowPosition

(

HPS::Point &

out_position

)

const

Shows the position of the light source for this SpotlightKey.

Parameters

out_position

The position of the light source for this SpotlightKey.

Returns

true if a light source position was set, false otherwise.

ShowPriority()

bool HPS::GeometryKey::ShowPriority ( int &  out_priority ) const

inherited

Shows the drawing priority.

Parameters

out_priority

The drawing priority; higher priority items are drawn on top of lower priority items.

Returns

true if a priority was specified, false otherwise.

ShowReferrers() [1/2]

size_t HPS::GeometryKey::ShowReferrers ( SegmentKeyArray &  out_segments ) const

inherited

Shows the all the segments which contain references to this key.

Note that while a segment may only appear once in the returned array, that segment could have multiple references to this key.

Parameters

out_segments

The list of segments which contains references to this key.

Returns

The number of segments which contain references to this key.

ShowReferrers() [2/2]

size_t HPS::GeometryKey::ShowReferrers ( ReferenceKeyArray &  out_references ) const

inherited

Shows the all the references to this key.

Parameters

out_references

The list of all references to this key.

Returns

The number of references to this key.

ShowTarget()

bool HPS::SpotlightKey::ShowTarget

(

HPS::Point &

out_target

)

const

Shows the target coordinate towards which the light source points for this SpotlightKey.

Parameters

out_target

The target coordinate towards which the light source points for this SpotlightKey.

Returns

true if a target was set, false otherwise.

ShowUserData() [1/2]

bool HPS::GeometryKey::ShowUserData ( intptr_t  in_index, ByteArray &  out_data  ) const

inherited

Shows the user data at a given index for this key.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns

true if there is user data at the given index, false otherwise.

ShowUserData() [2/2]

bool HPS::GeometryKey::ShowUserData ( IntPtrTArray &  out_indices, ByteArrayArray &  out_data  ) const

inherited

Shows all user data for this key.

Parameters

out_indices	An array of all user data indices set on this key.
out_data	An array of all user data set on this key.

Returns

true if there is user data on this key, false otherwise.

ShowUserDataCount()

size_t HPS::GeometryKey::ShowUserDataCount ( ) const

inherited

Get the number of user data indices set on this key.

ShowUserDataIndices()

bool HPS::GeometryKey::ShowUserDataIndices ( IntPtrTArray &  out_indices ) const

inherited

Shows the indices of all user data set on this key.

Parameters

out_indices

The user data indices set on this key.

Returns

The number of user data indices set on this key.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetAllUserData()

GeometryKey& HPS::GeometryKey::UnsetAllUserData ( )

inherited

Removes all user data from this key.

Returns

A reference to this key.

UnsetColor()

SpotlightKey& HPS::SpotlightKey::UnsetColor

(

)

Removes the color (RGBA or material index) set on this SpotlightKey.

Returns

A reference to this SpotlightKey.

UnsetPriority()

GeometryKey& HPS::GeometryKey::UnsetPriority ( )

inherited

Removes the drawing priority setting.

Returns

A reference to this object.

UnsetUserData() [1/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( intptr_t  in_index )

inherited

Removes the user data at the given index from this key.

Parameters

in_index

The index of the user data to remove.

Returns

A reference to this key.

UnsetUserData() [2/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( size_t  in_count, intptr_t const  in_indices[]  )

inherited

Removes the user data at the given indices from this key.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns

A reference to this key.

UnsetUserData() [3/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( IntPtrTArray const &  in_indices )

inherited

Removes the user data at the given indices from this key.

Parameters

in_indices

The indices of the user data to remove.

Returns

A reference to this key.

Up()

SegmentKey HPS::Key::Up ( ) const

inherited

Returns

The segment containing this key.

Member Data Documentation

staticType

const HPS::Type HPS::SpotlightKey::staticType = HPS::Type::SpotlightKey

static

---

The documentation for this class was generated from the following file:

• hps.h
