HPS::ModellingMatrixControl Class Reference

The ModellingMatrixControl class is a smart pointer that is tied to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::ModellingMatrixControl:

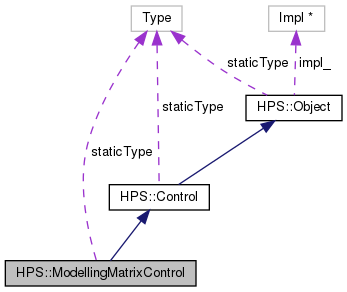

Collaboration diagram for HPS::ModellingMatrixControl:

Public Member Functions
	ModellingMatrixControl (SegmentKey const &in_seg)
	Initializes a control tied to the segment in_seg. More...
	ModellingMatrixControl (ReferenceKey const &in_ref)
	Initializes a control tied to the geometry reference in_ref. More...
	ModellingMatrixControl (ModellingMatrixControl const &in_that)
	Initializes a control tied to the same object as in_that. More...
	ModellingMatrixControl (ModellingMatrixControl &&in_that)
	The move constructor creates a ModellingMatrixControl by transferring the underlying impl of the rvalue reference to this ModellingMatrixControl thereby avoiding a copy and allocation. More...
ModellingMatrixControl &	operator= (ModellingMatrixControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this ModellingMatrixControl thereby avoiding a copy. More...
	~ModellingMatrixControl ()
	Releases a reference to the database object this control is tied to. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
HPS::Type	ObjectType () const
ModellingMatrixControl &	operator= (ModellingMatrixControl const &in_that)
	Share the underlying smart-pointer of the ModellingMatrixControl source. More...
ModellingMatrixControl &	SetElement (size_t in_row, size_t in_column, float in_value)
	Sets a single matrix element. More...
ModellingMatrixControl &	SetElement (size_t in_ordinal_zero_to_fifteen, float in_value)
	Sets a single matrix element, indexed as a linear array in row-major order. More...
ModellingMatrixControl &	SetElements (FloatArray const &in_values)
	Sets some or all elements in the matrix from an array, starting with the first element. More...
ModellingMatrixControl &	SetElements (size_t in_value_count, float const in_values [])
	Sets some or all elements in the matrix from an array, starting with the first element. More...
ModellingMatrixControl &	UnsetEverything ()
	Removes all settings from this object. More...
bool	ShowElement (size_t in_row, size_t in_column, float &out_value) const
	Shows a single matrix element. More...
bool	ShowElement (size_t in_ordinal_zero_to_fifteen, float &out_value) const
	Shows a single matrix element, indexed as a linear array in row-major order. More...
bool	ShowElements (FloatArray &out_matrix) const
	Shows all elements of this matrix as an array. More...
bool	ShowDeterminant (float &out_determinant) const
	Computes the matrix determinant of this matrix. More...
bool	ShowInverse (MatrixKit &out_matrix) const
	Computes the matrix inverse of this matrix. More...
bool	ShowAdjoint (MatrixKit &out_matrix) const
	Computes the matrix adjoint of this matrix. More...
ModellingMatrixControl &	Rotate (float in_x, float in_y, float in_z)
	Concatenates a rotation matrix to this matrix with rotation around the primary axes. More...
ModellingMatrixControl &	RotateOffAxis (Vector const &in_vector, float in_theta)
	Concatenates a rotation matrix to this matrix with rotation around an arbitrary vector. More...
ModellingMatrixControl &	Translate (float in_x, float in_y, float in_z)
	Concatenates a translation matrix to this matrix that moves geometry. More...
ModellingMatrixControl &	Translate (Vector const &in_translation)
	Concatenates a translation matrix to this matrix that moves geometry. More...
ModellingMatrixControl &	Scale (float in_x, float in_y, float in_z)
	Concatenates a scale matrix to this matrix that represents a uniform scaling of the scene. More...
ModellingMatrixControl &	Concatenate (MatrixKit const &in_kit)
	Replaces this matrix with the matrix product of itself multiplied by another matrix. More...
ModellingMatrixControl &	Normalize ()
	Divides this matrix by its determinant. More...
ModellingMatrixControl &	Invert ()
	Replaces this matrix with it's matrix inverse. More...
ModellingMatrixControl &	Adjoint ()
	Replaces this matrix with it's matrix adjoint. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ModellingMatrixControl

Private Member Functions
	ModellingMatrixControl ()
	Private default constructor to prevent instantiation without a segment. More...

Detailed Description

The ModellingMatrixControl class is a smart pointer that is tied to a database object.

This control gives you access to a segment's modelling matrix. You can set an entire matrix or individual elements. Additionally, this class provides a small set of utility methods for all the basic transformations, as well as getting the matrix adjoint and determinant. Elements of modelling matrices are in row-major order.

Constructor & Destructor Documentation

ModellingMatrixControl() [1/5]

HPS::ModellingMatrixControl::ModellingMatrixControl ( SegmentKey const &  in_seg )

explicit

Initializes a control tied to the segment in_seg.

ModellingMatrixControl() [2/5]

HPS::ModellingMatrixControl::ModellingMatrixControl ( ReferenceKey const &  in_ref )

explicit

Initializes a control tied to the geometry reference in_ref.

ModellingMatrixControl() [3/5]

HPS::ModellingMatrixControl::ModellingMatrixControl

(

ModellingMatrixControl const &

in_that

)

Initializes a control tied to the same object as in_that.

ModellingMatrixControl() [4/5]

HPS::ModellingMatrixControl::ModellingMatrixControl

(

ModellingMatrixControl &&

in_that

)

The move constructor creates a ModellingMatrixControl by transferring the underlying impl of the rvalue reference to this ModellingMatrixControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a ModellingMatrixControl to take the impl from.

~ModellingMatrixControl()

HPS::ModellingMatrixControl::~ModellingMatrixControl

(

)

Releases a reference to the database object this control is tied to.

ModellingMatrixControl() [5/5]

HPS::ModellingMatrixControl::ModellingMatrixControl ( )

private

Private default constructor to prevent instantiation without a segment.

Member Function Documentation

Adjoint()

ModellingMatrixControl& HPS::ModellingMatrixControl::Adjoint

(

)

Replaces this matrix with it's matrix adjoint.

The adjoint is similar to the inverse but is always guaranteed to exist, even for singular matrices.

Returns

A reference to this object.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Concatenate()

ModellingMatrixControl& HPS::ModellingMatrixControl::Concatenate

(

MatrixKit const &

in_kit

)

Replaces this matrix with the matrix product of itself multiplied by another matrix.

Parameters

in_kit

the right side operand of the matrix multiplication.

Returns

A reference to this object.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

Invert()

ModellingMatrixControl& HPS::ModellingMatrixControl::Invert

(

)

Replaces this matrix with it's matrix inverse.

If this matrix is singular (determinant = 0), it will be unchanged.

Returns

A reference to this object.

Normalize()

ModellingMatrixControl& HPS::ModellingMatrixControl::Normalize

(

)

Divides this matrix by its determinant.

If this matrix is singular (determinant = 0), it will be unchanged.

Returns

A reference to this object.

ObjectType()

HPS::Type HPS::ModellingMatrixControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

Here is the call graph for this function:

operator=() [1/2]

ModellingMatrixControl& HPS::ModellingMatrixControl::operator=

(

ModellingMatrixControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this ModellingMatrixControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a ModellingMatrixControl to take the impl from.

Returns

A reference to this ModellingMatrixControl.

operator=() [2/2]

ModellingMatrixControl& HPS::ModellingMatrixControl::operator=

(

ModellingMatrixControl const &

in_that

)

Share the underlying smart-pointer of the ModellingMatrixControl source.

Parameters

in_that

The ModellingMatrixControl source of the assignment.

Returns

A reference to this ModellingMatrixControl.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Rotate()

ModellingMatrixControl& HPS::ModellingMatrixControl::Rotate	(	float	in_x,
		float	in_y,
		float	in_z
	)

Concatenates a rotation matrix to this matrix with rotation around the primary axes.

Parameters

in_x	The number of degrees to rotate around the x-axis.
in_y	The number of degrees to rotate around the y-axis.
in_z	The number of degrees to rotate around the z-axis.

Returns

A reference to this object.

RotateOffAxis()

ModellingMatrixControl& HPS::ModellingMatrixControl::RotateOffAxis	(	Vector const &	in_vector,
		float	in_theta
	)

Concatenates a rotation matrix to this matrix with rotation around an arbitrary vector.

Parameters

in_vector	The vector to rotate around.
in_theta	the number of degrees to rotate around the specified vector

Returns

A reference to this object.

Scale()

ModellingMatrixControl& HPS::ModellingMatrixControl::Scale	(	float	in_x,
		float	in_y,
		float	in_z
	)

Concatenates a scale matrix to this matrix that represents a uniform scaling of the scene.

Parameters

in_x	The scale multiplier along the x-axis.
in_y	The scale multiplier along the y-axis.
in_z	The scale multiplier along the z-axis.

Returns

A reference to this object.

SetElement() [1/2]

ModellingMatrixControl& HPS::ModellingMatrixControl::SetElement	(	size_t	in_row,
		size_t	in_column,
		float	in_value
	)

Sets a single matrix element.

Parameters

in_row	The row index. Valid range is [0, 3].
in_column	The column index. Valid range is [0, 3].
in_value	The matrix element.

Returns

A reference to this object.

SetElement() [2/2]

ModellingMatrixControl& HPS::ModellingMatrixControl::SetElement	(	size_t	in_ordinal_zero_to_fifteen,
		float	in_value
	)

Sets a single matrix element, indexed as a linear array in row-major order.

Parameters

in_ordinal_zero_to_fifteen	The offset into the matrix. Valid range is [0, 15].
in_value	The matrix element.

Returns

A reference to this object.

SetElements() [1/2]

ModellingMatrixControl& HPS::ModellingMatrixControl::SetElements

(

FloatArray const &

in_values

)

Sets some or all elements in the matrix from an array, starting with the first element.

Parameters

in_values

An array of float values in row-major order that should replace the values in the matrix.

Returns

A reference to this object.

SetElements() [2/2]

ModellingMatrixControl& HPS::ModellingMatrixControl::SetElements	(	size_t	in_value_count,
		float const	in_values[]
	)

Sets some or all elements in the matrix from an array, starting with the first element.

Parameters

in_value_count	the number of elements in the input array. Valid range is [0, 16].
in_values	An array of float values in row-major order that should replace the values in the matrix.

Returns

A reference to this object.

ShowAdjoint()

bool HPS::ModellingMatrixControl::ShowAdjoint

(

MatrixKit &

out_matrix

)

const

Computes the matrix adjoint of this matrix.

The adjoint is similar to the inverse but is always guaranteed to exist, even for singular matrices.

Parameters

out_matrix

The matrix adjoint of this matrix.

Returns

true if the setting is valid, false otherwise.

ShowDeterminant()

bool HPS::ModellingMatrixControl::ShowDeterminant

(

float &

out_determinant

)

const

Computes the matrix determinant of this matrix.

Parameters

out_determinant

The matrix determinant.

Returns

true if the setting is valid, false otherwise.

ShowElement() [1/2]

bool HPS::ModellingMatrixControl::ShowElement	(	size_t	in_row,
		size_t	in_column,
		float &	out_value
	)		const

Shows a single matrix element.

Parameters

in_row	The row index. Valid range is [0, 3].
in_column	The column index. Valid range is [0, 3].
out_value	The matrix element.

Returns

true if the setting is valid, false otherwise.

ShowElement() [2/2]

bool HPS::ModellingMatrixControl::ShowElement	(	size_t	in_ordinal_zero_to_fifteen,
		float &	out_value
	)		const

Shows a single matrix element, indexed as a linear array in row-major order.

Parameters

in_ordinal_zero_to_fifteen	The offset into the matrix. Valid range is [0, 15].
out_value	The matrix element.

Returns

true if the setting is valid, false otherwise.

ShowElements()

bool HPS::ModellingMatrixControl::ShowElements

(

FloatArray &

out_matrix

)

const

Shows all elements of this matrix as an array.

Parameters

out_matrix

The contents of the matrix arranged as a linear array in row-major order.

Returns

true if the setting is valid, false otherwise.

ShowInverse()

bool HPS::ModellingMatrixControl::ShowInverse

(

MatrixKit &

out_matrix

)

const

Computes the matrix inverse of this matrix.

Fails if this matrix is singular (determinant = 0).

Parameters

out_matrix

The matrix inverse of this matrix.

Returns

true if the setting is valid, false otherwise.

Translate() [1/2]

ModellingMatrixControl& HPS::ModellingMatrixControl::Translate	(	float	in_x,
		float	in_y,
		float	in_z
	)

Concatenates a translation matrix to this matrix that moves geometry.

Parameters

in_x	The number of units to translate along the x-axis.
in_y	The number of units to translate along the y-axis.
in_z	The number of units to translate along the z-axis.

Returns

A reference to this object.

Translate() [2/2]

ModellingMatrixControl& HPS::ModellingMatrixControl::Translate

(

Vector const &

in_translation

)

Concatenates a translation matrix to this matrix that moves geometry.

Parameters

in_translation

A vector distance to translate by.

Returns

A reference to this object.

Type()

virtual HPS::Type HPS::ModellingMatrixControl::Type ( ) const

inlinevirtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Control.

UnsetEverything()

ModellingMatrixControl& HPS::ModellingMatrixControl::UnsetEverything

(

)

Removes all settings from this object.

Returns

A reference to this object.

Member Data Documentation

staticType

const HPS::Type HPS::ModellingMatrixControl::staticType = HPS::Type::ModellingMatrixControl

static

---

The documentation for this class was generated from the following file:

• hps.h
