HPS::ReferenceKey Class Reference

The ReferenceKey class is a smart pointer to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::ReferenceKey:

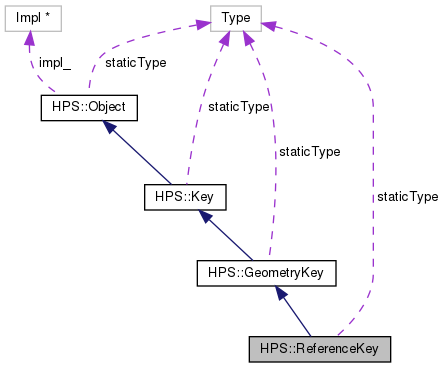

Collaboration diagram for HPS::ReferenceKey:

Public Member Functions
	ReferenceKey ()
	The default constructor creates an uninitialized ReferenceKey object. More...
	ReferenceKey (Key const &in_that)
	This constructor creates an ReferenceKey object that shares the underlying smart-pointer of the source Key. More...
	ReferenceKey (ReferenceKey const &in_that)
	The copy constructor creates a ReferenceKey object that shares the underlying smart-pointer of the source ReferenceKey. More...
ReferenceKey &	operator= (ReferenceKey const &in_that)
	Associate this ReferenceKey with the same underlying impl as the source ReferenceKey. More...
	ReferenceKey (ReferenceKey &&in_that)
	The move constructor creates a ReferenceKey by transferring the underlying impl of the rvalue reference to this ReferenceKey thereby avoiding a copy and allocation. More...
ReferenceKey &	operator= (ReferenceKey &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this ReferenceKey thereby avoiding a copy. More...
	~ReferenceKey ()
HPS::Type	ObjectType () const
Key	GetTarget () const
	Gets the geometry or segment key that was used to create this ReferenceKey. More...
size_t	ShowTargets (bool masked=true) const
	Gets the count of geometry keys or a segment key targeted by this ReferenceKey. More...
size_t	ShowTargets (KeyArray &out_keys, bool masked=true) const
	Gets the geometries keys or a segment key targeted by this ReferenceKey. More...
size_t	ShowGeometryMask () const
	Gets the count of masked geometry types. More...
size_t	ShowGeometryMask (SearchTypeArray &out_geometry_types) const
	Gets the masked geometry types. More...
ReferenceKey &	SetGeometryMask (SearchTypeArray const &in_geometry_types)
	Sets the masked geometry types. More...
ReferenceKey &	UnsetGeometryMask ()
	Resets the masked geometry types on this ReferenceKey to HPS::Search::Type::Geometry. More...
void	SetModellingMatrix (MatrixKit const &in_kit)
	Sets the specified modelling matrix on this reference. More...
ReferenceKey &	SetConditionalExpression (ConditionalExpression const &in_conditional)
	Sets a conditional expression on this ReferenceKey. More...
void	UnsetModellingMatrix ()
	Removes the modelling matrix on this geometry reference. More...
ReferenceKey &	UnsetConditionalExpression ()
	Removes the conditional expression on this ReferenceKey. More...
bool	ShowModellingMatrix (MatrixKit &out_kit) const
	Shows the modelling matrix on this reference. More...
bool	ShowConditionalExpression (ConditionalExpression &out_conditional) const
	Shows the conditional expression for this ReferenceKey. More...
ModellingMatrixControl	GetModellingMatrixControl ()
	Gets a control that allows querying and modifying modelling matrices set on this reference. More...
ModellingMatrixControl const	GetModellingMatrixControl () const
	Gets a control that allows querying modelling matrices set on this reference. More...
size_t	ShowReferrers (SegmentKeyArray &out_segments) const
	Shows the all the segments which contain references to this key. More...
size_t	ShowReferrers (ReferenceKeyArray &out_references) const
	Shows the all the references to this key. More...
GeometryKey &	SetPriority (int in_priority)
	Assigns a drawing priority value to the geometry. More...
GeometryKey &	UnsetPriority ()
	Removes the drawing priority setting. More...
bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...
GeometryKey &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this key. More...
GeometryKey &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this key. More...
GeometryKey &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this key. More...
GeometryKey &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this key. More...
GeometryKey &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this key. More...
GeometryKey &	UnsetUserData (IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this key. More...
GeometryKey &	UnsetAllUserData ()
	Removes all user data from this key. More...
size_t	ShowUserDataCount () const
	Get the number of user data indices set on this key. More...
bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this key. More...
bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this key. More...
bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this key. More...
bool	ShowBounding (BoundingKit &out_kit) const
	Shows the bounding of this geometry. More...
bool	HasOwner () const
SegmentKey	Up () const
SegmentKey	Owner () const
void	Delete ()
	Removes the database object referred to by this key. More...
void	MoveTo (SegmentKey const &in_new_owner)
	Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner. More...
Key	CopyTo (SegmentKey const &in_destination) const
	Copies the database object referred to by this key into a segment pointed to by in_destination. More...
virtual void	Assign (Key const &in_that)
	Share the underlying smart-pointer of the Key source. More...
bool	Equals (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator!= (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator== (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
size_t	GetHash () const
	Returns a hash code for the key. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ReferenceKey

Detailed Description

The ReferenceKey class is a smart pointer to a database object.

It is a handle to a geometry reference returned by SegmentKey::ReferenceGeometry.

Constructor & Destructor Documentation

ReferenceKey() [1/4]

HPS::ReferenceKey::ReferenceKey

(

)

The default constructor creates an uninitialized ReferenceKey object.

The Type() function will return Type::None.

ReferenceKey() [2/4]

HPS::ReferenceKey::ReferenceKey ( Key const &  in_that )

explicit

This constructor creates an ReferenceKey object that shares the underlying smart-pointer of the source Key.

The copy will only be successful if the source key is really an upcast of a reference key. Otherwise the copy will fail and the resulting ReferenceKey will be invalid.

Parameters

in_key

The source Key to copy.

ReferenceKey() [3/4]

HPS::ReferenceKey::ReferenceKey

(

ReferenceKey const &

in_that

)

The copy constructor creates a ReferenceKey object that shares the underlying smart-pointer of the source ReferenceKey.

Parameters

in_that

The source ReferenceKey to copy.

ReferenceKey() [4/4]

HPS::ReferenceKey::ReferenceKey

(

ReferenceKey &&

in_that

)

The move constructor creates a ReferenceKey by transferring the underlying impl of the rvalue reference to this ReferenceKey thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a ReferenceKey to take the impl from.

~ReferenceKey()

HPS::ReferenceKey::~ReferenceKey

(

)

Member Function Documentation

Assign()

virtual void HPS::Key::Assign ( Key const &  in_that )

virtualinherited

Share the underlying smart-pointer of the Key source.

Parameters

in_that

The Key source of the assignment.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

CopyTo()

Key HPS::Key::CopyTo ( SegmentKey const &  in_destination ) const

inherited

Copies the database object referred to by this key into a segment pointed to by in_destination.

Returns

The key of the new copy.

Delete()

void HPS::Key::Delete ( )

inherited

Removes the database object referred to by this key.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

bool HPS::Key::Equals ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Empty keys (when key.Empty() returns true) are never equal to any key, even when the key is compared against itself (they act analogously to NaN comparisons in this case.)

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetHash()

size_t HPS::Key::GetHash ( ) const

inherited

Returns a hash code for the key.

Returns

The size_t hash code.

Here is the caller graph for this function:

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

GetModellingMatrixControl() [1/2]

ModellingMatrixControl HPS::ReferenceKey::GetModellingMatrixControl

(

)

Gets a control that allows querying and modifying modelling matrices set on this reference.

Returns

A control that allows querying and modifying modelling matrices set on this reference.

GetModellingMatrixControl() [2/2]

ModellingMatrixControl const HPS::ReferenceKey::GetModellingMatrixControl

(

)

const

Gets a control that allows querying modelling matrices set on this reference.

Returns

A control that allows querying modelling matrices set on this reference.

GetTarget()

Key HPS::ReferenceKey::GetTarget

(

)

const

Gets the geometry or segment key that was used to create this ReferenceKey.

If multiple geometry are referenced only the first is returned.

Returns

The geometry or segment key that was used to create this ReferenceKey.

HasOwner()

bool HPS::Key::HasOwner ( ) const

inherited

Returns

Indicates whether this key has an owner or not.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

MoveTo()

void HPS::Key::MoveTo ( SegmentKey const &  in_new_owner )

inherited

Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner.

ObjectType()

HPS::Type HPS::ReferenceKey::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::GeometryKey.

operator!=()

bool HPS::Key::operator!= ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

operator=() [1/2]

ReferenceKey& HPS::ReferenceKey::operator=

(

ReferenceKey const &

in_that

)

Associate this ReferenceKey with the same underlying impl as the source ReferenceKey.

Parameters

in_that

The source ReferenceKey for the assignment.

Returns

A reference to this ReferenceKey.

operator=() [2/2]

ReferenceKey& HPS::ReferenceKey::operator=

(

ReferenceKey &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this ReferenceKey thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a ReferenceKey to take the impl from.

Returns

A reference to this ReferenceKey.

operator==()

bool HPS::Key::operator== ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Owner()

SegmentKey HPS::Key::Owner ( ) const

inherited

Returns

The segment containing this key.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetConditionalExpression()

ReferenceKey& HPS::ReferenceKey::SetConditionalExpression

(

ConditionalExpression const &

in_conditional

)

Sets a conditional expression on this ReferenceKey.

This will either make an unconditional reference into a conditional reference, or modify the condition for an existing conditional reference. The target geometry or segment referenced by this reference will only be drawn in the owning segment if a condition satisfying the given conditional expression is set above this reference in the tree.

Parameters

in_conditional

The conditional expression for this ReferenceKey.

Returns

A reference to this ReferenceKey.

See also

SegmentKey::SetCondition

ConditionControl::SetCondition

ConditionControl::AddCondition

SetGeometryMask()

ReferenceKey& HPS::ReferenceKey::SetGeometryMask

(

SearchTypeArray const &

in_geometry_types

)

Sets the masked geometry types.

Only the geometry types included in the mask will be processed by this ReferenceKey. Set HPS::Search::Type::Geometry to process all geometry types.

Parameters

in_geometry_types

The geometry types to be processed by this reference.

SetModellingMatrix()

void HPS::ReferenceKey::SetModellingMatrix

(

MatrixKit const &

in_kit

)

Sets the specified modelling matrix on this reference.

Parameters

in_kit

The modelling matrix to set on this reference.

SetPriority()

GeometryKey& HPS::GeometryKey::SetPriority ( int  in_priority )

inherited

Assigns a drawing priority value to the geometry.

It affects the order in which the geometry is visited if and only if the rendering algorithm is set to Priority. The geometry has a default drawing priority assigned, based on the order of insertion.

Parameters

in_priority

The drawing priority; higher priority items are drawn on top of lower priority items.

Returns

A reference to this object.

See also

SubwindowKit::SetRenderingAlgorithm()

SetUserData() [1/3]

GeometryKey& HPS::GeometryKey::SetUserData ( intptr_t  in_index, size_t  in_bytes, byte const  in_data[]  )

inherited

Sets user data on this key.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns

A reference to this key.

SetUserData() [2/3]

GeometryKey& HPS::GeometryKey::SetUserData ( intptr_t  in_index, ByteArray const &  in_data  )

inherited

Sets user data on this key.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns

A reference to this key.

SetUserData() [3/3]

GeometryKey& HPS::GeometryKey::SetUserData ( IntPtrTArray const &  in_indices, ByteArrayArray const &  in_data  )

inherited

Sets user data on this key.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns

A reference to this key.

ShowBounding()

bool HPS::GeometryKey::ShowBounding ( BoundingKit &  out_kit ) const

inherited

Shows the bounding of this geometry.

Parameters

out_kit

The BoundingKit that is set on this GeometryKey

Returns

False if no bounding exists.

ShowConditionalExpression()

bool HPS::ReferenceKey::ShowConditionalExpression

(

ConditionalExpression &

out_conditional

)

const

Shows the conditional expression for this ReferenceKey.

Parameters

out_conditional

The conditional expression for this ReferenceKey.

Returns

true if a conditional expression is set on this ReferenceKey, false otherwise.

ShowGeometryMask() [1/2]

size_t HPS::ReferenceKey::ShowGeometryMask

(

)

const

Gets the count of masked geometry types.

Only the geometry types included in the mask will be processed by this ReferenceKey. If no mask was explicitly set the mask size is one and the value is HPS::Search::Type::Geometry.

Returns

A count of masked geometry types from this reference.

ShowGeometryMask() [2/2]

size_t HPS::ReferenceKey::ShowGeometryMask

(

SearchTypeArray &

out_geometry_types

)

const

Gets the masked geometry types.

Only the geometry types included in the mask will be processed by this ReferenceKey. If no mask was explicitly set the mask size is one and the value is HPS::Search::Type::Geometry.

Parameters

out_geometry_types

The geometry types processed by this reference.

Returns

A count of masked geometry types from this reference.

ShowModellingMatrix()

bool HPS::ReferenceKey::ShowModellingMatrix

(

MatrixKit &

out_kit

)

const

Shows the modelling matrix on this reference.

Parameters

out_kit

The modelling matrix set on this reference.

Returns

true if a modelling matrix was set, false otherwise.

ShowPriority()

bool HPS::GeometryKey::ShowPriority ( int &  out_priority ) const

inherited

Shows the drawing priority.

Parameters

out_priority

The drawing priority; higher priority items are drawn on top of lower priority items.

Returns

true if a priority was specified, false otherwise.

ShowReferrers() [1/2]

size_t HPS::GeometryKey::ShowReferrers ( SegmentKeyArray &  out_segments ) const

inherited

Shows the all the segments which contain references to this key.

Note that while a segment may only appear once in the returned array, that segment could have multiple references to this key.

Parameters

out_segments

The list of segments which contains references to this key.

Returns

The number of segments which contain references to this key.

ShowReferrers() [2/2]

size_t HPS::GeometryKey::ShowReferrers ( ReferenceKeyArray &  out_references ) const

inherited

Shows the all the references to this key.

Parameters

out_references

The list of all references to this key.

Returns

The number of references to this key.

ShowTargets() [1/2]

size_t HPS::ReferenceKey::ShowTargets

(

bool

masked = true

)

const

Gets the count of geometry keys or a segment key targeted by this ReferenceKey.

Parameters

masked

If true a geometry mask if present will be applied to the results.

Returns

A count of targeted geometries or a segment from this reference.

ShowTargets() [2/2]

size_t HPS::ReferenceKey::ShowTargets	(	KeyArray &	out_keys,
		bool	masked = true
	)		const

Gets the geometries keys or a segment key targeted by this ReferenceKey.

Parameters

out_keys	The keys targeted by this reference.
masked	If true a geometry mask if present will be applied to the results.

Returns

A count of targeted geometries or segment from this reference and populates out_keys with their keys.

ShowUserData() [1/2]

bool HPS::GeometryKey::ShowUserData ( intptr_t  in_index, ByteArray &  out_data  ) const

inherited

Shows the user data at a given index for this key.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns

true if there is user data at the given index, false otherwise.

ShowUserData() [2/2]

bool HPS::GeometryKey::ShowUserData ( IntPtrTArray &  out_indices, ByteArrayArray &  out_data  ) const

inherited

Shows all user data for this key.

Parameters

out_indices	An array of all user data indices set on this key.
out_data	An array of all user data set on this key.

Returns

true if there is user data on this key, false otherwise.

ShowUserDataCount()

size_t HPS::GeometryKey::ShowUserDataCount ( ) const

inherited

Get the number of user data indices set on this key.

ShowUserDataIndices()

bool HPS::GeometryKey::ShowUserDataIndices ( IntPtrTArray &  out_indices ) const

inherited

Shows the indices of all user data set on this key.

Parameters

out_indices

The user data indices set on this key.

Returns

The number of user data indices set on this key.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetAllUserData()

GeometryKey& HPS::GeometryKey::UnsetAllUserData ( )

inherited

Removes all user data from this key.

Returns

A reference to this key.

UnsetConditionalExpression()

ReferenceKey& HPS::ReferenceKey::UnsetConditionalExpression

(

)

Removes the conditional expression on this ReferenceKey.

This will turn a conditional reference into an unconditional reference.

Returns

A reference to this ReferenceKey.

UnsetGeometryMask()

ReferenceKey& HPS::ReferenceKey::UnsetGeometryMask

(

)

Resets the masked geometry types on this ReferenceKey to HPS::Search::Type::Geometry.

Returns

A reference to this ReferenceKey.

UnsetModellingMatrix()

void HPS::ReferenceKey::UnsetModellingMatrix

(

)

Removes the modelling matrix on this geometry reference.

UnsetPriority()

GeometryKey& HPS::GeometryKey::UnsetPriority ( )

inherited

Removes the drawing priority setting.

Returns

A reference to this object.

UnsetUserData() [1/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( intptr_t  in_index )

inherited

Removes the user data at the given index from this key.

Parameters

in_index

The index of the user data to remove.

Returns

A reference to this key.

UnsetUserData() [2/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( size_t  in_count, intptr_t const  in_indices[]  )

inherited

Removes the user data at the given indices from this key.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns

A reference to this key.

UnsetUserData() [3/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( IntPtrTArray const &  in_indices )

inherited

Removes the user data at the given indices from this key.

Parameters

in_indices

The indices of the user data to remove.

Returns

A reference to this key.

Up()

SegmentKey HPS::Key::Up ( ) const

inherited

Returns

The segment containing this key.

Member Data Documentation

staticType

const HPS::Type HPS::ReferenceKey::staticType = HPS::Type::ReferenceKey

static

---

The documentation for this class was generated from the following file:

• hps.h
