The AnnotationKit class is a user space object. More...

#include <sprk_publish.h>

Inheritance diagram for HPS::Publish::AnnotationKit:

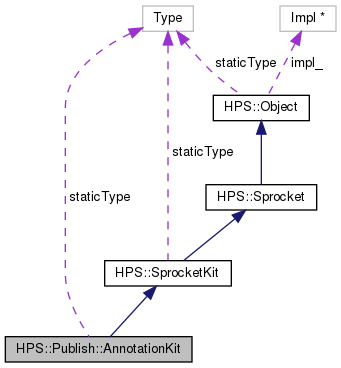

Collaboration diagram for HPS::Publish::AnnotationKit:

Public Member Functions
	AnnotationKit ()
	The default constructor creates an empty AnnotationKit object. More...

	AnnotationKit (AnnotationKit const &in_kit)
	The copy constructor creates a new AnnotationKit object that contains the same settings as the source AnnotationKit. More...

	AnnotationKit (AnnotationKit &&in_kit)
	The move constructor creates an AnnotationKit by transferring the underlying object of the rvalue reference to this AnnotationKit. More...

virtual	~AnnotationKit ()

HPS::Type	ObjectType () const

void	Set (AnnotationKit const &in_kit)
	Copies the source AnnotationKit into this AnnotationKit. More...

void	Show (AnnotationKit &out_kit) const
	Copies this AnnotationKit into the given AnnotationKit. More...

AnnotationKit &	operator= (AnnotationKit const &in_kit)
	Copies the source AnnotationKit into this AnnotationKit. More...

AnnotationKit &	operator= (AnnotationKit &&in_kit)
	The move assignment operator transfers the underlying object of the rvalue reference to this AnnotationKit. More...

bool	Empty () const
	Indicates whether this AnnotationKit has any values set on it. More...

bool	Equals (AnnotationKit const &in_kit) const
	Check if the source AnnotationKit is equivalent to this AnnotationKit. More...

bool	operator== (AnnotationKit const &in_kit) const
	Check if the source AnnotationKit is equivalent to this AnnotationKit. More...

bool	operator!= (AnnotationKit const &in_kit) const
	Check if the source AnnotationKit is not equivalent to this AnnotationKit. More...

AnnotationKit &	SetSource (CADModel const &in_cad_model)
	Sets the source for the annotation to Annotation::SourceType::CADModel. More...

AnnotationKit &	SetSource (KeyPathArray const &in_sources)
	Sets the source for the annotation to Annotation::SourceType::KeyPaths. More...

AnnotationKit &	SetSource (size_t in_count, KeyPath const in_sources[])
	Sets the source for the annotation to Annotation::SourceType::KeyPaths. More...

AnnotationKit &	SetSource (KeyPath const &in_source)
	Sets the source for the annotation to Annotation::SourceType::KeyPaths. More...

AnnotationKit &	SetSource (CADModel const &in_cad_model, KeyPathArray const &in_additional_sources)
	Sets the source for the annotation to Annotation::SourceType::CADModelAndKeyPaths. More...

AnnotationKit &	SetSource (CADModel const &in_cad_model, size_t in_count, KeyPath const in_additional_sources [])
	Sets the source for the annotation to Annotation::SourceType::CADModelAndKeyPaths. More...

AnnotationKit &	SetFormat (Annotation::Format in_format)
	Sets the format of the 3D data for the annotation. More...

AnnotationKit &	SetPRCTessellationCompression (bool in_state)
	Sets whether to compress tessellation for a PRC annotation. More...

AnnotationKit &	SetPRCBRepCompression (PRC::BRepCompression in_level)
	Sets the level of compression to apply to BRep data for a PRC annotation. More...

AnnotationKit &	SetPRCBRepRemoval (bool in_state)
	Sets whether to remove the BRep information in the PRC data for this annotation. More...

AnnotationKit &	SetPRCAttributeRemoval (bool in_state)
	Sets whether to remove the attribute information in the PRC data for this annotation. More...

AnnotationKit &	SetU3DVersion (U3D::Version in_version)
	Sets the version of the data for a U3D annotation. More...

AnnotationKit &	SetU3DCompression (unsigned char in_level)
	Sets the level of compression to apply to tessellations for a U3D annotation. More...

AnnotationKit &	SetName (char const *in_name)
	Sets the name for the annotation. More...

AnnotationKit &	SetArtwork (ArtworkKit const &in_artwork)
	Sets the artwork for the annotation. More...

AnnotationKit &	SetActivation (Activation::When in_when)
	Sets when the annotation is activated. More...

AnnotationKit &	SetDeactivation (Deactivation::When in_when)
	Sets when the annotation is deactivated. More...

AnnotationKit &	SetToolbarVisibility (bool in_state)
	Sets whether to display the toolbar when the annotation is activated. More...

AnnotationKit &	SetModelTreeVisibility (bool in_state)
	Sets whether to display the model tree when the annotation is activated. More...

AnnotationKit &	SetInteractivity (bool in_state)
	Sets whether to enable interactivity on the annotation. More...

AnnotationKit &	SetBorderWidth (int in_width)
	Sets the border width in points for the annotation. More...

AnnotationKit &	SetTransparentBackground (bool in_state)
	Sets whether the annotation background is transparent. More...

AnnotationKit &	SetBackgroundColor (RGBColor const &in_color)
	Sets the background color for the annotation. More...

AnnotationKit &	SetLighting (Lighting::Mode in_mode)
	Sets the lighting mode for the annotation. More...

AnnotationKit &	SetRendering (Rendering::Mode in_mode)
	Sets the rendering mode for the annotation. More...

AnnotationKit &	SetPosterImage (ImageKit const &in_image)
	Sets the poster image for the annotation. More...

AnnotationKit &	SetCarouselButtons (size_t in_count, UTF8 const in_button_names[], char const in_previous_button_name, char const in_next_button_name, size_t in_scroll_size)
	Sets the carousel buttons for the annotation. More...

AnnotationKit &	SetCarouselButtons (UTF8Array const &in_button_names, char const in_previous_button_name, char const in_next_button_name, size_t in_scroll_size)
	Sets the carousel buttons for the annotation. More...

AnnotationKit &	SetCarouselViews (size_t in_count, size_t const in_indices[], ImageKit const in_images[]=nullptr)
	Sets the carousel views for the annotation. More...

AnnotationKit &	SetCarouselViews (SizeTArray const &in_indices, ImageKitArray const &in_images=ImageKitArray())
	Sets the carousel views for the annotation. More...

AnnotationKit &	SetPartsList (size_t in_rows, IntRectangle const &in_location, UTF8Array const &in_headers=UTF8Array(), FloatArray const &in_columns=FloatArray(), TextFieldKit const &in_text_style=TextFieldKit(), TextFieldKit const &in_header_text_style=TextFieldKit())
	Creates a Parts List contained in a scrollable table. More...

AnnotationKit &	SetPartsList (size_t in_rows, IntRectangle const &in_location, char const *in_headers[3], float const in_columns[3], TextFieldKit const &in_text_style=TextFieldKit(), TextFieldKit const &in_header_text_style=TextFieldKit())
	Creates a Parts List contained in a scrollable table. More...

AnnotationKit &	SetViewListByField (char const *in_field)
	Creates a View List Box which contains a list of the Views contained in the source file. More...

AnnotationKit &	SetViewList (IntRectangle const &in_location, HPS::Publish::ListBoxKit const &in_list)
	Creates a View List Box which contains a list of the Views contained in the source file. More...

AnnotationKit &	SetPMIListByField (char const *in_field)
	Creates a PMI List Box which contains a list of the PMI contained in the source file. More...

AnnotationKit &	SetPMIList (IntRectangle const &in_location, HPS::Publish::ListBoxKit const &in_list)
	Creates a PMI List Box which contains a list of the PMI contained in the source file. More...

AnnotationKit &	UnsetSource ()
	Removes the source setting. More...

AnnotationKit &	UnsetFormat ()
	Removes the format setting. More...

AnnotationKit &	UnsetPRCTessellationCompression ()
	Removes the tessellation compression for PRC data setting. More...

AnnotationKit &	UnsetPRCBRepCompression ()
	Removes the BRep compression level for PRC data setting. More...

AnnotationKit &	UnsetPRCBRepRemoval ()
	Removes the BRep removal for PRC data setting. More...

AnnotationKit &	UnsetPRCAttributeRemoval ()
	Removes the attribute removal for PRC data setting. More...

AnnotationKit &	UnsetU3DVersion ()
	Removes the version for U3D data setting. More...

AnnotationKit &	UnsetU3DCompression ()
	Removes the compression level for U3D data setting. More...

AnnotationKit &	UnsetName ()
	Removes the name setting. More...

AnnotationKit &	UnsetArtwork ()
	Removes the artwork setting. More...

AnnotationKit &	UnsetActivation ()
	Removes the activation setting. More...

AnnotationKit &	UnsetDeactivation ()
	Removes the deactivation setting. More...

AnnotationKit &	UnsetToolbarVisibility ()
	Removes the toolbar visibility setting. More...

AnnotationKit &	UnsetModelTreeVisibility ()
	Removes the model tree visibility setting. More...

AnnotationKit &	UnsetInteractivity ()
	Removes the interactivity setting. More...

AnnotationKit &	UnsetBorderWidth ()
	Removes the border width setting. More...

AnnotationKit &	UnsetTransparentBackground ()
	Removes the transparent background setting. More...

AnnotationKit &	UnsetBackgroundColor ()
	Removes the background color setting. More...

AnnotationKit &	UnsetLighting ()
	Removes the lighting mode setting.a. More...

AnnotationKit &	UnsetRendering ()
	Removes the rendering mode setting. More...

AnnotationKit &	UnsetPosterImage ()
	Removes the poster image setting. More...

AnnotationKit &	UnsetCarouselButtons ()
	Removes the carousel buttons setting. More...

AnnotationKit &	UnsetCarouselViews ()
	Removes the carousel views setting. More...

AnnotationKit &	UnsetPartsList ()
	Removes the Parts List setting. More...

AnnotationKit &	UnsetViewList ()
	Removes the View List setting. More...

AnnotationKit &	UnsetPMIList ()
	Removes the PMI List setting. More...

AnnotationKit &	UnsetEverything ()
	Removes all data on the annotation. More...

bool	ShowSource (Annotation::SourceType &out_source_type, CADModel &out_cad_model, KeyPathArray &out_key_paths) const
	Shows the source setting. More...

bool	ShowFormat (Annotation::Format &out_format) const
	Shows the format setting. More...

bool	ShowPRCTessellationCompression (bool &out_state) const
	Shows the tessellation compression for PRC data setting. More...

bool	ShowPRCBRepCompression (PRC::BRepCompression &out_level) const
	Shows the BRep compression level for PRC data setting. More...

bool	ShowPRCBRepRemoval (bool &out_state) const
	Shows the BRep removal for PRC data setting. More...

bool	ShowPRCAttributeRemoval (bool &out_state) const
	Shows the attribute removal for PRC data setting. More...

bool	ShowU3DVersion (U3D::Version &out_version) const
	Shows the version for U3D data setting. More...

bool	ShowU3DCompression (unsigned char &out_level) const
	Shows the compression level for U3D data for the annotation. More...

bool	ShowName (UTF8 &out_name) const
	Shows the name setting. More...

bool	ShowArtwork (ArtworkKit &out_artwork) const
	Shows the artwork setting. More...

bool	ShowActivation (Activation::When &out_when) const
	Shows the activation setting. More...

bool	ShowDeactivation (Deactivation::When &out_when) const
	Shows the deactivation setting. More...

bool	ShowToolbarVisibility (bool &out_state) const
	Shows the toolbar visibility setting. More...

bool	ShowModelTreeVisibility (bool &out_state) const
	Shows the model tree visibility setting. More...

bool	ShowInteractivity (bool &out_state) const
	Shows the interactivity setting. More...

bool	ShowBorderWidth (int &out_width) const
	Shows the border width setting. More...

bool	ShowTransparentBackground (bool &out_state) const
	Shows the transparent background setting. More...

bool	ShowBackgroundColor (RGBColor &out_color) const
	Shows the background color setting. More...

bool	ShowLighting (Lighting::Mode &out_mode) const
	Shows the lighting mode setting. More...

bool	ShowRendering (Rendering::Mode &out_mode) const
	Shows the rendering mode setting. More...

bool	ShowPosterImage (ImageKit &out_image) const
	Shows the poster image setting. More...

bool	ShowCarouselButtons (UTF8Array &out_button_names, UTF8 &out_previous_button_name, UTF8 &out_next_button_name, size_t &out_scroll_size) const
	Shows the carousel buttons setting. More...

bool	ShowCarouselViews (SizeTArray &out_indices, ImageKitArray &out_images) const
	Shows the carousel views setting. More...

bool	ShowPartsList (size_t &out_rows, IntRectangle &out_location, UTF8Array &out_headers, FloatArray &out_columns, TextFieldKit &out_text_style, TextFieldKit &out_header_text_style) const
	Shows the Parts List setting. More...

bool	ShowViewListField (UTF8 &out_field) const
	Shows the View List setting. More...

bool	ShowViewList (IntRectangle &out_location, Publish::ListBoxKit &out_list) const
	Shows the View List setting. More...

bool	ShowPMIListField (UTF8 &out_field) const
	Shows the PMI List setting. More...

bool	ShowPMIList (IntRectangle &out_location, Publish::ListBoxKit &out_list) const
	Shows the PMI List setting. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static AnnotationKit	GetDefault ()
	Creates a AnnotationKit which contains the default settings. More...

template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::PublishAnnotationKit

Detailed Description

The AnnotationKit class is a user space object.

It acts as the container for all data that can be on an annotation in a Publish PDF.

Constructor & Destructor Documentation

◆ AnnotationKit() [1/3]

HPS::Publish::AnnotationKit::AnnotationKit ( )

The default constructor creates an empty AnnotationKit object.

◆ AnnotationKit() [2/3]

HPS::Publish::AnnotationKit::AnnotationKit ( AnnotationKit const & in_kit )

The copy constructor creates a new AnnotationKit object that contains the same settings as the source AnnotationKit.

Parameters

in_kit The source AnnotationKit to copy.

◆ AnnotationKit() [3/3]

HPS::Publish::AnnotationKit::AnnotationKit ( AnnotationKit && in_kit )

The move constructor creates an AnnotationKit by transferring the underlying object of the rvalue reference to this AnnotationKit.

Parameters

in_kit An rvalue reference to an AnnotationKit to take the underlying object from.

◆ ~AnnotationKit()

virtual HPS::Publish::AnnotationKit::~AnnotationKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Empty()

bool HPS::Publish::AnnotationKit::Empty ( ) const

virtual

Indicates whether this AnnotationKit has any values set on it.

Returns: true if no values are set on this AnnotationKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::Publish::AnnotationKit::Equals ( AnnotationKit const & in_kit ) const

Check if the source AnnotationKit is equivalent to this AnnotationKit.

Parameters

in_kit The source AnnotationKit to compare to this AnnotationKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetDefault()

static AnnotationKit HPS::Publish::AnnotationKit::GetDefault ( )

static

Creates a AnnotationKit which contains the default settings.

The returned object will not necessarily have values for every setting, but it will have them where it is reasonable to have a default. These values will be used for export unless a setting is overridden by the AnnotationKit passed to File::Export.

Returns: A AnnotationKit with the default settings.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::Publish::AnnotationKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::SprocketKit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::Publish::AnnotationKit::operator!= ( AnnotationKit const & in_kit ) const

Check if the source AnnotationKit is not equivalent to this AnnotationKit.

Parameters

in_kit The source AnnotationKit to compare to this AnnotationKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

AnnotationKit& HPS::Publish::AnnotationKit::operator= ( AnnotationKit const & in_kit )

Copies the source AnnotationKit into this AnnotationKit.

Parameters

in_kit The source AnnotationKit to copy.

Returns: A reference to this AnnotationKit.

◆ operator=() [2/2]

AnnotationKit& HPS::Publish::AnnotationKit::operator= ( AnnotationKit && in_kit )

The move assignment operator transfers the underlying object of the rvalue reference to this AnnotationKit.

Parameters

in_kit An rvalue reference to an AnnotationKit to take the underlying object from.

Returns: A reference to this AnnotationKit.

◆ operator==()

bool HPS::Publish::AnnotationKit::operator== ( AnnotationKit const & in_kit ) const

Check if the source AnnotationKit is equivalent to this AnnotationKit.

Parameters

in_kit The source AnnotationKit to compare to this AnnotationKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::Publish::AnnotationKit::Set ( AnnotationKit const & in_kit )

Copies the source AnnotationKit into this AnnotationKit.

Parameters

in_kit The source AnnotationKit to copy.

◆ SetActivation()

AnnotationKit& HPS::Publish::AnnotationKit::SetActivation ( Activation::When in_when )

Sets when the annotation is activated.

This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_eActivateWhen.

Parameters

in_when When the annotation is activated.

Returns: A reference to this AnnotationKit.

◆ SetArtwork()

AnnotationKit& HPS::Publish::AnnotationKit::SetArtwork ( ArtworkKit const & in_artwork )

Sets the artwork for the annotation.

This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_p3DArtwork.

Parameters

in_artwork The artwork for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetBackgroundColor()

AnnotationKit& HPS::Publish::AnnotationKit::SetBackgroundColor ( RGBColor const & in_color )

Sets the background color for the annotation.

Unused if there is a transparent background. This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_sBackgroundColor.

Parameters

in_color The background color for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetBorderWidth()

AnnotationKit& HPS::Publish::AnnotationKit::SetBorderWidth ( int in_width )

Sets the border width in points for the annotation.

This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_iAppearanceBorderWidth.

Parameters

in_width The border width in points for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetCarouselButtons() [1/2]

AnnotationKit& HPS::Publish::AnnotationKit::SetCarouselButtons	(	size_t	in_count,
		UTF8 const	in_button_names[],
		char const *	in_previous_button_name,
		char const *	in_next_button_name,
		size_t	in_scroll_size
	)

Sets the carousel buttons for the annotation.

This must be specified for a view carousel to be generated. This corresponds to the button names that will be passed to A3DPDFDefineViewCarousel.

Parameters

in_count	Size of the following array.
in_button_names	UTF8-encoded names for the view buttons in the carousel.
in_previous_button_name	UTF8-encoded name for the previous button.
in_next_button_name	UTF8-encoded name for the next button.
in_scroll_size	Number of buttons to scroll when the previous or next buttons are pressed.

Returns: A reference to this AnnotationKit.

◆ SetCarouselButtons() [2/2]

AnnotationKit& HPS::Publish::AnnotationKit::SetCarouselButtons	(	UTF8Array const &	in_button_names,
		char const *	in_previous_button_name,
		char const *	in_next_button_name,
		size_t	in_scroll_size
	)

Sets the carousel buttons for the annotation.

This must be specified for a view carousel to be generated. This corresponds to the button names that will be passed to A3DPDFDefineViewCarousel.

Parameters

in_button_names	Names for the view buttons in the carousel.
in_previous_button_name	UTF8-encoded name for the previous button.
in_next_button_name	UTF8-encoded name for the next button.
in_scroll_size	Number of buttons to scroll when the previous or next buttons are pressed.

Returns: A reference to this AnnotationKit.

◆ SetCarouselViews() [1/2]

AnnotationKit& HPS::Publish::AnnotationKit::SetCarouselViews	(	size_t	in_count,
		size_t const	in_indices[],
		ImageKit const	in_images[] = `nullptr`
	)

Sets the carousel views for the annotation.

This can be optionally specified for a view carousel. This corresponds to the views and images that will be passed to A3DPDFDefineViewCarousel.

Parameters

in_count	Size of the following array.
in_indices	Indices of the views on the associated ArtworkKit to use for the view carousel.
in_images	Images to use for the view carousel buttons. If unspecified, images will be generated from the views themselves.

Returns: A reference to this AnnotationKit.

See also: SetArtwork; ArtworkKit::SetViews

◆ SetCarouselViews() [2/2]

AnnotationKit& HPS::Publish::AnnotationKit::SetCarouselViews	(	SizeTArray const &	in_indices,
		ImageKitArray const &	in_images = `ImageKitArray()`
	)

Sets the carousel views for the annotation.

This can be optionally specified for a view carousel. This corresponds to the views and images that will be passed to A3DPDFDefineViewCarousel.

Parameters

in_indices	Indices of the views on the associated ArtworkKit to use for the view carousel.
in_images	Images to use for the view carousel buttons. If unspecified, images will be generated from the views themselves.

Returns: A reference to this AnnotationKit.

See also: SetArtwork; ArtworkKit::SetViews

◆ SetDeactivation()

AnnotationKit& HPS::Publish::AnnotationKit::SetDeactivation ( Deactivation::When in_when )

Sets when the annotation is deactivated.

This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_eDesactiveWhen.

Parameters

in_when When the annotation is deactivated.

Returns: A reference to this AnnotationKit.

◆ SetFormat()

AnnotationKit& HPS::Publish::AnnotationKit::SetFormat ( Annotation::Format in_format )

Sets the format of the 3D data for the annotation.

Parameters

in_format The format of the 3D data for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetInteractivity()

AnnotationKit& HPS::Publish::AnnotationKit::SetInteractivity ( bool in_state )

Sets whether to enable interactivity on the annotation.

This corresponds to the (negated) value that will be passed to A3DPDF3DAnnotData::m_bDisableInteractivity.

Parameters

in_state Whether to enable interactivity on the annotation.

Returns: A reference to this AnnotationKit.

◆ SetLighting()

AnnotationKit& HPS::Publish::AnnotationKit::SetLighting ( Lighting::Mode in_mode )

Sets the lighting mode for the annotation.

This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_eLighting.

Parameters

in_mode The lighting mode for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetModelTreeVisibility()

AnnotationKit& HPS::Publish::AnnotationKit::SetModelTreeVisibility ( bool in_state )

Sets whether to display the model tree when the annotation is activated.

This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_bOpenModelTree.

Parameters

in_state Whether to display the model tree when the annotation is activated.

Returns: A reference to this AnnotationKit.

◆ SetName()

AnnotationKit& HPS::Publish::AnnotationKit::SetName ( char const * in_name )

Sets the name for the annotation.

This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_pcName.

Parameters

in_name UTF8-encoded name for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetPartsList() [1/2]

AnnotationKit& HPS::Publish::AnnotationKit::SetPartsList	(	size_t	in_rows,
		IntRectangle const &	in_location,
		UTF8Array const &	in_headers = `UTF8Array()`,
		FloatArray const &	in_columns = `FloatArray()`,
		TextFieldKit const &	in_text_style = `TextFieldKit()`,
		TextFieldKit const &	in_header_text_style = `TextFieldKit()`
	)

Creates a Parts List contained in a scrollable table.

The table will have three columns, listing part number, part name and quantity. The Parts List can only be calculated if the Annotation source is a CADModel, and the annotation format is PRC.

Parameters

in_rows	The number of rows for the table housing the Parts List (including the header row)
in_location	The location of the table housing the Parts List, specified in points relative to bottom left of the page. All fields in the location will be used.
in_headers	The strings displayed in the column headers. The size of this array should be 3. The first column lists the part numbers. The second column lists the part name. The third column lists the part quantity. Leaving it unspecified will result in a table with no headers.
in_columns	An array of three percentages, specifying the width of each of the table's columns as a percentage of the table width. The total of the values contained in in_columns should total 1.0. For example, if the columns should take up 10%, 80% and 10% of the table width respectively, in_column will contain 0.1, 0.8, 0.1 Leaving in_columns unspecified will use the default column widths.
in_text_style	The text style used for the cells of the table. If not specified, default formatting is used.
in_header_text_style	The text style used for the header of the table. If not specified, default formatting is used.

Returns: A reference to this AnnotationKit.

Warning: The TableToPDF Publish add-on must be installed in order to use this feature.

◆ SetPartsList() [2/2]

AnnotationKit& HPS::Publish::AnnotationKit::SetPartsList	(	size_t	in_rows,
		IntRectangle const &	in_location,
		char const *	in_headers[3],
		float const	in_columns[3],
		TextFieldKit const &	in_text_style = `TextFieldKit()`,
		TextFieldKit const &	in_header_text_style = `TextFieldKit()`
	)

Creates a Parts List contained in a scrollable table.

The table will have three columns, listing part number, part name and quantity. The Parts List can only be calculated if the Annotation source is a CADModel, and the annotation format is PRC.

Parameters

in_rows	The number of rows for the table housing the Parts List (including the header row)
in_location	The location of the table housing the Parts List, specified in points relative to bottom left of the page. All fields in the location will be used.
in_headers	The strings displayed in the column headers. The first column lists the part numbers. The second column lists the part name. The third column lists the part quantity. Leaving it unspecified will result in a table with no headers.
in_columns	An array of three percentages, specifying the width of each of the table's columns as a percentage of the table width. The total of the values contained in in_columns should total 1.0. For example, if the columns should take up 10%, 80% and 10% of the table width respectively, in_column will contain 0.1, 0.8, 0.1 Leaving in_columns unspecified will use the default column widths.
in_text_style	The text style used for the cells of the table. If not specified, default formatting is used.
in_header_text_style	The text style used for the header of the table. If not specified, default formatting is used.

Returns: A reference to this AnnotationKit.

Warning: The TableToPDF Publish add-on must be installed in order to use this feature.

◆ SetPMIList()

AnnotationKit& HPS::Publish::AnnotationKit::SetPMIList	(	IntRectangle const &	in_location,
		HPS::Publish::ListBoxKit const &	in_list
	)

Creates a PMI List Box which contains a list of the PMI contained in the source file.

Clicking on the entries of the list will highlight the associated PMI in the 3D annotation. The PMI List can only be calculated if the Annotation source is a CADModel, and the annotation format is PRC. If a View List or a View Carousel are also set on this annotation kit, the PMI List will only show the PMIs which are visible in the View you currently have selected in the PDF.

Parameters

in_location	The location of the PMI List, specified in points relative to bottom left of the page. All fields in the location will be used.
in_list	The ListBoxKit used to specify the attributes of the PMI List.

Returns: A reference to this AnnotationKit.

◆ SetPMIListByField()

AnnotationKit& HPS::Publish::AnnotationKit::SetPMIListByField ( char const * in_field )

Creates a PMI List Box which contains a list of the PMI contained in the source file.

Clicking on the entries of the list will highlight the associated PMI in the 3D annotation. The PMI List can only be calculated if the Annotation source is a CADModel, and the annotation format is PRC. If a View List or a View Carousel are also set on this annotation kit, the PMI List will only show the PMIs which are visible in the View you currently have selected in the PDF.

Parameters

in_field UTF8-encoded form field name for the PMI List.

Returns: A reference to this AnnotationKit.

◆ SetPosterImage()

AnnotationKit& HPS::Publish::AnnotationKit::SetPosterImage ( ImageKit const & in_image )

Sets the poster image for the annotation.

If this is not specified a poster image will be generated by Publish. This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_pPosterImage.

Parameters

in_image The poster image for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetPRCAttributeRemoval()

AnnotationKit& HPS::Publish::AnnotationKit::SetPRCAttributeRemoval ( bool in_state )

Sets whether to remove the attribute information in the PRC data for this annotation.

This setting is only relevant if the format of the annotation is Annotation::Format::PRC. This corresponds to the value that will be passed to A3DRWParamsExportPrcData::m_bRemoveAttributes.

Parameters

in_state Whether to remove the attribute information in the PRC data for this annotation.

Returns: A reference to this AnnotationKit.

◆ SetPRCBRepCompression()

AnnotationKit& HPS::Publish::AnnotationKit::SetPRCBRepCompression ( PRC::BRepCompression in_level )

Sets the level of compression to apply to BRep data for a PRC annotation.

This setting is only relevant if the format of the annotation is Annotation::Format::PRC. This corresponds to the values that will be passed to A3DRWParamsExportPrcData::m_bCompressBrep and A3DRWParamsExportPrcData::m_eCompressBrepType.

Parameters

in_level The level of compression to apply to BRep data for a PRC annotation.

Returns: A reference to this AnnotationKit.

◆ SetPRCBRepRemoval()

AnnotationKit& HPS::Publish::AnnotationKit::SetPRCBRepRemoval ( bool in_state )

Sets whether to remove the BRep information in the PRC data for this annotation.

This setting is only relevant if the format of the annotation is Annotation::Format::PRC. This corresponds to the value that will be passed to A3DRWParamsExportPrcData::m_bRemoveBRep.

Parameters

in_state Whether to remove BRep information in the PRC data for this annotation.

Returns: A reference to this AnnotationKit.

◆ SetPRCTessellationCompression()

AnnotationKit& HPS::Publish::AnnotationKit::SetPRCTessellationCompression ( bool in_state )

Sets whether to compress tessellation for a PRC annotation.

This setting is only relevant if the format of the annotation is Annotation::Format::PRC. This corresponds to the value that will be passed to A3DRWParamsExportPrcData::m_bCompressTessellation.

Parameters

in_state Whether to compress tessellation for a PRC annotation.

Returns: A reference to this AnnotationKit.

◆ SetRendering()

AnnotationKit& HPS::Publish::AnnotationKit::SetRendering ( Rendering::Mode in_mode )

Sets the rendering mode for the annotation.

This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_eRenderingStyle.

Parameters

in_mode The rendering mode for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetSource() [1/6]

AnnotationKit& HPS::Publish::AnnotationKit::SetSource ( CADModel const & in_cad_model )

Sets the source for the annotation to Annotation::SourceType::CADModel.

This is the CADModel which contains the 3D data to be exported into the annotation

Parameters

in_cad_model The source CADModel for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetSource() [2/6]

AnnotationKit& HPS::Publish::AnnotationKit::SetSource ( KeyPathArray const & in_sources )

Sets the source for the annotation to Annotation::SourceType::KeyPaths.

These are the KeyPaths that will be used to locate the 3D data for the annotation.

Parameters

in_sources The source KeyPaths for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetSource() [3/6]

AnnotationKit& HPS::Publish::AnnotationKit::SetSource	(	size_t	in_count,
		KeyPath const	in_sources[]
	)

Sets the source for the annotation to Annotation::SourceType::KeyPaths.

These are the KeyPaths that will be used to locate the 3D data for the annotation.

Parameters

in_count	The number of elements in in_sources
in_sources	The source KeyPaths for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetSource() [4/6]

AnnotationKit& HPS::Publish::AnnotationKit::SetSource ( KeyPath const & in_source )

Sets the source for the annotation to Annotation::SourceType::KeyPaths.

The Key Path that will be used to locate the 3D data for the annotation.

Parameters

in_source The source KeyPath for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetSource() [5/6]

AnnotationKit& HPS::Publish::AnnotationKit::SetSource	(	CADModel const &	in_cad_model,
		KeyPathArray const &	in_additional_sources
	)

Sets the source for the annotation to Annotation::SourceType::CADModelAndKeyPaths.

These are the CADModel which will be used to export 3D data to the annotation, and the KeyPaths which will be added to the model

Parameters

in_cad_model	The source CADModel for the annotation.
in_additional_sources	The additional source KeyPaths for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetSource() [6/6]

AnnotationKit& HPS::Publish::AnnotationKit::SetSource	(	CADModel const &	in_cad_model,
		size_t	in_count,
		KeyPath const	in_additional_sources[]
	)

Sets the source for the annotation to Annotation::SourceType::CADModelAndKeyPaths.

These are the CADModel which will be used to export 3D data to the annotation, and the KeyPaths which will be added to the model

Parameters

in_cad_model	The source CADModel for the annotation.
in_count	The number of elements in in_additional_sources
in_additional_sources	The additional source KeyPaths for the annotation.

Returns: A reference to this AnnotationKit.

◆ SetToolbarVisibility()

AnnotationKit& HPS::Publish::AnnotationKit::SetToolbarVisibility ( bool in_state )

Sets whether to display the toolbar when the annotation is activated.

This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_bShowToolbar.

Parameters

in_state Whether to display the toolbar when the annotation is activated.

Returns: A reference to this AnnotationKit.

◆ SetTransparentBackground()

AnnotationKit& HPS::Publish::AnnotationKit::SetTransparentBackground ( bool in_state )

Sets whether the annotation background is transparent.

This will render background color irrelevant and has negative ramifications. This corresponds to the value that will be passed to A3DPDF3DAnnotData::m_bTransparentBackground.

Parameters

in_state Whether the annotation background is transparent.

Returns: A reference to this AnnotationKit.

◆ SetU3DCompression()

AnnotationKit& HPS::Publish::AnnotationKit::SetU3DCompression ( unsigned char in_level )

Sets the level of compression to apply to tessellations for a U3D annotation.

If no compression level is set, no compression will be applied. This setting is only relevant if the format of the annotation is Annotation::Format::U3D. This corresponds to the value that will be passed to A3DRWParamsExportU3DData::m_ucMeshQualityValue.

Parameters

in_level The level of compression to apply to tessellations for a U3D annotation. This value should be in the range [0, 100].

Returns: A reference to this AnnotationKit.

◆ SetU3DVersion()

AnnotationKit& HPS::Publish::AnnotationKit::SetU3DVersion ( U3D::Version in_version )

Sets the version of the data for a U3D annotation.

This setting is only relevant if the format of the annotation is Annotation::Format::U3D. This corresponds to the value that will be passed to A3DRWParamsExportU3DData::m_eU3DVersion.

Parameters

in_version The version of the data for a U3D annotation.

Returns: A reference to this AnnotationKit.

◆ SetViewList()

AnnotationKit& HPS::Publish::AnnotationKit::SetViewList	(	IntRectangle const &	in_location,
		HPS::Publish::ListBoxKit const &	in_list
	)

Creates a View List Box which contains a list of the Views contained in the source file.

Clicking on the entries of the list will activate the associated View. The View List can only be calculated if the Annotation source is a CADModel, and the annotation format is PRC.

Parameters

in_location	The location of the View List, specified in points relative to bottom left of the page. All fields in the location will be used.
in_list	The ListBoxKit used to specify the attributes of the View List.

Returns: A reference to this AnnotationKit.

◆ SetViewListByField()

AnnotationKit& HPS::Publish::AnnotationKit::SetViewListByField ( char const * in_field )

Creates a View List Box which contains a list of the Views contained in the source file.

Clicking on the entries of the list will activate the associated View. The View List can only be calculated if the Annotation source is a CADModel, and the annotation format is PRC.

Parameters

in_field UTF8-encoded form field name for the View List.

Returns: A reference to this AnnotationKit.

◆ Show()

void HPS::Publish::AnnotationKit::Show ( AnnotationKit & out_kit ) const

Copies this AnnotationKit into the given AnnotationKit.

Parameters

out_kit The AnnotationKit to populate with the contents of this AnnotationKit.

◆ ShowActivation()

bool HPS::Publish::AnnotationKit::ShowActivation ( Activation::When & out_when ) const

Shows the activation setting.

Parameters

out_when When the annotation is activated.

Returns: true if an activation setting was specified, false otherwise.

◆ ShowArtwork()

bool HPS::Publish::AnnotationKit::ShowArtwork ( ArtworkKit & out_artwork ) const

Shows the artwork setting.

Parameters

out_artwork The artwork for the annotation.

Returns: true if an artwork was specified, false otherwise.

◆ ShowBackgroundColor()

bool HPS::Publish::AnnotationKit::ShowBackgroundColor ( RGBColor & out_color ) const

Shows the background color setting.

Parameters

out_color The background color for the annotation.

Returns: true if a background color was specified, false otherwise.

◆ ShowBorderWidth()

bool HPS::Publish::AnnotationKit::ShowBorderWidth ( int & out_width ) const

Shows the border width setting.

Parameters

out_width The border width of the annotation.

Returns: true if a border width was specified, false otherwise.

◆ ShowCarouselButtons()

bool HPS::Publish::AnnotationKit::ShowCarouselButtons	(	UTF8Array &	out_button_names,
		UTF8 &	out_previous_button_name,
		UTF8 &	out_next_button_name,
		size_t &	out_scroll_size
	)		const

Shows the carousel buttons setting.

Parameters

out_button_names	Names for the view buttons in the carousel.
out_previous_button_name	Name for the previous button.
out_next_button_name	Name for the next button.
out_scroll_size	Numbers of buttons scrolled when the previous or next buttons are pressed.

Returns: true if carousel buttons were specified, false otherwise.

◆ ShowCarouselViews()

bool HPS::Publish::AnnotationKit::ShowCarouselViews	(	SizeTArray &	out_indices,
		ImageKitArray &	out_images
	)		const

Shows the carousel views setting.

Parameters

out_indices	Indices of the views on the associated ArtworkKit to use for the view carousel.
out_images	Images to use for the view carousel buttons. May be empty, even if out_indices is not.

Returns: true if carousel views were specified, false otherwise.

◆ ShowDeactivation()

bool HPS::Publish::AnnotationKit::ShowDeactivation ( Deactivation::When & out_when ) const

Shows the deactivation setting.

Parameters

out_when When the annotation is deactivated.

Returns: true if a deactivation setting was specified, false otherwise.

◆ ShowFormat()

bool HPS::Publish::AnnotationKit::ShowFormat ( Annotation::Format & out_format ) const

Shows the format setting.

Parameters

out_format The format of the 3D data for the annotation.

Returns: true if a format was specified, false otherwise.

◆ ShowInteractivity()

bool HPS::Publish::AnnotationKit::ShowInteractivity ( bool & out_state ) const

Shows the interactivity setting.

Parameters

out_state Whether to enable interactivity on the annotation.

Returns: true if an interactivity setting was specified, false otherwise.

◆ ShowLighting()

bool HPS::Publish::AnnotationKit::ShowLighting ( Lighting::Mode & out_mode ) const

Shows the lighting mode setting.

Parameters

out_mode The lighting mode for the annotation.

Returns: true if a lighting mode was specified, false otherwise.

◆ ShowModelTreeVisibility()

bool HPS::Publish::AnnotationKit::ShowModelTreeVisibility ( bool & out_state ) const

Shows the model tree visibility setting.

Parameters

out_state Whether to display the model tree when the annotation is activated.

Returns: true if a model tree visibility was specified, false otherwise.

◆ ShowName()

bool HPS::Publish::AnnotationKit::ShowName ( UTF8 & out_name ) const

Shows the name setting.

Parameters

out_name The name for the annotation.

Returns: true if a name was specified, false otherwise.

◆ ShowPartsList()

bool HPS::Publish::AnnotationKit::ShowPartsList	(	size_t &	out_rows,
		IntRectangle &	out_location,
		UTF8Array &	out_headers,
		FloatArray &	out_columns,
		TextFieldKit &	out_text_style,
		TextFieldKit &	out_header_text_style
	)		const

Shows the Parts List setting.

Parameters

out_rows	The number of rows making up the Parts List table.
out_location	The location of the Parts List table.
out_headers	The strings of the column headers. Empty if the table has no header.
out_columns	The width of the three columns as percentages of the table width.
out_text_style	The text styles used for the cells in the table.
out_header_text_style	The text styles used for the header of the table.

Returns: true if a Parts List was specified, false otherwise.

◆ ShowPMIList()

bool HPS::Publish::AnnotationKit::ShowPMIList	(	IntRectangle &	out_location,
		Publish::ListBoxKit &	out_list
	)		const

Shows the PMI List setting.

Parameters

out_location	The location of the PMI List table.
out_list	The options specified for the list box containing the PMI List

Returns: true if a PMI List was specified, false otherwise.

◆ ShowPMIListField()

bool HPS::Publish::AnnotationKit::ShowPMIListField ( UTF8 & out_field ) const

Shows the PMI List setting.

Parameters

out_field The list box form field name on the page which will be used for the PMI List.

Returns: true if a PMI List was specified by field, false otherwise.

◆ ShowPosterImage()

bool HPS::Publish::AnnotationKit::ShowPosterImage ( ImageKit & out_image ) const

Shows the poster image setting.

Parameters

out_image The poster image for the annotation.

Returns: true if a poster image was specified, false otherwise.

◆ ShowPRCAttributeRemoval()

bool HPS::Publish::AnnotationKit::ShowPRCAttributeRemoval ( bool & out_state ) const

Shows the attribute removal for PRC data setting.

Parameters

out_state Whether to remove attribute information in the PRC data for this annotation.

Returns: true if an attribute removal setting was specified, false otherwise.

◆ ShowPRCBRepCompression()

bool HPS::Publish::AnnotationKit::ShowPRCBRepCompression ( PRC::BRepCompression & out_level ) const

Shows the BRep compression level for PRC data setting.

Parameters

out_level The level of compression to apply to BRep data for a PRC annotation.

Returns: true if a PRC BRep compression level setting was specified, false otherwise.

◆ ShowPRCBRepRemoval()

bool HPS::Publish::AnnotationKit::ShowPRCBRepRemoval ( bool & out_state ) const

Shows the BRep removal for PRC data setting.

Parameters

out_state Whether to remove BRep information in the PRC data for this annotation.

Returns: true if a BRep removal setting was specified, false otherwise.

◆ ShowPRCTessellationCompression()

bool HPS::Publish::AnnotationKit::ShowPRCTessellationCompression ( bool & out_state ) const

Shows the tessellation compression for PRC data setting.

Parameters

out_state Whether to compress tessellation for a PRC annotation.

Returns: true if a PRC tessellation compression setting was specified, false otherwise.

◆ ShowRendering()

bool HPS::Publish::AnnotationKit::ShowRendering ( Rendering::Mode & out_mode ) const

Shows the rendering mode setting.

Parameters

out_mode The rendering mode for the annotation.

Returns: true if a rendering mode was specified, false otherwise.

◆ ShowSource()

bool HPS::Publish::AnnotationKit::ShowSource	(	Annotation::SourceType &	out_source_type,
		CADModel &	out_cad_model,
		KeyPathArray &	out_key_paths
	)		const

Shows the source setting.

Parameters

out_source_type	Specifies which one of the previous arguments is valid
out_cad_model	The source CADModel for the annotation. Only valid if out_source_type is CADModel or CADModelAndKeyPath
out_key_paths	The source KeyPath array for the annotation. Only valid if out_source_type is KeyPath or CADModelAndKeyPath

Returns: true if a source was specified, false otherwise.

◆ ShowToolbarVisibility()

bool HPS::Publish::AnnotationKit::ShowToolbarVisibility ( bool & out_state ) const

Shows the toolbar visibility setting.

Parameters

out_state Whether to display the toolbar when the annotation is activated.

Returns: true if a toolbar visibility was specified, false otherwise.

◆ ShowTransparentBackground()

bool HPS::Publish::AnnotationKit::ShowTransparentBackground ( bool & out_state ) const

Shows the transparent background setting.

Parameters

out_state Whether the annotation has a transparent background.

Returns: true if a transparent background setting specified, false otherwise.

◆ ShowU3DCompression()

bool HPS::Publish::AnnotationKit::ShowU3DCompression ( unsigned char & out_level ) const

Shows the compression level for U3D data for the annotation.

Parameters

out_level The level of compression to apply to tessellations for a U3D annotation.

Returns: true if a U3D compression setting was specified, false otherwise.

◆ ShowU3DVersion()

bool HPS::Publish::AnnotationKit::ShowU3DVersion ( U3D::Version & out_version ) const

Shows the version for U3D data setting.

Parameters

out_version The version of the data for a U3D annotation.

Returns: true if a U3D version setting was specified, false otherwise.

◆ ShowViewList()

bool HPS::Publish::AnnotationKit::ShowViewList	(	IntRectangle &	out_location,
		Publish::ListBoxKit &	out_list
	)		const

Shows the View List setting.

Parameters

out_location	The location of the View List table.
out_list	The options specified for the list box containing the View List

Returns: true if a View List was specified, false otherwise.

◆ ShowViewListField()

bool HPS::Publish::AnnotationKit::ShowViewListField ( UTF8 & out_field ) const

Shows the View List setting.

Parameters

out_field The list box form field name on the page which will be used for the View List.

Returns: true if a View List was specified by field, false otherwise.

◆ Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

◆ UnsetActivation()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetActivation ( )

Removes the activation setting.

Returns: A reference to this AnnotationKit.

◆ UnsetArtwork()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetArtwork ( )

Removes the artwork setting.

Returns: A reference to this AnnotationKit.

◆ UnsetBackgroundColor()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetBackgroundColor ( )

Removes the background color setting.

Returns: A reference to this AnnotationKit.

◆ UnsetBorderWidth()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetBorderWidth ( )

Removes the border width setting.

Returns: A reference to this AnnotationKit.

◆ UnsetCarouselButtons()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetCarouselButtons ( )

Removes the carousel buttons setting.

Returns: A reference to this AnnotationKit.

◆ UnsetCarouselViews()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetCarouselViews ( )

Removes the carousel views setting.

Returns: A reference to this AnnotationKit.

◆ UnsetDeactivation()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetDeactivation ( )

Removes the deactivation setting.

Returns: A reference to this AnnotationKit.

◆ UnsetEverything()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetEverything ( )

Removes all data on the annotation.

Returns: A reference to this AnnotationKit.

◆ UnsetFormat()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetFormat ( )

Removes the format setting.

Returns: A reference to this AnnotationKit.

◆ UnsetInteractivity()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetInteractivity ( )

Removes the interactivity setting.

Returns: A reference to this AnnotationKit.

◆ UnsetLighting()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetLighting ( )

Removes the lighting mode setting.a.

Returns: A reference to this AnnotationKit.

◆ UnsetModelTreeVisibility()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetModelTreeVisibility ( )

Removes the model tree visibility setting.

Returns: A reference to this AnnotationKit.

◆ UnsetName()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetName ( )

Removes the name setting.

Returns: A reference to this AnnotationKit.

◆ UnsetPartsList()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetPartsList ( )

Removes the Parts List setting.

Returns: A reference to this AnnotationKit

◆ UnsetPMIList()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetPMIList ( )

Removes the PMI List setting.

Returns: A reference to this AnnotationKit

◆ UnsetPosterImage()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetPosterImage ( )

Removes the poster image setting.

Returns: A reference to this AnnotationKit.

◆ UnsetPRCAttributeRemoval()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetPRCAttributeRemoval ( )

Removes the attribute removal for PRC data setting.

Returns: A reference to this AnnotationKit.

◆ UnsetPRCBRepCompression()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetPRCBRepCompression ( )

Removes the BRep compression level for PRC data setting.

Returns: A reference to this AnnotationKit.

◆ UnsetPRCBRepRemoval()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetPRCBRepRemoval ( )

Removes the BRep removal for PRC data setting.

Returns: A reference to this AnnotationKit.

◆ UnsetPRCTessellationCompression()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetPRCTessellationCompression ( )

Removes the tessellation compression for PRC data setting.

Returns: A reference to this AnnotationKit.

◆ UnsetRendering()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetRendering ( )

Removes the rendering mode setting.

Returns: A reference to this AnnotationKit.

◆ UnsetSource()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetSource ( )

Removes the source setting.

Returns: A reference to this AnnotationKit.

◆ UnsetToolbarVisibility()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetToolbarVisibility ( )

Removes the toolbar visibility setting.

Returns: A reference to this AnnotationKit.

◆ UnsetTransparentBackground()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetTransparentBackground ( )

Removes the transparent background setting.

Returns: A reference to this AnnotationKit.

◆ UnsetU3DCompression()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetU3DCompression ( )

Removes the compression level for U3D data setting.

Returns: A reference to this AnnotationKit.

◆ UnsetU3DVersion()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetU3DVersion ( )

Removes the version for U3D data setting.

Returns: A reference to this AnnotationKit.

◆ UnsetViewList()

AnnotationKit& HPS::Publish::AnnotationKit::UnsetViewList ( )

Removes the View List setting.

Returns: A reference to this AnnotationKit

Member Data Documentation

◆ staticType

const HPS::Type HPS::Publish::AnnotationKit::staticType = HPS::Type::PublishAnnotationKit

static

The documentation for this class was generated from the following file:

sprk_publish.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ AnnotationKit() [1/3]

◆ AnnotationKit() [2/3]

◆ AnnotationKit() [3/3]

◆ ~AnnotationKit()

Member Function Documentation

◆ ClassID()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetDefault()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetActivation()

◆ SetArtwork()

◆ SetBackgroundColor()

◆ SetBorderWidth()

◆ SetCarouselButtons() [1/2]

◆ SetCarouselButtons() [2/2]

◆ SetCarouselViews() [1/2]

◆ SetCarouselViews() [2/2]

◆ SetDeactivation()

◆ SetFormat()

◆ SetInteractivity()

◆ SetLighting()

◆ SetModelTreeVisibility()

◆ SetName()

◆ SetPartsList() [1/2]

◆ SetPartsList() [2/2]

◆ SetPMIList()

◆ SetPMIListByField()

◆ SetPosterImage()

◆ SetPRCAttributeRemoval()

◆ SetPRCBRepCompression()

◆ SetPRCBRepRemoval()

◆ SetPRCTessellationCompression()

◆ SetRendering()

◆ SetSource() [1/6]

◆ SetSource() [2/6]

◆ SetSource() [3/6]

◆ SetSource() [4/6]

◆ SetSource() [5/6]

◆ SetSource() [6/6]

◆ SetToolbarVisibility()

◆ SetTransparentBackground()

◆ SetU3DCompression()

◆ SetU3DVersion()

◆ SetViewList()

◆ SetViewListByField()

◆ Show()

◆ ShowActivation()

◆ ShowArtwork()

◆ ShowBackgroundColor()

◆ ShowBorderWidth()

◆ ShowCarouselButtons()

◆ ShowCarouselViews()

◆ ShowDeactivation()

◆ ShowFormat()

◆ ShowInteractivity()

◆ ShowLighting()

◆ ShowModelTreeVisibility()

◆ ShowName()

◆ ShowPartsList()

◆ ShowPMIList()

◆ ShowPMIListField()

◆ ShowPosterImage()

◆ ShowPRCAttributeRemoval()

◆ ShowPRCBRepCompression()

◆ ShowPRCBRepRemoval()
