HPS::DrawingAttributeControl Class Reference

#include <hps.h>

Inheritance diagram for HPS::DrawingAttributeControl:

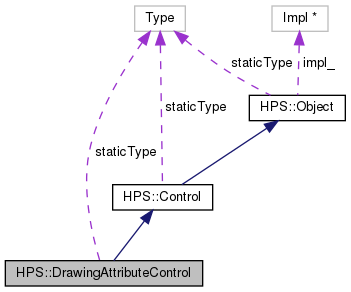

Collaboration diagram for HPS::DrawingAttributeControl:

Public Member Functions
	DrawingAttributeControl (SegmentKey &in_seg)
	Initializes a control tied to the segment in_seg. More...
	DrawingAttributeControl (DrawingAttributeControl const &in_that)
	Initializes a control tied to the same object as in_that. More...
	DrawingAttributeControl (DrawingAttributeControl &&in_that)
	The move constructor creates a DrawingAttributeControl by transferring the underlying impl of the rvalue reference to this DrawingAttributeControl thereby avoiding a copy and allocation. More...
DrawingAttributeControl &	operator= (DrawingAttributeControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this DrawingAttributeControl thereby avoiding a copy. More...
	~DrawingAttributeControl ()
	Releases a reference to the database object this control is tied to. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
HPS::Type	ObjectType () const
DrawingAttributeControl &	operator= (DrawingAttributeControl const &in_that)
	Share the underlying smart-pointer of the DrawingAttributeControl source. More...
DrawingAttributeControl &	SetPolygonHandedness (Drawing::Handedness in_handedness)
	In order to do a back face culling, there must be some definition of a polygon's "front" and "back". More...
DrawingAttributeControl &	SetWorldHandedness (Drawing::Handedness in_handedness)
	The world handedness determines the orientation of the Z-axis in the Cartesian coordinate system. More...
DrawingAttributeControl &	SetDepthRange (float in_near, float in_far)
	Compresses effective Z values into a subset of what they would otherwise have been. More...
DrawingAttributeControl &	SetFaceDisplacement (bool in_state, int in_buckets=0)
	Specifies a number of Z-buffer units that rendered faces should be pushed away from the camera. More...
DrawingAttributeControl &	SetFaceDisplacement (int in_buckets)
	Specifies a number of Z-buffer units that rendered faces should be pushed away from the camera. More...
DrawingAttributeControl &	SetGeneralDisplacement (bool in_state, int in_buckets=0)
	Specifies a number of Z-buffer units that all geometry should be pushed away from the camera. More...
DrawingAttributeControl &	SetGeneralDisplacement (int in_buckets)
	Specifies a number of Z-buffer units that all geometry should be pushed away from the camera. More...
DrawingAttributeControl &	SetVertexDisplacement (bool in_state, int in_buckets=0)
	Specifies a number of Z-buffer units that vertices should be pushed away from the camera. More...
DrawingAttributeControl &	SetVertexDisplacement (int in_buckets)
	Specifies a number of Z-buffer units that vertices should be pushed away from the camera. More...
DrawingAttributeControl &	SetVertexDecimation (float in_zero_to_one)
	Specifies an amount of vertices to draw 1 draws them all. More...
DrawingAttributeControl &	SetVertexRandomization (bool in_state)
	Specifies vertices should be drawn in a random order. More...
DrawingAttributeControl &	SetOverlay (Drawing::Overlay in_overlay)
	Allows moving, editing, or deleting to take place in a segment without triggering a full-screen redraw. More...
DrawingAttributeControl &	SetClipRegion (PointArray const &in_points, Drawing::ClipSpace in_space=Drawing::ClipSpace::World, Drawing::ClipOperation in_operation=Drawing::ClipOperation::Keep)
	Specifies a clip region. More...
DrawingAttributeControl &	SetClipRegion (size_t in_point_count, Point const in_points [], Drawing::ClipSpace in_space=Drawing::ClipSpace::World, Drawing::ClipOperation in_operation=Drawing::ClipOperation::Keep)
	Specifies a clip region. More...
DrawingAttributeControl &	SetClipRegion (PointArrayArray const &in_loops, Drawing::ClipSpace in_space=Drawing::ClipSpace::World, Drawing::ClipOperation in_operation=Drawing::ClipOperation::Keep)
	Sets a complex polygonal clip region defined by the XOR of a series of loops. More...
DrawingAttributeControl &	SetDeferral (int in_deferral)
	Specifies a drawing order for a segment during timed updates. More...
DrawingAttributeControl &	UnsetPolygonHandedness ()
	Removes a polygon handedness setting. More...
DrawingAttributeControl &	UnsetWorldHandedness ()
	Removes a world handedness setting. More...
DrawingAttributeControl &	UnsetDepthRange ()
	Removes a depth range setting. More...
DrawingAttributeControl &	UnsetFaceDisplacement ()
	Removes a face displacement setting. More...
DrawingAttributeControl &	UnsetGeneralDisplacement ()
	Removes a general displacement setting. More...
DrawingAttributeControl &	UnsetVertexDisplacement ()
	Removes a vertex displacement setting. More...
DrawingAttributeControl &	UnsetVertexDecimation ()
	Removes a vertex decimation setting. More...
DrawingAttributeControl &	UnsetVertexRandomization ()
	Removes a vertex randomization setting. More...
DrawingAttributeControl &	UnsetOverlay ()
	Removes an overlay setting. More...
DrawingAttributeControl &	UnsetDeferral ()
	Removes a deferral setting. More...
DrawingAttributeControl &	UnsetClipRegion ()
	Removes a clip region setting. More...
DrawingAttributeControl &	UnsetEverything ()
	Removes all settings from this object. More...
bool	ShowPolygonHandedness (Drawing::Handedness &out_handedness) const
	Shows the polygon handedness. More...
bool	ShowWorldHandedness (Drawing::Handedness &out_handedness) const
	Shows the world handedness. More...
bool	ShowDepthRange (float &out_x, float &out_y) const
	Shows the depth range setting. More...
bool	ShowFaceDisplacement (bool &out_state, int &out_buckets) const
	Shows the face displacement setting. More...
bool	ShowGeneralDisplacement (bool &out_state, int &out_buckets) const
	Shows the general displacement setting. More...
bool	ShowVertexDisplacement (bool &out_state, int &out_buckets) const
	Shows the vertex displacement setting. More...
bool	ShowVertexDecimation (float &out_zero_to_one) const
	Shows the vertex decimation setting. More...
bool	ShowVertexRandomization (bool &out_state) const
	Shows the vertex randomization setting. More...
bool	ShowOverlay (Drawing::Overlay &out_overlay) const
	Shows the overlay setting. More...
bool	ShowDeferral (int &out_defer_batch) const
	Shows the deferral setting. More...
bool	ShowClipRegion (PointArrayArray &out_loops, Drawing::ClipSpace &out_space, Drawing::ClipOperation &out_operation) const
	Shows the clip region setting. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::DrawingAttributeControl

Private Member Functions
	DrawingAttributeControl ()
	Private default constructor to prevent instantiation without a segment. More...

Detailed Description

The HPS::DrawingAttributeControl class is a smart pointer that is tied to a database object. This object is used to manipulate various high-level settings, such as depth range, priority, and displacement. Note that some of the attributes available through this control should only be set for an entire window, while others can be set at multiple places.

Global attributes:
World handedness, polygon handedness, priority, depth range

Segment-level attributes:
overlay, deferral, face displacement, general displacement, clip regions

This table lists default values for the various segment attributes accessible from HPS::DrawingAttributeControl.

Constructor & Destructor Documentation

DrawingAttributeControl() [1/4]

HPS::DrawingAttributeControl::DrawingAttributeControl ( SegmentKey &  in_seg )

explicit

Initializes a control tied to the segment in_seg.

DrawingAttributeControl() [2/4]

HPS::DrawingAttributeControl::DrawingAttributeControl

(

DrawingAttributeControl const &

in_that

)

Initializes a control tied to the same object as in_that.

DrawingAttributeControl() [3/4]

HPS::DrawingAttributeControl::DrawingAttributeControl

(

DrawingAttributeControl &&

in_that

)

The move constructor creates a DrawingAttributeControl by transferring the underlying impl of the rvalue reference to this DrawingAttributeControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a DrawingAttributeControl to take the impl from.

~DrawingAttributeControl()

HPS::DrawingAttributeControl::~DrawingAttributeControl

(

)

Releases a reference to the database object this control is tied to.

DrawingAttributeControl() [4/4]

HPS::DrawingAttributeControl::DrawingAttributeControl ( )

private

Private default constructor to prevent instantiation without a segment.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::DrawingAttributeControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

operator=() [1/2]

DrawingAttributeControl& HPS::DrawingAttributeControl::operator=

(

DrawingAttributeControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this DrawingAttributeControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to an DrawingAttributeControl to take the impl from.

Returns

A reference to this DrawingAttributeControl.

operator=() [2/2]

DrawingAttributeControl& HPS::DrawingAttributeControl::operator=

(

DrawingAttributeControl const &

in_that

)

Share the underlying smart-pointer of the DrawingAttributeControl source.

Parameters

in_that

The DrawingAttributeControl source of the assignment.

Returns

A reference to this DrawingAttributeControl.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetClipRegion() [1/3]

DrawingAttributeControl& HPS::DrawingAttributeControl::SetClipRegion	(	PointArray const &	in_points,
		Drawing::ClipSpace	in_space = Drawing::ClipSpace::World,
		Drawing::ClipOperation	in_operation = Drawing::ClipOperation::Keep
	)

Specifies a clip region.

Parameters

in_points	An array of points specifying the shape of the clip region.
in_space	The space coordinated in which the points are specified.
in_operation	The operation performed by this clip region.

Returns

A reference to this object.

SetClipRegion() [2/3]

DrawingAttributeControl& HPS::DrawingAttributeControl::SetClipRegion	(	size_t	in_point_count,
		Point const	in_points[],
		Drawing::ClipSpace	in_space = Drawing::ClipSpace::World,
		Drawing::ClipOperation	in_operation = Drawing::ClipOperation::Keep
	)

Specifies a clip region.

Parameters

in_point_count	The number of elements in in_points
in_points	An array of points specifying the shape of the clip region.
in_space	The space coordinated in which the points are specified.
in_operation	The operation performed by this clip region.

Returns

A reference to this object.

SetClipRegion() [3/3]

DrawingAttributeControl& HPS::DrawingAttributeControl::SetClipRegion	(	PointArrayArray const &	in_loops,
		Drawing::ClipSpace	in_space = Drawing::ClipSpace::World,
		Drawing::ClipOperation	in_operation = Drawing::ClipOperation::Keep
	)

Sets a complex polygonal clip region defined by the XOR of a series of loops.

Parameters

in_loops	An array of loops describing clip regions.
in_space	The coordinate space in which in_loops are specified.
in_operation	The operation performed by the clip region.

Returns

A reference to this object.

SetDeferral()

DrawingAttributeControl& HPS::DrawingAttributeControl::SetDeferral

(

int

in_deferral

)

Specifies a drawing order for a segment during timed updates.

Segments with a lower deferral value will be drawn before segments with a higher value. This attribute does not inherit like most attributes. Segments have a default value of 0.

Parameters

in_deferral

A drawing priority, with larger values drawing later than usual. Should be non-negative.

Returns

A reference to this object.

SetDepthRange()

DrawingAttributeControl& HPS::DrawingAttributeControl::SetDepthRange	(	float	in_near,
		float	in_far
	)

Compresses effective Z values into a subset of what they would otherwise have been.

This allows certain pieces of the scene to be drawn on top at all times without additional sub-windows. Values of (0,0) will force all geometry into the frontmost bucket, but will have the drawback that it will cause z-fighting amongst the geometry that shares that setting. To get such pieces of geometry to resolve reasonably well against each other, a range of (0,0.1) should perform reasonably well.

Depth range settings are not cumulative, and have no effect when the rendering algorithm is Priority, or is not set.

The default is (0,1)

Parameters

in_near	The portion of the depth range closest to the camera. Valid range is [0,1] with in_near <= in_far.
in_far	The portion of the depth range furthest to the camera. Valid range is [0,1] with in_near <= in_far.

Returns

A reference to this object.

SetFaceDisplacement() [1/2]

DrawingAttributeControl& HPS::DrawingAttributeControl::SetFaceDisplacement	(	bool	in_state,
		int	in_buckets = 0
	)

Specifies a number of Z-buffer units that rendered faces should be pushed away from the camera.

This can be used to reduce edge stitching by ensuring that coincident edges lay on top of the faces. Negative face displacements will push faces toward the camera.

Parameters

in_state	Whether face displacement should be used.
in_buckets	The number of units to move faces in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move faces toward the camera, positive values away from the camera.

Returns

A reference to this object.

SetFaceDisplacement() [2/2]

DrawingAttributeControl& HPS::DrawingAttributeControl::SetFaceDisplacement

(

int

in_buckets

)

Specifies a number of Z-buffer units that rendered faces should be pushed away from the camera.

The state is implicitly on.

Parameters

in_buckets

The number of units to move faces in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move faces toward the camera, positive values away from the camera.

Returns

A reference to this object.

See also

SetFaceDisplacement(bool in_state, int in_buckets)

SetGeneralDisplacement() [1/2]

DrawingAttributeControl& HPS::DrawingAttributeControl::SetGeneralDisplacement	(	bool	in_state,
		int	in_buckets = 0
	)

Specifies a number of Z-buffer units that all geometry should be pushed away from the camera.

This can be used to ensure that certain geometry is drawn on top of or behind the rest of the scene. Negative general displacements will push geometry toward the camera.

Parameters

in_state	Whether general displacement should be used.
in_buckets	The number of units to move rendered geometry in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move geometry toward the camera, positive values away from the camera.

Returns

A reference to this object.

SetGeneralDisplacement() [2/2]

DrawingAttributeControl& HPS::DrawingAttributeControl::SetGeneralDisplacement

(

int

in_buckets

)

Specifies a number of Z-buffer units that all geometry should be pushed away from the camera.

The state is implicitly on.

Parameters

in_buckets

The number of units to move rendered geometry in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move geometry toward the camera, positive values away from the camera.

Returns

A reference to this object.

See also

SetGeneralDisplacement(bool in_state, int in_buckets)

SetOverlay()

DrawingAttributeControl& HPS::DrawingAttributeControl::SetOverlay

(

Drawing::Overlay

in_overlay

)

Allows moving, editing, or deleting to take place in a segment without triggering a full-screen redraw.

Parameters

in_overlay

The type of overlay, if any, to be used.

Returns

A reference to this object.

SetPolygonHandedness()

DrawingAttributeControl& HPS::DrawingAttributeControl::SetPolygonHandedness

(

Drawing::Handedness

in_handedness

)

In order to do a back face culling, there must be some definition of a polygon's "front" and "back".

This orientation is determined by the order in which the polygon's vertices were originally defined and the polygon handedness setting (not the world handedness). If you wrap the fingers of the chosen hand along the vertices of the polygon, with your wrist at the first vertex and your fingertips at the last, then extend your thumb perpendicular to your fingers, your thumb is extending out of the front face of the polygon.

Parameters

in_handedness

The handedness to be used for geometry.

Returns

A reference to this object.

See also

SetWorldHandedness()

CullingKit::SetBackFace()

SetVertexDecimation()

DrawingAttributeControl& HPS::DrawingAttributeControl::SetVertexDecimation

(

float

in_zero_to_one

)

Specifies an amount of vertices to draw 1 draws them all.

Parameters

in_zero_to_one

An amount, between [0,1], of vertices to draw.

Returns

A reference to this object.

SetVertexDisplacement() [1/2]

DrawingAttributeControl& HPS::DrawingAttributeControl::SetVertexDisplacement	(	bool	in_state,
		int	in_buckets = 0
	)

Specifies a number of Z-buffer units that vertices should be pushed away from the camera.

This can be used to ensure that vertices are drawn on top of or behind other geometry. Negative general displacements will push vertices toward the camera.

Parameters

in_state	Whether vertex displacement should be used.
in_buckets	The number of units to move vertices in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move vertices toward the camera, positive values away from the camera.

Returns

A reference to this object.

SetVertexDisplacement() [2/2]

DrawingAttributeControl& HPS::DrawingAttributeControl::SetVertexDisplacement

(

int

in_buckets

)

Specifies a number of Z-buffer units that vertices should be pushed away from the camera.

The state is implicitly on.

Parameters

in_buckets

The number of units to move vertices in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move vertices toward the camera, positive values away from the camera.

Returns

A reference to this object.

SetVertexRandomization()

DrawingAttributeControl& HPS::DrawingAttributeControl::SetVertexRandomization

(

bool

in_state

)

Specifies vertices should be drawn in a random order.

Parameters

in_state

If true the vertices for a point cloud will be randomized.

Returns

A reference to this object.

SetWorldHandedness()

DrawingAttributeControl& HPS::DrawingAttributeControl::SetWorldHandedness

(

Drawing::Handedness

in_handedness

)

The world handedness determines the orientation of the Z-axis in the Cartesian coordinate system.

If you curl the fingers of your appropriate hand from the X-axis towards the Y-axis, your thumb will point in the direction of the Z-axis.

Parameters

in_handedness

The handedness of the underlying coordinate system.

Returns

A reference to this object.

See also

SetPolygonHandedness()

ShowClipRegion()

bool HPS::DrawingAttributeControl::ShowClipRegion	(	PointArrayArray &	out_loops,
		Drawing::ClipSpace &	out_space,
		Drawing::ClipOperation &	out_operation
	)		const

Shows the clip region setting.

Parameters

out_loops	An array of loops specifying the shape of the clip region.
out_space	The coordinate space the points are specified in.
out_operation	The operation performed by this clip region.

Returns

true if the setting is valid, false otherwise.

ShowDeferral()

bool HPS::DrawingAttributeControl::ShowDeferral

(

int &

out_defer_batch

)

const

Shows the deferral setting.

Parameters

out_defer_batch

A drawing priority, with negative values drawing earlier than usual and positive values drawing later than usual.

Returns

true if the setting is valid, false otherwise.

ShowDepthRange()

bool HPS::DrawingAttributeControl::ShowDepthRange	(	float &	out_x,
		float &	out_y
	)		const

Shows the depth range setting.

Parameters

out_near	The portion of the depth range closest to the camera. Valid range is [0,1] with out_near <= out_far.
out_far	The portion of the depth range furthest to the camera. Valid range is [0,1] with out_near <= out_far.

Returns

true if the setting is valid, false otherwise.

ShowFaceDisplacement()

bool HPS::DrawingAttributeControl::ShowFaceDisplacement	(	bool &	out_state,
		int &	out_buckets
	)		const

Shows the face displacement setting.

Parameters

out_state	Whether face displacement will be used.
out_buckets	The distance to move rendered faces away from the camera.

Returns

true if the setting is valid, false otherwise.

ShowGeneralDisplacement()

bool HPS::DrawingAttributeControl::ShowGeneralDisplacement	(	bool &	out_state,
		int &	out_buckets
	)		const

Shows the general displacement setting.

Parameters

out_state	Whether general displacement will be used.
out_buckets	The distance to move rendered geometry away from the camera.

Returns

true if the setting is valid, false otherwise.

ShowOverlay()

bool HPS::DrawingAttributeControl::ShowOverlay

(

Drawing::Overlay &

out_overlay

)

const

Shows the overlay setting.

Parameters

out_overlay

The type of overlay, if any, used.

Returns

true if the setting is valid, false otherwise.

ShowPolygonHandedness()

bool HPS::DrawingAttributeControl::ShowPolygonHandedness

(

Drawing::Handedness &

out_handedness

)

const

Shows the polygon handedness.

Parameters

out_handedness

The handedness used for geometry.

Returns

true if the setting is valid, false otherwise.

ShowVertexDecimation()

bool HPS::DrawingAttributeControl::ShowVertexDecimation

(

float &

out_zero_to_one

)

const

Shows the vertex decimation setting.

Parameters

out_zero_to_one

The value set for vertex decimation.

Returns

true if the setting is valid, false otherwise.

ShowVertexDisplacement()

bool HPS::DrawingAttributeControl::ShowVertexDisplacement	(	bool &	out_state,
		int &	out_buckets
	)		const

Shows the vertex displacement setting.

Parameters

out_state	Whether vertex displacement will be used.
out_buckets	The distance to move vertices away from the camera.

Returns

true if the setting is valid, false otherwise.

ShowVertexRandomization()

bool HPS::DrawingAttributeControl::ShowVertexRandomization

(

bool &

out_state

)

const

Shows the vertex randomization setting.

Parameters

out_state

Whether vertex randomization will be used.

Returns

true if the setting is valid, false otherwise.

ShowWorldHandedness()

bool HPS::DrawingAttributeControl::ShowWorldHandedness

(

Drawing::Handedness &

out_handedness

)

const

Shows the world handedness.

Parameters

out_handedness

The handedness of the underlying coordinate system.

Returns

true if the setting is valid, false otherwise.

Type()

virtual HPS::Type HPS::DrawingAttributeControl::Type ( ) const

inlinevirtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Control.

UnsetClipRegion()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetClipRegion

(

)

Removes a clip region setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetDeferral()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetDeferral

(

)

Removes a deferral setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetDepthRange()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetDepthRange

(

)

Removes a depth range setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetEverything()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetEverything

(

)

Removes all settings from this object.

If the control is attached to a WindowKey this function restores the default settings of this control as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetFaceDisplacement()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetFaceDisplacement

(

)

Removes a face displacement setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetGeneralDisplacement()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetGeneralDisplacement

(

)

Removes a general displacement setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetOverlay()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetOverlay

(

)

Removes an overlay setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetPolygonHandedness()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetPolygonHandedness

(

)

Removes a polygon handedness setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetVertexDecimation()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetVertexDecimation

(

)

Removes a vertex decimation setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetVertexDisplacement()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetVertexDisplacement

(

)

Removes a vertex displacement setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetVertexRandomization()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetVertexRandomization

(

)

Removes a vertex randomization setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

UnsetWorldHandedness()

DrawingAttributeControl& HPS::DrawingAttributeControl::UnsetWorldHandedness

(

)

Removes a world handedness setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by DrawingAttributeKit::GetDefault().

Returns

A reference to this object.

Member Data Documentation

staticType

const HPS::Type HPS::DrawingAttributeControl::staticType = HPS::Type::DrawingAttributeControl

static

---

The documentation for this class was generated from the following file:

• hps.h
