HPS::EllipseKit Class Reference

The EllipseKit class is a user space object. More...

#include <hps.h>

Inheritance diagram for HPS::EllipseKit:

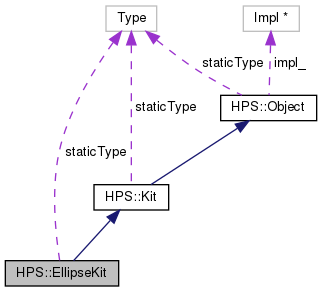

Collaboration diagram for HPS::EllipseKit:

Public Member Functions

 EllipseKit ()
 The default constructor creates an empty EllipseKit object. More...

 EllipseKit (EllipseKit const &in_kit)
 The copy constructor creates a new EllipseKit object that contains the same settings as the source EllipseKit. More...

 EllipseKit (EllipseKit &&in_that)
 The move constructor creates an EllipseKit by transferring the underlying impl of the rvalue reference to this EllipseKit thereby avoiding a copy and allocation. More...

EllipseKitoperator= (EllipseKit &&in_that)
 The move assignment operator transfers the underlying impl of the rvalue reference to this EllipseKit thereby avoiding a copy. More...

virtual ~EllipseKit ()

HPS::Type ObjectType () const

void Consume (EllipseKit &in_kit)
 Copies the source EllipseKit into this EllipseKit and resets the source kit. More...

void Set (EllipseKit const &in_kit)
 Copies the source EllipseKit into this EllipseKit. More...

void Show (EllipseKit &out_kit) const
 Copies this EllipseKit into the given EllipseKit. More...

EllipseKitoperator= (EllipseKit const &in_kit)
 Copies the source EllipseKit into this EllipseKit. More...

bool Empty () const
 Indicates whether this EllipseKit has any values set on it. More...

bool Equals (EllipseKit const &in_kit) const
 Check if the source EllipseKit is equivalent to this EllipseKit. More...

bool operator== (EllipseKit const &in_kit) const
 Check if the source EllipseKit is equivalent to this EllipseKit. More...

bool operator!= (EllipseKit const &in_kit) const
 Check if the source EllipseKit is not equivalent to this EllipseKit. More...

EllipseKitSetPriority (int in_priority)
 Assigns a specific drawing priority value to the EllipseKit. More...

EllipseKitUnsetPriority ()
 Removes a drawing priority setting. More...

bool ShowPriority (int &out_priority) const
 Shows the drawing priority. More...

EllipseKitSetCenter (Point const &in_center)
 Sets the center point for the ellipse. More...

EllipseKitSetMajor (Point const &in_major)
 Sets the intersection point of the major axis and the ellipse. More...

EllipseKitSetMinor (Point const &in_minor)
 Sets the intersection point of the minor axis and the ellipse. More...

EllipseKitUnsetCenter ()
 Removes the center point for the ellipse. More...

EllipseKitUnsetMajor ()
 Removes the intersection point of the major axis and the ellipse. More...

EllipseKitUnsetMinor ()
 Removes the intersection point of the minor axis and the ellipse. More...

EllipseKitUnsetEverything ()
 Removes all settings from this EllipseKit. More...

bool ShowCenter (Point &out_center) const
 Shows the center point for the ellipse. More...

bool ShowMajor (Point &out_major) const
 Shows the intersection point of the major axis and the ellipse. More...

bool ShowMinor (Point &out_minor) const
 Shows the intersection point of the minor axis and the ellipse. More...

EllipseKitSetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
 Sets user data on this kit. More...

EllipseKitSetUserData (intptr_t in_index, ByteArray const &in_data)
 Sets user data on this kit. More...

EllipseKitSetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
 Sets user data on this kit. More...

EllipseKitUnsetUserData (intptr_t in_index)
 Removes the user data at the given index from this kit. More...

EllipseKitUnsetUserData (size_t in_count, intptr_t const in_indices[])
 Removes the user data at the given indices from this kit. More...

EllipseKitUnsetUserData (IntPtrTArray const &in_indices)
 Removes the user data at the given indices from this kit. More...

EllipseKitUnsetAllUserData ()
 Removes all user data from this kit. More...

size_t ShowUserDataCount () const
 Get the number of user data indices set on this kit. More...

bool ShowUserDataIndices (IntPtrTArray &out_indices) const
 Shows the indices of all user data set on this kit. More...

bool ShowUserData (intptr_t in_index, ByteArray &out_data) const
 Shows the user data at a given index for this kit. More...

bool ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
 Shows all user data for this kit. More...

virtual HPS::Type Type () const
 This function returns the true type of the underlying object. More...

virtual void Reset ()
 Resets this object to its initial, uninitialized state. More...

bool HasType (HPS::Type in_mask) const
 This function indicates whether this Object has the given Type mask. More...

intptr_t GetClassID () const
 Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t GetInstanceID () const
 Returns an identifier that can be used to identify which instance of a class an object is. More...


Static Public Member Functions

template<typename T >
static intptr_t ClassID ()
 Unique identifier for this class. More...


Static Public Attributes

static const HPS::Type staticType = HPS::Type::EllipseKit


Detailed Description

The EllipseKit class is a user space object.

It is the kit analog to an EllipseKey.

Constructor & Destructor Documentation

◆ EllipseKit() [1/3]

HPS::EllipseKit::EllipseKit ( )

The default constructor creates an empty EllipseKit object.

◆ EllipseKit() [2/3]

HPS::EllipseKit::EllipseKit ( EllipseKit const &  in_kit)

The copy constructor creates a new EllipseKit object that contains the same settings as the source EllipseKit.

Parameters
in_kitThe source EllipseKit to copy.

◆ EllipseKit() [3/3]

HPS::EllipseKit::EllipseKit ( EllipseKit &&  in_that)

The move constructor creates an EllipseKit by transferring the underlying impl of the rvalue reference to this EllipseKit thereby avoiding a copy and allocation.

Parameters
in_thatAn rvalue reference to an EllipseKit to take the impl from.

◆ ~EllipseKit()

virtual HPS::EllipseKit::~EllipseKit ( )
virtual

Member Function Documentation

◆ ClassID()

template<typename T >
static intptr_t HPS::Object::ClassID ( )
inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Consume()

void HPS::EllipseKit::Consume ( EllipseKit in_kit)

Copies the source EllipseKit into this EllipseKit and resets the source kit.

Parameters
in_kitThe source EllipseKit to consume.

◆ Empty()

bool HPS::EllipseKit::Empty ( ) const
virtual

Indicates whether this EllipseKit has any values set on it.

Returns
true if no values are set on this EllipseKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::EllipseKit::Equals ( EllipseKit const &  in_kit) const

Check if the source EllipseKit is equivalent to this EllipseKit.

Parameters
in_kitThe source EllipseKit to compare to this EllipseKit.
Returns
true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const
inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns
A unique value shared by all objects of the same class.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const
inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns
A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask) const
inherited

This function indicates whether this Object has the given Type mask.

Parameters
in_maskThe Type mask to check against this Object.
Returns
true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::EllipseKit::ObjectType ( ) const
inlinevirtual

Reimplemented from HPS::Kit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::EllipseKit::operator!= ( EllipseKit const &  in_kit) const

Check if the source EllipseKit is not equivalent to this EllipseKit.

Parameters
in_kitThe source EllipseKit to compare to this EllipseKit.
Returns
true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

EllipseKit& HPS::EllipseKit::operator= ( EllipseKit &&  in_that)

The move assignment operator transfers the underlying impl of the rvalue reference to this EllipseKit thereby avoiding a copy.

Parameters
in_thatAn rvalue reference to an EllipseKit to take the impl from.
Returns
A reference to this EllipseKit.

◆ operator=() [2/2]

EllipseKit& HPS::EllipseKit::operator= ( EllipseKit const &  in_kit)

Copies the source EllipseKit into this EllipseKit.

Parameters
in_kitThe source EllipseKit to copy.
Returns
A reference to this EllipseKit.

◆ operator==()

bool HPS::EllipseKit::operator== ( EllipseKit const &  in_kit) const

Check if the source EllipseKit is equivalent to this EllipseKit.

Parameters
in_kitThe source EllipseKit to compare to this EllipseKit.
Returns
true if the objects are equivalent, false otherwise.

◆ Reset()

◆ Set()

void HPS::EllipseKit::Set ( EllipseKit const &  in_kit)

Copies the source EllipseKit into this EllipseKit.

Parameters
in_kitThe source EllipseKit to copy.

◆ SetCenter()

EllipseKit& HPS::EllipseKit::SetCenter ( Point const &  in_center)

Sets the center point for the ellipse.

Parameters
in_centerThe center point for the ellipse.
Returns
A reference to this EllipseKit.

◆ SetMajor()

EllipseKit& HPS::EllipseKit::SetMajor ( Point const &  in_major)

Sets the intersection point of the major axis and the ellipse.

Parameters
in_majorThe intersection point of the major axis and the ellipse.
Returns
A reference to this EllipseKit.

◆ SetMinor()

EllipseKit& HPS::EllipseKit::SetMinor ( Point const &  in_minor)

Sets the intersection point of the minor axis and the ellipse.

Parameters
in_minorThe intersection point of the minor axis and the ellipse.
Returns
A reference to this EllipseKit.

◆ SetPriority()

EllipseKit& HPS::EllipseKit::SetPriority ( int  in_priority)

Assigns a specific drawing priority value to the EllipseKit.

It affects the order in which the contents of this segment are drawn if and only if the rendering algorithm is set to Priority.

Parameters
in_priorityThe drawing priority, higher priority items are drawn on top of lower priority items.
Returns
A reference to this object.
See also
SubwindowKit::SetPriority()
SubwindowKit::SetRenderingAlgorithm()

◆ SetUserData() [1/3]

EllipseKit& HPS::EllipseKit::SetUserData ( intptr_t  in_index,
size_t  in_bytes,
byte const  in_data[]
)

Sets user data on this kit.

Parameters
in_indexThe index of the user data to set.
in_bytesThe number of bytes of user data to set.
in_dataThe bytes of user data to set.
Returns
A reference to this kit.

◆ SetUserData() [2/3]

EllipseKit& HPS::EllipseKit::SetUserData ( intptr_t  in_index,
ByteArray const &  in_data
)

Sets user data on this kit.

Parameters
in_indexThe index of the user data to set.
in_dataThe bytes of user data to set.
Returns
A reference to this kit.

◆ SetUserData() [3/3]

EllipseKit& HPS::EllipseKit::SetUserData ( IntPtrTArray const &  in_indices,
ByteArrayArray const &  in_data
)

Sets user data on this kit.

Parameters
in_indicesAn array of user data indices to set.
in_dataAn array of bytes of user data to set.
Returns
A reference to this kit.

◆ Show()

void HPS::EllipseKit::Show ( EllipseKit out_kit) const

Copies this EllipseKit into the given EllipseKit.

Parameters
out_kitThe EllipseKit to populate with the contents of this EllipseKit.

◆ ShowCenter()

bool HPS::EllipseKit::ShowCenter ( Point out_center) const

Shows the center point for the ellipse.

Parameters
out_centerThe center point for the ellipse.
Returns
true if a center was set, false otherwise.

◆ ShowMajor()

bool HPS::EllipseKit::ShowMajor ( Point out_major) const

Shows the intersection point of the major axis and the ellipse.

Parameters
out_majorThe intersection point of the major axis and the ellipse.
Returns
true if an intersection point with the major axis was set, false otherwise.

◆ ShowMinor()

bool HPS::EllipseKit::ShowMinor ( Point out_minor) const

Shows the intersection point of the minor axis and the ellipse.

Parameters
out_minorThe intersection point of the minor axis and the ellipse.
Returns
true if an intersection point with the minor axis was set, false otherwise.

◆ ShowPriority()

bool HPS::EllipseKit::ShowPriority ( int &  out_priority) const

Shows the drawing priority.

Parameters
out_priorityThe drawing priority, higher priority items are drawn on top of lower priority items.
Returns
true if the setting is valid, false otherwise.

◆ ShowUserData() [1/2]

bool HPS::EllipseKit::ShowUserData ( intptr_t  in_index,
ByteArray out_data
) const

Shows the user data at a given index for this kit.

Parameters
in_indexThe index of the user data to show.
out_dataThe user data at the given index.
Returns
true if there is user data at the given index, false otherwise.

◆ ShowUserData() [2/2]

bool HPS::EllipseKit::ShowUserData ( IntPtrTArray out_indices,
ByteArrayArray out_data
) const

Shows all user data for this kit.

Parameters
out_indicesAn array of all user data indices set on this kit.
out_dataAn array of all user data set on this kit.
Returns
true if there is user data on this kit, false otherwise.

◆ ShowUserDataCount()

size_t HPS::EllipseKit::ShowUserDataCount ( ) const

Get the number of user data indices set on this kit.

◆ ShowUserDataIndices()

bool HPS::EllipseKit::ShowUserDataIndices ( IntPtrTArray out_indices) const

Shows the indices of all user data set on this kit.

Parameters
out_indicesThe user data indices set on this kit.
Returns
The number of user data indices set on this kit.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const
inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns
The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetAllUserData()

EllipseKit& HPS::EllipseKit::UnsetAllUserData ( )

Removes all user data from this kit.

Returns
A reference to this kit.

◆ UnsetCenter()

EllipseKit& HPS::EllipseKit::UnsetCenter ( )

Removes the center point for the ellipse.

Returns
A reference to this EllipseKit.

◆ UnsetEverything()

EllipseKit& HPS::EllipseKit::UnsetEverything ( )

Removes all settings from this EllipseKit.

Returns
A reference to this EllipseKit.

◆ UnsetMajor()

EllipseKit& HPS::EllipseKit::UnsetMajor ( )

Removes the intersection point of the major axis and the ellipse.

Returns
A reference to this EllipseKit.

◆ UnsetMinor()

EllipseKit& HPS::EllipseKit::UnsetMinor ( )

Removes the intersection point of the minor axis and the ellipse.

Returns
A reference to this EllipseKit.

◆ UnsetPriority()

EllipseKit& HPS::EllipseKit::UnsetPriority ( )

Removes a drawing priority setting.

Returns
A reference to this object.

◆ UnsetUserData() [1/3]

EllipseKit& HPS::EllipseKit::UnsetUserData ( intptr_t  in_index)

Removes the user data at the given index from this kit.

Parameters
in_indexThe index of the user data to remove.
Returns
A reference to this kit.

◆ UnsetUserData() [2/3]

EllipseKit& HPS::EllipseKit::UnsetUserData ( size_t  in_count,
intptr_t const  in_indices[]
)

Removes the user data at the given indices from this kit.

Parameters
in_countThe size of the following array.
in_indicesThe indices of the user data to remove.
Returns
A reference to this kit.

◆ UnsetUserData() [3/3]

EllipseKit& HPS::EllipseKit::UnsetUserData ( IntPtrTArray const &  in_indices)

Removes the user data at the given indices from this kit.

Parameters
in_indicesThe indices of the user data to remove.
Returns
A reference to this kit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::EllipseKit::staticType = HPS::Type::EllipseKit
static

The documentation for this class was generated from the following file:
