The GridKit class is a user space object. More...

#include <hps.h>

Inheritance diagram for HPS::GridKit:

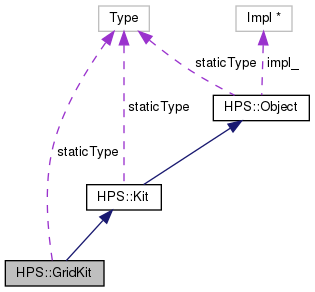

Collaboration diagram for HPS::GridKit:

Public Member Functions
	GridKit ()
	The default constructor creates an empty GridKit object. More...

	GridKit (GridKit const &in_kit)
	The copy constructor creates a new GridKit object that contains the same settings as the source GridKit. More...

	GridKit (GridKit &&in_that)
	The move constructor creates a GridKit by transferring the underlying object of the rvalue reference to this GridKit. More...

virtual	~GridKit ()

HPS::Type	ObjectType () const

void	Consume (GridKit &in_kit)
	Copies the source GridKit into this GridKit and resets the source kit. More...

void	Set (GridKit const &in_kit)
	Copies the source GridKit into this GridKit. More...

void	Show (GridKit &out_kit) const
	Copies this GridKit into the given GridKit. More...

GridKit &	operator= (GridKit const &in_kit)
	Copies the source GridKit into this GridKit. More...

GridKit &	operator= (GridKit &&in_that)
	The move assignment operator transfers the underlying object of the rvalue reference to this GridKit. More...

bool	Empty () const
	Indicates whether this GridKit has any values set on it. More...

bool	Equals (GridKit const &in_kit) const
	Check if the source GridKit is equivalent to this GridKit. More...

bool	operator== (GridKit const &in_kit) const
	Check if the source GridKit is equivalent to this GridKit. More...

bool	operator!= (GridKit const &in_kit) const
	Check if the source GridKit is not equivalent to this GridKit. More...

GridKit &	SetPriority (int in_priority)
	Assigns a specific drawing priority value to the GridKit. More...

GridKit &	SetType (Grid::Type in_type)
	Sets the type of this GridKit. More...

GridKit &	SetOrigin (Point const &in_origin)
	Sets the origin for this GridKit. More...

GridKit &	SetFirstPoint (Point const &in_first_point)
	Sets the first reference point for this GridKit. More...

GridKit &	SetSecondPoint (Point const &in_second_point)
	Sets the second reference point for this GridKit. More...

GridKit &	SetFirstCount (int in_first_count)
	Sets the first reference count for this GridKit, i.e., the number of grid elements along the vector determined by the first reference point. More...

GridKit &	SetSecondCount (int in_second_count)
	Sets the second reference count for this GridKit, i.e., the number of grid elements along the vector determined by the second reference point. More...

GridKit &	UnsetPriority ()
	Removes a drawing priority setting. More...

GridKit &	UnsetType ()
	Removes the type from this GridKit. More...

GridKit &	UnsetOrigin ()
	Removes the origin from this GridKit. More...

GridKit &	UnsetFirstPoint ()
	Removes the first reference point from this GridKit. More...

GridKit &	UnsetSecondPoint ()
	Removes the second reference point from this GridKit. More...

GridKit &	UnsetFirstCount ()
	Removes the first reference count from this GridKit. More...

GridKit &	UnsetSecondCount ()
	Removes the second reference count from this GridKit. More...

GridKit &	UnsetEverything ()
	Removes the all settings from this GridKit. More...

bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...

bool	ShowType (Grid::Type &out_type) const
	Shows the type for this GridKit. More...

bool	ShowOrigin (Point &out_origin) const
	Shows the origin for this GridKit. More...

bool	ShowFirstPoint (Point &out_first_point) const
	Shows the first reference point for this GridKit. More...

bool	ShowSecondPoint (Point &out_second_point) const
	Shows the second reference point for this GridKit. More...

bool	ShowFirstCount (int &out_first_count) const
	Shows the first reference count for this GridKit. More...

bool	ShowSecondCount (int &out_second_count) const
	Shows the second reference count for this GridKit. More...

GridKit &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this kit. More...

GridKit &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this kit. More...

GridKit &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this kit. More...

GridKit &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this kit. More...

GridKit &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this kit. More...

GridKit &	UnsetUserData (IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this kit. More...

GridKit &	UnsetAllUserData ()
	Removes all user data from this kit. More...

size_t	ShowUserDataCount () const
	Get the number of user data indices set on this kit. More...

bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this kit. More...

bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this kit. More...

bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this kit. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::GridKit

Detailed Description

The GridKit class is a user space object.

It is a kit analog to a GridKey.

Constructor & Destructor Documentation

◆ GridKit() [1/3]

HPS::GridKit::GridKit ( )

The default constructor creates an empty GridKit object.

◆ GridKit() [2/3]

HPS::GridKit::GridKit ( GridKit const & in_kit )

The copy constructor creates a new GridKit object that contains the same settings as the source GridKit.

Parameters

in_kit The source GridKit to copy.

◆ GridKit() [3/3]

HPS::GridKit::GridKit ( GridKit && in_that )

The move constructor creates a GridKit by transferring the underlying object of the rvalue reference to this GridKit.

Parameters

in_that An rvalue reference to a GridKit to take the underlying object from.

◆ ~GridKit()

virtual HPS::GridKit::~GridKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Consume()

void HPS::GridKit::Consume ( GridKit & in_kit )

Copies the source GridKit into this GridKit and resets the source kit.

Parameters

in_kit The source GridKit to consume.

◆ Empty()

bool HPS::GridKit::Empty ( ) const

virtual

Indicates whether this GridKit has any values set on it.

Returns: true if no values are set on this GridKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::GridKit::Equals ( GridKit const & in_kit ) const

Check if the source GridKit is equivalent to this GridKit.

Parameters

in_kit The source GridKit to compare to this GridKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::GridKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::GridKit::operator!= ( GridKit const & in_kit ) const

Check if the source GridKit is not equivalent to this GridKit.

Parameters

in_kit The source GridKit to compare to this GridKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

GridKit& HPS::GridKit::operator= ( GridKit const & in_kit )

Copies the source GridKit into this GridKit.

Parameters

in_kit The source GridKit to copy.

Returns: A reference to this GridKit.

◆ operator=() [2/2]

GridKit& HPS::GridKit::operator= ( GridKit && in_that )

The move assignment operator transfers the underlying object of the rvalue reference to this GridKit.

Parameters

in_that An rvalue reference to a GridKit to take the underlying object from.

Returns: A reference to this GridKit.

◆ operator==()

bool HPS::GridKit::operator== ( GridKit const & in_kit ) const

Check if the source GridKit is equivalent to this GridKit.

Parameters

in_kit The source GridKit to compare to this GridKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::GridKit::Set ( GridKit const & in_kit )

Copies the source GridKit into this GridKit.

Parameters

in_kit The source GridKit to copy.

◆ SetFirstCount()

GridKit& HPS::GridKit::SetFirstCount ( int in_first_count )

Sets the first reference count for this GridKit, i.e., the number of grid elements along the vector determined by the first reference point.

If the type of the grid is Grid::Type::Quadrilateral, there are three type of behavior depending on if the count is greater than zero, less than zero, or equal to zero. If the count is greater than zero, the count determines the finite number of grid lines which will intersect with the vector determined by the first reference point. If the count is less than zero, the count determines the finite number of grid lines which will intersect with the vector determined by the first reference point and additionally that same number of intersections along the negation of that vector. Lastly, if the count is zero, the grid will extend infinitely along the vector determined by the first reference point and its negation. If the type of the grid is Grid::Type::Radial, there are two types of behavior depending on if the count is greater than zero or equal to zero. If the count is greater than zero, it determines the finite number of circular arcs which will intersect with the radial vectors. If the count is equal to zero, there will be an infinite number of intersections along the radial arcs. Negative counts are invalid in this case.

Parameters

in_first_count The count of the number of grid elements along the vector determined by the first reference point.

Returns: A reference to this GridKit.

◆ SetFirstPoint()

GridKit& HPS::GridKit::SetFirstPoint ( Point const & in_first_point )

Sets the first reference point for this GridKit.

If the type of the grid is Grid::Type::Quadrilateral, this defines the first point along one of the vectors defining the grid (the other vector is determined by the second point). It also determines the spacing between the grid lines along the vector. If the type of the grid is Grid::Type::Radial, this defines the first point along the radius vector which will intersect with the circular grid arcs.

Parameters

in_first_point The first reference point for this GridKit.

Returns: A reference to this GridKit.

◆ SetOrigin()

GridKit& HPS::GridKit::SetOrigin ( Point const & in_origin )

Sets the origin for this GridKit.

Parameters

in_origin The origin for this GridKit.

Returns: A reference to this GridKit.

◆ SetPriority()

GridKit& HPS::GridKit::SetPriority ( int in_priority )

Assigns a specific drawing priority value to the GridKit.

It affects the order in which the contents of this segment are drawn if and only if the rendering algorithm is set to Priority.

Parameters

in_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: A reference to this object.

See also: SubwindowKit::SetPriority(); SubwindowKit::SetRenderingAlgorithm()

◆ SetSecondCount()

GridKit& HPS::GridKit::SetSecondCount ( int in_second_count )

Sets the second reference count for this GridKit, i.e., the number of grid elements along the vector determined by the second reference point.

If the type of the grid is Grid::Type::Quadrilateral, there are three type of behavior depending on if the count is greater than zero, less than zero, or equal to zero. If the count is greater than zero, the count determines the finite number of grid lines which will intersect with the vector determined by the second reference point. If the count is less than zero, the count determines the finite number of grid lines which will intersect with the vector determined by the second reference point and additionally that same number of intersections along the negation of that vector. Lastly, if the count is zero, the grid will extend infinitely along the vector determined by the second reference point and its negation. If the type of the grid is Grid::Type::Radial, the count determines the number of radial vectors for the grid.

Parameters

in_second_count The count of the number of grid elements along the vector determined by the second reference point.

Returns: A reference to this GridKit.

◆ SetSecondPoint()

GridKit& HPS::GridKit::SetSecondPoint ( Point const & in_second_point )

Sets the second reference point for this GridKit.

If the type of the grid Grid::Type::Quadrilateral, this defines the first point along the second vector defining the grid (the other vector is determined by the first point). It also determines the spacing between the grid lines along the vector. If the type of the grid is Grid::Type::Radial, this defines the first point on the first circular arc which intersects with the radial vectors, and determines the spacing of the arcs along the radial vectors.

Parameters

in_second_point The second reference point for this GridKit.

Returns: A reference to this GridKit.

◆ SetType()

GridKit& HPS::GridKit::SetType ( Grid::Type in_type )

Sets the type of this GridKit.

Parameters

in_type The type of this GridKit.

Returns: A reference to this GridKit.

◆ SetUserData() [1/3]

GridKit& HPS::GridKit::SetUserData	(	intptr_t	in_index,
		size_t	in_bytes,
		byte const	in_data[]
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [2/3]

GridKit& HPS::GridKit::SetUserData	(	intptr_t	in_index,
		ByteArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns: A reference to this kit.

◆ SetUserData() [3/3]

GridKit& HPS::GridKit::SetUserData	(	IntPtrTArray const &	in_indices,
		ByteArrayArray const &	in_data
	)

Sets user data on this kit.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns: A reference to this kit.

◆ Show()

void HPS::GridKit::Show ( GridKit & out_kit ) const

Copies this GridKit into the given GridKit.

Parameters

out_kit The GridKit to populate with the contents of this GridKit.

◆ ShowFirstCount()

bool HPS::GridKit::ShowFirstCount ( int & out_first_count ) const

Shows the first reference count for this GridKit.

Parameters

out_first_count The first reference count for this GridKit.

Returns: true if a first reference count was set, false otherwise.

◆ ShowFirstPoint()

bool HPS::GridKit::ShowFirstPoint ( Point & out_first_point ) const

Shows the first reference point for this GridKit.

Parameters

out_first_point The first reference point for this GridKit.

Returns: true if a first reference point was set, false otherwise.

◆ ShowOrigin()

bool HPS::GridKit::ShowOrigin ( Point & out_origin ) const

Shows the origin for this GridKit.

Parameters

out_origin The origin for this GridKit.

Returns: true if an origin was set, false otherwise.

◆ ShowPriority()

bool HPS::GridKit::ShowPriority ( int & out_priority ) const

Shows the drawing priority.

Parameters

out_priority The drawing priority, higher priority items are drawn on top of lower priority items.

Returns: true if the setting is valid, false otherwise.

◆ ShowSecondCount()

bool HPS::GridKit::ShowSecondCount ( int & out_second_count ) const

Shows the second reference count for this GridKit.

Parameters

out_second_count The second reference count for this GridKit.

Returns: true if a second reference count was set, false otherwise.

◆ ShowSecondPoint()

bool HPS::GridKit::ShowSecondPoint ( Point & out_second_point ) const

Shows the second reference point for this GridKit.

Parameters

out_second_point The second reference point for this GridKit.

Returns: true if a second reference point was set, false otherwise.

◆ ShowType()

bool HPS::GridKit::ShowType ( Grid::Type & out_type ) const

Shows the type for this GridKit.

Parameters

out_type The type for this GridKit.

Returns: true if a type was set, false otherwise.

◆ ShowUserData() [1/2]

bool HPS::GridKit::ShowUserData	(	intptr_t	in_index,
		ByteArray &	out_data
	)		const

Shows the user data at a given index for this kit.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns: true if there is user data at the given index, false otherwise.

◆ ShowUserData() [2/2]

bool HPS::GridKit::ShowUserData	(	IntPtrTArray &	out_indices,
		ByteArrayArray &	out_data
	)		const

Shows all user data for this kit.

Parameters

out_indices	An array of all user data indices set on this kit.
out_data	An array of all user data set on this kit.

Returns: true if there is user data on this kit, false otherwise.

◆ ShowUserDataCount()

size_t HPS::GridKit::ShowUserDataCount ( ) const

Get the number of user data indices set on this kit.

◆ ShowUserDataIndices()

bool HPS::GridKit::ShowUserDataIndices ( IntPtrTArray & out_indices ) const

Shows the indices of all user data set on this kit.

Parameters

out_indices The user data indices set on this kit.

Returns: The number of user data indices set on this kit.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetAllUserData()

GridKit& HPS::GridKit::UnsetAllUserData ( )

Removes all user data from this kit.

Returns: A reference to this kit.

◆ UnsetEverything()

GridKit& HPS::GridKit::UnsetEverything ( )

Removes the all settings from this GridKit.

Returns: A reference to this GridKit.

◆ UnsetFirstCount()

GridKit& HPS::GridKit::UnsetFirstCount ( )

Removes the first reference count from this GridKit.

Returns: A reference to this GridKit.

◆ UnsetFirstPoint()

GridKit& HPS::GridKit::UnsetFirstPoint ( )

Removes the first reference point from this GridKit.

Returns: A reference to this GridKit.

◆ UnsetOrigin()

GridKit& HPS::GridKit::UnsetOrigin ( )

Removes the origin from this GridKit.

Returns: A reference to this GridKit.

◆ UnsetPriority()

GridKit& HPS::GridKit::UnsetPriority ( )

Removes a drawing priority setting.

Returns: A reference to this GridKit.

◆ UnsetSecondCount()

GridKit& HPS::GridKit::UnsetSecondCount ( )

Removes the second reference count from this GridKit.

Returns: A reference to this GridKit.

◆ UnsetSecondPoint()

GridKit& HPS::GridKit::UnsetSecondPoint ( )

Removes the second reference point from this GridKit.

Returns: A reference to this GridKit.

◆ UnsetType()

GridKit& HPS::GridKit::UnsetType ( )

Removes the type from this GridKit.

Returns: A reference to this GridKit.

◆ UnsetUserData() [1/3]

GridKit& HPS::GridKit::UnsetUserData ( intptr_t in_index )

Removes the user data at the given index from this kit.

Parameters

in_index The index of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [2/3]

GridKit& HPS::GridKit::UnsetUserData	(	size_t	in_count,
		intptr_t const	in_indices[]
	)

Removes the user data at the given indices from this kit.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns: A reference to this kit.

◆ UnsetUserData() [3/3]

GridKit& HPS::GridKit::UnsetUserData ( IntPtrTArray const & in_indices )

Removes the user data at the given indices from this kit.

Parameters

in_indices The indices of the user data to remove.

Returns: A reference to this kit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::GridKit::staticType = HPS::Type::GridKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ GridKit() [1/3]

◆ GridKit() [2/3]

◆ GridKit() [3/3]

◆ ~GridKit()

Member Function Documentation

◆ ClassID()

◆ Consume()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetFirstCount()

◆ SetFirstPoint()

◆ SetOrigin()

◆ SetPriority()

◆ SetSecondCount()

◆ SetSecondPoint()

◆ SetType()

◆ SetUserData() [1/3]

◆ SetUserData() [2/3]

◆ SetUserData() [3/3]

◆ Show()

◆ ShowFirstCount()

◆ ShowFirstPoint()

◆ ShowOrigin()

◆ ShowPriority()

◆ ShowSecondCount()

◆ ShowSecondPoint()

◆ ShowType()

◆ ShowUserData() [1/2]

◆ ShowUserData() [2/2]

◆ ShowUserDataCount()

◆ ShowUserDataIndices()

◆ Type()

◆ UnsetAllUserData()

◆ UnsetEverything()

◆ UnsetFirstCount()

◆ UnsetFirstPoint()

◆ UnsetOrigin()

◆ UnsetPriority()

◆ UnsetSecondCount()

◆ UnsetSecondPoint()

◆ UnsetType()

◆ UnsetUserData() [1/3]

◆ UnsetUserData() [2/3]

◆ UnsetUserData() [3/3]

Member Data Documentation

◆ staticType
