HPS::GridKey Class Reference

The GridKey class is a smart pointer to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::GridKey:

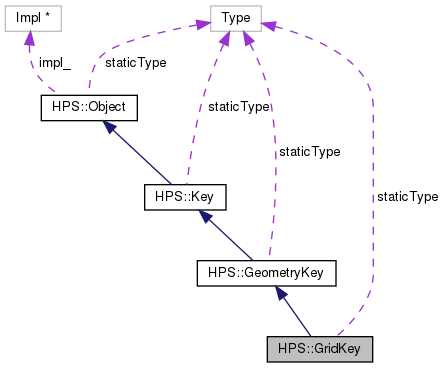

Collaboration diagram for HPS::GridKey:

Public Member Functions
	GridKey ()
	The default constructor creates an uninitialized GridKey object. More...
	GridKey (Key const &in_that)
	This constructor creates an GridKey object that shares the underlying smart-pointer of the source Key. More...
	GridKey (GridKey const &in_that)
	The copy constructor creates a GridKey object that shares the underlying smart-pointer of the source GridKey. More...
	GridKey (GridKey &&in_that)
	The move constructor creates a GridKey by transferring the underlying object of the rvalue reference to this GridKey. More...
GridKey &	operator= (GridKey const &in_that)
	Associate this GridKey with the same underlying object as the source GridKey. More...
GridKey &	operator= (GridKey &&in_that)
	The move assignment operator transfers the underlying object of the rvalue reference to this GridKey. More...
	~GridKey ()
HPS::Type	ObjectType () const
void	Consume (GridKit &in_kit)
	Completely replaces all settings on this GridKey with those set on the specified kit and resets the kit. More...
void	Set (GridKit const &in_kit)
	Replace those settings on this GridKey with those set on the specified kit. More...
void	Show (GridKit &out_kit) const
	Copy the contents of this GridKey into the specified kit. More...
GridKey &	SetType (Grid::Type in_type)
	Sets the type of this GridKey. More...
GridKey &	SetOrigin (Point const &in_origin)
	Sets the origin for this GridKey. More...
GridKey &	SetFirstPoint (Point const &in_first_point)
	Sets the first reference point for this GridKey. More...
GridKey &	SetSecondPoint (Point const &in_second_point)
	Sets the second reference point for this GridKey. More...
GridKey &	SetFirstCount (int in_first_count)
	Sets the first reference count for this GridKey, i.e., the number of grid elements along the vector determined by the first reference point. More...
GridKey &	SetSecondCount (int in_second_count)
	Sets the second reference count for this GridKey, i.e., the number of grid elements along the vector determined by the second reference point. More...
bool	ShowType (Grid::Type &out_type) const
	Shows the type for this GridKey. More...
bool	ShowOrigin (Point &out_origin) const
	Shows the origin for this GridKey. More...
bool	ShowFirstPoint (Point &out_first_point) const
	Shows the first reference point for this GridKey. More...
bool	ShowSecondPoint (Point &out_second_point) const
	Shows the second reference point for this GridKey. More...
bool	ShowFirstCount (int &out_first_count) const
	Shows the first reference count for this GridKey. More...
bool	ShowSecondCount (int &out_second_count) const
	Shows the second reference count for this GridKey. More...
size_t	ShowReferrers (SegmentKeyArray &out_segments) const
	Shows the all the segments which contain references to this key. More...
size_t	ShowReferrers (ReferenceKeyArray &out_references) const
	Shows the all the references to this key. More...
GeometryKey &	SetPriority (int in_priority)
	Assigns a drawing priority value to the geometry. More...
GeometryKey &	UnsetPriority ()
	Removes the drawing priority setting. More...
bool	ShowPriority (int &out_priority) const
	Shows the drawing priority. More...
GeometryKey &	SetUserData (intptr_t in_index, size_t in_bytes, byte const in_data[])
	Sets user data on this key. More...
GeometryKey &	SetUserData (intptr_t in_index, ByteArray const &in_data)
	Sets user data on this key. More...
GeometryKey &	SetUserData (IntPtrTArray const &in_indices, ByteArrayArray const &in_data)
	Sets user data on this key. More...
GeometryKey &	UnsetUserData (intptr_t in_index)
	Removes the user data at the given index from this key. More...
GeometryKey &	UnsetUserData (size_t in_count, intptr_t const in_indices[])
	Removes the user data at the given indices from this key. More...
GeometryKey &	UnsetUserData (IntPtrTArray const &in_indices)
	Removes the user data at the given indices from this key. More...
GeometryKey &	UnsetAllUserData ()
	Removes all user data from this key. More...
size_t	ShowUserDataCount () const
	Get the number of user data indices set on this key. More...
bool	ShowUserDataIndices (IntPtrTArray &out_indices) const
	Shows the indices of all user data set on this key. More...
bool	ShowUserData (intptr_t in_index, ByteArray &out_data) const
	Shows the user data at a given index for this key. More...
bool	ShowUserData (IntPtrTArray &out_indices, ByteArrayArray &out_data) const
	Shows all user data for this key. More...
bool	ShowBounding (BoundingKit &out_kit) const
	Shows the bounding of this geometry. More...
bool	HasOwner () const
SegmentKey	Up () const
SegmentKey	Owner () const
void	Delete ()
	Removes the database object referred to by this key. More...
void	MoveTo (SegmentKey const &in_new_owner)
	Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner. More...
Key	CopyTo (SegmentKey const &in_destination) const
	Copies the database object referred to by this key into a segment pointed to by in_destination. More...
virtual void	Assign (Key const &in_that)
	Share the underlying smart-pointer of the Key source. More...
bool	Equals (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator!= (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
bool	operator== (Key const &in_that) const
	Determines whether the database objects pointed to by this key and in_that are the same. More...
size_t	GetHash () const
	Returns a hash code for the key. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::GridKey

Detailed Description

The GridKey class is a smart pointer to a database object.

It is a handle to a grid created by SegmentKey::InsertGrid.

Constructor & Destructor Documentation

GridKey() [1/4]

HPS::GridKey::GridKey

(

)

The default constructor creates an uninitialized GridKey object.

The Type() function will return Type::None.

GridKey() [2/4]

HPS::GridKey::GridKey ( Key const &  in_that )

explicit

This constructor creates an GridKey object that shares the underlying smart-pointer of the source Key.

The copy will only be successful if the source key is really an upcast of a grid key. Otherwise the copy will fail and the resulting GridKey will be invalid.

Parameters

in_that

The source Key to copy.

GridKey() [3/4]

HPS::GridKey::GridKey

(

GridKey const &

in_that

)

The copy constructor creates a GridKey object that shares the underlying smart-pointer of the source GridKey.

Parameters

in_that

The source GridKey to copy.

GridKey() [4/4]

HPS::GridKey::GridKey

(

GridKey &&

in_that

)

The move constructor creates a GridKey by transferring the underlying object of the rvalue reference to this GridKey.

Parameters

in_that

An rvalue reference to a GridKey to take the underlying object from.

~GridKey()

HPS::GridKey::~GridKey

(

)

Member Function Documentation

Assign()

virtual void HPS::Key::Assign ( Key const &  in_that )

virtualinherited

Share the underlying smart-pointer of the Key source.

Parameters

in_that

The Key source of the assignment.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Consume()

void HPS::GridKey::Consume

(

GridKit &

in_kit

)

Completely replaces all settings on this GridKey with those set on the specified kit and resets the kit.

Parameters

in_kit

The kit from which to get the settings to replace on this GridKey.

CopyTo()

Key HPS::Key::CopyTo ( SegmentKey const &  in_destination ) const

inherited

Copies the database object referred to by this key into a segment pointed to by in_destination.

Returns

The key of the new copy.

Delete()

void HPS::Key::Delete ( )

inherited

Removes the database object referred to by this key.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

bool HPS::Key::Equals ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Empty keys (when key.Empty() returns true) are never equal to any key, even when the key is compared against itself (they act analogously to NaN comparisons in this case.)

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetHash()

size_t HPS::Key::GetHash ( ) const

inherited

Returns a hash code for the key.

Returns

The size_t hash code.

Here is the caller graph for this function:

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasOwner()

bool HPS::Key::HasOwner ( ) const

inherited

Returns

Indicates whether this key has an owner or not.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

MoveTo()

void HPS::Key::MoveTo ( SegmentKey const &  in_new_owner )

inherited

Moves the database object referred to by this key into a new containing segment pointed to by in_new_owner.

ObjectType()

HPS::Type HPS::GridKey::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::GeometryKey.

operator!=()

bool HPS::Key::operator!= ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

operator=() [1/2]

GridKey& HPS::GridKey::operator=

(

GridKey const &

in_that

)

Associate this GridKey with the same underlying object as the source GridKey.

Parameters

in_that

The source GridKey for the assignment.

Returns

A reference to this GridKey.

operator=() [2/2]

GridKey& HPS::GridKey::operator=

(

GridKey &&

in_that

)

The move assignment operator transfers the underlying object of the rvalue reference to this GridKey.

Parameters

in_that

An rvalue reference to a GridKey to take the underlying object from.

Returns

A reference to this GridKey.

operator==()

bool HPS::Key::operator== ( Key const &  in_that ) const

inherited

Determines whether the database objects pointed to by this key and in_that are the same.

Owner()

SegmentKey HPS::Key::Owner ( ) const

inherited

Returns

The segment containing this key.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::GridKey::Set

(

GridKit const &

in_kit

)

Replace those settings on this GridKey with those set on the specified kit.

Parameters

in_kit

The kit from which to get the settings to replace on this GridKey.

SetFirstCount()

GridKey& HPS::GridKey::SetFirstCount

(

int

in_first_count

)

Sets the first reference count for this GridKey, i.e., the number of grid elements along the vector determined by the first reference point.

If the type of the grid is Grid::Type::Quadrilateral, there are three type of behavior depending on if the count is greater than zero, less than zero, or equal to zero. If the count is greater than zero, the count determines the finite number of grid lines which will intersect with the vector determined by the first reference point. If the count is less than zero, the count determines the finite number of grid lines which will intersect with the vector determined by the first reference point and additionally that same number of intersections along the negation of that vector. Lastly, if the count is zero, the grid will extend infinitely along the vector determined by the first reference point and its negation. If the type of the grid is Grid::Type::Radial, there are two types of behavior depending on if the count is greater than zero or equal to zero. If the count is greater than zero, it determines the finite number of circular arcs which will intersect with the radial vectors. If the count is equal to zero, there will be an infinite number of intersections along the radial arcs. Negative counts are invalid in this case.

Parameters

in_first_count

The count of the number of grid elements along the vector determined by the first reference point.

Returns

A reference to this GridKey.

SetFirstPoint()

GridKey& HPS::GridKey::SetFirstPoint

(

Point const &

in_first_point

)

Sets the first reference point for this GridKey.

If the type of the grid is Grid::Type::Quadrilateral, this defines the first point along one of the vectors defining the grid (the other vector is determined by the second point). It also determines the spacing between the grid lines along the vector. If the type of the grid is Grid::Type::Radial, this defines the first point along the radius vector which will intersect with the circular grid arcs.

Parameters

in_first_point

The first reference point for this GridKey.

Returns

A reference to this GridKey.

SetOrigin()

GridKey& HPS::GridKey::SetOrigin

(

Point const &

in_origin

)

Sets the origin for this GridKey.

Parameters

in_origin

The origin for this GridKey.

Returns

A reference to this GridKey.

SetPriority()

GeometryKey& HPS::GeometryKey::SetPriority ( int  in_priority )

inherited

Assigns a drawing priority value to the geometry.

It affects the order in which the geometry is visited if and only if the rendering algorithm is set to Priority. The geometry has a default drawing priority assigned, based on the order of insertion.

Parameters

in_priority

The drawing priority; higher priority items are drawn on top of lower priority items.

Returns

A reference to this object.

See also

SubwindowKit::SetRenderingAlgorithm()

SetSecondCount()

GridKey& HPS::GridKey::SetSecondCount

(

int

in_second_count

)

Sets the second reference count for this GridKey, i.e., the number of grid elements along the vector determined by the second reference point.

If the type of the grid is Grid::Type::Quadrilateral, there are three type of behavior depending on if the count is greater than zero, less than zero, or equal to zero. If the count is greater than zero, the count determines the finite number of grid lines which will intersect with the vector determined by the second reference point. If the count is less than zero, the count determines the finite number of grid lines which will intersect with the vector determined by the second reference point and additionally that same number of intersections along the negation of that vector. Lastly, if the count is zero, the grid will extend infinitely along the vector determined by the second reference point and its negation. If the type of the grid is Grid::Type::Radial, the count determines the number of radial vectors for the grid.

Parameters

in_second_count

The count of the number of grid elements along the vector determined by the second reference point.

Returns

A reference to this GridKey.

SetSecondPoint()

GridKey& HPS::GridKey::SetSecondPoint

(

Point const &

in_second_point

)

Sets the second reference point for this GridKey.

If the type of the grid Grid::Type::Quadrilateral, this defines the first point along the second vector defining the grid (the other vector is determined by the first point). It also determines the spacing between the grid lines along the vector. If the type of the grid is Grid::Type::Radial, this defines the first point on the first circular arc which intersects with the radial vectors, and determines the spacing of the arcs along the radial vectors.

Parameters

in_second_point

The second reference point for this GridKey.

Returns

A reference to this GridKey.

SetType()

GridKey& HPS::GridKey::SetType

(

Grid::Type

in_type

)

Sets the type of this GridKey.

Parameters

in_type

The type of this GridKey.

Returns

A reference to this GridKey.

SetUserData() [1/3]

GeometryKey& HPS::GeometryKey::SetUserData ( intptr_t  in_index, size_t  in_bytes, byte const  in_data[]  )

inherited

Sets user data on this key.

Parameters

in_index	The index of the user data to set.
in_bytes	The number of bytes of user data to set.
in_data	The bytes of user data to set.

Returns

A reference to this key.

SetUserData() [2/3]

GeometryKey& HPS::GeometryKey::SetUserData ( intptr_t  in_index, ByteArray const &  in_data  )

inherited

Sets user data on this key.

Parameters

in_index	The index of the user data to set.
in_data	The bytes of user data to set.

Returns

A reference to this key.

SetUserData() [3/3]

GeometryKey& HPS::GeometryKey::SetUserData ( IntPtrTArray const &  in_indices, ByteArrayArray const &  in_data  )

inherited

Sets user data on this key.

Parameters

in_indices	An array of user data indices to set.
in_data	An array of bytes of user data to set.

Returns

A reference to this key.

Show()

void HPS::GridKey::Show

(

GridKit &

out_kit

)

const

Copy the contents of this GridKey into the specified kit.

Parameters

out_kit

The kit to populate with the contents of this GridKey.

ShowBounding()

bool HPS::GeometryKey::ShowBounding ( BoundingKit &  out_kit ) const

inherited

Shows the bounding of this geometry.

Parameters

out_kit

The BoundingKit that is set on this GeometryKey

Returns

False if no bounding exists.

ShowFirstCount()

bool HPS::GridKey::ShowFirstCount

(

int &

out_first_count

)

const

Shows the first reference count for this GridKey.

Parameters

out_first_count

The first reference count for this GridKey.

Returns

true if a first reference count was set, false otherwise.

ShowFirstPoint()

bool HPS::GridKey::ShowFirstPoint

(

Point &

out_first_point

)

const

Shows the first reference point for this GridKey.

Parameters

out_first_point

The first reference point for this GridKey.

Returns

true if a first reference point was set, false otherwise.

ShowOrigin()

bool HPS::GridKey::ShowOrigin

(

Point &

out_origin

)

const

Shows the origin for this GridKey.

Parameters

out_origin

The origin for this GridKey.

Returns

true if an origin was set, false otherwise.

ShowPriority()

bool HPS::GeometryKey::ShowPriority ( int &  out_priority ) const

inherited

Shows the drawing priority.

Parameters

out_priority

The drawing priority; higher priority items are drawn on top of lower priority items.

Returns

true if a priority was specified, false otherwise.

ShowReferrers() [1/2]

size_t HPS::GeometryKey::ShowReferrers ( SegmentKeyArray &  out_segments ) const

inherited

Shows the all the segments which contain references to this key.

Note that while a segment may only appear once in the returned array, that segment could have multiple references to this key.

Parameters

out_segments

The list of segments which contains references to this key.

Returns

The number of segments which contain references to this key.

ShowReferrers() [2/2]

size_t HPS::GeometryKey::ShowReferrers ( ReferenceKeyArray &  out_references ) const

inherited

Shows the all the references to this key.

Parameters

out_references

The list of all references to this key.

Returns

The number of references to this key.

ShowSecondCount()

bool HPS::GridKey::ShowSecondCount

(

int &

out_second_count

)

const

Shows the second reference count for this GridKey.

Parameters

out_second_count

The second reference count for this GridKey.

Returns

true if a second reference count was set, false otherwise.

ShowSecondPoint()

bool HPS::GridKey::ShowSecondPoint

(

Point &

out_second_point

)

const

Shows the second reference point for this GridKey.

Parameters

out_second_point

The second reference point for this GridKey.

Returns

true if a second reference point was set, false otherwise.

ShowType()

bool HPS::GridKey::ShowType

(

Grid::Type &

out_type

)

const

Shows the type for this GridKey.

Parameters

out_type

The type for this GridKey.

Returns

true if a type was set, false otherwise.

ShowUserData() [1/2]

bool HPS::GeometryKey::ShowUserData ( intptr_t  in_index, ByteArray &  out_data  ) const

inherited

Shows the user data at a given index for this key.

Parameters

in_index	The index of the user data to show.
out_data	The user data at the given index.

Returns

true if there is user data at the given index, false otherwise.

ShowUserData() [2/2]

bool HPS::GeometryKey::ShowUserData ( IntPtrTArray &  out_indices, ByteArrayArray &  out_data  ) const

inherited

Shows all user data for this key.

Parameters

out_indices	An array of all user data indices set on this key.
out_data	An array of all user data set on this key.

Returns

true if there is user data on this key, false otherwise.

ShowUserDataCount()

size_t HPS::GeometryKey::ShowUserDataCount ( ) const

inherited

Get the number of user data indices set on this key.

ShowUserDataIndices()

bool HPS::GeometryKey::ShowUserDataIndices ( IntPtrTArray &  out_indices ) const

inherited

Shows the indices of all user data set on this key.

Parameters

out_indices

The user data indices set on this key.

Returns

The number of user data indices set on this key.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetAllUserData()

GeometryKey& HPS::GeometryKey::UnsetAllUserData ( )

inherited

Removes all user data from this key.

Returns

A reference to this key.

UnsetPriority()

GeometryKey& HPS::GeometryKey::UnsetPriority ( )

inherited

Removes the drawing priority setting.

Returns

A reference to this object.

UnsetUserData() [1/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( intptr_t  in_index )

inherited

Removes the user data at the given index from this key.

Parameters

in_index

The index of the user data to remove.

Returns

A reference to this key.

UnsetUserData() [2/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( size_t  in_count, intptr_t const  in_indices[]  )

inherited

Removes the user data at the given indices from this key.

Parameters

in_count	The size of the following array.
in_indices	The indices of the user data to remove.

Returns

A reference to this key.

UnsetUserData() [3/3]

GeometryKey& HPS::GeometryKey::UnsetUserData ( IntPtrTArray const &  in_indices )

inherited

Removes the user data at the given indices from this key.

Parameters

in_indices

The indices of the user data to remove.

Returns

A reference to this key.

Up()

SegmentKey HPS::Key::Up ( ) const

inherited

Returns

The segment containing this key.

Member Data Documentation

staticType

const HPS::Type HPS::GridKey::staticType = HPS::Type::GridKey

static

---

The documentation for this class was generated from the following file:

• hps.h
