The LineTessellationKit class is a user space object. More...

#include <sprk_parasolid.h>

Inheritance diagram for HPS::Parasolid::LineTessellationKit:

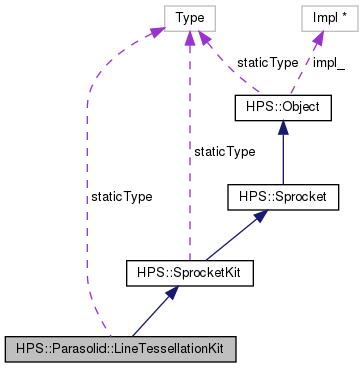

Collaboration diagram for HPS::Parasolid::LineTessellationKit:

Public Member Functions
	LineTessellationKit ()
	The default constructor creates an empty LineTessellationKit object. More...

	LineTessellationKit (LineTessellationKit const &in_kit)
	The copy constructor creates a new LineTessellationKit object that contains the same settings as the source LineTessellationKit. More...

	LineTessellationKit (LineTessellationKit &&in_that)
	The move constructor creates an LineTessellationKit by transferring the underlying impl of the rvalue reference to this LineTessellationKit thereby avoiding a copy and allocation. More...

LineTessellationKit &	operator= (LineTessellationKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this LineTessellationKit thereby avoiding a copy. More...

virtual	~LineTessellationKit ()

HPS::Type	ObjectType () const

void	Set (LineTessellationKit const &in_kit)
	Copies the source LineTessellationKit into this LineTessellationKit. More...

void	Show (LineTessellationKit &out_kit) const
	Copies this LineTessellationKit into the given LineTessellationKit. More...

LineTessellationKit &	operator= (LineTessellationKit const &in_kit)
	Copies the source LineTessellationKit into this LineTessellationKit. More...

bool	Empty () const
	Indicates whether this LineTessellationKit has any values set on it. More...

bool	Equals (LineTessellationKit const &in_kit) const
	Check if the source LineTessellationKit is equivalent to this LineTessellationKit. More...

bool	operator== (LineTessellationKit const &in_kit) const
	Check if the source LineTessellationKit is equivalent to this LineTessellationKit. More...

bool	operator!= (LineTessellationKit const &in_kit) const
	Check if the source LineTessellationKit is not equivalent to this LineTessellationKit. More...

LineTessellationKit &	SetEdges (bool in_draw_edges, bool in_internal_edges)
	Sets whether edges are drawn. More...

LineTessellationKit &	SetSilhouetteEdges (bool in_draw_silhouette_edges, bool in_draw_circles_as_arcs)
	Sets whether silhouette edges are drawn. More...

LineTessellationKit &	SetPlanarHatching (Line::Hatching::Planar in_planar_haching, double in_planar_spacing=0, DPoint in_point_through=DPoint(0, 0, 0), DVector in_direction=DVector(0, 0, 0))
	Sets planar hatching tessellation options. More...

LineTessellationKit &	SetRadialHatching (Line::Hatching::Radial in_radial_hatching, double in_around=0, double in_around_start=0, double in_along=0, double in_along_start=0, double in_about=0, double in_about_start=0)
	Sets radial hatching tessellation options. More...

LineTessellationKit &	SetParametricHatching (Line::Hatching::Parametric in_parametric_hatching, double in_u=0, double in_u_start=0, double in_v=0, double in_v_start=0)
	Sets parametric hatching tessellation options. More...

LineTessellationKit &	SetUnfixedBlends (Line::UnfixedBlends in_unfixed_blends, double in_spacing=0)
	Sets whether unfixed blends are drawn. More...

LineTessellationKit &	SetVisibilityEvaluation (Line::Visibility in_visibility, bool in_draw_invisible=false, bool in_drafting=false, bool in_self_hidden=false, IntArray in_suppressed_indices=IntArray())
	Sets whether visibility is evaluated. More...

LineTessellationKit &	SetSmoothEdges (Line::Smooth in_smooth, double in_tolerance=0)
	Sets whether to indicate smooth edges. More...

LineTessellationKit &	SetRegionalData (Line::Region in_region)
	Sets whether regional data is produced. More...

LineTessellationKit &	SetHierarchicalOutput (Line::Hierarchical in_hierarchical_output)
	Sets whether a hierarchical output is produced. More...

LineTessellationKit &	SetBCurveRenderingMethod (Line::BCurveRendering in_bcurve_rendering_method)
	Sets the method used to render bcurves. More...

LineTessellationKit &	SetViewports (bool in_use_viewports, bool in_is_3d=true, bool viewport_clipping=false, ViewportArray in_viewports=ViewportArray())
	Sets whether the importer uses viewports and how. More...

LineTessellationKit &	SetChordTolerance (double in_chord_tolerance, double in_maximum_chord_length, double in_maximum_chord_angle)
	Sets chord tolerance. More...

LineTessellationKit &	SetIgnoreCriteria (bool in_ignore, Ignore in_ignore_criteria=Ignore::Absolute, double in_minimum_value=0)
	Sets criteria for ignoring lines. More...

LineTessellationKit &	SetMemoryLimit (bool in_use_memory_limit, size_t in_limit=0)
	Sets whether a memory limit should be used for rendering lines. More...

LineTessellationKit &	SetTransparentBodies (bool in_allow_transparency, bool in_transparent_hide, IntArray in_transparent_bodies=IntArray())
	Sets the transparency settings for line tessellation. More...

LineTessellationKit &	SetMissingGeometryFailure (bool in_fail_on_missing_geometry)
	Sets the behavior the import assumes when it encounters missing geometry. More...

LineTessellationKit &	SetOverlappingBehavior (Line::OverlappingBehavior in_overlapping_behavior, IntArray in_indices_one=IntArray(), IntArray in_indices_two=IntArray())
	Sets the behavior the import assumes when it encounters overlapping curves. More...

LineTessellationKit &	UnsetEdges ()
	Removes the edge tessellation state. More...

LineTessellationKit &	UnsetSilhouetteEdges ()
	Removes the silhouette edges tessellation state. More...

LineTessellationKit &	UnsetPlanarHatching ()
	Removes the planar hatching tessellation state. More...

LineTessellationKit &	UnsetRadialHatching ()
	Removes the radial hatching tessellation state. More...

LineTessellationKit &	UnsetParametericHatching ()
	Removes the parametric hatching tessellation state. More...

LineTessellationKit &	UnsetUnfixedBlends ()
	Removes the unfixed blends tessellation state. More...

LineTessellationKit &	UnsetVisibilityEvaluation ()
	Removes the visibility evaluation tessellation state. More...

LineTessellationKit &	UnsetSmoothEdges ()
	Removes the smooth edges tessellation state. More...

LineTessellationKit &	UnsetRegionalData ()
	Removes the regional data tessellation state. More...

LineTessellationKit &	UnsetHierarchicalOutput ()
	Removes the hierarchical output tessellation state. More...

LineTessellationKit &	UnsetBCurveRenderingMethod ()
	Removes the bcurve rendering method tessellation state. More...

LineTessellationKit &	UnsetViewports ()
	Removes the viewports tessellation state. More...

LineTessellationKit &	UnsetChordTolerance ()
	Removes the chord tolerance tessellation state. More...

LineTessellationKit &	UnsetIgnoreCriteria ()
	Removes the ignore criteria tessellation state. More...

LineTessellationKit &	UnsetMemoryLimit ()
	Removes the memory limit tessellation state. More...

LineTessellationKit &	UnsetTransparentBodies ()
	Removes the transparent bodies tessellation state. More...

LineTessellationKit &	UnsetMissingGeometryFailure ()
	Removes the missing geometry tessellation state. More...

LineTessellationKit &	UnsetOverlappingBehavior ()
	Removes the overlapping geometry tessellation state. More...

LineTessellationKit &	UnsetEverything ()
	Removes all settings from this LineTessellationKit. More...

bool	ShowEdges (bool &out_draw_edges, bool &out_internal_edges) const
	Shows whether edges are drawn. More...

bool	ShowSilhouetteEdges (bool &out_draw_silhouette_edges, bool &out_draw_circles_as_arcs) const
	Shows whether silhouette edges are drawn. More...

bool	ShowPlanarHatching (Line::Hatching::Planar &out_planar_haching, double &out_planar_spacing, DPoint &out_point_through, DVector &out_direction) const
	Shows planar hatching tessellation options. More...

bool	ShowRadialHatching (Line::Hatching::Radial &out_radial_hatching, double &out_around, double &out_around_start, double &out_along, double &out_along_start, double &out_about, double &out_about_start) const
	Shows radial hatching tessellation options. More...

bool	ShowParametericHatching (Line::Hatching::Parametric &out_parametric_hatching, double &out_u, double &out_u_start, double &out_v, double &out_v_start) const
	Shows parametric hatching tessellation options. More...

bool	ShowUnfixedBlends (Line::UnfixedBlends &out_unfixed_blends, double &out_spacing) const
	Shows whether unfixed blends are drawn. More...

bool	ShowVisibilityEvaluation (Line::Visibility &out_visibility, bool &out_draw_invisible, bool &out_drafting, bool &out_self_hidden, IntArray &out_suppressed_indices) const
	Shows whether visibility is evaluated. More...

bool	ShowSmoothEdges (Line::Smooth &out_smooth, double &out_tolerance) const
	Shows whether to indicate smooth edges. More...

bool	ShowRegionalData (Line::Region &out_region) const
	Shows whether regional data is produced. More...

bool	ShowHierarchicalOutput (Line::Hierarchical &out_hierarchical_output) const
	Shows whether a hierarchical output is produced. More...

bool	ShowBCurveRenderingMethod (Line::BCurveRendering &out_bcurve_rendering_method) const
	Shows the method used to render bcurves. More...

bool	ShowViewports (bool &out_use_viewports, bool &out_is_3d, bool &out_viewport_clipping, ViewportArray &out_viewports) const
	Shows whether the importer uses viewports and how. More...

bool	ShowChordTolerance (double &out_chord_tolerance, double &out_maximum_chord_length, double &out_maximum_chord_angle) const
	Shows chord tolerance. More...

bool	ShowIgnoreCriteria (bool &out_ignore, Ignore &out_ignore_criteria, double &out_minimum_value) const
	Shows criteria for ignoring lines. More...

bool	ShowMemoryLimit (bool &out_use_memory_limit, size_t &out_limit) const
	Shows whether a memory limit should be used for rendering lines. More...

bool	ShowTransparentBodies (bool &out_allow_transparency, bool &out_transparent_hide, IntArray &out_force_transparent) const
	Shows the transparency setting for line tessellation. More...

bool	ShowMissingGeometryFailure (bool &out_fail_on_missing_geometry) const
	Shows the behavior the import assumes when it encounters missing geometry. More...

bool	ShowOverlappingBehavior (Line::OverlappingBehavior &out_overlapping_behavior, IntArray &out_indices_one, IntArray &out_indices_two) const
	Shows the behavior the import assumes when it encounters overlapping curves. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static LineTessellationKit	GetDefault ()
	Creates an LineTessellationKit which contains the default settings. More...

template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ParasolidLineTessellationKit

Detailed Description

The LineTessellationKit class is a user space object.

It contains settings controlling what and how data is imported via Parasolid.

Constructor & Destructor Documentation

◆ LineTessellationKit() [1/3]

HPS::Parasolid::LineTessellationKit::LineTessellationKit ( )

The default constructor creates an empty LineTessellationKit object.

◆ LineTessellationKit() [2/3]

HPS::Parasolid::LineTessellationKit::LineTessellationKit ( LineTessellationKit const & in_kit )

The copy constructor creates a new LineTessellationKit object that contains the same settings as the source LineTessellationKit.

Parameters

in_kit The source LineTessellationKit to copy.

◆ LineTessellationKit() [3/3]

HPS::Parasolid::LineTessellationKit::LineTessellationKit ( LineTessellationKit && in_that )

The move constructor creates an LineTessellationKit by transferring the underlying impl of the rvalue reference to this LineTessellationKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to an LineTessellationKit to take the impl from.

◆ ~LineTessellationKit()

virtual HPS::Parasolid::LineTessellationKit::~LineTessellationKit ( )

virtual

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Empty()

bool HPS::Parasolid::LineTessellationKit::Empty ( ) const

virtual

Indicates whether this LineTessellationKit has any values set on it.

Returns: true if no values are set on this LineTessellationKit, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::Parasolid::LineTessellationKit::Equals ( LineTessellationKit const & in_kit ) const

Check if the source LineTessellationKit is equivalent to this LineTessellationKit.

Parameters

in_kit The source LineTessellationKit to compare to this LineTessellationKit.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetDefault()

static LineTessellationKit HPS::Parasolid::LineTessellationKit::GetDefault ( )

static

Creates an LineTessellationKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default. These values will be used for import unless an option is overridden by the options passed to File::Import.

Returns: An LineTessellationKit with the default settings.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::Parasolid::LineTessellationKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::SprocketKit.

Here is the call graph for this function:

◆ operator!=()

bool HPS::Parasolid::LineTessellationKit::operator!= ( LineTessellationKit const & in_kit ) const

Check if the source LineTessellationKit is not equivalent to this LineTessellationKit.

Parameters

in_kit The source LineTessellationKit to compare to this LineTessellationKit.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

LineTessellationKit& HPS::Parasolid::LineTessellationKit::operator= ( LineTessellationKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this LineTessellationKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to an LineTessellationKit to take the impl from.

Returns: A reference to this LineTessellationKit.

◆ operator=() [2/2]

LineTessellationKit& HPS::Parasolid::LineTessellationKit::operator= ( LineTessellationKit const & in_kit )

Copies the source LineTessellationKit into this LineTessellationKit.

Parameters

in_kit The source LineTessellationKit to copy.

Returns: A reference to this LineTessellationKit.

◆ operator==()

bool HPS::Parasolid::LineTessellationKit::operator== ( LineTessellationKit const & in_kit ) const

Check if the source LineTessellationKit is equivalent to this LineTessellationKit.

Parameters

in_kit The source LineTessellationKit to compare to this LineTessellationKit.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::Parasolid::LineTessellationKit::Set ( LineTessellationKit const & in_kit )

Copies the source LineTessellationKit into this LineTessellationKit.

Parameters

in_kit The source LineTessellationKit to copy.

◆ SetBCurveRenderingMethod()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetBCurveRenderingMethod ( Line::BCurveRendering in_bcurve_rendering_method )

Sets the method used to render bcurves.

Parameters

in_bcurve_rendering_method the method used to render bcurves. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.bcurve.

Returns: A reference to this LineTessellationKit.

◆ SetChordTolerance()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetChordTolerance	(	double	in_chord_tolerance,
		double	in_maximum_chord_length,
		double	in_maximum_chord_angle
	)

Sets chord tolerance.

Parameters

in_chord_tolerance	curve chordal tolerance between a curve and chord edges. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.curve_chord_tol.
in_maximum_chord_length	maximum chord length. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.curve_chord_max.
in_maximum_chord_angle	maximum chord angle, in radians. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.curve_chord_ang.

Returns: A reference to this LineTessellationKit.

◆ SetEdges()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetEdges	(	bool	in_draw_edges,
		bool	in_internal_edges
	)

Sets whether edges are drawn.

Parameters

in_draw_edges	whether edges are drawn. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.edge.
in_internal_edges	whether edges are drawn. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.internal.

Returns: A reference to this LineTessellationKit.

◆ SetHierarchicalOutput()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetHierarchicalOutput ( Line::Hierarchical in_hierarchical_output )

Sets whether a hierarchical output is produced.

Parameters

in_hierarchical_output whether a hierarchical output is produced. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.hierarch.

Returns: A reference to this LineTessellationKit.

◆ SetIgnoreCriteria()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetIgnoreCriteria	(	bool	in_ignore,
		Ignore	in_ignore_criteria = `Ignore::Absolute`,
		double	in_minimum_value = `0`
	)

Sets criteria for ignoring lines.

Parameters

in_ignore	whether any line should be ignored.
in_ignore_criteria	specifies how to interpret the minimum_value parameter. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.ignore.
in_minimum_value	minimum value for a facet not to be ignored. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.ignore_value.

Returns: A reference to this LineTessellationKit.

◆ SetMemoryLimit()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetMemoryLimit	(	bool	in_use_memory_limit,
		size_t	in_limit = `0`
	)

Sets whether a memory limit should be used for rendering lines.

Parameters

in_use_memory_limit	whether a memory limit should be used for rendering lines. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.memory_target.
in_limit	the memory limits, in bytes. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.memory_target_value.

Returns: A reference to this LineTessellationKit.

◆ SetMissingGeometryFailure()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetMissingGeometryFailure ( bool in_fail_on_missing_geometry )

Sets the behavior the import assumes when it encounters missing geometry.

Parameters

in_fail_on_missing_geometry whether the importer should fail when encountering missing geometry. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.ske_missing.

Returns: A reference to this LineTessellationKit.

◆ SetOverlappingBehavior()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetOverlappingBehavior	(	Line::OverlappingBehavior	in_overlapping_behavior,
		IntArray	in_indices_one = `IntArray()`,
		IntArray	in_indices_two = `IntArray()`
	)

Sets the behavior the import assumes when it encounters overlapping curves.

Parameters

in_overlapping_behavior	the behavior the import assumes when it encounters overlapping curves. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.overlap.
in_indices_one	array of body occurrences used for clashing. Only relevant if in_overlapping_behavior equals AllowAndIntersectAll or AllowAndIntersectPairs. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.overlap_indices1.
in_indices_two	array of body occurrences used for clashing. Only relevant if in_overlapping_behavior equals AllowAndIntersectAll or AllowAndIntersectPairs. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.overlap_indices2.

Returns: A reference to this LineTessellationKit.

◆ SetParametricHatching()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetParametricHatching	(	Line::Hatching::Parametric	in_parametric_hatching,
		double	in_u = `0`,
		double	in_u_start = `0`,
		double	in_v = `0`,
		double	in_v_start = `0`
	)

Sets parametric hatching tessellation options.

Parameters

in_parametric_hatching	the type of parametric hatching desired. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.param.
in_u	hatch spacing in u direction. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.param_u. Only relevant if in_parametric_hatching equals to either ByVectorNoLocking or ByVector
in_u_start	start value for parametric hatching in the u direction. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.param_u_start. Only relevant if in_planar_hatching equals to either ByVectorNoLocking or ByVector
in_v	hatch spacing in v direction. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.param_v. Only relevant if in_parametric_hatching equals to either ByVectorNoLocking or ByVector
in_v_start	start value for parametric hatching in the v direction. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.param_v_start. Only relevant if in_planar_hatching equals to either ByVectorNoLocking or ByVector

Returns: A reference to this LineTessellationKit.

◆ SetPlanarHatching()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetPlanarHatching	(	Line::Hatching::Planar	in_planar_haching,
		double	in_planar_spacing = `0`,
		DPoint	in_point_through = `DPoint(0, 0, 0)`,
		DVector	in_direction = `DVector(0, 0, 0)`
	)

Sets planar hatching tessellation options.

Parameters

in_planar_haching	the type of planar hatching desired. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.planar.
in_planar_spacing	distance between panes. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.planar_spacing.
in_point_through	used with in_direction to determine the axis for planar hatching. Only relevant if in_planar_hatching equals to either ByVectorNoLocking or ByVector
in_direction	used with in_point_through to determine the axis for planar hatching. Only relevant if in_planar_hatching equals to either ByVectorNoLocking or ByVector

Returns: A reference to this LineTessellationKit.

◆ SetRadialHatching()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetRadialHatching	(	Line::Hatching::Radial	in_radial_hatching,
		double	in_around = `0`,
		double	in_around_start = `0`,
		double	in_along = `0`,
		double	in_along_start = `0`,
		double	in_about = `0`,
		double	in_about_start = `0`
	)

Sets radial hatching tessellation options.

Parameters

in_radial_hatching	the type of radial hatching desired. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial.
in_around	angular spacing around spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_around. Only relevant if in_radial_hatching equals to either ByVectorNoLocking or ByVector
in_around_start	starting value for angular spacing around spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_around_start. Only relevant if in_radial_hatching equals to either ByVectorNoLocking or ByVector
in_along	spacing along spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_along. Only relevant if in_radial_hatching equals to either ByVectorNoLocking or ByVector
in_along_start	starting value for angular spacing along spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_along_start. Only relevant if in_radial_hatching equals to either ByVectorNoLocking or ByVector
in_about	spacing about spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_about. Only relevant if in_radial_hatching equals to either ByVectorNoLocking or ByVector
in_about_start	starting value for angular spacing about spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_about_start. Only relevant if in_radial_hatching equals to either ByVectorNoLocking or ByVector

Returns: A reference to this LineTessellationKit.

◆ SetRegionalData()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetRegionalData ( Line::Region in_region )

Sets whether regional data is produced.

Parameters

in_region whether regional data is produced. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.region.

Returns: A reference to this LineTessellationKit.

◆ SetSilhouetteEdges()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetSilhouetteEdges	(	bool	in_draw_silhouette_edges,
		bool	in_draw_circles_as_arcs
	)

Sets whether silhouette edges are drawn.

This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.silhouette.

Parameters

in_draw_silhouette_edges	whether silhouette edges are drawn.
in_draw_circles_as_arcs	whether near circular analytic silhouettes can be drawn as arcs

Returns: A reference to this LineTessellationKit.

◆ SetSmoothEdges()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetSmoothEdges	(	Line::Smooth	in_smooth,
		double	in_tolerance = `0`
	)

Sets whether to indicate smooth edges.

Parameters

in_smooth	whether to indicate smooth edges. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.smooth.
in_tolerance	maximum angle allowed between faces for edges to be smooth. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.edge_smooth_tol.

Returns: A reference to this LineTessellationKit.

◆ SetTransparentBodies()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetTransparentBodies	(	bool	in_allow_transparency,
		bool	in_transparent_hide,
		IntArray	in_transparent_bodies = `IntArray()`
	)

Sets the transparency settings for line tessellation.

Parameters

in_allow_transparency	whether transparent bodies are drawn. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.transparent.
in_transparent_hide	whether transparent bodies can hide other transparent bodies. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.transparent_hid.
in_transparent_bodies	an array of body occurrences to be rendered transparent. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.transparent_indices.

Returns: A reference to this LineTessellationKit.

◆ SetUnfixedBlends()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetUnfixedBlends	(	Line::UnfixedBlends	in_unfixed_blends,
		double	in_spacing = `0`
	)

Sets whether unfixed blends are drawn.

Parameters

in_unfixed_blends	whether unfixed blends are drawn. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.unfix.
in_spacing	default rib spacing. Only relevant if in_unfixed_blends equals Draw. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.unfix_spacing.

Returns: A reference to this LineTessellationKit.

◆ SetViewports()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetViewports	(	bool	in_use_viewports,
		bool	in_is_3d = `true`,
		bool	viewport_clipping = `false`,
		ViewportArray	in_viewports = `ViewportArray()`
	)

Sets whether the importer uses viewports and how.

Parameters

in_use_viewports	whether the importer uses viewports. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.viewport
in_is_3d	whether the viewports used are three dimensional or not. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.viewport_type.
viewport_clipping	whether viewport clipping should be used. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.viewport_clipping.
in_viewports	the viewports used.

Returns: A reference to this LineTessellationKit.

◆ SetVisibilityEvaluation()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::SetVisibilityEvaluation	(	Line::Visibility	in_visibility,
		bool	in_draw_invisible = `false`,
		bool	in_drafting = `false`,
		bool	in_self_hidden = `false`,
		IntArray	in_suppressed_indices = `IntArray()`
	)

Sets whether visibility is evaluated.

Parameters

in_visibility	setting for visibility evaluation. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.visibility.
in_draw_invisible	whether to output invisible lines. Only relevant if in_visibility equals Custom. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.invisible.
in_drafting	whether to distinguish between lines hidden by other lines and lines hidden by faces. Only relevant if in_visibility equals Custom. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.drafting.
in_self_hidden	whether to distinguish lines that are self-hidden or hidden by another occurrence of themselves. Only relevant if in_visibility equals Custom. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.self_hidden.
in_suppressed_indices	array of indices for which invisible lines are suppressed. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.suppressed_indices.

Returns: A reference to this LineTessellationKit.

◆ Show()

void HPS::Parasolid::LineTessellationKit::Show ( LineTessellationKit & out_kit ) const

Copies this LineTessellationKit into the given LineTessellationKit.

Parameters

out_kit The LineTessellationKit to populate with the contents of this LineTessellationKit.

◆ ShowBCurveRenderingMethod()

bool HPS::Parasolid::LineTessellationKit::ShowBCurveRenderingMethod ( Line::BCurveRendering & out_bcurve_rendering_method ) const

Shows the method used to render bcurves.

Parameters

&	out_bcurve_rendering_method the method used to render bcurves. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.bcurve.

Returns: true if a bcurve setting was specified, false otherwise.

◆ ShowChordTolerance()

bool HPS::Parasolid::LineTessellationKit::ShowChordTolerance	(	double &	out_chord_tolerance,
		double &	out_maximum_chord_length,
		double &	out_maximum_chord_angle
	)		const

Shows chord tolerance.

Parameters

&	out_chord_tolerance curve chordal tolerance between a curve and chord edges. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.curve_chord_tol.
&	out_maximum_chord_length maximum chord length. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.curve_chord_max.
&	out_maximum_chord_angle maximum chord angle, in radians. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.curve_chord_ang.

Returns: true if a tolerance setting was specified, false otherwise.

◆ ShowEdges()

bool HPS::Parasolid::LineTessellationKit::ShowEdges	(	bool &	out_draw_edges,
		bool &	out_internal_edges
	)		const

Shows whether edges are drawn.

Parameters

&	out_draw_edges whether edges are drawn. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.edge.
&	out_internal_edges whether edges are drawn. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.internal.

Returns: true if an edge setting was specified, false otherwise.

◆ ShowHierarchicalOutput()

bool HPS::Parasolid::LineTessellationKit::ShowHierarchicalOutput ( Line::Hierarchical & out_hierarchical_output ) const

Shows whether a hierarchical output is produced.

Parameters

&	out_hierarchical_output whether a hierarchical output is produced. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.hierarch.

Returns: true if a hierarchical setting was specified, false otherwise.

◆ ShowIgnoreCriteria()

bool HPS::Parasolid::LineTessellationKit::ShowIgnoreCriteria	(	bool &	out_ignore,
		Ignore &	out_ignore_criteria,
		double &	out_minimum_value
	)		const

Shows criteria for ignoring lines.

Parameters

&	out_ignore whether any line should be ignored.
&	out_ignore_criteria specifies how to interpret the minimum_value parameter. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.ignore.
&	out_minimum_value minimum value for a facet not to be ignored. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.ignore_value.

Returns: true if an ignore criteria setting was specified, false otherwise.

◆ ShowMemoryLimit()

bool HPS::Parasolid::LineTessellationKit::ShowMemoryLimit	(	bool &	out_use_memory_limit,
		size_t &	out_limit
	)		const

Shows whether a memory limit should be used for rendering lines.

Parameters

&	out_use_memory_limit whether a memory limit should be used for rendering lines. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.memory_target.
&	out_limit the memory limits, in bytes. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.memory_target_value.

Returns: true if an memory limit setting was specified, false otherwise.

◆ ShowMissingGeometryFailure()

bool HPS::Parasolid::LineTessellationKit::ShowMissingGeometryFailure ( bool & out_fail_on_missing_geometry ) const

Shows the behavior the import assumes when it encounters missing geometry.

Parameters

&	out_fail_on_missing_geometry whether the importer should fail when encountering missing geometry. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.ske_missing.

Returns: true if a missing geometry setting was specified, false otherwise.

◆ ShowOverlappingBehavior()

bool HPS::Parasolid::LineTessellationKit::ShowOverlappingBehavior	(	Line::OverlappingBehavior &	out_overlapping_behavior,
		IntArray &	out_indices_one,
		IntArray &	out_indices_two
	)		const

Shows the behavior the import assumes when it encounters overlapping curves.

Parameters

&	out_overlapping_behavior the behavior the import assumes when it encounters overlapping curves. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.overlap.
&	out_indices_one array of body occurrences used for clashing. Only relevant if & out_overlapping_behavior equals AllowAndIntersectAll or AllowAndIntersectPairs. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.overlap_indices1.
&	out_indices_two array of body occurrences used for clashing. Only relevant if & out_overlapping_behavior equals AllowAndIntersectAll or AllowAndIntersectPairs. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.overlap_indices2.

Returns: true if an overlapping behavior setting was specified, false otherwise.

◆ ShowParametericHatching()

bool HPS::Parasolid::LineTessellationKit::ShowParametericHatching	(	Line::Hatching::Parametric &	out_parametric_hatching,
		double &	out_u,
		double &	out_u_start,
		double &	out_v,
		double &	out_v_start
	)		const

Shows parametric hatching tessellation options.

Parameters

&	out_parametric_hatching the type of parametric hatching desired. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.param.
&	out_u hatch spacing in u direction. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.param_u. Only relevant if & out_parametric_hatching equals to either ByVectorNoLocking or ByVector
&	out_u_start start value for parametric hatching in the u direction. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.param_u_start. Only relevant if & out_planar_hatching equals to either ByVectorNoLocking or ByVector
&	out_v hatch spacing in v direction. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.param_v. Only relevant if & out_parametric_hatching equals to either ByVectorNoLocking or ByVector
&	out_v_start start value for parametric hatching in the v direction. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.param_v_start. Only relevant if & out_planar_hatching equals to either ByVectorNoLocking or ByVector

Returns: true if a parametric hatching setting was specified, false otherwise.

◆ ShowPlanarHatching()

bool HPS::Parasolid::LineTessellationKit::ShowPlanarHatching	(	Line::Hatching::Planar &	out_planar_haching,
		double &	out_planar_spacing,
		DPoint &	out_point_through,
		DVector &	out_direction
	)		const

Shows planar hatching tessellation options.

Parameters

&	out_planar_haching the type of planar hatching desired. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.planar.
&	out_planar_spacing distance between panes. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.planar_spacing.
&	out_point_through used with & out_direction to determine the axis for planar hatching. Only relevant if & out_planar_hatching equals to either ByVectorNoLocking or ByVector
&	out_direction used with & out_point_through to determine the axis for planar hatching. Only relevant if & out_planar_hatching equals to either ByVectorNoLocking or ByVector

Returns: true if a planar hatching setting was specified, false otherwise.

◆ ShowRadialHatching()

bool HPS::Parasolid::LineTessellationKit::ShowRadialHatching	(	Line::Hatching::Radial &	out_radial_hatching,
		double &	out_around,
		double &	out_around_start,
		double &	out_along,
		double &	out_along_start,
		double &	out_about,
		double &	out_about_start
	)		const

Shows radial hatching tessellation options.

Parameters

&	out_radial_hatching the type of radial hatching desired. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial.
&	out_around angular spacing around spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_around. Only relevant if & out_radial_hatching equals to either ByVectorNoLocking or ByVector
&	out_around_start starting value for angular spacing around spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_around_start. Only relevant if & out_radial_hatching equals to either ByVectorNoLocking or ByVector
&	out_along spacing along spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_along. Only relevant if & out_radial_hatching equals to either ByVectorNoLocking or ByVector
&	out_along_start starting value for angular spacing along spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_along_start. Only relevant if & out_radial_hatching equals to either ByVectorNoLocking or ByVector
&	out_about spacing about spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_about. Only relevant if & out_radial_hatching equals to either ByVectorNoLocking or ByVector
&	out_about_start starting value for angular spacing about spine. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.radial_about_start. Only relevant if & out_radial_hatching equals to either ByVectorNoLocking or ByVector

Returns: true if a radial hatching setting was specified, false otherwise.

◆ ShowRegionalData()

bool HPS::Parasolid::LineTessellationKit::ShowRegionalData ( Line::Region & out_region ) const

Shows whether regional data is produced.

Parameters

&	out_region whether regional data is produced. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.region.

Returns: true if a region setting was specified, false otherwise.

◆ ShowSilhouetteEdges()

bool HPS::Parasolid::LineTessellationKit::ShowSilhouetteEdges	(	bool &	out_draw_silhouette_edges,
		bool &	out_draw_circles_as_arcs
	)		const

Shows whether silhouette edges are drawn.

This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.silhouette.

Parameters

&	out_draw_silhouette_edges whether silhouette edges are drawn.
&	out_draw_circles_as_arcs whether near circular analytic silhouettes can be drawn as arcs

Returns: true if a silhouette edges setting was specified, false otherwise.

◆ ShowSmoothEdges()

bool HPS::Parasolid::LineTessellationKit::ShowSmoothEdges	(	Line::Smooth &	out_smooth,
		double &	out_tolerance
	)		const

Shows whether to indicate smooth edges.

Parameters

&	out_smooth whether to indicate smooth edges. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.smooth.
&	out_tolerance maximum angle allowed between faces for edges to be smooth. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.edge_smooth_tol.

Returns: true if a smooth edge setting was specified, false otherwise.

◆ ShowTransparentBodies()

bool HPS::Parasolid::LineTessellationKit::ShowTransparentBodies	(	bool &	out_allow_transparency,
		bool &	out_transparent_hide,
		IntArray &	out_force_transparent
	)		const

Shows the transparency setting for line tessellation.

Parameters

&	out_allow_transparency whether transparent bodies are drawn. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.transparent.
&	out_transparent_hide whether transparent bodies can hide other transparent bodies. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.transparent_hid.
&	out_force_transparent an array of body occurrences to be rendered transparent. Corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.transparent_indices.

Returns: true if a transparency setting was specified, false otherwise.

◆ ShowUnfixedBlends()

bool HPS::Parasolid::LineTessellationKit::ShowUnfixedBlends	(	Line::UnfixedBlends &	out_unfixed_blends,
		double &	out_spacing
	)		const

Shows whether unfixed blends are drawn.

Parameters

&	out_unfixed_blends whether unfixed blends are drawn. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.unfix.
&	out_spacing default rib spacing. Only relevant if & out_unfixed_blends equals ByAttribute. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.unfix_spacing.

Returns: true if an unfixed blends setting was specified, false otherwise.

◆ ShowViewports()

bool HPS::Parasolid::LineTessellationKit::ShowViewports	(	bool &	out_use_viewports,
		bool &	out_is_3d,
		bool &	out_viewport_clipping,
		ViewportArray &	out_viewports
	)		const

Shows whether the importer uses viewports and how.

Parameters

&	out_use_viewports whether the importer uses viewports. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.viewport
&	out_is_3d whether the viewports used are three dimensional or not. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.viewport_type.
viewport_clipping	whether viewport clipping should be used. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.viewport_clipping.
&	out_viewports the viewports used.

Returns: true if a viewport setting was specified, false otherwise.

◆ ShowVisibilityEvaluation()

bool HPS::Parasolid::LineTessellationKit::ShowVisibilityEvaluation	(	Line::Visibility &	out_visibility,
		bool &	out_draw_invisible,
		bool &	out_drafting,
		bool &	out_self_hidden,
		IntArray &	out_suppressed_indices
	)		const

Shows whether visibility is evaluated.

Parameters

&	out_visibility Setting for visibility evaluation. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.visibility.
&	out_draw_invisible whether to output invisible lines. Only relevant if & out_visibility equals Custom. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.invisible.
&	out_drafting whether to distinguish between lines hidden by other lines and lines hidden by faces. Only relevant if & out_visibility equals Custom. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.drafting.
&	out_self_hidden whether to distinguish lines that are self-hidden or hidden by another occurrence of themselves. Only relevant if & out_visibility equals Custom. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.self_hidden.
&	out_suppressed_indices array of indices for which invisible lines are suppressed. This corresponds to the value that will be passed to PK_TOPOL_render_line_o_t.suppressed_indices.

Returns: true if a visibility setting was specified, false otherwise.

◆ Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

◆ UnsetBCurveRenderingMethod()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetBCurveRenderingMethod ( )

Removes the bcurve rendering method tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetChordTolerance()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetChordTolerance ( )

Removes the chord tolerance tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetEdges()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetEdges ( )

Removes the edge tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetEverything()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetEverything ( )

Removes all settings from this LineTessellationKit.

Returns: A reference to this LineTessellationKit.

◆ UnsetHierarchicalOutput()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetHierarchicalOutput ( )

Removes the hierarchical output tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetIgnoreCriteria()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetIgnoreCriteria ( )

Removes the ignore criteria tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetMemoryLimit()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetMemoryLimit ( )

Removes the memory limit tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetMissingGeometryFailure()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetMissingGeometryFailure ( )

Removes the missing geometry tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetOverlappingBehavior()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetOverlappingBehavior ( )

Removes the overlapping geometry tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetParametericHatching()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetParametericHatching ( )

Removes the parametric hatching tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetPlanarHatching()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetPlanarHatching ( )

Removes the planar hatching tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetRadialHatching()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetRadialHatching ( )

Removes the radial hatching tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetRegionalData()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetRegionalData ( )

Removes the regional data tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetSilhouetteEdges()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetSilhouetteEdges ( )

Removes the silhouette edges tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetSmoothEdges()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetSmoothEdges ( )

Removes the smooth edges tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetTransparentBodies()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetTransparentBodies ( )

Removes the transparent bodies tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetUnfixedBlends()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetUnfixedBlends ( )

Removes the unfixed blends tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetViewports()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetViewports ( )

Removes the viewports tessellation state.

Returns: A reference to this LineTessellationKit.

◆ UnsetVisibilityEvaluation()

LineTessellationKit& HPS::Parasolid::LineTessellationKit::UnsetVisibilityEvaluation ( )

Removes the visibility evaluation tessellation state.

Returns: A reference to this LineTessellationKit.

Member Data Documentation

◆ staticType

const HPS::Type HPS::Parasolid::LineTessellationKit::staticType = HPS::Type::ParasolidLineTessellationKit

static

The documentation for this class was generated from the following file:

sprk_parasolid.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ LineTessellationKit() [1/3]

◆ LineTessellationKit() [2/3]

◆ LineTessellationKit() [3/3]

◆ ~LineTessellationKit()

Member Function Documentation

◆ ClassID()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetDefault()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetBCurveRenderingMethod()

◆ SetChordTolerance()

◆ SetEdges()

◆ SetHierarchicalOutput()

◆ SetIgnoreCriteria()

◆ SetMemoryLimit()

◆ SetMissingGeometryFailure()

◆ SetOverlappingBehavior()

◆ SetParametricHatching()

◆ SetPlanarHatching()

◆ SetRadialHatching()

◆ SetRegionalData()

◆ SetSilhouetteEdges()

◆ SetSmoothEdges()

◆ SetTransparentBodies()

◆ SetUnfixedBlends()

◆ SetViewports()

◆ SetVisibilityEvaluation()

◆ Show()

◆ ShowBCurveRenderingMethod()

◆ ShowChordTolerance()

◆ ShowEdges()

◆ ShowHierarchicalOutput()

◆ ShowIgnoreCriteria()

◆ ShowMemoryLimit()

◆ ShowMissingGeometryFailure()

◆ ShowOverlappingBehavior()

◆ ShowParametericHatching()

◆ ShowPlanarHatching()

◆ ShowRadialHatching()

◆ ShowRegionalData()

◆ ShowSilhouetteEdges()

◆ ShowSmoothEdges()

◆ ShowTransparentBodies()

◆ ShowUnfixedBlends()

◆ ShowViewports()

◆ ShowVisibilityEvaluation()

◆ Type()

◆ UnsetBCurveRenderingMethod()

◆ UnsetChordTolerance()

◆ UnsetEdges()

◆ UnsetEverything()

◆ UnsetHierarchicalOutput()

◆ UnsetIgnoreCriteria()

◆ UnsetMemoryLimit()

◆ UnsetMissingGeometryFailure()

◆ UnsetOverlappingBehavior()

◆ UnsetParametericHatching()

◆ UnsetPlanarHatching()

◆ UnsetRadialHatching()

◆ UnsetRegionalData()

◆ UnsetSilhouetteEdges()

◆ UnsetSmoothEdges()

◆ UnsetTransparentBodies()

◆ UnsetUnfixedBlends()

◆ UnsetViewports()
