HPS::TransparencyControl Class Reference

The HPS::TransparencyControl class is a smart pointer that is tied to a database object. More...

#include <hps.h>

Inheritance diagram for HPS::TransparencyControl:

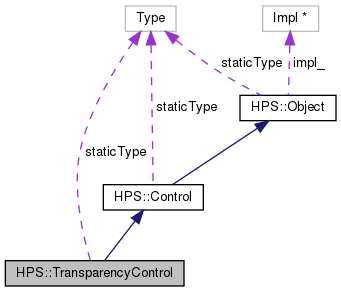

Collaboration diagram for HPS::TransparencyControl:

Public Member Functions
	TransparencyControl (SegmentKey &in_seg)
	Initializes a control tied to the segment in_seg. More...
	TransparencyControl (TransparencyControl const &in_that)
	Initializes a control tied to the same object as in_that. More...
	TransparencyControl (TransparencyControl &&in_that)
	The move constructor creates a TransparencyControl by transferring the underlying impl of the rvalue reference to this TransparencyControl thereby avoiding a copy and allocation. More...
TransparencyControl &	operator= (TransparencyControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this TransparencyControl thereby avoiding a copy. More...
	~TransparencyControl ()
	Releases a reference to the database object this control is tied to. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
HPS::Type	ObjectType () const
TransparencyControl &	operator= (TransparencyControl const &in_that)
	Share the underlying smart-pointer of the TransparencyControl source. More...
TransparencyControl &	SetMethod (Transparency::Method in_style)
	Sets the method to use when blending transparent geometry. More...
TransparencyControl &	SetAlgorithm (Transparency::Algorithm in_algorithm)
	Sets the algorithm to use when calculating transparency. More...
TransparencyControl &	SetDepthPeelingLayers (unsigned int in_layers)
	Sets the number of layers to use when performing depth peeling. More...
TransparencyControl &	SetDepthPeelingMinimumArea (float in_area, Transparency::AreaUnits in_units)
	Sets the amount of the screen a layer needs to occupy in order to process another layer when performing depth peeling. More...
TransparencyControl &	SetDepthWriting (bool in_state)
	Controls whether transparent geometry should write into the Z-buffer. More...
TransparencyControl &	SetDepthPeelingPreference (Transparency::Preference in_preference)
	Specifies whether quality or performance should be favored when performing depth peeling. More...
TransparencyControl &	UnsetMethod ()
	Removes the transparency method setting. More...
TransparencyControl &	UnsetAlgorithm ()
	Removes the transparency algorithm setting. More...
TransparencyControl &	UnsetDepthPeelingLayers ()
	Removes the depth peeling layers setting. More...
TransparencyControl &	UnsetDepthPeelingMinimumArea ()
	Removes the depth peeling minimum area setting. More...
TransparencyControl &	UnsetDepthWriting ()
	Removes the depth writing setting. More...
TransparencyControl &	UnsetDepthPeelingPreference ()
	Removes the depth peeling preference setting. More...
TransparencyControl &	UnsetEverything ()
	Removes all settings from this object. More...
bool	ShowMethod (Transparency::Method &out_style) const
	Shows the method to use when blending transparent geometry. More...
bool	ShowAlgorithm (Transparency::Algorithm &out_algorithm) const
	Shows the algorithm to use when calculating transparency. More...
bool	ShowDepthPeelingLayers (unsigned int &out_layers) const
	Shows the number of layers to use when performing depth peeling. More...
bool	ShowDepthPeelingMinimumArea (float &out_area, Transparency::AreaUnits &out_units) const
	Shows the amount of the screen a layer needs to occupy in order to process another layer when performing depth peeling. More...
bool	ShowDepthWriting (bool &out_state) const
	Shows whether transparent geometry should write into the Z-buffer. More...
bool	ShowDepthPeelingPreference (Transparency::Preference &out_preference) const
	Shows the depth peeling preference. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::TransparencyControl

Private Member Functions
	TransparencyControl ()
	Private default constructor to prevent instantiation without a segment. More...

Detailed Description

The HPS::TransparencyControl class is a smart pointer that is tied to a database object.

This object allows you to set and unset the algorithms used for calculating transparency. Some algorithms, such as depth peeling, have additional attributes, and those are also controlled using this class.

Default values for the various fields of HPS::TransparencyControl can be found here.

Constructor & Destructor Documentation

TransparencyControl() [1/4]

HPS::TransparencyControl::TransparencyControl ( SegmentKey &  in_seg )

explicit

Initializes a control tied to the segment in_seg.

TransparencyControl() [2/4]

HPS::TransparencyControl::TransparencyControl

(

TransparencyControl const &

in_that

)

Initializes a control tied to the same object as in_that.

TransparencyControl() [3/4]

HPS::TransparencyControl::TransparencyControl

(

TransparencyControl &&

in_that

)

The move constructor creates a TransparencyControl by transferring the underlying impl of the rvalue reference to this TransparencyControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a TransparencyControl to take the impl from.

~TransparencyControl()

HPS::TransparencyControl::~TransparencyControl

(

)

Releases a reference to the database object this control is tied to.

TransparencyControl() [4/4]

HPS::TransparencyControl::TransparencyControl ( )

private

Private default constructor to prevent instantiation without a segment.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::TransparencyControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

operator=() [1/2]

TransparencyControl& HPS::TransparencyControl::operator=

(

TransparencyControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this TransparencyControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a TransparencyControl to take the impl from.

Returns

A reference to this TransparencyControl.

operator=() [2/2]

TransparencyControl& HPS::TransparencyControl::operator=

(

TransparencyControl const &

in_that

)

Share the underlying smart-pointer of the TransparencyControl source.

Parameters

in_that

The TransparencyControl source of the assignment.

Returns

A reference to this TransparencyControl.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetAlgorithm()

TransparencyControl& HPS::TransparencyControl::SetAlgorithm

(

Transparency::Algorithm

in_algorithm

)

Sets the algorithm to use when calculating transparency.

Parameters

in_algorithm

The algorithm to use.

Returns

a reference to this object.

SetDepthPeelingLayers()

TransparencyControl& HPS::TransparencyControl::SetDepthPeelingLayers

(

unsigned int

in_layers

)

Sets the number of layers to use when performing depth peeling.

Ignored in other transparency methods.

Warning

This setting will be limited by the depth peeling layer count set at the containing window / subwindow. If the count is lower than the containing window's count, excess render passes will be omitted.

Parameters

in_layers

The number of layers to use when performing depth peeling.

Returns

a reference to this object.

SetDepthPeelingMinimumArea()

TransparencyControl& HPS::TransparencyControl::SetDepthPeelingMinimumArea	(	float	in_area,
		Transparency::AreaUnits	in_units
	)

Sets the amount of the screen a layer needs to occupy in order to process another layer when performing depth peeling.

Ignored in other transparency methods.

Parameters

in_area	The amount of the screen a layer needs to occupy in order to process another layer.
in_units	The units of the minimum area.

Returns

a reference to this object.

SetDepthPeelingPreference()

TransparencyControl& HPS::TransparencyControl::SetDepthPeelingPreference

(

Transparency::Preference

in_preference

)

Specifies whether quality or performance should be favored when performing depth peeling.

Ignored in other transparency methods.

Parameters

in_perference

The desired preference setting.

Returns

a reference to this object.

SetDepthWriting()

TransparencyControl& HPS::TransparencyControl::SetDepthWriting

(

bool

in_state

)

Controls whether transparent geometry should write into the Z-buffer.

Applies only when the transparency algorithm is NoSorting, ZSortNicest, or ZSortFastest.

Parameters

in_state

Whether transparent geometry should write into the Z-buffer.

Returns

a reference to this object.

SetMethod()

TransparencyControl& HPS::TransparencyControl::SetMethod

(

Transparency::Method

in_style

)

Sets the method to use when blending transparent geometry.

Parameters

in_style

The method to use when blending transparent geometry.

Returns

a reference to this object.

ShowAlgorithm()

bool HPS::TransparencyControl::ShowAlgorithm

(

Transparency::Algorithm &

out_algorithm

)

const

Shows the algorithm to use when calculating transparency.

Parameters

out_algorithm

The algorithm to use.

Returns

true if the setting is valid, false otherwise.

ShowDepthPeelingLayers()

bool HPS::TransparencyControl::ShowDepthPeelingLayers

(

unsigned int &

out_layers

)

const

Shows the number of layers to use when performing depth peeling.

Parameters

out_layers

The number of layers to use when performing depth peeling.

Returns

true if the setting is valid, false otherwise.

ShowDepthPeelingMinimumArea()

bool HPS::TransparencyControl::ShowDepthPeelingMinimumArea	(	float &	out_area,
		Transparency::AreaUnits &	out_units
	)		const

Shows the amount of the screen a layer needs to occupy in order to process another layer when performing depth peeling.

Parameters

out_area	The amount of the screen a layer needs to occupy in order to process another layer.
out_units	The units of the minimum area.

Returns

true if the setting is valid, false otherwise.

ShowDepthPeelingPreference()

bool HPS::TransparencyControl::ShowDepthPeelingPreference

(

Transparency::Preference &

out_preference

)

const

Shows the depth peeling preference.

Parameters

out_preference

Whether quality of performance should be favored when performing depth peeling.

Returns

true if the setting is valid, false otherwise.

ShowDepthWriting()

bool HPS::TransparencyControl::ShowDepthWriting

(

bool &

out_state

)

const

Shows whether transparent geometry should write into the Z-buffer.

Parameters

out_state

Whether transparent geometry should write into the Z-buffer.

Returns

true if the setting is valid, false otherwise.

ShowMethod()

bool HPS::TransparencyControl::ShowMethod

(

Transparency::Method &

out_style

)

const

Shows the method to use when blending transparent geometry.

Parameters

out_style

The method to use when blending transparent geometry.

Returns

true if the setting is valid, false otherwise.

Type()

virtual HPS::Type HPS::TransparencyControl::Type ( ) const

inlinevirtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Control.

UnsetAlgorithm()

TransparencyControl& HPS::TransparencyControl::UnsetAlgorithm

(

)

Removes the transparency algorithm setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TransparencyKit::GetDefault().

Returns

A reference to this object.

UnsetDepthPeelingLayers()

TransparencyControl& HPS::TransparencyControl::UnsetDepthPeelingLayers

(

)

Removes the depth peeling layers setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TransparencyKit::GetDefault().

Returns

A reference to this object.

UnsetDepthPeelingMinimumArea()

TransparencyControl& HPS::TransparencyControl::UnsetDepthPeelingMinimumArea

(

)

Removes the depth peeling minimum area setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TransparencyKit::GetDefault().

Returns

A reference to this object.

UnsetDepthPeelingPreference()

TransparencyControl& HPS::TransparencyControl::UnsetDepthPeelingPreference

(

)

Removes the depth peeling preference setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TransparencyKit::GetDefault().

Returns

A reference to this object.

UnsetDepthWriting()

TransparencyControl& HPS::TransparencyControl::UnsetDepthWriting

(

)

Removes the depth writing setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TransparencyKit::GetDefault().

Returns

A reference to this object.

UnsetEverything()

TransparencyControl& HPS::TransparencyControl::UnsetEverything

(

)

Removes all settings from this object.

If the control is attached to a WindowKey this function restores the default settings of this control as specified by TransparencyKit::GetDefault().

Returns

A reference to this object.

UnsetMethod()

TransparencyControl& HPS::TransparencyControl::UnsetMethod

(

)

Removes the transparency method setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by TransparencyKit::GetDefault().

Returns

A reference to this object.

Member Data Documentation

staticType

const HPS::Type HPS::TransparencyControl::staticType = HPS::Type::TransparencyControl

static

---

The documentation for this class was generated from the following file:

• hps.h
