HPS::Parasolid::ImportOptionsKit Class Reference

The ImportOptionsKit class is a user space object. More...

#include <sprk_parasolid.h>

Inheritance diagram for HPS::Parasolid::ImportOptionsKit:

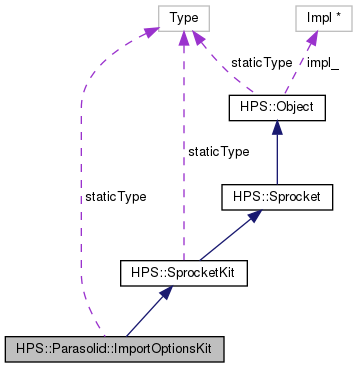

Collaboration diagram for HPS::Parasolid::ImportOptionsKit:

Public Member Functions
	ImportOptionsKit ()
	The default constructor creates an empty ImportOptionsKit object. More...
	ImportOptionsKit (ImportOptionsKit const &in_kit)
	The copy constructor creates a new ImportOptionsKit object that contains the same settings as the source ImportOptionsKit. More...
	ImportOptionsKit (ImportOptionsKit &&in_that)
	The move constructor creates an ImportOptionsKit by transferring the underlying impl of the rvalue reference to this ImportOptionsKit thereby avoiding a copy and allocation. More...
ImportOptionsKit &	operator= (ImportOptionsKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this ImportOptionsKit thereby avoiding a copy. More...
virtual	~ImportOptionsKit ()
HPS::Type	ObjectType () const
void	Set (ImportOptionsKit const &in_kit)
	Copies the source ImportOptionsKit into this ImportOptionsKit. More...
void	Show (ImportOptionsKit &out_kit) const
	Copies this ImportOptionsKit into the given ImportOptionsKit. More...
ImportOptionsKit &	operator= (ImportOptionsKit const &in_kit)
	Copies the source ImportOptionsKit into this ImportOptionsKit. More...
bool	Empty () const
	Indicates whether this ImportOptionsKit has any values set on it. More...
bool	Equals (ImportOptionsKit const &in_kit) const
	Check if the source ImportOptionsKit is equivalent to this ImportOptionsKit. More...
bool	operator== (ImportOptionsKit const &in_kit) const
	Check if the source ImportOptionsKit is equivalent to this ImportOptionsKit. More...
bool	operator!= (ImportOptionsKit const &in_kit) const
	Check if the source ImportOptionsKit is not equivalent to this ImportOptionsKit. More...
ImportOptionsKit &	SetFormat (Parasolid::Format in_format)
	Sets the format type to be imported. More...
ImportOptionsKit &	SetUserFields (bool in_import_user_fields)
	Sets whether to import user fields from the CAD file. More...
ImportOptionsKit &	SetAttributeMismatchBehavior (Parasolid::MismatchBehavior in_behavior)
	Sets the importer behavior for mismatched attributes. More...
ImportOptionsKit &	SetCompoundBodyBehavior (Parasolid::CompoundBodyBehavior in_behavior)
	Sets the importer behavior for compound bodies. More...
ImportOptionsKit &	SetFacetTessellation (Parasolid::FacetTessellationKit const &in_facet_tessellation_kit)
	Sets the facet tessellation settings used during import This corresponds to the PK_TOPOL_render_facet_o_t struct. More...
ImportOptionsKit &	SetLineTessellation (Parasolid::LineTessellationKit const &in_line_tessellation_kit)
	Sets the line tessellation settings used during import This corresponds to the PK_TOPOL_render_line_o_t struct. More...
ImportOptionsKit &	SetLocation (ComponentPath const &in_path, MatrixKit const &in_transform=MatrixKit())
	Sets where to insert the imported file in an existing Component hierarchy. More...
ImportOptionsKit &	UnsetFormat ()
	Removes the format import state. More...
ImportOptionsKit &	UnsetUserFields ()
	Removes the user fields import state. More...
ImportOptionsKit &	UnsetAttributeMismatchBehavior ()
	Removes the attribute mismatch behavior state. More...
ImportOptionsKit &	UnsetCompoundBodyBehavior ()
	Removes the compound body behavior state. More...
ImportOptionsKit &	UnsetFacetTessellation ()
	Removes the facet tessellation state. More...
ImportOptionsKit &	UnsetLineTessellation ()
	Removes the line tessellation state. More...
ImportOptionsKit &	UnsetLocation ()
	Removes the location state. More...
ImportOptionsKit &	UnsetEverything ()
	Removes all settings from this ImportOptionsKit. More...
bool	ShowFormat (Parasolid::Format &out_format) const
	Shows the format import setting. More...
bool	ShowUserFields (bool &out_user_fields) const
	Shows the user fields import setting. More...
bool	ShowAttributeMismatchBehavior (Parasolid::MismatchBehavior &out_behavior) const
	Shows the attribute mismatch behavior import setting. More...
bool	ShowCompoundBodyBehavior (Parasolid::CompoundBodyBehavior &out_behavior) const
	Shows the compound body behavior import setting. More...
bool	ShowFacetTessellation (Parasolid::FacetTessellationKit &out_facet_tessellation) const
	Shows the facet tessellation import setting. More...
bool	ShowLineTessellation (Parasolid::LineTessellationKit &out_line_tessellation) const
	Shows the line tessellation import setting. More...
bool	ShowLocation (ComponentPath &out_path, MatrixKit &out_transformation) const
	Shows the location setting. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static ImportOptionsKit	GetDefault ()
	Creates an ImportOptionsKit which contains the default settings. More...
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::ParasolidImportOptionsKit

Detailed Description

The ImportOptionsKit class is a user space object.

It contains settings controlling what and how data is imported via the Parasolid interface. Calling HPS::Parasolid::ImportOptionsKit::GetDefault() will return an options kit with values found in here.

Constructor & Destructor Documentation

ImportOptionsKit() [1/3]

HPS::Parasolid::ImportOptionsKit::ImportOptionsKit

(

)

The default constructor creates an empty ImportOptionsKit object.

ImportOptionsKit() [2/3]

HPS::Parasolid::ImportOptionsKit::ImportOptionsKit

(

ImportOptionsKit const &

in_kit

)

The copy constructor creates a new ImportOptionsKit object that contains the same settings as the source ImportOptionsKit.

Parameters

in_kit

The source ImportOptionsKit to copy.

ImportOptionsKit() [3/3]

HPS::Parasolid::ImportOptionsKit::ImportOptionsKit

(

ImportOptionsKit &&

in_that

)

The move constructor creates an ImportOptionsKit by transferring the underlying impl of the rvalue reference to this ImportOptionsKit thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to an ImportOptionsKit to take the impl from.

~ImportOptionsKit()

virtual HPS::Parasolid::ImportOptionsKit::~ImportOptionsKit ( )

virtual

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

bool HPS::Parasolid::ImportOptionsKit::Empty ( ) const

virtual

Indicates whether this ImportOptionsKit has any values set on it.

Returns

true if no values are set on this ImportOptionsKit, false otherwise.

Reimplemented from HPS::Object.

Equals()

bool HPS::Parasolid::ImportOptionsKit::Equals

(

ImportOptionsKit const &

in_kit

)

const

Check if the source ImportOptionsKit is equivalent to this ImportOptionsKit.

Parameters

in_kit

The source ImportOptionsKit to compare to this ImportOptionsKit.

Returns

true if the objects are equivalent, false otherwise.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetDefault()

static ImportOptionsKit HPS::Parasolid::ImportOptionsKit::GetDefault ( )

static

Creates an ImportOptionsKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default. These values will be used for import unless an option is overridden by the options passed to File::Import.

Returns

An ImportOptionsKit with the default settings.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::Parasolid::ImportOptionsKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::SprocketKit.

Here is the call graph for this function:

operator!=()

bool HPS::Parasolid::ImportOptionsKit::operator!=

(

ImportOptionsKit const &

in_kit

)

const

Check if the source ImportOptionsKit is not equivalent to this ImportOptionsKit.

Parameters

in_kit

The source ImportOptionsKit to compare to this ImportOptionsKit.

Returns

true if the objects are not equivalent, false otherwise.

operator=() [1/2]

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::operator=

(

ImportOptionsKit &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this ImportOptionsKit thereby avoiding a copy.

Parameters

in_that

An rvalue reference to an ImportOptionsKit to take the impl from.

Returns

A reference to this ImportOptionsKit.

operator=() [2/2]

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::operator=

(

ImportOptionsKit const &

in_kit

)

Copies the source ImportOptionsKit into this ImportOptionsKit.

Parameters

in_kit

The source ImportOptionsKit to copy.

Returns

A reference to this ImportOptionsKit.

operator==()

bool HPS::Parasolid::ImportOptionsKit::operator==

(

ImportOptionsKit const &

in_kit

)

const

Check if the source ImportOptionsKit is equivalent to this ImportOptionsKit.

Parameters

in_kit

The source ImportOptionsKit to compare to this ImportOptionsKit.

Returns

true if the objects are equivalent, false otherwise.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::Parasolid::ImportOptionsKit::Set

(

ImportOptionsKit const &

in_kit

)

Copies the source ImportOptionsKit into this ImportOptionsKit.

Parameters

in_kit

The source ImportOptionsKit to copy.

SetAttributeMismatchBehavior()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::SetAttributeMismatchBehavior

(

Parasolid::MismatchBehavior

in_behavior

)

Sets the importer behavior for mismatched attributes.

This corresponds to the value that will be passed to PK_PART_receive_o_t.attdef_mismatch.

Parameters

in_behavior

The behavior of the importer when mismatched attributes are found.

Returns

A reference to this ImportOptionsKit.

See also

Default value

SetCompoundBodyBehavior()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::SetCompoundBodyBehavior

(

Parasolid::CompoundBodyBehavior

in_behavior

)

Sets the importer behavior for compound bodies.

This corresponds to the value that will be passed to PK_PART_receive_o_t.receive_compound.

Parameters

in_behavior

The behavior of the importer when compound bodies are found.

Returns

A reference to this ImportOptionsKit.

See also

Default value

SetFacetTessellation()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::SetFacetTessellation

(

Parasolid::FacetTessellationKit const &

in_facet_tessellation_kit

)

Sets the facet tessellation settings used during import This corresponds to the PK_TOPOL_render_facet_o_t struct.

Parameters

in_facet_tessellation_kit

The facet tessellation settings used during import

Returns

A reference to this ImportOptionsKit.

SetFormat()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::SetFormat

(

Parasolid::Format

in_format

)

Sets the format type to be imported.

This corresponds to the value that will be passed to PK_PART_receive_o_t.transmit_format.

Parameters

in_format

The format of the file to be imported.

Returns

A reference to this ImportOptionsKit.

See also

Default value

SetLineTessellation()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::SetLineTessellation

(

Parasolid::LineTessellationKit const &

in_line_tessellation_kit

)

Sets the line tessellation settings used during import This corresponds to the PK_TOPOL_render_line_o_t struct.

Parameters

in_facet_tessellation_kit

The line tessellation settings used during import

Returns

A reference to this ImportOptionsKit.

SetLocation()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::SetLocation	(	ComponentPath const &	in_path,
		MatrixKit const &	in_transform = MatrixKit()
	)

Sets where to insert the imported file in an existing Component hierarchy.

If this option is not set, a new CADModel will be created for the imported file. If this option is specified, the underlying Parasolid data of the existing CADModel will be modified to include the imported file and the data will be imported into the specified location in the existing Component hierarchy and its corresponding scene graph. The file will be imported in the same PK_PARTITION_t as the one to which entities in in_path belong.

Parameters

in_path	The path describing the location to insert the imported file into. This path must either terminate at a CADModel or a Component corresponding to a Parasolid Assembly. Note that if the imported file is added along a component path with attributes specified in the Parasolid data, the components added to the existing Parasolid data will also inherit those attributes.
in_transform	A transform to apply to the components being added to the existing CADModel. This transform will also be added to the underlying Parasolid data. Valid transformations are limited to translations, rotations, uniform scaling and reflection. If the transform does not conform to these limitations it will be ignored. Defaults to an identity transform.

Returns

A reference to this ImportOptionsKit.

SetUserFields()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::SetUserFields

(

bool

in_import_user_fields

)

Sets whether to import user fields from the CAD file.

This corresponds to the value that will be passed to PK_PART_receive_o_t.receive_user_fields.

Parameters

in_import_user_fields

Whether to import user fields from the CAD file.

Returns

A reference to this ImportOptionsKit.

See also

Default value

Show()

void HPS::Parasolid::ImportOptionsKit::Show

(

ImportOptionsKit &

out_kit

)

const

Copies this ImportOptionsKit into the given ImportOptionsKit.

Parameters

out_kit

The ImportOptionsKit to populate with the contents of this ImportOptionsKit.

ShowAttributeMismatchBehavior()

bool HPS::Parasolid::ImportOptionsKit::ShowAttributeMismatchBehavior

(

Parasolid::MismatchBehavior &

out_behavior

)

const

Shows the attribute mismatch behavior import setting.

Parameters

out_behavior

The attribute mismatch behavior setting for this import.

Returns

true if an attribute mismatch behavior setting was specified, false otherwise.

ShowCompoundBodyBehavior()

bool HPS::Parasolid::ImportOptionsKit::ShowCompoundBodyBehavior

(

Parasolid::CompoundBodyBehavior &

out_behavior

)

const

Shows the compound body behavior import setting.

Parameters

out_behavior

The compound body behavior setting for this import.

Returns

true if a compound body behavior setting was specified, false otherwise.

ShowFacetTessellation()

bool HPS::Parasolid::ImportOptionsKit::ShowFacetTessellation

(

Parasolid::FacetTessellationKit &

out_facet_tessellation

)

const

Shows the facet tessellation import setting.

Parameters

out_facet_tessellation

The facet tessellation setting for this import.

Returns

true if a facet tessellation setting was specified, false otherwise.

ShowFormat()

bool HPS::Parasolid::ImportOptionsKit::ShowFormat

(

Parasolid::Format &

out_format

)

const

Shows the format import setting.

Parameters

out_format

The format setting for this import.

Returns

true if a format setting was specified, false otherwise.

ShowLineTessellation()

bool HPS::Parasolid::ImportOptionsKit::ShowLineTessellation

(

Parasolid::LineTessellationKit &

out_line_tessellation

)

const

Shows the line tessellation import setting.

Parameters

out_line_tessellation

The line tessellation setting for this import.

Returns

true if a line tessellation setting was specified, false otherwise.

ShowLocation()

bool HPS::Parasolid::ImportOptionsKit::ShowLocation	(	ComponentPath &	out_path,
		MatrixKit &	out_transformation
	)		const

Shows the location setting.

Parameters

out_path	The path describing the location to insert the imported file into.
out_transform	The transform to apply to the components being added to the existing CADModel.

Returns

true if a location setting was specified, false otherwise.

ShowUserFields()

bool HPS::Parasolid::ImportOptionsKit::ShowUserFields

(

bool &

out_user_fields

)

const

Shows the user fields import setting.

Parameters

out_user_fields

The user fields setting for this import.

Returns

true if a user fields setting was specified, false otherwise.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnsetAttributeMismatchBehavior()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::UnsetAttributeMismatchBehavior

(

)

Removes the attribute mismatch behavior state.

Returns

A reference to this ImportOptionsKit.

UnsetCompoundBodyBehavior()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::UnsetCompoundBodyBehavior

(

)

Removes the compound body behavior state.

Returns

A reference to this ImportOptionsKit.

UnsetEverything()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::UnsetEverything

(

)

Removes all settings from this ImportOptionsKit.

Returns

A reference to this ImportOptionsKit.

UnsetFacetTessellation()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::UnsetFacetTessellation

(

)

Removes the facet tessellation state.

Returns

A reference to this ImportOptionsKit.

UnsetFormat()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::UnsetFormat

(

)

Removes the format import state.

Returns

A reference to this ImportOptionsKit.

UnsetLineTessellation()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::UnsetLineTessellation

(

)

Removes the line tessellation state.

Returns

A reference to this ImportOptionsKit.

UnsetLocation()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::UnsetLocation

(

)

Removes the location state.

Returns

A reference to this ImportOptionsKit.

UnsetUserFields()

ImportOptionsKit& HPS::Parasolid::ImportOptionsKit::UnsetUserFields

(

)

Removes the user fields import state.

Returns

A reference to this ImportOptionsKit.

Member Data Documentation

staticType

const HPS::Type HPS::Parasolid::ImportOptionsKit::staticType = HPS::Type::ParasolidImportOptionsKit

static

---

The documentation for this class was generated from the following file:

• sprk_parasolid.h
