HPS::PostProcessEffectsControl Class Reference

#include <hps.h>

Inheritance diagram for HPS::PostProcessEffectsControl:

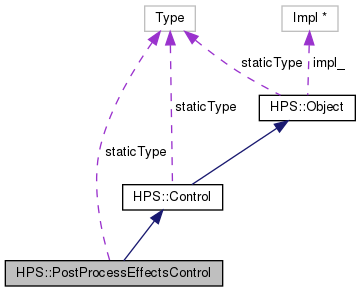

Collaboration diagram for HPS::PostProcessEffectsControl:

Public Member Functions
	PostProcessEffectsControl (WindowKey &in_seg)
	Initializes a control tied to the window segment in_seg. More...
	PostProcessEffectsControl (PostProcessEffectsControl const &in_that)
	Initializes a control tied to the same object as in_that. More...
	PostProcessEffectsControl (PostProcessEffectsControl &&in_that)
	The move constructor creates a PostProcessEffectsControl by transferring the underlying impl of the rvalue reference to this PostProcessEffectsControl thereby avoiding a copy and allocation. More...
PostProcessEffectsControl &	operator= (PostProcessEffectsControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this PostProcessEffectsControl thereby avoiding a copy. More...
	~PostProcessEffectsControl ()
	Releases a reference to the database object this control is tied to. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
HPS::Type	ObjectType () const
PostProcessEffectsControl &	operator= (PostProcessEffectsControl const &in_that)
	Share the underlying smart-pointer of the PostProcessEffectsControl source. More...
PostProcessEffectsControl &	SetAmbientOcclusion (bool in_state, float in_strength=1.0f, PostProcessEffects::AmbientOcclusion::Quality in_quality=PostProcessEffects::AmbientOcclusion::Quality::Fastest, float in_radius=1.0f)
	Ambient occlusion is a general term for shading that varies when nearby objects (occluders) would prevent some portion of ambient light from reaching a surface. More...
PostProcessEffectsControl &	SetAmbientOcclusion (float in_strength, PostProcessEffects::AmbientOcclusion::Quality in_quality=PostProcessEffects::AmbientOcclusion::Quality::Fastest, float in_radius=1.0f)
	Ambient occlusion is a general term for shading that varies when nearby objects (occluders) would prevent some portion of ambient light from reaching a surface. More...
PostProcessEffectsControl &	SetBloom (bool in_state, float in_strength=1.0f, unsigned int in_blur=5, PostProcessEffects::Bloom::Shape in_shape=PostProcessEffects::Bloom::Shape::Radial)
	Bloom causes bright objects to bleed into darker ones, simulating the imperfect focus inevitable with the human eye or any other type of lens. More...
PostProcessEffectsControl &	SetBloom (float in_strength, unsigned int in_blur, PostProcessEffects::Bloom::Shape in_shape)
	Bloom causes bright objects to bleed into darker ones, simulating the imperfect focus inevitable with the human eye or any other type of lens. More...
PostProcessEffectsControl &	SetDepthOfField (bool in_state, float in_strength=1.0f, float in_near_distance=Float::NegativeInfinity, float in_far_distance=Float::Infinity)
	Depth of Field is the distance between the nearest and farthest objects in a scene that appear sharp. More...
PostProcessEffectsControl &	SetDepthOfField (float in_strength, float in_near_distance, float in_far_distance)
	Depth of Field is the distance between the nearest and farthest objects in a scene that appear sharp. More...
PostProcessEffectsControl &	SetSilhouetteEdges (bool in_state, float in_tolerance=1.0f, bool in_heavy_exterior=false)
	Controls the shader-based fast drawing of silhouette edges. More...
PostProcessEffectsControl &	SetSilhouetteEdges (float in_tolerance, bool in_heavy_exterior)
	Controls the shader-based fast drawing of silhouette edges. More...
PostProcessEffectsControl &	SetEyeDomeLighting (bool in_state, float in_exponent=50.0f, float in_tolerance=1.0f, float in_strength=1.0f)
	Controls the shader-based eye-dome lighting effect. More...
PostProcessEffectsControl &	SetEyeDomeLighting (float in_exponent, float in_tolerance, float in_strength)
	Controls the shader-based eye-dome lighting effect. More...
PostProcessEffectsControl &	SetWorldScale (float in_scale)
	Sets a world scale value used by post process effects such as ambient occlusion. More...
PostProcessEffectsControl &	UnsetAmbientOcclusion ()
	Removes any ambient occlusion setting. More...
PostProcessEffectsControl &	UnsetBloom ()
	Removes a bloom setting. More...
PostProcessEffectsControl &	UnsetDepthOfField ()
	Removes a depth of field setting. More...
PostProcessEffectsControl &	UnsetSilhouetteEdges ()
	Removes a silhouette edge setting. More...
PostProcessEffectsControl &	UnsetEyeDomeLighting ()
	Removes an eye-dome lighting setting. More...
PostProcessEffectsControl &	UnsetWorldScale ()
	Removes any world scale setting. More...
PostProcessEffectsControl &	UnsetEverything ()
	Removes all settings from this object. More...
bool	ShowAmbientOcclusion (bool &out_state, float &out_strength, PostProcessEffects::AmbientOcclusion::Quality &out_quality, float &out_radius) const
	Shows the ambient occlusion setting. More...
bool	ShowBloom (bool &out_state, float &out_strength, unsigned int &out_blur, PostProcessEffects::Bloom::Shape &out_shape) const
	Shows the bloom setting. More...
bool	ShowDepthOfField (bool &out_state, float &out_strength, float &out_near_distance, float &out_far_distance) const
	Shows the depth of field setting. More...
bool	ShowSilhouetteEdges (bool &out_state, float &out_tolerance, bool &out_heavy_exterior) const
	Shows the silhouette edge setting. More...
bool	ShowEyeDomeLighting (bool &out_state, float &out_exponent, float &out_tolerance, float &out_strength) const
	Shows the eye-dome lighting setting. More...
bool	ShowWorldScale (float &out_scale) const
	Shows the world scale setting. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::PostProcessEffectsControl

Private Member Functions
	PostProcessEffectsControl ()
	Private default constructor to prevent instantiation without a segment. More...

Detailed Description

The HPS::PostProcessEffectsControl class is a smart pointer that is tied to a database object. This object is effective only for the shader-based driver interfaces such as DirectX and OpenGL2. Ambient occlusion, bloom, silhouette edges, and depth of field are all enabled through this control. Default values for the various fields of HPS::PostProcessEffectsControl can be found here.

Constructor & Destructor Documentation

PostProcessEffectsControl() [1/4]

HPS::PostProcessEffectsControl::PostProcessEffectsControl ( WindowKey &  in_seg )

explicit

Initializes a control tied to the window segment in_seg.

PostProcessEffectsControl() [2/4]

HPS::PostProcessEffectsControl::PostProcessEffectsControl

(

PostProcessEffectsControl const &

in_that

)

Initializes a control tied to the same object as in_that.

PostProcessEffectsControl() [3/4]

HPS::PostProcessEffectsControl::PostProcessEffectsControl

(

PostProcessEffectsControl &&

in_that

)

The move constructor creates a PostProcessEffectsControl by transferring the underlying impl of the rvalue reference to this PostProcessEffectsControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a PostProcessEffectsControl to take the impl from.

~PostProcessEffectsControl()

HPS::PostProcessEffectsControl::~PostProcessEffectsControl

(

)

Releases a reference to the database object this control is tied to.

PostProcessEffectsControl() [4/4]

HPS::PostProcessEffectsControl::PostProcessEffectsControl ( )

private

Private default constructor to prevent instantiation without a segment.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::PostProcessEffectsControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Control.

operator=() [1/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::operator=

(

PostProcessEffectsControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this PostProcessEffectsControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a PostProcessEffectsControl to take the impl from.

Returns

A reference to this PostProcessEffectsControl.

operator=() [2/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::operator=

(

PostProcessEffectsControl const &

in_that

)

Share the underlying smart-pointer of the PostProcessEffectsControl source.

Parameters

in_that

The PostProcessEffectsControl source of the assignment.

Returns

A reference to this PostProcessEffectsControl.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetAmbientOcclusion() [1/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::SetAmbientOcclusion	(	bool	in_state,
		float	in_strength = 1.0f,
		PostProcessEffects::AmbientOcclusion::Quality	in_quality = PostProcessEffects::AmbientOcclusion::Quality::Fastest,
		float	in_radius = 1.0f
	)

Ambient occlusion is a general term for shading that varies when nearby objects (occluders) would prevent some portion of ambient light from reaching a surface.

This applies a filter that looks for small valleys in the depth buffer results, and slightly darkens these areas.

Parameters

in_state	Whether ambient occlusion should be used.
in_strength	A multiplier on the default contribution of ambient occlusion in the regular lighting calculations. Higher values mean that ambient occlusion will make a stronger contribution.
in_quality	Indicates how much time should be spent improving the visual quality.
in_radius	A multiplier for the screen-space search radius. Higher values increase the search radius for occluding pixels, but may cause under-sampling artifacts.

Returns

A reference to this object.

SetAmbientOcclusion() [2/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::SetAmbientOcclusion	(	float	in_strength,
		PostProcessEffects::AmbientOcclusion::Quality	in_quality = PostProcessEffects::AmbientOcclusion::Quality::Fastest,
		float	in_radius = 1.0f
	)

Ambient occlusion is a general term for shading that varies when nearby objects (occluders) would prevent some portion of ambient light from reaching a surface.

This applies a filter that looks for small valleys in the depth buffer results, and slightly darkens these areas. The state is implicitly on.

Parameters

in_strength	A multiplier on the default contribution of ambient occlusion in the regular lighting calculations. Higher values mean that ambient occlusion will make a stronger contribution.
in_quality	Indicates how much time should be spent improving the visual quality.
in_radius	A multiplier for the screen-space search radius. Higher values increase the search radius for occluding pixels, but may cause under-sampling artifacts.

Returns

A reference to this object.

SetBloom() [1/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::SetBloom	(	bool	in_state,
		float	in_strength = 1.0f,
		unsigned int	in_blur = 5,
		PostProcessEffects::Bloom::Shape	in_shape = PostProcessEffects::Bloom::Shape::Radial
	)

Bloom causes bright objects to bleed into darker ones, simulating the imperfect focus inevitable with the human eye or any other type of lens.

Parameters

in_state	Whether bloom should be used.
in_strength	A multiplier on the default contribution of bloom. Higher values mean that bloom will make a stronger contribution. Valid range is [0,10].
in_blur	The number of blur passes to perform on the output. Higher values mean that bloom will affect a wider area and look smoother. Valid range is [1,8].
in_shape	The shape of the bloom effect.

Returns

A reference to this object.

SetBloom() [2/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::SetBloom	(	float	in_strength,
		unsigned int	in_blur,
		PostProcessEffects::Bloom::Shape	in_shape
	)

Bloom causes bright objects to bleed into darker ones, simulating the imperfect focus inevitable with the human eye or any other type of lens.

The state is implicitly on.

Parameters

in_strength	A multiplier on the default contribution of bloom. Higher values mean that bloom will make a stronger contribution. Valid range is [0,10].
in_blur	The number of blur passes to perform on the output. Higher values mean that bloom will affect a wider area and look smoother. Valid range is [1,8].
in_shape	The shape of the bloom effect.

Returns

A reference to this object.

SetDepthOfField() [1/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::SetDepthOfField	(	bool	in_state,
		float	in_strength = 1.0f,
		float	in_near_distance = Float::NegativeInfinity,
		float	in_far_distance = Float::Infinity
	)

Depth of Field is the distance between the nearest and farthest objects in a scene that appear sharp.

Parameters

in_state	Whether depth of field should be used.
in_strength	A multiplier on the default blur radius. Higher values mean more blurring.
in_near_distance	The camera distance in front of which geometry will begin to appear out of focus.
in_far_distance	The camera distance beyond which geometry will appear out of focus.

Returns

A reference to this object.

SetDepthOfField() [2/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::SetDepthOfField	(	float	in_strength,
		float	in_near_distance,
		float	in_far_distance
	)

Depth of Field is the distance between the nearest and farthest objects in a scene that appear sharp.

The state is implicitly on.

Parameters

in_strength	A multiplier on the default blur radius. Higher values mean more blurring.
in_near_distance	The camera distance in front of which geometry will begin to appear out of focus.
in_far_distance	The camera distance beyond which geometry will appear out of focus.

Returns

A reference to this object.

SetEyeDomeLighting() [1/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::SetEyeDomeLighting	(	bool	in_state,
		float	in_exponent = 50.0f,
		float	in_tolerance = 1.0f,
		float	in_strength = 1.0f
	)

Controls the shader-based eye-dome lighting effect.

Parameters

in_state	Whether eye-dome lighting should be used.
in_exponent	An exponent used to attenuate the per-pixel occlusion computed by the eye-dome lighting algorithm.
in_tolerance	A multiplier on the threshold that the driver uses when comparing adjacent pixel depth values to detect occlusion. This allows the user to control the amount of occlusion added by neighboring pixels based on their relative depth difference.
in_strength	A multiplier on the calculated per-pixel occlusion value.

Returns

true if the setting is valid, false otherwise.

SetEyeDomeLighting() [2/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::SetEyeDomeLighting	(	float	in_exponent,
		float	in_tolerance,
		float	in_strength
	)

Controls the shader-based eye-dome lighting effect.

The state is implicitly on.

Parameters

in_exponent	An exponent used to attenuate the per-pixel occlusion computed by the eye-dome lighting algorithm.
in_tolerance	A multiplier on the threshold that the driver uses when comparing adjacent pixel depth values to detect occlusion. This allows the user to control the amount of occlusion added by neighboring pixels based on their relative depth difference.
in_strength	A multiplier on the calculated per-pixel occlusion value.

Returns

true if the setting is valid, false otherwise.

SetSilhouetteEdges() [1/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::SetSilhouetteEdges	(	bool	in_state,
		float	in_tolerance = 1.0f,
		bool	in_heavy_exterior = false
	)

Controls the shader-based fast drawing of silhouette edges.

Parameters

in_state	Whether silhouette edges should be used.
in_tolerance	A multiplier on the threshold that the driver uses when comparing adjacent pixel depth values to detect silhouettes. This allows the user to control the trade-off between silhouettes appearing where they shouldn't, vs disappearing in places they should be.
in_heavy_exterior	This option, when enabled, causes an extra thick border to be drawn at the boundary between geometry and the window background (as opposed to geometry on top of other geometry).

Returns

A reference to this object.

SetSilhouetteEdges() [2/2]

PostProcessEffectsControl& HPS::PostProcessEffectsControl::SetSilhouetteEdges	(	float	in_tolerance,
		bool	in_heavy_exterior
	)

Controls the shader-based fast drawing of silhouette edges.

The state is implicitly on.

Parameters

in_tolerance	A multiplier on the threshold that the driver uses when comparing adjacent pixel depth values to detect silhouettes. This allows the user to control the trade-off between silhouettes appearing where they shouldn't, vs disappearing in places they should be.
in_heavy_exterior	This option, when enabled, causes an extra thick border to be drawn at the boundary between geometry and the window background (as opposed to geometry on top of other geometry).

Returns

A reference to this object.

SetWorldScale()

PostProcessEffectsControl& HPS::PostProcessEffectsControl::SetWorldScale

(

float

in_scale

)

Sets a world scale value used by post process effects such as ambient occlusion.

If not set, scale is computed based on scene bounding.

Parameters

in_scale

Scale value used by post process effect.

Returns

A reference to this object.

ShowAmbientOcclusion()

bool HPS::PostProcessEffectsControl::ShowAmbientOcclusion	(	bool &	out_state,
		float &	out_strength,
		PostProcessEffects::AmbientOcclusion::Quality &	out_quality,
		float &	out_radius
	)		const

Shows the ambient occlusion setting.

Parameters

out_state	Whether ambient occlusion should be used.
out_strength	A multiplier on the default contribution of ambient occlusion in the regular lighting calculations. Higher values mean that ambient occlusion will make a stronger contribution.
out_quality	Indicates how much time should be spent improving the visual quality.
out_radius	A multiplier for the screen-space search radius. Higher values increase the search radius for occluding pixels, but may cause under-sampling artifacts.

Returns

true if the setting is valid, false otherwise.

ShowBloom()

bool HPS::PostProcessEffectsControl::ShowBloom	(	bool &	out_state,
		float &	out_strength,
		unsigned int &	out_blur,
		PostProcessEffects::Bloom::Shape &	out_shape
	)		const

Shows the bloom setting.

Parameters

out_state	Whether bloom should be used.
out_strength	A multiplier on the default contribution of bloom. Higher values mean that bloom will make a stronger contribution.
out_blur	The number of blur passes to perform on the output. Higher values mean that bloom will affect a wider area and look smoother.
out_shape	The shape of the bloom effect.

Returns

true if the setting is valid, false otherwise.

ShowDepthOfField()

bool HPS::PostProcessEffectsControl::ShowDepthOfField	(	bool &	out_state,
		float &	out_strength,
		float &	out_near_distance,
		float &	out_far_distance
	)		const

Shows the depth of field setting.

Parameters

out_state	Whether depth of field should be used.
out_strength	A multiplier on the default blur radius. Higher values mean more blurring.
out_near_distance	The camera distance in front of which geometry will begin to appear out of focus.
out_far_distance	The camera distance beyond which geometry will appear out of focus.

Returns

true if the setting is valid, false otherwise.

ShowEyeDomeLighting()

bool HPS::PostProcessEffectsControl::ShowEyeDomeLighting	(	bool &	out_state,
		float &	out_exponent,
		float &	out_tolerance,
		float &	out_strength
	)		const

Shows the eye-dome lighting setting.

Parameters

out_state	Whether eye-dome lighting should be used.
out_exponent	An exponent used to attenuate the per-pixel occlusion computed by the eye-dome lighting algorithm.
out_tolerance	A multiplier on the threshold that the driver uses when comparing adjacent pixel depth values to detect occlusion. This allows the user to control the amount of occlusion added by neighboring pixels based on their relative depth difference.
out_strength	A multiplier on the calculated per-pixel occlusion value.

Returns

true if the setting is valid, false otherwise.

ShowSilhouetteEdges()

bool HPS::PostProcessEffectsControl::ShowSilhouetteEdges	(	bool &	out_state,
		float &	out_tolerance,
		bool &	out_heavy_exterior
	)		const

Shows the silhouette edge setting.

Parameters

out_state	Whether silhouette edges should be used.
out_tolerance	A multiplier on the threshold that the driver uses when comparing adjacent pixel depth values to detect silhouettes. This allows the user to control the trade-off between silhouettes appearing where they shouldn't, vs disappearing in places they should be.
out_heavy_exterior	This option, when enabled, causes an extra thick border to be drawn at the boundary between geometry and the window background (as opposed to geometry on top of other geometry).

Returns

true if the setting is valid, false otherwise.

ShowWorldScale()

bool HPS::PostProcessEffectsControl::ShowWorldScale

(

float &

out_scale

)

const

Shows the world scale setting.

Parameters

out_scale

Scale value used by post process effects.

Returns

true if the setting is valid, false otherwise.

Type()

virtual HPS::Type HPS::PostProcessEffectsControl::Type ( ) const

inlinevirtual

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented from HPS::Control.

UnsetAmbientOcclusion()

PostProcessEffectsControl& HPS::PostProcessEffectsControl::UnsetAmbientOcclusion

(

)

Removes any ambient occlusion setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by PostProcessEffectsKit::GetDefault().

Returns

A reference to this object.

UnsetBloom()

PostProcessEffectsControl& HPS::PostProcessEffectsControl::UnsetBloom

(

)

Removes a bloom setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by PostProcessEffectsKit::GetDefault().

Returns

A reference to this object.

UnsetDepthOfField()

PostProcessEffectsControl& HPS::PostProcessEffectsControl::UnsetDepthOfField

(

)

Removes a depth of field setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by PostProcessEffectsKit::GetDefault().

Returns

A reference to this object.

UnsetEverything()

PostProcessEffectsControl& HPS::PostProcessEffectsControl::UnsetEverything

(

)

Removes all settings from this object.

If the control is attached to a WindowKey this function restores the default settings of this control as specified by PostProcessEffectsKit::GetDefault().

Returns

A reference to this object.

UnsetEyeDomeLighting()

PostProcessEffectsControl& HPS::PostProcessEffectsControl::UnsetEyeDomeLighting

(

)

Removes an eye-dome lighting setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by PostProcessEffectsKit::GetDefault().

Returns

A reference to this object.

UnsetSilhouetteEdges()

PostProcessEffectsControl& HPS::PostProcessEffectsControl::UnsetSilhouetteEdges

(

)

Removes a silhouette edge setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by PostProcessEffectsKit::GetDefault().

Returns

A reference to this object.

UnsetWorldScale()

PostProcessEffectsControl& HPS::PostProcessEffectsControl::UnsetWorldScale

(

)

Removes any world scale setting.

If the control is attached to a WindowKey this function restores the default value of this setting as specified by PostProcessEffectsKit::GetDefault().

Returns

A reference to this object.

Member Data Documentation

staticType

const HPS::Type HPS::PostProcessEffectsControl::staticType = HPS::Type::PostProcessEffectsControl

static

---

The documentation for this class was generated from the following file:

• hps.h
