The HPS::HiddenLineAttributeKit class is a user space object, useful for carrying a group attribute settings. More...

#include <hps.h>

Inheritance diagram for HPS::HiddenLineAttributeKit:

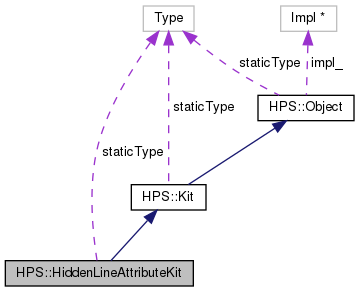

Collaboration diagram for HPS::HiddenLineAttributeKit:

Public Member Functions
	HiddenLineAttributeKit ()
	Initializes an empty kit. More...

	HiddenLineAttributeKit (HiddenLineAttributeKit const &in_kit)
	The copy constructor creates a new HiddenLineAttributeKit object that contains the same settings as the source object. More...

	HiddenLineAttributeKit (HiddenLineAttributeKit &&in_that)
	The move constructor creates a HiddenLineAttributeKit by transferring the underlying impl of the rvalue reference to this HiddenLineAttributeKit thereby avoiding a copy and allocation. More...

HiddenLineAttributeKit &	operator= (HiddenLineAttributeKit &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this HiddenLineAttributeKit thereby avoiding a copy. More...

virtual	~HiddenLineAttributeKit ()
	Destroy this kit. More...

HPS::Type	ObjectType () const

void	Set (HiddenLineAttributeKit const &in_kit)
	Copies the source HiddenLineAttributeKit into this object. More...

void	Show (HiddenLineAttributeKit &out_kit) const
	Copies this object into the given HiddenLineAttributeKit. More...

HiddenLineAttributeKit &	operator= (HiddenLineAttributeKit const &in_kit)
	Copies the source HiddenLineAttributeKit into this object. More...

bool	Empty () const
	Indicates whether this object has any values set on it. More...

bool	Equals (HiddenLineAttributeKit const &in_kit) const
	Check if the source HiddenLineAttributeKit is equivalent to this object. More...

bool	operator== (HiddenLineAttributeKit const &in_kit) const
	Check if the source HiddenLineAttributeKit is equivalent to this object. More...

bool	operator!= (HiddenLineAttributeKit const &in_kit) const
	Check if the source HiddenLineAttributeKit is not equivalent to this object. More...

HiddenLineAttributeKit &	SetAlgorithm (HiddenLine::Algorithm in_algorithm)
	Specifies the sorting algorithm that should be used to sort faces that have been made visible by the SetRenderFaces method. More...

HiddenLineAttributeKit &	SetColor (RGBAColor const &in_color)
	Sets the color to be applied to the hidden lines and markers. More...

HiddenLineAttributeKit &	SetDimFactor (float in_zero_to_one)
	Specifies the fraction of the current line color's R, G, and B channels to use for the color of hidden lines and markers. More...

HiddenLineAttributeKit &	SetFaceDisplacement (float in_buckets)
	Specifies how many units to push faces away from the camera. More...

HiddenLineAttributeKit &	SetLinePattern (char const *in_pattern)
	Specifies the pattern of the hidden lines. More...

HiddenLineAttributeKit &	SetLineSorting (bool in_state, float in_threshold=2.0f, Line::SizeUnits in_units=HPS::Line::SizeUnits::Pixels)
	Species whether hidden lines are sorted, and if so, what the threshold for sorting is. More...

HiddenLineAttributeKit &	SetRenderFaces (bool in_state)
	Specifies whether triangles will be displayed during a hidden-line rendering. More...

HiddenLineAttributeKit &	SetRenderText (bool in_state)
	Specifies whether text will be displayed during a hidden-line rendering. More...

HiddenLineAttributeKit &	SetSilhouetteCleanup (bool in_state)
	Silhouette edges can show unpleasant "fishtail" patterns at points on smooth surfaces where curvature in one orientation is very different from the curvature in another (e.g. More...

HiddenLineAttributeKit &	SetTransparencyCutoff (float in_zero_to_one)
	Specifies the threshold for when transparent objects are considered opaque. More...

HiddenLineAttributeKit &	SetVisibility (bool in_state)
	Specifies whether hidden lines and markers should be displayed. More...

HiddenLineAttributeKit &	SetWeight (float in_weight, Line::SizeUnits in_units=Line::SizeUnits::ScaleFactor)
	Sets the weight of lines drawn in hidden line rendering. More...

HiddenLineAttributeKit &	UnsetAlgorithm ()
	Removes the hidden line algorithm setting. More...

HiddenLineAttributeKit &	UnsetColor ()
	Removes the hidden line color setting. More...

HiddenLineAttributeKit &	UnsetDimFactor ()
	Removes the dim factor setting. More...

HiddenLineAttributeKit &	UnsetFaceDisplacement ()
	Removes the face displacement setting. More...

HiddenLineAttributeKit &	UnsetLinePattern ()
	Removes the line pattern setting for hidden lines. More...

HiddenLineAttributeKit &	UnsetLineSorting ()
	Removes the line sorting setting. More...

HiddenLineAttributeKit &	UnsetRenderFaces ()
	Removes the face rendering setting. More...

HiddenLineAttributeKit &	UnsetRenderText ()
	Removes the text rendering setting. More...

HiddenLineAttributeKit &	UnsetSilhouetteCleanup ()
	Removes the silhouette cleanup setting. More...

HiddenLineAttributeKit &	UnsetTransparencyCutoff ()
	Removes the transparency cutoff setting. More...

HiddenLineAttributeKit &	UnsetVisibility ()
	Removes the hidden line visibility setting. More...

HiddenLineAttributeKit &	UnsetWeight ()
	Removes the weight setting for hidden line. More...

HiddenLineAttributeKit &	UnsetEverything ()
	Removes all settings from this object. More...

bool	ShowAlgorithm (HiddenLine::Algorithm &out_algorithm) const
	Shows the sorting algorithm that will be used to sort faces that have been made visible by the SetRenderFaces method. More...

bool	ShowColor (RGBAColor &out_color) const
	Shows the color applied to hidden lines and markers. More...

bool	ShowDimFactor (float &out_zero_to_one) const
	Shows the dim factor multiplier applied to each channel of the hidden line color. More...

bool	ShowFaceDisplacement (float &out_buckets) const
	Shows the number of units to push faces away from the camera. More...

bool	ShowLinePattern (UTF8 &out_pattern) const
	Shows the pattern of the hidden lines. More...

bool	ShowLineSorting (bool &out_state, float &out_threshold, Line::SizeUnits &out_units) const
	Shows the hidden line sorting options. More...

bool	ShowRenderFaces (bool &out_state) const
	Shows whether triangles will be displayed during a hidden-line rendering. More...

bool	ShowRenderText (bool &out_state) const
	Shows whether text will be displayed during a hidden-line rendering. More...

bool	ShowSilhouetteCleanup (bool &out_state) const
	Shows whether hidden line rendering should be post-processed to remove visual artifacts of silhouette edges. More...

bool	ShowTransparencyCutoff (float &out_zero_to_one) const
	Shows the threshold for when transparent objects are considered opaque. More...

bool	ShowVisibility (bool &out_state) const
	Shows whether hidden lines and markers should be displayed. More...

bool	ShowWeight (float &out_weight, Line::SizeUnits &out_units) const
	Shows the weight of lines drawn in hidden line rendering. More...

virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...

virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...

bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...

intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static HiddenLineAttributeKit	GetDefault ()
	Creates a HiddenLineAttributeKit which contains the default settings. More...

template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::HiddenLineAttributeKit

Detailed Description

The HPS::HiddenLineAttributeKit class is a user space object, useful for carrying a group attribute settings.

Calling HPS::HiddenLineAttributeKit::GetDefault() will return a kit with values found in this table.

Constructor & Destructor Documentation

◆ HiddenLineAttributeKit() [1/3]

HPS::HiddenLineAttributeKit::HiddenLineAttributeKit ( )

Initializes an empty kit.

◆ HiddenLineAttributeKit() [2/3]

HPS::HiddenLineAttributeKit::HiddenLineAttributeKit ( HiddenLineAttributeKit const & in_kit )

The copy constructor creates a new HiddenLineAttributeKit object that contains the same settings as the source object.

Parameters

in_kit The source object to copy.

◆ HiddenLineAttributeKit() [3/3]

HPS::HiddenLineAttributeKit::HiddenLineAttributeKit ( HiddenLineAttributeKit && in_that )

The move constructor creates a HiddenLineAttributeKit by transferring the underlying impl of the rvalue reference to this HiddenLineAttributeKit thereby avoiding a copy and allocation.

Parameters

in_that An rvalue reference to a HiddenLineAttributeKit to take the impl from.

◆ ~HiddenLineAttributeKit()

virtual HPS::HiddenLineAttributeKit::~HiddenLineAttributeKit ( )

virtual

Destroy this kit.

Member Function Documentation

◆ ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ Empty()

bool HPS::HiddenLineAttributeKit::Empty ( ) const

virtual

Indicates whether this object has any values set on it.

Returns: true if no values are set on this object, false otherwise.

Reimplemented from HPS::Object.

◆ Equals()

bool HPS::HiddenLineAttributeKit::Equals ( HiddenLineAttributeKit const & in_kit ) const

Check if the source HiddenLineAttributeKit is equivalent to this object.

Parameters

in_kit The source HiddenLineAttributeKit to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns: A unique value shared by all objects of the same class.

◆ GetDefault()

static HiddenLineAttributeKit HPS::HiddenLineAttributeKit::GetDefault ( )

static

Creates a HiddenLineAttributeKit which contains the default settings.

The returned object will not necessarily have values set for every option, but it will have settings for those options where it is reasonable to have a default.

Returns: A HiddenLineAttributeKit with the default settings.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns: A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask The Type mask to check against this Object.

Returns: true if this Object has the given Type mask, false otherwise.

◆ ObjectType()

HPS::Type HPS::HiddenLineAttributeKit::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Kit.

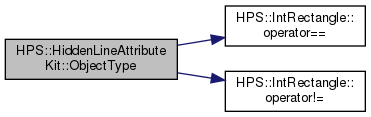

Here is the call graph for this function:

◆ operator!=()

bool HPS::HiddenLineAttributeKit::operator!= ( HiddenLineAttributeKit const & in_kit ) const

Check if the source HiddenLineAttributeKit is not equivalent to this object.

Parameters

in_kit The source HiddenLineAttributeKit to compare to this object.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator=() [1/2]

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::operator= ( HiddenLineAttributeKit && in_that )

The move assignment operator transfers the underlying impl of the rvalue reference to this HiddenLineAttributeKit thereby avoiding a copy.

Parameters

in_that An rvalue reference to a HiddenLineAttributeKit to take the impl from.

Returns: A reference to this HiddenLineAttributeKit.

◆ operator=() [2/2]

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::operator= ( HiddenLineAttributeKit const & in_kit )

Copies the source HiddenLineAttributeKit into this object.

Parameters

in_kit The source HiddenLineAttributeKit to copy.

Returns: A reference to this object.

◆ operator==()

bool HPS::HiddenLineAttributeKit::operator== ( HiddenLineAttributeKit const & in_kit ) const

Check if the source HiddenLineAttributeKit is equivalent to this object.

Parameters

in_kit The source HiddenLineAttributeKit to compare to this object.

Returns: true if the objects are equivalent, false otherwise.

◆ Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ Set()

void HPS::HiddenLineAttributeKit::Set ( HiddenLineAttributeKit const & in_kit )

Copies the source HiddenLineAttributeKit into this object.

Parameters

in_kit The source object to copy.

◆ SetAlgorithm()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetAlgorithm ( HiddenLine::Algorithm in_algorithm )

Specifies the sorting algorithm that should be used to sort faces that have been made visible by the SetRenderFaces method.

Default is ZBuffer.

Parameters

in_algorithm The algorithm used to sort visible faces.

Returns: A reference to this object.

◆ SetColor()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetColor ( RGBAColor const & in_color )

Sets the color to be applied to the hidden lines and markers.

Parameters

in_color The color hidden line geometry should be drawn in.

Returns: A reference to this object.

◆ SetDimFactor()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetDimFactor ( float in_zero_to_one )

Specifies the fraction of the current line color's R, G, and B channels to use for the color of hidden lines and markers.

By default, Visualize will automatically take a fraction of the RGB values to darken the hidden lines and markers.

Parameters

in_zero_to_one A multiplier, between [0,1], applied to each channel of the hidden line color.

Returns: A reference to this object.

◆ SetFaceDisplacement()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetFaceDisplacement ( float in_buckets )

Specifies how many units to push faces away from the camera.

This can help improve hidden line scene quality if distinct polylines/lines are being used to denote user-defined edges on shell/mesh regions, but are not exactly coincident with the actual shell/mesh edges. Note: hidden line face displacement is separate from the general face displacement value set with the DrawingAttributeKit::SetFaceDisplacement.

Parameters

in_buckets The number of units to move faces in the Z-Buffer. The units are 1/2^24 in the normalized depth range [0,1]. Negative values will move faces toward the camera, positive values away from the camera.

Returns: A reference to this object.

See also: DrawingAttributeKit::SetFaceDisplacement()

◆ SetLinePattern()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetLinePattern ( char const * in_pattern )

Specifies the pattern of the hidden lines.

Parameters

in_pattern The name of a line pattern, defined in a portfolio that is accessible.

Returns: A reference to this object.

◆ SetLineSorting()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetLineSorting	(	bool	in_state,
		float	in_threshold = `2.0f`,
		Line::SizeUnits	in_units = `HPS::Line::SizeUnits::Pixels`
	)

Species whether hidden lines are sorted, and if so, what the threshold for sorting is.

If Hidden Line Sorting is activated, lines will be drawn in proper z-order. If this option is not activated, the order in which lines are drawn is non-deterministic. Enabling this option will result in slower performance. Due to the poor performance, this option is not recommended for screen drawing. However, it may be useful for hardcopy export. Use the functions HPS::Hardcopy::GDI::ExportOptionsKit::SetHiddenLineSorting() or HPS::Hardcopy::File::ExportOptionsKit::SetHiddenLineSorting() to enable this option for hardcopy export.

Parameters

in_state	Should hidden lines be sorted.
in_threshold	What is the minimum size of hidden lines that are sorted. Lines thinner than this will not be sorted.
in_units	What units in_threshold is specified in.

Returns: A reference to this object.

◆ SetRenderFaces()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetRenderFaces ( bool in_state )

Specifies whether triangles will be displayed during a hidden-line rendering.

Parameters

in_state Whether triangles will displayed during a hidden-line rendering.

Returns: A reference to this object.

◆ SetRenderText()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetRenderText ( bool in_state )

Specifies whether text will be displayed during a hidden-line rendering.

Parameters

in_state Whether text will displayed during a hidden-line rendering.

Returns: A reference to this object.

◆ SetSilhouetteCleanup()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetSilhouetteCleanup ( bool in_state )

Silhouette edges can show unpleasant "fishtail" patterns at points on smooth surfaces where curvature in one orientation is very different from the curvature in another (e.g.

the inside of a torus). Silhouette cleanup causes a post-process to remove most of these patterns.

Parameters

in_state Whether hidden line rendering should be post-processed to remove visual artifacts.

Returns: A reference to this object.

◆ SetTransparencyCutoff()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetTransparencyCutoff ( float in_zero_to_one )

Specifies the threshold for when transparent objects are considered opaque.

Objects with transparency greater than the cutoff will be considered opaque while objects with transparency less than the cutoff will treated as transparent.

Parameters

in_zero_to_one The cutoff value, between [0,1].

Returns: A reference to this object.

◆ SetVisibility()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetVisibility ( bool in_state )

Specifies whether hidden lines and markers should be displayed.

Parameters

in_state The algorithm to be used during hidden line rendering.

Returns: A reference to this object.

◆ SetWeight()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::SetWeight	(	float	in_weight,
		Line::SizeUnits	in_units = `Line::SizeUnits::ScaleFactor`
	)

Sets the weight of lines drawn in hidden line rendering.

Parameters

in_weight	The weight value for hidden lines.
in_units	The units applied to in_weight.

Returns: A reference to this object.

◆ Show()

void HPS::HiddenLineAttributeKit::Show ( HiddenLineAttributeKit & out_kit ) const

Copies this object into the given HiddenLineAttributeKit.

Parameters

out_kit The HiddenLineAttributeKit to populate with the contents of this object.

◆ ShowAlgorithm()

bool HPS::HiddenLineAttributeKit::ShowAlgorithm ( HiddenLine::Algorithm & out_algorithm ) const

Shows the sorting algorithm that will be used to sort faces that have been made visible by the SetRenderFaces method.

Parameters

out_algorithm The algorithm used to sort visible faces.

Returns: true if the setting is valid, false otherwise.

◆ ShowColor()

bool HPS::HiddenLineAttributeKit::ShowColor ( RGBAColor & out_color ) const

Shows the color applied to hidden lines and markers.

Parameters

out_color The color of hidden line geometry.

Returns: true if the setting is valid, false otherwise.

◆ ShowDimFactor()

bool HPS::HiddenLineAttributeKit::ShowDimFactor ( float & out_zero_to_one ) const

Shows the dim factor multiplier applied to each channel of the hidden line color.

Parameters

out_zero_to_one A multiplier, between [0,1], applied to each channel of the hidden line color.

Returns: true if the setting is valid, false otherwise.

◆ ShowFaceDisplacement()

bool HPS::HiddenLineAttributeKit::ShowFaceDisplacement ( float & out_buckets ) const

Shows the number of units to push faces away from the camera.

Parameters

out_buckets The number of "z buckets" to push faces away from the camera.

Returns: true if the setting is valid, false otherwise.

◆ ShowLinePattern()

bool HPS::HiddenLineAttributeKit::ShowLinePattern ( UTF8 & out_pattern ) const

Shows the pattern of the hidden lines.

Parameters

out_pattern The name of a line pattern, defined in a portfolio that is accessible.

Returns: true if the setting is valid, false otherwise.

◆ ShowLineSorting()

bool HPS::HiddenLineAttributeKit::ShowLineSorting	(	bool &	out_state,
		float &	out_threshold,
		Line::SizeUnits &	out_units
	)		const

Shows the hidden line sorting options.

Parameters

out_state	Whether hidden line sorting is on or off.
out_threshold	The minimum width at which hidden lines are sorted.
out_units	The units that out_threshold is measured in.

Returns: true if the setting is valid, false otherwise.

◆ ShowRenderFaces()

bool HPS::HiddenLineAttributeKit::ShowRenderFaces ( bool & out_state ) const

Shows whether triangles will be displayed during a hidden-line rendering.

Parameters

out_state Whether triangles will displayed during a hidden-line rendering.

Returns: true if the setting is valid, false otherwise.

◆ ShowRenderText()

bool HPS::HiddenLineAttributeKit::ShowRenderText ( bool & out_state ) const

Shows whether text will be displayed during a hidden-line rendering.

Parameters

out_state Whether text will displayed during a hidden-line rendering.

Returns: true if the setting is valid, false otherwise.

◆ ShowSilhouetteCleanup()

bool HPS::HiddenLineAttributeKit::ShowSilhouetteCleanup ( bool & out_state ) const

Shows whether hidden line rendering should be post-processed to remove visual artifacts of silhouette edges.

Parameters

out_state Whether hidden line rendering should be post-processed to remove visual artifacts.

Returns: true if the setting is valid, false otherwise.

◆ ShowTransparencyCutoff()

bool HPS::HiddenLineAttributeKit::ShowTransparencyCutoff ( float & out_zero_to_one ) const

Shows the threshold for when transparent objects are considered opaque.

Parameters

out_zero_to_one The cutoff value, between [0,1].

Returns: true if the setting is valid, false otherwise.

◆ ShowVisibility()

bool HPS::HiddenLineAttributeKit::ShowVisibility ( bool & out_state ) const

Shows whether hidden lines and markers should be displayed.

Parameters

out_state Whether hidden lines and markers should be displayed.

Returns: true if the setting is valid, false otherwise.

◆ ShowWeight()

bool HPS::HiddenLineAttributeKit::ShowWeight	(	float &	out_weight,
		Line::SizeUnits &	out_units
	)		const

Shows the weight of lines drawn in hidden line rendering.

Parameters

out_weight	The weight value for hidden lines.
out_units	The units applied to in_weight.

Returns: true if the setting is valid, false otherwise.

◆ Type()

virtual HPS::Type HPS::Kit::Type ( ) const

inlinevirtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns: The true type of the object in question.

Reimplemented from HPS::Object.

◆ UnsetAlgorithm()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetAlgorithm ( )

Removes the hidden line algorithm setting.

Returns: A reference to this object.

◆ UnsetColor()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetColor ( )

Removes the hidden line color setting.

Returns: A reference to this object.

◆ UnsetDimFactor()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetDimFactor ( )

Removes the dim factor setting.

Returns: A reference to this object.

◆ UnsetEverything()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetEverything ( )

Removes all settings from this object.

Returns: A reference to this object.

◆ UnsetFaceDisplacement()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetFaceDisplacement ( )

Removes the face displacement setting.

Returns: A reference to this object.

◆ UnsetLinePattern()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetLinePattern ( )

Removes the line pattern setting for hidden lines.

Returns: A reference to this object.

◆ UnsetLineSorting()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetLineSorting ( )

Removes the line sorting setting.

Returns: A reference to this object.

◆ UnsetRenderFaces()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetRenderFaces ( )

Removes the face rendering setting.

Returns: A reference to this object.

◆ UnsetRenderText()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetRenderText ( )

Removes the text rendering setting.

Returns: A reference to this object.

◆ UnsetSilhouetteCleanup()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetSilhouetteCleanup ( )

Removes the silhouette cleanup setting.

Returns: A reference to this object.

◆ UnsetTransparencyCutoff()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetTransparencyCutoff ( )

Removes the transparency cutoff setting.

Returns: A reference to this object.

◆ UnsetVisibility()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetVisibility ( )

Removes the hidden line visibility setting.

Returns: A reference to this object.

◆ UnsetWeight()

HiddenLineAttributeKit& HPS::HiddenLineAttributeKit::UnsetWeight ( )

Removes the weight setting for hidden line.

Returns: A reference to this object.

Member Data Documentation

◆ staticType

const HPS::Type HPS::HiddenLineAttributeKit::staticType = HPS::Type::HiddenLineAttributeKit

static

The documentation for this class was generated from the following file:

hps.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ HiddenLineAttributeKit() [1/3]

◆ HiddenLineAttributeKit() [2/3]

◆ HiddenLineAttributeKit() [3/3]

◆ ~HiddenLineAttributeKit()

Member Function Documentation

◆ ClassID()

◆ Empty()

◆ Equals()

◆ GetClassID()

◆ GetDefault()

◆ GetInstanceID()

◆ HasType()

◆ ObjectType()

◆ operator!=()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ operator==()

◆ Reset()

◆ Set()

◆ SetAlgorithm()

◆ SetColor()

◆ SetDimFactor()

◆ SetFaceDisplacement()

◆ SetLinePattern()

◆ SetLineSorting()

◆ SetRenderFaces()

◆ SetRenderText()

◆ SetSilhouetteCleanup()

◆ SetTransparencyCutoff()

◆ SetVisibility()

◆ SetWeight()

◆ Show()

◆ ShowAlgorithm()

◆ ShowColor()

◆ ShowDimFactor()

◆ ShowFaceDisplacement()

◆ ShowLinePattern()

◆ ShowLineSorting()

◆ ShowRenderFaces()

◆ ShowRenderText()

◆ ShowSilhouetteCleanup()

◆ ShowTransparencyCutoff()

◆ ShowVisibility()

◆ ShowWeight()

◆ Type()

◆ UnsetAlgorithm()

◆ UnsetColor()

◆ UnsetDimFactor()

◆ UnsetEverything()

◆ UnsetFaceDisplacement()

◆ UnsetLinePattern()

◆ UnsetLineSorting()

◆ UnsetRenderFaces()

◆ UnsetRenderText()

◆ UnsetSilhouetteCleanup()

◆ UnsetTransparencyCutoff()

◆ UnsetVisibility()

◆ UnsetWeight()

Member Data Documentation

◆ staticType
