HPS::Metadata Class Reference

The Metadata class is a smart pointer. More...

#include <sprk.h>

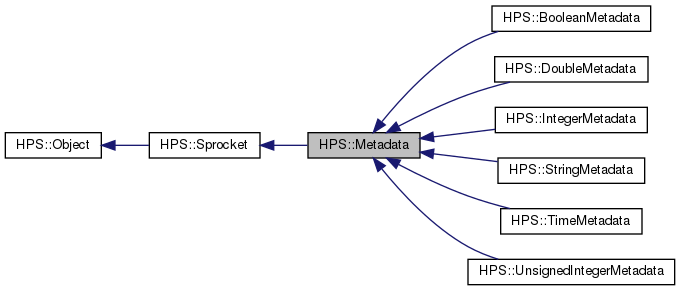

Inheritance diagram for HPS::Metadata:

Collaboration diagram for HPS::Metadata:

Public Member Functions
	Metadata ()
	The default constructor creates an uninitialized Metadata object. More...
	Metadata (Metadata const &in_that)
	The copy constructor creates a Metadata object that shares the underlying smart-pointer of the source Metadata. More...
	Metadata (Metadata &&in_that)
	The move constructor creates a Metadata by transferring the underlying object of the rvalue reference to this Metadata. More...
	Metadata (char const *in_name)
	This constructor creates a Metadata with a given name. More...
virtual	~Metadata ()
HPS::Type	ObjectType () const
Metadata &	operator= (Metadata const &in_that)
	Share the underlying smart-pointer of the Metadata source. More...
Metadata &	operator= (Metadata &&in_that)
	The move assignment operator transfers the underlying object of the rvalue reference to this Metadata. More...
virtual void	Assign (Metadata const &in_that)
	Share the underlying smart-pointer of the Metadata source. More...
bool	Equals (Metadata const &in_that) const
	Check if the source Metadata points to the same underlying impl as this Metadata. More...
bool	operator!= (Metadata const &in_that) const
	Check if the source Metadata points to a different impl than this Metadata. More...
bool	operator== (Metadata const &in_that) const
	Check if the source Metadata points to the same underlying impl as this Metadata. More...
HPS::UTF8	GetName () const
	Gets the name for this Metadata. More...
void	SetName (char const *in_name)
	Sets the name for this Metadata. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::Metadata

Detailed Description

The Metadata class is a smart pointer.

It represents a variety of metadata, i.e., a (name, value) pair, which might be associated with a Component, e.g., IDs, names, layers, user-defined or format-specific attributes, etc.

Constructor & Destructor Documentation

Metadata() [1/4]

HPS::Metadata::Metadata

(

)

The default constructor creates an uninitialized Metadata object.

The Type() function will return Type::None.

Metadata() [2/4]

HPS::Metadata::Metadata

(

Metadata const &

in_that

)

The copy constructor creates a Metadata object that shares the underlying smart-pointer of the source Metadata.

Parameters

in_that

The source Metadata to copy.

Metadata() [3/4]

HPS::Metadata::Metadata

(

Metadata &&

in_that

)

The move constructor creates a Metadata by transferring the underlying object of the rvalue reference to this Metadata.

Parameters

in_that

An rvalue reference to a Metadata to take the underlying object from.

Metadata() [4/4]

HPS::Metadata::Metadata

(

char const *

in_name

)

This constructor creates a Metadata with a given name.

Parameters

in_name

The UTF8-encoded name for this Metadata.

~Metadata()

virtual HPS::Metadata::~Metadata ( )

virtual

Member Function Documentation

Assign()

virtual void HPS::Metadata::Assign ( Metadata const &  in_that )

virtual

Share the underlying smart-pointer of the Metadata source.

Parameters

in_that

The Metadata source of the assignment.

Returns

A reference to this Metadata.

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

bool HPS::Metadata::Equals

(

Metadata const &

in_that

)

const

Check if the source Metadata points to the same underlying impl as this Metadata.

Parameters

in_that

The source Metadata to compare to this Metadata.

Returns

true if the objects reference the same impl, false otherwise.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

GetName()

HPS::UTF8 HPS::Metadata::GetName

(

)

const

Gets the name for this Metadata.

Returns

The name for this Metadata.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::Metadata::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::Object.

Reimplemented in HPS::BooleanMetadata, HPS::TimeMetadata, HPS::StringMetadata, HPS::DoubleMetadata, HPS::UnsignedIntegerMetadata, and HPS::IntegerMetadata.

Here is the call graph for this function:

operator!=()

bool HPS::Metadata::operator!=

(

Metadata const &

in_that

)

const

Check if the source Metadata points to a different impl than this Metadata.

Parameters

in_that

The source Metadata to compare to this Metadata.

Returns

true if the objects reference different impls, false otherwise.

operator=() [1/2]

Metadata& HPS::Metadata::operator=

(

Metadata const &

in_that

)

Share the underlying smart-pointer of the Metadata source.

Parameters

in_that

The Metadata source of the assignment.

Returns

A reference to this Metadata.

operator=() [2/2]

Metadata& HPS::Metadata::operator=

(

Metadata &&

in_that

)

The move assignment operator transfers the underlying object of the rvalue reference to this Metadata.

Parameters

in_that

An rvalue reference to a Metadata to take the underlying object from.

Returns

A reference to this Metadata.

operator==()

bool HPS::Metadata::operator==

(

Metadata const &

in_that

)

const

Check if the source Metadata points to the same underlying impl as this Metadata.

Parameters

in_that

The source Metadata to compare to this Metadata.

Returns

true if the objects reference the same impl, false otherwise.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetName()

void HPS::Metadata::SetName

(

char const *

in_name

)

Sets the name for this Metadata.

Parameters

in_name

A UTF8-encoded name for this Metadata.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

Member Data Documentation

staticType

const HPS::Type HPS::Metadata::staticType = HPS::Type::Metadata

static

---

The documentation for this class was generated from the following file:

• sprk.h
