HPS::PolygonShapeElement Class Reference

The PolygonShapeElement class is a user space object. More...

#include <hps.h>

Inheritance diagram for HPS::PolygonShapeElement:

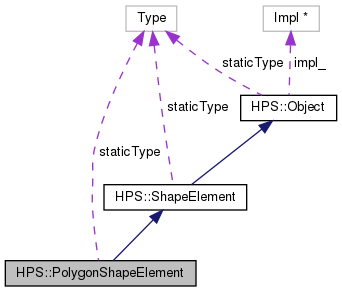

Collaboration diagram for HPS::PolygonShapeElement:

Public Member Functions
	PolygonShapeElement ()
	The default constructor creates an empty PolygonShapeElement object. More...
	PolygonShapeElement (ShapeElement const &in_that)
	This constructor creates a PolygonShapeElement object that contains the same settings as the source ShapeElement. More...
	PolygonShapeElement (PolygonShapeElement const &in_that)
	The copy constructor creates a new PolygonShapeElement object that contains the same settings as the source PolygonShapeElement. More...
	PolygonShapeElement (ShapePointArray const &in_points)
	This constructor creates a PolygonShapeElement with the specified point array. More...
	PolygonShapeElement (size_t in_count, ShapePoint const in_points[])
	This constructor creates a PolygonShapeElement with the specified point array. More...
	PolygonShapeElement (PolygonShapeElement &&in_that)
	The move constructor creates a PolygonShapeElement by transferring the underlying impl of the rvalue reference to this PolygonShapeElement thereby avoiding a copy and allocation. More...
PolygonShapeElement &	operator= (PolygonShapeElement &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this PolygonShapeElement thereby avoiding a copy. More...
	~PolygonShapeElement ()
HPS::Type	ObjectType () const
PolygonShapeElement &	SetPoints (ShapePointArray const &in_points)
	Sets the points for this PolygonShapeElement. More...
PolygonShapeElement &	SetPoints (size_t in_count, ShapePoint const in_points[])
	Sets the points for this PolygonShapeElement. More...
bool	ShowPoints (ShapePointArray &out_points) const
	Shows the points for this PolygonShapeElement. More...
void	Set (ShapeElement const &in_that)
	Copies the source ShapeElement into this ShapeElement. More...
bool	Equals (ShapeElement const &in_that) const
	Check if the source ShapeElement is equivalent to this ShapeElement. More...
bool	operator== (ShapeElement const &in_that) const
	Check if the source ShapeElement is equivalent to this ShapeElement. More...
bool	operator!= (ShapeElement const &in_that) const
	Check if the source ShapeElement is not equivalent to this ShapeElement. More...
ShapeElement &	SetDisjointed (bool in_state)
	Sets the disjointed state for this ShapeElement. More...
bool	ShowDisjointed (bool &out_state) const
	Shows the disjointed state for this ShapeElement. More...
ShapeElement &	SetFill (bool in_state)
	Sets the fill mode for this ShapeElement. More...
bool	ShowFill (bool &out_state) const
	Shows the fill mode for this ShapeElement. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::PolygonShapeElement

Detailed Description

The PolygonShapeElement class is a user space object.

It is used to define polygon elements to make up shapes for text backgrounds.

Constructor & Destructor Documentation

PolygonShapeElement() [1/6]

HPS::PolygonShapeElement::PolygonShapeElement

(

)

The default constructor creates an empty PolygonShapeElement object.

PolygonShapeElement() [2/6]

HPS::PolygonShapeElement::PolygonShapeElement

(

ShapeElement const &

in_that

)

This constructor creates a PolygonShapeElement object that contains the same settings as the source ShapeElement.

The copy will only be successful if the source shape element is really an upcast of a polygon shape element. Otherwise the copy will fail and the resulting PolygonShapeElement will be invalid.

Parameters

in_that

The source ShapeElement to copy.

PolygonShapeElement() [3/6]

HPS::PolygonShapeElement::PolygonShapeElement

(

PolygonShapeElement const &

in_that

)

The copy constructor creates a new PolygonShapeElement object that contains the same settings as the source PolygonShapeElement.

Parameters

in_that

The source PolygonShapeElement to copy.

PolygonShapeElement() [4/6]

HPS::PolygonShapeElement::PolygonShapeElement ( ShapePointArray const &  in_points )

explicit

This constructor creates a PolygonShapeElement with the specified point array.

Parameters

in_points

The points for the polygon.

PolygonShapeElement() [5/6]

HPS::PolygonShapeElement::PolygonShapeElement	(	size_t	in_count,
		ShapePoint const	in_points[]
	)

This constructor creates a PolygonShapeElement with the specified point array.

Parameters

in_count	Size of the following array.
in_points	The points for the line.

PolygonShapeElement() [6/6]

HPS::PolygonShapeElement::PolygonShapeElement

(

PolygonShapeElement &&

in_that

)

The move constructor creates a PolygonShapeElement by transferring the underlying impl of the rvalue reference to this PolygonShapeElement thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a PolygonShapeElement to take the impl from.

~PolygonShapeElement()

HPS::PolygonShapeElement::~PolygonShapeElement

(

)

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

bool HPS::ShapeElement::Equals ( ShapeElement const &  in_that ) const

inherited

Check if the source ShapeElement is equivalent to this ShapeElement.

Parameters

in_that

The source ShapeElement to compare to this ShapeElement.

Returns

true if the objects are equivalent, false otherwise.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::PolygonShapeElement::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::ShapeElement.

operator!=()

bool HPS::ShapeElement::operator!= ( ShapeElement const &  in_that ) const

inherited

Check if the source ShapeElement is not equivalent to this ShapeElement.

Parameters

in_that

The source ShapeElement to compare to this ShapeElement.

Returns

true if the objects are not equivalent, false otherwise.

operator=()

PolygonShapeElement& HPS::PolygonShapeElement::operator=

(

PolygonShapeElement &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this PolygonShapeElement thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a PolygonShapeElement to take the impl from.

Returns

A reference to this PolygonShapeElement.

operator==()

bool HPS::ShapeElement::operator== ( ShapeElement const &  in_that ) const

inherited

Check if the source ShapeElement is equivalent to this ShapeElement.

Parameters

in_that

The source ShapeElement to compare to this ShapeElement.

Returns

true if the objects are equivalent, false otherwise.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::ShapeElement::Set ( ShapeElement const &  in_that )

inherited

Copies the source ShapeElement into this ShapeElement.

Parameters

in_that

The source ShapeElement to copy.

SetDisjointed()

ShapeElement& HPS::ShapeElement::SetDisjointed ( bool  in_state )

inherited

Sets the disjointed state for this ShapeElement.

Two shape elements of the same type are automatically joined together if they appear consecutively in the shape element array. LineShapeElement objects are always disjointed.

Parameters

in_state

The disjointed state for this ShapeElement.

SetFill()

ShapeElement& HPS::ShapeElement::SetFill ( bool  in_state )

inherited

Sets the fill mode for this ShapeElement.

All shape elements default to being filled, except for Lines which cannot be filled.

Parameters

in_state

The fill mode for this ShapeElement.

SetPoints() [1/2]

PolygonShapeElement& HPS::PolygonShapeElement::SetPoints

(

ShapePointArray const &

in_points

)

Sets the points for this PolygonShapeElement.

Parameters

in_points

The points for the polygon.

SetPoints() [2/2]

PolygonShapeElement& HPS::PolygonShapeElement::SetPoints	(	size_t	in_count,
		ShapePoint const	in_points[]
	)

Sets the points for this PolygonShapeElement.

Parameters

in_count	Size of the following array.
in_points	The points for the polygon.

ShowDisjointed()

bool HPS::ShapeElement::ShowDisjointed ( bool &  out_state ) const

inherited

Shows the disjointed state for this ShapeElement.

Two shape elements of the same type are automatically joined together if they appear consecutively in the shape element array. LineShapeElement objects are always disjointed.

Parameters

out_state

Whether this shape element will be disjointed from the previous one.

Returns

true if a disjointed state was set, false otherwise.

ShowFill()

bool HPS::ShapeElement::ShowFill ( bool &  out_state ) const

inherited

Shows the fill mode for this ShapeElement.

All shape elements default to being filled, except for Lines which cannot be filled.

Parameters

out_state

Whether faces are drawn for this shape element.

Returns

true if a fill mode was set, false otherwise.

ShowPoints()

bool HPS::PolygonShapeElement::ShowPoints

(

ShapePointArray &

out_points

)

const

Shows the points for this PolygonShapeElement.

Parameters

out_points

The points for the polygon.

Returns

true if points were set, false otherwise.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

Member Data Documentation

staticType

const HPS::Type HPS::PolygonShapeElement::staticType = HPS::Type::PolygonShapeElement

static

---

The documentation for this class was generated from the following file:

• hps.h
