HPS::AxisTriadControl Class Reference

The AxisTriadControl allows you to turn on or off the axis triad, move it to a specific corner of the screen, change the material palette used to style it, or otherwise manipulate it. More...

#include <sprk.h>

Inheritance diagram for HPS::AxisTriadControl:

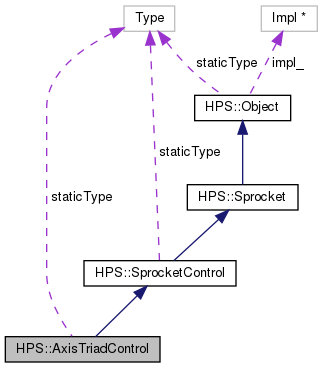

Collaboration diagram for HPS::AxisTriadControl:

Public Types
enum	Location {   Location::TopRight,   Location::TopLeft,   Location::BottomRight,   Location::BottomLeft,   Location::Custom }

Public Member Functions
	AxisTriadControl (View const &in_view)
	Initializes a control tied to the view in_view. More...
	AxisTriadControl (AxisTriadControl const &in_that)
	Initializes a control tied to the same object as in_that. More...
	AxisTriadControl (AxisTriadControl &&in_that)
	The move constructor creates a AxisTriadControl by transferring the underlying impl of the rvalue reference to this AxisTriadControl thereby avoiding a copy and allocation. More...
AxisTriadControl &	operator= (AxisTriadControl &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this AxisTriadControl thereby avoiding a copy. More...
	~AxisTriadControl ()
	Releases a reference to the database object this control is tied to. More...
HPS::Type	ObjectType () const
AxisTriadControl &	operator= (AxisTriadControl const &in_that)
	Share the smart-pointer. More...
HPS::AxisTriadControl &	SetLocation (Location in_location, HPS::Rectangle const &in_position=HPS::Rectangle(), HPS::IntRectangle in_offsets=HPS::IntRectangle::Zero())
	Sets the location of this axis triad. More...
Location	GetLocation () const
	Gets the location of the axis triad. More...
AxisTriadControl &	SetPosition (HPS::Rectangle const &in_position)
	Sets the position of the subwindow containing the axis triad. More...
HPS::Rectangle	GetPosition () const
	Gets the position of the subwindow containing the axis triad. More...
AxisTriadControl &	SetPositionOffsets (HPS::IntRectangle const &in_offsets)
	Sets the position of the subwindow containing this axis triad. More...
HPS::IntRectangle	GetPositionOffsets () const
	Gets the poition of the subwindow containing the axis triad. More...
HPS::AxisTriadControl &	SetVisibility (bool in_visibility)
	Sets the visibility of this axis triad. More...
bool	GetVisibility () const
	Gets the visibility of the axis triad. More...
HPS::AxisTriadControl &	SetTextVisibility (bool in_text_visibility)
	Sets the text visibility of this axis triad. More...
bool	GetTextVisibility () const
	Gets the text visibility of the axis triad. More...
HPS::AxisTriadControl &	SetMaterialPalette (char const *in_material_palette)
	Sets the material palette of this axis triad. More...
HPS::UTF8	GetMaterialPalette () const
	Gets the material palette used for this axis triad. More...
HPS::AxisTriadControl &	SetInteractivity (bool in_interactivity)
	Sets the interactivity of this axis triad. More...
bool	GetInteractivity () const
	Gets the interactivity of this axis triad. More...
AxisTriadControl &	SetSize (float in_size)
	Sets the size of the subwindow containing the axis triad, as a percentage of the main window. More...
float	GetSize () const
	Gets the size of the subwindow containing the axis triad, as a percentage of the main window. More...
HPS::SegmentKey	GetSegmentKey () const
	Gets the segment where this axis triad resides. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::AxisTriadControl

Private Member Functions
	AxisTriadControl ()
	Private default constructor to prevent instantiation without a view. More...
HPS::SegmentKey	GetAxisTriadSegment () const
	Returns the axis triad segment key. More...

Detailed Description

The AxisTriadControl allows you to turn on or off the axis triad, move it to a specific corner of the screen, change the material palette used to style it, or otherwise manipulate it.

Member Enumeration Documentation

Location

enum HPS::AxisTriadControl::Location

strong

Enumerator
TopRight	Position Axis Triad on the top right corner.
TopLeft	Position Axis Triad on the top left corner.
BottomRight	Position Axis Triad on the bottom right corner.
BottomLeft	Position Axis Triad on the bottom left corner.
Custom	Position Axis Triad at a custom location.

Constructor & Destructor Documentation

AxisTriadControl() [1/4]

HPS::AxisTriadControl::AxisTriadControl ( View const &  in_view )

explicit

Initializes a control tied to the view in_view.

AxisTriadControl() [2/4]

HPS::AxisTriadControl::AxisTriadControl

(

AxisTriadControl const &

in_that

)

Initializes a control tied to the same object as in_that.

AxisTriadControl() [3/4]

HPS::AxisTriadControl::AxisTriadControl

(

AxisTriadControl &&

in_that

)

The move constructor creates a AxisTriadControl by transferring the underlying impl of the rvalue reference to this AxisTriadControl thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to a AxisTriadControl to take the impl from.

~AxisTriadControl()

HPS::AxisTriadControl::~AxisTriadControl

(

)

Releases a reference to the database object this control is tied to.

AxisTriadControl() [4/4]

HPS::AxisTriadControl::AxisTriadControl ( )

inlineprivate

Private default constructor to prevent instantiation without a view.

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetAxisTriadSegment()

HPS::SegmentKey HPS::AxisTriadControl::GetAxisTriadSegment ( ) const

private

Returns the axis triad segment key.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

GetInteractivity()

bool HPS::AxisTriadControl::GetInteractivity

(

)

const

Gets the interactivity of this axis triad.

Returns

true if the axis triad is interactive, false otherwise.

GetLocation()

Location HPS::AxisTriadControl::GetLocation

(

)

const

Gets the location of the axis triad.

Returns

The location of the axis triad relative to the view.

GetMaterialPalette()

HPS::UTF8 HPS::AxisTriadControl::GetMaterialPalette

(

)

const

Gets the material palette used for this axis triad.

Returns

The name of the material palette used for this axis triad.

GetPosition()

HPS::Rectangle HPS::AxisTriadControl::GetPosition

(

)

const

Gets the position of the subwindow containing the axis triad.

Returns

The position of the subwindow containing the axis triad.

GetPositionOffsets()

HPS::IntRectangle HPS::AxisTriadControl::GetPositionOffsets

(

)

const

Gets the poition of the subwindow containing the axis triad.

Returns

The position of the subwindow containing the axis triad.

GetSegmentKey()

HPS::SegmentKey HPS::AxisTriadControl::GetSegmentKey

(

)

const

Gets the segment where this axis triad resides.

Returns

The segment key associated with this axis triad.

GetSize()

float HPS::AxisTriadControl::GetSize

(

)

const

Gets the size of the subwindow containing the axis triad, as a percentage of the main window.

Returns

the size of the subwindow containing the axis triad, as a percentage of the main window. If the location is Custom, this will return -1.0f.

GetTextVisibility()

bool HPS::AxisTriadControl::GetTextVisibility

(

)

const

Gets the text visibility of the axis triad.

Returns

true if the axis triad text is visible, false otherwise.

GetVisibility()

bool HPS::AxisTriadControl::GetVisibility

(

)

const

Gets the visibility of the axis triad.

Returns

true if the axis triad is visible, false otherwise.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::AxisTriadControl::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::SprocketControl.

Here is the call graph for this function:

operator=() [1/2]

AxisTriadControl& HPS::AxisTriadControl::operator=

(

AxisTriadControl &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this AxisTriadControl thereby avoiding a copy.

Parameters

in_that

An rvalue reference to a AxisTriadControl to take the impl from.

Returns

A reference to this AxisTriadControl.

operator=() [2/2]

AxisTriadControl& HPS::AxisTriadControl::operator=

(

AxisTriadControl const &

in_that

)

Share the smart-pointer.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

SetInteractivity()

HPS::AxisTriadControl& HPS::AxisTriadControl::SetInteractivity

(

bool

in_interactivity

)

Sets the interactivity of this axis triad.

When the axis triad is interactive, dragging the triad will rotate the scene. Making the Axis Triad interactive pushes the Axis Triad operator on the current View's operator stack with High priority

Parameters

in_interactivity

the interactivity of this axis triad

Returns

A reference to this object. By default the axis triad is not interactive.

SetLocation()

HPS::AxisTriadControl& HPS::AxisTriadControl::SetLocation	(	Location	in_location,
		HPS::Rectangle const &	in_position = HPS::Rectangle(),
		HPS::IntRectangle	in_offsets = HPS::IntRectangle::Zero()
	)

Sets the location of this axis triad.

Parameters

in_location	the location of this axis triad
in_position	the position of the subwindow containing the axis triad. only used when in_location is Custom
in_offsets	the pixel-space rectangle to offset to the given position. only used when in_location is Custom

Returns

A reference to this object. By default the axis triad is placed on the bottom left corner of the View

SetMaterialPalette()

HPS::AxisTriadControl& HPS::AxisTriadControl::SetMaterialPalette

(

char const *

in_material_palette

)

Sets the material palette of this axis triad.

The material palette supplied to this function should originate from a material kit array with 3 entries. The entries in the material kit array are applied to the navigation cube as follows: Entry 0 - x-axis color Entry 1 - y-axis color Entry 2 - z-axis color

Parameters

in_material_palette

the name of the material palette to be used for this axis triad

Returns

A reference to this object.

SetPosition()

AxisTriadControl& HPS::AxisTriadControl::SetPosition

(

HPS::Rectangle const &

in_position

)

Sets the position of the subwindow containing the axis triad.

Parameters

in_position

a rectangle describing the subwindow containing the axis triad.

Returns

A reference to this object.

SetPositionOffsets()

AxisTriadControl& HPS::AxisTriadControl::SetPositionOffsets

(

HPS::IntRectangle const &

in_offsets

)

Sets the position of the subwindow containing this axis triad.

Parameters

in_offsets

a rectangle describing the offsets being applied to the current position

Returns

A reference to this object.

SetSize()

AxisTriadControl& HPS::AxisTriadControl::SetSize

(

float

in_size

)

Sets the size of the subwindow containing the axis triad, as a percentage of the main window.

Parameters

in_size

The size of the subwindow containing the axis triad, as a percentage of the main window. [0-1]

Returns

A reference to this object. By default the axis triad subwindow is 20% of the main window

SetTextVisibility()

HPS::AxisTriadControl& HPS::AxisTriadControl::SetTextVisibility

(

bool

in_text_visibility

)

Sets the text visibility of this axis triad.

Parameters

in_text_visibility

the visibility of the text for this axis triad

Returns

A reference to this object.

SetVisibility()

HPS::AxisTriadControl& HPS::AxisTriadControl::SetVisibility

(

bool

in_visibility

)

Sets the visibility of this axis triad.

Parameters

in_visibility

the visibility of this axis triad

Returns

A reference to this object. By default the axis triad is not visible

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

Member Data Documentation

staticType

const HPS::Type HPS::AxisTriadControl::staticType = HPS::Type::AxisTriadControl

static

---

The documentation for this class was generated from the following file:

• sprk.h
