HPS::SphereGlyphElement Class Reference

The SphereGlyphElement class is a user space object. More...

#include <hps.h>

Inheritance diagram for HPS::SphereGlyphElement:

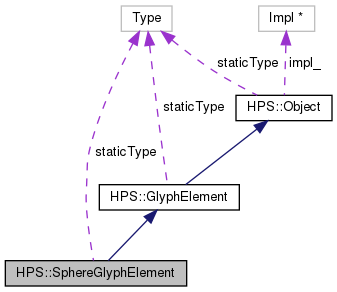

Collaboration diagram for HPS::SphereGlyphElement:

Public Member Functions
	SphereGlyphElement ()
	The default constructor creates an empty SphereGlyphElement object. More...
	SphereGlyphElement (GlyphElement const &in_that)
	This constructor creates a SphereGlyphElement object that contains the same settings as the source GlyphElement. More...
	SphereGlyphElement (SphereGlyphElement const &in_that)
	The copy constructor creates a new SphereGlyphElement object that contains the same settings as the source SphereGlyphElement. More...
	SphereGlyphElement (SphereGlyphElement &&in_that)
	The move constructor creates an EllipseGlyphElement by transferring the underlying impl of the rvalue reference to this SphereGlyphElement thereby avoiding a copy and allocation. More...
SphereGlyphElement &	operator= (SphereGlyphElement &&in_that)
	The move assignment operator transfers the underlying impl of the rvalue reference to this SphereGlyphElement thereby avoiding a copy. More...
	~SphereGlyphElement ()
HPS::Type	ObjectType () const
void	Set (GlyphElement const &in_that)
	Copies the source GlyphElement into this GlyphElement. More...
bool	Equals (GlyphElement const &in_that) const
	Check if the source GlyphElement is equivalent to this GlyphElement. More...
bool	operator== (GlyphElement const &in_that) const
	Check if the source GlyphElement is equivalent to this GlyphElement. More...
bool	operator!= (GlyphElement const &in_that) const
	Check if the source GlyphElement is not equivalent to this GlyphElement. More...
void	SetFill (Glyph::Fill in_fill)
	Sets the fill mode for this GlyphElement. More...
void	SetIndexedColor (byte in_index)
	Sets the color index for this GlyphElement. More...
void	SetNormalColor ()
	Sets that this GlyphElement should inherit the color of the owning geometry which uses the glyph. More...
void	SetExplicitColor (RGBAColor const &in_color)
	Sets the RGBA color for this GlyphElement. More...
bool	ShowFill (Glyph::Fill &out_fill) const
	Shows the fill mode for this GlyphElement. More...
bool	ShowColor (Glyph::ColorSource &out_source, byte &out_index, RGBAColor &out_color) const
	Shows the color for this GlyphElement. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::SphereGlyphElement

Detailed Description

The SphereGlyphElement class is a user space object.

It is used to add ellipse elements to glyphs.

Constructor & Destructor Documentation

SphereGlyphElement() [1/4]

HPS::SphereGlyphElement::SphereGlyphElement

(

)

The default constructor creates an empty SphereGlyphElement object.

SphereGlyphElement() [2/4]

HPS::SphereGlyphElement::SphereGlyphElement

(

GlyphElement const &

in_that

)

This constructor creates a SphereGlyphElement object that contains the same settings as the source GlyphElement.

The copy will only be successful if the source glyph element is really an upcast of an ellipse glyph element. Otherwise the copy will fail and the resulting SphereGlyphElement will be invalid.

Parameters

in_that

The source GlyphElement to copy.

SphereGlyphElement() [3/4]

HPS::SphereGlyphElement::SphereGlyphElement

(

SphereGlyphElement const &

in_that

)

The copy constructor creates a new SphereGlyphElement object that contains the same settings as the source SphereGlyphElement.

Parameters

in_that

The source SphereGlyphElement to copy.

SphereGlyphElement() [4/4]

HPS::SphereGlyphElement::SphereGlyphElement

(

SphereGlyphElement &&

in_that

)

The move constructor creates an EllipseGlyphElement by transferring the underlying impl of the rvalue reference to this SphereGlyphElement thereby avoiding a copy and allocation.

Parameters

in_that

An rvalue reference to an SphereGlyphElement to take the impl from.

~SphereGlyphElement()

HPS::SphereGlyphElement::~SphereGlyphElement

(

)

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

bool HPS::GlyphElement::Equals ( GlyphElement const &  in_that ) const

inherited

Check if the source GlyphElement is equivalent to this GlyphElement.

Parameters

in_that

The source GlyphElement to compare to this GlyphElement.

Returns

true if the objects are equivalent, false otherwise.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::SphereGlyphElement::ObjectType ( ) const

inlinevirtual

Reimplemented from HPS::GlyphElement.

operator!=()

bool HPS::GlyphElement::operator!= ( GlyphElement const &  in_that ) const

inherited

Check if the source GlyphElement is not equivalent to this GlyphElement.

Parameters

in_that

The source GlyphElement to compare to this GlyphElement.

Returns

true if the objects are not equivalent, false otherwise.

operator=()

SphereGlyphElement& HPS::SphereGlyphElement::operator=

(

SphereGlyphElement &&

in_that

)

The move assignment operator transfers the underlying impl of the rvalue reference to this SphereGlyphElement thereby avoiding a copy.

Parameters

in_that

An rvalue reference to an SphereGlyphElement to take the impl from.

Returns

A reference to this SphereGlyphElement.

operator==()

bool HPS::GlyphElement::operator== ( GlyphElement const &  in_that ) const

inherited

Check if the source GlyphElement is equivalent to this GlyphElement.

Parameters

in_that

The source GlyphElement to compare to this GlyphElement.

Returns

true if the objects are equivalent, false otherwise.

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

Set()

void HPS::GlyphElement::Set ( GlyphElement const &  in_that )

inherited

Copies the source GlyphElement into this GlyphElement.

Parameters

in_that

The source GlyphElement to copy.

SetExplicitColor()

void HPS::GlyphElement::SetExplicitColor ( RGBAColor const &  in_color )

inherited

Sets the RGBA color for this GlyphElement.

Parameters

in_color

The color for this GlyphElement.

SetFill()

void HPS::GlyphElement::SetFill ( Glyph::Fill  in_fill )

inherited

Sets the fill mode for this GlyphElement.

Parameters

in_fill

The fill mode for this GlyphElement.

SetIndexedColor()

void HPS::GlyphElement::SetIndexedColor ( byte  in_index )

inherited

Sets the color index for this GlyphElement.

Parameters

in_index

The color index for this GlyphElement.

SetNormalColor()

void HPS::GlyphElement::SetNormalColor ( )

inherited

Sets that this GlyphElement should inherit the color of the owning geometry which uses the glyph.

ShowColor()

bool HPS::GlyphElement::ShowColor ( Glyph::ColorSource &  out_source, byte &  out_index, RGBAColor &  out_color  ) const

inherited

Shows the color for this GlyphElement.

Parameters

out_source	The color source for this GlyphElement.
out_index	The color index for this GlyphElement. This is only valid if out_source is Glyph::ColorSource::Indexed.
out_color	The color for this GlyphElement. This is only valid if out_source is Glyph::ColorSource::Explicit.

Returns

true if a color was set, false otherwise.

ShowFill()

bool HPS::GlyphElement::ShowFill ( Glyph::Fill &  out_fill ) const

inherited

Shows the fill mode for this GlyphElement.

Parameters

out_fill

The fill mode for this GlyphElement.

Returns

true if a fill mode was set, false otherwise.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

Member Data Documentation

staticType

const HPS::Type HPS::SphereGlyphElement::staticType = HPS::Type::SphereGlyphElement

static

---

The documentation for this class was generated from the following file:

• hps.h
