HPS::AnnotationOperator::KeyboardHiddenEventHandler Class Reference

Inheritance diagram for HPS::AnnotationOperator::KeyboardHiddenEventHandler:

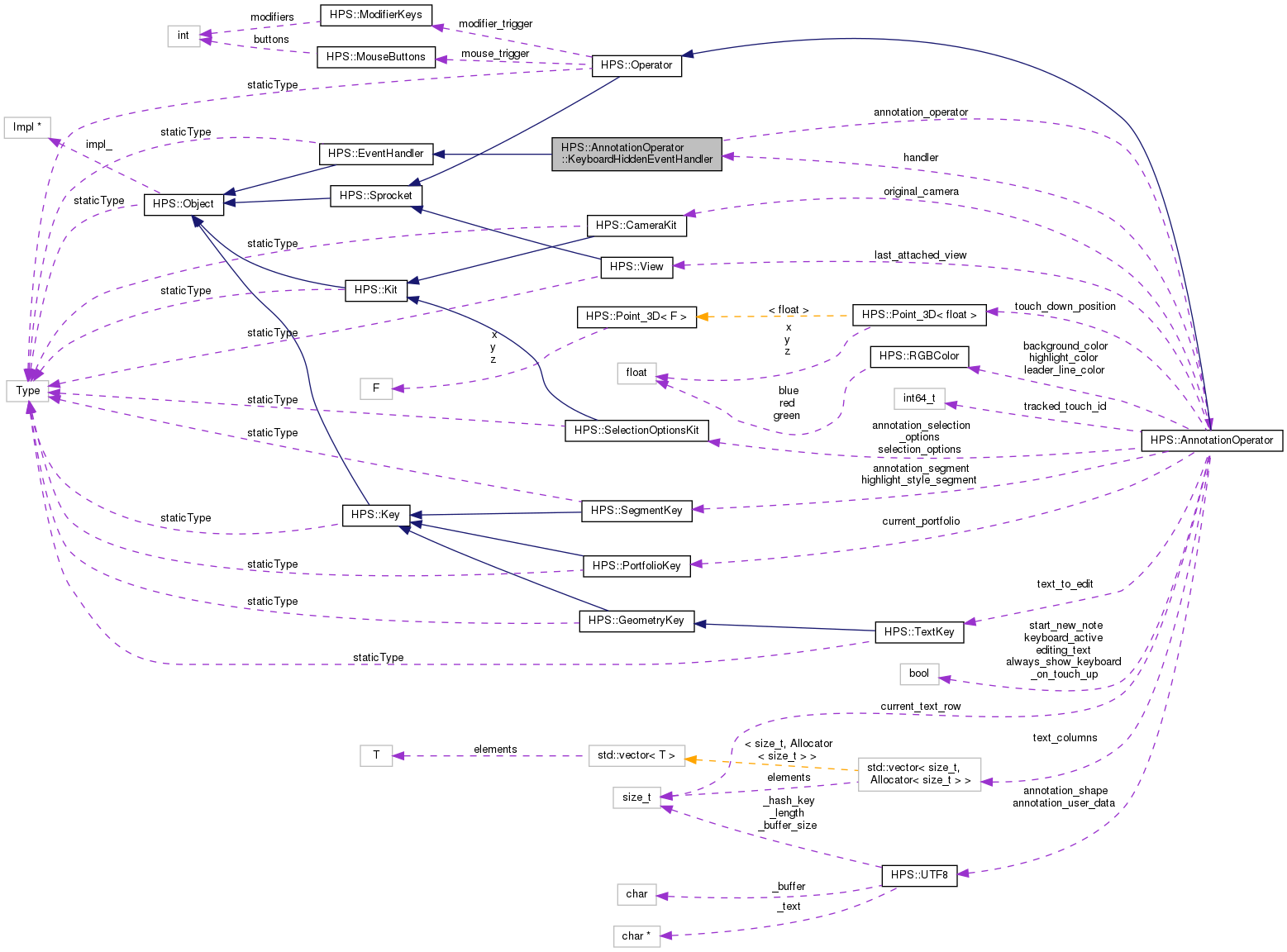

Collaboration diagram for HPS::AnnotationOperator::KeyboardHiddenEventHandler:

Public Types
enum	HandleResult : uint32_t {   HandleResult::Handled,   HandleResult::NotHandled }
	Enumeration of the values the EventHandler uses to indicate if it handled an event. More...

Public Member Functions
	KeyboardHiddenEventHandler ()
virtual	~KeyboardHiddenEventHandler ()
virtual HandleResult	Handle (Event const *)
	Function that gets triggered if this EventHandler receives an event it is subscribed to. More...
void	SetOperator (AnnotationOperator *in_operator)
HPS::Type	ObjectType () const
bool	Subscribe (EventDispatcher const &in_dispatcher, intptr_t in_type) const
	Add this EventHandler object to the list of subscribers for events of the specified type on the specified EventDispatcher. More...
bool	UnSubscribe (EventDispatcher const &in_dispatcher, intptr_t in_type) const
	Remove this EventHandler object from the list of subscribers for events of the specified type on the specified EventDispatcher. More...
bool	UnSubscribe (EventDispatcher const &in_dispatcher) const
	Remove this EventHandler object from the list of subscribers for all events on the specified EventDispatcher. More...
void	UnSubscribeEverything () const
	Remove this EventHandler object from all events on all EventDispatchers. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
void	Shutdown ()
	Notifies the EventDispatcher that this handler is being invalidated and no further events should be dispatched to it. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::EventHandler

Private Attributes
AnnotationOperator *	annotation_operator

Member Enumeration Documentation

HandleResult

enum HPS::EventHandler::HandleResult : uint32_t

stronginherited

Enumeration of the values the EventHandler uses to indicate if it handled an event.

Enumerator
Handled	The event was handled by this EventHandler. Consume the event if possible.
NotHandled	The event was not handled by this EventHandler. Pass to the next handler if any or if possible.

Constructor & Destructor Documentation

KeyboardHiddenEventHandler()

HPS::AnnotationOperator::KeyboardHiddenEventHandler::KeyboardHiddenEventHandler ( )

inline

~KeyboardHiddenEventHandler()

virtual HPS::AnnotationOperator::KeyboardHiddenEventHandler::~KeyboardHiddenEventHandler ( )

inlinevirtual

Member Function Documentation

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

Handle()

virtual HandleResult HPS::AnnotationOperator::KeyboardHiddenEventHandler::Handle ( Event const *  in_event )

inlinevirtual

Function that gets triggered if this EventHandler receives an event it is subscribed to.

This should be overridden by subclasses of EventHandler to perform any custom behavior.

Parameters

in_event

Event which was triggered.

Returns

Handled if the event was handled, NotHandled otherwise.

Reimplemented from HPS::EventHandler.

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

ObjectType()

HPS::Type HPS::EventHandler::ObjectType ( ) const

inlinevirtualinherited

Reimplemented from HPS::Object.

Reset()

virtual void HPS::EventHandler::Reset ( )

inlinevirtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented from HPS::Object.

SetOperator()

void HPS::AnnotationOperator::KeyboardHiddenEventHandler::SetOperator ( AnnotationOperator *  in_operator )

inline

Shutdown()

void HPS::EventHandler::Shutdown ( )

inherited

Notifies the EventDispatcher that this handler is being invalidated and no further events should be dispatched to it.

This method must be called in any derived class destructors.

Subscribe()

bool HPS::EventHandler::Subscribe ( EventDispatcher const &  in_dispatcher, intptr_t  in_type  ) const

inherited

Add this EventHandler object to the list of subscribers for events of the specified type on the specified EventDispatcher.

Parameters

in_dispatcher	Dispatcher from which to receive events of the given type.
in_type	Type of event to receive from the dispatcher.

Returns

true if the subscription was successful, false otherwise.

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UnSubscribe() [1/2]

bool HPS::EventHandler::UnSubscribe ( EventDispatcher const &  in_dispatcher, intptr_t  in_type  ) const

inherited

Remove this EventHandler object from the list of subscribers for events of the specified type on the specified EventDispatcher.

Parameters

in_dispatcher	Dispatcher from which to no longer receive events of the given type.
in_type	Type of event to no longer receive from the dispatcher.

Returns

true if the unsubscription was successful, false otherwise.

UnSubscribe() [2/2]

bool HPS::EventHandler::UnSubscribe ( EventDispatcher const &  in_dispatcher ) const

inherited

Remove this EventHandler object from the list of subscribers for all events on the specified EventDispatcher.

Parameters

in_dispatcher

Dispatcher from which to no longer receive events.

Returns

true if the unsubscription was successful, false otherwise.

UnSubscribeEverything()

void HPS::EventHandler::UnSubscribeEverything ( ) const

inherited

Remove this EventHandler object from all events on all EventDispatchers.

Member Data Documentation

annotation_operator

AnnotationOperator* HPS::AnnotationOperator::KeyboardHiddenEventHandler::annotation_operator

private

staticType

const HPS::Type HPS::EventHandler::staticType = HPS::Type::EventHandler

staticinherited

---

The documentation for this class was generated from the following file:

• sprk_ops.h
