HPS::SimpleWalkOperator Class Reference

The SimpleWalkOperator class defines an operator which allows the user to move forward and backwards and rotate while staying snapped to a plane. More...

#include <sprk_ops.h>

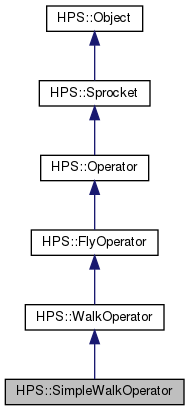

Inheritance diagram for HPS::SimpleWalkOperator:

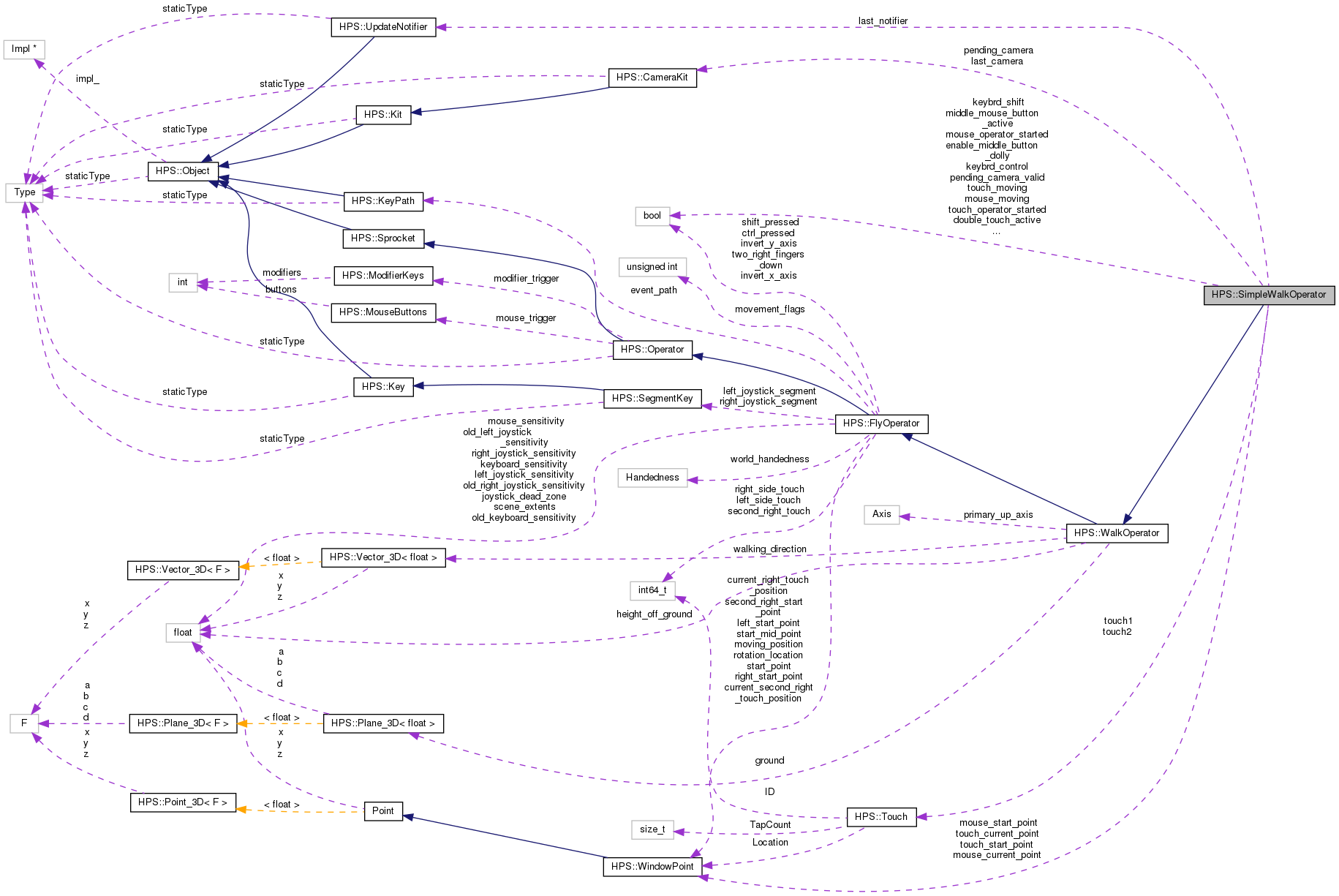

Collaboration diagram for HPS::SimpleWalkOperator:

Classes
class	ScaleFactor

Public Types
enum	Axis {   Axis::X,   Axis::Y,   Axis::Z,   Axis::Negative_X,   Axis::Negative_Y,   Axis::Negative_Z }
enum	Priority {   Priority::Low,   Priority::Default,   Priority::High }

Public Member Functions
	SimpleWalkOperator (MouseButtons in_mouse_trigger=MouseButtons::ButtonLeft(), ModifierKeys in_modifier_trigger=ModifierKeys())
virtual HPS::UTF8	GetName () const
	Returns the name of the operator. More...
virtual void	OnModelAttached ()
	This function is called whenever a model is attached to the view that is attached to this operator. More...
virtual void	OnViewAttached ()
	This function is called whenever a view is attached to this operator. More...
virtual bool	OnKeyDown (KeyboardState const &in_state)
	This function is called whenever HPS receives a KeyboardState event that signals a button was pressed. More...
virtual bool	OnKeyUp (KeyboardState const &in_state)
	This function is called whenever HPS receives a KeyboardState event that signals a button was released. More...
virtual bool	OnMouseWheel (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals the mouse wheel moved. More...
virtual bool	OnMouseDown (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals a mouse button was pressed. More...
virtual bool	OnMouseMove (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals the mouse moved This function rotates the camera in place and moves forward/back if the left mouse button is down. More...
virtual bool	OnMouseUp (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals a mouse button was released. More...
virtual bool	OnMouseEnter (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals the mouse entered the window. More...
virtual bool	OnMouseLeave (MouseState const &in_state)
	This function is called whenever HPS receives a MouseEvent that signals the mouse left the window. More...
virtual bool	OnTouchDown (TouchState const &in_state)
	This function is called whenever HPS receives a TouchEvent that signals the device was touched. More...
virtual bool	OnTouchMove (TouchState const &in_state)
	This function is called whenever HPS receives a TouchEvent that signals a point of contact has moved. More...
virtual bool	OnTouchUp (TouchState const &in_state)
	This function is called whenever HPS receives a TouchEvent that signals a point of contact has been released. More...
virtual bool	OnTimerTick (HPS::TimerTickEvent const &in_event)
	This function is called whenever HPS receives a TimerTickEvent This function moves the camera. More...
void	SetKeyboardShiftKey (bool in_state)
	This function sets the Shift key state in this operator. More...
void	SetKeyboardControlKey (bool in_state)
	This function sets the Control key state in this operator. More...
void	SetEnableMiddleMouseButtonDolly (bool in_enable)
	This function enables or disables Camera Dolly operations using the middle mouse button. More...
bool	GetEnableMiddleMouseButtonDolly () const
	This function returns the state of Camera Dolly operations using the middle mouse button. More...
bool	IsMouseTriggered (MouseState const &in_state)
	This function overrides the base class implementation to additionally inspect in_state for the middle mouse button state if middle mouse button Camera Dollying is enabled. More...
void	SetGroundPlane (HPS::Plane const &in_plane)
HPS::Plane	GetGroundPlane () const
void	SetWalkerHeight (float height)
float	GetWalkerHeight () const
Axis	GetPrimaryUpAxis () const
Axis	UpdatePrimaryUpAxis (HPS::Vector const &v)
virtual void	OnViewDetached ()
	This function is called whenever a view is detached from this operator. More...
void	InvertXAxis ()
void	InvertYAxis ()
bool	IsXAxisInverted () const
bool	IsYAxisInverted () const
float	GetKeyboardSensitivity () const
void	SetKeyboardSensitivity (float in_keyboard_sensitivity)
float	GetMouseSensitivity () const
void	SetMouseSensitivity (float in_mouse_sensitivity)
float	GetLeftJoystickSensitivity () const
void	SetLeftJoystickSensitivity (float in_left_joystick_sensitivity)
float	GetRightJoystickSensitivity () const
void	SetRightJoystickSensitivity (float in_right_joystick_sensitivity)
float	GetJoystickDeadZone () const
void	SetJoystickDeadZone (float in_dead_zone)
float	GetSceneExtents () const
HPS::Type	ObjectType () const
virtual void	Assign (Operator const &in_that)
	Assigns the parameter in_that to this operator, resulting in a clone. More...
virtual bool	Equals (Operator const &in_that) const
	Tests this operator for equality against the parameter in_that. More...
virtual bool	operator!= (Operator const &in_that) const
	Tests this operator for non-equality against the parameter in_that. More...
virtual bool	operator== (Operator const &in_that) const
	Tests this operator for equality against the parameter in_that. More...
void	DetachView ()
	Detaches the Operator from the View it was previously attached to. More...
View	GetAttachedView () const
	Returns the View the Operator is currently attached to. More...
virtual bool	OnTextInput (HPS::UTF8 const &in_text)
	This function is called whenever HPS receives a TextInputEvent that signals text was entered. More...
virtual void	OnModelDetached ()
	This function is called whenever a model is detached from the view that is attached to this operator. More...
void	SetMouseTrigger (MouseButtons in_buttons)
	Sets the mouse trigger for this operator. More...
MouseButtons	GetMouseTrigger () const
	Gets the mouse trigger associated with this operator. More...
void	SetModifierTrigger (ModifierKeys in_modifiers)
	Sets the modifier trigger associated with this operator. More...
ModifierKeys	GetModifierTrigger () const
	Gets the modifier trigger associated with this operator. More...
virtual HPS::Type	Type () const
	This function returns the true type of the underlying object. More...
virtual bool	Empty () const
	Indicates whether this object has any values set on it. More...
virtual void	Reset ()
	Resets this object to its initial, uninitialized state. More...
bool	HasType (HPS::Type in_mask) const
	This function indicates whether this Object has the given Type mask. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
intptr_t	GetInstanceID () const
	Returns an identifier that can be used to identify which instance of a class an object is. More...

Static Public Member Functions
static Axis	GetPrimaryAxis (HPS::Vector const &v)
template<typename T >
static intptr_t	ClassID ()
	Unique identifier for this class. More...

Static Public Attributes
static const HPS::Type	staticType = HPS::Type::Operator

Protected Types
enum	MovementFlags {   no_movement = 0x0000,   moving_forward = 0x0001,   moving_back = 0x0002,   moving_left = 0x0004,   moving_right = 0x0008,   moving_up = 0x0010,   moving_down = 0x0020,   roll_left = 0x0040,   roll_right = 0x0080,   rotating = 0x0100,   move_with_touch = 0x0200,   rotate_with_touch = 0x0400 }

Protected Member Functions
void	MoveLeft (HPS::Point &position, HPS::Point &target, HPS::Vector &up)
void	MoveRight (HPS::Point &position, HPS::Point &target, HPS::Vector &up)
void	MoveUp (HPS::Point &position, HPS::Point &target, HPS::Vector &up)
void	MoveDown (HPS::Point &position, HPS::Point &target, HPS::Vector &up)
void	MoveForward (HPS::Point &position, HPS::Point &target, HPS::Vector const &direction)
void	MoveBack (HPS::Point &position, HPS::Point &target, HPS::Vector const &direction)
bool	MoveWithTouch (HPS::Point &position, HPS::Point &target, HPS::Vector &up, HPS::Vector const &walking_direction)
bool	RotateScene (HPS::Point &position, HPS::Point &target)
bool	RotateWithTouch (HPS::Point &position, HPS::Point &target)
void	RotateCommon (HPS::Point const &delta, HPS::Point &position, HPS::Point &target)

Protected Attributes
unsigned int	movement_flags
HPS::MouseButtons	mouse_trigger
HPS::ModifierKeys	modifier_trigger

Private Member Functions
void	Pan (float in_theta, float in_phi)
void	Dolly (float in_right, float in_up, float in_forward)
void	ResetCamera (HPS::CameraKit &camera) const
float	CalculatePitch (HPS::CameraKit &camera) const
bool	NotableCameraDifference (HPS::CameraKit const &camera1, HPS::CameraKit const &camera2)
int	DirectionForward () const
int	DirectionHorizontal () const
int	DirectionVertical () const
int	DirectionRoll () const
int	DirectionPitch () const
int	DirectionYaw () const
bool	Move (HPS::Point const &start, HPS::Point const &current, int directions, HPS::CameraKit &camera, ScaleFactor const &scale)
void	Init ()

Private Attributes
HPS::WindowPoint	mouse_current_point
HPS::WindowPoint	mouse_start_point
bool	mouse_operator_started
bool	mouse_moving
bool	middle_mouse_button_active
HPS::WindowPoint	touch_current_point
HPS::WindowPoint	touch_start_point
bool	touch_operator_started
bool	touch_moving
bool	double_touch_active
HPS::Touch	touch1
HPS::Touch	touch2
bool	keybrd_control
bool	keybrd_shift
bool	enable_middle_button_dolly
HPS::UpdateNotifier	last_notifier
bool	pending_camera_valid
HPS::CameraKit	pending_camera
HPS::CameraKit	last_camera

Detailed Description

The SimpleWalkOperator class defines an operator which allows the user to move forward and backwards and rotate while staying snapped to a plane.

Mouse Operation:

Left-button down and move:	Dollies the camera forward or backward, or Pans the camera left or right based on the mouse movement direction. The movement velocity changes based on how far the mouse is dragged from the starting point.
Middle-button down and move:	Dollies the camera vertically or horizontally based on the mouse movement direction. The movement velocity changes based on how far the mouse is dragged from the starting point.
Shift:	With the Shift key down the forward/backward velocity is ten times faster.
Ctrl:	With the Ctrl key down the forward/backward velocity is ten times slower, and the left/right velocity is 45% slower.
Mouse wheel:	Pans the camera vertically. This will change the tilt direction that the camera is looking, but does not change the direction of forward/backward movement.
Shift + mouse wheel:	Increases or decreases the base velocity of Dolly operations.

Touch Operation:

Single Finger Drag	Dollies the camera forward or backward, or Pans the camera left or right based on the touch movement direction. The movement velocity changes based on how far the touch is dragged from the starting point.
Two Finger Drag	Dollies the camera vertically or horizontally based on the touch movement direction. The movement velocity changes based on how far the touch is dragged from the starting point.
Shift:	With the Shift key down the forward/backward velocity is ten times faster.
Ctrl:	With the Ctrl key down the forward/backward velocity is ten times slower, and the left/right velocity is 45% slower.

Member Enumeration Documentation

Axis

enum HPS::WalkOperator::Axis

stronginherited

Enumerator
X
Y
Z
Negative_X
Negative_Y
Negative_Z

MovementFlags

enum HPS::FlyOperator::MovementFlags

protectedinherited

Enumerator
no_movement
moving_forward
moving_back
moving_left
moving_right
moving_up
moving_down
roll_left
roll_right
rotating
move_with_touch
rotate_with_touch

Priority

enum HPS::Operator::Priority

stronginherited

Enumerator
Low
Default
High

Constructor & Destructor Documentation

SimpleWalkOperator()

HPS::SimpleWalkOperator::SimpleWalkOperator	(	MouseButtons	in_mouse_trigger = MouseButtons::ButtonLeft(),
		ModifierKeys	in_modifier_trigger = ModifierKeys()
	)

Member Function Documentation

Assign()

virtual void HPS::Operator::Assign ( Operator const &  in_that )

virtualinherited

Assigns the parameter in_that to this operator, resulting in a clone.

CalculatePitch()

float HPS::SimpleWalkOperator::CalculatePitch ( HPS::CameraKit &  camera ) const

private

ClassID()

template<typename T >

static intptr_t HPS::Object::ClassID ( )

inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

DetachView()

void HPS::Operator::DetachView ( )

inherited

Detaches the Operator from the View it was previously attached to.

DirectionForward()

int HPS::SimpleWalkOperator::DirectionForward ( ) const

inlineprivate

DirectionHorizontal()

int HPS::SimpleWalkOperator::DirectionHorizontal ( ) const

inlineprivate

DirectionPitch()

int HPS::SimpleWalkOperator::DirectionPitch ( ) const

inlineprivate

DirectionRoll()

int HPS::SimpleWalkOperator::DirectionRoll ( ) const

inlineprivate

DirectionVertical()

int HPS::SimpleWalkOperator::DirectionVertical ( ) const

inlineprivate

DirectionYaw()

int HPS::SimpleWalkOperator::DirectionYaw ( ) const

inlineprivate

Dolly()

void HPS::SimpleWalkOperator::Dolly ( float  in_right, float  in_up, float  in_forward  )

private

Empty()

virtual bool HPS::Object::Empty ( ) const

inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns

true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

Equals()

virtual bool HPS::Operator::Equals ( Operator const &  in_that ) const

virtualinherited

Tests this operator for equality against the parameter in_that.

Same as Operator::operator==

GetAttachedView()

View HPS::Operator::GetAttachedView ( ) const

inherited

Returns the View the Operator is currently attached to.

GetClassID()

intptr_t HPS::Object::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns

A unique value shared by all objects of the same class.

GetEnableMiddleMouseButtonDolly()

bool HPS::SimpleWalkOperator::GetEnableMiddleMouseButtonDolly

(

)

const

This function returns the state of Camera Dolly operations using the middle mouse button.

The SimpleWalkOperator has Camera Dolly operations fixed to the middle mouse button by default. To disable this behavior, set this value to false.

Returns

true if middle mouse button Camera Dollying is enabled, false otherwise.

GetGroundPlane()

HPS::Plane HPS::WalkOperator::GetGroundPlane ( ) const

inlineinherited

GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const

inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns

A value unique to an instance of an object and all objects that are backed by the same database resource.

GetJoystickDeadZone()

float HPS::FlyOperator::GetJoystickDeadZone ( ) const

inlineinherited

GetKeyboardSensitivity()

float HPS::FlyOperator::GetKeyboardSensitivity ( ) const

inlineinherited

GetLeftJoystickSensitivity()

float HPS::FlyOperator::GetLeftJoystickSensitivity ( ) const

inlineinherited

GetModifierTrigger()

ModifierKeys HPS::Operator::GetModifierTrigger ( ) const

inlineinherited

Gets the modifier trigger associated with this operator.

GetMouseSensitivity()

float HPS::FlyOperator::GetMouseSensitivity ( ) const

inlineinherited

GetMouseTrigger()

MouseButtons HPS::Operator::GetMouseTrigger ( ) const

inlineinherited

Gets the mouse trigger associated with this operator.

GetName()

virtual HPS::UTF8 HPS::SimpleWalkOperator::GetName ( ) const

inlinevirtual

Returns the name of the operator.

Reimplemented from HPS::WalkOperator.

GetPrimaryAxis()

static Axis HPS::WalkOperator::GetPrimaryAxis ( HPS::Vector const &  v )

staticinherited

GetPrimaryUpAxis()

Axis HPS::WalkOperator::GetPrimaryUpAxis ( ) const

inlineinherited

GetRightJoystickSensitivity()

float HPS::FlyOperator::GetRightJoystickSensitivity ( ) const

inlineinherited

GetSceneExtents()

float HPS::FlyOperator::GetSceneExtents ( ) const

inlineinherited

GetWalkerHeight()

float HPS::WalkOperator::GetWalkerHeight ( ) const

inlineinherited

HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask ) const

inherited

This function indicates whether this Object has the given Type mask.

Parameters

in_mask

The Type mask to check against this Object.

Returns

true if this Object has the given Type mask, false otherwise.

Init()

void HPS::SimpleWalkOperator::Init ( )

private

InvertXAxis()

void HPS::FlyOperator::InvertXAxis ( )

inlineinherited

InvertYAxis()

void HPS::FlyOperator::InvertYAxis ( )

inlineinherited

IsMouseTriggered()

bool HPS::SimpleWalkOperator::IsMouseTriggered ( MouseState const &  in_state )

virtual

This function overrides the base class implementation to additionally inspect in_state for the middle mouse button state if middle mouse button Camera Dollying is enabled.

Returns

true if the MouseButtons and ModifierKeys are active.

Reimplemented from HPS::Operator.

IsXAxisInverted()

bool HPS::FlyOperator::IsXAxisInverted ( ) const

inlineinherited

IsYAxisInverted()

bool HPS::FlyOperator::IsYAxisInverted ( ) const

inlineinherited

Move()

bool HPS::SimpleWalkOperator::Move ( HPS::Point const &  start, HPS::Point const &  current, int  directions, HPS::CameraKit &  camera, ScaleFactor const &  scale  )

private

MoveBack()

void HPS::FlyOperator::MoveBack ( HPS::Point &  position, HPS::Point &  target, HPS::Vector const &  direction  )

protectedinherited

MoveDown()

void HPS::FlyOperator::MoveDown ( HPS::Point &  position, HPS::Point &  target, HPS::Vector &  up  )

protectedinherited

MoveForward()

void HPS::FlyOperator::MoveForward ( HPS::Point &  position, HPS::Point &  target, HPS::Vector const &  direction  )

protectedinherited

MoveLeft()

void HPS::FlyOperator::MoveLeft ( HPS::Point &  position, HPS::Point &  target, HPS::Vector &  up  )

protectedinherited

MoveRight()

void HPS::FlyOperator::MoveRight ( HPS::Point &  position, HPS::Point &  target, HPS::Vector &  up  )

protectedinherited

MoveUp()

void HPS::FlyOperator::MoveUp ( HPS::Point &  position, HPS::Point &  target, HPS::Vector &  up  )

protectedinherited

MoveWithTouch()

bool HPS::FlyOperator::MoveWithTouch ( HPS::Point &  position, HPS::Point &  target, HPS::Vector &  up, HPS::Vector const &  walking_direction  )

protectedinherited

NotableCameraDifference()

bool HPS::SimpleWalkOperator::NotableCameraDifference ( HPS::CameraKit const &  camera1, HPS::CameraKit const &  camera2  )

private

ObjectType()

HPS::Type HPS::Operator::ObjectType ( ) const

inlinevirtualinherited

Reimplemented from HPS::Object.

Here is the call graph for this function:

OnKeyDown()

virtual bool HPS::SimpleWalkOperator::OnKeyDown ( KeyboardState const &  in_state )

inlinevirtual

This function is called whenever HPS receives a KeyboardState event that signals a button was pressed.

This operator does not handle key down events.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::FlyOperator.

OnKeyUp()

virtual bool HPS::SimpleWalkOperator::OnKeyUp ( KeyboardState const &  in_state )

inlinevirtual

This function is called whenever HPS receives a KeyboardState event that signals a button was released.

This operator does not handle key up events.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::FlyOperator.

OnModelAttached()

virtual void HPS::SimpleWalkOperator::OnModelAttached ( )

virtual

This function is called whenever a model is attached to the view that is attached to this operator.

If no view is attached to this operator, this function will not be called.

Reimplemented from HPS::WalkOperator.

OnModelDetached()

virtual void HPS::Operator::OnModelDetached ( )

inlinevirtualinherited

This function is called whenever a model is detached from the view that is attached to this operator.

If no view is attached to this operator, this function will not be called.

OnMouseDown()

virtual bool HPS::SimpleWalkOperator::OnMouseDown ( MouseState const &  in_state )

virtual

This function is called whenever HPS receives a MouseEvent that signals a mouse button was pressed.

This function starts the operator and computes the position of the starting point.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::FlyOperator.

OnMouseEnter()

virtual bool HPS::SimpleWalkOperator::OnMouseEnter ( MouseState const &  in_state )

virtual

This function is called whenever HPS receives a MouseEvent that signals the mouse entered the window.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

OnMouseLeave()

virtual bool HPS::SimpleWalkOperator::OnMouseLeave ( MouseState const &  in_state )

virtual

This function is called whenever HPS receives a MouseEvent that signals the mouse left the window.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

OnMouseMove()

virtual bool HPS::SimpleWalkOperator::OnMouseMove ( MouseState const &  in_state )

virtual

This function is called whenever HPS receives a MouseEvent that signals the mouse moved This function rotates the camera in place and moves forward/back if the left mouse button is down.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::FlyOperator.

OnMouseUp()

virtual bool HPS::SimpleWalkOperator::OnMouseUp ( MouseState const &  in_state )

virtual

This function is called whenever HPS receives a MouseEvent that signals a mouse button was released.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::FlyOperator.

OnMouseWheel()

virtual bool HPS::SimpleWalkOperator::OnMouseWheel ( MouseState const &  in_state )

virtual

This function is called whenever HPS receives a MouseEvent that signals the mouse wheel moved.

Parameters

in_state

A MouseState object describing the current mouse state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::FlyOperator.

OnTextInput()

virtual bool HPS::Operator::OnTextInput ( HPS::UTF8 const &  in_text )

inlinevirtualinherited

This function is called whenever HPS receives a TextInputEvent that signals text was entered.

Parameters

in_text

The text entered.

Returns

true if the input event was handled, false otherwise.

Reimplemented in HPS::AnnotationOperator, and HPS::MarkupOperator.

OnTimerTick()

virtual bool HPS::SimpleWalkOperator::OnTimerTick ( HPS::TimerTickEvent const &  in_event )

virtual

This function is called whenever HPS receives a TimerTickEvent This function moves the camera.

Parameters

in_state

A TimerTickEvent object describing the current timer tick.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::WalkOperator.

OnTouchDown()

virtual bool HPS::SimpleWalkOperator::OnTouchDown ( TouchState const &  in_state )

virtual

This function is called whenever HPS receives a TouchEvent that signals the device was touched.

Parameters

in_state

A TouchState object describing the current touch state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::FlyOperator.

OnTouchMove()

virtual bool HPS::SimpleWalkOperator::OnTouchMove ( TouchState const &  in_state )

virtual

This function is called whenever HPS receives a TouchEvent that signals a point of contact has moved.

Parameters

in_state

A TouchState object describing the current touch state.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::FlyOperator.

OnTouchUp()

virtual bool HPS::SimpleWalkOperator::OnTouchUp ( TouchState const &  in_state )

virtual

This function is called whenever HPS receives a TouchEvent that signals a point of contact has been released.

Returns

true if the input event was handled, false otherwise.

Reimplemented from HPS::FlyOperator.

OnViewAttached()

virtual void HPS::SimpleWalkOperator::OnViewAttached ( )

virtual

This function is called whenever a view is attached to this operator.

Reimplemented from HPS::WalkOperator.

OnViewDetached()

virtual void HPS::FlyOperator::OnViewDetached ( )

virtualinherited

This function is called whenever a view is detached from this operator.

Reimplemented from HPS::Operator.

operator!=()

virtual bool HPS::Operator::operator!= ( Operator const &  in_that ) const

virtualinherited

Tests this operator for non-equality against the parameter in_that.

operator==()

virtual bool HPS::Operator::operator== ( Operator const &  in_that ) const

virtualinherited

Tests this operator for equality against the parameter in_that.

Same as Operator::Equals.

Pan()

void HPS::SimpleWalkOperator::Pan ( float  in_theta, float  in_phi  )

private

Reset()

virtual void HPS::Object::Reset ( )

virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

ResetCamera()

void HPS::SimpleWalkOperator::ResetCamera ( HPS::CameraKit &  camera ) const

private

RotateCommon()

void HPS::FlyOperator::RotateCommon ( HPS::Point const &  delta, HPS::Point &  position, HPS::Point &  target  )

protectedinherited

RotateScene()

bool HPS::FlyOperator::RotateScene ( HPS::Point &  position, HPS::Point &  target  )

protectedinherited

RotateWithTouch()

bool HPS::FlyOperator::RotateWithTouch ( HPS::Point &  position, HPS::Point &  target  )

protectedinherited

SetEnableMiddleMouseButtonDolly()

void HPS::SimpleWalkOperator::SetEnableMiddleMouseButtonDolly

(

bool

in_enable

)

This function enables or disables Camera Dolly operations using the middle mouse button.

The SimpleWalkOperator has Camera Dolly operations fixed to the middle mouse button by default. To disable this behavior, set this value to false.

Parameters

in_state

The new state of middle mouse button dollying.

SetGroundPlane()

void HPS::WalkOperator::SetGroundPlane ( HPS::Plane const &  in_plane )

inlineinherited

SetJoystickDeadZone()

void HPS::FlyOperator::SetJoystickDeadZone ( float  in_dead_zone )

inlineinherited

SetKeyboardControlKey()

void HPS::SimpleWalkOperator::SetKeyboardControlKey

(

bool

in_state

)

This function sets the Control key state in this operator.

Call this function from your application to inform the the operator of the Control key state. The Control key decreases the velocities of forward/backward and rotation movements.

Parameters

in_state

The new state of the Control key.

SetKeyboardSensitivity()

void HPS::FlyOperator::SetKeyboardSensitivity ( float  in_keyboard_sensitivity )

inlineinherited

SetKeyboardShiftKey()

void HPS::SimpleWalkOperator::SetKeyboardShiftKey

(

bool

in_state

)

This function sets the Shift key state in this operator.

Call this function from your application to inform the the operator of the Shift key state. The Shift key increases the mouse trigger button forward/backward velocity.

Parameters

in_state

The new state of the Shift key.

SetLeftJoystickSensitivity()

void HPS::FlyOperator::SetLeftJoystickSensitivity ( float  in_left_joystick_sensitivity )

inlineinherited

SetModifierTrigger()

void HPS::Operator::SetModifierTrigger ( ModifierKeys  in_modifiers )

inlineinherited

Sets the modifier trigger associated with this operator.

Parameters

in_modifiers

The modifier keys that are used to trigger this operator.

SetMouseSensitivity()

void HPS::FlyOperator::SetMouseSensitivity ( float  in_mouse_sensitivity )

inlineinherited

SetMouseTrigger()

void HPS::Operator::SetMouseTrigger ( MouseButtons  in_buttons )

inlineinherited

Sets the mouse trigger for this operator.

SetRightJoystickSensitivity()

void HPS::FlyOperator::SetRightJoystickSensitivity ( float  in_right_joystick_sensitivity )

inlineinherited

SetWalkerHeight()

void HPS::WalkOperator::SetWalkerHeight ( float  height )

inlineinherited

Type()

virtual HPS::Type HPS::Object::Type ( ) const

virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns

The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

UpdatePrimaryUpAxis()

Axis HPS::WalkOperator::UpdatePrimaryUpAxis ( HPS::Vector const &  v )

inherited

Member Data Documentation

double_touch_active

bool HPS::SimpleWalkOperator::double_touch_active

private

enable_middle_button_dolly

bool HPS::SimpleWalkOperator::enable_middle_button_dolly

private

keybrd_control

bool HPS::SimpleWalkOperator::keybrd_control

private

keybrd_shift

bool HPS::SimpleWalkOperator::keybrd_shift

private

last_camera

HPS::CameraKit HPS::SimpleWalkOperator::last_camera

private

last_notifier

HPS::UpdateNotifier HPS::SimpleWalkOperator::last_notifier

private

middle_mouse_button_active

bool HPS::SimpleWalkOperator::middle_mouse_button_active

private

modifier_trigger

HPS::ModifierKeys HPS::Operator::modifier_trigger

protectedinherited

mouse_current_point

HPS::WindowPoint HPS::SimpleWalkOperator::mouse_current_point

private

mouse_moving

bool HPS::SimpleWalkOperator::mouse_moving

private

mouse_operator_started

bool HPS::SimpleWalkOperator::mouse_operator_started

private

mouse_start_point

HPS::WindowPoint HPS::SimpleWalkOperator::mouse_start_point

private

mouse_trigger

HPS::MouseButtons HPS::Operator::mouse_trigger

protectedinherited

movement_flags

unsigned int HPS::FlyOperator::movement_flags

protectedinherited

pending_camera

HPS::CameraKit HPS::SimpleWalkOperator::pending_camera

private

pending_camera_valid

bool HPS::SimpleWalkOperator::pending_camera_valid

private

staticType

const HPS::Type HPS::Operator::staticType = HPS::Type::Operator

staticinherited

touch1

HPS::Touch HPS::SimpleWalkOperator::touch1

private

touch2

HPS::Touch HPS::SimpleWalkOperator::touch2

private

touch_current_point

HPS::WindowPoint HPS::SimpleWalkOperator::touch_current_point

private

touch_moving

bool HPS::SimpleWalkOperator::touch_moving

private

touch_operator_started

bool HPS::SimpleWalkOperator::touch_operator_started

private

touch_start_point

HPS::WindowPoint HPS::SimpleWalkOperator::touch_start_point

private

---

The documentation for this class was generated from the following file:

• sprk_ops.h
