HPS::MouseWheelOperator Class Reference

#include <sprk_ops.h>

Inheritance diagram for HPS::MouseWheelOperator:
Inheritance graph
[legend]

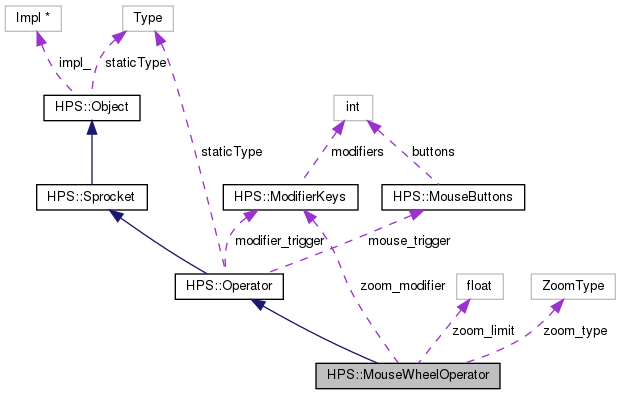

Collaboration diagram for HPS::MouseWheelOperator:
Collaboration graph
[legend]

Public Types

enum  ZoomType {
  ZoomType::Fast,
  ZoomType::Accurate
}

enum  Priority {
  Priority::Low,
  Priority::Default,
  Priority::High
}


Public Member Functions

 MouseWheelOperator (ZoomType in_default_type=ZoomType::Accurate, HPS::ModifierKeys in_alternate_type_modifiers=HPS::ModifierKeys::KeyControl())
 Constructor for MouseWheelOperator. More...

virtual HPS::UTF8 GetName () const
 Returns the name of the Operator. More...

void UpdateZoomLimit ()
 Call when scene bounds changes to update the mouse wheel zoom limit. More...

virtual bool OnMouseWheel (HPS::MouseState const &in_state)
 This function is called whenever HPS receives a MouseEvent that signals the mouse wheel was scrolled. More...

virtual void OnModelAttached ()
 This function is called whenever a model is attached to the view that is attached to this operator. More...

virtual void OnViewAttached ()
 This function is called whenever a view is attached to this operator. More...

HPS::Type ObjectType () const

virtual void Assign (Operator const &in_that)
 Assigns the parameter in_that to this operator, resulting in a clone. More...

virtual bool Equals (Operator const &in_that) const
 Tests this operator for equality against the parameter in_that. More...

virtual bool operator!= (Operator const &in_that) const
 Tests this operator for non-equality against the parameter in_that. More...

virtual bool operator== (Operator const &in_that) const
 Tests this operator for equality against the parameter in_that. More...

void DetachView ()
 Detaches the Operator from the View it was previously attached to. More...

View GetAttachedView () const
 Returns the View the Operator is currently attached to. More...

virtual bool OnMouseDown (MouseState const &in_state)
 This function is called whenever HPS receives a MouseEvent that signals a mouse button was pressed. More...

virtual bool OnMouseUp (MouseState const &in_state)
 This function is called whenever HPS receives a MouseEvent that signals a mouse button was released. More...

virtual bool OnMouseMove (MouseState const &in_state)
 This function is called whenever HPS receives a MouseEvent that signals the mouse moved. More...

virtual bool OnMouseEnter (MouseState const &in_state)
 This function is called whenever HPS receives a MouseEvent that signals the mouse entered the window. More...

virtual bool OnMouseLeave (MouseState const &in_state)
 This function is called whenever HPS receives a MouseEvent that signals the mouse left the window. More...

virtual bool OnTouchDown (TouchState const &in_state)
 This function is called whenever HPS receives a TouchEvent that signals the device was touched. More...

virtual bool OnTouchUp (TouchState const &in_state)
 This function is called whenever HPS receives a TouchEvent that signals a point of contact has been released. More...

virtual bool OnTouchMove (TouchState const &in_state)
 This function is called whenever HPS receives a TouchEvent that signals a point of contact has moved. More...

virtual bool OnKeyDown (KeyboardState const &in_state)
 This function is called whenever HPS receives a KeyboardEvent that signals a key was pressed. More...

virtual bool OnKeyUp (KeyboardState const &in_state)
 This function is called whenever HPS receives a KeyboardEvent that signals a key was released. More...

virtual bool OnTextInput (HPS::UTF8 const &in_text)
 This function is called whenever HPS receives a TextInputEvent that signals text was entered. More...

virtual bool OnTimerTick (HPS::TimerTickEvent const &in_event)
 This function is called whenever HPS receives a TimerTickEvent. More...

virtual void OnViewDetached ()
 This function is called whenever a view is detached from this operator. More...

virtual void OnModelDetached ()
 This function is called whenever a model is detached from the view that is attached to this operator. More...

void SetMouseTrigger (MouseButtons in_buttons)
 Sets the mouse trigger for this operator. More...

MouseButtons GetMouseTrigger () const
 Gets the mouse trigger associated with this operator. More...

void SetModifierTrigger (ModifierKeys in_modifiers)
 Sets the modifier trigger associated with this operator. More...

ModifierKeys GetModifierTrigger () const
 Gets the modifier trigger associated with this operator. More...

virtual bool IsMouseTriggered (MouseState const &in_state)
 Returns true if the MouseButtons and ModifierKeys are active. More...

virtual HPS::Type Type () const
 This function returns the true type of the underlying object. More...

virtual bool Empty () const
 Indicates whether this object has any values set on it. More...

virtual void Reset ()
 Resets this object to its initial, uninitialized state. More...

bool HasType (HPS::Type in_mask) const
 This function indicates whether this Object has the given Type mask. More...

intptr_t GetClassID () const
 Returns a unique identifier that is shared by all objects of the same class. More...

intptr_t GetInstanceID () const
 Returns an identifier that can be used to identify which instance of a class an object is. More...


Static Public Member Functions

template<typename T >
static intptr_t ClassID ()
 Unique identifier for this class. More...


Static Public Attributes

static const HPS::Type staticType = HPS::Type::Operator


Protected Attributes

HPS::MouseButtons mouse_trigger

HPS::ModifierKeys modifier_trigger


Private Attributes

float zoom_limit

ZoomType zoom_type

HPS::ModifierKeys zoom_modifier


Member Enumeration Documentation

◆ Priority

enum HPS::Operator::Priority
stronginherited
Enumerator
Low
Default
High

◆ ZoomType

enum HPS::MouseWheelOperator::ZoomType
strong
Enumerator
Fast

The operator optimizes for time.

It is possible to zoom through geometry.

Accurate

The operator optimizes zooming so that it is not possible to zoom through geometry.

Constructor & Destructor Documentation

◆ MouseWheelOperator()

HPS::MouseWheelOperator::MouseWheelOperator ( ZoomType  in_default_type = ZoomType::Accurate,
HPS::ModifierKeys  in_alternate_type_modifiers = HPS::ModifierKeys::KeyControl()
)

Constructor for MouseWheelOperator.

Parameters
in_default_typeThe default zoom type for this operator.
in_alternate_type_modifiersThe modifier button that, when pressed, will activate the zoom type opposite to that specified in in_default_type. Passing an empty ModifierKey object prevents the zoom type from being anything but what was specified in in_default_type.

Member Function Documentation

◆ Assign()

virtual void HPS::Operator::Assign ( Operator const &  in_that)
virtualinherited

Assigns the parameter in_that to this operator, resulting in a clone.

◆ ClassID()

template<typename T >
static intptr_t HPS::Object::ClassID ( )
inlinestaticinherited

Unique identifier for this class.

Note: this method uses construction of static objects. If used in a constructor, it should be used in the body not the initializer list.

◆ DetachView()

void HPS::Operator::DetachView ( )
inherited

Detaches the Operator from the View it was previously attached to.

◆ Empty()

virtual bool HPS::Object::Empty ( ) const
inlinevirtualinherited

Indicates whether this object has any values set on it.

Returns
true if no values are set on this object, false otherwise.

Reimplemented in HPS::STL::ImportResultsKit, HPS::STL::ImportOptionsKit, HPS::OBJ::ImportResultsKit, HPS::OBJ::ImportOptionsKit, HPS::Hardcopy::File::ExportOptionsKit, HPS::Stream::ExportOptionsKit, HPS::Stream::ImportResultsKit, HPS::Stream::ImportOptionsKit, HPS::PointCloud::ImportOptionsKit, HPS::PointCloud::ImportResultsKit, HPS::UpdateOptionsKit, HPS::HighlightSearchOptionsKit, HPS::HighlightOptionsKit, HPS::SelectionOptionsKit, HPS::SearchOptionsKit, HPS::CutGeometryGatheringOptionsKit, HPS::ShapeKit, HPS::ShaderKit, HPS::Shader::ImportOptionsKit, HPS::ImageKit, HPS::Image::ImportOptionsKit, HPS::Image::ExportOptionsKit, HPS::TextureOptionsKit, HPS::LinePatternKit, HPS::LinePatternParallelKit, HPS::LinePatternOptionsKit, HPS::GlyphKit, HPS::ApplicationWindowOptionsKit, HPS::OffScreenWindowOptionsKit, HPS::StandAloneWindowOptionsKit, HPS::GridKit, HPS::PolygonKit, HPS::MeshKit, HPS::ShellKit, HPS::ShellRelationResultsKit, HPS::ShellRelationOptionsKit, HPS::ShellOptimizationOptionsKit, HPS::TextKit, HPS::EllipticalArcKit, HPS::EllipseKit, HPS::TrimKit, HPS::NURBSSurfaceKit, HPS::NURBSCurveKit, HPS::SpotlightKit, HPS::InfiniteLineKit, HPS::CuttingSectionKit, HPS::CircularWedgeKit, HPS::CircularArcKit, HPS::CircleKit, HPS::SphereKit, HPS::CylinderKit, HPS::DistantLightKit, HPS::MarkerKit, HPS::LineKit, HPS::AttributeLockKit, HPS::FontInfoState, HPS::WindowInfoKit, HPS::DebuggingKit, HPS::SubwindowKit, HPS::ContourLineKit, HPS::VisualEffectsKit, HPS::TransformMaskKit, HPS::PostProcessEffectsKit, HPS::DrawingAttributeKit, HPS::HiddenLineAttributeKit, HPS::PerformanceKit, HPS::NURBSSurfaceAttributeKit, HPS::MaterialKit, HPS::MaterialMappingKit, HPS::MatrixKit, HPS::CurveAttributeKit, HPS::EdgeAttributeKit, HPS::LineAttributeKit, HPS::TextAttributeKit, HPS::CuttingSectionAttributeKit, HPS::CylinderAttributeKit, HPS::LightingAttributeKit, HPS::SphereAttributeKit, HPS::MarkerAttributeKit, HPS::CullingKit, HPS::ColorInterpolationKit, HPS::TransparencyKit, HPS::SelectabilityKit, HPS::CameraKit, HPS::VisibilityKit, HPS::BoundingKit, HPS::SegmentOptimizationOptionsKit, HPS::Publish::ExportOptionsKit, HPS::Publish::TextFieldKit, HPS::Publish::SignatureFieldKit, HPS::Publish::DropDownListKit, HPS::Exchange::TessellationOptionsKit, HPS::Publish::ListBoxKit, HPS::Exchange::ExportSTEPOptionsKit, HPS::Exchange::ExportParasolidOptionsKit, HPS::Publish::RadioButtonKit, HPS::Exchange::ExportIGESOptionsKit, HPS::Exchange::ExportXMLOptionsKit, HPS::Publish::CheckBoxKit, HPS::Exchange::ExportU3DOptionsKit, HPS::Exchange::ExportSTLOptionsKit, HPS::Publish::ButtonKit, HPS::Exchange::ExportPRCOptionsKit, HPS::Publish::LinkKit, HPS::Exchange::ExportJTOptionsKit, HPS::Publish::SlideTableKit, HPS::Exchange::ExportACISOptionsKit, HPS::Publish::TableKit, HPS::Exchange::Export3MFOptionsKit, HPS::Publish::ImageKit, HPS::Publish::TextKit, HPS::Exchange::ModelFileImportOptionsKit, HPS::Publish::ViewKit, HPS::Exchange::TranslationOptionsKit, HPS::Publish::ArtworkKit, HPS::Publish::AnnotationKit, HPS::ComponentPath, HPS::Exchange::ImportOptionsKit, HPS::Parasolid::ExportOptionsKit, HPS::Exchange::NURBSConversionOptionsKit, HPS::Parasolid::LineTessellationKit, HPS::Exchange::Configuration, HPS::Publish::PageKit, HPS::Parasolid::FacetTessellationKit, HPS::Publish::DocumentKit, HPS::Parasolid::ImportOptionsKit, HPS::DWG::ImportOptionsKit, HPS::OOC::ImportOptionsKit, HPS::Sketchup::ImportOptionsKit, and HPS::Sketchup::ImportResultsKit.

◆ Equals()

virtual bool HPS::Operator::Equals ( Operator const &  in_that) const
virtualinherited

Tests this operator for equality against the parameter in_that.

Same as Operator::operator==

◆ GetAttachedView()

View HPS::Operator::GetAttachedView ( ) const
inherited

Returns the View the Operator is currently attached to.

◆ GetClassID()

intptr_t HPS::Object::GetClassID ( ) const
inherited

Returns a unique identifier that is shared by all objects of the same class.

Returns
A unique value shared by all objects of the same class.

◆ GetInstanceID()

intptr_t HPS::Object::GetInstanceID ( ) const
inherited

Returns an identifier that can be used to identify which instance of a class an object is.

Different keys and controls will return the same value if they are backed by the same database resource.

Returns
A value unique to an instance of an object and all objects that are backed by the same database resource.

◆ GetModifierTrigger()

ModifierKeys HPS::Operator::GetModifierTrigger ( ) const
inlineinherited

Gets the modifier trigger associated with this operator.

◆ GetMouseTrigger()

MouseButtons HPS::Operator::GetMouseTrigger ( ) const
inlineinherited

Gets the mouse trigger associated with this operator.

◆ GetName()

virtual HPS::UTF8 HPS::MouseWheelOperator::GetName ( ) const
inlinevirtual

Returns the name of the Operator.

Reimplemented from HPS::Operator.

◆ HasType()

bool HPS::Object::HasType ( HPS::Type  in_mask) const
inherited

This function indicates whether this Object has the given Type mask.

Parameters
in_maskThe Type mask to check against this Object.
Returns
true if this Object has the given Type mask, false otherwise.

◆ IsMouseTriggered()

virtual bool HPS::Operator::IsMouseTriggered ( MouseState const &  in_state)
inlinevirtualinherited

Returns true if the MouseButtons and ModifierKeys are active.

Reimplemented in HPS::SimpleWalkOperator.

Here is the call graph for this function:

◆ ObjectType()

HPS::Type HPS::Operator::ObjectType ( ) const
inlinevirtualinherited

Reimplemented from HPS::Object.

Here is the call graph for this function:

◆ OnKeyDown()

virtual bool HPS::Operator::OnKeyDown ( KeyboardState const &  in_state)
inlinevirtualinherited

This function is called whenever HPS receives a KeyboardEvent that signals a key was pressed.

Parameters
in_stateA KeyboardState object describing the current keyboard state.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::Exchange::MeasurementOperator, HPS::AnnotationOperator, HPS::MarkupOperator, HPS::SimpleWalkOperator, and HPS::FlyOperator.

◆ OnKeyUp()

virtual bool HPS::Operator::OnKeyUp ( KeyboardState const &  in_state)
inlinevirtualinherited

This function is called whenever HPS receives a KeyboardEvent that signals a key was released.

Parameters
in_stateA KeyboardState object describing the current keyboard state.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::SimpleWalkOperator, and HPS::FlyOperator.

◆ OnModelAttached()

virtual void HPS::MouseWheelOperator::OnModelAttached ( )
virtual

This function is called whenever a model is attached to the view that is attached to this operator.

If no view is attached to this operator, this function will not be called.

Reimplemented from HPS::Operator.

◆ OnModelDetached()

virtual void HPS::Operator::OnModelDetached ( )
inlinevirtualinherited

This function is called whenever a model is detached from the view that is attached to this operator.

If no view is attached to this operator, this function will not be called.

◆ OnMouseDown()

virtual bool HPS::Operator::OnMouseDown ( MouseState const &  in_state)
inlinevirtualinherited

This function is called whenever HPS receives a MouseEvent that signals a mouse button was pressed.

Parameters
in_stateA MouseState object describing the current mouse state.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::Exchange::MeasurementOperator, HPS::NavigationCubeOperator, HPS::AxisTriadOperator, HPS::HandlesOperator, HPS::AnnotationOperator, HPS::MarkupOperator, HPS::CuttingSectionOperator, HPS::SimpleWalkOperator, HPS::FlyOperator, HPS::TurntableOperator, HPS::HighlightOperator, HPS::SelectOperator, HPS::ConstructRectangleOperator, HPS::ZoomOperator, HPS::RelativeOrbitOperator, HPS::OrbitOperator, HPS::PanOperator, and HPS::PanOrbitZoomOperator.

◆ OnMouseEnter()

virtual bool HPS::Operator::OnMouseEnter ( MouseState const &  in_state)
inlinevirtualinherited

This function is called whenever HPS receives a MouseEvent that signals the mouse entered the window.

Parameters
in_stateA MouseState object describing the current mouse state.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::SimpleWalkOperator.

◆ OnMouseLeave()

virtual bool HPS::Operator::OnMouseLeave ( MouseState const &  in_state)
inlinevirtualinherited

This function is called whenever HPS receives a MouseEvent that signals the mouse left the window.

Parameters
in_stateA MouseState object describing the current mouse state.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::SimpleWalkOperator.

◆ OnMouseMove()

virtual bool HPS::Operator::OnMouseMove ( MouseState const &  in_state)
inlinevirtualinherited

This function is called whenever HPS receives a MouseEvent that signals the mouse moved.

Parameters
in_stateA MouseState object describing the current mouse state.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::Exchange::MeasurementOperator, HPS::NavigationCubeOperator, HPS::AxisTriadOperator, HPS::HandlesOperator, HPS::AnnotationOperator, HPS::MarkupOperator, HPS::CuttingSectionOperator, HPS::SimpleWalkOperator, HPS::FlyOperator, HPS::TurntableOperator, HPS::ConstructRectangleOperator, HPS::ZoomOperator, HPS::RelativeOrbitOperator, HPS::OrbitOperator, HPS::PanOperator, and HPS::PanOrbitZoomOperator.

◆ OnMouseUp()

virtual bool HPS::Operator::OnMouseUp ( MouseState const &  in_state)
inlinevirtualinherited

This function is called whenever HPS receives a MouseEvent that signals a mouse button was released.

Parameters
in_stateA MouseState object describing the current mouse state.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::Exchange::MeasurementOperator, HPS::NavigationCubeOperator, HPS::AxisTriadOperator, HPS::HandlesOperator, HPS::MarkupOperator, HPS::CuttingSectionOperator, HPS::SimpleWalkOperator, HPS::FlyOperator, HPS::TurntableOperator, HPS::HighlightAreaOperator, HPS::SelectAreaOperator, HPS::ZoomBoxOperator, HPS::ConstructRectangleOperator, HPS::ZoomOperator, HPS::RelativeOrbitOperator, HPS::OrbitOperator, HPS::PanOperator, and HPS::PanOrbitZoomOperator.

◆ OnMouseWheel()

virtual bool HPS::MouseWheelOperator::OnMouseWheel ( HPS::MouseState const &  in_state)
virtual

This function is called whenever HPS receives a MouseEvent that signals the mouse wheel was scrolled.

Parameters
in_stateA MouseState object describing the current mouse state.
Returns
true if the input event was handled, false otherwise.

Reimplemented from HPS::Operator.

◆ OnTextInput()

virtual bool HPS::Operator::OnTextInput ( HPS::UTF8 const &  in_text)
inlinevirtualinherited

This function is called whenever HPS receives a TextInputEvent that signals text was entered.

Parameters
in_textThe text entered.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::AnnotationOperator, and HPS::MarkupOperator.

◆ OnTimerTick()

virtual bool HPS::Operator::OnTimerTick ( HPS::TimerTickEvent const &  in_event)
inlinevirtualinherited

This function is called whenever HPS receives a TimerTickEvent.

Parameters
in_eventA TimerTickEvent object describing the current event state.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::CuttingSectionOperator, HPS::SimpleWalkOperator, HPS::WalkOperator, and HPS::FlyOperator.

◆ OnTouchDown()

virtual bool HPS::Operator::OnTouchDown ( TouchState const &  in_state)
inlinevirtualinherited

This function is called whenever HPS receives a TouchEvent that signals the device was touched.

Parameters
in_stateA TouchState object describing the current touch state.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::Exchange::MeasurementOperator, HPS::NavigationCubeOperator, HPS::AxisTriadOperator, HPS::HandlesOperator, HPS::AnnotationOperator, HPS::MarkupOperator, HPS::CuttingSectionOperator, HPS::SimpleWalkOperator, HPS::FlyOperator, HPS::ZoomFitTouchOperator, HPS::TurntableOperator, HPS::HighlightOperator, HPS::SelectOperator, HPS::ConstructRectangleOperator, HPS::ZoomOperator, HPS::RelativeOrbitOperator, HPS::OrbitOperator, HPS::PanOperator, and HPS::PanOrbitZoomOperator.

◆ OnTouchMove()

virtual bool HPS::Operator::OnTouchMove ( TouchState const &  in_state)
inlinevirtualinherited

This function is called whenever HPS receives a TouchEvent that signals a point of contact has moved.

Parameters
in_stateA TouchState object describing the current touch state.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::Exchange::MeasurementOperator, HPS::NavigationCubeOperator, HPS::AxisTriadOperator, HPS::HandlesOperator, HPS::AnnotationOperator, HPS::MarkupOperator, HPS::CuttingSectionOperator, HPS::SimpleWalkOperator, HPS::FlyOperator, HPS::TurntableOperator, HPS::ConstructRectangleOperator, HPS::ZoomOperator, HPS::RelativeOrbitOperator, HPS::OrbitOperator, HPS::PanOperator, and HPS::PanOrbitZoomOperator.

◆ OnTouchUp()

virtual bool HPS::Operator::OnTouchUp ( TouchState const &  in_state)
inlinevirtualinherited

This function is called whenever HPS receives a TouchEvent that signals a point of contact has been released.

Parameters
in_stateA TouchState object describing the current touch state.
Returns
true if the input event was handled, false otherwise.

Reimplemented in HPS::Exchange::MeasurementOperator, HPS::NavigationCubeOperator, HPS::AxisTriadOperator, HPS::HandlesOperator, HPS::AnnotationOperator, HPS::MarkupOperator, HPS::CuttingSectionOperator, HPS::SimpleWalkOperator, HPS::FlyOperator, HPS::ZoomFitTouchOperator, HPS::TurntableOperator, HPS::HighlightAreaOperator, HPS::SelectAreaOperator, HPS::ZoomBoxOperator, HPS::ConstructRectangleOperator, HPS::RelativeOrbitOperator, HPS::OrbitOperator, HPS::PanOperator, and HPS::PanOrbitZoomOperator.

◆ OnViewAttached()

virtual void HPS::MouseWheelOperator::OnViewAttached ( )
virtual

This function is called whenever a view is attached to this operator.

Reimplemented from HPS::Operator.

◆ OnViewDetached()

virtual void HPS::Operator::OnViewDetached ( )
inlinevirtualinherited

This function is called whenever a view is detached from this operator.

Reimplemented in HPS::Exchange::MeasurementOperator, HPS::Exchange::CommonMeasurementOperator, HPS::NavigationCubeOperator, HPS::HandlesOperator, HPS::AnnotationOperator, HPS::MarkupOperator, HPS::CuttingSectionOperator, and HPS::FlyOperator.

◆ operator!=()

virtual bool HPS::Operator::operator!= ( Operator const &  in_that) const
virtualinherited

Tests this operator for non-equality against the parameter in_that.

◆ operator==()

virtual bool HPS::Operator::operator== ( Operator const &  in_that) const
virtualinherited

Tests this operator for equality against the parameter in_that.

Same as Operator::Equals.

◆ Reset()

virtual void HPS::Object::Reset ( )
virtualinherited

Resets this object to its initial, uninitialized state.

Reimplemented in HPS::EventHandler, HPS::EventDispatcher, HPS::World, HPS::HighlightSearchResults, HPS::HighlightSearchResultsIterator, HPS::SelectionResults, HPS::SelectionResultsIterator, HPS::FontSearchResults, HPS::FontSearchResultsIterator, HPS::SearchResults, and HPS::SearchResultsIterator.

◆ SetModifierTrigger()

void HPS::Operator::SetModifierTrigger ( ModifierKeys  in_modifiers)
inlineinherited

Sets the modifier trigger associated with this operator.

Parameters
in_modifiersThe modifier keys that are used to trigger this operator.

◆ SetMouseTrigger()

void HPS::Operator::SetMouseTrigger ( MouseButtons  in_buttons)
inlineinherited

Sets the mouse trigger for this operator.

◆ Type()

virtual HPS::Type HPS::Object::Type ( ) const
virtualinherited

This function returns the true type of the underlying object.

This function is useful for finding the type of smart pointer objects that have been cast to more generic types.

Returns
The true type of the object in question.

Reimplemented in HPS::UpdateOptionsControl, HPS::HighlightControl, HPS::SelectionOptionsControl, HPS::OffScreenWindowOptionsControl, HPS::ApplicationWindowOptionsControl, HPS::StandAloneWindowOptionsControl, HPS::AttributeLockControl, HPS::WindowInfoControl, HPS::DebuggingControl, HPS::SubwindowControl, HPS::ContourLineControl, HPS::VisualEffectsControl, HPS::TransformMaskControl, HPS::PostProcessEffectsControl, HPS::DrawingAttributeControl, HPS::HiddenLineAttributeControl, HPS::PerformanceControl, HPS::NURBSSurfaceAttributeControl, HPS::ConditionControl, HPS::StyleControl, HPS::PortfolioControl, HPS::MaterialMappingControl, HPS::TextureMatrixControl, HPS::ModellingMatrixControl, HPS::CurveAttributeControl, HPS::EdgeAttributeControl, HPS::LineAttributeControl, HPS::TextAttributeControl, HPS::CuttingSectionAttributeControl, HPS::CylinderAttributeControl, HPS::LightingAttributeControl, HPS::SphereAttributeControl, HPS::MarkerAttributeControl, HPS::CullingControl, HPS::ColorInterpolationControl, HPS::TransparencyControl, HPS::SelectabilityControl, HPS::CameraControl, HPS::VisibilityControl, HPS::BoundingControl, HPS::Kit, and HPS::Control.

◆ UpdateZoomLimit()

void HPS::MouseWheelOperator::UpdateZoomLimit ( )

Call when scene bounds changes to update the mouse wheel zoom limit.

Member Data Documentation

◆ modifier_trigger

HPS::ModifierKeys HPS::Operator::modifier_trigger
protectedinherited

◆ mouse_trigger

HPS::MouseButtons HPS::Operator::mouse_trigger
protectedinherited

◆ staticType

const HPS::Type HPS::Operator::staticType = HPS::Type::Operator
staticinherited

◆ zoom_limit

float HPS::MouseWheelOperator::zoom_limit
private

◆ zoom_modifier

HPS::ModifierKeys HPS::MouseWheelOperator::zoom_modifier
private

◆ zoom_type

ZoomType HPS::MouseWheelOperator::zoom_type
private
The documentation for this class was generated from the following file:
